Product Type	Tablet
Brand	GoGen
Model	TA 7650 QUAD
Processor	Quad-core 1.3 GHz
Operating System	Android 8.0 (Oreo)
Display Size	7.0 inches
Display Resolution	1024 x 600 pixels
RAM	1 GB
Storage	16 GB (microSD expandable up to 32 GB)
Battery Capacity	4000 mAh Lithium-ion
Dimensions	197 x 118 x 10.2 mm
Weight	310 g
Cameras	Rear: 2 MP, Front: 0.3 MP
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0, Micro USB, 3.5mm audio jack
Sensors	Accelerometer, G-sensor
Power Supply	5V/2A via USB charger (included)
Cleaning Instructions	Wipe with a soft dry cloth; avoid liquids and solvents
Safety Precautions	Do not expose to moisture or extreme temperatures; use only approved chargers
Repairability	Parts such as battery and screen are replaceable by qualified service
General Information	For home/office use; no cellular connectivity

Frequently Asked Questions - TA 7650 QUAD GoGen

How do I turn on the GoGen TA 7650 QUAD tablet?

Press and hold the power button located on the side of the device for about 3 seconds until the screen lights up.

How to insert a microSD card?

Locate the microSD card slot on the edge of the tablet. Gently push the card into the slot until it clicks. To remove, push it in again to eject.

How to connect to Wi-Fi?

Go to Settings > Wi-Fi, toggle Wi-Fi on, select your network, and enter the password if required.

Why is my tablet charging slowly?

Use the included charger and cable. Charging time may be longer if the device is in use or if the battery is fully drained. A full charge takes about 4-5 hours.

How to take a screenshot?

Press and hold the power button and volume down button simultaneously for about 2 seconds until you see a flash.

What is the maximum supported microSD card size?

The tablet supports microSD cards up to 32 GB.

How to reset the tablet to factory settings?

Go to Settings > Backup & reset > Factory data reset. This will erase all data, so back up important files first.

Can I use the tablet for video calls?

Yes, the tablet has a front camera (0.3 MP) suitable for basic video calls using apps like Skype or Zoom.

How to clean the screen?

Use a soft, lint-free cloth slightly dampened with water. Do not spray liquid directly on the screen. Avoid alcohol or abrasive cleaners.

Why does the tablet freeze or run slowly?

Try closing unused apps, restart the device, or clear cache in Settings > Storage. If persistent, consider a factory reset.

USER MANUAL TA 7650 QUAD GoGen

Abstract logo design with a stylized white 'S' inside a circle on black background (no text or symbols)

TA 7650 QUAD

GoGEN

BEZPEČNOSTNÍ UPOZORNĚNÍ

Beach scene with multiple people jumping over rocky cliffs under a clear blue sky (no text or symbols visible)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Beach scene with people jumping over rocky cliffs under a clear blue sky (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste, and a solid rectangle below (no text or labels)

Beach scene with people jumping over rocky cliffs under a clear blue sky (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste, and a solid rectangle below (no text or labels)

This manual includes important information on safety precautions and corrects usage of this product. To prevent any accident, please make sure that you have read this manual carefully before you use this product.

• Do not keep this product in a place with a high temperature, humidity or too much dust. Especially that does not place this product in a car with all windows closed in summer, and keep out of direct sunlight.
• Avoid dropping or shocking this product heavily and avoid shaking the display violently, otherwise, the display may be damaged or cannot play correctly.
• Please choose a suitable volume. Avoid excessively high volume when using a headset. If you feel any ear noise, please decrease the volume or stop using.
• Do not break the connection suddenly when this player is conducting formatting, uploading or downloading operations, otherwise there may be program errors.
• This company will not undertake any responsibility for any memory loss due to product damage, repairing or other reasons.
• Do not disassemble this product by yourself and do not clean the surface of this product with alcohol, thinner or benzene.
• Do not use this product in a place where the using of electronic device is prohibited, such as on a plane.
• Do not use this product while driving a car or walking on a street, otherwise traffic accident may occur.
• This company reserves the right to make any improvement on this product. No further notice will be provided on any variation on the specification and design of this product!
  • This product has no water-proof function

1. MAIN FUNCTIONS OVERVIEW

• Wireless network exploring via WIFI, etc.
  • Google KitKat Android OS.
• All-directional G-Sensor games supported.
• Different applications (.apk) supported.
• Various of audios supported.
  • 1080p videos supported.
• Pictures browsing with zooming and slide-show.
  • E-book reading with bookmark function.
  • Photographing and Video recording
  • Built-in voice recorder.
  • Built-in multiple languages.
  • High-speed USB connection with PC.
  • External Micro-SD card supported.

2. BASIC OPERATION

2.1 Power On

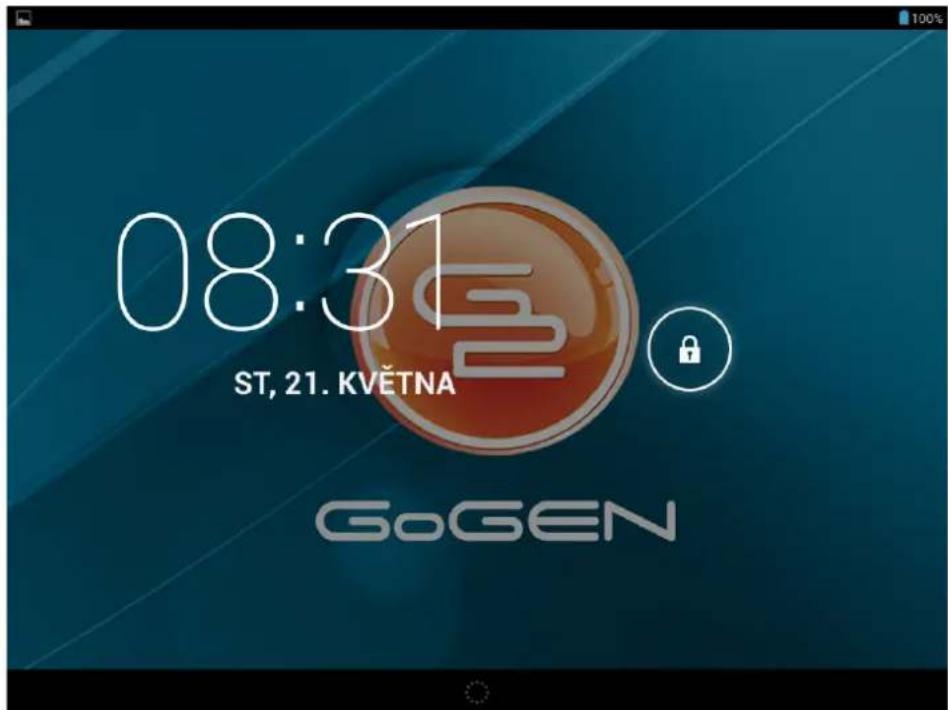

Press POWER button for around 2 seconds and the device will start up and display the lock screen. Slide the lock to unlock Home Screen.

2.2 Standby

When the device is working, press POWER button shortly to shut the display and it goes into standby mode. Press POWER button again to awake the device, and slide the lock to continue.

2.3 Power Off

Press POWER button for around 2 second and choose OK in the popup.

2.4 Reset

If the device is halted or crashed, and can not be turned off by POWER button, users can use RESET function.

2.5 Recharging

When the device can not be turned on normally or shut down automatically, it may need to be recharged. Please use the correct charger as the manufacturer guides.

2.6 Home Screen

Tab to go to Home Screen.

2.7 Back Button

Tab ← to go to the previous page.

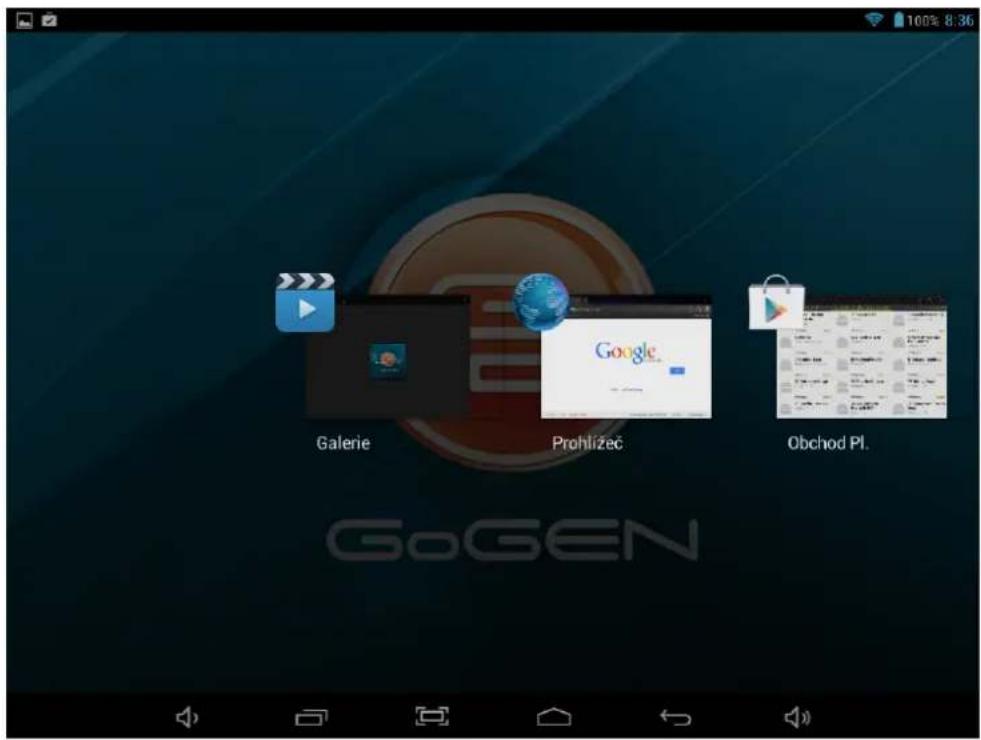

2.8 Recent Task

Tab to view recent tasks. Tap the task frame to open it, or long press it to remove from list.

2.9 Menu

Tab to view options.

2.10 Screen Capture

Tab ☐ to capture screenshot.

2.11 Applications

Tab ☐ to launch apps list. Slide to view all applications and widgets.

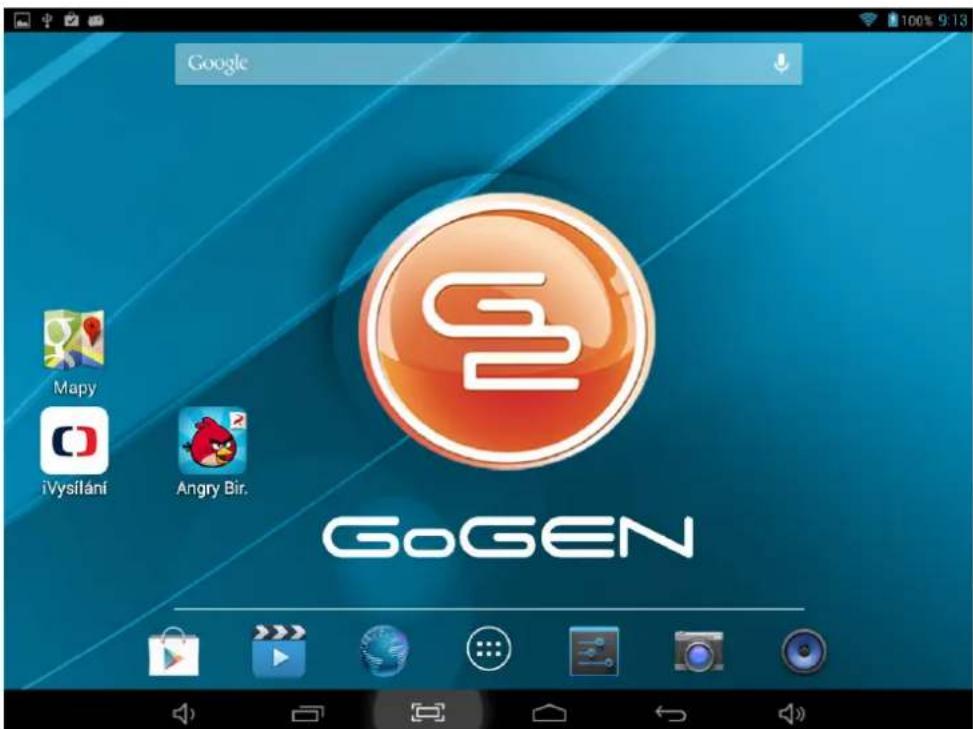

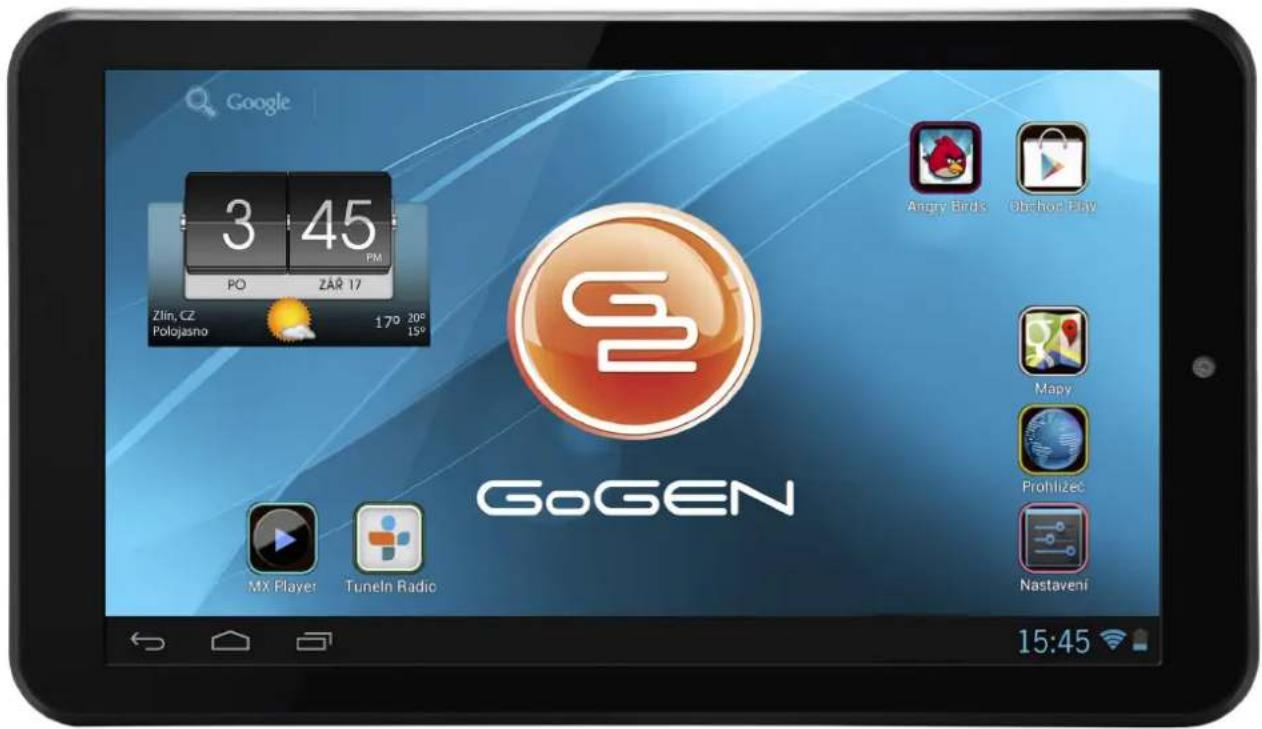

3. HOME SCREEN

There are several pages, slide to view more.

3.1 Add apps & widgets to Home Screen

Launch apps list, press icons and drag them to Home Screen. At Home Screen, press an icon to drag leftward or rightward to move it to other pages. Drag upwards to remove it from Home Screen.

3.2 Wallpaper

Long press blank of Home Screen, choose different wallpapers in the popup.

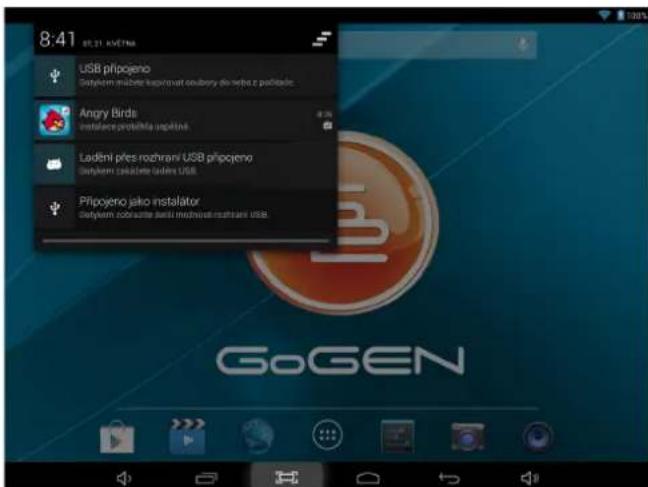

3.3 Notification Bar

Slide downwards of the top left corner of your screen to view notification bar, informing you active information. Slide downwards the top right corner of the screen to view status of brightness, setting, Wi-Fi, battery, airplane mode, etc.

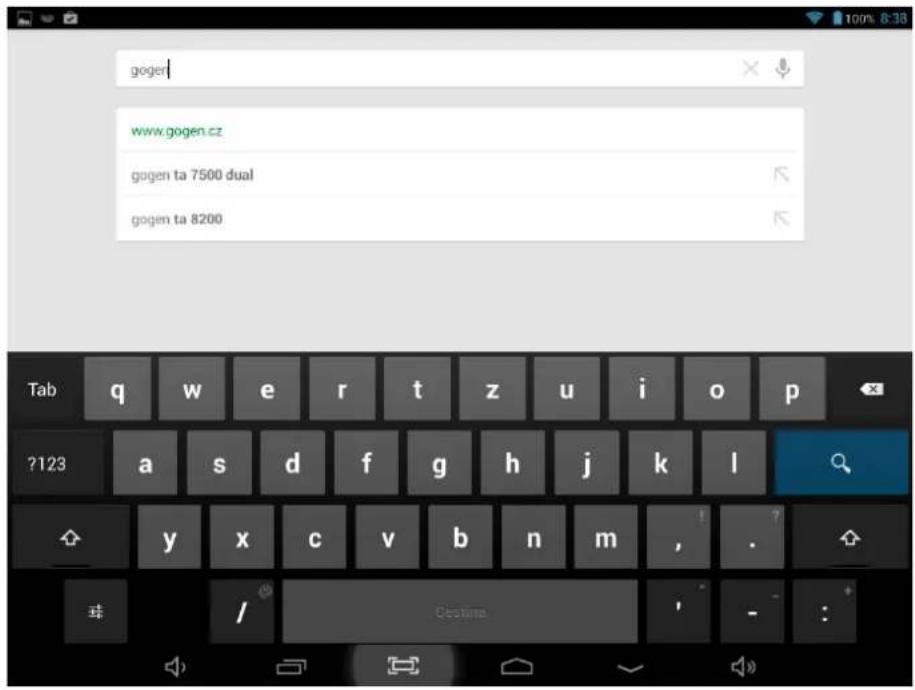

Tab to search information at local or internet. Voice Search is supported.

4. CONNECTING TO NETWORKS

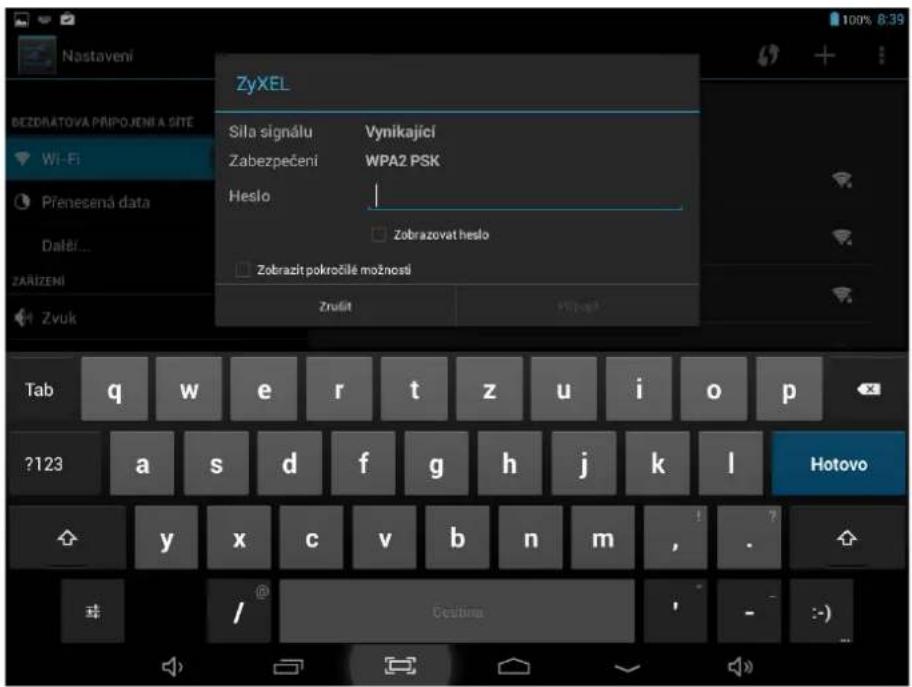

4.1 Connecting to Wi-Fi

- Tab the Settings Icon

- Slide Wi-Fi icon to the right (ON) to turn on Wi-Fi, the tablet will scan and offer a list of available Wi-Fi net-works. Tab the name of Wi-Fi to connect to it.

- If the Wi-Fi network doesn't have a password, the tablet will connect to it automatically. If the Wi-Fi network has a password, input it and tap connect.

• Turn off WIFI, and access More –Mobile networks.
  • Make sure Data enabled is ON.
• Connect 3G Dongle.
• Tab Network operators, and search networks.
• You can select mobile networks automatically.

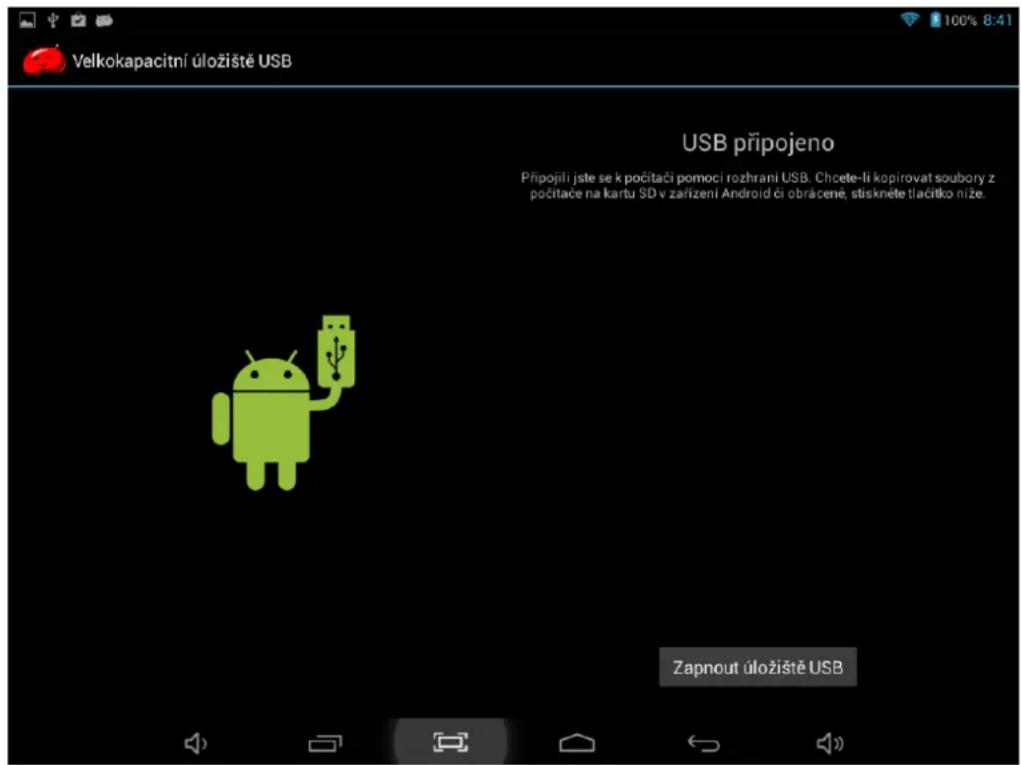

5. USB CONNECTION

The tablet can be connected to Window computers via a USB cable, and then you can transfer music, videos, pictures and other file in both directions. Operations are as follows"

• Use a USB cable to connect the tablet with PC.
• Tab Turn on USB storage to read storage of the tablet from PC. Now you can copy files back and forth.
• Tab Turn off USB storage to disconnect from PC, and remove the USB cable.

If above interface does not pop up, tab the icon 📄 top left of screen and choose USB connected in the popup.

6. APPLICATIONS

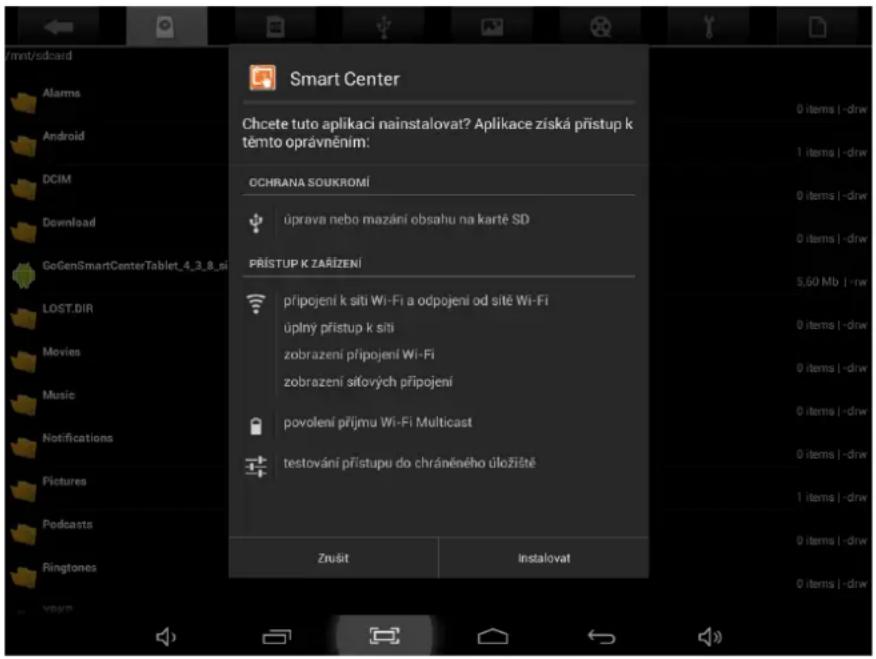

6.1 Install New Apps

6.1.1 To download & install apps from Google Play, just follow the instructions by system.
6.1.2 To install apps by APK files in tablet's storage.

Run File Manager, just find the location of apps' packages, and tab its name to install.

• To install applications which are not from Google Play, make sure Unknown source is ON. (Setting – Security – DEVICE ADMINISTRATION)
• If the application already exists in the tablet, system will inquire if you want to update previous version. Select Install to continue if you want.

6.2 Applications uninstall

6.2.1 Tab Setting – Apps – All.
6.2.2 Tab the application you want to remove.
6.2.3 Tab Uninstall.

6.3 Applications management.

6.2.1 Tab Setting – Apps – All.
6.3.2 Tab application and choose Force stop, Uninstall, Clear data or Move to SD.

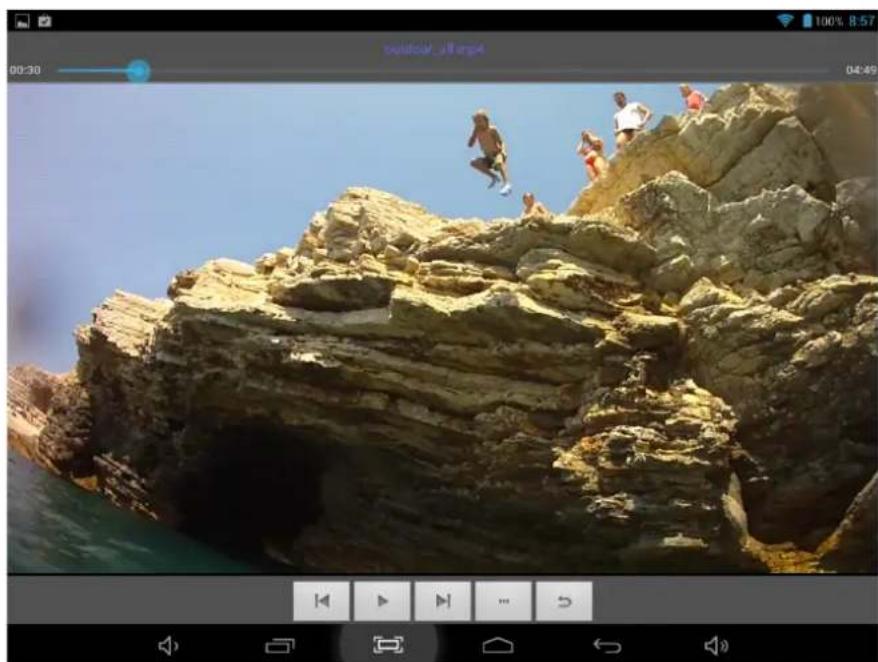

7. VIDEO PLAY

You can use the tablet's pre-installed VideoPlayer to enjoy movies & videos, or install other video apps to enrich your video play.

Beach scene with people jumping over rocky cliffs under a clear blue sky (no text or symbols visible)

7.1 Tab Video Player to enter the video player interface, or open the video files from File Manager directly.
7.2 The tablet supports many formats of video files.
7.3 Tab progress bar to go fast-forward or fast-rewind.
7.4 Tab to access video player settings.

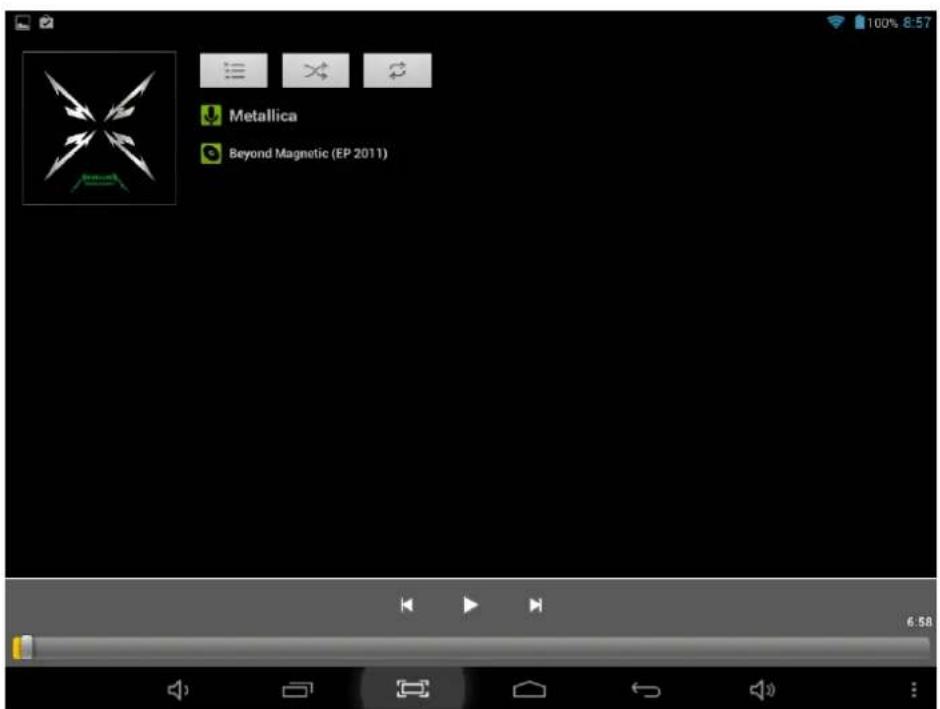

8. MUSIC PLAY

You can use the tablet's pre-installed Music Player to enjoy music, or install other audio apps.

8.1 Tab the Music player icon ⚙, to enter the music player interface, or open from File Manager directly.
8.2 The tablet supports many formats of audio files.
8.3 Tab the progress bar to go fast-forward, fast-rewind.
8.4 If there is no audio in the play list, system will automatically load the audio files from the storage of tablet.

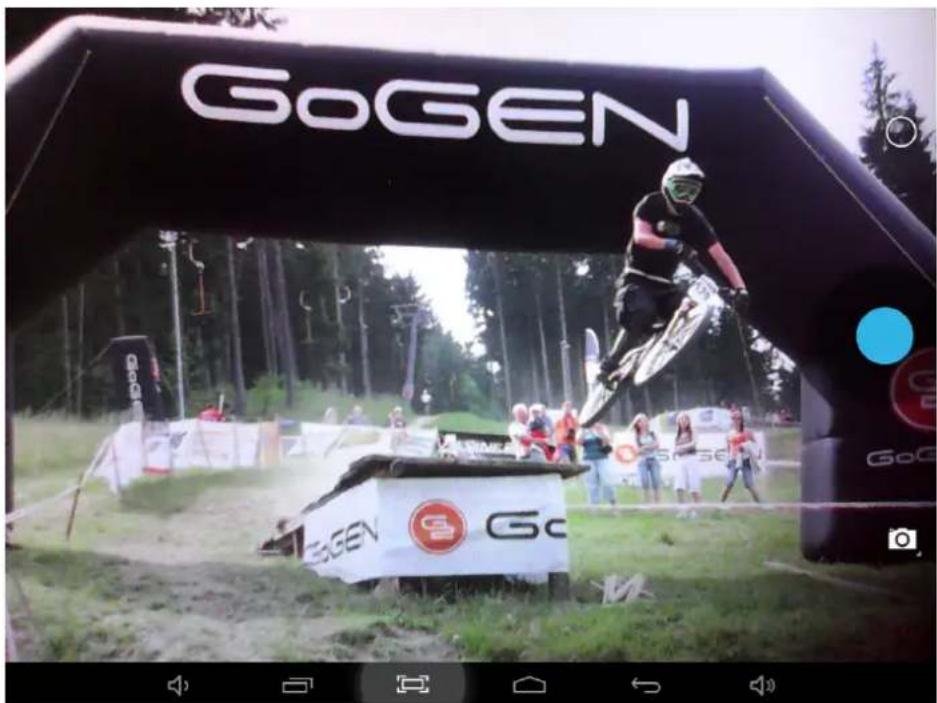

9. CAMERA

Tab the icon to access camera function.

9.1 Photos Mode

9.1.1 Click Blue Circle to take pictures.
9.1.2 Click to access photographing options.
9.1.3 Click to switch to video recording mode.

9.2 Video Recording Mode

9.2.1 Click Red Circle to start video recording, click it again to stop and save the video.
9.2.2 Click to access photographing options.
9.2.3 Click to switch to photos mode.

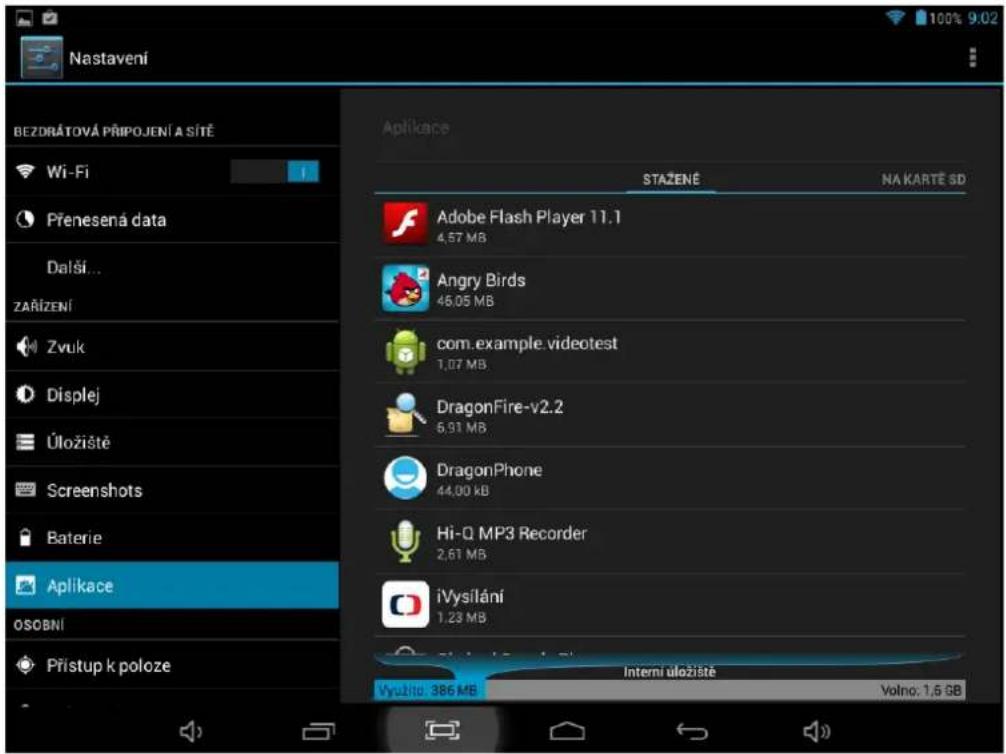

10. SYSTEM SETTINGS

Tab Setting icon enter system settings, including Wireless & networks, Sound, Display, Storage, Battery, Apps, Location, Security, Language/input, Backup/reset, Accounts, Date/time, Accessibility, Developer options and About tablet.

11. FAQ

Q: I don't read a foreign language, how can I change it back to English?

• Find setting icon and access Settings.
- Choose icon enter language&input setting, the first option is language setting.

Q: How can I change input?

- Access Setting – Language&input, and set default input.

Q: Why do some applications disappear from the tablet?

Some applications may be installed in external Micro-SD card, if you fetch out your Micro-SD card from the tablet, you will not see these apps.

Q: There are many popups of system error, what can I do?

• Restart the tablet by POWER button, or by RESET.
• If you have restarted the tablet and there are still error popups, you can check active applications to see if there is any unknown application, remove it if any.
• There may be virus in the device, please install security apps and protect your tablet.
• Contact with the supplier for further help.

12. ABOUT FIRMWARE

Firmware contained in the tablets provides the control program for the device, and it is offered by the original manufacturer. Flashing firmware (refer to rebuilding firmware into the device) is the final solution to serious system problems. For common breakdown you can just restart the device, or run factory reset. If system crashes appear continuously even you have run factory reset, you can flash firmware under professional guidance. The firmware preloaded in the device is a stable version for the tablet, please do not flash it with other versions of firmware unless absolute necessity. We DO NOT suggest any private firmware flashing without guidance of the original manufacturer, who is not responsible for any possible breakdown of the tablet caused by user's private firmware flashing.

SPECIFICATIONS

Screen Size / Resolution	7 inch / 1024 x	600 pxl
OS Android 4.4
Chipset Allwinner A	33,Quad Core
CPU ARM Cortex-A	7 @ 1,5GHz
	GPU Mali 400 MP2
	RAM 512 MB
Memory Storage 8 GB
Internet Connection	WiFi 802.11 b/g/n
Camera Camera	0.3 Mega P	xel (front)
Dimensions	Size	109 x 188 x 9 mm
	Net weight	267 g

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

WARNING: Do not use this product near water, in wet areas to avoid re or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tension.

Old electrical appliances, used batteries and accumulators disposal

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible

negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

ETA Inc. hereby declares that the product TA7650QUAD is in compliance with requirements and other relevant provisions of the R&TTE directive 1999/5/EC. The complete Declaration of Conformity can be found at http://www.gogen.cz/declaration_of_conformity
