| Product Type | Countertop Microwave Oven |
| Brand | Hyundai |
| Model | MWE2117W |
| Capacity | 21 Liters |
| Power Output | 700 Watts |
| Dimensions (W x D x H) | 455 x 345 x 270 mm |
| Weight | 10.5 kg |
| Power Supply | 230 V / 50 Hz |
| Functions | Microwave cooking, defrost, timer, 5 power levels |
| Control Type | Digital touch controls with LED display |
| Turntable | Yes, 270 mm glass turntable |
| Interior Light | Yes, LED interior light |
| Door Type | Drop-down door with handle |
| Child Lock | Yes |
| Cleaning and Maintenance | Wipe interior with damp cloth; clean turntable and grill in warm soapy water |
| Safety Features | Child lock, automatic shut-off, overheating protection |
| Spare Parts Availability | Glass turntable, roller ring, fuse, door seal available through authorized service |
| Repairability | Repairable by qualified technicians; spare parts available for major components |
Frequently Asked Questions - MWE2117W HYUNDAI
User questions about MWE2117W HYUNDAI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microwave in PDF format for free! Find your manual MWE2117W - HYUNDAI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MWE2117W by HYUNDAI.
USER MANUAL MWE2117W HYUNDAI
NÁVOD K POUŽITÍ
NÁVOD NA POUŽITIE
INSTRUKCJA OBSŁUGI
INSTRUCTION MANUAL
MIKROVLNNÁ TROUBA / MIKROVLNNÁ RÚRA /
MIKROFALÓWKA / MICROWAVE OVEN
INSTALACE TALÍŘE
INŠTALÁCIA TANIERA
Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
GENERAL SAFETY INSTRUCTIONS
- The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
- Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
- When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
- Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
- To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
- Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
- Use only original spare parts.
- This appliance is not intended for use by persons (including children) with reduced physical. Sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance. - Pay careful attention to the following "Special Safety Instructions for this unit".
SPECIAL SAFETY INSTRUCTIONS FOR THIS UNIT
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.
IMPORTANT SAFETY INSTRUCTIONS
1) Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2) It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy.
3) Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4) Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.
5) Only use utensils suitable for use in microwave ovens.
6) The oven should be cleaned regularly and any food deposits should be removed.
7) Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8) When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9) If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10) Do not overcook food.
11) Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12) Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13) Install and locate this oven only in accordance with the installation instructions provided. To reduce the risk of fire, electric shock, injury to persona or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:
14) Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
15) Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
16) The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked efore consumption, in order to avoid burns.
17) Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
18) Do not use this oven near water, in a wet basement or near a swimming pool.
19) The temperature of accessible surfaces may be high when the appliance is operating. Keep cord away from heated surface, and do not cover any events on the oven.
20) Do not let cord hang over edge of table or counter.
To Reduce the Risk of Injury to Persóna Grounding Installation
DANGER
Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.
WARNING
Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is
necessary to use an extension cord, use only a 3-wire extension cord.
Two-round-pin plug
- A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
- If a long cord set or extension cord is used.
1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a groundingtype 3-wire cord.
3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or triplex over unintentionally.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.
Utensil Test:
- Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
- Turn on maximum power for 1 minute.
- Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
- Do not exceed 1 minute cooking time.
- Take out the utensil from the microwave oven.
Materials you can use in microwave oven
| Utensils Remarks | |
| Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. | |
| Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. | |
| Dinnerware Microwave-safe only. Follow manufacture's instrucztions. Do not use cracked or chipped dishes. | |
| Glassjar Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. | |
| Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. | |
| Oven cooking bags Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape. | |
| Paper plates and cups Use for short-term cooking/warming only. Do not leave oven unattended while cooking. | |
| Paper towels Use to cover food for reheating and absorbing fat. Use with pervision for a short-term cooking only. | |
| Parchment paper Use as a cover to prevent splattering or a wrap for steaming. | |
| Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. | |
| Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. | |
| Thermometers Microwave-safe only (meat and candy thermometers). | |
| Wax paper Use as a cover to prevent splattering and retain moisture. | |
Materials to be avoided in microwave oven
| Utensils Remarks | |
| Aluminum tray | May cause arcing. Transfer food into microwave-safe dish. |
| Food carton with metal handle | May cause arcing. Transfer food into microwave-safe dish. |
| Metal or metaltrim-med utensils | Metal shields the food from microwave energy. Metal trim may cause arcing. |
| Metal twist ties | May cause arcing and could cause a fire in the oven. |
| Paper bags | May cause a fire in the oven. |
| Plastic foam | Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. |
| Wood | Wood will dry out when used in the microwave oven and may split or crack. |
DESCRIPTION OF THE CONTROLS
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1

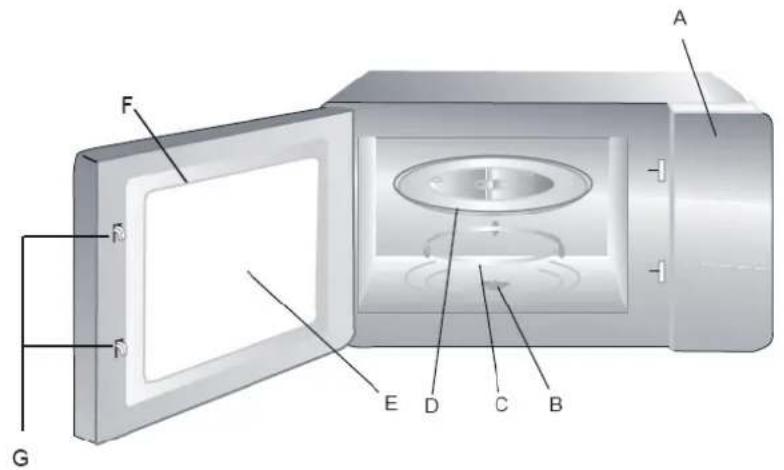

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Shut off oven power if the door is opened during operation.

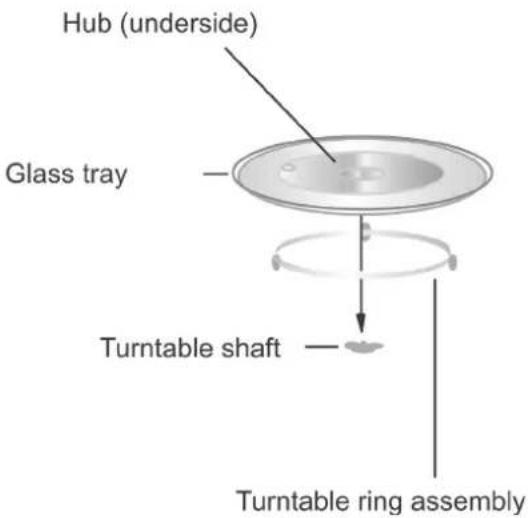

TURNTABLE INSTALLATION
a. Open the oven door and insert the turnable ring. Put the glass tray on the top of the turntable ring, so that the central point of the glass tray sits on the turntable shaft at the bottom of the oven.
b. Never place the glass tray upside down. The glass tray should be restricted.
c. Both glass tray and turntable ring assembly must always be used during cooking,
d. All food and containers of food are always placed on the glass tray for coking.
e. If glass tray or turntable ring assembly cracks or breaks, contact nearest autorized service center.
INSTRUCTION FOR USE
Installation
Take microwave oven out of the box. Remove all packing material and accessories empty the inside of the oven. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface.
Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.
1/ Select a level surface that provide enough open space for the intake and outlet vents.
2/ minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.
3/ - Leave a minimum clearance of 12 inches (30cm) above the oven.
- Do not remove the legs from the bottom of the oven.
- Blocking the intake and outlet openings can damage the oven.
- Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
4/ Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.
WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.
Don't touch on!
CONTROL
This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.
1. Clock Setting
When the microwave oven is electrified, the oven will display „0:00“, buzzer will ring once.
1) Press „CLOCK/PRE-SET“, the hour figure flash.
2) Turn „ to adjust the hour figures, the input time should be within 0--23.
3) Press „CLOCK/PRE-SET“, the minute figures will flash.
4) Turn "to adjust the minute figures, the input time should be within 0--59.
5) Press „CLOCK/PRE-SET“ to finish clock setting. „:“ will flash.
Note:
1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press „STOP/CLEAR“, the oven will go back to the previous status automatically.
2. Microwave Cooking
1) Press the „MICROWAVE“ key once, and „P100“ display.
2) Press „MICROWAVE“ for times or turn „, to select the microwave power from 100% to 10%. „P100“, „P80“, „P50“, „P30“, „P10“ will display in order.
3) Press „START/+30SEC./CONFIRM“ to confirm.
4) Turn "to adjust the cooking time. (The time setting should be 0:05-95:00.)
5) Press „START/+30SEC./CONFIRM“ to start cooking.
NOTE: the step quantities for the adjustment time of the coding switch are as follow:
Microwave Power Chart
| Microwave power 100% 80% 50 | % 30% | 10% | |||
| Display P100 P80 P50 P30 P10 |
3. Speedy Cooking
1) In waiting state, press „START/+30SEC./CONFIRM“ key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.
2) During the microwave cooking and time defrost process, press „START/+30SEC./CONFIRM“ to increase the cooking time.
3) Under the states of auto menu and weight defrost, cooking time cannot be increased by pressing „START/+30SEC./CONFIRM“
4) In waiting states, turn „left to choose the cooking time directly. After choosing the time, press „START/+30SEC./CONFIRM“ to start cooking. The microwave power is 100%.
4. Defrost By Weight
1) Press „W.T./TIME DEFROST“ once, the screen will display „dEF1“.
2) Turn "to select the food weight. The range of weight is 100-2000g.
3) Press „START/+30SEC./CONFIRM“ key to start defrosting.
5. Defrost By Time
1) Press „W.T./TIME DEFROST“ twice, the screen will display „dEF2“.
2) Turn „,” to select the cooking time. The maximum cooking time is 95 minutes.
3) Press „START/+30SEC./CONFIRM“ key to start defrosting.
6. Multi-Stage Cooking
Two stages can be maximally set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.
Note: Auto menu cannot be set as one of the multi-stage.
Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:
1) Press „W.T./TIME DEFROST“ twice, the screen will display „dEF2“.
2) Turn, "to adjust the defrost time of 5 minutes.
3) Press „MICROWAVE“ once.
4) Turn „ „ to choose 80% microwave power till „P80“ display.
5) Press „START/+30SEC./CONFIRM“ to confirm.
6) Turn "to adjust the cooking time of 7 minutes;
7) Press „START/+30SEC./CONFIRM“ to start cooking.
7. Pre-set Function
1) Set the clock first. (Consult the instruction of clock setting.)
2) Input the cooking program. Two stages can be set at most. Defrosting should not be set in preset function.
Example: if you want to cook with 80% microwave power for 7 minutes.
a. Press „MICROWAVE“ once;
b. Turn „to choose 80% microwave power till „P80“ display;
c. Press „START/+30SEC./CONFIRM“ to confirm;
d. Turn "to adjust the cooking time of 7 minutes;
After the above steps, please do not press „START/+30SEC./CONFIRM“. Then do as following:
3) Press „CLOCK/PRE-SET“. The hour figures flash;
4) Turn „to adjust the hour figures, the input time should be within 0--23.
5) Press „CLOCK/PRE-SET“, the minute figures will flash.
6) Turn, "to adjust the minute figures, the input time should be within 0--59.
7) Press „START/+30SEC./CONFIRM“ to finish setting. „:“ will light, buzzer will ring twice when the time arrives, then cooking will start automatically.
Note: clock must be set first. Otherwise, pre-set function will not work.
8. Lock-out Function for Children
Lock: In waiting state, press „STOP/CLEAR“ for 3 seconds, there will be a long „beep“ denoting entering the children-lock state and screen will display the locked indicator.
Lock quitting: In locked state, press „STOP/CLEAR“ for 3 seconds, there will be a long „beep“ denoting that the lock is released.
9. Auto Menu
1) In waiting states, turn "right to choose the menu from „A-1" to „A-8";
2) Press „START/+30SEC./CONFIRM“ to confirm the menu you choose;
3) Turn, "to choose th food weight;
4) Press „START/+30SEC./CONFIRM“ to start cooking;
5) After cooking finish, the buzzer sounds five times.
| Menu Weight (g) Display Power | |||
A - 1  Reheat | 200 200 | 100 % | |
| 400 400 | |||
| 600 600 | |||
A - 2  Vegetable | 200 200 | 100 %300 300 | |
| 400 400 | |||
A - 3  Fish | 250 250 | 80 %350 350 | |
| 450 450 | |||
A - 4  Meat | 250 250 | 100 %350 350 | |
| 450 450 | |||
A - 5  Pasta | 50 (with water 450 g) 50 | 80 % | |
| 100 (with water 800 g) 100 | |||
A - 6  Potato | 200 200 | 100 %400 400 | |
| 600 600 | |||
A - 7  Pizza | 200 200 | 100 % | |
| 400 400 | |||
A - 8  Soup | 200 200 | 80 % | |
| 400 400 | |||
10. Inquiring Function
1) In cooking states of microwave, press „MICROWAVE“, the current power will be displayed for 2-3 seconds.
2) In pre-set state, press „CLOCK/PRE-SET“ to inquire the time for delay start cooking. The pre-set time will flash for 2-3 seconds, then the oven will turn back to the clock display.
3) During cooking state, press „CLOCK/PRE-SET“ to check the current time. It will be displayed for 2-3 seconds.
11. Specification
1) The buzzer will sound once when turning the knob at the beginning;
2) „START/+30SEC./CONFIRM“ must be pressed to continue cooking if the door is opened during cooking;
3) Once the cooking programme has been set, „START/+30SEC./CONFIRM“ is not pressed in 1 minutes. The current time will be displayed. The setting will be cancelled.
4) The buzzer sounds once by efficient press, inefficient press will be no response.
5) The buzzer will sound five times to remind you when cooking is finished.
CLEANING
Be sure to disconnect the oven from the power supply.
- Clean the inside of the oven after using with a slightly damp cloth.
- Clean the accessories in the usual way in soapy water.
- The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
TROUBLE SHOOTING
| Normal | |
| Microwave oven interfering TV reception. | Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vaccum cleaner and electric fan. It is normal. |
| Dim oven light. | In low power microwave cooking, oven light may become dim. It is normal. |
| Steam accumulating on door, hot air out of vents. | In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal. |
| Oven stated accidentally with no food in. | It is forbidden to run the unit without any food inside. It is very dangerous. |
| Trouble Possible cause Remedy | ||
| Oven can not be started. | (1) Power cord not plugged in tightly. | Unplug. Then plug again after 10 seconds. |
| (2) Fuse blowing or circuit breaker works. | Replace fuse or with other electrical appliances. | |
| (3) Trouble with outlet. | Test outlet with other electrical appliances. | |
| Oven does not heat. (4) Door not closed well. Close door well. | ||
| Glass turntable makes noise when microwave oven operates. | (5) Dirty roller rest and oven bottom. | Refer to „Cleaning“ to clean dirty parts. |
GUARANTEE
The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.
If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.
The guarantee lapses:
- in case of unauthorized tampering
- destroyed unit by natural disaster
- any changes in guarantee list by unauthorized person
- empty guarantee list or damage this list
- using this machine for other purpose that usual, especially for professional or other commercial use
- with apparent mechanic defects
The guarantee does not apply on goods damaged due to unusual usage.
The damage of accessories is not an automatic reason for replacing the entire device free of charge.
This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.
After the expiry of the guarantee
After the expiry of the guarantee repairs can be carried by the competent dealer or repair by the authorized service.
TECHNICAL SPECIFICATIONS
- Microwave oven
- Electronic control
- Capacity 17 litre
- Quick start
- Defrost function
- 8 Automatic levels
- Children lock
- 24-hours clock
- Microwave output 700 w
- Turtable diameter 245 mm
- Color: white
- Power drain: 1150 W
- Noise level < 60 dB
- Power: 230 V \~ 50 Hz
- Size (w x h x l): 44 x 25,8 x 33,5 cm
- Weight: 10 kg
We reserve the right to change technical specifications.
WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tension.
Liquidation of old electrical and electronic devices
This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. Please transport the product to the respective collection point where the electric and electronic device will be recycled. Collection points for the used electric and electronic devices exist in the European Union and also in other European countries. By proper liquidation of the product you can prevent possible negative impacts on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product. Recycling of materials contributes to protection of natural resources. Therefore please do not throw the old electric and electronic devices in the household wastes. For more detailed information please contact your local authority, any service company liquidating household waste or the store where you have bought the product.
POZNÁMKY / NOTES / NOTATKY:
POZNÁMKY / NOTES / NOTATKY:
HYUNDAI
CORPORATION
Seoul, Korea
- INSTALACE TALÍŘE
- INŠTALÁCIA TANIERA
- GENERAL SAFETY INSTRUCTIONS
- SPECIAL SAFETY INSTRUCTIONS FOR THIS UNIT
- PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
- ADDENDUM
- IMPORTANT SAFETY INSTRUCTIONS
- TO REDUCE THE RISK OF INJURY TO PERSÓNA GROUNDING INSTALLATION
- DANGER
- WARNING
- UTENSILS
- CAUTION
- UTENSIL TEST
- DESCRIPTION OF THE CONTROLS
- TURNTABLE INSTALLATION
- INSTRUCTION FOR USE
- INSTALLATION
- CONTROL
- CLOCK SETTING
- NOTE
- MICROWAVE COOKING
- SPEEDY COOKING
- DEFROST BY WEIGHT
- DEFROST BY TIME
- MULTI-STAGE COOKING
- PRE-SET FUNCTION
- LOCK-OUT FUNCTION FOR CHILDREN
- AUTO MENU
- INQUIRING FUNCTION
- SPECIFICATION
- CLEANING
- GUARANTEE
- THE GUARANTEE LAPSES
- TECHNICAL SPECIFICATIONS
- LIQUIDATION OF OLD ELECTRICAL AND ELECTRONIC DEVICES
- HYUNDAI
Brand : HYUNDAI
Model : MWE2117W
Category : Microwave
