Product Type	Microwave Oven
Brand	Hyundai
Model	H-MW3420
Power Source	220 V, 50 Hz
Nominal Power Consumption	1280 W
Nominal Output Power	800 W
Power Efficiency	62 %
Operating Frequency	2450 MHz
Electric Shock Protection	Class I
Ingress Protection Level	IPX0
Inner Volume	20 litres
Net Weight	11.5 kg
Unit Dimensions (W x D x H)	462 mm x 353 mm x 261 mm
Display	Digital LED
Control Panel	Touch buttons with child lock
Microwave Power Levels	5 levels: 100P, 80P, 60P, 40P, 20P
Cooking Functions	Microwave cooking, Express, Auto Defrost, Auto Cook (6 menus), Multi-sequence cooking, Delayed start
Timer	Up to 60 minutes
Clock	24-hour format
Turntable	Glass tray with roller ring
Accessories Included	Glass tray, roller ring, distance limiter, instruction manual, warranty card, consumer information
Safety Features	Door safety lock system, child lock, automatic shut-off
Cleaning	Mild detergent, damp cloth; avoid abrasives
Installation Clearance	At least 8 cm from sides, 10 cm from rear

Frequently Asked Questions - H-MW3420 HYUNDAI

How do I set the clock on my Hyundai H-MW3420 microwave?

Press and hold the Размороз./Часы button. Use the Время/Вес/Автоменю +/- buttons to set hours and minutes. Press Размороз./Часы again to confirm.

What is the child lock feature and how do I activate it?

Child lock prevents unsupervised use. To activate, press and hold Стоп/Сброс for 3 seconds until 'OFF' appears. To deactivate, press and hold Стоп/Сброс for 3 seconds until the clock displays.

Can I use metal containers in the H-MW3420?

No, metal containers (including aluminum foil) can cause sparks or fire. Use only microwave-safe glass, ceramic, or heat-resistant plastic.

How do I defrost food using the auto defrost function?

Press Размороз./Часы repeatedly to select d.1 (meat), d.2 (poultry), or d.3 (seafood). Use Время/Вес/Автоменю +/- to set weight (max 2 kg). Press Старт to begin. Halfway through, the oven will beep to prompt turning the food.

What does the Express function do?

The Express function allows quick heating of beverages without setting time. Press Экспресс repeatedly to choose 0:30, 1:00, or 1:30 minutes, then press Старт.

How do I clean the interior of the microwave?

Use a mild liquid detergent and water. For stubborn stains, place a cup of water and heat for 3 minutes to create steam, then wipe. Never use abrasive cleaners or scouring pads. Keep the door open after cooking to allow evaporation.

Can I cook eggs in the microwave?

Do not cook eggs in the shell as they may explode. Puncture whole eggs before cooking. For poached eggs, cook covered and let stand 1 minute before removing the cover.

What is the maximum cooking time I can set?

The maximum time is 60 minutes. Never operate the oven empty.

How do I use the auto cook menu for popcorn?

Press Время/Вес/Автоменю +/- until A.1 (85g) or A.2 (100g) appears. Place the popcorn bag inside and press Старт. Stop the cycle when popping slows to 1-2 seconds between pops.

Why does my microwave not start?

Check that the door is fully closed and the control panel is correctly set. Ensure the timer is set. If the problem persists, the door safety lock may be engaged. Contact a qualified technician.

USER MANUAL H-MW3420 HYUNDAI

Exterior view of a modern microwave oven with floral decoration and digital display (no visible text or symbols)

Two glossy spheres with reflections, no text or symbols present

MICROWAVE OVEN

ПЕЧЬ МИКРОВОЛНОВАЯ

БЫТОВАЯ

Dear customer!

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Utilization of the product

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important safeguards

To reduce the risk of burns, electric shock, fire, injury to persons:

• Read all instructions before using microwave oven.
• The microwave oven is for household use only. Do not use for industrial purposes.
• Some products such as whole eggs and sealed containers (for example, close glass jars and sealed baby bottles with teat) may explode and should not be heated in microwave oven.
• Use this microwave oven only for its intended use as described in this manual.
• Close supervision is necessary, when used by children.
• Do not operate this microwave oven, if it doesn't work properly.
• To reduce the risk of fire in the oven cavity it is necessary to follow the bellow rules:
• Do not overcook food. Carefully attend microwave oven if paper, plastic or other combustible materials are placed inside oven.
• Remove wire twist-ties from bags before

placing food into the oven.

• If materials inside the oven should ignite, keep oven door closed, turn oven off at the wall switch or shut off power at the fuse of circuit breaker panel.
  • Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
• Do not use the oven for any reason other than food cooking. Never use it for drying clothes, paper or any other nonfood items or for sterilizing purposes.
• Do not operate the oven when empty. Do not keep any foreign object inside.
• Do not use the oven for home canning. Microwave ovens are not designed to permit proper canning.
• Do not cook eggs in the shell, as they will burst. Puncture eggs before cooking to prevent “explosion”, occasionally a poached egg may burst during cooking. Be sure to cook covered and let stand one minute after cooking before removing the cover.

• Do not cook any food surrounded by a membrane, such as potatoes, chicken livers, etc without first piercing several times with a fork.

• Do not cook foods directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.
  • Cookware not to use in microwave oven:

• Do not use metal pans or dishes with metal handles.
• Do not use anything with metal trim.
• Do not use paper covered with twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material, which will absorb microwave energy. This way cause the dishes to crack or char and will slow down the cooking speed.
• Do not use burnable container such as paper, wooden, bamboo willow container.
• The glaze is not suitable for microwave use.
• Do not cook in a container with a restricted opening, such as a soft drink bottle or salad oil bottle, as they may explode if heating in microwave oven.

• Do not use conventional meat or candy thermometers. These are thermometers available specifically for microwave cooking. These may be used.

• Microwave utensils should be used only in accordance with manufacturer's instructions.

• Please remember that a microwave oven heats the liquid in the container quicker that the container itself. Therefore, though the lid of a container is not hot to touch when removed from the oven please remember that the food/liquid inside will be hot.
• Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven, but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.
• Food containing a mixture of fat or water, e.g. should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
  • Always follow the cooking instructions, when preparing/cooking food/liquid and remember that there are certain food, e.g.

Christmas puddings, jam and mincemeat, which heat up very quickly.

• The contents of feeding bottles and baby food jars are to be stirred and shaken and the temperature is to be checked before consumption, in order to avoid burns.
• If the door or door seals are damaged, the oven must not be operated, until, it is repaired by a trained person.
• It is hazardous for anyone other than a trained person to carry out any service or repair operation. Repair the unit only by qualified specialists.

Before you call for service

- If there is no light in the cavity:

• the bulb blown out;
• the door of the oven is not closed.
• If the oven fails to operate:
• check to ensure that the control panel is programmed correctly and the timer is set.
• check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

If none of the above rectify the situation, then contact a qualified technician. Do not try to adjust or repair the oven yourself.

Radio interference

• Operation of the microwave oven can cause interference to your radio, TV or similar equipment.

• When there is interference, it may be reduced or eliminated by taking the following measures:

• clean door and sealing surface of the oven.

• reorient the receiving antenna of radio or television.
• relocate the microwave oven with respect to the receiver.
• move the microwave oven away from the receiver.
• plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

Installation

• Make sure that all the packing materials are removed from the oven cavity.
• Check the oven for damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges, latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.

- This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.

- Do not place the oven where heat, moisture or high humidity are generated, or near combustible materials.

- For correct operation, the oven must have sufficient airflow. Keep the oven at least 8 cm away from both side walls and 10 cm away from rear wall to ensure the correct ventilation.

- Do not cover or block any openings on the appliance. Do not remove feet.

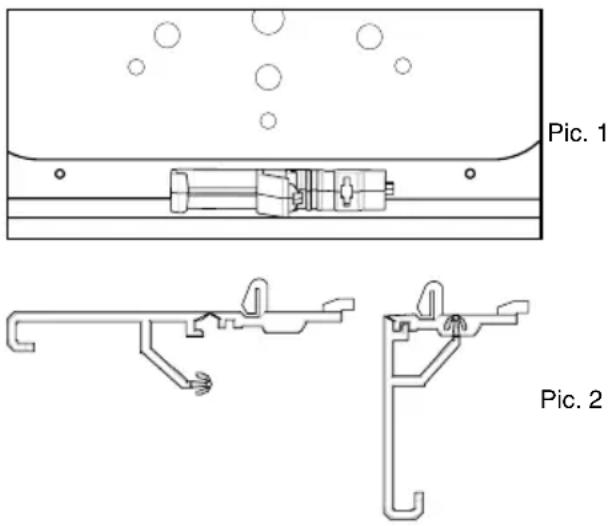

- The accessories include the distance limiter intended for ensuring the proper distance between the back panel of the oven and the wall for the purpose of ventilation.

How to install: the lower part of the back panel has two rectangular holes. Install the limiter into these holes and press to latch it until a click (Pic. 1). After the oven is installed, bring the limiter into operating condition (bent under 90^ angle (Pic. 2)).

Cookware suitability identification

Put the intended cookware together with a glass of water (300 ml) inside the oven cavity, and then set the oven at the "HIGH" stage for one minute. Applicable microwave cookware will be as cool as ever, while the water will absorb the energy and become warmer.

Applicable

Sort Instruction
Heat-proof glassware	It most suitable for microwave cooking.
Earthenware or chinaware	Conventional utensils of these materials allowed unless firmed with gold, silver.
Heat-resistant plastic container	Tightly closed containers are forbidden, cannot be used for containing foods with high fat or sugar contents.
Film for fresh preservation and heat-resistant	Only suitable for packing vegetable or being used as a lid. Never apply to packing meat or frying foods.

Inapplicable

Sort Instruction
Metal wares (aluminum, stainless steel)	May spark or ignite while touching the cavity wall during cooking.
Lacquer ware May	flaw or peel off.
Paper, bamboo or wooden ware	May be burnt in a while of (cooking) heating.
Combustible plastic wares	Inapplicable.
Non-heat-proof glassware	May deform/flaw in highly hot medium. Curved or strengthened glassware is not applicable.
Aluminum foil May	spark or ignite while touching the cavity wall during cooking.

Description

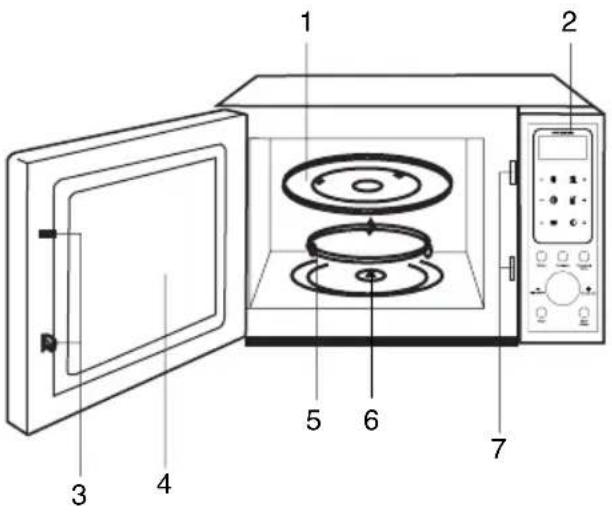

General view

1. Glass tray
2. Control panel
3. Door lockers
4. Oven window
5. Roller ring
6. Rotating shift
7. Lockers

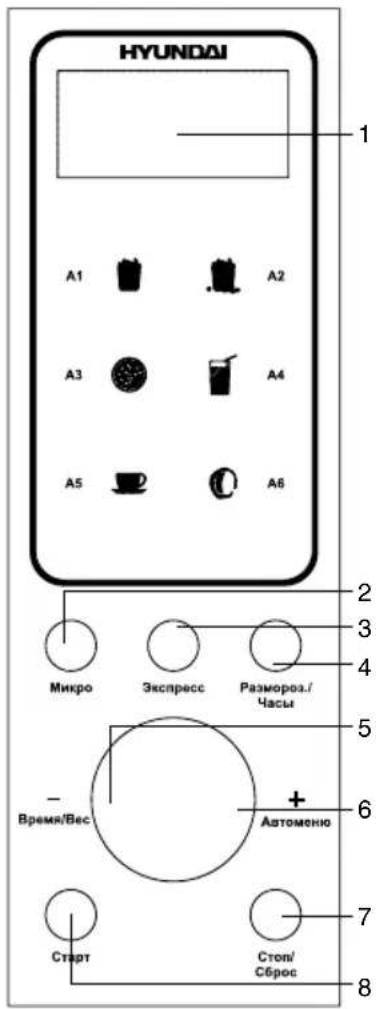

Control panel

To lock the control panel when you are cleaning so that children cannot use the oven unsupervised. All the buttons are rendered inoperable in this mode.

To set child lock, press and hold Стоп/Сброс button about 3 seconds until "OFF" is displayed. To cancel child lock, press and hold Стоп/Сброс button about 3 seconds until colon or clock is displayed.

Setting clock

• Press and hold Размороз./Часы button. Press Время/Вес/Автоменю+/- buttons to set hours, and hours will be flashed.
• Press Размороз./Часы button again. Press Время/Вес/Автоменю+/- buttons to set minutes, and minutes will be flashed.
• Press Размороз./Часы button to confirm or wait for 5 seconds until the numbers go steadily.

Cooking operations

Microwave cooking

Press Микро button repeatedly, the display will cycle to show 100P-80P-60P-40P-20P.

1. Press Mikro button repeatedly to select the desired microwave power, until the display will show P80.
2. Set the cooking time by pressing Время/Вес/Автоменю+/- buttons. The display will indicate then "10:00".
3. Press C\T\P\$T button to start, the display will count down to show the remaining time.

- The maximum time which can be set is 60 minutes.

• Never operate the oven empty.
• If you turn the food during operation, press C\T\apt button once and the preset cooking procedure will continue.
• If you intend to remove the food before the preset time, you must press Стоп/Сброс button once to clear the preset procedure to avoid unintended operation of next-time use.

Express

Press Экспресс button repeatedly; the display will cycle to show 0:30 - 1:00 - 1:30.

This function will allow you to heat a cup of water or beverage conveniently, omitting the steps of setting time. Choose the proper time depending on the beverage capacity: 0:30 (default 30 sec operation time) - 1:00 (default 1 minute operation time) - 1:30 (default time is 1 and half minutes).

Example: To cook with express for 1 minute

1. After power-up, press Стоп/Сброс button

Display P	Power level Microwave instruction
100P High (100%) microwave power Applicable for quick and thorough cooking such as meat, vegetable
80P Medium High (80%) microwave power Applicable for medium express cooking, such as eggs, fish, congee, rice, soup
60P Medium (60%) microwave power Applicable for steaming food
40P Medium Low (40%) microwave power Applicable for defrosting food
20P Low (20%) microwave power Applicable for keeping warm

Example: To cook at 80P for 10 minutes

1. After power-up, the colon flashes, then press Стоп/Сброс button once.

once.

1. Press Экспресс button repeatedly to select 1:00.

2. Start cooking by pressing Старт button.

Auto defrost

This function allows to defrost food depending on it's kind; just choose the necessary mode and enter the weight of food, the defrost time will be then set automatically.

- Press Размороз./Часы button; the display will cycle to show d.1 - d.2 - d.3:

d.1 --- for defrosting meat, the weight range from 0.1 kg to 2 kg;

d.2 --- for defrosting poultry, the weight range from 0.2 kg to 2 kg;

d.3 --- for defrosting seafood, the weight range from 0.1 kg to 0.9 kg.

- Enter the weight of the food by pressing

1. Select the food kind by pressing

Размороз./Часы button repeatedly until the display shows d2.

1. Set defrosting weight by pressing Время/Вес/Автоменю+/- buttons, the display will indicate 0.2.

2. Start cooking by pressing C\T\apt button. LED will count down to show running time.

3. Half way during defrosting 3 beep sound will be heard two times to prompt you turn over the food. Open the door and turn over the food and shield the warm portion. Press Старт button again to continue the defrosting. If you do not stop the process when an audible signal sounds, the defrosting cycle will continue until the time count down to 0.

4. It is necessary to turn over the food during operation to obtain uniform effect.

5. Usually defrosting will need longer time than that of cooking the food.

6. If the food can be cut by knife, the defrosting process can be considered completed.

7. Observe the below Defrost guide to achieve best performance.

Defrost guide

Steak chops

- Shield thin end of chops or steaks with foil.

- Position the food with thinner parts in the center in a single layer on a shallow dish. If pieces are stuck together, try to separate as soon as possible.

- Turn over the food in the middle course. Then rearrange and shield the defrosted portions.

- Close the door to continue defrosting.

- After defrost time, stand covered with aluminum foil for 5-15 minutes.

Minced Beef

- Place frozen minced beef on a shallow dish. Shield edges.

- Turn over the food in the middle course. Remove defrosted portions, turn over and shield edges with foil strips.

- Close the door to continue defrosting.

- After defrost time, stand covered with aluminum foil for 5-15 minutes.

Roast Meat (Beef/pork/lamb)

- Shield the edges with foil strips.

- Place joint with lean side face upwards (if possible) on a shallow dish.

- Turn over the food in the middle course. And then shield the defrosted portions.

- Close the door to continue defrosting.

- After defrost time, stand covered with aluminum foil for 10-30 minutes.

Poultry

- Remove from original wrapper. Shield wing and leg tips with foil.

- Place breast side down on a shallow dish.

- Turn over the food in the middle course. And then shield the defrosted portions.

- Close the door to continue defrosting.

- After defrost time, stand covered with aluminium foil for 15-30 minutes.

After standing run under cold water to remove giblets if necessary.

Chicken pieces ( chicken wings and drumstick)

- Shield the exposed bone with foil.

- Place chicken pieces on a shallow dish.

- Turn over the food in the middle course.

Then rearrange and shield the defrosted portions.

- Close the door to continue defrosting.

- After defrost time, stand covered with aluminum foil for 5-30 minutes.

Auto Cooking

The oven has default cooking menu for simple operation. When the display shows flashing colon, press Время/Вес/Автоменю+/- buttons and the display will cycle to show A.1 - A.2 - ... - A.6. Choose the appropriate menu according to the food type and weight and strictly observe the directions of below table, otherwise the cooking effect will be largely influenced.

Example: Steam 0.15 kg pizza

1. Choose the appropriate menu by pressing Время/Вес/Автоменю+/- buttons, the display will indicate A.3
2. Start cooking by pressing Старт button, and the display will count down to show running time.

Pre-set automatic function (delayed start)

If you do not want the menu to be started immediately, you can preset the cooking menu and time and the preset menu will be automatically started at your set time. The setting will consist of 2 steps: 1. Setting the current clock (if it's already set before, then there is no need more to do it); 2. Setting the cooking menu and time.

Example: Now it is 12:30 clock, if you hope that the microwave oven will automatically start cooking with 100P microwave power for 9 minutes and 30 seconds at 14:20

1. Set the current time (if not set before) – please see in the chapter "Setting clock".
2. Select cooking power by pressing Mikro button, display will indicate "100P".
3. Press Время/Вес/Автоменю+/- buttons to set cooking time, the display will indicate "9:30".
4. To return to current clock, press and hold Размороз./Часы button for 3 seconds, then a

Auto cook table

Display	Category Direction
A.1 Popcorn Suitable	for popping a bag of corn, which is available in the market, weighted 85 g. Popcorn prior to completing, if the popping speed has been decreased to 1 time per 1-2 seconds you should press Cton/C6poc button to stop the popping process.
A.2 Popcorn Same	as A.1 except 100 g weight.
A.3 Pizza Warm a piece of chilled pizza of 0.15 kg.
A.4 Beverage Heating	a cup of 250 ml liquid. The liquid temperature is about 5-10 °C.Use a big mouth cup and do not seal.
A.5 Beverage Heating	a cup of 500 ml liquid. The liquid temperature is about 5-10 °C.Use a big mouth cup and do not seal.
A.6 Potato Cooking	the potato strips, cut into 5 mm width and height, length. Total weight is about 0.45 kg. Place the strips on a large dish and cover the dish with a thin film to prevent water loss.

The temperature, weight and shape of

food will largely influence the cooking effect. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result.

short beep sound will be heard.

1. Set the time you expect to start (please see in the chapter "Setting clock").
2. Press Размороз./Часы button to confirm the delayed menu. Now the program has been activated. And the menu will start at 14:20.

- You may check the preset starting time by pressing Размороз./Часы button.

Delayed function is not applicable for Auto Cooking and Auto Defrost.

Multi-sequence cooking

To obtain best cooking result, some recipes call for different cook and time. You may program your personalized menu as follows:

Example: You want to cook food with 100P microwave for 3 minutes, then 20P microwave for 9 minutes. This is a 2-sequence setting.

1. Press Mikro button to select desired menu, display will indicate "100P".
2. Press Время/Вес/Автоменю+/- buttons to set cooking time, display will indicate "3:00".

3. Press Mikro button to select desired menu, display will indicate "20P".

4. Press Время/Вес/Автоменю+/- buttons to set cooking time; display will indicate "9:00".

5. Start cooking by pressing Старт button.

When 100P microwave power cooking is finished, microwave oven will begin 20P microwave operation automatically.

Maximum 4 sequences can be set per time by repeating step1 and step2 optionally if you like to set more.

Auto reminder

When your preset cooking procedure have finished, the display will show "End" and three beeps sound will be heard to prompt you to take out food. If you do not press Стоп/Сброс button once or open the door the beep will be sounded at the interval of 3 minutes.

Microwave cooking tips

1) Arranging food

Place thicker areas toward outside of dish and the thinner meat in the center and spread them evenly. Do not overlap if possible.

2) Cooking time

Start cooking with the shorter period of time and extend it according to the actual need. Overcooking may result in smoking and burning.

3) Cover foods before cooking refer to the recipe

Use paper towels, microwave plastic wrap or a cover to cover food so that prevent spattering and help foods to cook evenly. (Helps keep oven clean).

4) Partial shielding of food

Use small pieces of aluminum foil to cover thin areas of meats or poultry to avoid overcooking.

5) Stir foods

From outside to center of dish once or twice during cooking, if possible.

6) Turn foods

Foods such as chicken, hamburgers or steaks should be turned over once during cooking.

7) Rearrange foods

Please change the positions of food in half way during cooking such as: from top to bottom and from the center of the dish to the outside.

8) Allow standing time

After cooking ensure adequate standing time. Remove food from oven and stir if possible. Cover for standing time which allows the food to finish cooking without overcooking.

9) Check for doneness

Observe the food color and hardness to determine whether the food is cooked.

Doneness signs include:

• Steams through food, not just at edge part.
- Joints of Poultry move easily.
- Pork and poultry show no evidence of blood.

- Fish is opaque and flakes easily with a fork.

10) Condensation

It is a normal case of microwave cooking.

The humidity and moisture of food will influence the amount of moisture in the oven. Generally, covered foods will not cause as much condensation as uncovered foods. Ensure that the ventilation openings are not blocked.

Care and cleaning

• Unplug oven and be sure oven is cool before cleaning.
• To maintain the appearance of your oven, never use abrasive cleaning agents (such as cleaning powders, scouring pads or steel wool pads), spray. Also, never use commercial oven cleaners on any part or your microwave oven.
• If the microwave is very dirty, otherwise, use a damp cloth.

Outside surfaces

Cover

- Clean the outside of the oven with a glass-cleaning agent, a liquid cleaner or mild detergent and water. Use a damp cloth or sponge, rinse and dry.

Plastic

- Use a liquid or glass-cleaning agent and a sponge or cloth. To prevent scratching the plastic surface, do not use paper toweling.

Door and control panel

- Clean with a damp cloth or sponge. Use dishwashing detergent and water or liquid glass-cleaning agent to remove soil. Rinse with a damp cloth and dry with a soft cloth to prevent scratching the plastic outer door panel. Some paper towels can scratch the plastic door panel, therefore, use a soft cloth to dry the door. When cleaning the control panel, keep oven door open to prevent oven from accidentally turning on.

Power cord

- Be sure oven is unplugged. Wipe cord with a damp sudsy cloth, rinse and dry thoroughly before plugging cord back into outlet.

Interior surfaces

• Wash with hot sudsy water, rinse and dry. Do not use excessive amounts of water when cleaning the oven.
• Never use abrasive cleaner on any part of your microwave oven.

Oven walls

- Use a mild liquid dishwashing detergent and water, rinse and dry. To loosen microwave on HIGH for 3 minutes. Leave hot water in the oven and allow the steam to soften the soil. Then, wash with hot sudsy water, rinse and dry.

- To keep oven clean and odor free, open oven door for a few minutes after cooking. Allow moisture to evaporate or wipe interior with dry clothes.

- Occasionally, wipe walls with a solution of baking soda and water to keep interior fresh.

Oven floor and turntable

- Especially around turntable. Do not allow water or cleaning agents to seep into turntable gears located underneath.

- If a stain should still remain, remove stain with a paste of two parts braking soda and three parts water. Apply paste to stain, let stand one or two hours, then wipe with a clean damp cloth, rinse and dry.

Accessories

1. Microwave oven 1 pc
2. Glass tray 1 pc
3. Roller ring 1 pc
4. Distance limiter 1 pc
5. Instruction manual 1 pc
   6 Warranty card 1 pc
6. Consumer information 1 pc

Specifications

Power source 220 V, 50 Hz
Nominal power consumption 1280 W
Nominal output power 800 W
Power efficiency 62 %
Operating frequency 2450 MHz
Electric shock protection Class I
Ingress protection level IPX0
Inner volume 20 litres
Net weight 11.5 kg
Unit dimensions 462 mm x 353 mm x 261 mm

Specifications are subject to change without notice. Dimensions are approximate.

Technical line drawing of a mechanical assembly with circular components and a central shaft (no text or symbols)

Рис. 1

Technical line drawing of two mechanical bracket components (no text or symbols)

Рис. 2
