Product Type	Portable Air Conditioner
Brand	Manta
Model	MMP07
Cooling Capacity	12000 BTU/h (approx. 3.5 kW)
Power Supply	220-240 V ~ 50 Hz
Power Consumption (Cooling)	~1200 W
Energy Efficiency Ratio (EER)	~3.0 (Class A)
Airflow Volume	~400 m³/h (high speed)
Noise Level (Max)	~55 dB(A)
Dimensions (W x D x H)	35.0 x 45.0 x 70.0 cm
Net Weight	25 kg
Refrigerant Type	R-410A
Modes	Cool, Dehumidify, Fan, Auto
Fan Speeds	Low, Medium, High
Timer	24-hour on/off timer
Remote Control	Yes (included)
Dehumidification Capacity	~1.5 L/h
Condensate Management	Self-evaporating system
Air Filter	Washable mesh filter
Filter Cleaning	Every 2 weeks
Exhaust Hose Diameter	150 mm
Window Kit Included	Yes
Safety Features	Auto shut-off on overheat, overload protection, anti-freeze thermostat
Spare Parts Available	Filters, remote control, exhaust hose
Warranty	2 years

Frequently Asked Questions - MMP07 Manta

How do I install the MMP07 air conditioner?

Place the unit near a window or door. Attach the exhaust hose to the back of the unit and extend it out through the window using the included window kit. Ensure the hose is not bent or kinked. Plug into a grounded outlet.

What is the recommended room size for this air conditioner?

The MMP07 is suitable for rooms up to approximately 35 square meters (380 square feet) with standard ceiling height.

How often should I clean the filter?

Clean the washable mesh filter every two weeks under normal usage. More frequent cleaning may be needed in dusty environments or if used continuously.

My air conditioner is not cooling enough. What should I check?

Ensure the exhaust hose is properly installed and not blocked. Check that the air filter is clean. Make sure all windows and doors are closed. Also verify that the selected mode is 'Cool' and the set temperature is lower than the room temperature.

Can I use an extension cord?

It is not recommended. The MMP07 requires a dedicated grounded outlet. If necessary, use a heavy-duty extension cord with a 15-amp rating and keep it as short as possible.

How do I set the timer?

Press the Timer button on the remote control or unit. Use the + / - buttons to set the desired hours for auto-on or auto-off. The timer can be set up to 24 hours.

Why is water dripping from the back of the unit?

The MMP07 features a self-evaporating system, but in high humidity or if the unit is tilted, water may collect. Ensure the unit is level and the drain plug is securely inserted. If water accumulates, you can attach a drainage hose to the continuous drain port.

How do I obtain spare parts like a remote control or filter?

Contact Manta customer service or visit your local authorized service center. Spare parts such as replacement filters, remote controls, and exhaust hoses are typically available.

Is the MMP07 energy efficient?

With an EER rating of around 3.0, this unit is classified as energy class A. For best efficiency, keep filters clean, close curtains during the day, and set the thermostat to a comfortable but moderate temperature.

Can I leave the air conditioner on all night?

Yes, it is safe to operate continuously. Use the timer or sleep mode (if available) to save energy. Ensure the unit is on a stable surface and the exhaust hose is properly vented.

USER MANUAL MMP07 Manta

White industrial air conditioner unit with control panel and ventilation grille (no visible text or symbols)

To ensure proper use of this product please read this User's Manual carefully and keep for future reference.

MM415 Microwave

White microwave oven with black control panel and open lid (no visible text or symbols)

Pojemność 17 l

Sterowanie manualne

Moc mikrofal 1200W/ Moc grila 900W

Exterior view of a stainless steel microwave oven with control panel and display (no visible text or symbols)

Obudowa typu INOX

Pojemność 17 I

MMP07/09 Portable Air Conditioner

Instrukcja obsługi

MMP07/09 Portable Air Conditioner

User's Manual

Energy Save....19

Operating condition 19

Suggested tools for window kit installation.... 19

For your safety 19

Electrical Information 20

Accessories 20

Description 20

Electronic control operating instructions 21

Control Panel 21

Operating Instructions 22

Cool operation 22

Dry operation 22

Fan operation....22

Setting the on timer 22

Setting the off timer 22

Window kit installation 22

Installation in a double-hung sash windows....23

Installation in a sliding sash windows. 23

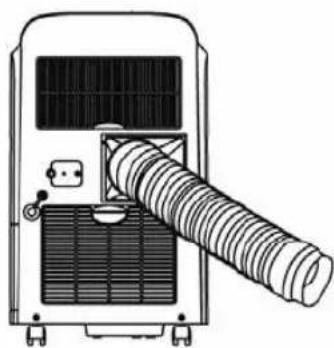

Exhaust hose installation 24

The exhaust hose can be installed into the wall. 24

Water drainage 25

Continuous drainage 25

Air filter 25

Unit enclosure 26

Unit idle for a long time....26

Remote Controller 26

Performance feature. 26

Names and Functions of indicators on Remote Controller 27

Operating of the Remote Controller 28

Automatic operating 28

COOL,HEAT,and FAN ONLY Operation....28

Dry operation 28

TIMER Operation....28

Trableshooting 30

MMP07/09 Portable Air Conditioner

Návod k obsluze

MMP07/09 Portable Air Conditioner

Használati útmutató

MMP07/09 Portable Air Conditioner

Instrukcja obsługi

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

Akcesoria

MMP07/09 Portable Air Conditioner

Użytkowanie

MMP07/09 Portable Air Conditioner

zakresie: 0.5-1.0-1.5-2.0-2.5-3.0-3.5-4.0-4.5 -5.0-5.5-6.0-6.5-7.0-7.5-8.0-8.5-9.0-9.5-10-11-12-13-14-15-16-17-18-19-20-21-22-23-24-0.0

Diagram showing front and side views of a refrigerator with airflow arrows and a portable air conditioner unit (no text or symbols)

Diagram showing a door with directional arrows and a separate view of an air conditioner unit (no text or symbols present)

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

Line drawing of a portable air conditioner unit with coiled hose and ventilation slots (no text or symbols)

Technical line drawing of a portable air conditioner unit with coiled tube and ventilation slots (no text or symbols)

Pure diagram of a pipe connection with no text, numbers, or symbols

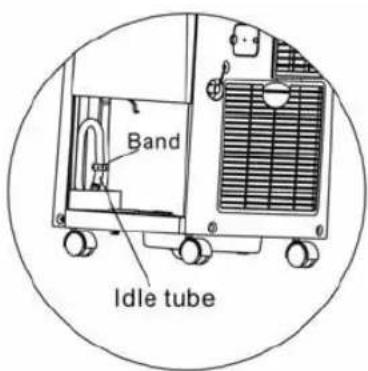

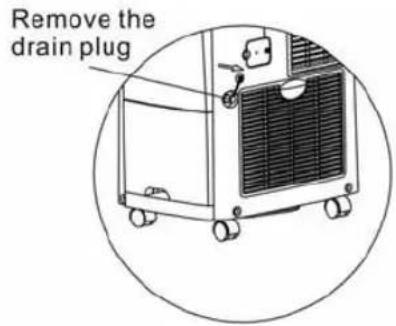

Odprowadzanie wody

Line drawing of a portable air purifier with cooling unit and side panel (no text or symbols)

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

Czyszczenie

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

Tryb Cool, Heat, Fan only

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

User's Manual

DISPOSAL

Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

It is prohibited to dispose of this appliance in domestic household waste.

For disposal, there are several possibilities:

● The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user.
- When buying a new product, the retailer will take back the old product at least free of charge.
● The manufacture will take back the old appliance for disposal at least free of charge to the user.
● As old products contain valuable resources, they can be sold to scrap metal dealers.

Wild disposal of waste in forests and landscapes endangers your health when hazardous substances leak into the ground-water and find their way into the food chain.

To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage.

Always do this

- Your air conditioner should be used in such a way that it is protected from moisture. e.g. condensation, splashed water, etc. Do not place or store your air conditioner where it can fall or be pulled into water or any other liquid. Unplug immediately.

● Always transport your air conditioner in a vertical position and stand on a stable, level surface during use.

● Turn off the product when not in use.

● Always contact a qualified person to carry out repairs. If the supply cord is damaged it must be repaired by a qualified repairer.

- Keep an air path of at least 30cm all around the unit from walls, furniture and curtains.

- If the air conditioner is knocked over during use, turn off the unit

Never to this

• Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
• Do not touch the unit with wet or damp hands or when barefoot.

• Do not press the buttons on the control panel with anything other than your fingers.

• Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.
  ● Never use the plug to start and stop the unit.
  ● Always use the switch on the control panel.

• Do not cover or obsturct the inlet or outlet grilles.
• Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol, etc.
• Do not allow children to operate the unit unsupervised.
• Do not use this product for functions other than those described in this instruction manual.

Energy Save

● Use the unit in the recommended room size.
- Locate the unit where furniture cannot obstruct the air flow.
- Keep blinds/curtains closed during the sunniest part pf the day.
- Keep the filters clean.
- Keep doors and windows closed to keep cool air in and warm air out.

Operating condition

The air conditioner must be operated within the temperature range indicated below:

Mode Room Temperature
Cool 17	^ 32^
Dry 13	^ 32^

Suggested tools for window kit installation

1. Screwdriver(medium size Phillips)
2. Tape measure or ruler
3. Knife or scissors
4. Saw(In the event that the window kit needs to be cut down in size because the window is too narrow for direct installation)

For your safety

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• Avoid fire hazard or electric shock. Do not use an exte sion cord or an adaptor plug. Do not remove any prong from the power cord.

MMP07/09 Portable Air Conditioner

Electrical Information

• Be sure the electrical service is adequate for the model you have chosen. This information can be found on the serial plate, which is located on the side of the cabinet and behind the grille.
• Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding is important. The power cord is equipped with a three prong grounding plug for protection against shock hazards.
• Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper receptacle.
• Ensure the receptacle is accessible after the unit installation.

Accessories

Exhaust hose with adapters x 1

Wall Exhaust Adaptor A x1 (x)

Window Exhaust Adaptor B (flat mouth) x1

Expansion Plug and wooden screw x 4

Window Slider Kit x1

Foam seal x3

Remote Controller (For remote control models only) x1

Battery (For remote controller) x 2

Description

1. Operation Panel
2. Horizontal Louver Blade
3. Caster
4. Water Bucket
5. Carrying Handle (both side)

1. Upper Air Filter (Behind the grille)
2. Power cord outlet
3. Drain Outlet
4. Air intake (Condenser)
5. Air Outlet (Heat exchanger)
6. Air intake (Evaporator)
7. Lower Air Filter (Behind the grille)

MMP07/09 Portable Air Conditioner

Electronic control operating instructions

Before you begin, thoroughly familiarize yourself with the control panel and remote controller and all its functions, then follow the symbol for the functions you desire.

The unit can be controlled by the unit control panel alone or with the remote controller.

Control Panel

1. Mode select button

Selects the appropriate operating mode.

Each time you press the button, a mode is selected in a sequence that goes from COOL DRY and FAN. The mode indicator lights illuminates under the different mode settings.

Fan Options:

COOL (3 speeds) HI-MED-LO.

DRY (1 speed) HI.

FAN (3 speeds) HI-MED-LO.

1. Fan Speed button

Control the fan speed. Press to select the fan speed in three steps-HI-MED and LO.

The fan speed indicator light illuminates under different fan settings.

1. Temp. adjust button

Used to adjust (increasing/decreasing) temperature settings(17°C/2 F increments) in a range of 17 °C (62°F) to 30°C (88°F).

NOTE: The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other, press and hold the Up and Down buttons at the same time, for 3 seconds.

1. Timer ON button

Used to initiate the AUTO ON start time program, and adjust the Auto-timer settings.

1. TIMER OFF button

Used to initiate the AUTO OFF start time program, and adjust the Auto-timer settings.

1. Power button

Power switch on/off.

1. WATER FULL indicator light

This indicator light flashes red when the water level of the water bucket exceeds the maximum set level or if the water bucket is not correctly positioned in the unit.

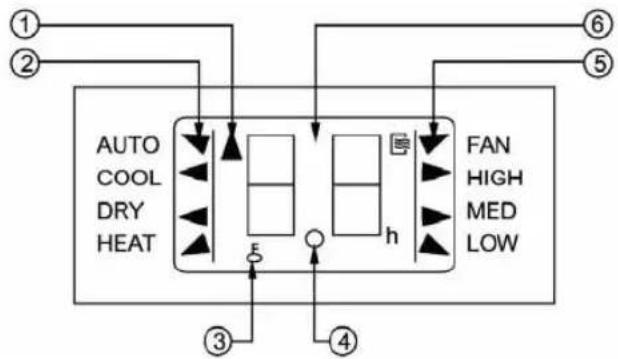

1. LED Display

Shows the set temperature in C O or F and the Auto-timer settings. While on DRY and FAN modes, it shows the room temperature.

Error codes:

E1 – Evaporator temperature sensor error- Unplug the unit and plug it back in. If error repeats, call for service.

MMP07/09 Portable Air Conditioner

E2 - Room temperature sensor error-Unplug the unit and plug it back in. If error repeats, call for service.

P1 – Water tank is full - Connect the drain hose and drain the collected water

Operating Instructions

Cool operation

(Operating temperature range: 17°C - 35°C/62°F - 95°F)

• Press the „MODE“ button until the „COOL“ indicator light comes on.
• Press the „TEMP ADJUST buttons „UP„ or „DOWN„ to select your desired room temperature. The temperature can be set within a range of 1^ - 30^ / 62^ -88^ .
• Press the „FAN SPEED" button to choose the fan speed.

Dry operation

(Operating temperature range: 13C - 35°C/54°F - 95°F)

• Press the „MODE” button until the „DRY” indicator light comes on.
  ● Under this mode, you cannot select a fan speed or adjust the temperature. The fan motor operates at High speed.
• Keep windows and doors closed for the best dehumidifying effect.
  ● Do not put the duct to window.

CAUTION:

During Cooling and dehumidifying modes, if the compressor cycle is interrupted (unplugged, power failure, etc.) and reinstated immediately thereafter, a compressor protection circuit is automatically self-affected. The compressor cannot operate during a compressor protection condition. It may take about 3 minutes before the protection circuit self-deactivates.

Fan operation

Press the „MODE“ button until the „FAN „ indicator light comes on.

• Press the „FAN SPEED" button to choose the fan speed. The temperature cannot be adjusted.
  ● Do not put the duct to window.

Setting the on timer

- Press the „TIMER ON" button when the air conditioner is off.

• Continue pressing or keep pressing the „TIMER ON „ button to select the time you need the unit start to operate. The time is programmed as :0.5-1.0- 1.5-2.0-2.5-3.0-3.5-4.0-4.5-5.0-5.5-6.0 -6.5-7.0-7.5-8.0-8.5-9.0-9.5-10-11-12- 13-14-15-16-17-18-19-20-21-22-23- 24-0.0.
  ● The Auto starting time is adjustable from 0.0 to 24.

Setting the off timer

• Press the „TIMER OFF" button when the air conditioner is on.
• Continue pressing or keep pressing the „TIMER OFF „ button to select the time you need the unit stop operation. The time is programmed as: 0.5-1.0-1.5-2.0-2.5-3.0-3.5-4.0-4.5 -5.0-5.5-6.0-6.5-7.0-7.5-8.0-8.5-9.0- 9.5-10-11-12-13-14-15-16-17-18-19- 20-21-22-23-24-0.0
  ● The auto stopping time is adjustable from 0.0 to 24.

IMPORTANT:

The time will be registered in 5 seconds period (after pressing the TIMER ON/ TIMER OFF button), so you should continue pressing the button until the desired time is established. Otherwise you must repeat the steps again.

Line drawing of an air conditioner unit with directional arrows indicating airflow or movement (no text or symbols)

Window kit installation

Your window kit has been designed to fit most standard Vertical and horizontal window applications. However, it may be necessary for you to improvise/modify some aspects of the installation procedures for certain types of window.

Please refer to for minimum and maximum window openings.

MMP07/09 Portable Air Conditioner

Note:

If the window opening is less than the mentioned minimum length of the window slider kit, cut that one with holes in it short to fit for the window opening. Do never cut out the hole in window slider kit.

Installation in a double-hung sash windows

1. Cut the foam seal(adhesive type) to the proper length and attach it to the window stool.

1. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the width of window, short the adjustable window kit if the width of window is less than 27 inches. Open the window sash and place the window slider kit on the window stool.

1. Cut the foam seal(adhesive type) to the proper length and attach it on the top of the window.

1. Close the window sash securely against the window.
2. Cut the foam seal to an appropriate length and sealing the open gap between the top window sash and outer window sash.

Installation in a sliding sash windows

1. Cut the foam seal(adhesive type) to the proper length and attach it to the window frame.

1. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the width of window, short the adjustable window kit if the width of window is less than 27 inches. Open the window sash and place the window slider kit on the window stool.

MMP07/09 Portable Air Conditioner

1. Cut the foam seal(adhesive type) to the proper length and attach it on the top of the window.

Line drawing of a cabinet or cabinet frame with a door and handle (no text or symbols)

1. Close the sliding sash securely against the window.
2. Cut the foam seal to an appropriate length and sealing the open gap between the top window sash and outer window sash.

Exhaust hose installation

The exhaust hose and adaptor must be installed or removed in accordance with the usage mode.

COOL mode - Install

FAN or DEHUMIDIIFY mode - Remove

1. Install the flexible Exhaust hose.

Technical line drawing of a portable air conditioner unit with a coiled hose and ventilation slots (no text or symbols)

Line drawing of a portable air conditioner unit with coiled tube and ventilation slots (no text or symbols)

1. Install the window Exhaust adaptor B(flat mouth) onto the exhaust hose as shown in . Refer to the previous pages for window kit installation.

The exhaust hose can be installed into the wall

(Not applicable to the units without adaptor A, expansion plugs and wooden screws of Accessories)

1. Prepare a hole in the wall. Install the wall Exhaust adaptor A onto the wall(outside) by using 4 expansion plugs and wooden screws, be sure to fix thoroughly.

1. Attach the Exhaust hose to wall Exhaust adaptor A. Note:

Cover the hole using the adaptor cap when not in use. The duct can be compressed or extended moderately according to the installation requirement, but it is desirable to keep the duct length to a minimum.

MMP07/09 Portable Air Conditioner

IMPORTANT:

DO NOT OVER BEND THE DUCT

Diagram showing a pipe with a switch crossed out by a diagonal line (no text or symbols)

Water drainage

This unit is equipped with a water buckdt which has been tied with a band in the factory to protect the water lever switch during transportation. For the first time to use the unit, please drag the water tank out and remove the band and then replace the water tank to its original position gently. Never push or kick it rudely, otherwise the following malfunction may occur.

Line drawing of a portable air purifier with cooling unit and side-mounted device (no text or symbols)

When the water level reaches a predetermined level, the unit beeps 8 times, the digital display area shows P1 and the water full indicator light will flash(red). Carefully remove the water bucket from the cabinet and dispose of the water. Replace the water bucket back to its origina position. The red light will stop flashing and P1 symbol will disappear. The unit will continue operating properly.

Note:

When drag the water bucket out from the cabinet, please do it slowly and gently to prevent water splashing. Any time when the water tank is removed/displaced, and/or full of water, the water full indicator will flash red and the digital display area shows P1.

Continuous drainage

During Cooling and dehumidifying modes, remove the drain plug from the back of the unit, install the drain connector (5/8 universal female mender) with 3 4 hose (locally purchased). Place the open end of the hose directly over the drain area in your basement floor.

IMPORTANT:

• If you choose continuous drainage, before removing the drain plug from the back of the unit and installing the continuous hose, drag the water tank out, drain off the retained water through the idle tube. Otherwise, the retained water may flow over from the back hole when removing the back drain plug and installing the continuous hose.
• If you want to change the water drainage method from continuous to using water tank, please make sure the drain plug is plugged tightly at the back of the unit.

IMPORTANT:

1. Be sure to unplug the unit before cleaning or servicing.
   2 Do not use gasoline, thinner or other chemicals to clean the unit.
2. Do not wash the unit directly under a tap or using a hose. It may cause electrical danger.
3. If the power cord is damaged, it should be repaired by manufacture or its agency.

Air filter

Clean the air filter at least once every two weeks to prevent inferior fan operation because of dust.

MMP07/09 Portable Air Conditioner

Removal

Grasp the upper filter tab, pull the filter out then down.

Grasp the lower filter tab, pull the filter out then up.

Cleaning

Wash the air filter by immersing it gently in warm water (about 40°C/104°F) with a neutral detergent. Rinse th filter and dry it in a shady place.

Mounting

Attach the air filter to the filter cover using the attachment hooks on the inner surface of the cover. Put the filter cover back to the unit.

Unit enclosure

Use a lint-free cloth soaked with neutral detergent to clean the unit enclosure. Finished by a dry clean cloth.

Unit idle for a long time

When you plan to leave this unit unused for a long time, remove the water tank and you will find a section of tube (idle tube) wrapped by a band, which is plugged at the end.

- Release the band and remove the plug from the end of the tube, all the water in the bottom tray would drain outside through the idle tube.

• Keep the appliance running on FAN mode for half a day in a warm room to dry the appliance inside and prevent mold forming.
• Stop the appliance and unplug it, wrapped the cord and bundle it with the tape. Remove the batteries from the remote controller.
  ● Clean the air filter and reinstall it.
• Disconnect the exhaust hose, keep it safety, and cover the window(wall) hole with the adaptor cap.

Remote Controller

Performance feature

1. Operating Mode: COOL, HEAT, DRY, FAN and AUTO.
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17°C \~ 30°C
4. LCD (Liquid Crystal Display) of all functions.
5. Control function of charactron tube

Model - R51H, R51H/C

Rated Voltage - 3.0V

Lowest Voltage of CPU Emitting Signal - 2.0V

Signal Receiving Range - 8m

Environment - -5°C 60°C

MMP07/09 Portable Air Conditioner

1. TEMP Button: Push the button to decrease the indoor temperature setting.
2. MODE Select Button: Each time you push the button, a mode is selected in a sequence that goes from AUTO COOL DRY HEAT and FAN, as the following figure:

1. RESET Button: When the RESET button is pushed, all of the current settings are cancelled and the control will return to the initial settings.
2. LOCK Button: Push this button to lock in all the current settings. To release settings, push again.
3. TIMER ON Button: Press this button to preset the time ON(start to operate). Each press will increase the time ON setting in 30 minutes increments. When the setting time displays 10:00, each press will increase the time ON setting in 60 minutes increments. To cancel the time ON program, simply adjust the time ON to 0:00.
4. TIMER OFF Button: Press this button to preset the time OFF (turn off the operation). Each press will increase the time OFF setting in 30 minutes incre-

ments. When the setting time displays 10:00, each press will increase the time OFF setting in 60 minutes increments. To cancel the time OFF program, simply adjust the time OFF to 0:00

1. ON/OFF Button: Push this button to start the unit operation, push the button again to stop the unit operation.
2. FAN SPEED Button: This button is used for setting Fan Speed in the sequence that goes from AUTO LOW MED to HIGH, then back to Auto.
3. TEMP Button: Push the button to increase the indoor temperature setting.

Names and Functions of indicators on Remote Controller

1. TRANSMISSION Indicator: This indicator lights when remote controller transmits signals to indoor unit.
2. MODE Display: Shows the current operation modes-
3. AUTO, COOL, DRY, HEAT and FAN. HEAT only available for heat pump model.
4. HEAT PUMP ONLY - LOCK display is displayed by pushing the LOCK button. Push the LOCK button again to clear display.
5. TIMER Display: This display area shows the settings of TIMER. That is, if only the starting time of operation is set, it will display the
6. TIMER ON. If only the turning off time of operation is set, it will display the TIMER OFF. If both operations are set, it will show. TIMER ON OFF which indicates you have chosen to set both the starting time and off time.
7. FAN Display: When the FAN button is pushed, this signal indicator lights. Digital Display Area: This area will show the temperature and, if in the TIMER mode, will show the ON and OFF settings of the TIMER.

MMP07/09 Portable Air Conditioner

NOTE:

All items are shown in the Fig.2 for the purpose of clear presentation But during the actual operation only the relative unctional items are shown on the display panel.

Operating of the Remote Controller Install/Replace Batteries

The Remote Controller uses two alkaline dry batteries (R03/Ir03X2).

1. To install batteries, slide back the cover of the battery compartment and install the batteries according to the directions (+and -) shown on the Remote Controller.
2. To replace the old batteries, use the same method as mentioned above.

Note:

• When replacing batteries, do not use old batteries or a different type battery. This may cause the remote controller to malfunction.
• If you do not use the remote controller for several weeks remove the batteries. Otherwise battery leakage may damage the remote controller.
  ● The average battery life under normal use is about 6 months.
• Replace the batteries when there is no answering beep from the indoor unit or if the Transmission Indicator light fails to appear.

Automatic operating

When the Air Conditioner is ready for use, switch on the power and the OPERATION indicator lamp on the display panel of the indoor unit starts flashing.

1. Use the MODE select button to select AUTO.
2. Push the TEMP button to set the desired room temperature. The most comfortable temperature settings are between 2^ C/ 70^ F to 28^ C/ 82^ F
3. Push the ON/OFF button to start the air conditioner. The OPERATION lamp on the display panel of the indoor unit lights. The operating mode of AUTO FAN SPEED is automatically set and there are no indicators shown on the display panel of the remote controller.
4. Push the ON/OFF button again to stop the unit operation.

Note:

- In the AUTO mode, the air conditioner can logically choose the mode of COOL, FAN, HEAT and DRY by

sensing the difference between the actual ambient room temperature and the set temperature on the remote controller.

- If the AUTO mode is not comfortable for you, the desired mode can be selected manually.

COOL, HEAT, and FAN ONLY Operation

1. If the AUTO mode is not comfortable, you may manually override the settings by using COOL, DRY, HEAT(HEAT PUMP units only), or FAN ONLY modes.
2. Push the TEMP button to set the desired room temperature. When in COOLING mode, the most comfortable settings are 2 ^1 C/70 ^o F or above. When in HEATING mode, the most comfortable settings are 28 ^o C/82 ^o F or below.
3. Push the FAN SPEED to select the FAN mode of AUTO, HIGH, MED or LOW.
4. Push the ON/OFF button. The operation lamp lights and the air conditioner starts to operate per your settings. Push the ON/OFF button again to stop this unit operation.

Dry operation

1. Push the MODE button to select DRY.
2. Push the TEMP button to set the desired temperature from 21^ C/ 70^ F to 28^ C/ 82^ F.
3. Push the ON/OFF button. The operation lamp lights and the air conditioner starts to operate in the DRY mode. Push the ON/OFF button again to stop this unit operation.

TIMER Operation

TIMER ON button can set the auto-on time of the unit. TIMER OFF button can set the auto-off time of the unit.

To set the starting time

1. Push the TIMER ON button, then the remote controller shows TIMER ON, the last set time for the starting operation and the signal „h” will be shown on the DIGITAL DISPLAY area. You are now ready to reset the time to START the operation.
2. Push the TIMER ON button again to set desired unit start time.
3. After setting the TIMER ON, there will be a one-half second delay before the remote controller transmits the signal to the air conditioner. Then, after approximately another 2 seconds, the signal "h" disappears and the set temperature will re-appear on the digital display.

MMP07/09 Portable Air Conditioner

To set the stopping time

1. After setting the TIMER OFF, there will be a one-half second delay before the remote controller transmits the signal to the air conditioner. Then, after approximately another 2 seconds, the signal "h" disappears and the set temperature will re-appear on the digital display.
2. Push the TIMER OFF button again to set the time you want to stop the operation.
3. Push the TIMER OFF button and the remote controller will show TIMER OFF, the last set time for the stopping operation and the signal „h” will be shown on the DIGITAL DISPLAY area. You are now ready to reset the time of the STOP operation.

Set the starting & stopping time

1. Push the TIMER ON button, the remote controller will show TIMER ON, the last set time for START operation and the signal "h" will be shown on the DIGITAL display area. You are now ready to readjust the TIMER ON to start the operation.
2. Push the TIMER ON button again to set the time you want to start the operation.
3. Push the TIMER OFF button, the remote controller will show TIMER OFF, the last set time for STOP operation and the signal „h” will be shown on the DIGITAL display area. You are now ready to reset the time to STOP operation.
4. Push the TIMER OFF button again to set the time you want to stop the operation.
5. After setting the TIMER, there will be a one-half second delay before the remote controller transmits the signal to the Air Conditioner. Then, after approximately another 2 seconds, the set temperature will reappear on the digital display.

Note:

• Please reset the TIMER after cancelling the former time settings.
  ● The setting time is relative time. That is the time set is based on the delay of the current time.

Warning!

• Be sure there are no barriers between the remote controller and the receiver of indoor unit otherwise the air conditioner will not work.
• Keep the Remote Controller away from all liquids.
• Protect the Remote Controller from high temperatures and exposure to radiation.
• Keep the indoor receiver out of direct sunlight or the Air Conditioner may malfunction.
• Keep controller away from EMI (Electro-Magnetic Interference) supplied by other household appliances.

MMP07/09 Portable Air Conditioner

Trableshooting

TROUBLES POSSIBLE	CAUSES SUGGEST REMEDIES
Unit does not Start when Pressing on/of Button	Water full indicator blinks, water tank is fullRoom temperature is lower than the set temperature(Cooling mode)	Dump the water in the water tankReset the temperature
Not cool enough	The windows or doors in the room are not closedThere are heat sources inside the roomExhaust air duct is not connected or blockedTemperature setting is too highAir filter is blocked by dust	Make sure all the windows and doors are closedRemove the heat sources if possibleConnect the duct and make sure it can function properlyDecrease the set temperatureClean the air filter
Noisy or vibration	The ground is not level or not flat enough	Place the unit on a flat, level ground if possible
Gurgling sound	The sound comes from the flowing of the refrigerant inside the air-conditioner	It is normal

MMP07/09 Portable Air Conditioner

Návod k obsluze

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

Pohled ze zadu

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

Diagram showing airflow direction and air conditioning device (no text or symbols)

Diagram showing a door with directional arrows and an air conditioner unit (no text or symbols)

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

Diagram of a portable air conditioner unit with a coiled hose and ventilation slots (no text or symbols)

Line drawing of a portable air conditioner unit with coiled tube and ventilation slots (no text or symbols)

Diagram showing a vehicle with a diagonal line crossing over a curved road, no text or symbols present

Odvádění vody

Line drawing of a portable air purifier with cooling unit and side-mounted device (no text or symbols)

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

Montáž

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

Használati útmutató

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

Hátsó nézet

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

Diagram showing a refrigerator with directional arrows and an air conditioner unit (no text or symbols)

Diagram showing a door with directional arrows and a separate air conditioner unit (no text or symbols)

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

Line drawing of a portable air conditioner unit with coiled hose and fan (no text or symbols)

Line drawing of a portable air conditioner unit with coiled tube and ventilation slots (no text or symbols)

Diagram showing a device connected to a curved pipe with a diagonal line crossing through it (no text or symbols present)

Víz elvezétés

Line drawing of a portable air purifier with cooling unit and side-mounted device (no text or symbols)

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

Szerelés

MMP07/09 Portable Air Conditioner

MMP07/09 Portable Air Conditioner

AUTOMATIKUS ÜZEMMÓD

MMP07/09 Portable Air Conditioner

Black and white photo of a vacuum cleaner with coiled hose (no visible text or symbols)

Top-down view of a white square electronic device with internal components and buttons (no visible text or symbols)
