USER MANUAL AVTXF 149 HOTPOINT-ARISTON

R ep as s age f a cile

P o u r m o in s f r o is s e r le s t is s u s e t s im p lif ie r le u r rep as s age.

Instructions for use WASHING MACHINE Contents GB English

GB Installation, 14-15

Unpacking and levelling, 14 Electric and water connections, 14-15 The first wash cycle, 15 Technical details, 15

Washing machine description, 16-17 Control panel, 16 How to open and shut the drum, 17 Leds, 17

Starting and Programmes, 18 Briefly: how to start a programme, 18 Programme table, 18

Personalisations, 19 Setting the temperature, 19 Setting the spin cycle, 19 Functions, 19

Detergents and laundry, 20

Detergent dispenser, 20 Bleach cycle, 20 Preparing your laundry, 20 Special items, 20 Woolmark Platinum Care, 20

Precautions and advice, 21

General safety, 21 Disposal, 21 Saving energy and respecting the environment, 21

Care and maintenance, 22

Cutting off the water or electricity supply, 22 Cleaning your appliance, 22 Caring for your appliance door and drum, 10 Cleaning the pump, 22 Checking the water inlet hose, 22 Cleaning the detergent dispenser, 22

Troubleshooting, 23 Service, 24

Before calling for Assistance, 24

GB Keep this instruction manual in a safe place for

future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features.

Read these instructions carefully: they contain vital information on installation, use and safety.

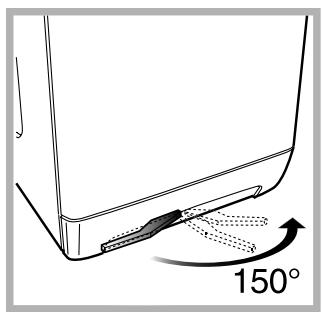

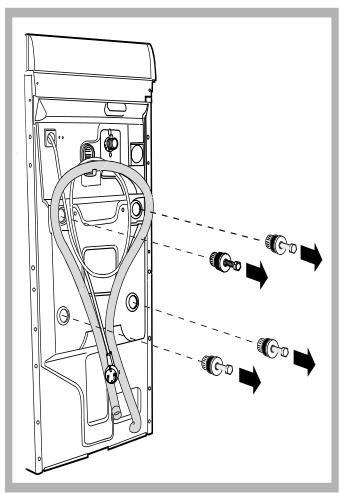

Unpacking and levelling Unpacking

1. Unpack the washing machine. 2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer. 3. Remove the four protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine. Putting your appliance in place and moving it. If your washing machine is equipped with a special set of retractable wheels you can easy move it. To lower the wheels and thus move the appliance effortlessly, just pull the lever, situated on the left-hand side beneath the base. Once the appliance is in the required position, put the lever back in place. The washing machine is now firmly in place (see figure).

Electric and water connections Connecting the water inlet hose

4. Seal the gaps using the plastic plugs provided. 5. Keep all the parts: you will need them again if the washing machine needs to be moved to another location. Warning: should the screws be re-used, make sure you fasten the shorter ones at the top.

Packaging materials are not children's toys. Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other. 2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°.

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap with a 3/ 4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear. 2. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure). 3. Make sure there are no kinks or bends in the hose.

The water pressure at the tap must be within the

values indicated in the Technical details table (on the next page). If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.

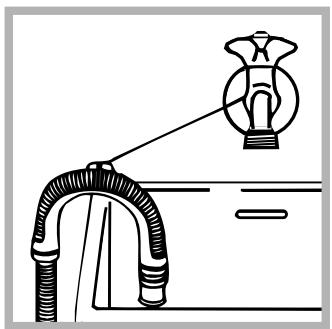

Connecting the drain hose

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;

GB When the washing machine is installed, the main

socket must be within easy reach.

Do not use extensions or multiple sockets. The power supply cable must never be bent or dangerously compressed. The power supply cable must only be replaced by an authorised serviceman.

alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90°C programme without a pre-wash cycle.

Technical details Model

Before plugging the appliance into the mains socket, make sure that: • the socket is earthed and in compliance with the applicable law;

Electric connections

P lease refer to th e tech nical d ata plate fix ed to the machin e.

• the socket is able to sustain the appliance's maximum power load indicated in the Technical details table (on the right);

• the supply voltage is included within the values i ndicated on the Technical details table (on the right);

Control programmes according to IEC 60456 directive

programme 3; temperature 60°C; ru n with a load of 6 kg.

• the socket is compatible with the washing machine's plug. If this is not the case, replace the socket or the plug.

The washing machine should not be installed in an outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

Th is appliance is compliant with the following European Community Directives: - 73/23/CEE of 19/02/73 (Low Voltage) and su bsequent amend ments - 89/336/CEE of 03/05/89 (Electromagnetic Comp atib ility) an d su bsequ ent amen dments - 2002/96/CE

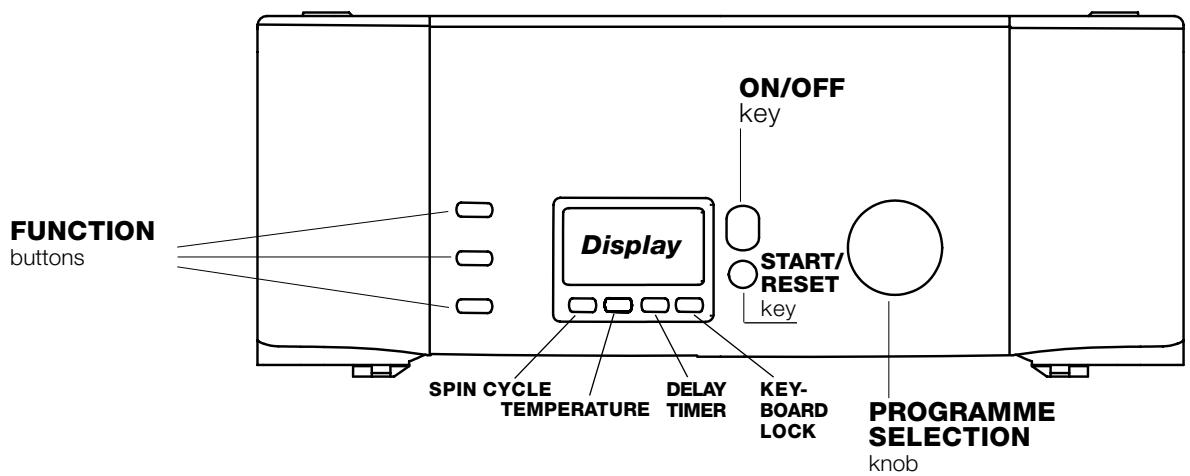

KEYBOARD LOCK PROGRAMME SELECTION knob

Display: displays the progress of the wash cycle and/or the programme (see pages 17-19).

KEYBOARD LOCK key. To lock all the keys on the washing machine during operation or during Stand-by mode.

SPIN key Regulates the speed and cancels the spin cycle speed completely (see page 19).

ON/OFF key to turn the washing machine on and off (see page). 18).

TEMPERATURE * key adjusts the wash temperature from 90° to 0°. (see page 19). DELAY TIMER key. To delay the start of the wash cycle by up to 24 hours (see page 19).

START/RESET key. To start programmes or cancel incorrectly set programmes (see page 18). PROGRAMME knob. Selection of programmes (on page 18).

* To avoid excessive vibrations, before every spin cycle the machine distributes the load in a uniform manner by continuously rotating the drum at a speed which is slightly faster than the normal washing speed. When, despite repeated attempts, the load is still not evenly distributed, the machine spins at a lower speed than the set frequency. If the load is excessively unbalanced, the machine attempts to distribute it instead of spinning. The balancing attempts may extend the total duration of the cycle, up to a maximum of 10 minutes.

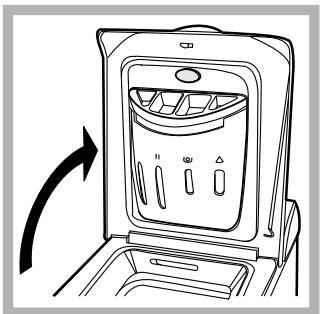

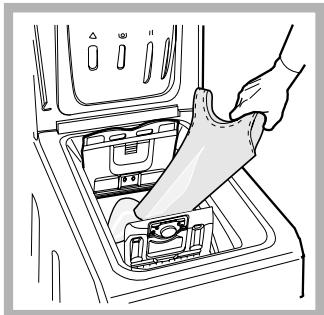

How to open and shut the drum A) Opening (Fig. 1).

Lift the external lid and open it completely.

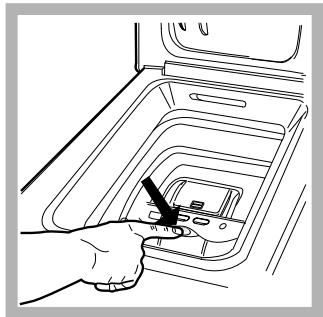

B) Opening the drum (Soft opening): With one finger, push the button indicated in fig. 2 and the drum will open delicately. C) Loading the washing machine. (Fig. 3).

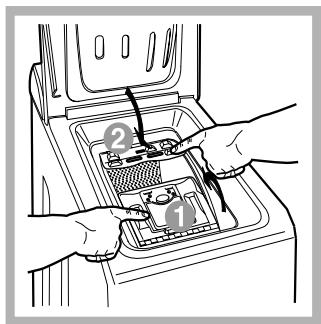

D) Shutting (Fig. 4). - close the drum fully by first shutting the front door followed by the rear one; - then ensure the hooks on the front door are perfectly housed within the seat of the rear door; - after the hooks have clicked into position, press both doors lightly downwards to make sure they do not come loose; - finally shut the external lid. E) Drum End Stop (Fig. 2). Once the wash cycle has been completed, the drum will position itself with the doors facing upward for ease of opening.

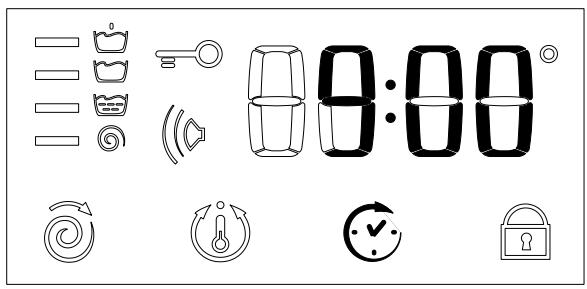

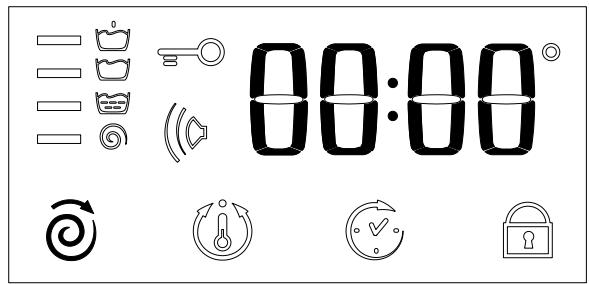

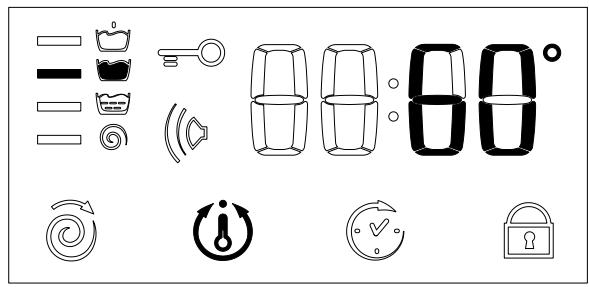

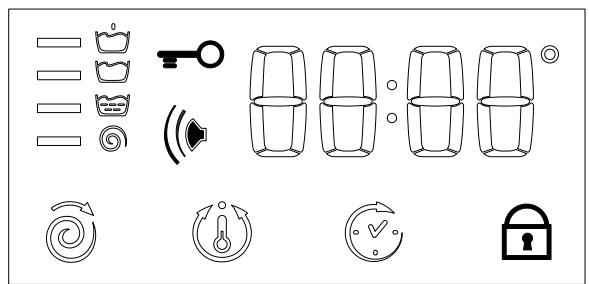

GB In addition to being a practical tool to programme your appliance (see page 19), the display provides useful information concerning the wash cycle and status.

Once you have pressed the START/RESET button to start the programme, the display will indicate the amount of time left until the end of the wash cycle. If a delayed start has been set (using the Delay Timer, see page 19), the delay time will be indicated on the display.

The following information is displayed during the wash cycle: Cycle phase under way: Pre-wash

Customised functions and options: To select functions and options, see below and on page 19.

Buzzer : Your washing machine comes with a buzzer, which will inform you of the various functions being carried out, or of any malfunctions: incompatibility, Keyboard lock: For your safety and that of your children, you can block all the keys during the machine's operation or during waiting position (delayed start - Stand-by) by pressing the function key for 2 seconds. To disable this function, hold the same button down for 4 seconds. ON-OFF/Lid lock: If this icon is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the icon is off before you open the appliance door. When the programme has ended, the word “End“ will light up.

In the event of an anomaly, an error code will appear, such as: F-01, (see page 24).

Starting and Programmes Briefly: starting a programme GB

1. Switch the washing machine on by pressing button . All the icons will light up for a few seconds and then go off. 2. Load your laundry into the washing machine, add the detergent and any fabric softener (see page 20) and shut the appliance lid. 3. Set the knob to the desired programme. The estimated duration of the selected programme is displayed. The temperature and spin speed are automatically set according to the programme (to change them, see page 19).

4. Select any options (see page 19) 5. Start the programme by pressing the START/RESET button. To cancel it, keep the START/RESET button pressed for at least 2 seconds. 6. When the programme has ended, the word “End“ will light up. After approximately 3 minutes, the key icon will switch off and you will be able to open the doors. Take out your laundry and leave the doors ajar to make sure the drum dries completely. 7. Turn the washing machine off by pressing .

Programme table Type of fabric and degree Programmes of soil

Bleaching Cycle length Description of wash cycle /option (minutes) Bleach

Cotton Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles Wash cycle, rinse cycles, intermediate and final spin cycles Wash cycle, rinse cycles, intermediate and final spin cycles Wash cycle, rinse cycles, intermediate and final spin cycles Wash cycle, rinse cycles, intermediate and final spin cycles

Extremely soiled whites (sheets, tablecloths, etc.)

90°C Extremely soiled whites (sheets, tablecloths, etc.)

Heavily soiled whites and fast colours

Heavily soiled whites and fast colours

Slightly soiled whites and delicate colours (shirts, jumpers, etc.)

Wash cycle, rinse cycles and delicate spin cycl

Wash cycle, rinse cycles and delicate spin cycle

Wash cycle, rinse cycles, anticrease or draining cycle

Synthetics Heavily soiled fast colours (baby linen, etc.) Heavily soiled fast colours (baby linen, etc.) Delicate colours (all types of slightly soiled garments) Delicate colours (all types of slightly soiled garments)

Rinse cycles and spin cycle Rinse cycles, anti-crease or draining Draining and heavy duty spin cycle Draining and delicate spin cycle Draining

Notes • For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative. • At the end of the wash cycle, before opening the appliance, wait 3 minutes for the doors of the drum to face upwards. Special programme Daily 30' (programme 9 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (9 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg. We recommend the use of liquid detergent. 18

Personalisations Setting the spin cycle

If, when the appliance is switched on, the KNOB is positioned on a appears. Press button programme with a spin cycle, a fixed and the maximum spin speed allowed for the programme set will be displayed, and the the icon goes on. Press it again and the values lower until they reach OFF, which indicates that the spin cycle has been excluded (press it again to go back to the maximum value); stop on the desired speed, after approximately 2 seconds remains fixed. the setting is accepted: the symbol The spin cycle setting is enabled with all the programmes except for 11 (curtains, silk) and the Draining cycle.

Setting the temperature

If, when the appliance is switched on, the KNOB is positioned on a programme for which the temperature needs appears. Press button and the maximum temperature allowed for the programme to be regulated, a fixed set will be displayed and the icon flashes. Press it again and the temperature lowers until it reaches OFF, which indicates a cold wash cycle (press it again to go back to the maximum value); stop on the desired value, remains fixed. after approximately 2 seconds the setting is accepted: the symbol The temperature adjustment is enabled with all wash programmes.

Setting the Delay Timer Press the button and you will see the word OFF on the display, while the relative symbol flashes. Press the button again and "1h" appears, that is, a delay of one hour (this can reach up to 24h); stop on the "desired" delay; after approximately 2 seconds the setting is accepted, following which, the time for the set remains on. programme appears on the display and the symbol If you now press the START/RESET button, the set "delay" appears; this decreases every hour until the start of the cycle. In this phase, the "delay" can only be modified by decreasing it. The Delay Timer regulation is enabled with all programmes.

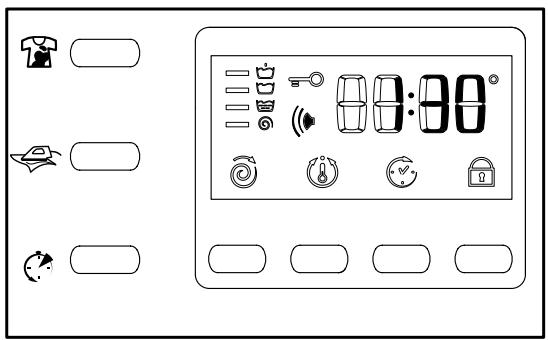

Keyboard lock Functions

To enable a function: 1. press the button corresponding to the desired function, according to the table below; 2. the function is enabled when the corresponding button is illuminated. Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set. If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled. F u n ct i o n

Cu t s t h e d u r at i on o f t h e was h cycl e by 30%.

1 , 2 , 3, 4 , 5 , 6 , 7, 8 Ri n s es

GB Detergents and laundry

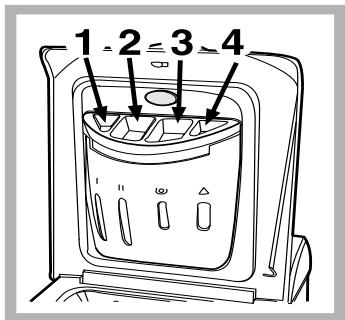

GB Detergent dispenser

Preparing your laundry

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

• Divide your laundry according to: - the type of fabric/the symbol on the label. - the colours: separate coloured garments from whites. • Empty all pockets and check for loose buttons. • Do not exceed the weight limits stated below, which refer to the weight when dry: Sturdy fabrics: max 6 kg Synthetic fabrics: max 2.5 kg Delicate fabrics: max 2 kg Wool: max 1 kg

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows. compartment 1: Detergent for pre-wash compartment 2: Detergent for the wash cycle (powder or liquid) It is recommended that you place liquid detergent directly into the compartment using the appropriate dosing cup. compartment 3: Additives (softener, etc.) When pouring the softener in compartment 3, avoid exceeding the "max" level indicated. The softener is added automatically into the machine during the last wash. At the end of the wash programme, some water will be left in compartment 3. This is used for the inlet of denser fabric softeners into the machine, i.e. to dilute the more concentrated softeners. Should more than a normal amount of water remain in compartment 3, this means the emptying device is blocked. For cleaning instructions, see page 22. compartment 4: Bleach

Do not use hand wash detergent because it may

Bleach cycle Traditional bleach should be used on sturdy white fabrics, and delicate bleach for coloured fabrics, synthetics and for wool. When pouring in the bleach, be careful not to exceed the "max" level indicated on compartment 4 . To run the bleach cycle alone, pour the bleach into (for compartment 4 and set the Rinse programme cotton fabrics) or delicate Rinse (for synthetic fabrics).

How much does your laundry weigh?

1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1,200 g 1 towel 150-250 g

Special items Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 11 which excludes the spin cycle automatically. Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle. Trainers: remove any mud. They can be washed together with jeans and other tough garments, but not with whites. Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg.

Woolmark Platinum Care As gentle as a hand wash. Hotpoint-Ariston sets a new standard of superior performance that has been endorsed by The Woolmark Company with the prestigious Woolmark Platinum Care brand. Look for the Woolmark Platinum Care logo on the washing machine to ensure you can safely and effectively wash wool garments labelled as "hand wash" (M.0303): garments, Set programme 10 for all "Hand wash" using the appropriate detergent (max load 1 Kg).

Precautions and advice The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

General safety • This appliance has been designed for nonprofessional, household use and its functions must not be changed.

in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

• This washing machine should only be used by adults and in accordance with the instructions provided in this manual.

• Disposing of an old washing machine: before scrapping your appliance, cut the power supply cable and remove the appliance door.

• Never touch the washing machine when barefoot or with wet or damp hands or feet.

Saving energy and respecting the environment

• Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself.

Environmentally-friendly technology If you only see a little water through your appliance door, this is because thanks to the latest technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

• Do not open the detergent dispenser while the appliance is in operation. • Do not touch the drain water as it could reach very high temperatures. • Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings. • In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs. • Always keep children well away from the appliance while in operation. • The appliance door tends to get quite hot during the wash cycle. • Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy. • Before loading your laundry into the washing machine, make sure the drum is empty.

• Disposing of the packaging material: observe local regulations, so the packaging can be re-used. • Disposal of old electrical appliances The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately

Saving on detergent, water, energy and time • To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy. • The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy. • Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy. • Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible. • If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The Delay Timer option (see page 19) helps to organise your wash cycles accordingly. • If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

GB Care and maintenance Cutting off the water or electricity supply

• Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks.

Make sure the wash cycle has ended and unplug the appliance. To recover any objects that have fallen into the prechamber: 1. remove the plinth at the bottom on the front side of the washing machine by pulling from the side with your hands; (see figure); 2. unscrew the lid rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal; 3. clean the interior thoroughly; 4. screw the lid back on; 5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

• Unplug your appliance when cleaning it and during all maintenance operations.

Cleaning your appliance The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Caring for your appliance door and drum • Always leave the appliance door ajar to prevent unpleasant odours from forming.

Checking the water inlet hose

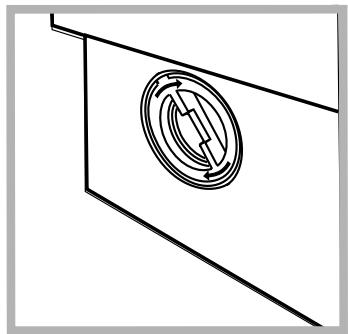

The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

Never use hoses that have already been used.

How to clean the detergent dispenser

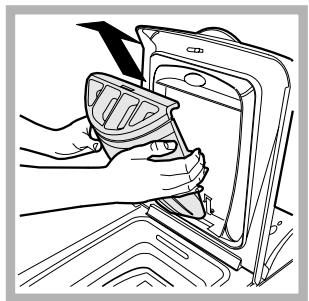

Disassembly: Press lightly on the large button on the front of the detergent dispenser and pull it upwards (fig. 1).

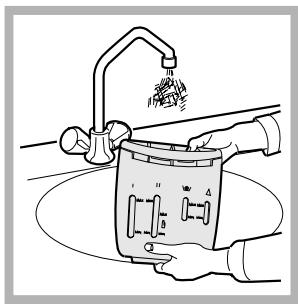

Cleaning: Then clean the dispenser under a tap (fig. 3) using an old toothbrush and, once the pair of siphons inserted in the top of compartments 1 and 2 (fig. 4) have been pulled out, check whether the same are not clogged and then rinse them.

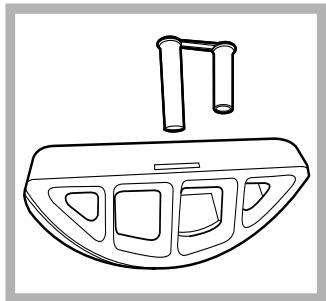

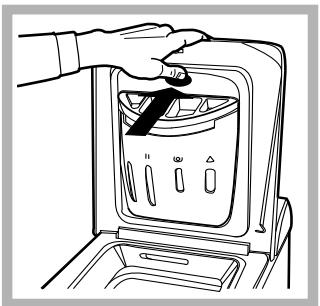

Reassembly: Do not forget to reinsert the pair of siphons into the special housings and then to replace the dispenser into its seat, clicking it into place (fig. 4, 2 and 1).

Troubleshooting Your washing machine could fail to work. Before calling for Assistance (see page 24), make sure the problem can't easily be solved by consulting the following list.

Possible causes/Solution:

The washing machine won't start.

• The appliance is not plugged into the socket, or not enough to make contact. • There has been a power failure.

The wash cycle won't start.

• The appliance door is not shut properly (the word “door” is displayed). button has not been pressed. • The • The START/RESET button has not been pressed. • The water tap is not turned on.

The washing machine fails to load water (The wording H2O is displayed).

The washing machine continuously loads and unloads water.

• The drain hose is not fitted between 65 and 100 cm from the floor (see page 15). • The free end of the hose is underwater (see page 15). • The wall drainage system doesn't have a breather pipe.

The water inlet hose is not connected to the tap. The hose is bent. The water tap is not turned on. There is a water shortage. The water pressure is insufficient. The START/RESET button has not been pressed.

If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops. The washing machine does not drain or spin.

• The programme does not foresee the draining: some programmes require enabling the draining manually (see page 18). • The Easy iron option is enabled: to complete the programme, press the START/RESET button (see page 19). • The drain hose is bent (see page 15). • The drain duct is clogged.

The washing machine vibrates too much during the spin cycle.

• The drum was not unblocked correctly during installation (see page 14). • The washing machine is not level (see page 14). • The washing machine is closed in between furniture cabinets and the wall (see page 14).

The washing machine leaks.

• The water inlet hose is not screwed on correctly (see page 14). • The detergent dispenser is obstructed (to clean it, see page 22). • The drain hose is not secured properly (see page 15).

There is too much foam.

• The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like). • You used too much detergent. ./. Cont.

...Fllwg. The machine is locked and the display flashes, indicating an error code (e.g. F-01, F- ...) .

This means there is a problem with the machine. Before calling Assistance, please follow the set of instructions below: 1. Switch off the machine. 2. Remove the plug connecting the appliance to the mains supply and wait for at least 40 seconds. 3. Place the plug back into the socket. 4. Switch on the machine. 5. If the problem is still evident after this process has been carried out, contact Assistance.

Before calling for Assistance: • Check whether you can solve the problem on your own (see page 71); • Restart the programme to check whether the problem has been solved; • If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate.

If the machine has been installed or used incorrectly, you may be charged for the maintenance callout service. Always request the assistance of authorised servicemen. Notify the operator of: • the type of problem; • the appliance model (Mod.); • the serial number (S/N). This information can be found on the data plate situated on the rear of the washing machine.
