Type de produit	Projecteur DLP
Marque	Samsung
Modèle	SP-D400
Technologie d'affichage	DLP (Texas Instruments DMD)
Résolution native	XGA (1024 x 768)
Luminosité	4000 lumens ANSI
Contraste	3000:1
Lampe	280 W UHP (Philips)
Durée de vie de la lampe	2500 heures
Entrées vidéo	HDMI (HDCP), Composante (Y/Pb/Pr), S-Vidéo, Vidéo composite, PC (D-sub)
Sortie PC	D-sub (moniteur)
Taille d'écran	40 à 250 pouces (diagonale)
Distance de projection	1 à 10 mètres
Correction trapèze	Verticale (V-Keystone)
Niveau sonore	31 dB (Eco), 33 dB (Bright)
Consommation électrique	Moins de 350 W
Alimentation	110/220 VAC ±10%, 50/60 Hz
Dimensions (L x H x P)	343,1 x 162,4 x 347,2 mm
Poids	5,8 kg
Entretien et nettoyage	Nettoyer avec un chiffon doux et sec. Ne pas utiliser de produits chimiques.
Pièces détachées et réparabilité	Lampe de remplacement (modèle 280W Philips fusion). Contactez un centre de service agréé pour toute réparation.
Sécurité	Ne pas regarder directement le faisceau lumineux. Éviter les obstacles devant les grilles de ventilation.
Accessoires inclus	Télécommande, piles, câble d'alimentation, câble D-Sub, manuel utilisateur (CD), chiffon de nettoyage.

FOIRE AUX QUESTIONS - SP-D400 SAMSUNG

Comment installer le projecteur pour obtenir une image droite ?

Placez le projecteur de manière à ce que le faisceau soit perpendiculaire à l'écran. Utilisez les pieds réglables pour mettre à niveau. Si l'image est déformée, utilisez la fonction V-Keystone dans le menu pour corriger la distorsion trapézoïdale verticale.

Quels types d'entrées vidéo sont disponibles sur le SP-D400 ?

Le projecteur dispose d'entrées HDMI (HDCP), Composante (Y/Pb/Pr), S-Vidéo, Vidéo composite (RCA jaune) et PC (D-sub). Utilisez la télécommande pour sélectionner la source correspondante.

Comment connecter un ordinateur au projecteur ?

Connectez un câble D-sub entre la sortie moniteur de votre PC et l'entrée PC IN du projecteur. Branchez ensuite les deux appareils. Le projecteur détecte automatiquement le signal. Vous pouvez également utiliser un câble HDMI si votre PC en possède une.

Que faire si le projecteur ne s'allume pas ?

Vérifiez que le câble d'alimentation est bien branché et que la prise fonctionne. Assurez-vous que le voyant STAND BY est allumé. Si le voyant LAMP clignote ou est éteint, attendez que le refroidissement se termine (environ 90 secondes) avant de réessayer.

Comment remplacer la lampe du projecteur ?

Débranchez le projecteur et attendez au moins 1 heure que la lampe refroidisse. Retournez l'appareil sur un chiffon doux, retirez le couvercle de la lampe (situé au dos), dévissez les vis de fixation, puis tirez la lampe par les poignées. Insérez une nouvelle lampe de type 280W UHP Philips et remontez le tout.

Pourquoi l'image projetée est-elle de travers ou inclinée ?

Cela peut être dû à une installation non perpendiculaire à l'écran. Ajustez les pieds réglables pour niveler le projecteur. Si cela ne suffit pas, utilisez le menu V-Keystone (correction trapèze verticale) pour redresser l'image.

Le projecteur émet un bruit de ventilateur, est-ce normal ?

Oui, le bruit du ventilateur fait partie du fonctionnement normal pour dissiper la chaleur. Le niveau sonore est d'environ 31 dB en mode Eco et 33 dB en mode Bright. Si le bruit devient excessif, vérifiez que les grilles d'aération ne sont pas obstruées.

Comment régler la netteté de l'image ?

Utilisez la bague de mise au point située sur l'objectif pour ajuster la netteté. Si l'image reste floue, vérifiez la distance de projection (entre 1 et 10 mètres) et utilisez la molette de zoom pour adapter la taille.

Puis-je utiliser le projecteur en mode inverse (plafond) ?

Oui, allez dans le menu Setup > Install et choisissez Front-Ceiling (image inversée horizontalement et verticalement) ou Rear-Ceiling (image inversée verticalement) selon votre installation. Un kit de montage au plafond est disponible séparément.

Comment connaître le temps d'utilisation de la lampe ?

Appuyez sur le bouton INFO de la télécommande pour afficher les informations, dont le temps de fonctionnement de la lampe. Lorsque le temps approche de 2500 heures, il est recommandé de remplacer la lampe pour maintenir une luminosité optimale.

MODE D'EMPLOI SP-D400 SAMSUNG

Precautions

Screen Adjustment

Product Overview

Troubleshooting

Connections

Other Information

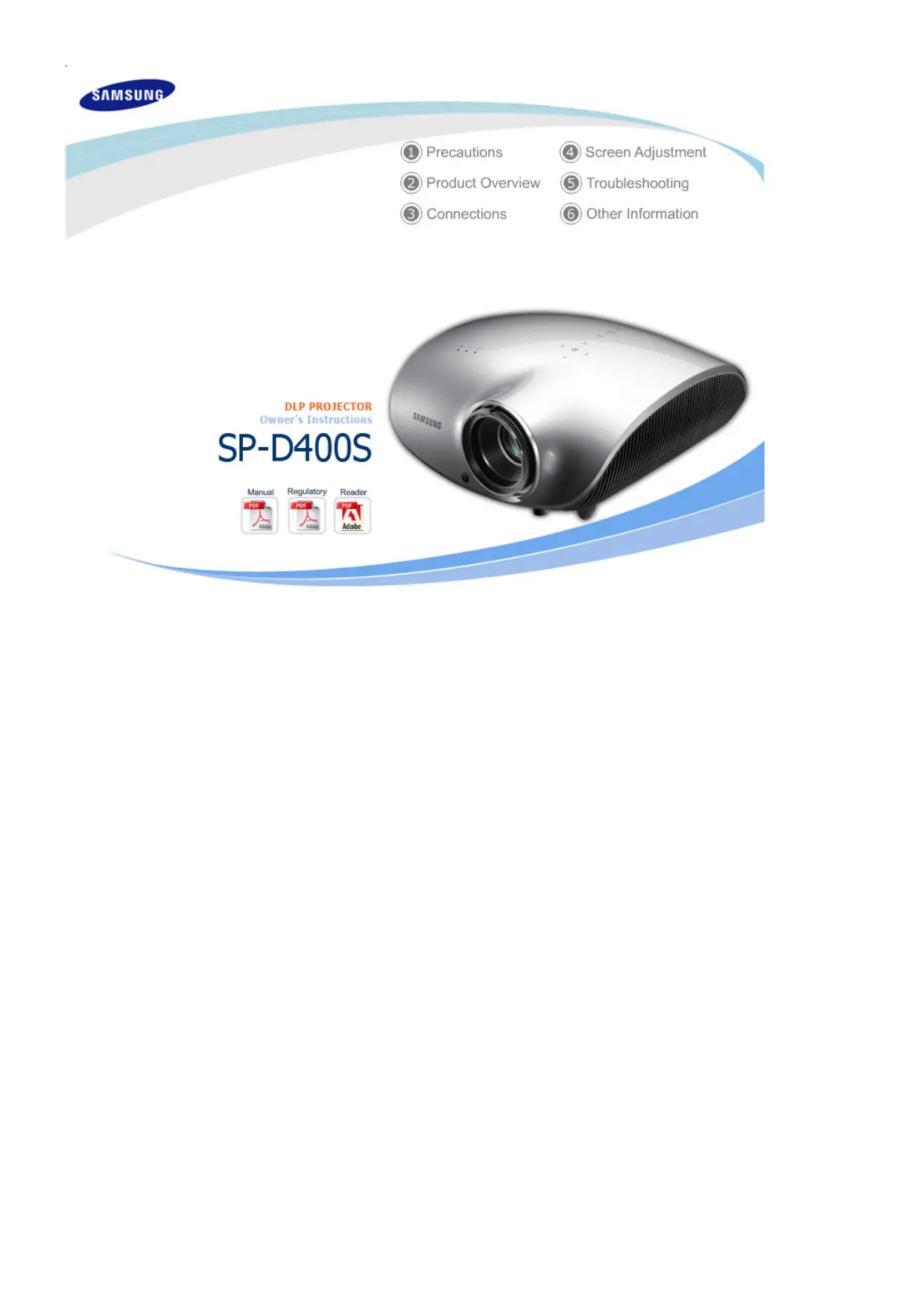

DLP PROJECTOR Owner's Instructions SP-D400S

Manual

Regulatory

Reader

SAMSUNG

Precautions

Precautions

Screen Adjustment

Product Overview

Troubleshooting

Connections

Other Information

To avoid injuries or damage to property, please read the following precautions carefully and use the product accordingly.

Warning

Failure to follow the instructions marked with this symbol may cause personal injury or even fatality.

Notice

Failure to follow the instructions marked with this symbol may cause personal injury or damage to the product or property.

Power Related | Installation Related | Cleaning and Use Related |

Power Related

[The images here are for reference only, and are not applicable in all cases (or countries).]

Warning

Insert the power plug firmly so that it does not come loose.

• When the connection is not firm, it may cause a fire.

Do not use loose power outlets or damaged power cables.

There is a danger of electric shock or fire.

Under no circumstances touch the power plug with wet hands.

There is a danger of electric shock.

Do not plug multiple devices into a single wall outlet.

There is a danger of fire.

Do not bend the power cord excessively or place heavy objects on it.

There is a danger of electric shock or fire.

Before moving the product, make sure the power is off and remove the power cord from the wall outlet. In addition, make sure all connection cables are disconnected from other devices before moving it.

• Moving the product without disconnecting the power cord may damage the power cord and cause electric shock or fire.

Notice

Always unplug the unit by holding the power plug. Pulling the power cable may damage the inside of it.

There is a danger of fire.

Unplug the power plug before cleaning the product.

There is a danger of electric shock or fire.

Power Related | Installation Related | Cleaning and Use Related

Installation Related

Warning

TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

• There is a danger of fire.

When installing the product in a cabinet or on a shelf, make sure the front end of the base does not protrude.

• Dropping the product may damage it or cause injury.

Keep the power cord away from heaters.

• The coating of the power cord may melt and cause electric shock or fire.

Do not install the product in locations exposed to oil, smoke, moisture or water (rainwater), or in a vehicle.

• There is a danger of electric shock or fire.

Do not install the product in locations with poor ventilation such as a bookshelf, closet, etc.

• An increase in the internal temperature may cause a fire.

Do not install on an unstable location, or on a stand smaller than the product.

• Make sure to keep the product out of the reach of children. The product may fall and cause personal injury.

In case of thunder/lightning, disconnect the power cord from the wall outlet.

• There is a danger of electric shock or fire.

Notice

Make sure the product's vents are not blocked by a table cloth or curtain.

• An increase in the internal temperature may cause a fire.

Place the product on the ground carefully.

• Doing so may cause damage or injury.

Do not drop the product while carrying it.

• Doing so may cause damage or injury.

Keep the product out of children's reach.

• Make sure to keep the product out of the reach of children. The product may fall and cause personal injury.

Power Related | Installation Related | Cleaning and Use Related

Cleaning and Use Related

Warning

Do not insert metal items, such as chopsticks, steel wire, gimlets, or inflammable objects such as matches or paper into the product through the ventilating openings and the PC/Video and power terminals.

• This may cause electric shock or fire. If water or an alien substance enters the product, turn the product off, disconnect the power cord from a wall outlet and contact a Service Center.

Do not disassemble, or attempt to fix or modify the product.

• When the product requires repairs, contact a Service Center.

Do not use or keep the product near flammable sprays or other such substances.

• There is a danger of fire or explosion.

Do not place containers with water, vases, drinks, chemicals, small metal parts or heavy objects on the product.

• If water enters the product, it may cause electric shock, or fire and when heavy objects fall, it may cause injury.

Do not let children place objects such as toys or cookies on the product.

• If a child tries to reach for any of these objects, the product may fall and cause harm.

Do not look directly at the light of the lamp nor project the picture onto eyes.

• This is dangerous especially for children.

When you remove batteries from the remote, be careful that they are not swallowed by children. Keep batteries out of the reach of children.

• If swallowed, see a doctor immediately.

Notice

If the product emits smoke, unusual noise, or there is a burning smell, disconnect the power plug immediately, and contact a Service Center.

• There is a danger of electric shock or fire.

If the power plug pin or jack is exposed to dust, water or alien substances, clean it thoroughly.

• There is a danger of electric shock or fire.

When cleaning the product, disconnect the power cord and wipe the product using a soft dry cloth.

• Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent.

When not using the product for an extended period of time, disconnect the power plug.

• Otherwise, this may cause heat emission from the accumulated dirt or degraded insulation, leading to electric shock or fire.

Do not install the product in places with heavy dust, chemical substances, high or low temperatures, high humidity, or where it will be operated for a long period continuously etc.

If the product is dropped or the casing is damaged, turn the product off and unplug the power cord.

• This may cause electric shock or fire. Contact a Service Center.

Make sure to place your remote control on a table or desk.

• If you step on the remote control, you may fall and hurt yourself or the product may be damaged.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household waste at the end of its working life. To prevent possible harm to the environment or damage to health from uncontrolled waste disposal, please separate this from other types of waste and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product - alleen voor Europa

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Product Features

Optical engine with advanced DLP technology

• 1024 × 768 panel has been adapted.
• 4 segment color wheel to implement optimal colors.
• 280 W Lamp designed to improve luminance

02 Vivid colors

• Quality picture tuning focused on improving color - this unit aims at realizing color coordinates that meet broadcasting standards on video production.

03 Minimized fan noise and light leakage

• The airflow and fan installation structure are optimized to minimize fan noise and beam leakage.

04 Various Input Ports

• Connections to peripheral devices have been improved by adopting various input terminals such as an HDMI (HDCP supported) terminal, a Component terminal, and a PC OUT terminal.

05 User adjustments

• This unit allows adjustment of each input port.
• The unit has a reference pattern that can be used for positioning and adjustment.

1. Indicators

• STAND BY (Blue LED)
• LAMP (Blue LED)
  -TEMP (Red LED)

Refer to the LED Indications.

6. Zoom Knob

Used to enlarge or reduce image size.

7. POWER() Button

Used to turn the projector on or off.

2. Focus Ring

Used for Focus Adjustment.

8. SOURCE Button

Used to select input signals from the external sources.

3. Remote Control Signal Receiver

4. Lens

9. MENU Button

Use this button to enter or exit a menu or to move forward in a menu.

5. Adjustable Feet

You can adjust the screen position by moving the adjustable feet up and down.

10. Select and Move Button (巴 / )

Use this button to move to or select an item within a menu.

The buttons on the top of the projector are touch buttons.

Touch them lightly with your fingers to use them.

The label is attached to the bottom of the product.

Unpacking

Quick Installation Guide

Warranty Card/ Registration Card (Not available in all locations)

User Manual CD

Power Cable

Remote Control/ 1 Batteries (Not available in all locations)

Cleaning Cloth

Sold separately

D-Sub Cable

LED Indications

Light is On Light is Blinking Light is Off

STAND BY	LAMP	TEMP	Information
●	○	○	If you press the POWER button on the remote control or projector, the screen appears within 30 seconds.
●	●	○	The projector is in normal operating condition.
●	○	○	This state appears when the projector is preparing an operation after the POWER button on the projector or the remote control has been pressed.
○	○	○	The POWER button is pressed to turn off the projector, and the cooling system is in operation to cool off the inside of the projector. (Lasts for about 1 minute and 30 seconds)
○	○	○	Refer to Action 1 below if the cooling fan inside the projector is not in normal operation condition.
○	○	○	Refer to Action 2 below if the lamp cover protecting the lamp unit is not closed properly.
○	○	○	Power is turned off automatically when temperature inside of the projector goes beyond the control limit. Refer to Action 3.
●	○	○	A problem has occurred when operating the DDP IC in the product. Refer to Action 4.
○	○	○	A problem has occurred with the operation of the lamp. Refer to Action 5.
●	○	●	The lifetime of the lamp has expired. Refer to Action 6.
○	○	○	The memory in the product is not operating normally. Contact a service center.
○	○	●	The power for the product is not operating normally. Contact a service center.
○	●	○	A problem has occurred when operating the color wheel in the product. Refer to Action 4.

Clearing Indicator Problems

Action 1	When the cooling fan system is not in normal operating condition.	If the symptom remains even after disconnecting and then reconnecting the power cord and turning the projector on again, contact your product provider or our service center.
Action 2	When the lamp covers protecting the lamp unit is not properly closed or the sensor system is not in normal operating condition.	Check whether the screws at the bottom side of the projector are fastened correctly. If they are abnormally fastened, contact your product distributor or service center.
Action 3	When temperature inside of the projector becomes too high.	Adjust the installation state of your projector by referring to the Installation Precautions section listed above. Cool down your projector sufficiently and then operate it again. If the same problem occurs continually, contact your product distributor or service center.
Action 4	When the color wheel fails to operate.	Disconnect and reconnect the power cord and start the projector again. If the same symptom still occurs, contact your product distributor or service center.
Action 5	The lamp malfunctions after power turns off abnormally or after powering on right after turning off the projector.	Turn the power off, wait for a sufficient amount of cooling time and then turn the power on to operate. If the same problem occurs continually, contact your product distributor or service center.
Action 6	When the screen becomes darker	Check the lamp usage time on the Information Display screen. If you need to replace the lamp, contact your product distributor or service center.

This Projector uses a cooling fan system to keep the unit from overheating. Operation of the cooling fan may cause noise, which does not affect the product performance and is part of normal operation.

Rear Side

1. SERVICE Input port

2. PC OUT terminal

3.VIDEO IN Input port

1. PC IN Input port

2. S-VIDEO IN Input port

3. COMPONENT IN Input port

4. Remote Control Signal Receiver

5. POWER Input port

Product Features | Product Views | Remote Control | Product Specifications

Remote Control

1. ON（）Button
2. AUTO Button
3. MENU (Button
4. Move (▲▼ ▲▶)/(Button
5. V. KESTONE(+/-) (VERTICAL KESTONE)Button
   6.VIDEO Button
6. S-VIDEO Button
7. P.SIZE Button
8. COMP Button
9. OFF (B) Button
10. RETURN (D) Button
11. EXIT ( Button
12. INFO STILL Button
13. HDMI Button
14. INSTALL Button
15. P.MODE Button
16. PC Button

1.ON（）

Used to turn on the projector.

2.AUTO

Adjusts the Picture automatically. (Available in PC Mode Only)

1. MENU (I)

Used to display Menu Screen.

1. Move (▲▼ ▲▶) / (◎)

Used to move to or select each menu item.

5.V.KEystone(VERTICAL KESTONE (+ / - )

Use this when video scenes are distorted or tilted.

6.VIDEO

Used to switch toVIDEO Mode.

7. S-VIDEO

Used to switch to S-VIDEO Mode.

8. P.SIZE

Used to adjust the size of picture screen.

9. COMP

Used to switch to COMPONENT Mode.

10. OFF (b)

Used to turn off the projector.

11. RETURN (D)

Returns to the previous menu.

12. EXIT (→

Used to make Menu Screen disappear.

13. INFO STILL

INFO: Used to check source signals, picture setup, PC screen adjustment and lamp lifespan.
STILL: Used to see still images.

14.HDMI

Used to switch to HDMI Mode.

15. INSTALL

Used to flip or reverse the projected image.

16. P.MODE

Used to select Picture Mode.

17. PC

Used to switch to PC Mode.

Product Features | Product Views | Remote Control | Product Specifications |

Product Specifications

Design and specifications of the product may be modified without prior notice for better performance.

Specifications

Model

SP-D400S

Size

16.5 mm / 0.65 inch

Panel

Resolution

XGA(1024×768)

Manufacturer

Texas Instrument

Type

280W

Lamp

Life Time

2,500 Hours

Manufacturer

Philips

Color

18.9 M (1024 x 768 x 3 x 8bit)

Optimum

1024 x 768 @ 60Hz

resolution

Resolution

Maximum

1280×1024@75Hz

resolution

Input video signal

Video, S-Video, Component, Analog PC, HDMI

Input synchronization signal

Separate H/V sync, TTL

Maximum Pixel Clock

136.75 MHz

Diagonal screen size		40 ~250 inch
Projection Range		1 ~10 m
Power	Consumption	Less than 350W
Power	Voltage	110/220 Vac +/-10 %, 50/60 Hz +/-3 Hz
Noise		Eco : 31dB, Bright : 33dB
Dimensions		343.1 mm(W)x162.4 mm(H)x347.2 mm(D)13.5 inches(W) x 6.4 inches(D) x 13.7 inches(H)
Weight		5.8 kg / 12,8 lb
Key Features	Brightness	Max 4,000 ANSI lumen
	Contrast	3,000:1
	Keystone	Vertical
User Environment	Temperature and Humidity	Operating Temperature 32 °F ~ 104 °F (0 °C ~ 40 °C), Humidity (10 % ~ 80 %)
		Storage Temperature -4 °F ~ 113 °F (-20 °C ~ 45 °C), Humidity (5 % ~ 95 %)

This Class B equipment is designed for home and office use. The equipment has been registered regarding EMI for residential use. It may be used in all areas. Class A is for office use. Class A is for business while class B emits less electromagnetic waves than class A.

The DMD Panel used in DLP Projectors consists of several hundred thousand micro mirrors. As with other visual display elements, the DMD Panel may include a few bad pixels. Samsung and the DMD Panel manufacturer have a rigid, bad pixel identification and limitation procedure in place and products will not exceed the maximum number of bad pixels set by our standards. Rarely, non-displayable pixels may exist, however it does not affect the picture quality nor the lifespan of the product.

Supported Display Modes

Input Source	Resolution (HxV)	Horizontal Sync		Vertical Sync		Pixel
		Frequency [kHz]	polarity	Frequency [Hz]	polarity	Frequency [MHz]	Sync Type
	640X350	31.47	P	70.1	N	25.18	Sep.
		37.86	P	85.1	N	31.5	Sep.
	640X400	37.86	N	85	P	31.5	Sep.
		31.47	N	60	N	25.175	Sep.
		35.00	N	66.7	N	30.24	Sep.
	640X480	37.86	N	72.8	N	31.5	Sep.
		37.5	N	75	N	31.5	Sep.
		43.27	N	85	N	36	Sep.
	720X400	31.47	N	70	P	28.322	Sep.
		35.16	P	56.3	N	36	Sep.
		37.88	P	60	P	40	Sep.
	800X600	48.08	P	72.2	P	50	Sep.
		46.87	P	75	P	49.5	Sep.
PC		53.67	P	85	P	56.25	Sep.
	832X624	49.73	N	75	N	57.28	Sep.
		48.36	N	60	N	65	Sep.
	1024X768	56.4	N	70	N	75	Sep.
		60.02	P	75	P	78.75	Sep.
		68.68	P	85	P	94.5	Sep.
	1152X864	67.5	P	75	P	108	Sep.
	1152X870	68.68	N	75	N	100	Sep.
	1280X768	47.78	N	60	P	79.5	Sep.
	1280X960	60	P	60	P	108	Sep.
	1280X1024	63.98	P	60	P	108	Sep.
		79.98	P	75	P	135	Sep.
		55.94	N	60	P	106.5	Sep.
Component	1440X900	70.64	N	75	P	136.75	Sep.
	1920X1080i	33.72	P	60	P	74.18	Sep.
		28.125	P	50	P	74.25	Sep.
		45	P	60	P	74.25	Sep.
	1280x720p	37.5	P	50	P	74.25	Sep.
	720x480p	31.5	P	60	P	27	Sep.
	720x576p	31.25	P	50	P	27	Sep.
	640X350	31.47	P	70.1	N	25.18	Sep.
		37.86	P	85.1	N	31.5	Sep.
	640X400	37.86	N	85	P	31.5	Sep.
	640X480	31.47	N	60	N	25.175	Sep.
		37.5	N	75	N	31.5	Sep.
	720X400	31.47	N	70	P	28.322	Sep.
	800X600	37.88	P	60	P	40	Sep.
		46.87	P	75	P	49.5	Sep.
	1024X768	48.36	N	60	N	65	Sep.
		60.02	P	75	P	78.75	Sep.
HDMI	1280X768	47.78	N	60	P	79.5	Sep.
	1280X960	60	P	60	P	108	Sep.
	1280X1024	63.98	P	60	P	108	Sep.
		79.98	P	75	P	135	Sep.
	1920x1080i	33.72	P	60	P	74.18	Sep.
		28.125	P	50	P	74.25	Sep.
	1280x720p	45	P	60	P	74.25	Sep.
		37.5	P	50	P	74.25	Sep.
	720x480p	31.5	P	60	P	27	Sep.
	720x576p	31.25	P	50	P	27	Sep.
	720x480i	15.73	P	60	P	13.5	Sep.
	720x576i	15.63	P	50	P	13.5	Sep.

Supported Resolution/Size Modes

: Size & Overscan can be configured, x : Size & Overscan cannot be configured, : Size can be configured

Source			Picture Size
Input	Type	Mode	Normal	Zoom1	Zoom2	16:9
	HD	1080i	O	△	△	O
		720p	O	△	△	O
		576p	O	△	△	O
HDMI	SD	480p	O	△	△	O
		576i	O	△	△	O
		480i	O	△	△	O
	DVI	VESA	△	x	x	△
	HD	1080i	O	△	△	O
		720p	O	△	△	O
		576p	O	△	△	O
Component	SD	480p	O	△	△	O
		576i	O	△	△	O
		480i	O	△	△	O
VIDEO & S-VIDEO	SD	576i	△	△	△	△
		480i	△	△	△	△
	HD	1080i	△	x	x	△
		720p	△	x	x	△
		576p	△	x	x	△
	SD	480p	△	x	x	△
PC	SD	576i	△	x	x	△
		480i	△	x	x	△
		16:9 Mode	△	x	x	△
	PC	4:3

Picture Position Modes

The position function is not supported in HDMI, Video and S-video input.
Overscan : Off

Source			Picture Size
Input	Type	Mode	Normal	Zoom1	Zoom2	16:9
Component	HD	1080i	O	O	O	O
		720p	O	O	O	O
		576p	O	O	O	O
	SD	480p	O	O	O	O
		576i	O	O	O	O
		480i	O	O	O	O
	HD	1080i	O	x	x	O
		720p	O	x	x	O
		576p	O	x	x	O
PC	SD	480p	O	x	x	O
		576i	O	x	x	O
		480i	O	x	x	O
	PC	16:9 Mode	O	x	x	O
		4:3 Mode	O	x	x	O

Overscan : On

Input	Source		Picture Size
	Type	Mode	Normal	Zoom1	Zoom2	16:9
Component	HD	1080i	O	O	O	O
		720p	O	O	O	O
		576p	O	O	O	O
	SD	480p	O	O	O	O
		576i	O	O	O	O
		480i	O	O	O	O

DLP PROJECTOR

SP-D400S

SAMSUNG

Connections

Precautions

Screen Adjustment

Product Overview

Troubleshooting

Connections

Other Information

Basic Settings | Connecting the Power | Connecting to video equipment |

Basic Settings

> Installing the Projector

Install the projector so that the beam from the projector is perpendicular to the screen.

Place the projector so that the lens is at the center of the screen.

If the screen is not vertically installed, the picture on the screen may not be a rectangle.

Do not install the screen in bright surroundings. If the screen is too bright, the picture on the screen will not be displayed clearly.
When installing the screen in bright surroundings, use curtains.
You can install the projector in the following locations: Front-Floor / Front-Ceiling / Rear-Floor / Rear-Ceiling. (To view the installation position settings)

01 To view the picture when installing the projector behind the screen,

Install a semi-transparent screen.

Select Menu > Setup > Install > Rear-Floor

02 To view the picture when installing the projector in the front of the screen,

Install the projector at the side where you are watching the screen.

Select Menu > Setup > Install > Front-Floor

Zoom and Focus Adjustment

Zoom Knob

Focus Ring

01

You can adjust the size of image within zoom range by manipulating the Zoom Knob.

02

Focus the picture on the screen using the Focus Ring.

If your product is installed at a location out of the specified projection distance (refer to Screen Size and Projection Distance), the focus cannot be adjusted correctly.

Leveling with Adjustable Feet

For level placing of the projector, adjust the Adjustable Feet of the projector.

You may adjust the level of the projector up to 12mm (average 3.4^ ) degrees.
Depending on the position of the projector, Keystone distortion of image may appear.

> Screen Size and Projection Distance

Install the projector on a flat, even surface and level the projector using the adjustable feet to realize optimal picture quality. If images are not clear, adjust them using the Zoom Knob or Focus Ring, or move the projector forward and backward.

Screen size (M:inch)	Horizontal (X:mm)	Vertical (Y:mm)	Max (Z:mm)	Min (Z:mm)	Offset (Y":mm)
30	609.6	457.2	1300	1110	57
40	812.8	609.6	1730	1480	76
50	1016.0	762.0	2150	1840	95
60	1219.2	914.4	2580	2210	114
70	1422.4	1066.8	3010	2570	133
80	1625.6	1219.2	3430	2940	152
90	1828.8	1371.6	3860	3300	171
100	2032.0	1524.0	4290	3670	191
110	2235.2	1676.4	4710	4040	210
120	2438.4	1828.8	5140	4400	229
130	2641.6	1981.2	5560	4770	248
140	2844.8	2133.6	5990	5130	267
150	3048.0	2286.0	6420	5500	286
160	3251.2	2438.4	6840	5860	305
170	3454.4	2590.8	7270	6230	324
180	3657.6	2743.2	7700	6600	343
190	3860.8	2895.6	8120	6960	362
200	4064.0	3048.0	8550	7330	381
210	4267.2	3200.4	8980	7690	400
220	4470.4	3352.8	9400	8060	419
230	4673.6	3505.2	9830	8420	438
240	4876.8	3657.6	10260	8790	457
250	5080.0	3810.0	10680	9160	476

A. Screen

Z:Throw Distance
Y^ : Distance from Lens Center to Image Bottom

Setting up the PC Environment - Check the following items before connecting your PC to your projector.

1. Click the right mouse button on the Windows desktop and click on [Properties]. tab will appear.
2. Click on [Settings] tab and set the by referring to described in the display mode table supported by this projector. You do not have to change setup.
3. Press the [Advanced] button. Another property window will appear.
4. Click on [Monitor] tab and set the by referring to described in the Supported Resolution/Size Modes table.

Set up both the vertical and horizontal frequency instead of .

1. Click the [OK] button to close the window, and click the [OK] button of the window to close the window.

The computer may restart automatically.

1. Shut down the PC and connect to the projector.

Process might vary depending on your type of computer or Windows versions. (For example, [Properties] appears instead of [Properties (R)] as shown in 1.)
This unit appliance supports up to 24 bits per pixel in Color quality when it is used as a PC monitor.
Projected images may differ from the monitor depending on monitor manufacture or Windows versions.
When connecting the projector to a PC, check that PC setup complies to display settings supported by this projector. If not, there may be signal problems.

| Basic Settings | Connecting the Power | Connecting to video equipment |

Connecting the Power

1. Rear of Projector

01 Plug the power cord into the power terminal on the rear side of the projector.

When used outside of the U.S., HAR cord with fittings of an approved agency may be used.

Connecting a DVD player/Cable/Satellite Box to HDMI/DVI

01 - Connecting using an HDMI/DVI cable

Connect the [HDMI/DVI IN] terminal on the back of the projector and the DVI output terminal of the DVD player/Cable/Satellite box using a HDMI/DVI cable.

• Connecting using an HDMI cable

Connect the [HDMI/DVI IN] terminal on the back of the projector and the HDMI output terminal of the DVD player/Cable/Satellite box using a HDMI cable.

02 When the connection is finished, connect the power of your projector and DVD player/Cable/Satellite box.

Using the Projector

01 Turn on the projector and press the [HDMI] button to select .

Connecting a DVD player/Cable/Satellite Box via Component

01 Connect the [COMPONENT IN (Y/PR/ PR)] input port at the back of the projector to the Component port at the back of the DVD player/Cable/Satellite box with the Component cable.
02 When the connection is finished, connect the power of your projector and DVD player/Cable/Satellite box.
Using the Projector
01 Turn on the projector and press the [COMP] button to select .

Connecting to VCR/Camcorder

01 Connect [VIDEO IN(yellow)] input port of the projector to the VIDEO (yellow) OUT port of video equipment using the video cable.

• If the video equipment has S-VIDEO OUT port, connect it to [S-VIDEO IN] input port of the projector. Using the S-VIDEO connection, provides a higher visual quality.

02 When finishing connecting the devices, connect the power of the projector and the VCR.

Using the Projector

01 Turn on the projector and press the [Video] button to select

or

02 Press the [S-VIDEO] button to select S-Video.

Check that the projector and the video equipment are turned off before connecting cables.
This projector does not support sound. (Separate audio system is needed for sound.)

Connecting to PC

01 Connect [PC IN] port on the rear side of the projector to the monitor output port of the PC using a PC video cable.
02 When connections are all completed, connect both power cords of the projector and the PC.

This product supports plug and play, therefore you do not need to install a driver on your PC.

Using the Projector

01 Turn on the projector and press the [PC] button to select <PC> . If PC Mode is not available, check PC video cable is in place.
02 Turn on the PC and set the PC Environment when necessary.
03 Adjust the screen.(Auto Adjustment)

Sound comes out from PC speakers.

Connecting Video Devices (Monitor, TV, etc.)

01 - When using the D-sub (analog) output through another video device (monitor, TV, etc.). Connect the PC OUT terminal of the projector and the D-sub terminal of the video device using a D-sub cable.
02 After connecting them, turn on your projector and the video device (monitor, TV, etc.).

DLP PROJECTOR

SP-D400S

SAMSUNG

Screen Adjustment

Precautions

Screen Adjustment

Product Overview

Troubleshooting

Connections

Other Information

Input Picture Setup Option

Input

• Click the Play( )/Stop( ) button in the table below to view the video file.

Screen

Adjustment

Description

Play/Stop

Source List

You can select a device connected to the projector to display.

1) Component

4) PC

2) S-Video

5)HDMI

3) Video

Edit Name

You can edit the names of devices connected to the projector.

1) VCR

7) DVD Receiver

2) DVD

8) Game

3) Cable STB

9) Camcorder

4) HD STB

10) DVD Combo

5)Satellite STB

11) PC

6) AV Receiver

Input Picture Setup Option

• Click the Play( )/Stop( ) button in the table below to view the video file.

Screen

Adjustment

Description

Play/Stop

Mode

Select a screen state which is customized to your projector or change the screen mode as required.

1) Mode

• Dynamic

Select this mode for a brighter and sharper picture than Standard Mode.

• Standard

This is the picture mode optimized to the standard broadcast signal.

Monitor1

This is the brightest picture mode appropriate for a presentation.

Monitor2

This is the picture mode where the brightness is optimized for text display.

• Movie

This is the picture mode optimized for watching a movie in a dark environment.

Game

Select this when to enjoy a more vivid gaming experience.

• Sports

Provides the optimal picture quality for sports. You can enjoy more thrilling picture.

-User

Select this if you want to view the screen in your customized screen Mode. You can set this in Mode-Save.

The default setting is [Monitor 1].

Mode

2) Contrast : Used to adjust the contrast between the object and the background.
3) Brightness: Used to adjust brightness of the entire picture.
4) Sharpness : Used to adjust the sharpness of the picture.
5) Color : Used to adjust color lighter or darker.

You can only adjust Color in [S-Video] and [Video] modes.

6) Tint : Used to obtain more natural color of objects using Green or Red enhancement.
You can only adjust Tint in [S-Video] and [Video] modes.

Contrast

Brightness

Sharpness

Color

Tint

7) Color Temperature : You can change tint of the entire screen to suit your needs.

This cannot be used in [Monitor1] and [Sports] modes.

• 5500K: Used to deliver optimal image quality for black-and-white films.

	- 6500K : This is the color temperature that is applied for most movie productions and enables the most precise color representation. - 8000K : This color temperature is appropriate for very bright places and is the default setting for Dynamic Picture Mode. The sharpness and brightness are emphasized. - 9300K : The color temperature appropriate to very bright places such as a shop.
	1) Color Temperature	5) R-Offset
	2) R-Gain	6) G-Offset
	3) G-Gain	7) B-Offset
	4) B-Gain
	8) Gamma : An image compensation function that controls the settings according to the video properties. ▶ This cannot be used in [Monitor1] and [Sports] modes. - Film : The best setting for watching a film. - Video : The best setting for watching a TV program. - Graphic : The Gamma mode appropriate to the PC screen and for bright video.
	9) Save : Used to save custom picture settings.
	Save
	10) Reset : Restores the mode settings to the factory defaults.
	Gamma
Size	You can select a screen size according to the type of scene. ▶ Refer to "Size Support Mode".
	1) Normal
	2) Zoom1
	3) Zoom2
	4)16:9
Position	Adjust the screen position if it is not aligned. ▶ Refer to "Position Moving Support Mode".
Digital NR	When a dotted line is displayed or the screen shakes, you can view a better visual quality picture by enabling Noise Reduction.
	1) Off
	2) On
Black Level	Using the Black Level function, you can set the light level of the darkest portion of the video signal so that you can clearly see dark areas on the screen. ▶ The Black Level can only be selected in [Video], [S-Video] and [HDMI] modes.
	For [Video] and [S-Video] Modes
	1) 0 IRE : Sets the light level of the darkest portion of the video signal to low. If the setting does not match the input signal, the dark screen looks milky-white.
	2) 7.5 IRE : Sets the light level of the darkest portion of the video signal to high. If the setting does not match the input signal, the dark screen is saturated and may not display properly.
	For [HDMI] Mode
	1) Low : Set the brightness standard for dark signals to a low setting. If the input signal is an 'HDMI-Video' type, unclear screens are displayed normally.
	2) Normal: Set the brightness standard for dark signals to a high setting. If the input signal is an 'HDMI-PC' type, dark screens are displayed bright.
Overscan	Using this function, you can cut the edge of the picture when unnecessary information, images appear on the edge of the picture. ▶ Refer to "Size Support Mode".
	1) Off
	2) On

Film Mode

Using this function, you can set the display mode optimized for playing movies.

Film Mode is only supported for [Video], [S-Video] and [Component].

1) Off
2) On

PC

Eliminates or reduces noise that causes unstable screen quality, such as screen shaking. If the noise is not removed using Fine Adjustment, adjust the frequency to the maximum and then perform Fine Adjustment again.

Only activated in the PC environment.

1) Auto Adjustment : Used to adjust frequency and phase of PC screen automatically.
2) Coarse : Used to adjust frequency when vertical lines appear on PC screen.
3) Fine : Used to fine tune the PC screen.
4) Reset : Using this function, you can reset the PC menu settings to the factory default settings.

Auto

Adjustment
Coarse

Fine

Reset

Zoom

You can enlarge a specific part of the screen and can look at that part in detail.

1)×1
2) × 2
3) × 4

Input Picture Setup Option

Setup

• Click the Play( )/Stop( ) button in the table below to view the video file.

Screen

Adjustment

Description

Play/Stop

Install

To tailor the picture to the installation location, you can invert the projected images vertically/horizontally.

	1) Front-Floor : Normal Image 2) Front-Ceiling : Horizontal/Vertical Reversed Image 3) Rear-Floor : Horizontally Reversed Image 4) Rear-Ceiling : Vertically Reversed Image
Lamp Mode	Used to set the image brightness by adjusting the amount of light generated by the lamp.
	1) Eco : Using this function, you can adjust the light level of the lamp so that you can comfortably watch pictures on the screen even when watching under dark conditions. It also lowers power consumption and extends the life of the lamp. 2) Bright : Used to enhance the brightness in relatively bright ambient light. Since this mode increases the light level of the lamp, you may experience more noise which is produced when the projector is cooled down.	Eco Bright
V-Keystone	If video scences are distorted or tilted, you can compensate for this using the vertical Keystone function.
Background	When there is no signal from the broadcasting station or the external device connected to the projector, the screen is changed to blue or black. If a signal is received, the desktop background color disappears and a normal screen is displayed.
	1) Blue 2) Black
Test Pattern	Generated by the projector itself. Utilized as standard to optimize the installation of the projector.
	1) Crosshatch : You can check whether the picture is distorted or not. 2) Screen Size : You can refer to picture format sizes such as 1.33:1 or 1.78:1. 3) Red : Red Screen, only for color adjustment. 4) Green : Green Screen, only for color adjustment. 5) Blue : Blue Screen, only for color adjustment. 6) White : White Screen, only for color adjustment. 7) 6500K_White : White Screen, shows brightest white color possible.
	The Red/Green/Blue colors of the test patterns are only for the color adjustment procedures, and may not comply with the actual colors displayed during video playback.
Factory Default	Using this function, you can reset various settings to the factory default settings.

Input Picture Setup Option

Click the Play( ) / Stop ( 一 ) button in the table below to view the video file.

Screen Adjustment	Description	Play/Stop
Language	You can select the Language used for the menu screen.
	1) English 7) Netherlands
	2) Deutsch 8) Português
	3) Français 9) Р核酸检测
	4) Italiano 10) 中国语
	5) Svenska 11)韓語
	6)spanirol
Menu Option	You can adjust the settings related to the menu screen.
	1) Position: You can move the location of the menu to a new position (up/down/right/left).
	2) Transparency: Selects the transparency of the menu screen.
	1)Opaque	Position
	2)Low
	3)Medium
	4)High	Translucency
	3)Display Time: You can set the display time of the menu screen.
	1)5 sec 5)90 sec	Display Time
	2)10 sec 6)120 sec
	3)30 sec 7)Stay On
	4)60 sec
Auto Power On	1)On: When power is supplied, the product operates automatically.
	2)Off: When power is supplied, the product enters Standby mode. To operate the product, you have to press the Power button on the remote control or key panel.
Sleep Timer	1)Off: Operates continually until you turn the power off manually.
	2)10 min/20 min/30 min: When the configured time has passed, the projector turns to Standby mode.
	This function only runs when the no signal state is maintained continuously.
Information	You can check external source signals, picture setup, PC picture adjustment and lamp use time.

Before Contacting Service Personnel

Installation and Connection

Symptoms

No Power.

I want to install my projector on the ceiling.

External Source can not be selected.

Troubleshooting

• Check the power cable connections.
• The ceiling installation support is sold separately. Contact your local product distributor.
• Be sure that the connection cable(s) (video) is properly connected to the proper port. If the device is not connected properly, it can not be selected.

> Menu and Remote Control

Symptoms

Remote control does not work.

Troubleshooting

• Check whether your remote control is at a right angle and at the correct distance. Remove any obstacles between your remote control and the product.
• Direct lighting of 3-way light bulbs or other lighting device on the remote sensor of the projector may affect the sensitivity and cause the remote control to malfunction.
• Check if the remote control battery is empty.
• Check whether the LED indicator on the top of the projector is turned on.
• Check if the menu is displayed in gray. A gray-colored menu is unavailable.

I cannot select a menu.

Screen and External Source

Symptoms

Cannot see picture images.

Troubleshooting

• Be sure that the power cord of the projector is connected.
• Be sure that the proper input source is selected.
• Check that the connectors are properly connected to the ports at the back of the projector.
• Check the Remote Control batteries.
• Be sure that the , settings are not at their lower limit.

Poor color.

• Adjust the and .

Images are not clear.

• Adjust the focus.

• Check that the projection distance is either too far or too near to the screen.

• If a strange sound continues, contact our service center.

Refer to Corrective Actions According to LED Indications.

• Because noise may occur when using your PC, adjust the frequency of the screen.

• Check the operating status for the external device and check whether the adjustment items, such as the Brightness and the Contrast have been changed correctly in the command screen of the Projector menu.

Strange noise.

• Be sure to properly connect the external devices. Check the connection cables again.

The operating LED is lit up.

Lines appear on screen.

No external device screen is displayed.

Only blue screen appears.

Screen appears in black and white or

• As mentioned above, check the adjustment items such as the Brightness,

DLP PROJECTOR

SP-D400S

Care and Maintenance

To clean the exterior and lens of the projector

Clean the projector using a soft dry cloth.

Do not clean the projector with flammable substances such as benzene, thinners or a wet cloth, as these may cause problems.
Do not touch the projector with a nail or any other sharp objects, as this may scratch the surface.

To clean the interior of the projector

For cleaning the interior of the projector, ask your Service Center or a distributor.

Contact your distributor or a Service Center if dust or other substances are inside the projector.

Lamp Replacement

Cautions on Lamp Replacement

The projector lamp is an expendable item. For best operating performance, replace the lamp according to the usage time. You can view the lamp usage time in the Information Display (INFO button).
Use the recommended lamp when replacing. Lamp specifications are defined in the user's manual. Replace with the same model provided with the projector.

• Lamp Model Name : 280W Philips fusion lamp
  Lamp Manufacture : Philips Lighting
• Lamp Life Time : 2500Hrs
  Lamp Type:280W UHP

Check that the power cord is unplugged before replacing the lamp.
Even after the power cord has been disconnected, the lamp will be hot. Allow it to cool down for at least 1 hour before changing the lamp.
The lamp is located at the left rear of your projector.
Before you turn the projector over to change the lamp, cover the projector with a soft cloth on a flat surface.
Do not leave the old lamp near inflammables or in reach of children. There is a danger of burn or injury.
Remove dirt or foreign materials around or inside the lamp unit using a proper vacuum device.
When handling the lamp, avoid touching any part of it except for the handles. If you handle the lamp incorrectly, it may affect the screen quality and shorten its lifetime.

The lamp is very hot and operates with a high voltage. Allow it to cool down for at least 1 hour after disconnecting the power cord before changing the lamp.

The lamp is located at the bottom of the product. Place the product so that its bottom looks upward and remove the screws that hold the lamp cover in place. * When placing the product with the bottom upwards, make sure to place a soft cloth on the floor to prevent scratches.

3 Slide and open the cover in the direction of the arrow, as shown in the figure.

4 Remove the screws as shown in the figure.

As shown in the figure, lift up the lamp handles by holding them and pull the lamp.

Assembling a new lamp is in the reverse order of the disassembly.

Care and Maintenance | Contact SAMSUNG WORLDWIDE | Other | Authority

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact a SAMSUNG customer care center.

	North America
U.S.A	1-800-SAMSUNG(726-7864)	http://www.samsung.com/us
CANADA	1-800-SAMSUNG(726-7864)	http://www.samsung.com/ca
MEXICO	01-800-SAMSUNG(726-7864)	http://www.samsung.com/mx

	Latin America
ARGENTINE	0800-333-3733	http://www.samsung.com/ar
BRAZIL	0800-124-4214004-0000	http://www.samsung.com/br
CHILE	800-SAMSUNG(726-7864)	http://www.samsung.com/cI
COLOMBIA	01-8000112112	http://www.samsung.com/co
COSTA RICA	0-800-507-7267	http://www.samsung.com/latin
ECUADOR	1-800-10-7267	http://www.samsung.com/latin
EL SALVADOR	800-6225	http://www.samsung.com/latin
GUATEMALA	1-800-299-0013	http://www.samsung.com/latin
HONDURAS	800-7919267	http://www.samsung.com/latin
JAMAICA	1-800-234-7267	http://www.samsung.com/latin
NICARAGUA	00-1800-5077267	http://www.samsung.com/latin
PANAMA	800-7267	http://www.samsung.com/latin
PUERTO RICO	1-800-682-3180	http://www.samsung.com/latin
REP. DOMINICA	1-800-751-2676	http://www.samsung.com/latin
TRINIDAD & TOBAGO	1-800-SAMSUNG(726-7864)	http://www.samsung.com/latin
VENEZUELA	0-800-100-5303	http://www.samsung.com/latin

Europe
AUSTRIA	0810 - SAMSUNG(7267864, €0.07/min)	http://www.samsung.com/at
BELGIUM	02 201 2418	http://www.samsung.com/be (Dutch) http://www.samsung.com/be_fr (French)
CZECH REPUBLIC	800 - SAMSUNG (800-726786)	http://www.samsung.com/cz
	Distributor pro Českou republik: Samsung Zrt., Česká organizačné složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8
DENMARK	8 - SAMSUNG(7267864)	http://www.samsung.com/dk
EIRE	0818 717 100	http://www.samsung.com/ie
FINLAND	30 - 6227 515	http://www.samsung.com/fi
FRANCE	3260 dites 'SAMSUNG' (€0,15/Min) 0825 08 65 65 (€0.15/Min)	http://www.samsung.com/fr
GERMANY	01805 - SAMSUNG (7267864, €0.14/Min)	http://www.samsung.de
HUNGARY	06-80-SAMSUNG (726-7864)	http://www.samsung.com/hu
ITALIA	800-SAMSUNG (726-7864)	http://www.samsung.com/lt
LUXEMBURG	02 261 03 710	http://www.samsung.com/lu
NETHERLANDS	0900-SAMSUNG (0900-7267864) (€0,10/Min)	http://www.samsung.com/nl
NORWAY	3 - SAMSUNG(7267864)	http://www.samsung.com/no
POLAND	0 801 1SAMSUNG(172678) 022 - 607 - 93 - 33	http://www.samsung.com/pl
PORTUGAL	808 20 - SAMSUNG (7267864)	http://www.samsung.com/pt
SLOVAKIA	0800-SAMSUNG (726-7864)	http://www.samsung.com/sk
SPAIN	902 - 1 - SAMSUNG (902 172 678)	http://www.samsung.com/es
SWEDEN	075 - SAMSUNG(726 78 64)	http://www.samsung.com/se
SWITZERLAND	0848 - SAMSUNG(7267864, CHF 0.08/min)	http://www.samsung.com/ch
U.K	0845 SAMSUNG (7267864)	http://www.samsung.com/uk

CIS
ESTONIA	800-7267	http://www.samsung.com/ee
LATVIA	8000-7267	http://www.samsung.com/lv
LITHUANIA	8-800-7777	http://www.samsung.com/lt
KAZAKHSTAN	8-10-800-500-55-500	http://www.samsung.com/kz_ru
KYRGYZSTAN	00-800-500-55-500
RUSSIA	8-800-555-55-55	http://www.samsung.ru
TADJIKISTAN	8-10-800-500-55-500
UKRAINE	8-800-502-0000	http://www.samsung.ua
UZBEKISTAN	8-10-800-500-55-500	http://www.samsung.com/kz_ru

Asia Pacific
AUSTRALIA	1300 362 603	http://www.samsung.com/au
	800-810-5858
	400-810-5858	http://www.samsung.com/cn
CHINA	010-6475 1880
	HONG KONG: 3698 - 4698	http://www.samsung.com/hk
	3030 8282
INDIA	1-800-3000-8282	http://www.samsung.com/in
	1800 110011
INDONESIA	0800-112-8888	http://www.samsung.com/id
JAPAN	0120-327-527	http://www.samsung.com/jp
MALAYSIA	1800-88-9999	http://www.samsung.com/my
NEW ZEALAND	0800 SAMSUNG (0800 726 786)	http://www.samsung.com/nz
	1-800-10-SAMSUNG(726-7864)
PHILIPPINES	1-800-3-SAMSUNG(726-7864)	http://www.samsung.com/ph
	02-5805777
SINGAPORE	1800-SAMSUNG(726-7864)	http://www.samsung.com/sg
THAILAND	1800-29-3232, 02-689-3232	http://www.samsung.com/th
TAIWAN	0800-329-999	http://www.samsung.com/tw
VIETNAM	1 800 588 889	http://www.samsung.com/vn

	Middle East & Africa
SOUTH AFRICA	0860-SAMSUNG(726-7864)	http://www.samsung.com/za
TURKEY	444 77 11	http://www.samsung.com/tr
U.A.E	800-SAMSUNG(726-7864)	http://www.samsung.com/ae
	8000-4726

Care and Maintenance | Contact SAMSUNG WORLDWIDE | Other | Authority |

Other

Glossary

Analog Broadcast

An existing broadcasting signal transmitted by a broadcasting station in accordance with the NTSC standard.

ANTENNA IN Port

This is the port for connecting a TV antenna using a coaxial cable. It is generally used to watch public broadcast programs.

Black Level

capability so that users can clearly view dark visuals. If the setting does not match the input signal, the dark screen is saturated and may not display properly or the dark screen looks milky-white.

Cable Broadcast

Cable Broadcast broadcasts programs via cable instead of radio waves. To view cable broadcasts, you have to subscribe to your local cable broadcast service provider and install an additional receiver.

Color Standard

A pre-determined default color standard determined by the broadcasting standard of the corresponding country or area.

Color Temperature

Color temperature is a simplified way to characterize the spectral properties of a light source. A low color temperature implies a warmer (more yellow/red) light while a high color temperature implies a colder (more blue) light.

COMPOSITE IN Port

A COMPOSITE IN Port is a general video input port (yellow). Both chrominance and luminance are transmitted on the same 75-ohm cable.

Component Port (Green, Blue, Red)

The Component Port separately transmits the luminance signal.

Digital Broadcast

Digital Broadcast is a television broadcasting signal digitized and transmitted according to the United States terrestrial digital broadcast specifications, or ATSC.

DVD (Digital Versatile Disc)

DVD is a large capacity media disk that can save multimedia content such as video, games, audio applications, etc. using MPEG-2 video compression technology on a CD size disc.

DLP (Digital Light Processing)

DLP is a digital display technology using a DMD panel developed by TI (Texas Instruments) of the United States.

DLP HD2, DC2, DC3

This is a grade of DMD panel.

DMD (Digital Micromirror Device)

A DMD panel is an implementation of DLP technology. It consists of microscopic mirrors where each mirror represents a pixel.

External Input

External Input is connecting video devices such as a VCR, camcorder, DTV receiver, DVD, etc. to the projector as a video source.

Gamma Mode

Gamma Mode compensates the video signal produced for analog display devices such as a CRT (Cathode Ray Tube) so that the video signal can be clearly displayed on a digital display device.

HDMI

HDMI(High-Definition Multimedia Interface), is an interface that enables the transmission of digital audio and video signals using a single cable.

The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed.

Overscan

Overscan cuts the edge of the picture when there is unnecessary information, images or noise at the edge of the picture. For extremely poor video signals, some unnecessary video signals may be displayed on the screen.

RS-232C Port (Service Input Port)

This port is provided for service purposes. This port provides data communication in accordance with the RS-232C communication standard.

S-Video IN Port

This is called super video. S-Video is a type of video signal which has the video brightness and color signal separated in order to provide a better image quality.

Satellite Broadcast

Satellite Broadcast broadcasts programs via satellite so that the program can be viewed in all area in a high visual and sound quality. Approximately 100 channels including public broadcast channels are provided. To view satellite broadcasts, you have to install an additional receiver.

Information in this document is subject to change without notice. © 2008 Samsung Electronics Co., Ltd. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden.

Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

DLP PROJECTOR

SP-D400S
