Intitulé	Détails
Type de produit	Scie sabre électrique
Caractéristiques techniques principales	Scie à mouvement alternatif avec une course de 28 mm
Alimentation électrique	220-240 V, 50/60 Hz
Dimensions approximatives	Longueur : 490 mm, Hauteur : 200 mm
Poids	4,2 kg
Compatibilités	Compatible avec les lames de scie sabre standard
Tension	230 V
Puissance	1 100 W
Fonctions principales	Coupe de bois, métal et plastique, réglage de la vitesse variable
Entretien et nettoyage	Nettoyer régulièrement le filtre à air et vérifier l'état des lames
Pièces détachées et réparabilité	Disponibilité de pièces de rechange via le service après-vente Makita
Sécurité	Équipée d'un interrupteur de sécurité et d'un protège-lame
Informations générales utiles	Garantie de 3 ans, poids léger pour une manipulation aisée

FOIRE AUX QUESTIONS - JR3070CT MAKITA

Comment changer la lame sur la MAKITA JR3070CT ?

Pour changer la lame, débranchez l'outil, puis utilisez la clé de serrage fournie pour desserrer la vis de fixation de la lame. Retirez la lame usée et insérez la nouvelle lame, puis serrez la vis de fixation à l'aide de la clé.

Quel type de lame puis-je utiliser avec la MAKITA JR3070CT ?

La MAKITA JR3070CT est compatible avec des lames de scie sauteuse de type S, spécialement conçues pour le bois, le métal et les matériaux composites. Assurez-vous de choisir une lame adaptée à votre application.

Quels sont les précautions de sécurité à prendre lors de l'utilisation de la MAKITA JR3070CT ?

Portez toujours des lunettes de sécurité, des gants et un masque anti-poussière. Assurez-vous que l'outil est débranché lorsque vous changez de lame et maintenez une bonne posture pour éviter les accidents.

Pourquoi la scie ne démarre-t-elle pas ?

Vérifiez d'abord que l'outil est correctement branché. Assurez-vous également que le câble d'alimentation n'est pas endommagé. Si le problème persiste, il pourrait y avoir un problème avec l'interrupteur ou le moteur, et il serait préférable de contacter un réparateur agréé.

Comment nettoyer ma MAKITA JR3070CT après utilisation ?

Après chaque utilisation, débranchez l'outil et utilisez un chiffon sec pour essuyer la surface. Évitez d'utiliser des produits chimiques agressifs. Vérifiez également que les ouvertures de ventilation ne sont pas obstruées par la poussière.

Quelle est la garantie de la MAKITA JR3070CT ?

La MAKITA JR3070CT est généralement livrée avec une garantie de 3 ans, mais il est recommandé de vérifier les conditions spécifiques de garantie auprès du revendeur ou sur le site officiel de Makita.

Comment ajuster la vitesse de coupe de la MAKITA JR3070CT ?

La vitesse de coupe peut être ajustée à l'aide du variateur de vitesse situé sur le corps de l'outil. Tournez simplement le bouton pour augmenter ou diminuer la vitesse en fonction du matériau que vous coupez.

Puis-je utiliser la MAKITA JR3070CT pour couper des matériaux durs ?

Oui, la MAKITA JR3070CT peut couper des matériaux durs, mais il est essentiel d'utiliser la lame appropriée conçue pour le matériau spécifique que vous souhaitez couper, comme des lames pour métal ou matériaux composites.

MODE D'EMPLOI JR3070CT MAKITA

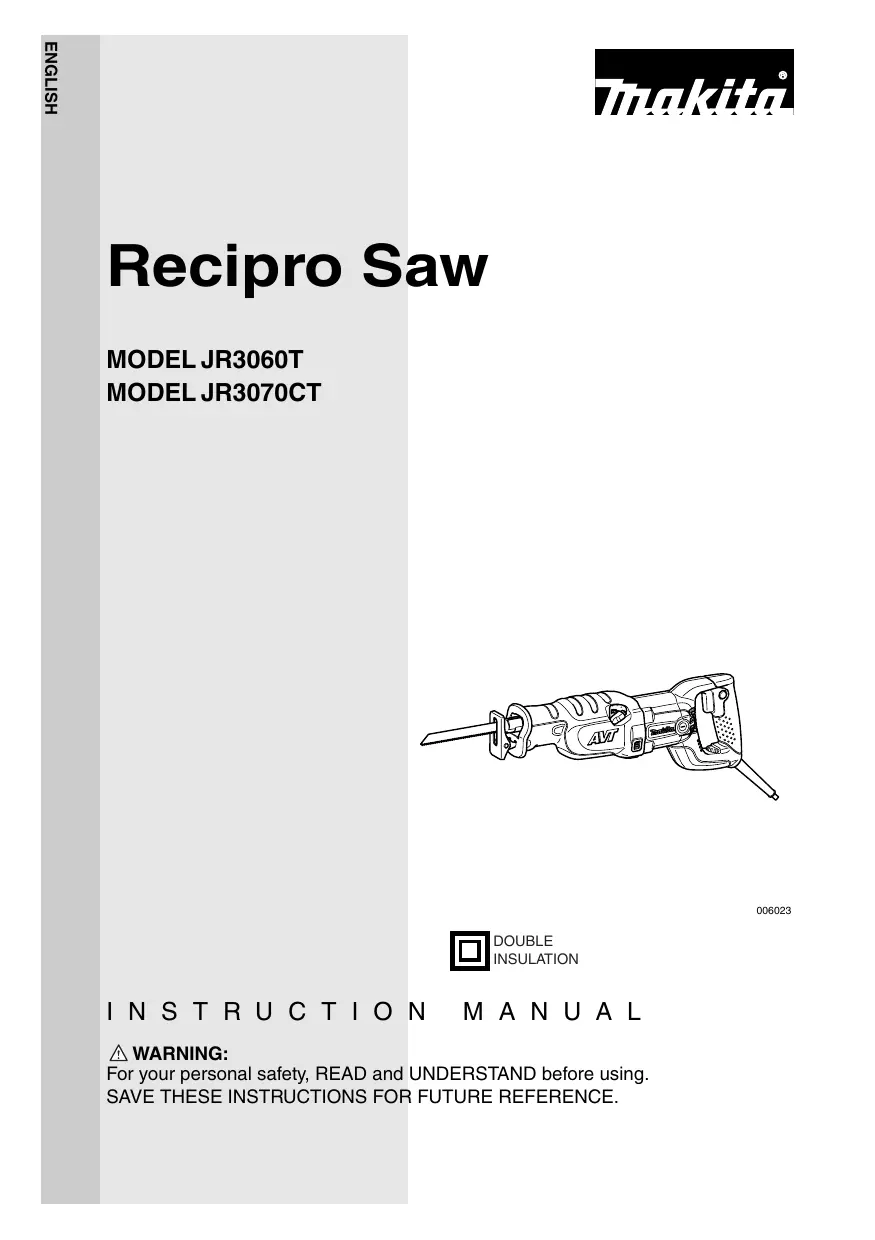

Recipro Saw

MODEL JR3060T MODEL JR3070CT

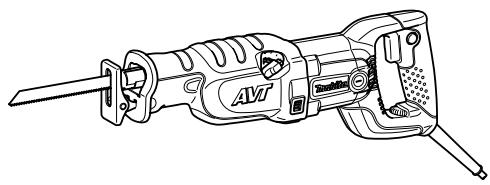

Line drawing of a saw blade with labeled components (no text or symbols)

006023

DOUBLE INSULATION

INSTRUCTION MANUAL

⚠ WARNING:

For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

SPECIFICATIONS

Model		JR3060T	JR3070CT
Length of stroke		32 mm
Max. cutting capacities	Pipe	130 mm
	Wood	255 mm
Strokes per minute (min ^-1 )		0 - 2,800
Overall length		485 mm
Net weight		4.2 kg	4.4 kg
Safety class		☐/II

• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
  • Note: Specifications may differ from country to country.

SYMBOLS

END201-2

The following show the symbols used for the tool. Be sure that you understand their meaning before use.

.....Read instruction manual.

.DOUBLE INSULATION

. Only for EU countries

Do not dispose of electric equipment together with household waste material!

In observance of European Directive 2002/96/EC on waste electric and electronic equipment and its implementation in accordance with national law, electric equipment that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Intended use

The tool is intended for sawing wood, plastic, metal and building materials with a strong impact. It is suitable for straight and curved cutting.

Power supply

The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply. They are double-insulated in accordance with European Standard and can, therefore, also be used from sockets without earth wire.

For Model JR3060T

For European countries only

Noise and Vibration

The typical A-weighted noise levels are

sound pressure level: 87 dB (A)

sound power level: 98 dB (A)

Uncertainty: 1 dB

- Wear ear protection. -

The typical weighted root mean square acceleration value is 14 m/s^2 .

These values have been obtained according to EN60745.

For Model JR3070CT

For European countries only

Noise and Vibration

The typical A-weighted noise levels are

sound pressure level: 88 dB (A)

sound power level: 99 dB (A)

Uncertainty: under 0.5 dB

- Wear ear protection. -

The typical weighted root mean square acceleration value is 9 m/s^2 .

These values have been obtained according to EN60745.

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product is in compliance with the following standards of standardized documents, EN60745, EN55014, EN61000 in accordance with Council Directives, 73/23/EEC, 89/336/EEC, 98/37/EC.

Yasuhiko Kanzaki CE 2004

Director

MAKITA INTERNATIONAL EUROPE LTD.

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, ENGLAND

Responsible manufacturer:

Makita Corporation Anjo Aichi Japan

GENERAL SAFETY RULES

⚠ WARNING:

Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

SAVE THESE INSTRUCTIONS

Work area safety

1. Keep work area clean and well lit. Cluttered and dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

Personal safety

1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

2. Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

3. Avoid accidental starting. Ensure the switch is in the off-position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.
4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust-related hazards.

Power tool use and care

1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

3. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

7. Use the power tool, accessories and tool bits etc. in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

- WARNING- To reduce the risk of injury, user must read instruction manual.

ADDITIONAL SAFETY RULES FOR TOOL

GEB008-1

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to recipro saw safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

1. Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord.
   Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator.
2. Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
3. Always use safety glasses or goggles. Ordinary eye or sun glasses are NOT safety glasses.
4. Avoid cutting nails. Inspect workpiece for any nails and remove them before operation.
5. Do not cut oversize workpiece.
6. Check for the proper clearance beyond the workpiece before cutting so that the blade will not strike the floor, workbench, etc.
7. Hold the tool firmly.

8. Make sure the blade is not contacting the workpiece before the switch is turned on.

9. Keep hands away from moving parts.

10. Do not leave the tool running. Operate the tool only when hand-held.
11. Always switch off and wait for the blade to come to a complete stop before removing the blade from the workpiece.
12. Do not touch the blade or the workpiece immediately after operation; they may be extremely hot and could burn your skin.
13. Do not operate the tool at no-load unnecessarily.
14. Always use the correct dust mask/respirator for the material and application you are working with.
15. Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation and skin contact. Follow material supplier safety data.

SAVE THESE INSTRUCTIONS

WARNING:

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

FUNCTIONAL DESCRIPTION

005784

1. Shoe
2. Shoe button

005785

1. Shoe button
2. Shoe

006024

1. Lever
2. Stopper

CAUTION:

- Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool.

Adjusting the shoe

When the blade loses its cutting efficiency in one place along its cutting edge, reposition the shoe to utilize a sharp, unused portion of its cutting edge. This will help to lengthen the life of the blade. To reposition the shoe, push the shoe button in the "A" direction with a click and reposition as shown in the figure which allows you to make five-way adjustment. To secure the shoe, push the shoe button in the "B" direction with a click.

Selecting the cutting action

This tool can be operated with an orbital or a straight line cutting action. The orbital cutting action thrusts the blade forward on the cutting stroke and greatly increases cutting speed.

To change the cutting action, press the stopper and turn the lever to the desired cutting action position. Then, release the stopper to lock the lever. Refer to the table to select the appropriate cutting action.

NOTE:

- Orbital action means that the saw blade moves up and down, and back and forth at the same time. This increases the efficiency of cutting.

002525

Position	Cutting action	Applications
0	Straight line cutting action	For cutting mild steel, stainless steel and plastics.For clean cuts in wood and plywood.
I	Small orbit cutting action	For cutting mild steel, aluminum and hard wood.
II	Medium orbit cutting action	For cutting wood and plywood.For fast cutting in aluminum and mild steel.
III	Large orbit cutting action	For fast cutting in wood and plywood.

1. Switch trigger
2. Lock button

Technical line drawing of a mechanical device with labeled parts (no readable text or symbols)

1. Adjusting dial

Switch action

CAUTION:

- Before plugging in the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop.

For continuous operation, pull the switch trigger and then push in the lock button.

To stop the tool from the locked position, pull the switch trigger fully, then release it.

Speed adjusting dial (For JR3070CT)

The strokes per minute can be adjusted just by turning the adjusting dial. This can be done even while the tool is running. The dial is marked 1 (lowest speed) to 6 (full speed). Turn the adjusting dial without positive stops between 1 and 6 according to your work.

Refer to the table to select the proper speed for the workpiece to be cut. However, the appropriate speed may differ with the type or thickness of the workpiece. In general, higher speeds will allow you to cut workpieces faster but the service life of the blade will be reduced.

006574

Number on adjusting dial	Strokes per minute
6	2,800
5	2,500
4	1,850
3	1,400
2	1,000
1	950

006584

Workpiece to be cut	Number on adjusting dial
Wood	6
Autoclaved lightweight concrete	5 - 6
Mild steel	3 - 4
Aluminum	3 - 5
Plastics	1 - 4
Stainless steel	1 - 2

CAUTION:

• If the tool is operated continuously at low speeds for a long time, the motor will get overloaded and heated up.
• The speed adjusting dial can be turned only as far as 6 and back to 1. Do not force it past 6 or 1, or the speed adjusting function may no longer work.

The tools equipped with electronic function are easy to operate because of the following features.

Constant speed control

Electronic speed control for obtaining constant speed. Possible to get fine finish, because the rotating speed is kept constant even under load condition.

Soft start feature

Safety and soft start because of suppressed starting shock.

ASSEMBLY

1. Blade clamp lever
2. Released position
3. Fixed position

1. Blade

1. Blade clamp lever

CAUTION:

- Always be sure that the tool is switched off and unplugged before carrying out any work on the tool.

Installing or removing the saw blade

CAUTION:

- Always clean out all chips or foreign matter adhering to the blade, blade clamp and/or slider. Failure to do so may cause insufficient tightening of the blade, resulting in a serious injury.

To install the saw blade, always make sure that the blade clamp lever is in released position ☐ on the insulation cover before inserting the saw blade. If the blade clamp lever is in fixed position, rotate the blade clamp lever in the direction of the arrow so that it can be locked at the released positon ☐.

Insert the saw blade into the blade clamp as far as it will go. The blade clamp lever rotates and the saw blade is fixed. Make sure that the saw blade cannot be extracted even though you try to pull it out.

NOTE:

- If you do not insert the saw blade deep enough, the saw blade may be ejected unexpectedly during operation. This can be extremely dangerous.

To remove the saw blade, rotate the blade clamp lever in the direction of the arrow fully. The saw blade is removed and the blade clamp lever is fixed at the released position ☐.

NOTE:

- If you remove the saw blade without rotating the blade clamp lever fully, the lever may not be locked in the released position. In this case, rotate the blade clamp lever fully again, then make sure that the blade clamp lever locked at the released position.

OPERATION

Technical line drawing of a robotic arm operating a mechanical component (no text or symbols)

MAINTENANCE

1. Limit mark

1. Brush holder cap
2. Screwdriver

CAUTION:

• Always press the shoe firmly against the workpiece during operation. If the shoe is held away from the workpiece during operation, strong vibration and/or twisting will be produced, causing the blade to snap dangerously.
• Always wear gloves to protect your hands from hot flying chips when cutting metal.
• Be sure to always wear suitable eye protection which conforms with current national standards.
• Always use a suitable coolant (cutting oil) when cutting metal. Failure to do so will cause premature blade wear.

Press the shoe firmly against the workpiece. Do not allow the tool to bounce. Bring the blade into light contact with the workpiece. First, make a pilot groove using a slower speed. Then use a faster speed to continue cutting.

CAUTION:

- Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance.

Replacing carbon brushes

Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes.

Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

ACCESSORIES

CAUTION:

- These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita service center.

- Recipro saw blades

- Plastic carrying case
