HF-33W - Accessoires de téléphone NOKIA - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Kit mains-libres Bluetooth pour voiture
Marque	NOKIA
Modèle	HF-33W
Dimensions (environ)	5 x 3 x 2 cm (fiche allume-cigare inclinable)
Poids (environ)	50 g
Alimentation	Batterie voiture 12V via prise allume-cigare
Technologie sans fil	Bluetooth 1.2, profil mains-libres 1.5
Portée maximale	10 mètres (30 pieds)
Code d'appairage	0000
Fonctions principales	Appels mains-libres, numérotation vocale, rejet d'appel, transfert d'appel, rappel du dernier numéro, réglage du volume
Touches	Touche d'appel, volume haut/bas
Indicateurs lumineux	Bleu (connecté), vert (en appel)
Microphone intégré	Oui, orientable
Haut-parleur intégré	Oui
Installation	Enfichage dans la prise allume-cigare, inclinaison jusqu'à 100°
Compatibilité	Téléphones compatibles Bluetooth avec profil mains-libres
Entretien et nettoyage	Nettoyer avec un chiffon doux et sec. Ne pas utiliser de produits abrasifs. Éviter l'humidité.
Sécurité	Ne pas utiliser pendant la conduite si cela détourne l'attention. Respecter les lois locales. Ne pas obstruer les airbags.
Pièces détachées et réparabilité	Aucune pièce détachable par l'utilisateur. Réparation uniquement par un centre agréé. Ne pas tenter d'ouvrir l'appareil.
Informations générales	Conforme aux directives européennes 1999/5/CE et 2004/104/CE. Recyclage obligatoire en fin de vie (poubelle barrée).

FOIRE AUX QUESTIONS - HF-33W NOKIA

Comment installer le kit mains-libres Nokia HF-33W dans ma voiture ?

Insérez la fiche allume-cigare du kit dans la prise correspondante de votre voiture. Si nécessaire, retirez le capuchon amovible. Vous pouvez incliner la fiche jusqu'à 100 degrés pour un meilleur angle. Assurez-vous que le kit est bien enfoncé et ne gêne pas la conduite. Le kit s'allume automatiquement lorsqu'il est branché.

Comment appairer le kit avec mon téléphone ?

Activez le Bluetooth de votre téléphone. Branchez le kit dans l'allume-cigare. Sur le téléphone, recherchez les périphériques Bluetooth. Sélectionnez HF-33W dans la liste. Entrez le code d'appairage 0000. Une fois appairé, le kit émettra un bip et la lumineuse bleue s'allumera en continu.

Comment répondre à un appel avec le kit ?

Lorsque vous recevez un appel, vous entendez la sonnerie via le haut-parleur du kit et la lumineuse verte clignote. Appuyez sur la touche d'appel du kit pour décrocher. Pour rejeter l'appel, appuyez deux fois sur la touche d'appel. Pour raccrocher, appuyez à nouveau sur la touche d'appel.

Comment régler le volume du kit ?

Pendant un appel, utilisez les touches volume haut et volume bas situées sur le kit pour ajuster le volume de l'écoute. Il n'y a pas de réglage de volume indépendant pour la sonnerie.

Comment utiliser la numérotation vocale avec le kit ?

Assurez-vous que votre téléphone prend en charge la numérotation vocale et que vous avez enregistré des commandes vocales. Lorsqu'aucun appel n'est en cours, maintenez enfoncée la touche d'appel du kit. Suivez ensuite les instructions de votre téléphone pour prononcer le nom ou le numéro.

Comment transférer un appel entre le kit et le téléphone ?

Pendant un appel, maintenez enfoncée la touche d'appel du kit. L'appel sera transféré du kit au téléphone ou vice-versa. Cette fonction dépend de la compatibilité de votre téléphone.

Que faire si le kit ne s'allume pas ?

Vérifiez que la prise allume-cigare de votre voiture est alimentée (certaines voitures coupent l'alimentation après avoir retiré la clé). Essayez de brancher un autre appareil pour confirmer. Assurez-vous que la fiche est bien enfoncée. Si le problème persiste, contactez un centre de service agréé.

Le kit Nokia HF-33W est-il compatible avec tous les téléphones ?

Le kit est compatible avec les téléphones qui supportent le profil mains-libres Bluetooth 1.5 (Bluetooth 1.2 ou supérieur). Il est également compatible avec les téléphones Nokia, mais peut fonctionner avec d'autres marques. Consultez le manuel de votre téléphone pour vérifier la compatibilité.

Comment nettoyer le kit mains-libres ?

Utilisez un chiffon doux et sec pour nettoyer le kit. N'utilisez pas de produits chimiques, de solvants ou de détergents agressifs. Évitez tout contact avec des liquides. Ne tentez pas de démonter l'appareil.

Puis-je utiliser le kit si ma voiture n'a pas de prise allume-cigare ?

Le kit est conçu pour être branché sur une prise allume-cigare 12V. Si votre voiture n'en possède pas, vous pouvez utiliser un adaptateur compatible (par exemple, une prise USB vers allume-cigare). Assurez-vous que l'adaptateur fournit une tension de 12V.

MODE D'EMPLOI HF-33W NOKIA

Nokia Wireless Plug-in Car Handsfree HF-33W

DECLARATION OF CONFORMITY

Hereby, NOKIA CORPORATION declares that this HF-33W product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The product is in conformity with the limits defined in Directive 2004/104/EC (amending Directive 72/245/EEC), Annex I, paragraph 6.5, 6.6, 6.8 and 6.9.

A copy of the Declaration of Conformity can be found at: http://www.nokia.com/phones/ declaration_of_conformity/.

C€0560

The crossed-out wheeled bin means that within the European Union the product must be taken to separate collection at the product end-of-life. Do not dispose

of these products as unsorted municipal waste.

© 2006 Nokia. All rights reserved.

Reproduction, transfer, distribution or storage of part or all of the contents in this

document in any form without the prior written permission of Nokia is prohibited. Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners. Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves

the right to revise this document or withdraw it at any time without prior notice. The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you. Unauthorized changes or modifications to this device may void the user's authority to operate the equipment.

For your safety

Read these simple guidelines. Not following them may be dangerous or illegal.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your

Introduction

The Nokia Wireless Plug-in Car Handsfree HF-33W allows you to

Export Controls

This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited.

first consideration while driving should be road safety.

INTERFERENCE

All wireless devices may be susceptible to interference, which could affect performance.

make and receive hands-free calls in your car. You can connect the

handsfree to a compatible phone that supports Bluetooth wireless technology.

Read this user guide carefully before using the handsfree. Also read the user guide for your phone, which provides important safety and maintenance information. Keep the handsfree out of reach of small children.

Bluetooth wireless technology

Bluetooth wireless technology allows you to connect compatible devices without cables. In a Bluetooth connection, the phone and the

Get started

Before using the handsfree, you must install it in the car, and pair it with a compatible phone.

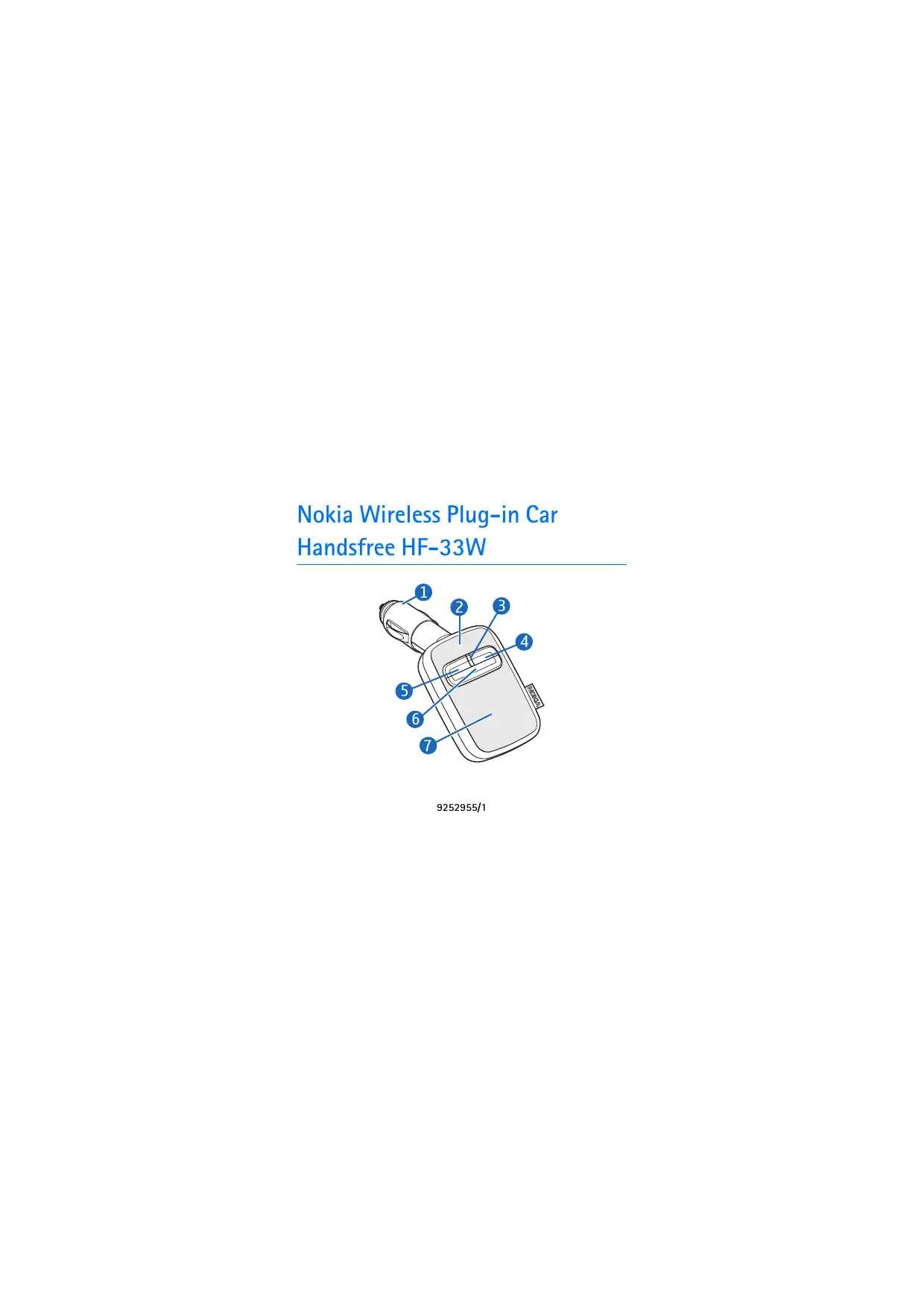

The handsfree contains the following parts shown at the start of this guide:

handsfree should be within 10 meters (30 feet) of each other. Connections can be subject to interference from obstructions, such as other electronic devices.

The handsfree is compliant with the Bluetooth Specification 1.2 supporting the Handsfree Profile 1.5. Check with the manufacturers of other devices to determine their compatibility with this device.

There may be restrictions on using Bluetooth technology in some locations. Check with your local authorities or service provider.

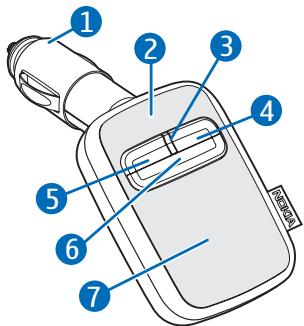

tiltable cigarette lighter plug (1), microphone (2), indicator light (3), volume up key (4), volume down key (5), call key (6), and speaker (7).

Install the handsfree

To function properly, the handsfree must be connected to the cigarette lighter socket of the car, and power must be supplied by the 12-volt car battery.

Insert the handsfree into the cigarette lighter socket. The cigarette lighter plug is provided with a removable cap. If the plug does not fit in the socket, remove the cap by sliding it from the plug. You can tilt the cigarette lighter plug to the desired angle (up to 100 degrees). Do not try to force the plug to tilt more.

Ensure that the handsfree is properly inserted in the cigarette lighter socket, and does not interfere with the normal operation of the car.

In some car models, the cigarette lighter socket is powered by the car battery even when you remove the ignition key. In those cases, the car

battery might be discharged even if the handsfree is not used. Contact the vehicle manufacturer for more information.

Switch on or off

To switch on, plug the handsfree into the cigarette lighter socket. The indicator light turns on.

To switch off, pull the handsfree out from the cigarette lighter socket.

Pair the handsfree

1. Switch on your phone.
2. Ensure that the handsfree is plugged properly into the cigarette lighter socket.
3. Activate the Bluetooth feature on the phone, and set the phone to search for Bluetooth devices.

4. Select the handsfree from the list of found devices.

5. Enter the Bluetooth passcode 0000 to pair and connect the handsfree to your phone. In some phones you may need to make the connection separately after pairing.

If the pairing is successful, the handsfree sounds a beep and appears in the phone menu where you can view the currently paired Bluetooth devices. When the handsfree is connected with your phone, the blue indicator light is displayed.

You can set your phone to connect with the handsfree automatically when the handsfree is switched on. To do this in Nokia phones, change your

Call handling

To adjust the volume during a call, use the volume keys on the handsfree.

paired device settings in the Bluetooth menu.

To disconnect the handsfree from your phone, pull the handsfree out from the cigarette lighter socket, or disconnect the handsfree in the Bluetooth menu of the phone.

To reconnect the paired handsfree to your phone, plug the handsfree into the cigarette lighter socket.

To pair and connect the handsfree with a new phone, first disconnect the handsfree in the Bluetooth menu of the currently connected phone, and then pair and connect the new phone.

To make a call, use your phone in the normal way when the handsfree is connected to your phone. Speak

toward the handsfree microphone. For optimal performance, check that there are no objects in front of the microphone and that the microphone is in front of the user, not beneath or behind. The green indicator light is displayed during a call.

If your phone supports last number redial with the handsfree, press the call key twice when no call is in progress.

If your phone supports voice dialing with the handsfree, press and hold the call key when no call is in progress,

Care and maintenance

Your device is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you protect your warranty coverage.

and proceed as described in the user guide of your phone.

When you receive a call, you hear a ringing tone through the handsfree speaker and the green indicator light flashes. To answer the call, press the call key, or use the phone keys. To reject the call, press the call key twice. To transfer the active call between the handsfree and your phone, press and hold the call key.

To end a call, press the call key, or use the phone keys.

• Keep all accessories and enhancements out of the reach of small children.
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits. If your

device does get wet, allow it to dry completely.

• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.

• Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device and damage electronic circuit boards.

• Do not attempt to open the device.

• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts, microphone, or speaker, and prevent proper operation.

If the device is not working properly, take it to the nearest authorized service facility for service.

Additional safety information

Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles such

as electronic fuel injection systems, electronic antiskid (antilock) braking systems, electronic speed control systems, and air bag systems. For more

information, check with the manufacturer or its representative of your vehicle or any equipment that has been added.

Faulty installation or service may be dangerous and may invalidate any warranty that may apply to the device. Check regularly that all wireless device equipment in your vehicle is mounted and operating properly. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the device, its parts, or enhancements. For vehicles equipped with an air bag, remember that air bags inflate with great force. Do not place objects, including installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result.
