MODE D'EMPLOI ST2361EP JONSERED

ILLUSTRATED PARTS LIST

MODEL NUMBER ST2361EP
PRODUCT NUMBER 961 92 00-75
MFG. ID. NUMBER 96192007501

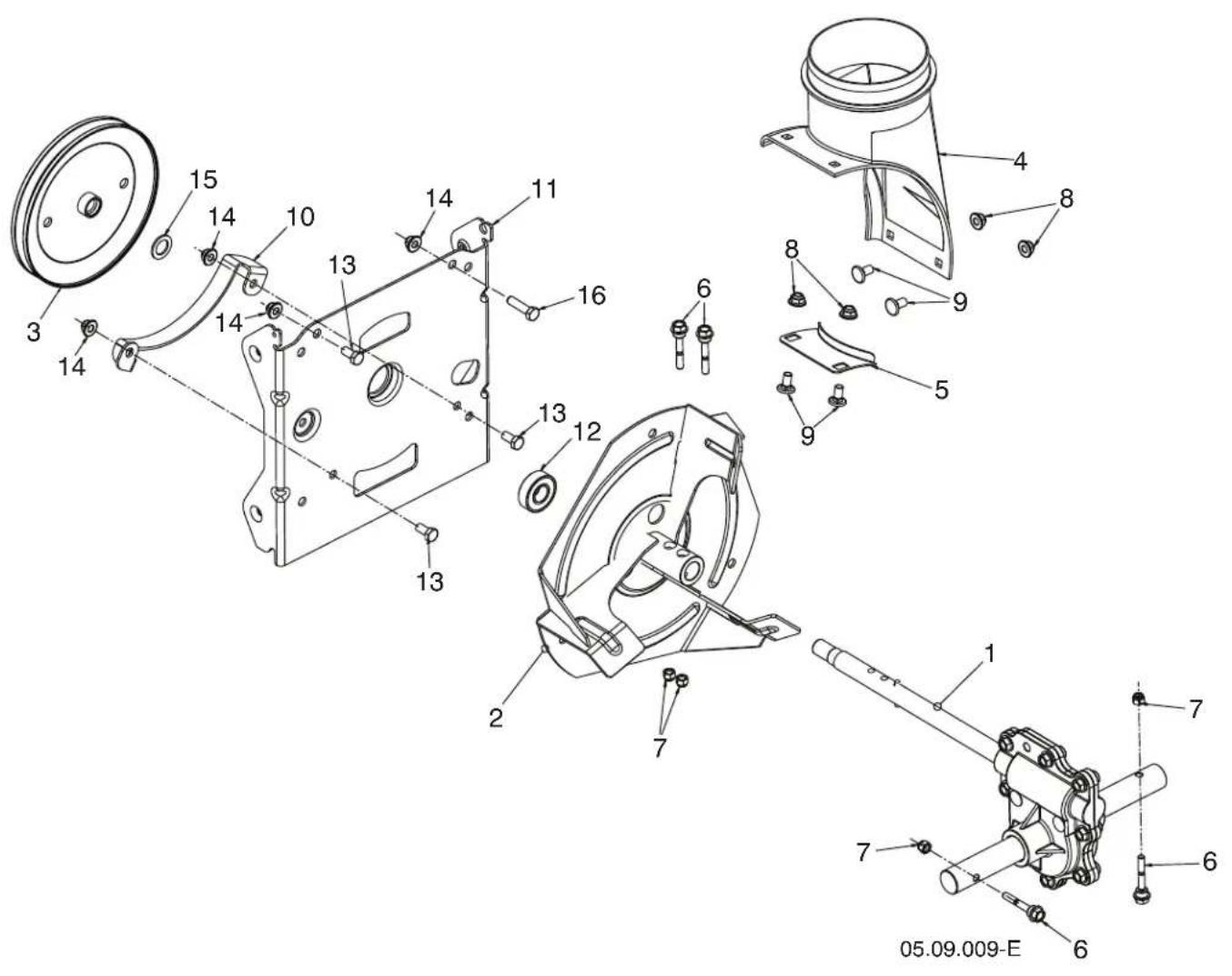

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO.DESCRIPTION

1 586 71 48-01 GEARBOX AUGER

2 586 60 72-02 IMPELLER STEEL

3 586 71 52-01 PULLEY IMPELLER SCREW ON

4 585 05 69-01 CHUTE DISCHARGE BASE

5 532 18 40-95 BRACKET CORNER DISCHARGE BASE

6 585 51 18-01 BOLT SHEAR 1/4-20

7 873 80 04-00 NUT NYLOCK 1/4-20

8 585 69 13-01 NUT FLANGE NYLOCK 5/16-18 - BLK

9 585 69 12-01 BOLT CARRIAGE WAFER HEAD 5/16-18 X 5/8 BLK

10 581 63 20-02 BRACKET BELT KEBPER LOWER

11 581 59 25-02 BRACKET INTERFACE

12 532 19 87-91 BEARING BALL

13 532 16 31-83 SCREW HEX HEAD 5/16-18 X 5/8

14 532 42 79-42 NUT FLANGE NYLOCK 5/16-18

15 587 39 27-01 WASHER IMPELLER PULLEY 1.00D X .641ID X .075THK

16 874 52 05-20 SCREW HEX HEAD 5/16-18 X 1.25

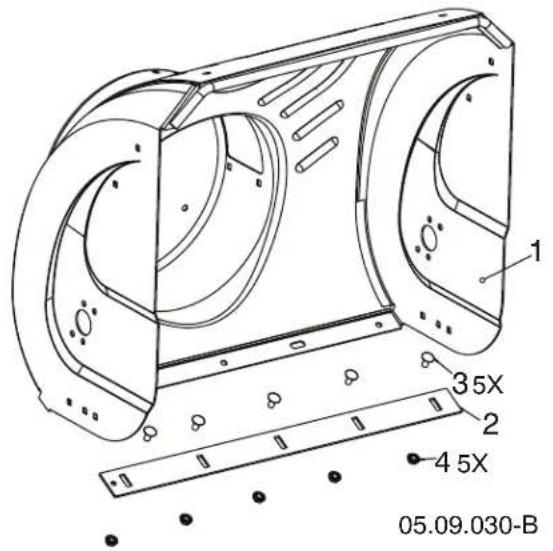

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART NO.NO.DESCRIPTION

1 586 18 39-07 AUGER HOUSING
25324078-25 SCRA PER BAR
3 872 27 05-05 CARRIAGE BOLT

5/16-18

X

.625

GR5

4 532 15 53-77 NUT 5/16-18

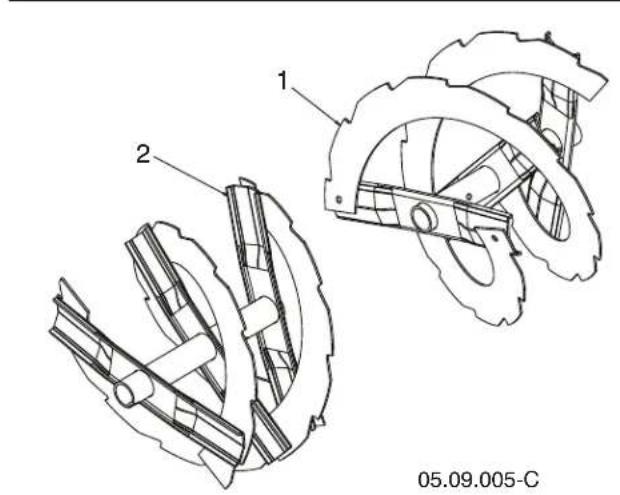

KEY PART NO.NO.DESCRIPTION

1 5324210-72 AUGER WELD RIB LH 24
2 532 42 10-73 AUGER WELD RIB R H 24

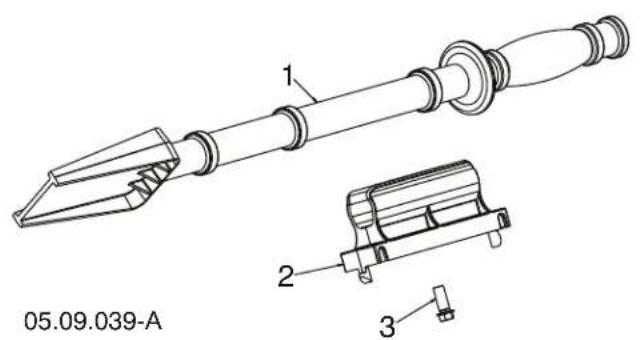

KEY PART NO.NO.DESCRIPTION

1 532 19 21-99 TOOL CLEANOUT
2 532 40 54-00 CLIP CLEANOUT TOOL
3 532 19 41-89 SCREW HEX WASHER 13-16 X 5/8

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART NO.NO.DESCRIPTION

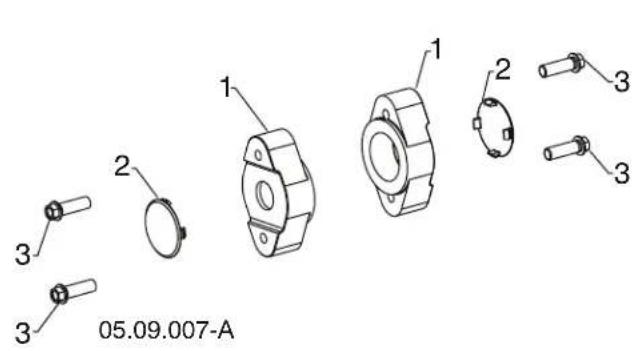

1 5324204-78 AUGER BEARING
2 532 41 19-39 BEARING PLUG
3 584 29 94-01 SCREW HI-LO WASHD

5/16-14 X 1.00

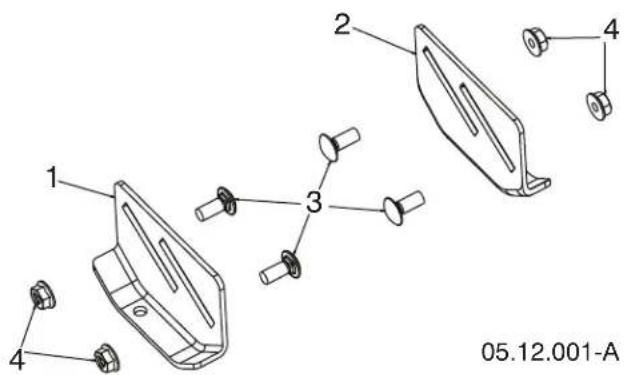

KEY PART NO.NO.DESCRIPTION

1 532 18 40-93 SKID PLATE LH
2 532 18 40-94 SKID PLATE RH
35856917-01 BOLT CARRIAGE BLK 5/16-18 X
4 585 69 13-01 NUT BLK 5/16-18

.75

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

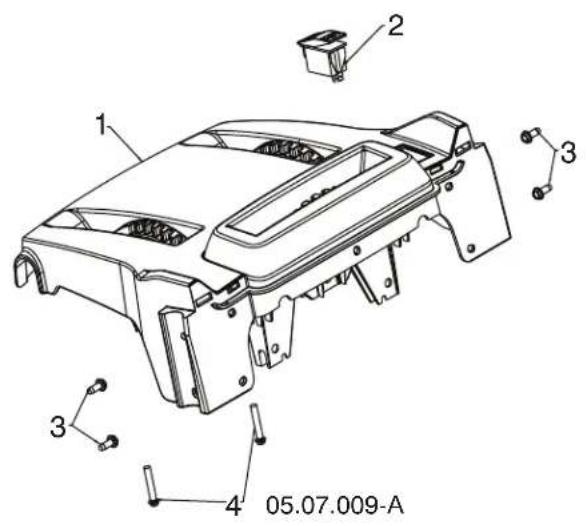

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART NO.NO.DESCRIPTION

1 581 13 12-03 CONSOLE BASE MULTICONT W/SWITCH
2 585 80 50-01 SWITCH GRIP HEATED BLACK
3 8170604-10 SCREW TA SEMI GIMLE 1/4-20 X
45813295-01 SCREW HEX WASHER 13-16 X

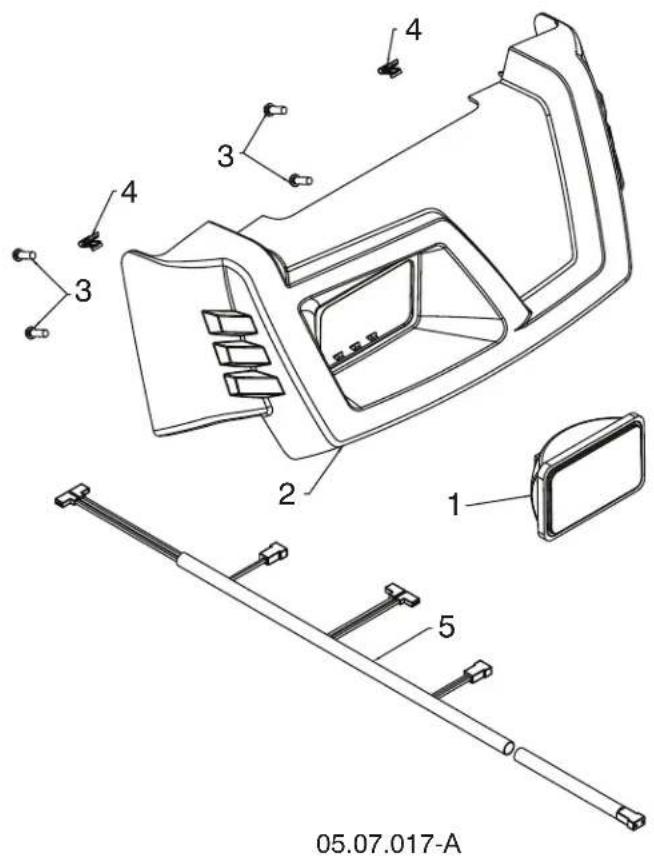

KEY PART NO.NO.DESCRIPTION

1 586 18 10-01 FLOOD HEADLIGHT
2 581 12 81-07 CONSOLE COVER JONSERED
3 532 19 41-89 SCREW HI-LO 13-16 X 5/8
4 581 92 87-01 PANEL CLIP
5 5842902-01 WIRE HARNESS LIGHT & GRIP -- 5321837-84 BULB

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

05.08.007-C

KEY PART NO.NO.DESCRIPTION

1 874 60 30-01 LEVER CONTROL DSSST OPP MPP
2 581 20 82-01 CONTROL UNIT ASM LEVER PIVOT
35856907-01 SCREW HEXHD 10-24X1.50
4 532 43 17-62 GROOVED PIN
5 812 00 00-14 E-RING EXTERNAL

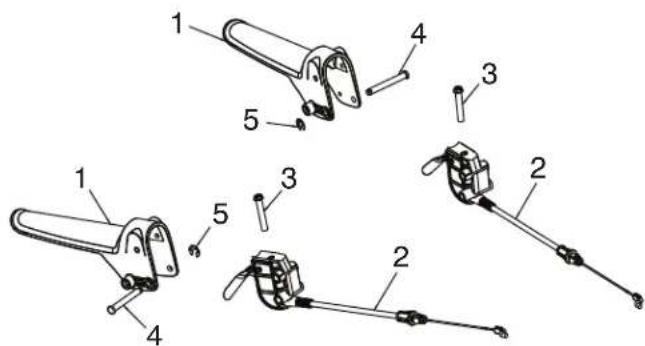

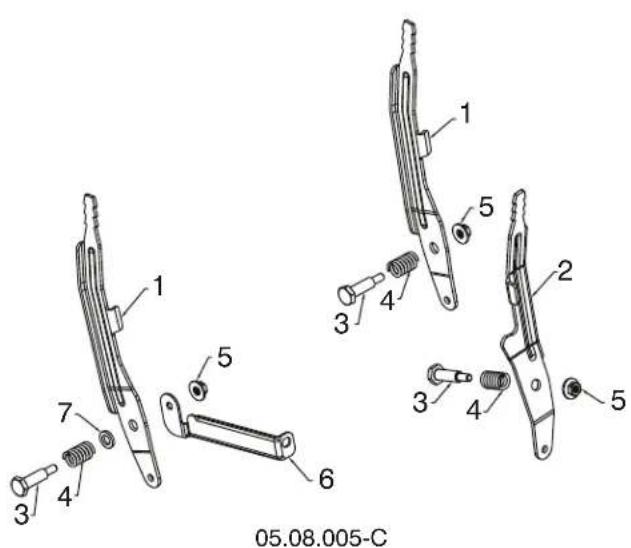

KEY PART NO.NO.DESCRIPTION

1 581 12 39-02 LEVER CONTROL SPEED/DEFL
2 581 24 16-02 LEVER CONTROL CHUTE ROT
3 581 32 97-01 BOLT SHOULDER 1/4-20
4 581 32 96-01 SPRING COMPRESSION
5 586 66 89-01 NUT FL LOCK 1/4-20
6 584 46 84-02 BRACE SUPPORT SPEED
7 587 03 13-01 WASHER .625 X .375 X .094

NYLON 6/6

KEY PART NO.NO.DESCRIPTION

1 581 14 63-01 GRIP HANDLE HEATED
2 532 44 22-50 SCREW PAN HD TORX 1/4-20 X .75

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

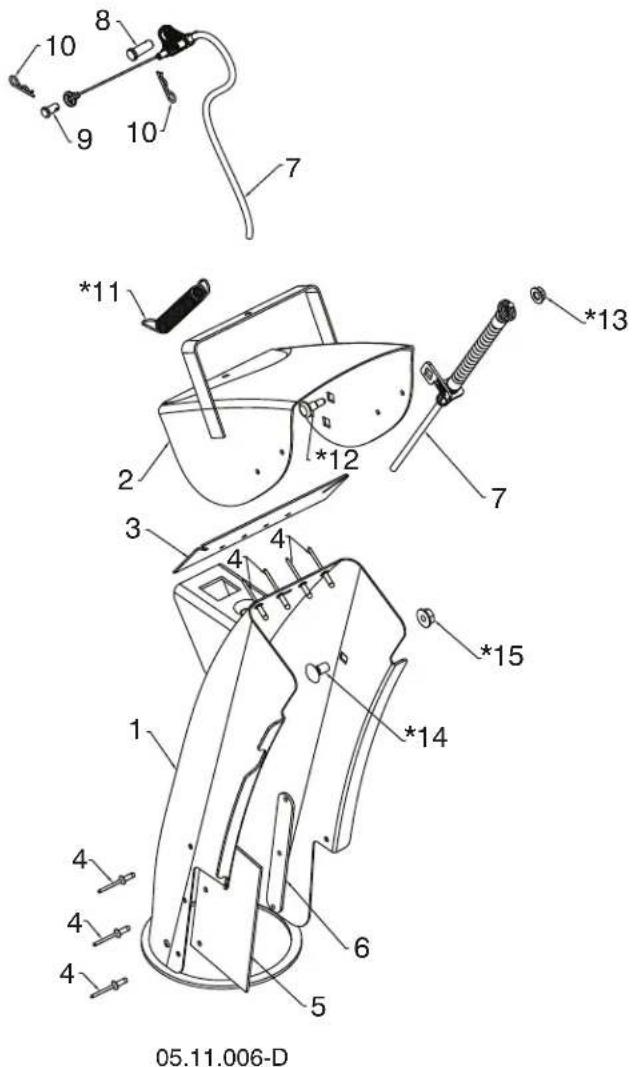

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART NO.NO.DESCRIPTION

1 5324436-80 CHUTE WELDMENT
2 532 18 45-34 DEFLECTOR WELDMENT
3 532 42 03-25 DEFLECTOR SEAL
4 532 12 84-15 POP RIVET
5 532 43 03-24 CHUTE SNOW SHIELD
6 532 42 17-28 SHIELD STRAP RETAINER
7 586 96 15-01 CABLE ASM DEFLECTOR - BOWDEN
8 581 32 94-01 PIN CLEVIS 5/16 X .875
95858083-01 PIN CLEVIS 1/4 X .312
10 532 42 33-03 HAIRPIN RETainer
11 532 18 45-05 DEFLECTOR SPRING
12 585 83 22-01 SHOULDER BOLT 1/4-20 X .375
13 585 69 14-01 NUT 1/4-20
14 585 83 20-01 CARRIAGE BOLT 3/8-16 X .625
*15 873 97 05-00 NUT 5/16-18

NOTE: ALL ITEMS MARKED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH THE PRODUCT

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART

NO. NO. DESCRIPTION

1 5806647-01 CABLE INTERLOCK
2 532 43 17-62 PIN GROOVED
3 8120000-14 E-RING
4 581 15 12-01 SPRING RETURN
5 532 19 79-91 CLIP CABLE BLACK

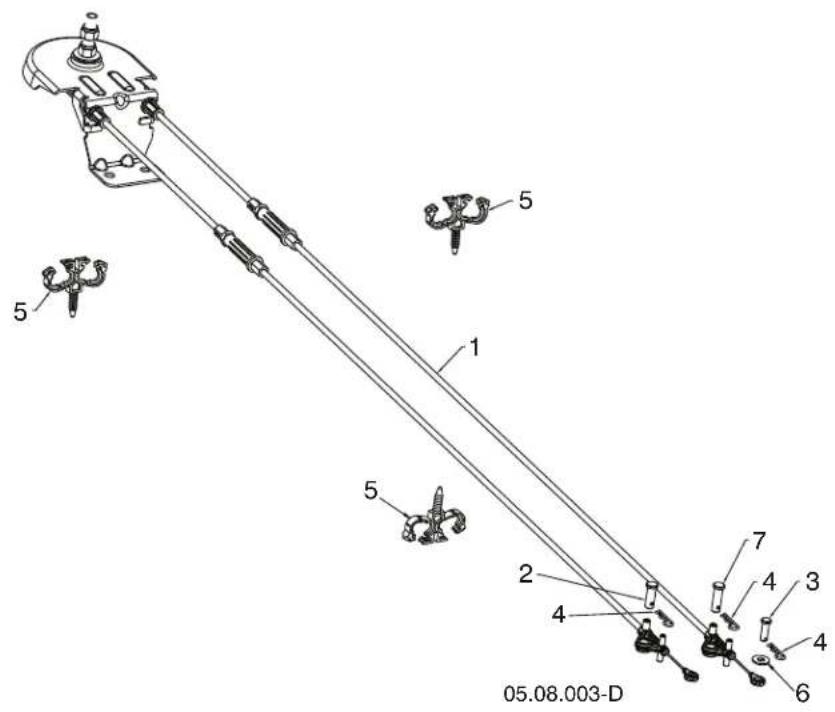

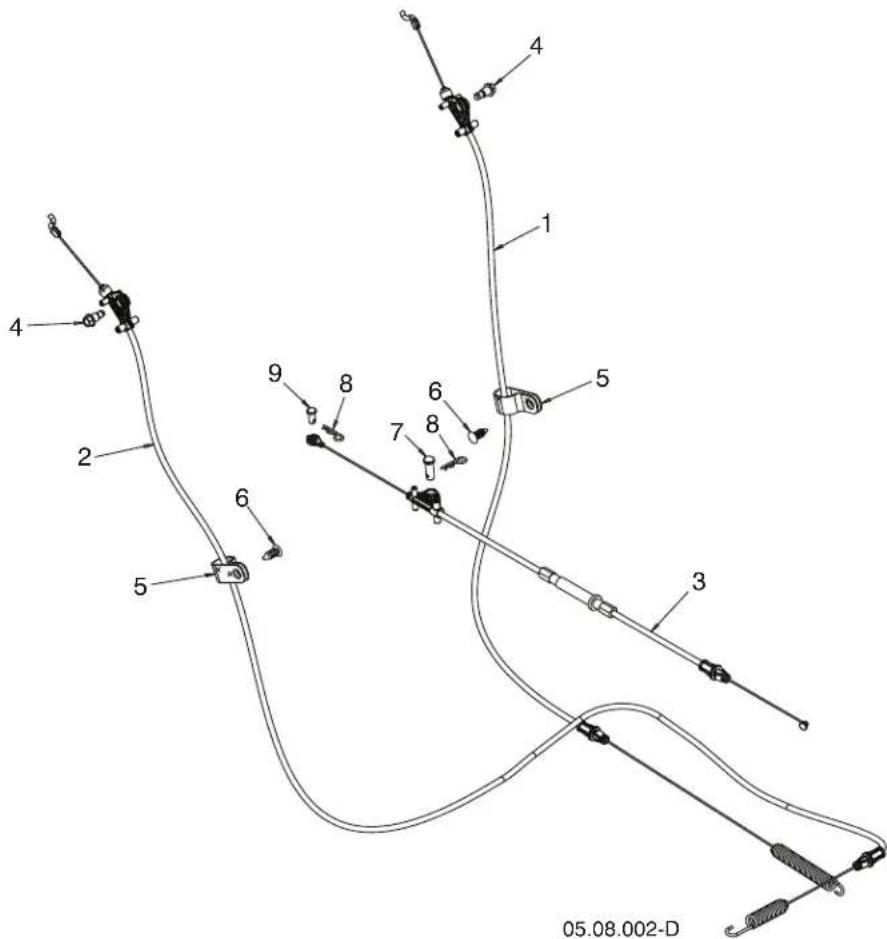

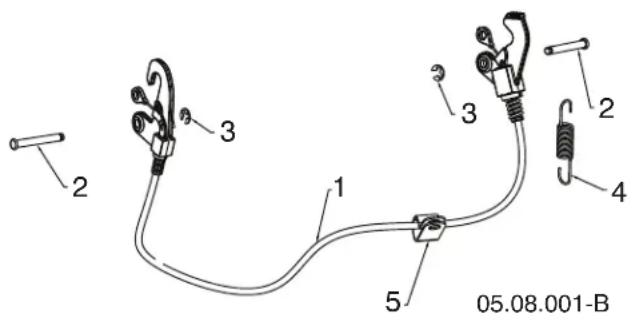

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART

NO. NO. DESCRIPTION

1 581 12 83-01 CABLE CONTROL DRIVE
2 587 42 87-01 CABLE CONTROL AUGER
3 587 34 38-01 CABLE CONTROL SPEED
4 581 72 61-01 BOLT SHOULDER 1/4
5 532 19 79-91 CLIP CABLE
6 532 42 81-24 FASTENER PUSH .250
7 581 32 94-01 PIN CLEVIS 5/16
8 532 42 33-03 HAIRPIN
9 585 80 83-01 PIN CLEVIS 1/4

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART NO.NO.DESCRIPTION

1 5816803-01 CABLEROTATORASM
25813294-01 PIN CLEVIS 5/16 X7/8
3 877 10 08-12 PIN CLEVIS 1/4 X 3/4
4 532 42 33-03 HAIRPIN SOFT ZINC
5 584 65 22-01 CLIP CONDUIT DOUBLE
6 586 68 21-01 WASHER
7 587 13 08-01 PIN CLEVIS 5/16 X 1

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

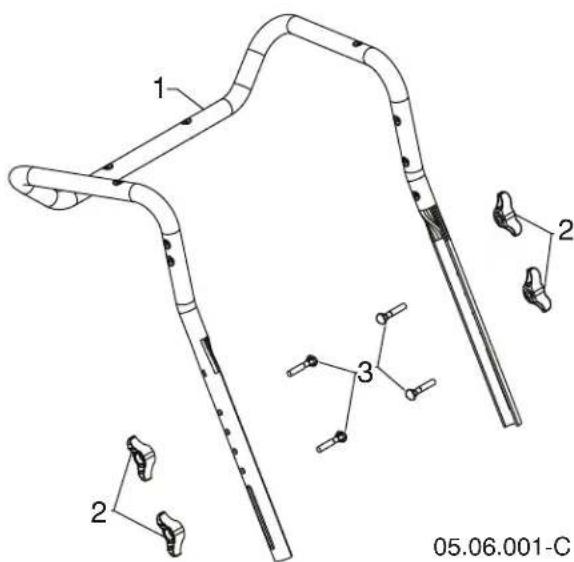

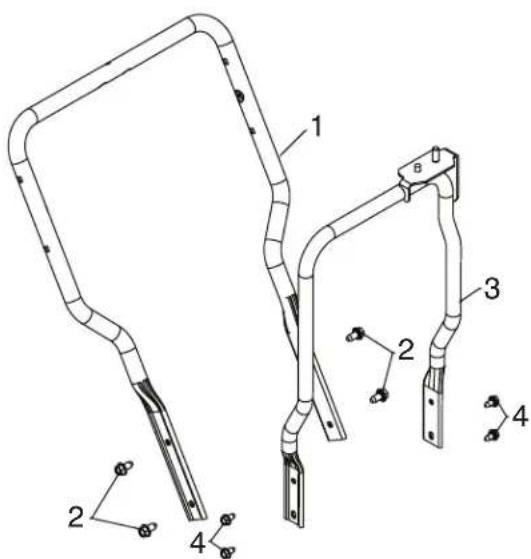

REPAIR PARTS HANDLES

SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART

NO.NO.DESCRIPTION

1 581 12 36-04 UPPER HANDLE
2 532 19 19-38 HANDLE KNOB STD BLACK
3 872 01 01-52 BOLT 5/16-18 X 1.75

C O NCAVE HEAD

05.05.001-D

KEY PART

NO.NO.DESCRIPTION

1 581 12 35-04 LOWER TUBE

2 817 00 06-12 SCREW HEX WASH HD

3/8-16 X

X .75

3 581 62 20-02 CHUTE ROTATOR SUPPORT

A S M

4 817 00 05-10 BOLT HEX 5/16-18

REPAIR PARTS DRIVE SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART NO.NO.DESCRIPTION

1 5324449-49 WASHER 1.00
2 581 12 23-01 BUSHING HEX 1 SHAFT
3 580 75 73-01 GEAR 59T DRIVEN
4 812 00 00-53 RETAINING RING
5 580 75 26-01 AXLE SHAFT SPLIT
6 532 12 47-88 RETAINER SPRING 1 ZINC
7 532 17 12-71 RIVET RD HD DRILLED 1/4 DIA
8 580 75 25-01 AXLE SLEEVE

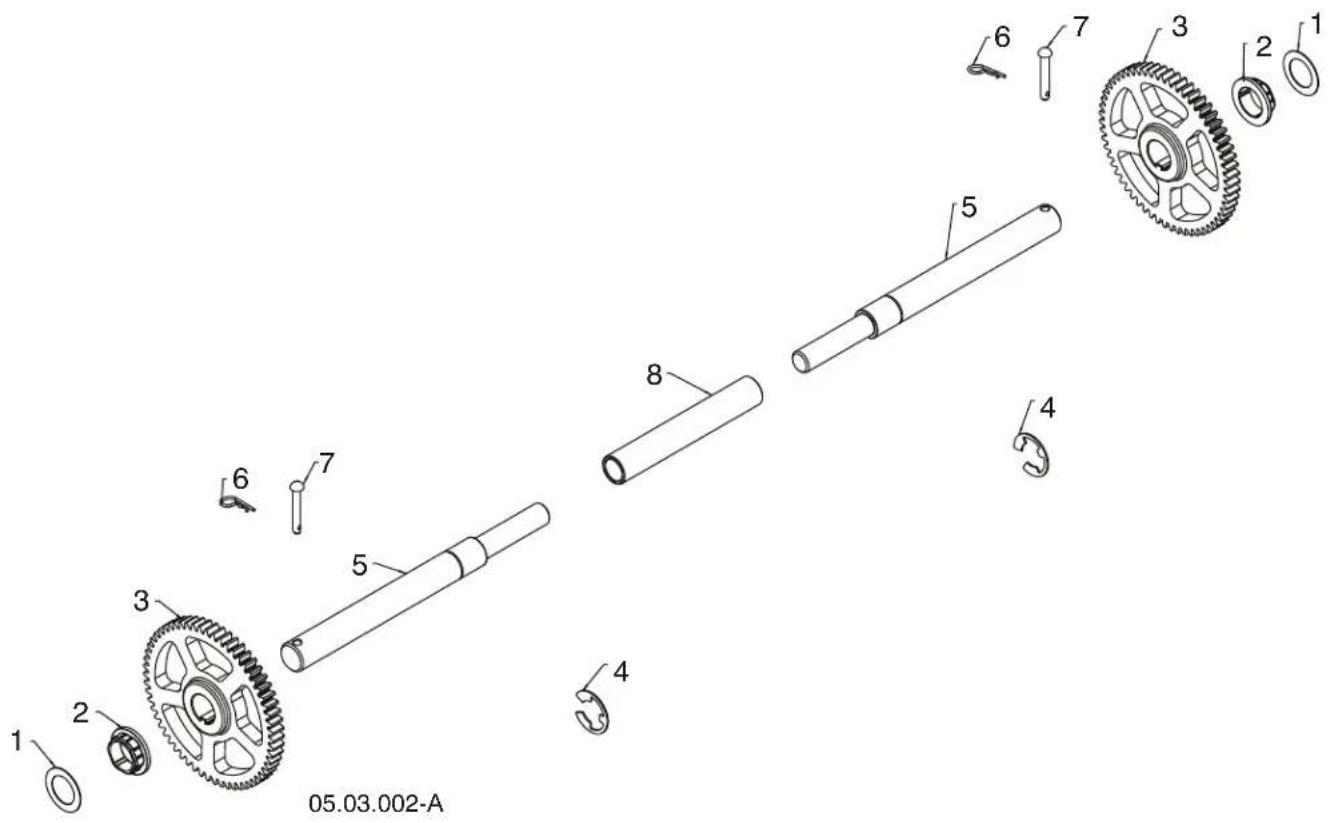

REPAIR PARTS DRIVE

SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO.NO.DESCRIPTION

1 521 99 11-01 NUT HEX FLANGE LK 1/2-13
2 581 44 69-03 SWING PLATE FRICTION PULL
3 581 12 30-01 ROD TIP PLATE
4 581 73 27-01 SPACER DRIVE
5 532 19 38-85 LATCH SPRING
6 81200000-07 E-RING RETAINER
7 581 32 84-01 FRICTION DISC COMBO PULLEY
8 581 45 42-03 BRACKET YOKE WELDMENT
9 581 31 53-01 SPRING TORSION DRIVE
10 585 26 38-01 EXTENSION SPRING
11 585 69 15-01 NUT HEX FLANGE LOCK 5/16-18
12 580 75 62-01 BEARING 9/16 I.D. 1622-2RSNR
13 580 75 61-01 RETainer RING 1622-2RSNR
14 580 75 13-01 WASHER FLAT .59 I.D. X 1.065 X 25 GA
15 580 75 66-01 PAWL ASM RH
16 580 75 60-01 GEAR ASM PLANETARY
17 580 75 63-01 WASHER FLAT .6875 I.D. X 1.00 X 21 GA
18 532 17 53-44 TRUNNION BEARING ASM
19 581 09 09-01 HUB RUBBER WHEEL
20 872 11 05-06 BOLT CARRIAGE 5/16-18 X .75
21 581 09 10-02 PLATE RUBBER WHEEL
22 581 09 11-01 RING RUBBER WHEEL
23 586 64 43-01 E-RING
24 580 75 51-01 ROD PAWL
25 8120000-22 E-RING
26 580 75 24-01 SHAFT REDUCTION PWR STR
27 532 75 11-53 NUT HEX FLANGE LK 5/16-18
28 580 75 67-01 PAWL ASM LH

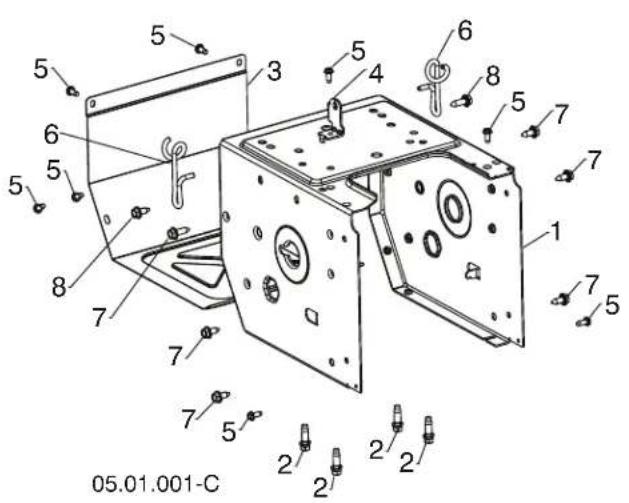

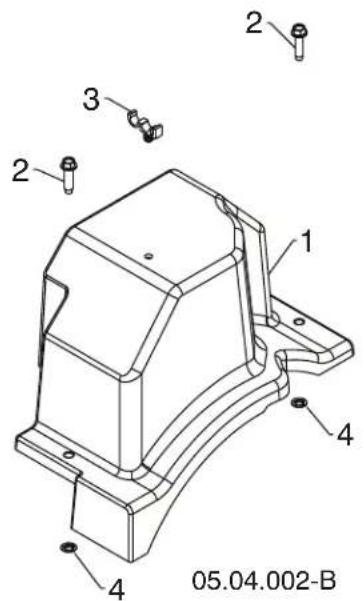

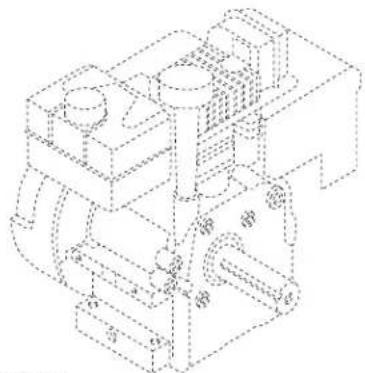

REPAIR PARTS CHASSIS / ENGINE / PULLEYS SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART

NO.NO.DESCRIPTION

-- 5804260-03 COMPLETE LCT ENGINE PW2HK18650178E

1 580 83 94-07 FRAME
2 532 15 04-06 ENGINE BOLT 3/8-16 X 1.208
DOGPOINT
3 580 83 95-07 FRAME COVER
4 581 12 24-02 SHIFTER BRACKET
5 817 06 04-10 SCREW HEX WASHER 1/4-20 X 5/8
6 585 20 60-01 WIREFORM SUPPORT CABLE
7 532 42 88-67 BOLT HEXHD WASHER 5/16-18 X.75
8 585 21 75-01 BOLT HEXHD WASHER 5/16-18 X 1.00

05.01.002-A

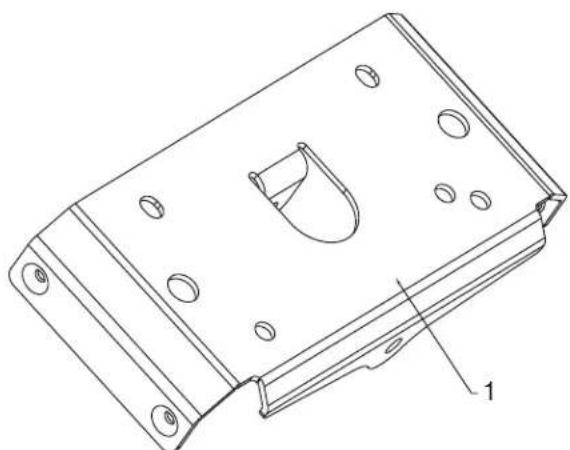

KEY PART

NO. NO.DESCRIPTION

1 583 94 05-02 SMALL MOUNTING PLATE

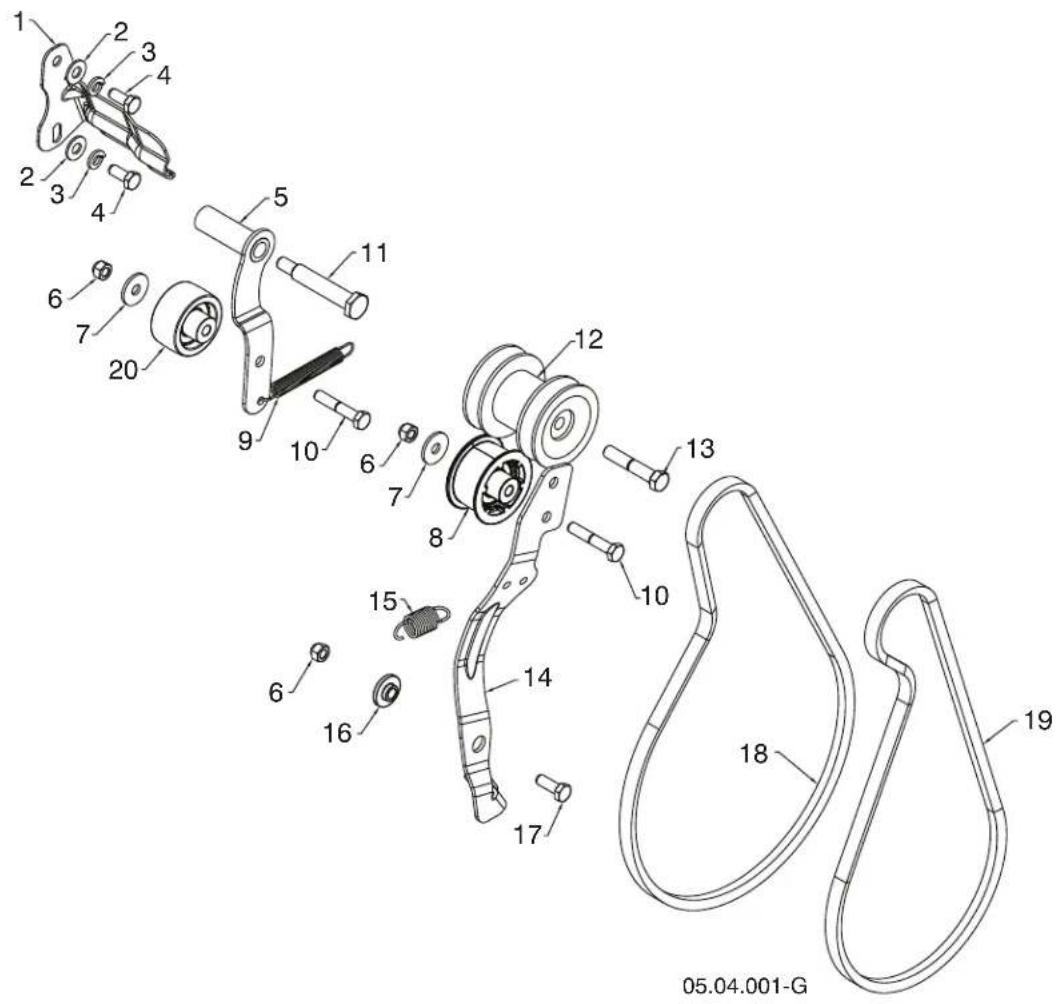

REPAIR PARTS CHASSIS / ENGINE / PULLEYS SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART NO. NO.DESCRIPTION

1 581 62 37-02 BELT KEBPER BRACKET
2 819 11 12-16 WASHER 11/32 X 3/4 X 16 GA
3 810 04 05-00 LOCKWASHER 5/16 SPLIT HVY
4 874 61 05-12 CAPSCREW HEXHD

5/16-24 X .75

5 581 33 82-03 IDLER ARM DRIVE WELDMENT
6 873 80 05-00 NUT NYLOCK 5/16-18
7 532 05 92-89 WASHER FLAT .328 X 1.00 X .097
8 581 14 14-01 IDLER PULLEY 2.0 W/SPACER
95807530-01 RETURN SPRING IDLER ARM DRIVE

10 874 76 05-28 BOLT HEXHD 5/16-18 X 1.75

KEY PART NO. NO.DESCRIPTION

11 5814138-01 SHOULDER BOLT 5/16-24X2.15
12 5874629-01 PULLEY ASM ENGINE
13 532 17 96-17 BOLT HEXHD 3/8-24 X 2.00
14 580 83 11-04 ARM IDLER
587 03 12-01 RETURN SPRING IDLER ARM
16 5873437-01 BUSHING IDLER PIVOT
17 874 76 05-14 BOLT HEXHD 5/16-18 X .875
18 5842161-01 DRIVE BELT4L X38.2
19 581 83 24-01 IMPELLER BELT
20 586 88 02-01 IDLER PULLEY 2.0 FLANGELSS W/SPACER

REPAIR PARTS CHASSIS / ENGINE / PULLEYS SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART NO.NO.DESCRIPTION

1 587 10 54-01 BELT COVER BLACK
25856911-01 BOLT HEX WSH THDRL 1/4-20 X
3 532 14 50-06 CABLE GUIDE
4 532 42 30-62 PALNUT 1/4 IN

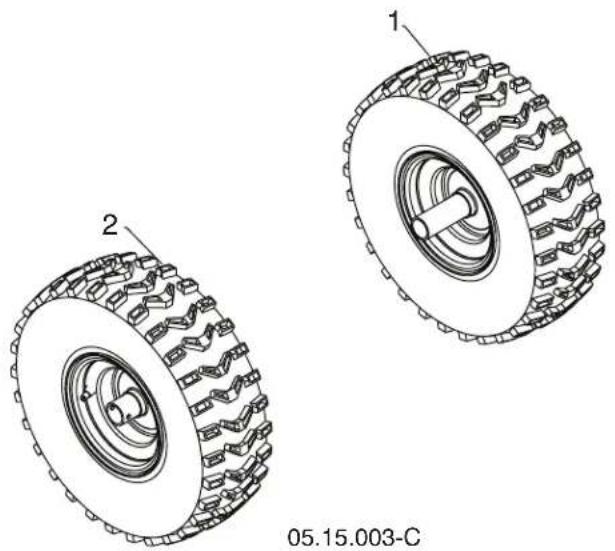

REPAIR PARTS WHEELS SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART NO.NO.DESCRIPTION

1 5867104-01 WHEEL 15X5.00 NPS LH 1.00
2 586 71 03-01 WHEEL 15 X 5.00 NPS RH 1.00

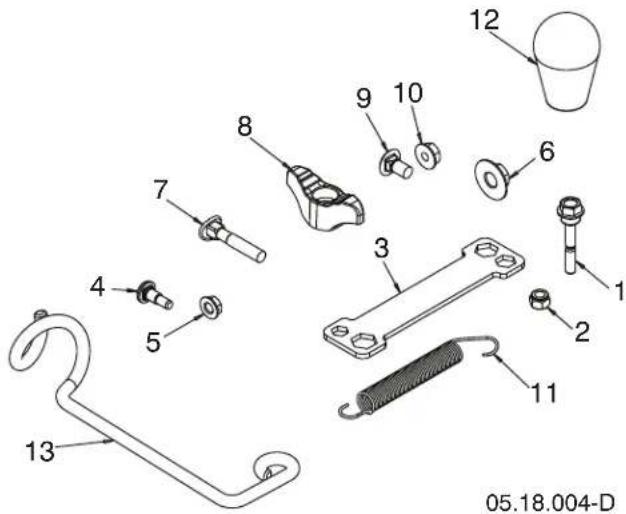

REPAIR PARTS BAG OF PARTS

SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART

NO.NO.DESCRIPTION

1 585 51 18-01 BOLT 1/4-20 X 1.81
2 873 80 04-00 NUT NYLOCK 1/4-20
3 532 42 91-12 WRENCH
4 585 83 22-01 BOLT SHOULDER
5 585 69 14-01 NUT HEX FL 1/4-20 CTR
6 585 69 10-01 NUT NYLOCK 3/8-16
7 532 19 15-74 BOLT 5/16-18 X 1.75 CONCAVE
8 532 19 19-38 KNOB 5/16-18 TWO WING
9 585 83 20-01 BOLT 5/16-18 X .625
10 585 69 15-01 NUT FL LOCK 5/16-18
11 532 18 45-05 SPRING DEFLECT CHUTE
12 581 69 75-01 KNOB SOFT TOUCH SLOTTED
13 581 89 73-01 SUPPORT ROTATION CABLE

01.14.009-B

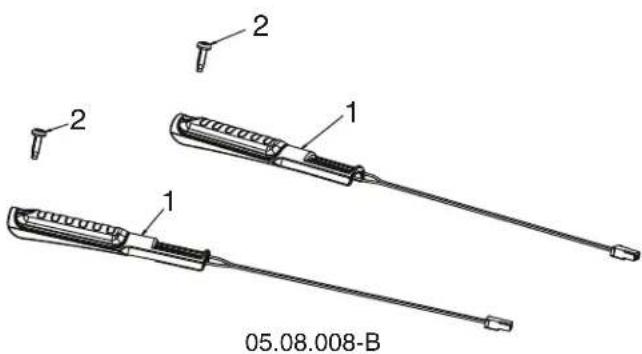

KEY PART

NO. NO.DESCRIPTION

1 532 44 30-59 SAFETY IGNITION KEY KIT

REPAIR PARTS DECALS

SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART

NO.NO.DESCRIPTION

1 532 18 40-45 DECAL AUGER
2 532 19 96-82 DECAL CHUTE
3 532 19 96-83 DECAL AUGER SAFETY
4 532 18 40-28 DECAL BELT GUIDE

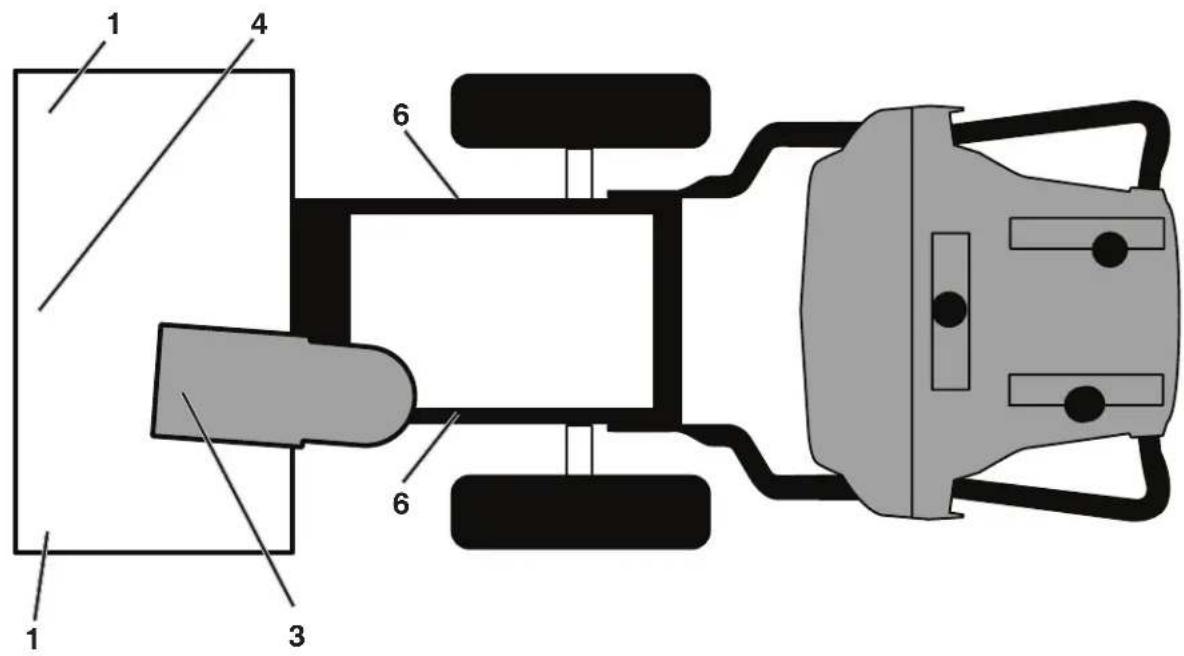

REPAIR PARTS DECALS

SNOW THROWER - MODEL NO. ST2361EP (96192007501), PRODUCT NO. 961 92 00-75

KEY PART

NO.NO.DESCRIPTION

1 532 19 96-83 DECAL.AUGER
3 532 19 96-82 DECAL, DANGER, DEFLECTOR
4 532 18 40-45 DECAL, DANGER
6 532 18 40-28 DECAL, BELT GUARD
-- 1156858-27 OPERATOR'S MANUAL, ENGLISH
- - 1156858-32 OPERATOR'S MANUAL. FRENCH
-- 1156858-06 OPERATOR'S MANUAL,SPANISH

KEY PART NO. NO.DESCRIPTION

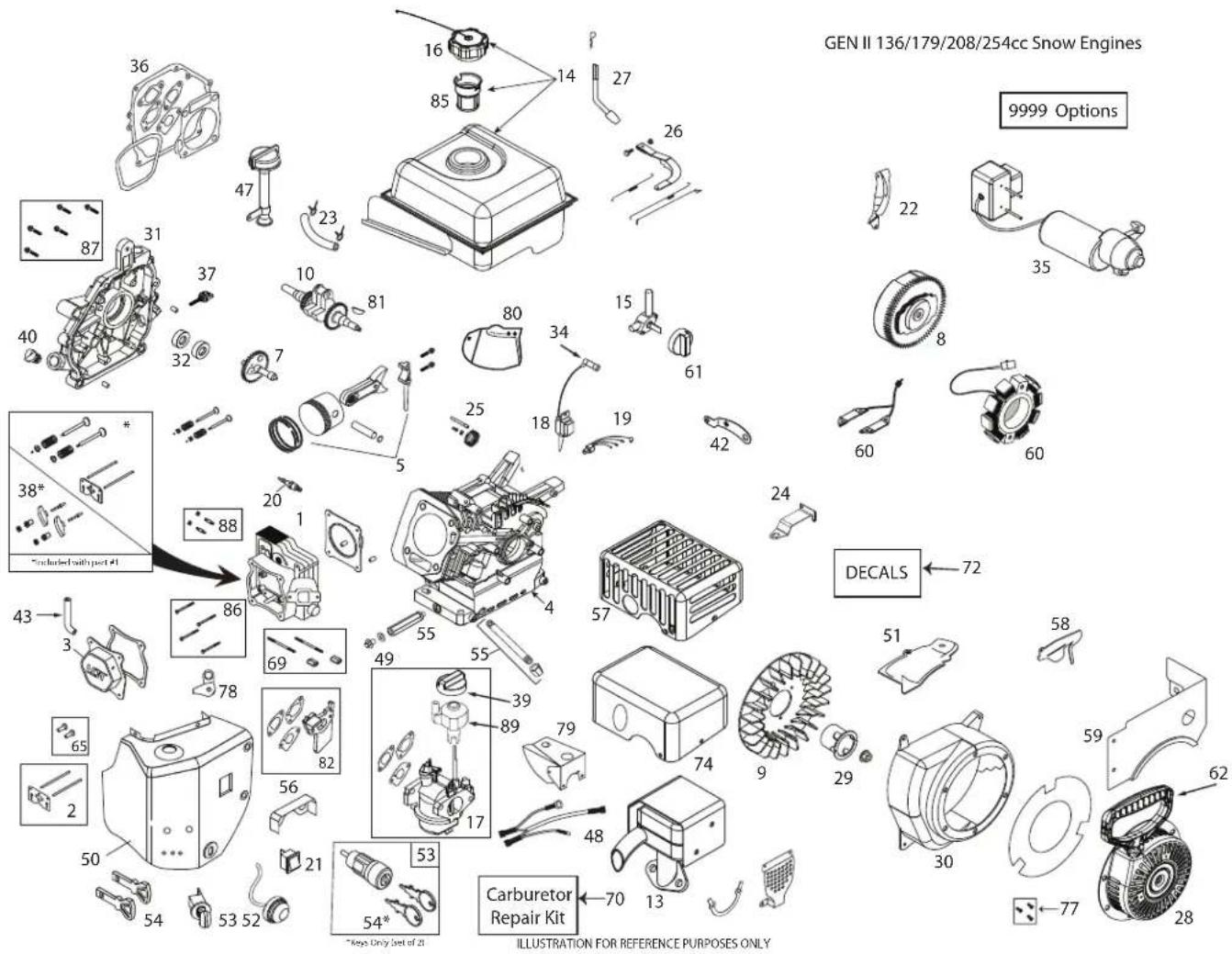

1 532 42 05-78 CYLINDER HEAD ASSEMBLY -208CC (INCL. GASKET)
2 532 42 05-79 PUSH ROD & PLATE KIT(208CC) (INCL. VALVE COVER GSKT)
3 532 42 05-80 VALVE COVER (208CC) (INCL. GASKET)
4 587 14 75-01 CYLINDER - 208CC GEN LL SNOW
5 532 42 05-82 PISTON & ROD ASSEMBLY (208CC)
6 532 42 05-83 CONNECTING ROD ASSEMBLY (208CC)
7 532 42 05-84 CAMSHAFT-MCR (208CC)
8 532 44 38-92 FLYWHEEL - ELECTRIC START (6-CHARGING MAGNETS) (208CC)
9 532 42 05-86 COOLLNG FAN - FLYWHEEL (PLASTIC - 208CC)

KEY PART NO.NO.DESCRIPTION

10 532 44 66-42 CRANKSHAFT (#18 KEYED 208CC SUMMER)
13 587 14 77-01 MUFFLER ASSEMBLY-GEN LL SNOW
14 532 43 65-64 FUEL TANK (208CC-SNOW) (2.7L BLACK W/PLASTIC CAP -GEN II)
15 532 42 92-34 FUEL TANK ON/OFF VALVE -GEN II SNOW
16 532 42 49-42 FUEL TANK CAP - BLACK CLICK STYLE (VENTED)
17 587 14 79-01 CARBURETOR(L10-1D)W/SPEED CONTROL (GEN II SNOW208CC W/GSKTS & SPACER)
18 532 44 38-94 IGNITION COIL (CDI) (208/254CC)(HI-TEMP)
20 532 42 49-39 SPARK PLUG
21 532 42 49-57 ON/OFF SWITCH - ROCKER

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO.DESCRIPTION

22 532 42 49-75 SHIELD - FLYWHEEL - ELECTRIC START - SNOW

23 532 43 21-44 FUEL HOSE KIT (1/4" ID X 318MM - SS SNOW)

24 532 42 92-59 SPEED CONTROL BRACKET (FIXED)

25 532 42 96-46 GOVERNOR GEAR ASSEMBLY (136/208CC)

26 581 76 87-01 GOVERNOR ARM & LINK KIT (208CC SNOW - 3600 FIXED RPM)

27 532 42 06-02 GOVERNOR ARM PADDLE

28 532 43 69-67 RECOIL STARTER (ROUND STYLE-BLACK)136/208CC GEN II SNOW

29 532 43 69-68 STARTER CUP (USE WITH ROUND STYLE STARTER) (208CC SNOW)

30 587 14 80-01 BLOWER HOUSING -208C MATTE BLACK-ELECTRIC START-SNOW W/OIL DRAIN NOTCH

31 587 14 81-01 CRANKCASE COVER ASSY-HOFT (PRESSED-IN) 208/254CC

32 532 42 95-99 OIL SEAL KIT (2 PCS FOR 3/4-INCH CRANKSHAFT)

34 532 43 69-66 SPARK PLUG BOOT - WITH METAL SHIELD (SNOW)

35 532 43 64-66 120V ELECTRIC STARTER (208/254CC GEN LL) (MOUNTING BOLTS ON SIDE OF BLOCK)

36 532 42 96-01 ENGINE GASKET KIT (208CC)

37 532 42 09-61 SMALL BLACK OIL DIPSTICK (PLASTIC)

38 532 42 96-91 ROCKER ARM KIT (208CC) (INCL. GASKET)

39 532 42 92-24 CHOKE CONTROL KNOB (GEN II RED)

40 532 42 95-98 NON-REMOVABLE PLASTIC PLUG (136/208/254CC)

41 532 44 37-75 POLY PRE-FILTER (USE WITH "P" AIR CLEANER) (136/208CC)

42 532 42 49-36 CDI BOX MTG BRACKET-SNOW

43 580 35 34-01 BREATHERTUBE (136/208/254CC)

47 532 42 49-69 HIGH OIL-FILL TUBE/DIPSTICK (THREADED) (SN<1265H0519257)

48 532 42 92-62 WIRE HARNESS (208CC SNOW)

49 532 43 54-95 OIL DRAIN PLUG W/WASHER (136/208/254CC)

KEY PART

NO. NO.DESCRIPTION

50 532 43 65-61 HEATER BOX KIT (GEN LL 208CC SNOW)

52 532 42 49-49 PRIMER BULB WITH HOSE-SNOW

53 532 42 49-54 KEY SWITCH - SAFETY (PUSH/PULL) SNOW (INCL. KEYS)

54 532 44 30-59 KEY SET - RED (2) (SNOW)

55 587 13 99-01 OIL DRAIN TUBE-SNOW (136/208CC)

56 532 42 92-60 CARBURETOR VAPOR SHIELD -208CC SNOW

57 532 43 66-72 CE COMPLIANT MUFFLER SHIELD (208CC)

58 532 42 49-60 SHIELD-GOVERNOR LINKAGE -208CC SNOW

59 532 43 65-62 FUEL TANK SKIRT (208CCL SNOW)

60 532 44 38-93 CHARGING COIL (60-WATT AC) (208/254CC)

61 532 43 27-52 FUEL CONTROL KNOB (GEN II SNOW - RED)

62 532 44 38-99 STARTER GRIP-SNOW (DELUXE)

65 581 37 28-01 TAPPET KIT (208/254CC) (SET OF 2)

69 532 42 49-51 CARBURETOR STUDS & COUPLING KIT-SNOW

70 580 35 36-01 CARBURETOR REPAIR KIT (136/208/254CC)

72 532 43 56-47 STORMFORCE LABEL KIT208CC SNOW

74 587 14 82-01 MUFFLER HEAT SHIELD COVER (136/208/254)

77 532 43 26-88 RECOIL BOLT KIT (INCL. (3) MTG BOLTS)

78 581 45 93-01 BREATHER TUBE BRACKET

79 585 77 37-01 CARBURETOR COVER (136/208/254CC SNOW)

81 585 29 72-01 WOODRUFF FLYWHEEL KEYS (5-PACK) (5X6X18MM)

82 585 02 05-03 CARBURETOR SPACER (208/254CC)

85 586 32 56-01 FUEL TANK STRAINER

86 586 32 73-01 CYLINDER HEAD BOLT KIT (4) (136-179-208-254CC)

87 586 32 69-01 CC COVER BOLT KIT (6) (179-208-254CC)

88 586 32 68-01 MUFFLER MTG STUD KIT (2)

9999 586 32 62-01 HIGH ALTITUDE JET (>5,000 FEET)(208CC L10-1 CARBURETOR)
