Type de produit Balance de comptoir avec impression d'étiquettes
Marque CAS
Modèle CL7200P30W
Dimensions approximatives 400 x 400 x 150 mm
Poids approximatif 8 kg
Alimentation AC 100-240V, 50/60 Hz
Fonctions principales Pesée, calcul de prix, impression d'étiquettes, paramétrage des paramètres, double impression, gestion des PLU, tare, remises, calcul de taxes, modes vente au poids, à la pièce et à prix fixe
Connectivité Ethernet TCP/IP, RS-232, port PS2 pour scanner, port pour imprimante
Entretien et nettoyage Nettoyer avec un chiffon doux légèrement humide. Ne pas utiliser de solvants ni de produits abrasifs.
Sécurité Ne pas dépasser la capacité maximale. Utiliser sur une surface stable et plane. Débrancher avant tout entretien.
Pièces détachées et réparabilité Pièces détachées disponibles (imprimante, plateau, boutons). Réparation par technicien agréé recommandée.
Informations générales Balance professionnelle pour le commerce de détail. Permet une configuration avancée via des paramètres usine et revendeur.

FOIRE AUX QUESTIONS - CL7200P30W CAS

Comment régler l'heure sur la balance CAS CL7200P30W ?
Pour régler l'heure, accédez au mode paramétrage et modifiez le paramètre 531 (Time Format). Vous pouvez choisir entre différents formats (ex: HH:MM sur 24h ou 12h). Utilisez les touches numériques pour entrer l'heure exacte.
Comment changer la date ?
La date se règle via le paramètre 530 (Date Format). Sélectionnez le format souhaité (ex: JJ/MM/AA). Ensuite, dans les paramètres de date, vous pouvez modifier la date courante directement.
Comment effectuer un étalonnage ?
L'étalonnage nécessite d'accéder au mode Calibration (paramètres 800-899). Utilisez les paramètres 801-809 pour les réglages d'étalonnage. Reportez-vous à la notice complète pour la procédure pas à pas.
Comment imprimer une étiquette ?
Placez l'article sur le plateau, sélectionnez le PLU souhaité, puis appuyez sur la touche Imprimer. Si l'impression ne se déclenche pas, vérifiez le paramètre 550 (Out of paper threshold) pour la sensibilité du capteur papier.
Comment utiliser la fonction tare ?
Placez le contenant vide sur la balance, appuyez sur la touche Tare pour remettre le poids à zéro. Puis ajoutez l'article. Vous pouvez utiliser une tare prédéfinie via le paramètre 585 (Use TARE Table No).
Que faire si l'imprimante n'imprime pas ?
Vérifiez d'abord l'alimentation et le papier. Si le problème persiste, ajustez le paramètre 550 (Out of paper threshold) pour améliorer la sensibilité. Si rien ne marche, contactez le service après-vente.
Comment configurer la connexion Ethernet ?
Accédez au paramètre 900 (Ethernet (TCP/IP)) et réglez-le sur USE. Ensuite, configurez l'adresse IP et autres paramètres réseau via les paramètres spécifiques (non listés ici). Consultez la notice pour les détails.
Comment changer la langue d'affichage ?
La langue se modifie via le paramètre 980 (Use Korean for USA). Réglez sur Y pour le coréen ou N pour l'anglais. D'autres langues ne sont pas disponibles dans cette version du firmware.
Comment effacer les transactions enregistrées ?
Utilisez le paramètre 595 (Individual Reset (Z Report)). Réglez sur Y pour effacer chaque rapport individuellement, ou sur N pour effacer tous les rapports en une fois. Attention : cette action supprime définitivement les données.
Comment utiliser la fonction de remise ?
Activez la fonction via le paramètre 772 (Enable Discount). Ensuite, pendant la vente, appuyez sur la touche de remise (généralement % ou Discount) et entrez le montant ou le pourcentage. La balance calcule automatiquement le prix réduit.

Questions des utilisateurs sur CL7200P30W CAS

0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.

Poser une nouvelle question sur cet appareil

L'email reste privé : il sert seulement à vous prévenir si quelqu'un répond à votre question.

Aucune question pour l'instant. Soyez le premier à en poser une.

Téléchargez la notice de votre Balance au format PDF gratuitement ! Retrouvez votre notice CL7200P30W - CAS et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil CL7200P30W de la marque CAS.

MODE D'EMPLOI CL7200P30W CAS

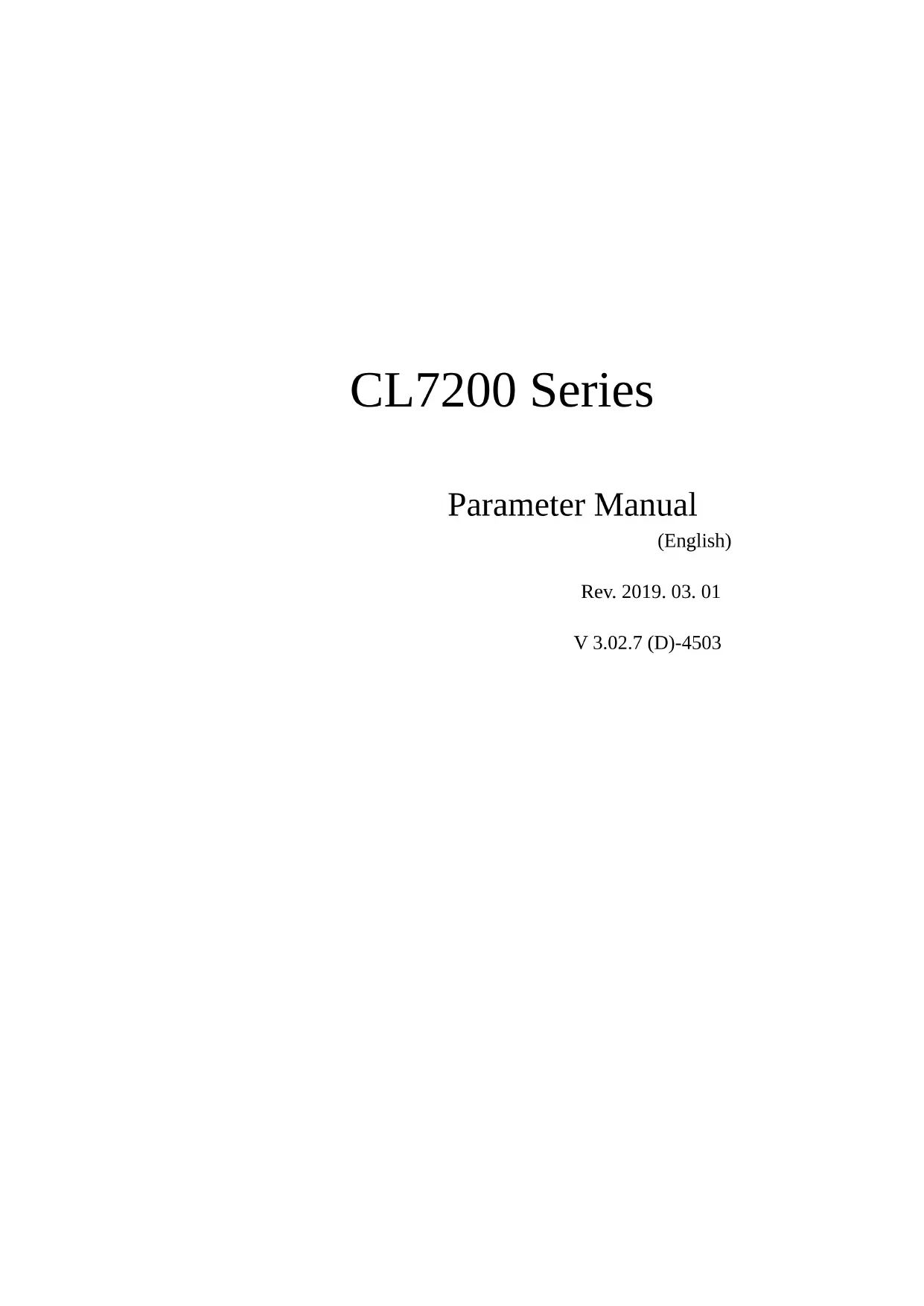

CL7200 Series

Parameter Manual

(English)

Rev. 2019. 03. 01

V 3.02.7 (D)-4503

CAS CL7200P30W - Parameter Manual - 1

Parameter

8600CALModePARAMETER SETTING (1/1) Function Code: [501] Ride Second Position

The Parameter Setting Menu allows you to input Function Codes to change the CL7200's predefined settings. These settings determine how the scale operates and should only be changed if you are certain about the effect they will have on scale operations. In some cases these settings should not be changed without first checking with the local government agency.

There are two levels of Parameter Settings, Factory and Dealer. The Factory Settings are numbered 800 - 899 and can only be accessed through the Calibration Mode. The Dealer Settings are numbered 500 - 799 and can be accessed either through the Calibration Mode or by pressing the ZERO key while in the main Programming Menu and entering the System Password.

1 Factory Setting (Parameters 800~999)

1. Parameter 801~809 are UNDEFINED PARAMETERS

  1. Parameter 810
MESSAGEVALUECONTENTREMARKDEFAULT
Price Decimal Point0-10Define price position of decimal point2
  1. Parameter 832
MESSAGEVALUECONTENTREMARKDEFAULT
Use Serial OutYNTransmit initial start by serial port.Yes=USENo=NO USEN
  1. Parameter 833
MESSAGEVALUECONTENTREMARKDEFAULT
Use last using timeYNDisplay last usage time.Yes = USENo = NO USEN
  1. Parameter 834
MESSAGEVALUECONTENTREMARKDEFAULT
Use Clerk passwordY/NDuring Initial start use Clerk passwordYes = USENo = NO USEN
  1. Parameter 835
  2. Parameter 836~860 are UNDEFINED PARAMETERS
MESSAGEVALUECONTENTREMARKDEFAULT
Select Oper ModeY/NN
  1. Parameter 861
MESSAGEVALUECONTENTREMARKDEFAULT

CAS CL7200P30W - Parameter 801~809 are UNDEFINED PARAMETERS - 1

  1. Parameter 865
MESSAGEVALUECONTENTREMARKDEFAULT
Triangle Type0~21
  1. Parameter 866
MESSAGEVALUECONTENTREMARKDEFAULT
Decimal SignCHARSet decimal point on weightUSE “CHAR” to input ASCII■ ▼

16. Parameter 887 ~ 884 are UNDEFINED PARAMETERS

  1. Parameter 885
MESSAGEVALUECONTENTREMARKDEFAULT
[00] Key Format1~4Set "00._key input format *(1 means 1*10^n)1 = 102 = 1003 = 10004 = 100002
  1. Parameter 886
MESSAGEVALUECONTENTREMARKDEFAULT
ErrorMsg Clear Timeout0~99Set Error message display timeDisplay time = Input# X 0.1 sec30

22. Parameter 900

MESSAGE VALUE CONTENT REMARK DEFAULT

Ethernet (TCP/IP) Y/N Ethernet usage Yes = USE

No = NO USE

23. Parameter 901 ~ 919 are UNDEFINED PARAMETERS

24. Parameter 920~921

MESSAGE VALUE CONTENT REMARK DEFAULT

920->Sign AM CHAR Set AM correspond name Able to CHAR key AM

921->Sign PM CHAR Set PM correspond name Able to CHAR key PM

25. Parameter 922 933

MESSAGE VALUE CONTENT REMARK DEFAULT

922 -> Month 1 JAN

923 -> Month 2 FEB

924 -> Month 3 MAR

925 -> Month 4

926 -> Month 5 MAY

927 -> Month 6 JUN

928 -> Month 7

929->Month8 AUG

930 -> Month 9 SEP

931 -> Month 10 OCT

932 -> Month 11 NOV

933 -> Month 12

26. Parameter 934\~940

MESSAGE VALUE CONTENT REMARK DEFAULT

934->Week1 SUN

935->Week2 MON

936->Week 3 TUE

937->Week 4 CHAR Able to CHAR key WED

938->Week5 THU

939->Week6 FRI

940->Week7 SAT

  1. Parameter 941~979 are UNDEFINED PARAMETERS
  2. Parameter 980
MESSAGEVALUECONTENTREMARK
Use Korean for USAY/NUse Korean LanguageN
  1. Parameter 981 ~ 993 are UNDEFINED PARAMETERS
  2. Parameter 994
MESSAGEVALUECONTENTREMARKDEFAULT
Allow FWUPDATE0/1F/W Update Condition0 = No Check CAL 1 = Check CAL1
  1. Parameter 995 is an UNDEFINED PARAMETER
  2. Parameter 996
MESSAGEVALUECONTENTREMARKDEFAULT
Allow FWUPDATE0/1F/W Update Condition0 = No Check CAL 1 = Check CAL1

2 Dealer Setting (Parameters 500~799)

1. Parameter 501

MESSAGE VALU

CONTENT REMARK DEFAULT

E

Ride Second Position Y/N If FOR key is not exist on key pad

KOREAUSE

You can set initial reference

N

(R1,R2,R3) (Count, PCS, Price)

2. Parameter 502

MESSAGE VALUE

CONTENT REMARK DEFAULT

System Password Char Input System Password

Can Not

000419

NOTE: Use 4byte memory

Change

3. Parameters 503 509 are UNDEFINED

4. Parameter 510

MESSAGE VALUE CONTENT REMARK DEFAULT

Calibration Noti-Msg:

Char

Calibration Message (Korea)

CONTACT SERVICE

5. Parameters 511 528 are UNDEFINED

6. Parameter 529

MESSAGE VALUE

CONTENT REMARK

DEFAULT

Barcode Date Type:

？ ？???

0

7. Parameter 530

MESSAGE

VALUE

CONTENT

REMARK

DEFAULT

Date Format

Numeric

Set current date format:

YY:Year

0:YY/MM/DD

MM:Month

1:MM/DD/YY

DD:Day

1

2:MM/YYYY

3:DD/MM/YY

  1. Parameter 531
MESSAGEVALUECONTENTREMARKDEFAULT
Time FormatNumericSet current time format0 : HH:MM (24hours)1 : HH:MM AM (12hours)2 : HH:MM:SS (24hours)3 : HH:MM:SS AM (12hours)HH : HourMM : MinuteSS : Second0
  1. Parameter 632
MESSAGEVALUECONTENTREMARKDEFAULT
Sell by date FormatNumeric0: Calculate expire date with current date and input date1: Input all date information (yy/mm/dd)(Input date less than 4 digit, scale will recognize as month and date (mm/dd))0
  1. Parameter 533
MESSAGEVALUECONTENTREMARKDEFAULT
Use 1kg,100g KeyY/NUse 1kg, 100g Key. This parameter is valid only in kg modeN
  1. Parameter 534
MESSAGEVALUECONTENTREMARKDEFAULT
  1. Parameter 536
MESSAGEVALUECONTENTREMARKDEFAULT
Use kg/lb keyY/NUse kg/lb keyN
  1. Parameter 537
MESSAGEVALUECONTENTREMARKDEFAULT
Use kg/lb Auto ConversionY/NUse kg/lb Auto ConversionN
  1. Parameter 538
MESSAGEVALUECONTENTREMARKDEFAULT
Use 1/2lb, 1/4lb KeyY/NUse 1/2lb, 1/4lb Key. This parameter is valid only in lb modeN
  1. Parameter 539
MESSAGEVALUECONTENTREMARKDEFAULT
Total Price BarcodeTypeY/NN
  1. Parameter 540
MESSAGEVALUECONTENTREMARKDEFAULT
Barcode Price CutNumeric 0 - 3Set barcode last digit (price) to be droppedWhen input = 1 $12.34 -> 1230

20. Parameter 543

MESSAGE VALUE CONTENT REMARK DEFAULT

Weight Barcode Print SettingNumeric 0~30: Weight Barcode to Weight printONLY
1: IF PLUtype == Count thenKOREA : 3
Weight Barcode to quantity print
2 :IF Fixed sale(or (-)sale) then
Weight Barcode to “1”print
3: USE both 1 and 2

21. Parameter 544

MESSAGE VALUE CONTENT REMARK DEFAULT

Print Weight Cut Y/N 0

22. Parameter 545

MESSAGE VALUE CONTENT REMARK DEFAULT

Display Error Message Y/N

bigger

0

23. Parameter 546

MESSAGE VALUE CONTENTREMARKDEFAULT

Use Frequent Shopper Y/N

Program

Y

24. Parameter 547

MESSAGE VALUE CONTENT REMARK DEFAULT

Time Print Format (0~2) Numeric 0:13:00

(0~2) 1: Single Letter (12AM=A, 1AM=B)

2: Hour Only

  1. Parameter 548
MESSAGEVALUECONTENTREMARKDEFAULT
Use 2 Column for Serving DateNumericMust be 9 to use true type fonts for Nutrition8
  1. Parameter 549
MESSAGEVALUECONTENTREMARKDEFAULT
Display Weight CutNumeric0
  1. Parameter 550
MESSAGEVALUECONTENTREMARKDEFAULT
Out of paper thresholdNumericSet roll paper sensor sensitivity. If sensor doesn't recognize roll paper, setting value should be lowered200
  1. Parameter 551
MESSAGEVALUECONTENTREMARKDEFAULT
Use double print (auto)Y/NSet “Y” to double print (scale will print same label twice but counts as one transaction) You must press print key to function0

31. Parameter 554

MESSAGE VALUE CONTENT REMARK DEFAULT

Prevent Sale of Same Y/N

Weight

N

32. Parameter 555

MESSAGE VALUE CONTENT REMARK DEFAULT

Packed Time (dep.Sell Y/N Print packed time, according to

by time)

existing sell by time

N

33. Parameter 556

MESSAGE VALUE

Use PS2 port for Scanner Y/N

CONTENT REMARK DEFAULT

N

34. Parameter 557

MESSAGE VALUE

REMARK

DEFAULT

Scanner Working Numeric 0 = Scanning Calls PLU

Mode (0~7)

1 = Weight fromWeighing, Calculate Price then Issue Label

0

2 = Weight from Barcode, Calculate Price then Issue Label.

35. Parameter 558

MESSAGE VALUE

Scanner Mapping Y/N

CONTENT REMARK DEFAULT

Y

Format

36. Parameter 559

MESSAGE VALUE

CONTENT REMARK DEFAULT

Price Checksum Type Numeric

0

37. Parameter 560

MESSAGE VALUE

Use Special Price for D.C. Y/N

CONTENT REMARK DEFAULT

N

  1. Parameter 561 is NO CAPTION
  2. Parameter 562

MESSAGE VALUE CONTENT REMARK DEFAULT

Cashdraw close time Numeric Set duration of cash drawer opening and closing

1 = 0.1ms

1

  1. Parameter 563

MESSAGE VALUE CONTENT REMARK DEFAULT

Allow Reverse Feed: Y/N Use reverse feed function, when using continuous label mode

Y

  1. Parameter 564 is an undefined PARAMETER
  2. Parameter 565

MESSAGE VALUE CONTENT REMARK DEFAULT

Print TrainingMsgY/N Print Training Message on label Y

  1. Parameter 566

MESSAGE VALUE CONTENT REMARK

DEFAULT

Check Connection of Y/N

Master R-I

N

  1. Parameter 567

MESSAGE

VALUE

CONTENT

REMARK

DEFAULT

Set Print PLU Type Code Numeric

0

  1. Parameter 568

MESSAGE VALUE CONTENT REMARK DEFAULT

Display Total Info Numeric

0

  1. Parameter 569

MESSAGE

VALUE

CONTENT

REMARK

DEFAULT

PLU Type Code (Barcode) Numeric

2110

  1. Parameter 570

MESSAGE VALUE CONTENT REMARK DEFAULT

Non Weight sale

(WT.on Tray)

Y/N Allow transaction for pcs/PLU while

weight on the tray.

N

(the weight doesn't affect price)

  1. Parameter 571

MESSAGE VALUE CONTENT REMARK DEFAULT

Print Weight (by count

sale)

Y/N Allow to print weight while PLU is By

count type (Weight value doesn't

effect on price)

*Weight is only for reference

Y

  1. Parameter 572

MESSAGE VALUE CONTENT REMARK DEFAULT

Apply U.Price for

T.D/C

Y/N Allow to display discounted unit

price for total price

N

  1. Parameter 573

MESSAGE VALUE CONTENT REMARK DEFAULT

Allow Unit Price

Y/N Allow changing unit price

Change

N

  1. Parameter 574

MESSAGE VALUE CONTENT REMARK DEFAULT

Allow Print Zero

Y/N Allow printing when total price is

T.Price

zero

N

  1. Parameter 575

MESSAGE VALUE

CONTENT REMARK

DEFAULT

Barcode 'E' to

Y/N Barcode 'E' to PTYPE(Korea)

PTYPE(Korea)

N

  1. Parameter 576

MESSAGE VALUE CONTENT REMARK DEFAULT

Fixed Price Hide Y/N Fixed Price Hide N

  1. Parameter 577

MESSAGE VALUE CONTENT REMARK DEFAULT

Common Barcode Y/N Use Common Barcode N

  1. Parameter 578

MESSAGE VALUE CONTENT REMARK DEFAULT

Common Label Y/N Use Common Label N

  1. Parameter 579

MESSAGE VALUE

CONTENT REMARK DEFAULT

Use Temp Key [TYPE]

Y/N Use Temp Key [TYPE]

N

  1. Parameter 580 is an UNDEFINED PARAMETER

  2. Parameter 581

MESSAGE VALUE

CONTENT REMARK

DEFAULT

Print only WT.(u.p.zero)

Y/N

Allow to print with weight value even if Unit price is 0 (Use for only product weight transaction, not on price)

N

  1. Parameter 582

MESSAGE VALUE

CONTENT REMARK

DEFAULT

Use X key (by WT.)

Y/N

Allow to use X key on by weight type (For By-count and pcs X key is allowed)

N

60. Parameter 583

MESSAGE VALUE

CONTENT REMARK DEFAULT

Allow continuous sale Y/N Allow to use add-up transaction

Add-up the product/ continually N

(after transaction scale will set zero)

61. Parameter 584

MESSAGE VALUE

CONTENT REMARK DEFAULT

Use TARE Table No; Y/N Set input method Tare ID or direct

input. If you set Y, must set tare N

weight before sale

62. Parameter 585

MESSAGE VALUE

CONTENT REMARK DEFAULT

Use U.Price for key Y/N Set discount key for (-%) individual

discount item or total price

Parameter 586

MESSAGE VALUE CONTENT REMARK DEFAULT

Indirect PLU Call Numeric Set duration time for Indirect PLU 1 = 0.1s

(0.1s) call-up. NOTE: Input 0 will not 10 = 1sec

call-up any PLU In this case you 0

must press PLU button to call-up a

PLU

63. Parameter 587

MESSAGE VALUE CONTENTREMARK DEFAULT

Override only u.p.zero Y/N Set auto override when unit price is IF parameter 588

PLU 0.You must input unit price to print is set Y override Y

value is saved

  1. Parameter 588
MESSAGEVALUECONTENTREMARKDEFAULT
Save Overiden u.p. zero PLUY/NIf para 587 set as 0, save the unit price to PLU. Next time PLU is called up PLU has saved unit price.N
  1. Parameter 589
MESSAGEVALUECONTENTREMARKDEFAULT
Apply Price Round0-40: No use1: For each PLU2: Addup Round (ticket only)3: Addup Round (label and ticket)4: Cutting0
  1. Parameter 590
MESSAGEVALUECONTENTREMARKDEFAULT
Round TypeY/NN: Round down, Total PriceY: Round off, Total PriceDefault value : Set value in parameter 591Y
  1. Parameter 591
MESSAGEVALUECONTENTREMARKDEFAULT
  1. Parameter 592

MESSAGE VALUE CONTENT REMARK DEFAULT

Weight Round Unit Y/N Currently not used

Weight round off/down in 10 unit 0

Calculate and print at same time

  1. Parameter 593

MESSAGE VALUE CONTENT REMARK DEFAULT

Use By Pcs PLU Y/N Set by pcs PLU

Y for count/quantity Y

N for simple count function

  1. Parameter 594

MESSAGE VALUE CONTENT REMARK DEFAULT

Print under Min. Y/N Allow to print under minimum weight

Weight

  1. Parameter 595

MESSAGE VALUE CONTENT REMARK DEFAULT

Individual Reset(Z Y/N Y: Set to erase each report on Z X Report: only

Report) report. NOTE: May cause effect on call-up record

other reports and print Z

N: Set to erase all the report at once Report : allow to N

Except X1/X2 is separate item call-up and erase

record for finalreport

  1. Parameter 596

MESSAGE VALUE CONTENT REMARK DEFAULT

X/Z Report Y/N Set to make a report

NOTE: N makes no transaction Y

therefore return key does not function

  1. Parameter 597
MESSAGEVALUECONTENTREMARKDEFAULT
Prepack ReportY/NSet to make a report on Prepack modeSet para 596 as N. This set will not make reportY
  1. Parameter 598
  2. Parameter 599 is an UNDEFINED PARAMETER.
MESSAGEVALUECONTENTREMARKDEFAULT
Print when Z report clearY/NSet to print on Z report clearSet as N X report only prints Z report erase onlyY
  1. Parameter 600
MESSAGEVALUECONTENTREMARKDEFAULT
Auto clear key tareY/NSet undo key-tare value after sale (when PLU is clear)Y
  1. Parameter 601
MESSAGEVALUECONTENTREMARKDEFAULT

79. Parameter 603

MESSAGE VALUE CONTENT REMARK DEFAULT

Apply PLU Tare

Preferentially

Y/N Set to change weight tare value after

call-up the PLU

N

Must greater then call-up PLU tare)

80. Parameter 604

MESSAGE VALUE CONTENT REMARK DEFAULT

Keep key tare (PLU

tare)

Y/N Allow to over-ride last called-up PLU

value. Last key tare value is over-ride by PLU key tare. After transaction

PLU tare is clear and manually entered tare value remains

Y=PLU preset

tare overrides manual tare.

N= Doesn't allow

N

PLU with preset tare to be recalled.

81. Parameter 605

MESSAGE VALUE CONTENT REMARK DEFAULT

Accumulation tare Y/N Set to use accumulation tare

NOTE: tare value has to be greater than last one

N

82. Parameter 606

MESSAGE VALUE

CONTENT REMARK

DEFAULT

Subtraction tare

Y/N Set to use subtraction tare

Only set tare value less than last tare value

N

83. Parameter 607

MESSAGE VALUE CONTENT REMARK DEFAULT

Tare Input Type 0~4 Check input tare When invalid value

0: Error
1: No Round
2: Round Off
3: Round Down
4: Round Up

0

84. Parameter 608

MESSAGE VALUE CONTENT REMARK DEFAULT

Tare after PLU call Y/N Set tare value after PLU is selected Y

85. Parameter 609

MESSAGE VALUE CONTENT REMARK DEFAULT

Display tare only

Y/N Set to display main tare only PLU is

Apply on EU

N

weight type

weight type

displaymode

Y

86. Parameter 610

MESSAGE VALUE CONTENT REMARK DEFAULT

Ignore Wt. at Fixed

Y/N Ignore weight when called fixed Item

Item

Parameter 611

MESSAGE VALUE CONTENT REMARK DEFAULT

Display weight tare on

Y/N Display weight tare on PT

PT

Parameter 612

MESSAGE

VALUE

CONTENT

REMARK

DEFAULT

Use Neg . Weight Limit

Y/N

N

  1. Parameter 613
    MESSAGE VALUE CONTENT REMARK DEFAULT TransactionMsgSizeY/N N
  2. Parameter 614
    MESSAGE VALUE CONTENT REMARK DEFAULT Clerk Lock Key Method Numeric 0
  3. Parameter 615
    MESSAGE VALUE CONTENT REMARK DEFAULT Use By Count PLU Y/N Y
  4. Parameter 616
    MESSAGE VALUE CONTENT REMARK DEFAULT Hold Time Numeric
  5. Parameter 617
    MESSAGE VALUE CONTENT REMARK DEFAULT Clerk Subtotal List Y/N N
  6. Parameter 618
    MESSAGE VALUE CONTENT REMARK DEFAULT Unlimited Fixed Weight Y/N N
  7. Parameter 619
    MESSAGE VALUE CONTENT REMARK DEFAULT Use RS-232 for Real Y/N Time Transactions
  8. Parameter 620
    MESSAGE VALUE CONTENT REMARK DEFAULT
    Send Real Time Y/N
    Transactions

N

0

CAS CL7200P30W - Parameter 612 - 1

  1. Parameter 621
MESSAGEVALUECONTENTREMARKDEFAULT
Use NMI DiscountY/NTitle now says "Discount Type"N
  1. Parameter 622
MESSAGEVALUECONTENTREMARKDEFAULT
Send Weight Value <1Numeric1=x102=x1000
  1. Parameter 623
  2. Parameter 624 is an UNDEFINED PARAMETER
MESSAGEVALUECONTENTREMARKDEFAULT
Use PS2 Keyboard for CL-5000 "S"typeY:NN
  1. Parameter 625
MESSAGEVALUECONTENTREMARKDEFAULT
EXT NVRAM TypeY/N0
  1. Parameter 628
MESSAGEVALUECONTENTREMARKDEFAULT
Display Primary signStringSet money sign for display$
  1. Parameter 629
MESSAGEVALUECONTENTREMARKDEFAULT
Weight LB Symbol 2StringSet use sub weight unit/symbol for lb (do not change)CAUTION: DO NOT CHANGE0z
  1. Parameter 630
MESSAGEVALUECONTENTREMARKDEFAULT
Weight symbol 1stringSet use weight unit/symbol (CAUTION: do not change)CAUTION: DO NOT CHANGEkg
  1. Parameter 631
MESSAGEVALUECONTENTREMARKDEFAULT
Weight symbol 2StringSet use sub weight unit'symbol(do not change)CAUTION: DO NOT CHANGEg
  1. Parameter 632
MESSAGEVALUECONTENTREMARKDEFAULT
Primary signStringSet primary money sign$
  1. Parameter 633
MESSAGEVALUECONTENTREMARKDEFAULT
Last signStringSet smaller money signShould be?
  1. Parameter 636
MESSAGE VALUE CONTENT REMARK DEFAULT
Price output format Numeric Set toprint money currency(display/ticket, not on label)0 : "100.00" type1 : "100.00" type2 : "100.00" type3 : "100.00 c" type4 : "100.00c(Greek)" typeFor type 3 useageParameter 633(last sign)must setbefore this setting1
  1. Parameter 637
MESSAGE VALUECONTENTREMARK DEFAULT
Price output format (LABEL)NumericSet to print money currency on label (Label print only for total price)0 : “100.00” type1 : “100.00” type2 : “100.00” type3 : “100.00c” type4 : “100.00c(Greek)” type* default : 0For 3,4 type usageParameter 633 last sign must set beforeFor 4 type onlydisplay money isbelow decimal point(EX:"56c")1
  1. Parameter 638
MESSAGE VALUECONTENTREMARKDEFAULT
Set Dual CurrencyNumeric0: No use1 : UseUse currency table 1 as dual currency(Use when 2types of currency is used)Changed from “N”0
  1. Parameter 639
MESSAGE VALUECONTENTREMARKDEFAULT
Print [REPACK] on RepackY/NPrint [REPACK] on Repack FieldY
  1. Parameter 640 ~ 677 are LABEL CAPTION FIELDS
MESSAGE VALUECONTENT REMARK DEFAULT
640 > Total PriceTOTAL PRICE %C
641 > By Weight Price PRICE %C/%U
642 > Non Weight Price PRICE %C
643 > By Count Price PRICE %C/pcs
644 > Weight WT %W
645 > Quantity QUANTITY
646 > TareTARE %W
647 > Saved PriceYOU SAVE
648 > Regular PriceREG PRICE
649 > Tax PriceTAX %C
650 > Packed On DatePACKED ON
651 > Sell By DateSELL BY
652 > Cook By DateCOOK BY
653 > Produced DatePRODUCED
654 > Packed On TimePACKED ON
655 > Sell By TimeSELL BY
656 > Payment PriceRECEIVE %C
657 > Change PriceCHANGE %C
658 > Refer. Net WeightNET WT %W
659 > Refer Gross WeightGROSS WT %W
660 > Manual WeightMAN WT %W
661 > Percent TareTARE %%
662 > Percent Tare LimitLIMIT %%
663 > Total Price (Total)TOTAL PRICE %C
664 > Total Count (Total)TRANSACTION
665 > Total Tax (Total)TAX %C
666 > ReferenceREFERENCE:
667 > Born InBORN IN:
668 > Bred InBRED IN:
669 > Slaughtered InSL IN:
670 > Cut InCUT IN:
671 > Total Price (RPK)TOTAL (REPACK)

MESSAGE VALUE

CONTENTREMARKDEFAULT

672 > Void Count (Total) VOID COUNT

673 > Void Price (Total)
VOID PRICE

674 > Total Weight (Total) TOTAL WT %W

675 > Total Quantity (Total) TOTAL QTY

676>Ingredient INGREDIENT

677 > PLU No. PLU#:

678>Origin ORIGIN:

117. Parameter 679

MESSAGE VALUE CONTENT REMARK DEFAULT

Auto Clear Price: Y/N

  1. Parameter 680 689 are UNDEFINED PARAMETERS (680 is No Caption)

119. Parameter 690

MESSAGE VALUE CONTENT REMARK DEFAULT

Prt Under Min Weight on Prepack Y/N N

  1. Parameter 691 699 are UNDEFINED PARAMETERS

121. Parameter 700

MESSAGE VALUE CONTENT REMARK DEFAULT

Total Displaying Time (sec) Numeric 1

122. Parameter 701

MESSAGE VALUE CONTENT REMARK DEFAULT

Prt Tax(Report) Y/N Set to print Tax report on scale or clerk report Y

123. Parameter 702

MESSAGE VALUE CONTENTREMARK DEFAULT

Prt Pay(Report) Y/N Set to print Pay report on scale or clerk Y

  1. Parameter 703
MESSAGE VALUECONTENT REMARKDEFAULT
Prt Round SummaryY/NSet to print Round report on scale or clerkN
(Report)
  1. Parameter 704
MESSAGE VALUECONTENT REMARK DEFAULT
Prt Store NameY/N Set to print store name on report
(Report):
  1. Parameter 705~707 are NO CAPTION
  2. Parameter 708

MESSAGE VALUE CONTENT REMARK DEFAULT

Clerk Key Action in??????
Label Mode
  1. Parameter 709 - 710 are UNDEFINED PARAMETERS
  2. Parameter 711
MESSAGE VALUECONTENT REMARKDEFAULT
Prt Repack(Report)Y/NSet to print Repack report on scale or clerk
Y
  1. Parameter 712
MESSAGE VALUECONTENT REMARKDEFAULT
Prt Prepack(Report)Y/NSet to print Prepack report on scale or clerkY
  1. Parameter 713
MESSAGEVALUECONTENTREMARKDEFAULT
Prt Negative (Report)Y/NSet to print Negative reportY
  1. Parameter 714
MESSAGEVALUECONTENTREMARKDEFAULT
Prt No Sale OpenY/NSet to print No sale open count
(Report)Y
  1. Parameter 715

MESSAGE VALUE CONTENT REMARK DEFAULT

PLU Report Type Numeric 0

  1. Parameter 716

MESSAGE VALUE

CONTENT REMARK DEFAULT

Send Sale Date Type Y/N N

  1. Parameter 717 ~ 719 are UNDEFINED PARAMETERS

  2. Parameter 720

MESSAGE VALUE

CONTENT REMARK DEFAULT

Prt Zero Value Report Y/N Y

  1. Parameter 721

MESSAGE VALUE CONTENT REMARK DEFAULT

Report Type Numeric 0

  1. Parameter 722

MESSAGE

VALUE

CONTENT

REMARK

DEFAULT

Clear Clerk Trans. in Z-Report Y/N

N

  1. Parameter 723

MESSAGE

VALUE

CONTENT

REMARK

DEFAULT

Send Real Time U.P. Change Numeric

0

  1. Parameter 724

MESSAGE VALUE

CONTENT REMARK

DEFAULT

Use Total Discount Y/N N

  1. Parameter 725

MESSAGE VALUE

CONTENT REMARK

DEFAULT

Label Change Mode Y/N N

142. Parameter 726

MESSAGE VALUE CONTENT REMARK DEFAULT

QR Barcode Add Total Y/N Y = All Items in QR code

N = Single Item in QR code

N

143. Parameter 727 ~ 729 are UNDEFINED PARAMETERS

144. Parameter 730

MESSAGE VALUE

CONTENT REMARK DEFAULT

Ethernet TCP/IP Y/N Y

145. Parameter 731

MESSAGE VALUE

CONTENT REMARK DEFAULT

Wireless Bridge Y/N Now says "Use Wireless LAN" N

146. Parameter 732

MESSAGE

VALUE

CONTENT

REMARK

DEFAULT

Use Small Font for PLU Name Y/N N

147. Parameter 733

MESSAGE VALUE CONTENT REMARK DEFAULT

Label-Ticket Key ?????

Mode1

148. Parameter 734 ~ 741 are UNDEFINED PARAMETERS

149. Parameter 742

MESSAGE VALUE CONTENT REMARK DEFAULT

Input Key Time ? ？????？

Offset (ms)

150. Parameter 743

MESSAGE VALUE CONTENT REMARK DEFAULT

Long Key Time ? ？?????

Offset (ms)

  1. Parameter 744
MESSAGEVALUECONTENTREMARKDEFAULT
Speed Key Number?Self Service Model Only1
Shown
  1. Parameter 745
MESSAGEVALUECONTENTREMARKDEFAULT
Speed Key Items?Self Service Model Only2
Shown
  1. Parameter 746
MESSAGEVALUECONTENTREMARKDEFAULT
Use Auto Zero SettingY/N??????N
  1. Parameter 747
  2. Parameter 748
MESSAGEVALUECONTENTREMARKDEFAULT
Self Key Type?1=7x42=8x53=9x64=6x3Self Service Model Only2

158. Parameter 751

MESSAGEVALUECONTENTREMARKDEFAULT
Send Key ValueY/N???N

159. Parameter 752

MESSAGEVALUECONTENTREMARKDEFAULT
Don't Display Images on Operator's ScreenY/N???N

160. Parameter 753

MESSAGEVALUECONTENTREMARKDEFAULT
Touch Sensitivity SettingNumeric????????12

161. Parameter 754

MESSAGEVALUECONTENTREMARKDEFAULT
Use OZ in Fixed Weight UnitY/NN

162. Parameter 755

MESSAGEVALUECONTENTREMARKDEFAULT
Print to FileY/NPrints Label to File (debug)N

163. Parameter 758

MESSAGEVALUECONTENTREMARKDEFAULT
Enable Debug LogY/NKeeps action record for debugging issuesN

164. Parameter 757 ~ 770 are UNDEFINED PARAMETERS

165. Parameter 771

MESSAGEVALUECONTENTREMARKDEFAULT
Enable ClerkY/NEnable Clerk Function & MenuN
  1. Parameter 772
MESSAGEVALUECONTENTREMARKDEFAULT
Enable DiscountY/NEnable Discount Function & MenuY
  1. Parameter 773
MESSAGEVALUECONTENTREMARKDEFAULT
Enable TAX TableY/NEnable Tax Function & MenuN
  1. Parameter 774
MESSAGEVALUECONTENTREMARKDEFAULT
Enable OriginY/NEnable Origin Function & MenuY
  1. Parameter 775
MESSAGEVALUECONTENTREMARKDEFAULT
Enable Tare TableY/NEnable Tare Table Function & MenuN
  1. Parameter 776
MESSAGEVALUECONTENTREMARKDEFAULT
Enable Nutri-FactsY/NEnable Nutri-Facts Function & MenuY
  1. Parameter 781

MESSAGE VALUE

CONTENT REMARK DEFAULT

Enable Group Y/N Enable Group Y

  1. Parameter 782 is No Caption Parameter 783 795 are UNDEFINED PARAMETERS
  2. Parameter 796

MESSAGE VALUE

CONTENT REMARK DEFAULT

Use Tare Auto Zero Y/N N

  1. Parameter 797

MESSAGE VALUE

CONTENT REMARK DEFAULT

Use Full Tare Y/N Press Enter will reboot the scale N

  1. Parameter 798

MESSAGE

VALUE

CONTENT

REMARK

DEFAULT

Tare Clear Range Numeric

0

  1. Parameter 799

MESSAGE

VALUE

CONTENT

REMARK

DEFAULT

A/D Filter Level Numeric

0

Assistant notice
Powered by Anthropic
En attente de votre message
Informations produit

Marque : CAS

Modèle : CL7200P30W

Catégorie : Balance
