OE_SBRGB40W - Barre de son ONEARZ - Notice d'utilisation et mode d'emploi gratuit

Type d'appareil	Barre de son sans fil
Connectivité	Sans fil, USB-C
Fonction principale	Lecture stéréo sans fil et fonction mains libres
Entrées audio	Micro SD, USB flash, AUX-in
Formats audio supportés	MP3, WMA
Capacité maximale carte Micro SD	32 Go
Microphone intégré	Oui
Durée de lecture	Environ 4,5 heures à 50% du volume
Chargement	USB-C
Indicateur lumineux	LED RGB
Compatibilité	Ordinateur, mobile, tablette, PSP, MP3/MP4
Fonction mains libres	Oui, pour répondre aux appels
Dimensions	Non précisé
Poids	Non précisé
Accessoires inclus	Câble de chargement USB-C

FOIRE AUX QUESTIONS - OE_SBRGB40W ONEARZ

Comment connecter le ONEARZ OE_SBRGB40W à mon téléphone?

Assurez-vous que le Bluetooth est activé sur votre téléphone. Allumez le ONEARZ OE_SBRGB40W et maintenez le bouton de connexion enfoncé jusqu'à ce que le témoin lumineux clignote. Recherchez le périphérique dans la liste des appareils Bluetooth disponibles sur votre téléphone et sélectionnez-le pour établir la connexion.

Le produit ne s'allume pas, que faire?

Vérifiez que le ONEARZ OE_SBRGB40W est correctement chargé. Branchez-le à une source d'alimentation à l'aide du câble fourni et attendez quelques minutes. Si le produit ne s'allume toujours pas, essayez de réinitialiser l'appareil en maintenant le bouton d'alimentation enfoncé pendant 10 secondes.

Comment changer les couleurs de l'éclairage?

Utilisez l'application dédiée sur votre téléphone pour changer les couleurs de l'éclairage. Vous pouvez également utiliser les boutons de contrôle situés sur l'appareil pour faire défiler les différentes options de couleur.

Puis-je utiliser le ONEARZ OE_SBRGB40W à l'extérieur?

Oui, le ONEARZ OE_SBRGB40W est conçu pour être utilisé à l'extérieur, mais il est recommandé de ne pas l'exposer à des conditions météorologiques extrêmes, comme la pluie ou la neige.

Quelle est la durée de vie de la batterie du ONEARZ OE_SBRGB40W?

La durée de vie de la batterie dépend de l'utilisation, mais en moyenne, elle peut durer jusqu'à 10 heures avec un éclairage à faible intensité. Pour une utilisation optimale, rechargez la batterie lorsque le niveau est bas.

Comment mettre à jour le firmware du ONEARZ OE_SBRGB40W?

Ouvrez l'application dédiée et vérifiez s'il y a des mises à jour disponibles dans les paramètres. Suivez les instructions à l'écran pour télécharger et installer la mise à jour du firmware.

Que faire si l'éclairage ne fonctionne pas correctement?

Essayez de réinitialiser l'appareil en le mettant hors tension et en le rallumant. Si le problème persiste, vérifiez si une mise à jour du firmware est disponible ou contactez le support technique.

Le son est faible, comment augmenter le volume?

Utilisez les boutons de volume sur le produit ou dans l'application pour augmenter le volume. Assurez-vous également que le volume de votre téléphone est suffisamment élevé.

MODE D'EMPLOI OE_SBRGB40W ONEARZ

xe on·earz

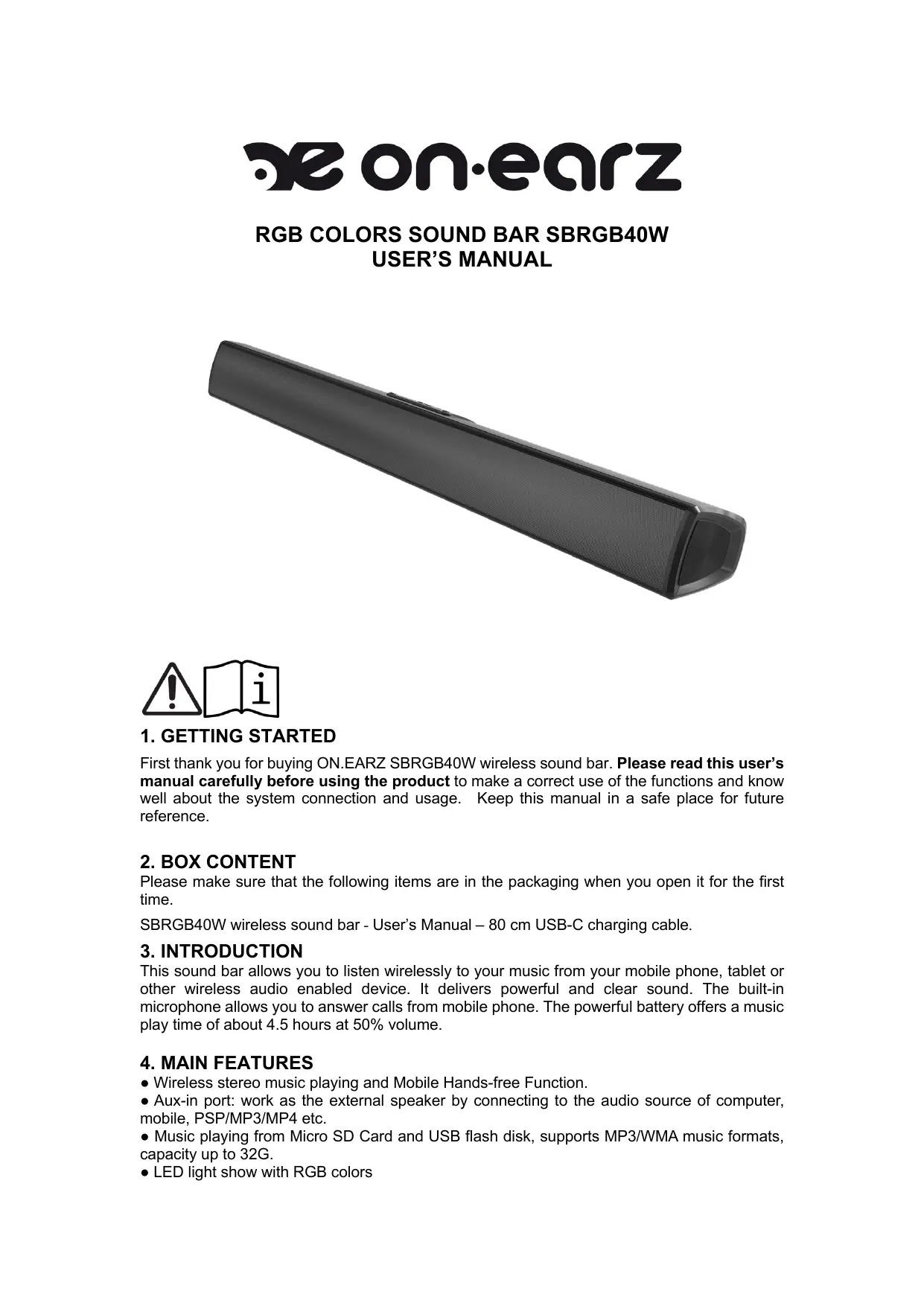

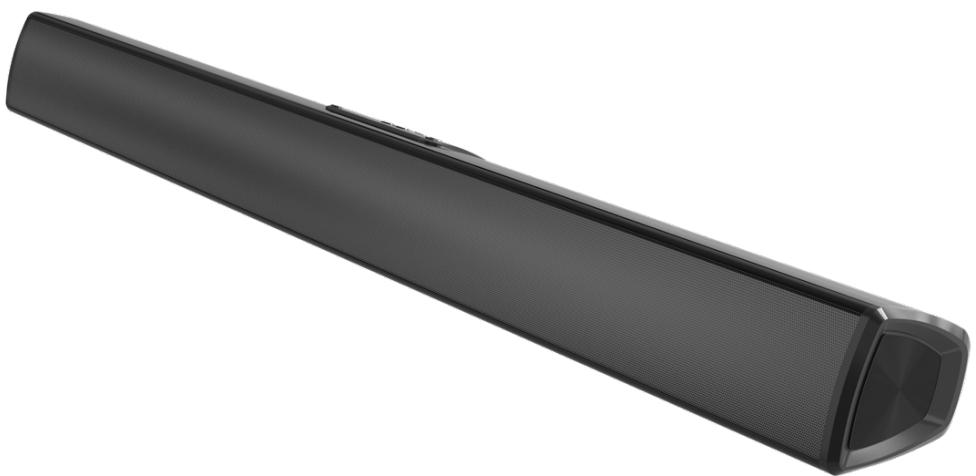

RGB COLORS SOUND BAR SBRGB40W USER'S MANUAL

1. GETTING STARTED

First thank you for buying ON.EARZ SBRGB40W wireless sound bar. Please read this user's manual carefully before using the product to make a correct use of the functions and know well about the system connection and usage. Keep this manual in a safe place for future reference.

2. BOX CONTENT

Please make sure that the following items are in the packaging when you open it for the first time.

SBRGB40W wireless sound bar - User's Manual – 80 cm USB-C charging cable.

3. INTRODUCTION

This sound bar allows you to listen wirelessly to your music from your mobile phone, tablet or other wireless audio enabled device. It delivers powerful and clear sound. The built-in microphone allows you to answer calls from mobile phone. The powerful battery offers a music play time of about 4.5 hours at 50% volume.

4. MAIN FEATURES

• Wireless stereo music playing and Mobile Hands-free Function.
• Aux-in port: work as the external speaker by connecting to the audio source of computer, mobile, PSP/MP3/MP4 etc.
• Music playing from Micro SD Card and USB flash disk, supports MP3/WMA music formats, capacity up to 32G.
• LED light show with RGB colors

5. PRECAUTIONS

Read the following recommendations before using the sound bar.

Keep it dry and don't take it to damp places to avoid the product's internal circuit being affected. Keep the product away from direct sunlight or hot places. High temperatures will shorten the life of electronic devices, destroy the battery or distort certain plastic parts.

Don't expose the product to extremely cold area. It may damage the internal circuit board.

RISK OF ELECTRIC SHOCK! Do not try to disassemble or repair the unit yourself. Do not remove the unit's housing or back cover. Do not insert any foreign objects into the unit. The user must not repair any of the unit's internal components. In the event of a malfunction, repairs should only be carried out by qualified personnel.

Don't let the unit fall onto the floor or other hard surfaces. The internal circuit might get damaged. Don't scratch the surface with sharp objects.

Turn off and unplug the unit from the mains socket before cleaning it. Use a soft, dry cloth to remove any dirt. Do not use abrasive liquids or corrosive products, as these could damage your unit.

Take care when charging the speaker, excessive prolonged charging can damage battery lifetime. Charge the speaker to full capacity when using for the first time.

Before storing the unit, check that the battery is fully charged to help preserve its lifespan.

Battery-related safety instructions

Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an explosion.

High or low extreme temperatures that a battery can be subjected to during use, storage or transportation:

• during use: -10-40°C

storage: -10-40°C

• transportation: -10-40°C

Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.

A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.

This unit contains an internal lithium battery that could explode or release dangerous chemicals. If you ever suspect that batteries may have been swallowed or inserted into any part of the body, please seek immediate medical advice.

Do not dispose of batteries with household waste.

Warning! Listening to music at loud volume can damage your hearing. Avoid listening to very loud volume for extended periods of time.

6. CHARGING THE SOUND BAR

Connect one end of the USB-C cable supplied together with the product to one free USB port of the computer or to a USB wall charger (not included), and the other end to the USB-C port (DC IN) located on the speaker. The LED charge indicator light located near the USB-C charging port will bright during charging. It takes around 3-4 hours for the lithium battery to be fully charged with 1.0A charger. The LED charge indicator switch off when the battery is fully charged.

Note:

• Charge the sound bar to full capacity when using for the first time.
• Please use the good quality USB charger to charge the speaker.
• We suggest you use a power adaptor with specification 5V / 1.0A.
• When speaker has low battery capacity, the LED indicator twinkle and the sound volume will drop to 70% , please charge the sound bar immediately.

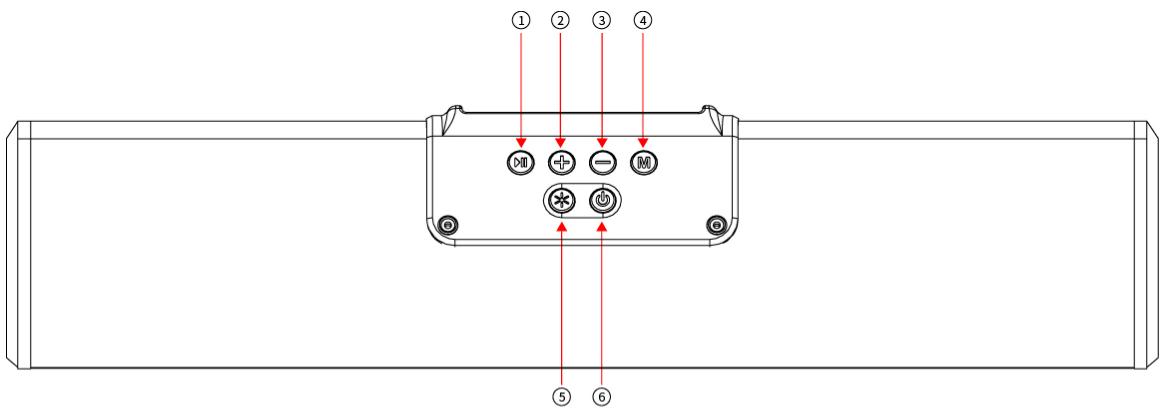

7. PRODUCT OVERVIEW AND KEYS DESCRIPTION

1. Play / Pause button: Short press to play or pause the music
2. Next track / Increase volume: Long press to increase the volume Short press to switch to next track
3. Previous track / Decrease volume: Long press to decrease the volume Short press to return to previous track
4. Mode button: Short press to switch between modes: BT, AUX, TFCARD, USB
5. Light button: Short press to select different light effects Long press to switch ON/OFF the light
6. Power ON: Press and hold about 2 seconds to turn ON or turn OFF the sound bar

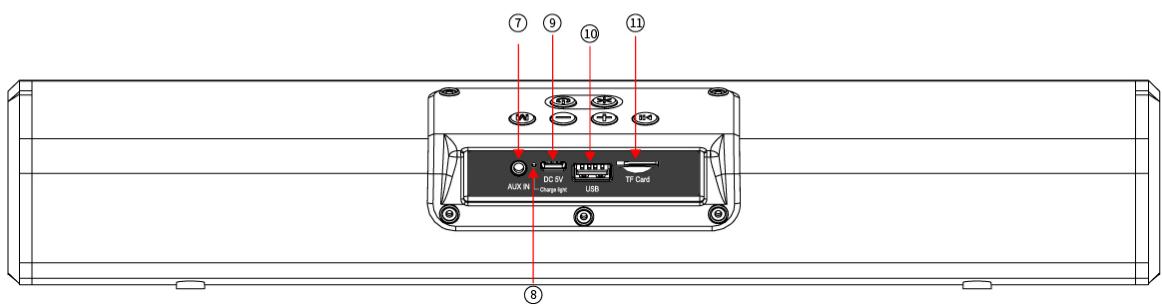

7. AUX IN port for connecting music players by 3.5mm audio cable
8. LED indicator charging light
9. USB-C (DC IN) port for charging the battery
10. USB port slot for MP3 playing from USB disks
11. TF (micro-SD) card slot for MP3 playing

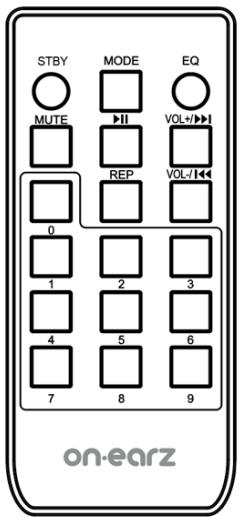

Remote control description

STY: short press for power ON or standby.

MODE: switch between BT-USB -TF card-Aux in modes.

Note: you can only enter USB and TF card modes when there is a USB or TF card inserted. USB or TF card has priority to any modes when inserted in the sound bar.

EQ: short press to switch EQ between "Normal-Rock-Pop-Classic-Jazz-Country" styles. The default mode is "Normal".

MUTE: short press to enter mute, press again cancel mute.

PLAY/PAUSE: short press to play/pause the music.

VOL+/NEXT: Short press for next song. Long press to increase the volume.

REP (repeat button): short press for single cycle / full cycle (single cycle is short "di" sound, full cycle is long "di" sound)

VOL-/PREV: Short press for previous song. Long press to decrease the volume.

0-9 NUMBERS: In USB disk and TF (SD) card mode, you choose the song quickly. For example: you need to choose the 258th song, you

can press "2""5""8" and wait for 1 second, it will turn to the 258th song and play automatically. If there is not the song you chose, it will continue playing the current song.

There are 9 jingle sounds in the speaker, press and hold "1-9" to choose different sounds.

8. OPERATING INSTRUCTIONS

8.1. Power ON/OFF

Press and hold about 2 seconds to turn on or turn off the sound bar.

8.2. Wireless Music Mode

- Wireless Music Pairing

Power on the sound bar. It will enter wireless music mode automatically. If not, use the mode button to enter the wireless audio mode. You will hear a prompt tone.

Place the sound bar and the audio player device close to each other.

Now turn on the wireless audio function of your mobile or other music player and start to search for new devices. The device named "OE_SBRGB40W" will appear in the list, select it and confirm the connection. When connected, the speaker will emit a confirmation tone.

Note: If a password is asked during pairing procedure, please enter 0000 and confirm.

You can now start to use the sound bar.

Once you have paired the sound bar with a device, it will remember this device and will pair automatically when the device is in the range with the wireless audio activated. You don't need to re-pair any previously connected devices.

The sound bar will attempt to automatically connect to the last device paired with when the wireless audio mode is turned on. If you want to pair it with a new device, please turn OFF your last wireless audio device (phone or music device) then use your new device to search and select the pairing name.

Note : Long press the Play/Pause button will disconnect the current wireless audio connection.

- Wireless Music

Start to play music on the mobile or other music player devices, and the sound bar will play the selected music automatically.

8.3. Playing music from Micro SD Card and USB disk

Insert a micro-SD Card or USB flash disk with music on it into the sound bar. You will hear a prompt tone and the speaker will start to play the music directly.

Please note that the sound bar supports micro-SD card or USB disk memory up to 32GB, and supports the following audio formats: MP3, WMA.

• Short press the Play/Pause button to play or pause the music.
• Long press the VOL-/PREV button to decrease the volume.
• Short press the VOL-/PREV button to play the previous track.
• Long press the VOL+/NEXT button to increase the volume.
• Short press the VOL+/NEXT button to play the next track.

8.4. Aux in Mode

Use the 3.5mm audio cable included to connect the sound bar to an audio source (PC, MP3/MP4, mobile phone, tablet). You will hear a prompt tone and the sound bar will play the music from the audio source.

Note that the volume control on the sound bar is available during Line in mode but not the functions PREV or NEXT song. You need to control the songs directly on the music player.

8.5. Changing the light effects

Short press the light button to switch between the different light modes of the sound bar. Long press the light button to switch on or off the lights.

Mode 1: Flame light mode (change of color every 5 seconds from flame orange color, red color, blue color, pink color)
Mode 2: Water mist with colorful rotation mode
Mode 3: Carnival flash mode
Mode 4: Overlay mode
Mode 5: Colorful mixed circles mode
Mode 6: Two-lights chasing mode
Mode 7: Radar scanning mode

Lighting dynamic effects with Music

Mode 7: Lights rush from the middle to both sides; Change color every 3 seconds.
Mode 8: Lights rush from both sides to the middle; Change color every 3 seconds.

Default settings

A. The lighting effects without music mode from 1-6 recycle when turn on the sound bar.
B. When input the music, the flame light automatically switches to Mode 7. When the music stops, the flame light automatically switches to mode1-6 recycle.
C. Under the dynamic music mode, switch the lights from mode 7, the next is mode 8, then mode 1 / 2 / 3 / 4 / 5 / 6 .
D. After switching manually the light mode, no matter the music is on playing or stop, the light mode is no more automatically switched.

9. TROUBLESHOOTING

1. The sound bar can't pair with the wireless audio device and play music accordingly.

(1) Please check the specifications and the manual of the wireless audio device (mobile phone, tablet, or computer), and check if the device can support the A2DP stereo audio transmission. If yes, please turn on the A2DP stereo mode.

(2) Ensure that the speaker mode is well on wireless audio mode. Also, if there are many wireless audio devices around you, it may be hard to scan, then please turn off other devices.
(3) Check that the speaker is not already paired with another device. If yes disconnect it first from this device and then try to pair it again with the new device.

2. The music can't be played from Micro SD card or USB flash disk.

(1) Ensure that the Micro SD card or USB flash disk is in good condition. Also check that the audio files are in one of the supported formats: MP3/WMA.
(2) Besides the above case, the problem maybe the compatibility of the Micro SD card on USB flash disk. We recommend you format the Micro SD or USB in FAT32 file format.

10. STORAGE

Always unplug the unit before storing it.

Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.

Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.

11. TECHNICAL SPECIFICATIONS

Wireless audio specifications: 5.0

Working distance: up to 10 meters in open space

Musical power output (PMPO): 40W

RMS power output: 16W (2 x 8W)

Speaker size: 2^ 4^*2 - S/N Ratio: ≥ 60dB

Frequency response: 90Hz-20KHz

AUX input 3.5mm – Plays music from USB disks and microSD cards

Power by USB-C cable (USB adapter not included) - Input DC 5V - 1.0A

Built-in rechargeable Li-ion battery 3.7V 2400mAh

Charging time: about 3,5 hours

Music playing time: up to 5 hours at 50 % volume

Operating frequency: 2,4Ghz

MAX RF output power: xxx dBm

Protection class: Class III

Unit Size: 798 × 88 × 72 mm - Unit weight: 1250g

12. DISPOSING OF YOUR OLD DEVICE

This product can't be disposed with household waste, it must be returned to a collection point to be recycled. Please check your local authorities for more details.

Batteries should be replaced in accordance with local disposal regulations. Please take used batteries to a dedicated recycling center for environmentally friendly disposal.

13. ABOUT THIS MANUAL

We strive to ensure that the information contained in this manual are as accurate as possible. Changes may be made to the manual or the product without prior notification. The latest updates will be available on our website www.onearz.com. Our company shall under no circumstances be held liable for injury or damage caused by errors or omissions in this manual.

©ONEARZ 2023. All rights reserved. The specifications and/or design of the product can change without prior notice. All brands and trademarks mentioned in this manual are the property of their respective owners.

EU DECLARATION OF CONFORMITY

We, A6 Europe s.a.

Address: 127-129 rue Colonel Bourg, 1140 Brussels, Belgium

Declare under our own responsibility that the following equipment:

Brand: ON.EARZ

Item code: OE_SBRGB40W

Product description: Wireless sound bar

Complies to the essential provisions of the following EC Directive(s):

RED Directive:2014/53/EU

LVD Directive: 2014/35/EU

EMC Directive: 2014/30/EU

RoHS Directive: 2011/65/EU, amendment 2015/863/EU

Date: July 2023

David Peroo, Product Manager
