FMY917XS - Hotte de cuisine FRANKE - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Hotte de cuisine
Marque	Franke
Modèle	FMY917XS
Dimensions (L x P x H)	Non spécifiées
Poids	Non spécifié
Alimentation électrique	220-240 V ~ 50 Hz
Puissance d'éclairage	2 x 20 W halogène
Vitesses du moteur	4 vitesses + intensif (10 min)
Fonction 24h	Oui (10 min d'extraction toutes les heures)
Fonction délai	Arrêt automatique différé 30 min
Type d’évacuation	Ducté (évacuation extérieure) ou recyclage (filtre à charbon)
Diamètre conduit d’évacuation	120 mm ou 150 mm (avec réducteur fourni)
Filtres à graisse métalliques	Lavables au lave-vaisselle, à nettoyer toutes les 100 heures
Filtre à charbon actif	À remplacer toutes les 200 heures (non lavable)
Télécommande	Optionnelle (piles LR03 AAA non fournies)
Alarme saturation des filtres	Oui, affichage FG (graisse) ou FC (charbon)
Classe électrique	Classe I (mise à la terre obligatoire)
Distance minimale de sécurité	650 mm entre la table de cuisson et la hotte
Usage prévu	Domestique uniquement
Niveau sonore	Non spécifié

FOIRE AUX QUESTIONS - FMY917XS FRANKE

Quelle est la hauteur d'installation recommandée entre la table de cuisson et la hotte ?

La distance de sécurité minimale est de 650 mm. Certains modèles peuvent être installés plus bas, vérifiez les consignes spécifiques dans la notice.

Comment nettoyer les filtres à graisse métalliques ?

Les filtres à graisse sont lavables au lave-vaisselle. Nettoyez-les dès que le symbole FG apparaît à l'écran, ou au moins tous les 2 mois. Laissez-les sécher complètement avant de les remettre en place.

Quand remplacer le filtre à charbon actif ?

Le filtre à charbon actif ne se nettoie pas et doit être remplacé tous les 4 mois ou lorsque le symbole FC apparaît (après 200 heures d'utilisation). Pour les versions recyclage, activez l'alarme de saturation lors de l'installation.

Comment réinitialiser l'alarme de saturation des filtres ?

Éteignez l'éclairage et le moteur, désactivez la fonction 24h si active, puis appuyez sur la touche E pendant environ 3 secondes. Le voyant s'éteint.

Puis-je utiliser une télécommande avec cette hotte ?

Oui, une télécommande optionnelle (non fournie) peut être utilisée. L'activation se fait en appuyant longuement sur la touche F (environ 5 secondes) tous les appareils éteints. Utilisez des piles LR03 AAA.

Comment remplacer l'ampoule d'éclairage ?

Dévissez les 2 vis du support d'éclairage, retirez le support, extrayez l'ampoule halogène 20 W et remplacez-la par une du même type. Assurez-vous que les broches sont bien insérées dans le culot.

Quelle est la différence entre version ductée et recyclage ?

En version ductée, l'air est évacué vers l'extérieur via un conduit. En version recyclage, l'air passe par un filtre à charbon actif avant d'être renvoyé dans la pièce. Les deux nécessitent des filtres à graisse, mais le recyclage nécessite en plus un filtre à charbon.

Puis-je faire fonctionner la hotte avec une flamme vive ou flamber sous la hotte ?

Non, ne laissez jamais de flammes nues élevées sous la hotte en fonctionnement. Ne flambez jamais sous la hotte : risque d'incendie. Ajustez toujours la flamme pour qu'elle n'engloutisse pas les côtés des casseroles.

Que faire si la hotte ne fonctionne plus ou affiche une erreur ?

Vérifiez d'abord l'alimentation électrique et la prise. Si l'écran affiche FC ou FG, nettoyez ou remplacez les filtres correspondants. Pour les codes d'erreur, consultez la notice complète. Si le problème persiste, contactez un service agréé.

Comment installer la hotte en mode recyclage ?

Fixez les extensions latérales sur le connecteur de sortie d'air, insérez-le dans le support, et raccordez au corps de hotte via un conduit de 150 mm. Assurez-vous que les filtres à charbon actif sont bien en place. Activez ensuite l'alarme de saturation du filtre à charbon (touche D maintenue 5 secondes).

MODE D'EMPLOI FMY917XS FRANKE

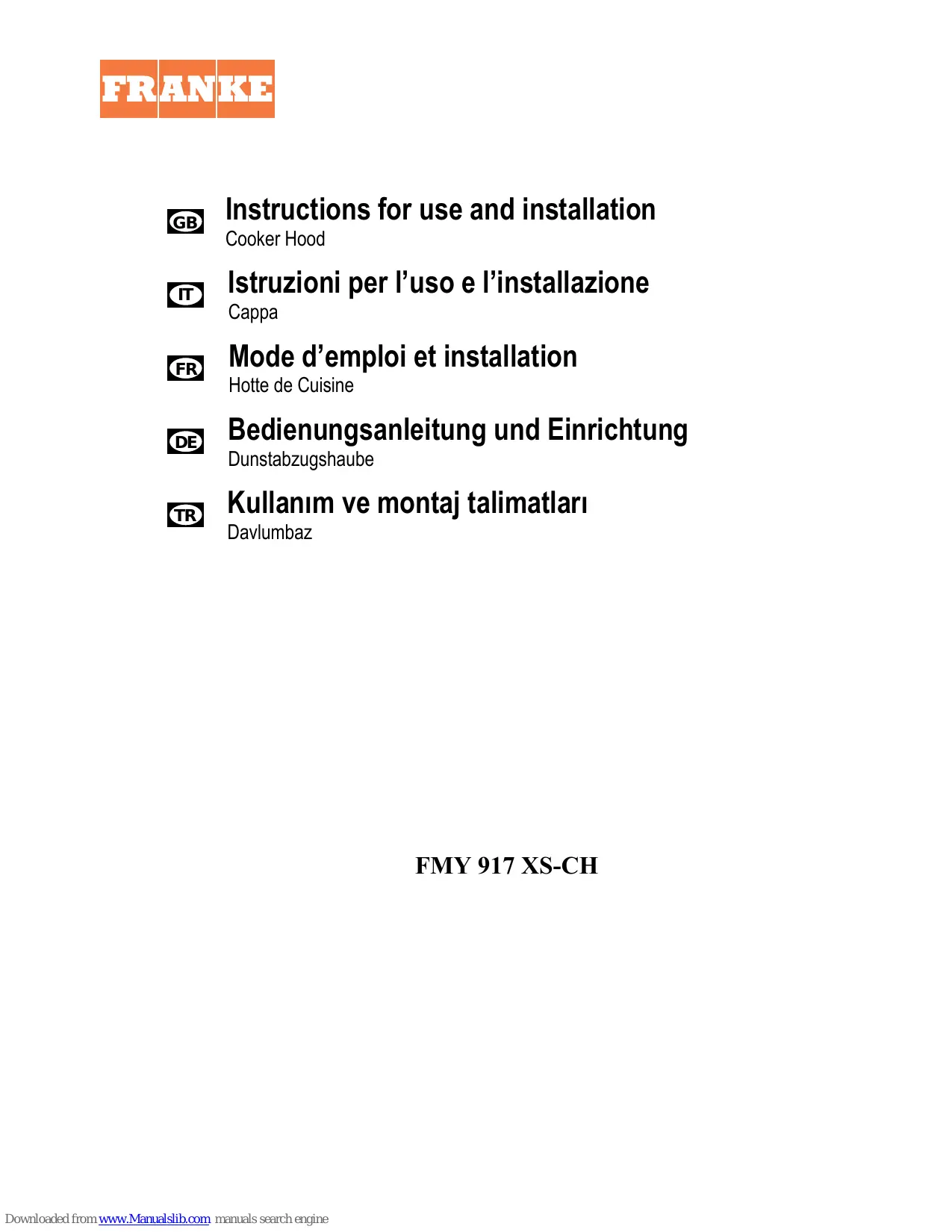

GB Instructions for use and installation Cooker Hood
Istruzioni per l'uso e l'installazione Cappa
FR Mode d'emploi et installation Hotte de Cuisine
DE Bedienungsanleitung und Einrichtung Dunstabzugshaube
TR Kullanim ve montaj talimatlari Davlumbaz

FMY 917 XS-CH

INDEX

EN

RECOMMENDATIONS AND SUGGESTIONS 3

CHARACTERISTICS 4
INSTALLATION 5
USE 8
MAINTENANCE 9

INDICE

IT

CONSIGLI E SUGGERIMENTI. 12
CARATTERISTICHE 13
INSTALLAZIONE 14
USO 17
MANUTENZIONE 18

SOMMAIRE

FR

CONSEILS ET SUGGESTIONS 21
CHARACTERISTIQUES 22
INSTALLATION 23
UTILISATION 26
ENTRETIEN 27

INHALTSVERZEICHNIS

DE

EMPFEHLUNGEN UND HINWEISE 30
CHARACTERISTIKEN 31
MONTAGE 32
BEDIENUNG 35
WARTUNG 36

ICERIKLER

TR

TAVSIYELER VE ONERILER 39
OZELLIKLER 40
MONTAJ. 41
KULLANIM 44
BAKIM 45

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambé under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Dimensions

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Telescopic Chimney comprising:
2.1	1	Upper Section
2.2	1	Lower Section
9	1	Reducer Flange ø 150-120 mm
14.1	2	Air Outlet Connection Extension
15	1	Air Outlet Connection
Ref.	Q.ty	Installation Components
7.2.1	2	Upper Chimney Section Fixing Brackets
7.3	1	Air Outlet Connection Support
11	6	Wall Plugs
12a	6	Screws 4,2 x 44,4
12c	6	Screws 2,9 x 9,5
	Q.ty	Documentation
	1	Instruction Manual

Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 1040 mm above the hob.
• Place bracket 7.2.1 on the wall as shown about 1 - 2mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket ( X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116mm from the vertical reference.
• Repeat this operation on the other side.
• Drill 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
  Fix the lower bracket 7.2.1 using the 12a screws (4,2× 44,4) supplied.
• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the 2 screws 12a (4,2 x 44,4) supplied.
• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5 - 6mm between the wall and the head of the screw.

Mounting the hood body

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.
• Hook the hood body onto the screws 12a.
• Fully tighten the support screws 12a.
• Adjust the screws Vr to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120~mm , the choice of which is left to the installer.

• To install a 120 mm air exhaust connection,in insert the reducer flange 9 on the hood body outlet.
  Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

RECIRCULATION VERSION AIR OUTLET

• Insert the connection extension pieces laterally 14.1 in connection 15.
• Insert the Connector 15 into the Support bracket 7.3 and fix it with a screw.
• Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets.
• Connect the air outlet connection 15 to the hood body outlet using either a flexible or rigid pipe 150mm , the choice of which is left to the installer.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets by using the 4 screws 12c( 2,9. x 9,5) supplied.
• Make sure that the outlet of the extensions pieces is aligned with the chimney outlets.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated.
  Fix the lower part laterally to the hood body by using the 2 screws 12c (2,9 x 9,5) supplied.

Control panel

Button	Function	Display
A	Turns the suction motor on and off at speed one.	Displays the set speed
B	Decreases the working speed.	Displays the set speed
C	Increases the working speed.	Displays the set speed
D	Activate intensive speed from any other speed, including motor off. This speed is set to operate for 10 minutes, after which the system returns to the speed that was set before. Suitable to deal with maximum levels of cooking fumes.	Displays HI and the time remaining once very second.
	Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm On and Off.	FC+Punto (2 flashes)-Alarm On. FC+Punto (1 flash)-Alarm Off.
E	24H function Turns the suction motor on at speed one and effects one 10 minute extraction every hour.	Displays 24 and the spot at the bottom right flashes once every second, while the motor is running. It is disabled by pressing the button.
	When the filters alarm is triggered, the alarm can be reset by pressing and holding this button for approximately 3 seconds. These indications are only visible when the motor is turned off.	FF flashes three times. When the procedure terminates, the indication shown previously turns off: FG indicates the need to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 100 working hours. FC indicates the need to change the activated charcoal filters, and also to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 200 working hours.
F	Delay function Activate automatic switch-off with a 30' delay. Suitable to complete elimination of residual odours. Can be activated from any position, and is disabled by pressing the button or turning the motor off.	Displays the operating speed and the spot at the bottom right flashes once a second.
	Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Remote Control On and Off.	IR+Punto (2 flashes)-Alarm On. IR+Punto (1 flash)-Alarm Off.
G	Turns the lighting system on and off at maximum intensity.
H	Turns the Courtesy Lighting on and off.

REMOTE CONTROL (OPTIONAL)

The appliance can be controlled using a remote control powered by a 1.5V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included).

• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.

Cleaning the Comfort Panels

Pull the Comfort Panel to open it.
- Disconnect the panel from the hood canopy by sliding the fixing pin lever.
- The comfort panel must never be washed in a dishwasher.
- Clean the outside by using a damp cloth and neutral liquid detergent.
- Clean the inside as well by using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water; do not use abrasive substances.
- When the above operation has been completed, hook the panel back to the hood canopy and close it by turning the knob in the opposite direction.

Metal grease filters

They can be washed in the dishwasher, and need to be cleaned whenever the FG sign appears on the display or at least once every 2 months use, or more frequently if use is particularly intensive.

Resetting the alarm signal

• Turn the Lights and the Suction motor off, then disable the 24h function, if enabled.
• Press button E (see the paragraph on Use).

Cleaning the Filters

• Open the Comfort panels by pulling on the recess.
• Remove the Filters one at a time, pushing them towards the back of the unit and at the same time pulling downward.
• Wash the Filters without bending them, and leave them to dry completely before replacing. (If the surface of the filter changes colour as time goes by, this will have absolutely no effect on the efficiency of the filter itself.)
• Replace, taking care to ensure that the handle faces forwards.
• Close the Comfort panels.

It cannot be washed or regenerated, and must be changed when the FC symbol on the display appears, or at least once every 4 months. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on.

Activating the alarm signal

• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
• Turn the Lights and the Suction Motor off.

• Press D and hold for approximately 5 Seconds:

• The message FC+Puntino flashes twice, A.C. Filter saturation alarm ACTIVATED

• The message FC+Puntino flashes once, A.C. Filter saturation alarm DEACTIVATED

CHANGING THE ACTIVATED CHARCOAL FILTER

Resetting the alarm signal

• Turn the Lights and the Suction motor off, then disable the 24h function, if enabled.
• Press button E (see the paragraph on Use).

Changing the Filter

• Open the Comfort panels by pulling on the recess.
• Remove the Metal grease filters.
• Remove the saturated charcoal filter by releasing the fixing hooks.
• Fit the new filter and fasten it in its correct position.
• Replace the Metal grease filters.
• Close the Comfort panels.

Lighting

LIGHT REPLACEMENT

20 W halogen light.

• Remove the 2 screws fixing the Lighting support, and pull it out of from the Hood.
• Extract the lamp from the Support.
• Replace with another of the same type, making sure that the two pins are properly inserted in the lamp holder socket holes.
• Refit the Support, fixing it in place with the two screws removed as above.

Franke S.p.a.

Via Pignolini,2

37019 Peschiera del Garda (VR)

www.franke.it
