SP 400DN - Imprimante laser monochrome RICOH - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Imprimante laser monochrome
Marque	RICOH
Modèle	SP 400DN
Dimensions (L x P x H)	459 x 392 x 347.5 mm
Poids	21 kg
Alimentation	120 V, 60 Hz
Consommation électrique (en fonctionnement)	554 W
Consommation électrique (en veille)	0.45 W
Vitesse d'impression	38 pages par minute (A4)
Résolution d'impression maximale	1200 x 1200 dpi
Temps de première page	6,5 secondes ou moins
Impression recto-verso	Automatique (standard)
Capacité papier standard	600 feuilles (bac 500 feuilles + bac multifonction 100 feuilles)
Capacité papier maximale	2 100 feuilles
Formats de papier supportés	De 90 x 148 mm à 297 x 432 mm (bac standard)
Types de papier supportés	Papier recyclé, en-tête, étiquettes, enveloppes, transparents, etc.
Connectivité	Ethernet Gigabit, USB 2.0, Wi-Fi en option
Mémoire	512 Mo (extensible à 1 Go)
Cartouche toner	Cartouche SP 6430A (10 000 pages)
Tambour	Tambour SP 6430 (25 000 pages)
Kit d'entretien	Kit SP 6430 (90 000 pages)
Sécurité	Verrouillage d'impression par code PIN, filtrage IP, chiffrement SSL
Garantie	1 an

FOIRE AUX QUESTIONS - SP 400DN RICOH

Comment charger le papier dans le bac principal ?

Tirez le bac principal vers l'avant pour le retirer. Ajustez les guides papier à la taille de votre support. Insérez la pile de papier (face d'impression vers le bas) et glissez le bac jusqu'à ce qu'il s'enclenche. Veillez à ne pas dépasser la ligne de remplissage.

Que faire en cas de bourrage papier ?

Ouvrez le capot avant et retirez délicatement le papier coincé en tirant dans le sens du chemin papier. Vérifiez également le bac de sortie et l'unité de fusion. Refermez le capot et réinitialisez l'imprimante si nécessaire.

Comment remplacer la cartouche de toner ?

Ouvrez le capot avant. Tirez la cartouche usagée vers le haut pour la retirer. Sortez la nouvelle cartouche de son emballage, secouez-la doucement pour répartir le toner, puis insérez-la jusqu'à ce qu'elle s'enclenche. Refermez le capot.

Comment installer les pilotes d'impression ?

Téléchargez les pilotes depuis le site RICOH. Exécutez le programme d'installation et suivez les instructions à l'écran. Connectez l'imprimante via USB ou Ethernet. Pour une installation réseau, assurez-vous que l'imprimante est allumée et connectée au même réseau que l'ordinateur.

L'imprimante n'imprime pas, que vérifier ?

Vérifiez les branchements (câble USB ou réseau). Assurez-vous que l'imprimante est sous tension et qu'aucun message d'erreur n'est affiché. Vérifiez l'état de la file d'impression sur l'ordinateur. Redémarrez l'imprimante et l'ordinateur si nécessaire.

Comment configurer l'impression sans fil ?

L'option Wi-Fi nécessite un adaptateur optionnel (IEEE 802.11 a/b/g/n). Installez l'adaptateur et utilisez le panneau de commande pour configurer la connexion au réseau sans fil. Vous pouvez également utiliser l'application Ricoh Smart Device Print&Scan pour configurer et imprimer depuis un mobile.

Que signifie le message 'Toner épuisé' ?

Ce message indique que la cartouche de toner est vide. L'imprimante cesse d'imprimer pour protéger la qualité. Remplacez la cartouche par une nouvelle cartouche SP 6430A (référence 407507). Vous pouvez également utiliser le mode Économie de toner pour prolonger la durée de vie.

Comment effectuer une impression recto-verso ?

L'impression recto-verso automatique est activée par défaut. Dans les paramètres d'impression, sélectionnez l'option Recto-verso (ou Duplex). Vous pouvez également choisir l'impression recto-verso manuelle via le bac multifonction si nécessaire.

Où trouver le numéro de série de l'imprimante ?

Le numéro de série se trouve sur une étiquette à l'arrière de l'appareil. Il est également affiché dans le menu Informations système accessible via le panneau de commande.

Comment nettoyer l'imprimante ?

Éteignez l'imprimante et débranchez-la. Utilisez un chiffon doux et sec pour nettoyer l'extérieur. Pour l'intérieur, ouvrez le capot et retirez délicatement les résidus de toner avec un aspirateur adapté ou un chiffon non pelucheux. Évitez tout contact direct avec les composants électriques.

MODE D'EMPLOI SP 400DN RICOH

RICOH SP 6430DN

Printer

Copier

□ Facsimile

□ Scanner

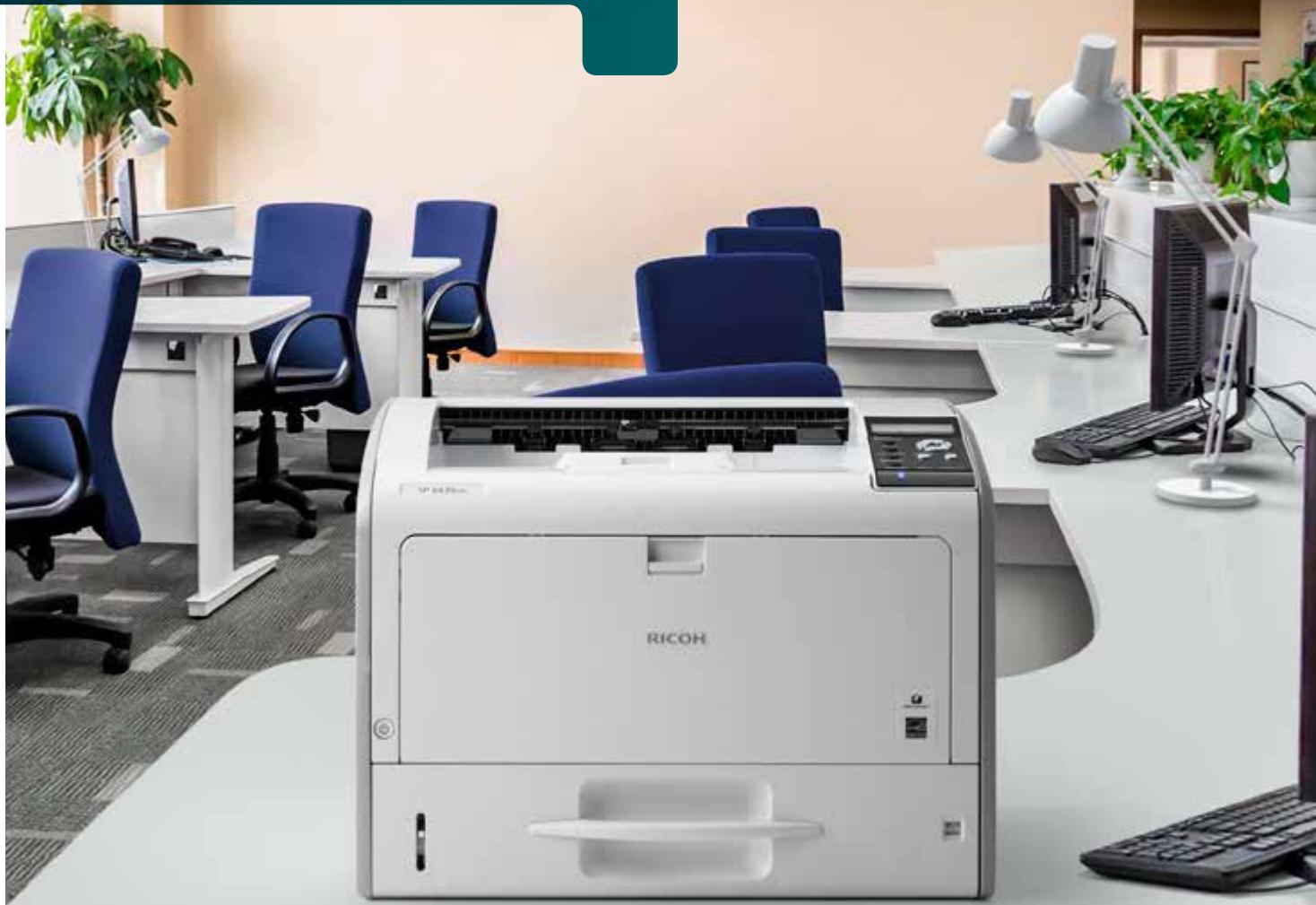

Office setup with a white RICOH printer, blue office chairs, and computer monitor (no visible text or symbols)

Print larger sizes in smaller spaces

When you share the right information with the right people at the right time, there's no limit to what you can do. So why would you want to limit what you can print — and where you can print it? Print high-quality black-and-white drawings, schematics, floor plans and more at sizes up to 11" x 17" from the compact RICOH® SP 6430DN right from your desktop. You're saving much more than space though. Take advantage of energy-saving features to reduce operating costs and advanced security tools to help ensure key data is protected. Use it for everyday office documents or for those special projects that require larger sizes or special paper stocks.

Handle a wider range of jobs

When you're printing larger jobs, even the smallest details matter. You're already under pressure to do more with less, so you can't afford to waste money on outsourcing. Use the Ricoh SP 6430DN to do the work yourself. Bring more projects in-house with expansive media handling options that allow you to print on ledger size paper, thicker stocks, letterhead, recycled paper, labels and even envelopes with crisp 1200 x 1200 resolution. Need CAD drawings, manufacturing designs, financial spreadsheets or real estate floor plans? Print at up to 11" x 17" so you and your customers can see exact details of the project with more clarity, which will help make those difficult design decisions easier and more convenient.

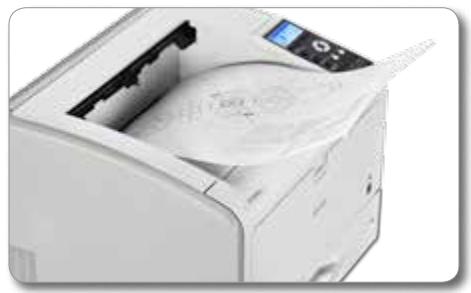

Close-up of a white paper printer with a circular cover and digital display (no visible text or symbols)

Start printing quickly

The longer you have to wait for a print job, the less time you have to work on the next one. Meet deadlines without compromising quality with the small but powerful Ricoh SP 6430DN printer. Warm-up time is less than 17 seconds, and first-print time is only 6.5 seconds, so you can begin printing almost immediately. With output speeds up to 38 pages per minute, even at optimal resolution, you can finish your project and transition to the next job quickly.

Front view of a white electronic device with multiple stacked units and a control panel (no visible text or symbols)

Use a more secure network and protect data

You may share a printer with your coworkers, but you probably don't want to share everything. In certain industries, such as banking or human resources, access to confidential information must be protected. With the USB Device Server option, you can use a different IP address to connect the Ricoh SP 6430DN to a second locked network to safeguard specific information from the Internet and other security threats. In addition, with an optional Hard Disk Drive you can use Locked Print to hold jobs at the printer until the user enters a passcode to release it to protect confidentiality.

Reduce costs with simplified, familiar printing tasks

Print jobs where it's most convenient

Printing shouldn't take too much time — or real estate. Because it uses LED printhead technology, the Ricoh SP 6430DN offers an incredibly small footprint — smaller than competitive laser printers — without compromising speed or quality. Take advantage of the lower profile and place it almost anywhere, including desktops, counters and cabinets. You can use the four-line LCD control panel to access key settings and to check status with ease while saving office space for other everyday tasks.

Minimize delays during production

You have other jobs waiting. You'd rather work on them than on your printer. With the Ricoh SP 6430DN, you can reduce delays and move to the next job quickly. Minimize how often you need to restock with the standard 500-Sheet Paper Tray and 100-Sheet Bypass. You can add three optional paper trays to maximize uptime with a total paper capacity of 2,100 sheets. Each paper tray accepts almost any type of media up to 11" x 17", so you can configure each differently to eliminate unnecessary shuffling of paper. With the front-access design, you can change print and toner cartridges by yourself in only moments with incredible ease.

Realize even greater cost savings

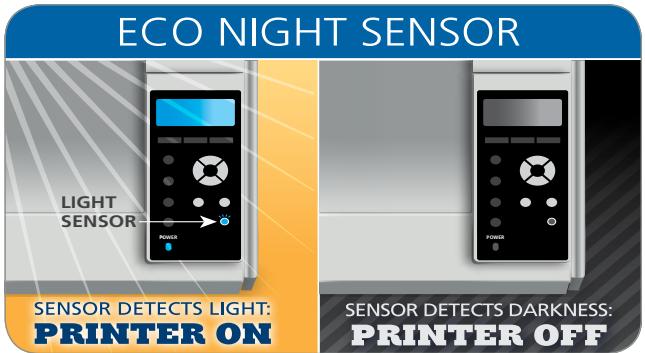

You want to do a good job while feeling good about how you do it. Reduce paper and supply costs with default automatic duplex printing on paper sizes up to 11" x 17". With the ECO-Night Sensor, you can program the automatic startup and shutdown of the printer based on ambient light, so you can conserve energy when the office is closed. In addition, the Ricoh SP 6430DN is ENERGY STAR™ certified and offers low typical electricity consumption (TEC). Reduce TCO even further with low cost-per-print toner and drum supplies that can be replaced individually when needed. Plus, the device meets EPEAT® Gold* criteria.

*EPEAT Gold rating is applicable only in the USA.

Track performance in the office and across the enterprise

With the Ricoh SP 6430DN, better, more informed decisions are always within your reach. Have a schematic design you want to share with an engineer? Need to print out a layout for a big meeting? Print them from the convenience of your desk at a moment's notice so the right people have the critical information they need. Use it as a standalone device for your workgroup or incorporate it into an integrated Ricoh Managed Document Services (MDS) strategy to reduce costs throughout your organization. You can even monitor print performance and manage user activity via a wide range of intuitive administrative controls.

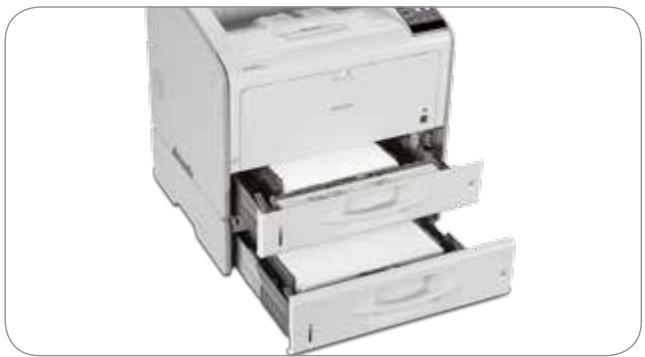

Exterior view of a white paper printer with multiple paper sheets and a stack of paper (no visible text or labels)

Engine Specifications

SP 6430DN	Part # 407482
Configuration	Desktop
Technology	LED
Color/B&W	Black & White
Printing Process	Electro-photographic printing
Toner Type	Dry, single component

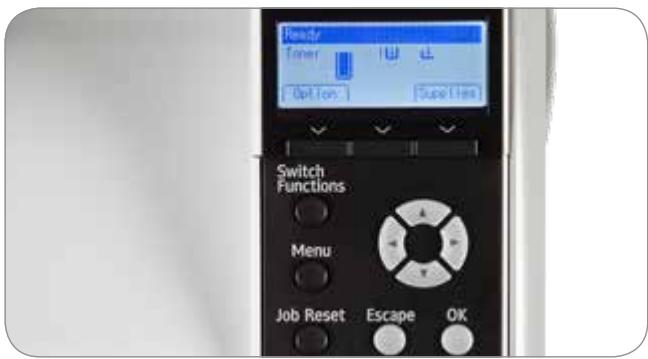

Control Panel	4-line LCD
Print Resolution	300 x 300 dpi/600 x 600 dpi/1200 x 1200 dpi
B&W Print Speed (Letter)	38 pages per minute
Maximum Monthly Volume	20,000 prints
Maximum Monthly Duty Cycle	150,000 prints
First Page Out Time	6.5 seconds or less
Warm-Up Time	17 seconds or less
Standard Paper Capacity	600 sheets (500-Sheet Tray +100-Sheet Bypass Tray)
Maximum Paper Capacity	2,100 sheets
Standard Output Capacity	Up to 500 sheets, face down
Supported Paper Sizes	Standard Tray: 3.5" x 5.8" - 11.7" x 17"(90 x 148 mm - 297 x 432 mm)Optional PFUs: 3.9" x 5.8" - 11.7" x 17"(100 x 148 mm - 297 x 432 mm)Bypass Tray: 2.3" x 5" - 11.7" x 49.6"(60 x 127 mm - 297 x 1,260 mm)
Supported Paper Weights	All Trays: 15 - 59 lb. Bond (56 - 220 g/m2)Duplex: 15 - 43 lb. Bond (56 - 162 g/m2)
Supported Paper Types	Recycled Paper, Color Paper, Letterhead,Preprinted Paper, Plain Paper, SpecialPaper, Thick Paper, Thin Paper, LabelPaper, Envelopes, OHP (Transparency)
Duplexing	Automatic (standard)
Dimensions (WxDxH)	18.1" x 15.4" x 13.7"(459 x 392 x 347.5 mm)
Weight	46.3 lb. (21 kg)
Power Consumption (Operating)	554W
Power Consumption (Sleep Mode)	0.45W or less
Typical Electricity Consumption (TEC)	1.8 kWh/week
Power Requirements	120V, 60Hz
Recovery from Sleep Mode	17 seconds or less
ENERGY STAR	Certified
EPEAT	Gold

Controller Specifications

Processor Speed	533 MHz
Memory(Standard/Maximum)	512 MB/1 GB RAM
Hard Disk DriveConnection Type	250 GB (Optional)10/100/1000Base-TX Ethernet (RJ45)Gigabit Network InterfaceUSB 2.0 High Speed Type B (for direct computer connection)Dual USB 2.0 Host Type A (for external device connection)Dual SD Card Slots (for expanded functions/device customization)
Optional Interfaces	USB Device ServerIEEE 802.11a/b/g/n Wireless LAN Type OIEEE 1284/ECP Parallel Interface Type A
Printer Languages	PCL6/5eAdobe PostScript 3PDF Direct PrintOptional: XPS
Font Support	PCL5: 45 fonts + 13 International fontsPCL6: 45 fontsPostScript 3: 136 fonts
Network Protocols	TCP/IP
Supported Operating Systems	Windows XP, Vista, 7, 8, 8.1Windows Server 2003/R2, Server 2008/R2, Server 2012/R2Mac OS X 10.6 or laterCitrix Presentation Server 4.0, 4.5Citrix XenApp 5.0, 6.0, 6.5SAP R/3 (Device Type/Barcode & OCR Packages)Various UNIX/Linux OS

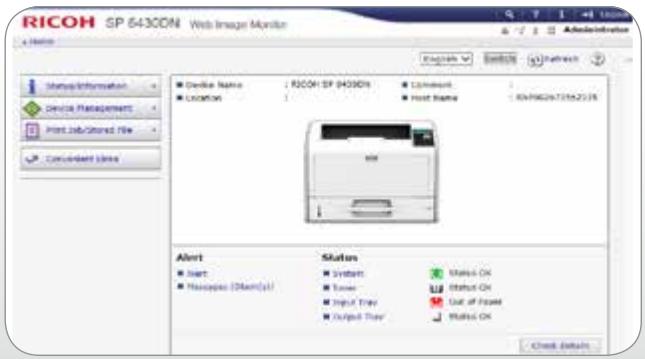

Device Management Utilities	Web Image Monitor, @Remote, Device Manager NX Series, Printer Driver Packager NX
Mobile PrintOther Print Features	Ricoh Smart Device Print&Scan AppReduce/Enlarge, Collate, Layout (N-up), Toner Saving, Watermark, Rotate Print*, Support for Universal Driver, Sample Print**, Hold Print**, Store and Print**, Banner Page Print, Poster Print, Wi-Fi Protected Support (WPS), External USB Keyboard Support, Import/Export of Preference Settings

*Optional 1GB Memory required.
**Optional Hard Disk Drive required.

Security Features

HDD DataOverwriteSecurity System (DOSS), Authentication for Windows, LDAP, Kerberos, Basic, User Code and 802.1x Wired; Encryption for Address Book, Authentication Password, SSL Communication, IPsec Communication, Hard Disk Drive; Network Protocol On/Off, IP Address Filtering, Unauthorized Copy Prevention, Quota Setting/Account Limit, SMTP over SSL, Compulsory Security Stamp, Locked/Stored Print

Controller Options

USB Device ServerOption Type M12	Part # 417084
250 GB Hard Disk DriveType P4	Part # MX407500RA
1.0 GB Memory UnitType N	Part # 007150MIU
IEEE 802.11 InterfaceUnit Type O	Part # 407113
IEEE 1284 InterfaceBoard Type A	Part # 411699
VM Card Type W	Part # 407218
XPS Direct PrintOption Type P4	Part # 407506

Hardware Opt

Paper Feed Unit TK2010	Part # 407489
Paper Capacity	500 sheets, 1, 2 or 3 units may be installed
Supported Paper Sizes	3.9" x 5.8" – 11.7" x 17"(100 x 148 mm – 297 x 432 mm)
Supported Paper Weights	15 – 59 lb. Bond (56 – 220 g/m ^2 )
Dimensions (WxDxH)	18.1" x 15.4" x 4.9"(459 x 392 x 124 mm)
Weight	13.2 lb. (6 kg)
Adjustable Height Cabinet Type D	Part # 52401
Dimensions (WxDxH)	21.6" x 22.8" x 23.3"(549 x 579 x 592 mm)
Weight	44 lbs.

Consumables and Yields

	Yield	Part #
Print Cartridge SP 6430A	10,000 prints*	407507
Drum Unit SP 6430	25,000 prints	407511
Maintenance Kit SP 6430	90,000 prints	407512

Includes Fusing Unit and Transfer Roller.
*Declared yield values in accordance with ISO/IEC 19752.
Actual yields may vary based on types of images printed and other factors.
The Ricoh SP 6430DN ships with starter toner that yields 6,000 pages (ISO/IEC 19752).
For maximum performance and yield, we recommend using genuine Ricoh parts and supplies.
Specifications subject to change without notice.

Warranty

The Ricoh SP 6430DN is under warranty against defects for a period of one year from the date of purchase. Consumables are under warranty for a period of 90 days from the date of purchase or until depleted, whichever comes first. Please refer to warranty documents shipped with the product for more details.
