SG 300-10P - Switch réseau CISCO - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Switch réseau géré Gigabit Ethernet
Marque	CISCO
Modèle	SG300-10P
Ports	8 ports 10/100/1000 + 2 slots Combo mini-GBIC (partagés avec 2 ports cuivre)
Alimentation PoE	Oui (Power over Ethernet)
Dimensions (L x P x H)	Environ 44.5 x 20.3 x 4.4 cm (format rack 19 pouces, 1U)
Poids	Environ 2,5 kg
Alimentation	Interne, secteur 100-240 VAC, 50-60 Hz
Fonctions principales	Qualité de service (QoS), VLANs, listes de contrôle d'accès (ACL), routage statique, IPv6, gestion via interface Web, Smartports
Gestion	Interface Web intuitive, configuration simplifiée
Sécurité	ACLs, VLANs invités, contrôle d'accès au réseau
Refroidissement	Sans ventilateur (silencieux) pour ce modèle
Consommation énergétique	Optimisée, ports inactifs en veille
Garantie	Garantie matérielle limitée à vie Cisco, remplacement avancé J+1
Entretien et nettoyage	Débrancher l’appareil avant nettoyage ; utiliser un chiffon doux et sec. Ne pas utiliser de produits liquides ou abrasifs.
Pièces détachées et réparabilité	Pièces non disponibles séparément ; contacter le support Cisco pour les réparations sous garantie.

FOIRE AUX QUESTIONS - SG 300-10P CISCO

Comment configurer le switch pour la première fois ?

Branchez l’alimentation et connectez un câble Ethernet entre un ordinateur et un port du switch. Par défaut, le switch obtient une adresse IP via DHCP. Utilisez le logiciel Cisco FindIT ou l’interface Web en saisissant l’adresse IP assignée. Connectez-vous avec le nom d’utilisateur et mot de passe par défaut (cisco/cisco).

Comment réinitialiser le switch aux paramètres d’usine ?

Maintenez enfoncé le bouton Reset situé sur le panneau avant pendant environ 10 secondes, jusqu’à ce que le voyant Sys clignote. Relâchez le bouton ; le switch redémarre avec les réglages d’usine.

Quelle est la puissance PoE maximale délivrée par le SG300-10P ?

Le budget PoE total est de 55 W, réparti sur les ports 1 à 8. Chaque port peut fournir jusqu’à 30 W (PoE+).

Comment créer un VLAN sur ce switch ?

Via l’interface Web, allez dans VLAN Management > Create VLAN. Saisissez un ID (2-4094) et un nom. Puis dans Port Management > Port to VLAN, affectez les ports souhaités au VLAN en mode tagged ou untagged.

Le switch prend-il en charge le routage entre VLANs ?

Oui, le SG300-10P supporte le routage statique inter-VLAN. Configurez des interfaces VLAN avec des adresses IP et des routes statiques dans IP Configuration > Static Routes.

Comment mettre à jour le firmware du switch ?

Téléchargez le dernier firmware sur cisco.com. Connectez-vous à l’interface Web, allez dans Administration > File Management > Firmware Upgrade, sélectionnez le fichier et lancez la mise à jour. Ne coupez pas l’alimentation pendant le processus.

Comment activer la qualité de service (QoS) ?

Dans l’interface Web, allez dans QoS > Basic > QoS Properties. Cochez Trust DSCP ou Trust CoS selon vos besoins. Vous pouvez ensuite configurer des politiques de file d’attente et des limites de débit.

Le switch est-il compatible avec les caméras IP ?

Oui, grâce au PoE, il peut alimenter et connecter des caméras IP. Assurez-vous que la puissance totale requise ne dépasse pas 55 W. Utilisez des VLANs pour séparer le trafic vidéo.

Comment sécuriser l’accès à l’interface de gestion ?

Modifiez le mot de passe par défaut dans Administration > User Accounts. Activez HTTPS et SSH dans Management Security > Access Method. Limitez les adresses IP autorisées via ACL.

Que faire en cas de perte de connectivité ?

Vérifiez les voyants d’alimentation et de liaison. Testez un autre câble Ethernet. Redémarrez le switch. Si le problème persiste, effectuez une réinitialisation d’usine ou contactez le support Cisco.

MODE D'EMPLOI SG 300-10P CISCO

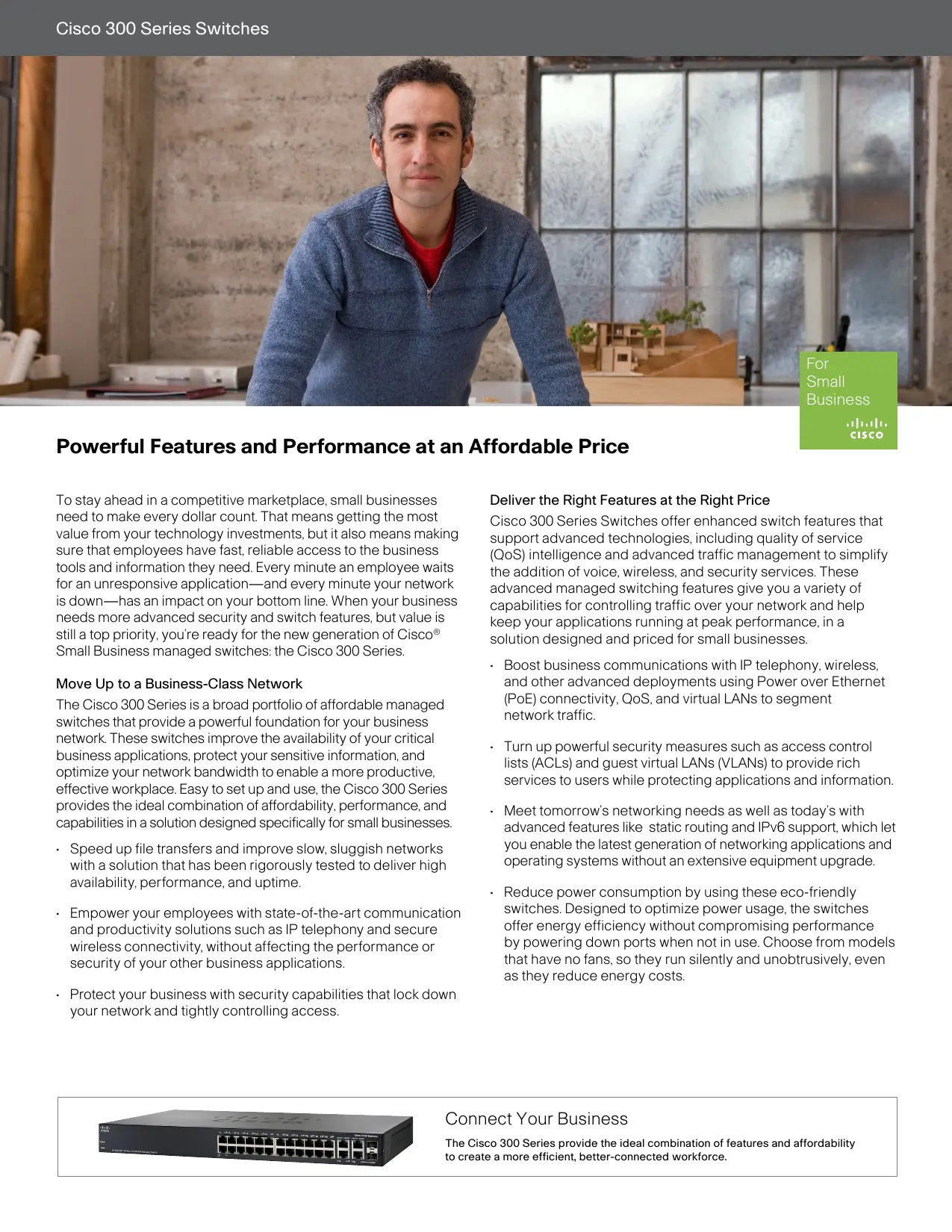

For Small Business

clsc0

Powerful Features and Performance at an Affordable Price

To stay ahead in a competitive marketplace, small businesses need to make every dollar count. That means getting the most value from your technology investments, but it also means making sure that employees have fast, reliable access to the business tools and information they need. Every minute an employee waits for an unresponsive application—and every minute your network is down—has an impact on your bottom line. When your business needs more advanced security and switch features, but value is still a top priority, you're ready for the new generation of Cisco® Small Business managed switches: the Cisco 300 Series.

Move Up to a Business-Class Network

The Cisco 300 Series is a broad portfolio of affordable managed switches that provide a powerful foundation for your business network. These switches improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to enable a more productive, effective workplace. Easy to set up and use, the Cisco 300 Series provides the ideal combination of affordability, performance, and capabilities in a solution designed specifically for small businesses.

• Speed up file transfers and improve slow, sluggish networks with a solution that has been rigorously tested to deliver high availability, performance, and uptime.
• Empower your employees with state-of-the-art communication and productivity solutions such as IP telephony and secure wireless connectivity, without affecting the performance or security of your other business applications.
• Protect your business with security capabilities that lock down your network and tightly controlling access.

Deliver the Right Features at the Right Price

Cisco 300 Series Switches offer enhanced switch features that support advanced technologies, including quality of service (QoS) intelligence and advanced traffic management to simplify the addition of voice, wireless, and security services. These advanced managed switching features give you a variety of capabilities for controlling traffic over your network and help keep your applications running at peak performance, in a solution designed and priced for small businesses.

• Boost business communications with IP telephony, wireless, and other advanced deployments using Power over Ethernet (PoE) connectivity. QoS, and virtual LANs to segment network traffic.
• Turn up powerful security measures such as access control lists (ACLs) and guest virtual LANs (VLANs) to provide rich services to users while protecting applications and information.
• Meet tomorrow's networking needs as well as today's with advanced features like static routing and IPv6 support, which let you enable the latest generation of networking applications and operating systems without an extensive equipment upgrade.
• Reduce power consumption by using these eco-friendly switches. Designed to optimize power usage, the switches offer energy efficiency without compromising performance by powering down ports when not in use. Choose from models that have no fans, so they run silently and unobtrusively, even as they reduce energy costs.

Connect Your Business

The Cisco 300 Series provide the ideal combination of features and affordability to create a more efficient, better-connected workforce.

Table 1. Cisco 300 Series Switches

Product Model	Ports	Expansion Ports	PoE
Fast Ethernet
SF300-08	8-port 10/100
SF302-08	8-port 10/100	2 Combo* mini-GBIC slots
SF302-08P	8-port 10/100	2 Combo* mini-GBIC slots	o
SF302-08MP	8-port 10/100	2 Combo* mini-GBIC slots	o
SF300-24	24-port 10/100	2 10/100/1000 ports and 2 Combo* mini-GBIC slots
SF300-24P	24-port 10/100	2 10/100/1000 ports and 2 Combo* mini-GBIC slots	o
SF300-48	48-port 10/100	2 10/100/1000 ports and 2 Combo* mini-GBIC slots
SF300-48P	48-port 10/100	2 10/100/1000 ports and 2 Combo* mini-GBIC slots	o
Gigabit Ethernet
SG300-10	8-port 10/100/1000	2 Combo* mini-GBIC slots
SG300-10P	8-port 10/100/1000	2 Combo* mini-GBIC slots	o
SG300-10MP	8-port 10/100/1000	2 Combo* mini-GBIC slots	o
SG300-20P	18-port 10/100/1000	2 Combo* mini-GBIC slots
SG300-28P	26-port 10/100/1000	2 Combo* mini-GBIC slots
SG300-28P	26-port 10/100/1000	2 Combo* mini-GBIC slots	o
SG300-52	50-port 10/100/1000	2 Combo* mini-GBIC slots

*Each combo mini-gigabit interface converter (GBIC) port has one 10/100/1000 Ethernet port and one mini-GBIC/Small Form-Factor Pluggable (SFP) Gigabit Ethernet slot, with one port active at a time.

Simplify Setup and Management

Cisco 300 Series Switches are designed to be easy to configure and manage. They make it easy to set up and manage even complex network environments, reducing the time your staff devotes to network management and troubleshooting.

• Speed setup with an intuitive, web-based interface that simplifies security, QoS traffic prioritization, and configuration and management.
• Balance automation with fine-grained control using simple graphical tools and preset configuration options based on Cisco best practices and pretested deployments with Cisco Smartports (available in early 2011).
• Protect your investment with a solution that has been designed and tested to easily integrate with other Cisco networking and communications products, including the complete Cisco Small Business portfolio.

Cisco Limited Lifetime Hardware Warranty

The Cisco 300 Series offers a limited lifetime hardware warranty with next business day advance replacement (where available, otherwise same day ship) and a limited lifetime warranty for fans and power supplies. In addition, Cisco offers software bug fixes for the warranty term, and telephone technical support at no charge for the first 12 months following the date of purchase. To download software updates, go to: http://www.cisco.com/cisco/web/download/index.html.

Product warranty terms and other information applicable to Cisco products are available at www.cisco.com/go/warranty.

Service and Support

Cisco 300 Series Switches are backed by the Cisco Small Business Support Service, which provides affordable peace-of-mind coverage. This subscription-based service helps you protect your investment and derive maximum value from Cisco Small Business products. Delivered by Cisco and backed by your trusted partner, this comprehensive service includes telephone support and access to the Cisco Small Business Support Center.

A Powerful Foundation for the Small Business Network

Cisco 300 Series Switches provide the right features at the right price, along with the reliability, performance, and investment protection you expect from a Cisco switch. You can rest assured that your network has been rigorously tested to deliver business-class availability and performance at an affordable price and is backed by a limited lifetime warranty and the Cisco Small Business Support Center. You can also be confident that your network will grow with your business. The Cisco 300 Series was designed to integrate future networking and communication deployments, and is fully compatible with the complete Cisco Small Business portfolio.

To learn more, visit www.cisco.com/go/300switches.
