Intitulé	Description
Type de produit	Switch Ethernet géré
Nombre de ports	10 ports Gigabit Ethernet
Alimentation électrique	Alimentation par PoE (Power over Ethernet)
Dimensions approximatives	440 x 220 x 44 mm
Poids	2,5 kg
Compatibilités	Compatible avec les normes IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x
Fonctions principales	Gestion des VLAN, QoS, sécurité avancée, surveillance réseau
Entretien et nettoyage	Nettoyage régulier des ports et ventilation, mise à jour du firmware
Pièces détachées et réparabilité	Réparabilité limitée, pièces de rechange disponibles auprès de Cisco
Sécurité	Fonctionnalités de sécurité avancées, y compris le contrôle d'accès et la protection contre les attaques DDoS
Informations générales	Idéal pour les petites et moyennes entreprises, installation facile, interface utilisateur intuitive

FOIRE AUX QUESTIONS - SG 300-10MP CISCO

Comment réinitialiser le CISCO SG 300-10MP aux paramètres d'usine ?

Pour réinitialiser le CISCO SG 300-10MP, localisez le bouton de réinitialisation sur le panneau arrière de l'appareil. Appuyez et maintenez ce bouton pendant environ 10 secondes jusqu'à ce que les voyants LED clignotent, puis relâchez-le. L'appareil redémarrera avec les paramètres d'usine.

Comment configurer le CISCO SG 300-10MP pour la première fois ?

Pour configurer le CISCO SG 300-10MP, connectez un câble Ethernet à l'un des ports et à votre ordinateur. Ouvrez un navigateur et accédez à l'adresse IP par défaut 192.168.1.254. Connectez-vous avec les identifiants par défaut (nom d'utilisateur : cisco, mot de passe : cisco) et suivez l'assistant de configuration.

Le CISCO SG 300-10MP ne s'allume pas, que faire ?

Vérifiez que l'alimentation est correctement branchée et que l'interrupteur d'alimentation est en position 'On'. Assurez-vous que la prise fonctionne en testant avec un autre appareil. Si le problème persiste, essayez de remplacer l'adaptateur secteur.

Comment mettre à jour le firmware du CISCO SG 300-10MP ?

Pour mettre à jour le firmware, téléchargez la dernière version du firmware depuis le site de support de Cisco. Accédez à l'interface de gestion du switch, allez dans 'Administration' puis 'Mise à jour du firmware'. Téléchargez le fichier et suivez les instructions à l'écran pour terminer la mise à jour.

Comment résoudre les problèmes de connectivité sur le CISCO SG 300-10MP ?

Vérifiez d'abord que tous les câbles sont correctement connectés et en bon état. Assurez-vous que les ports sont configurés correctement et qu'il n'y a pas de VLAN mal configurés. Utilisez l'outil de diagnostic intégré pour vérifier l'état des ports et effectuer des tests de connectivité.

Pourquoi le CISCO SG 300-10MP ne reconnaît-il pas certains périphériques ?

Cela peut être dû à des problèmes de compatibilité ou de configuration des VLAN. Assurez-vous que les périphériques sont connectés aux bons ports et que les paramètres VLAN sont correctement configurés pour inclure ces périphériques.

Comment gérer les ports sur le CISCO SG 300-10MP ?

Pour gérer les ports, connectez-vous à l'interface de gestion du switch, puis allez dans 'Ports'. Vous pourrez voir la liste des ports, activer ou désactiver des ports, configurer la vitesse et le duplex, et appliquer d'autres paramètres selon vos besoins.

Quels sont les voyants LED sur le CISCO SG 300-10MP et que signifient-ils ?

Les voyants LED indiquent l'état de l'alimentation, l'état des ports, et l'activité réseau. Un voyant vert fixe signifie que le port est actif, un voyant orange indique une activité, et un voyant éteint signifie que le port est inactif.

MODE D'EMPLOI SG 300-10MP CISCO

For Small Business

clsc0

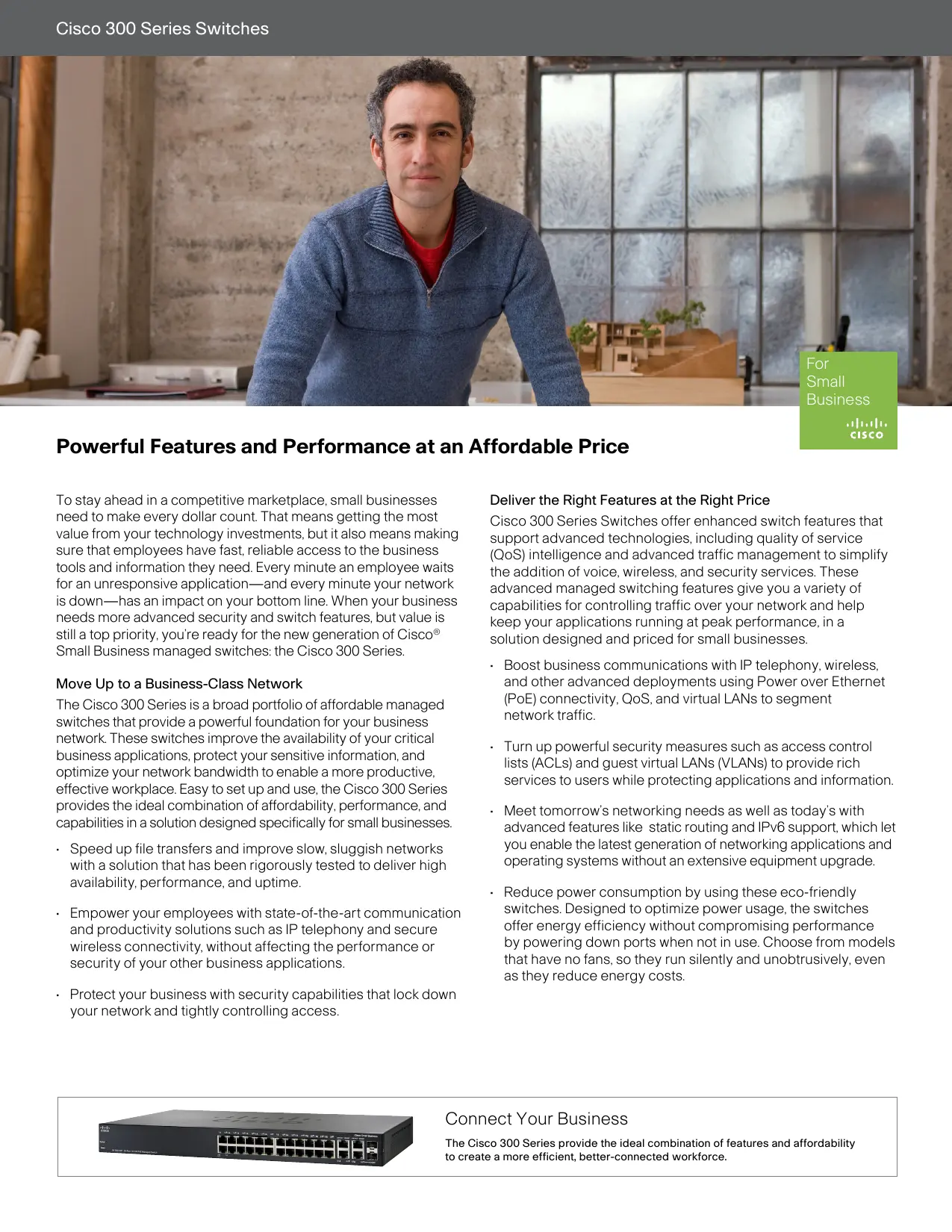

Powerful Features and Performance at an Affordable Price

To stay ahead in a competitive marketplace, small businesses need to make every dollar count. That means getting the most value from your technology investments, but it also means making sure that employees have fast, reliable access to the business tools and information they need. Every minute an employee waits for an unresponsive application—and every minute your network is down—has an impact on your bottom line. When your business needs more advanced security and switch features, but value is still a top priority, you're ready for the new generation of Cisco® Small Business managed switches: the Cisco 300 Series.

Move Up to a Business-Class Network

The Cisco 300 Series is a broad portfolio of affordable managed switches that provide a powerful foundation for your business network. These switches improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to enable a more productive, effective workplace. Easy to set up and use, the Cisco 300 Series provides the ideal combination of affordability, performance, and capabilities in a solution designed specifically for small businesses.

• Speed up file transfers and improve slow, sluggish networks with a solution that has been rigorously tested to deliver high availability, performance, and uptime.
• Empower your employees with state-of-the-art communication and productivity solutions such as IP telephony and secure wireless connectivity, without affecting the performance or security of your other business applications.
• Protect your business with security capabilities that lock down your network and tightly controlling access.

Deliver the Right Features at the Right Price

Cisco 300 Series Switches offer enhanced switch features that support advanced technologies, including quality of service (QoS) intelligence and advanced traffic management to simplify the addition of voice, wireless, and security services. These advanced managed switching features give you a variety of capabilities for controlling traffic over your network and help keep your applications running at peak performance, in a solution designed and priced for small businesses.

• Boost business communications with IP telephony, wireless, and other advanced deployments using Power over Ethernet (PoE) connectivity. QoS, and virtual LANs to segment network traffic.
• Turn up powerful security measures such as access control lists (ACLs) and guest virtual LANs (VLANs) to provide rich services to users while protecting applications and information.
• Meet tomorrow's networking needs as well as today's with advanced features like static routing and IPv6 support, which let you enable the latest generation of networking applications and operating systems without an extensive equipment upgrade.
• Reduce power consumption by using these eco-friendly switches. Designed to optimize power usage, the switches offer energy efficiency without compromising performance by powering down ports when not in use. Choose from models that have no fans, so they run silently and unobtrusively, even as they reduce energy costs.

Connect Your Business

The Cisco 300 Series provide the ideal combination of features and affordability to create a more efficient, better-connected workforce.

Table 1. Cisco 300 Series Switches

Product Model	Ports	Expansion Ports	PoE
Fast Ethernet
SF300-08	8-port 10/100
SF302-08	8-port 10/100	2 Combo* mini-GBIC slots
SF302-08P	8-port 10/100	2 Combo* mini-GBIC slots	o
SF302-08MP	8-port 10/100	2 Combo* mini-GBIC slots	o
SF300-24	24-port 10/100	2 10/100/1000 ports and 2 Combo* mini-GBIC slots
SF300-24P	24-port 10/100	2 10/100/1000 ports and 2 Combo* mini-GBIC slots	o
SF300-48	48-port 10/100	2 10/100/1000 ports and 2 Combo* mini-GBIC slots
SF300-48P	48-port 10/100	2 10/100/1000 ports and 2 Combo* mini-GBIC slots	o
Gigabit Ethernet
SG300-10	8-port 10/100/1000	2 Combo* mini-GBIC slots
SG300-10P	8-port 10/100/1000	2 Combo* mini-GBIC slots	o
SG300-10MP	8-port 10/100/1000	2 Combo* mini-GBIC slots	o
SG300-20P	18-port 10/100/1000	2 Combo* mini-GBIC slots
SG300-28P	26-port 10/100/1000	2 Combo* mini-GBIC slots
SG300-28P	26-port 10/100/1000	2 Combo* mini-GBIC slots	o
SG300-52	50-port 10/100/1000	2 Combo* mini-GBIC slots

*Each combo mini-gigabit interface converter (GBIC) port has one 10/100/1000 Ethernet port and one mini-GBIC/Small Form-Factor Pluggable (SFP) Gigabit Ethernet slot, with one port active at a time.

Simplify Setup and Management

Cisco 300 Series Switches are designed to be easy to configure and manage. They make it easy to set up and manage even complex network environments, reducing the time your staff devotes to network management and troubleshooting.

• Speed setup with an intuitive, web-based interface that simplifies security, QoS traffic prioritization, and configuration and management.
• Balance automation with fine-grained control using simple graphical tools and preset configuration options based on Cisco best practices and pretested deployments with Cisco Smartports (available in early 2011).
• Protect your investment with a solution that has been designed and tested to easily integrate with other Cisco networking and communications products, including the complete Cisco Small Business portfolio.

Cisco Limited Lifetime Hardware Warranty

The Cisco 300 Series offers a limited lifetime hardware warranty with next business day advance replacement (where available, otherwise same day ship) and a limited lifetime warranty for fans and power supplies. In addition, Cisco offers software bug fixes for the warranty term, and telephone technical support at no charge for the first 12 months following the date of purchase. To download software updates, go to: http://www.cisco.com/cisco/web/download/index.html.

Product warranty terms and other information applicable to Cisco products are available at www.cisco.com/go/warranty.

Service and Support

Cisco 300 Series Switches are backed by the Cisco Small Business Support Service, which provides affordable peace-of-mind coverage. This subscription-based service helps you protect your investment and derive maximum value from Cisco Small Business products. Delivered by Cisco and backed by your trusted partner, this comprehensive service includes telephone support and access to the Cisco Small Business Support Center.

A Powerful Foundation for the Small Business Network

Cisco 300 Series Switches provide the right features at the right price, along with the reliability, performance, and investment protection you expect from a Cisco switch. You can rest assured that your network has been rigorously tested to deliver business-class availability and performance at an affordable price and is backed by a limited lifetime warranty and the Cisco Small Business Support Center. You can also be confident that your network will grow with your business. The Cisco 300 Series was designed to integrate future networking and communication deployments, and is fully compatible with the complete Cisco Small Business portfolio.

To learn more, visit www.cisco.com/go/300switches.
