Marque	SHIMANO
Modèle	BR-IM86-F
Catégorie	Frein à disque
Type	Frein Inter-M avant
Utilisation	Vélo 26 pouces ou plus
Poids maximum supporté	130 kg
Mécanisme	Commande par câble
Graissage	Graisse spéciale pour frein à tambour (environ 5g)
Combinaison recommandée	Moyeu HB-IM70/DH-2R35-E-H/DH-3R35-H, levier SB-8S20/ST-8S20/SB-7S45/BL-IM60/BL-IM65/BL-IM45, câble SHERDO SYSTEM
Couple de serrage adaptateur	6-8 N·m
Couple de serrage écrou de fixation	15-20 N·m (type écrou moyeu) ou 5-7,5 N·m (type serrage rapide)
Jeu de levier recommandé	Environ 15 mm
Débattement du câble intérieur	14,5 mm minimum
Rayonnage de roue	3x ou 4x croisé (pas radial)
Fonctions principales	Freinage avant avec modulateur de puissance intégré
Entretien et nettoyage	Vérifier régulièrement le jeu du câble, remplacer le câble si rouillé, graisser si bruit anormal ou freinage excessif
Sécurité	Ne pas démonter l'unité avant ; éviter freinage continu en descente ; vérifier fixation de la roue et du frein
Pièces détachées et réparabilité	Pièces Shimano d'origine uniquement ; ne pas démonter le moyeu ou l'unité de frein
Informations générales	Notice téléchargeable gratuitement ; pour toute question, contacter le revendeur

FOIRE AUX QUESTIONS - BR-IM86-F SHIMANO

Quel est le poids maximum supporté par le frein BR-IM86-F ?

Le frein est conçu pour un poids total (vélo + cycliste) jusqu'à 130 kg.

Quels leviers sont compatibles avec ce frein ?

Les leviers recommandés sont : SB-8S20, ST-8S20, SB-7S45, BL-IM60, BL-IM65, BL-IM45. Attention : ces leviers doivent être en position C.R. (mode Cantilever/Roller).

Comment installer le câble de frein sur le BR-IM86-F ?

Suivez les étapes : 1) Insérez le porte-gaine dans le câble intérieur. 2) Passez le câble dans le trou du boulon de fixation côté marque 'F'. 3) Serrez l'écrou. 4) Alignez le repère rouge de la rondelle avec la rainure du poupée. 5) Engagez le câble dans la rainure et accrochez-le au crochet. 6) Insérez le porte-gaine dans le trou du bras de frein et fixez l'embout. 7) Serrez le boulon de réglage pour tendre le câble.

Comment régler le jeu du levier de frein ?

Après avoir rodé le câble en pompant le levier 10 fois, tournez le boulon de réglage pour obtenir environ 15 mm de jeu au levier (distance avant que la force ne devienne soudaine).

Que faire si le frein émet un bruit anormal ?

Un bruit anormal peut indiquer un manque de graisse. Arrêtez immédiatement, retirez le bouchon de graissage et injectez environ 5 g de graisse spéciale pour frein à tambour en tournant lentement la roue. Si le problème persiste, consultez un revendeur.

Puis utiliser le frein BR-IM86-F avec une roue de taille inférieure à 26 pouces ?

Non, l'installation est recommandée uniquement pour des vélos avec roues de 26 pouces ou plus. Sur des roues plus petites, la force de freinage pourrait être excessive et causer un accident.

Comment éviter la surchauffe du frein en descente ?

Évitez un freinage continu prolongé ; alternez frein avant et arrière. La surchauffe peut affaiblir le freinage et réduire la graisse interne.

Quelle est la maintenance périodique recommandée ?

Vérifiez régulièrement le jeu du câble (15 mm), l'état du câble (remplacer si rouillé), le serrage des fixations, et la présence de bruits anormaux. Une graisse tous les 5 000 km ou selon l'usage.

Puis-je démonter l'unité de frein avant pour la nettoyer ?

Non, l'unité avant BR-IM86-F ne doit jamais être démontée. Le démontage entraînerait un dysfonctionnement irréversible.

Où trouver la notice complète en français ?

La notice originale est en anglais, mais vous pouvez la télécharger gratuitement au format PDF sur notice-facile.com. Une traduction française peut être demandée par email.

MODE D'EMPLOI BR-IM86-F SHIMANO

General Safety Information

WARNING

- To avoid serious injuries:

• It is important to completely understand the operation of your bicycle's brake system. Improper use of your bicycle's brake system may result in a loss of control or an accident, which could lead to severe injury. Because each bicycle may handle differently, be sure to learn the proper braking technique (including brake lever pressure and bicycle control characteristics) and operation of your bicycle.
  This can be done by consulting your professional bicycle dealer and the bicycle's owners manual, and by practicing your riding and braking technique.
• If the front brake is applied too strongly, the wheel may lock and the bicycle may fall forward, and serious injury may result.
• The hub of the Shimano front Inter-M brake has a built-in power modulator. This system controls the braking force so that excessive force is not applied if the braking force reaches the specified value. If the hub is not equipped with the power modulator, the braking force may be excessively applied. For this reason, we recommend using the Shimano front Inter-M brake and the hub as a set. Noise is generated by the operation of the power modulator when the brake is applied, but this is not a sign of a malfunction.
• If using the BR-IM86-F/BR-IM85-F in combination with a suspension fork, care must be taken when selecting the suspension fork to use. Please consult with the shop or the bicycle manufacturer. If an incorrect type of suspension fork is selected, it could prevent the suspension fork from functioning properly because of overheating during braking or lack of strength in the fork, which could result in an accident.
• The SB-8S20/ST-8S20/SB-7S45/BL-IM60/BL-IM65/ BL-IM45 brake levers are equipped with a mode switching mechanism. Be sure to use the BR-IM86-F, BR-IM85-F with the mechanism in the C.R. mode position.

C.R mode position

The C indicates the mode position for compatibility with cantilever brakes. The R indicates the mode position for compatibility with roller brakes.

• Obtain and read the service instructions carefully prior to installing the parts. Loose, worn, or damaged parts may cause serious injury to the rider. We strongly recommend only using genuine Shimano replacement parts.
  Always make sure that the front and rear brakes are working correctly before you ride the bicycle.
• If the road surface is wet, the tires will skid more easily. If the tires skid, you may fall off the bicycle. To avoid this, reduce your speed and apply the brakes early and gently
• Read these Technical Service Instructions carefully, and keep them in a safe place for later reference.

CAUTION

- To avoid serious injuries:

1. When using the Shimano Inter-M brake system, avoid continuous application of the brakes when riding down long slopes, as this will cause the internal brake parts to become very hot, and this may weaken braking performance. It may also cause a reduction in the amount of brake grease inside the brake, and this can lead to problems such as abnormally sudden braking. The design of the Shimano Inter-M brake system has been carried out based on standards such as ISO 4210 and DIN 79100-2. These standards specify the performance for an overall weight of 100kg . However, BR-IM86-F is designed with the overall weight assumed to be 130kg . If the overall weight exceeds 100kg (130kg for BR-IM86-F), the braking force provided by the system may be insufficient for correct braking, and durability of the system may also be reduced.
2. The front Inter-M brake system should only be installed to the left side of a bicycle which is 26^ or larger. If it is used on a bicycle which is smaller than 26^ , the braking force may be too great, which could cause accidents.
3. In order to get the best performance from the Shimano front Inter-M brake, be sure to use Shimano brakes cables and brake levers as a set. (Refer to the product line-up.) The amount of movement of the inner cable must be 14.5 mm or more when the brake lever is depressed. If it is less than 14.5 mm, braking performance will suffer, and the brakes may fail to work.

4. Check that the front brake unit is firmly secured to the hub with the brake unit fixing nut.

5. Check that the hub axle is touching the back of the fork end and the wheel is firmly secured to the frame with the quick release or the hub nut. If the wheel is not installed properly, it may come off the frame, which could result in a serious accident when riding.

6. If any of the following occur while using the brakes, stop riding immediately and ask the place of purchase to carry out inspection and repairs.

1) If abnormal noise is heard when the brakes are applied
2) If braking force is abnormally strong
3) If braking force is abnormally weak

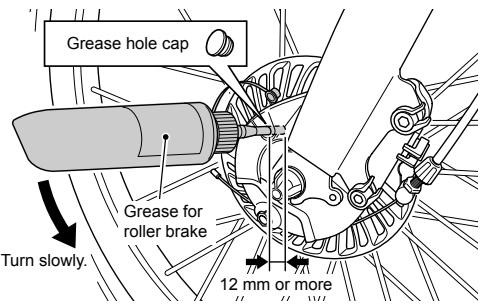

In the case of 1) and 2), the cause might be not enough brake grease, so ask the place of purchase to grease the mechanism with special roller brake grease. Before applying grease, remove the grease hole cap and press-fit the tube into the back of the hole. Apply an appropriate amount of grease (approx. 5g) while turning the wheel slowly. After application, check that braking is properly applied and that no abnormal noise is heard.

1. If the brakes are used frequently, the components around the brake may become hot. Do not touch the components for at least 30 minutes after you finish riding the bicycle.

Components around the brake

1. If the brake cable becomes rusted, braking performance will suffer. If this happens, replace the brake cable with a genuine Shimano brake cable and re-check the braking performance.
2. The BR-IM86-F/BR-IM85-F front brake units, and HB-IM70, DH-2R35-E-H/DH-3R35-H front hub units should never be disassembled. If they are disassembled, it will no longer work properly.

NOTE:

• Use a wheel with 3x or 4x spoke lacing. Wheels with radial lacing cannot be used because the spokes and the wheel can be damaged when applying the brakes and brake noise can be generated.
• The front Inter-M brake is different from conventional band brakes in that the inside of the brake drum is filled with grease. This may cause the turning of the wheel to be slightly heavier than usual, particularly in cold weather.

• If you apply the front Inter-M brake strongly while the bicycle is stopped and then shake the wheel, you will notice that there is a small amount of play in the brakes. This is normal, and will not cause any problems at all while riding.

• To check the amount of looseness in the head parts, grasp the middle of the handlebar and one of the front forks as shown in the illustration, and then move the head parts back and forth in the directions indicated by the arrows. Moreover, because the brakes give a small amount of play if you apply the brakes fully and shake the wheel as described above, this will make it more difficult to check the looseness in the head parts.

• Parts are not guaranteed against natural wear or deterioration resulting from normal use.
• For maximum performance we highly recommend Shimano lubricants and maintenance products.
• For any questions regarding methods of handling or adjustment, please contact the place of purchase.

BR-IM86-F BR-IM85-F

Inter-M Brake

Technical Service Instructions

INTERM

In order to realize the best performance from the Shimano front Inter-M brake system, we recommend that the following combination be used.

Brake	BR-IM86-F/BR-IM85-F
Hub	HB-IM70/DH-2R35-E-H/DH-3R35-H
Lever	SB-8S20/ST-8S20 SB-7S45/BL-IM60 BL-IM65/BL-IM45
Brake cable	SHERDO SYSTEM

Installation of the brake to the frame

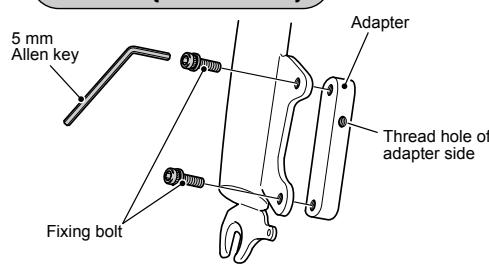

1. Install the adapter to the front fork so that the thread hole of the adapter side is facing upward, as shown in the figure.

Tightening torque: 6-8 N·m {52-70 in. lbs.}

1. Place the drop prevention rings onto the fixing bolts. The projections of the drop prevention rings should be touching against the front fork at this time.

Touching

Bra

1. Check that the front brake unit is firmly secured to the hub body with the brake unit fixing nut.

Brake unit fixing nut

• In case of the quick release type:
• With rollets
• Surface with rollets should be facing outward.
• In case of the hub nut type: without rollets

Tightening torque: 15 - 20 N·m
{131 - 174 in. lbs.}

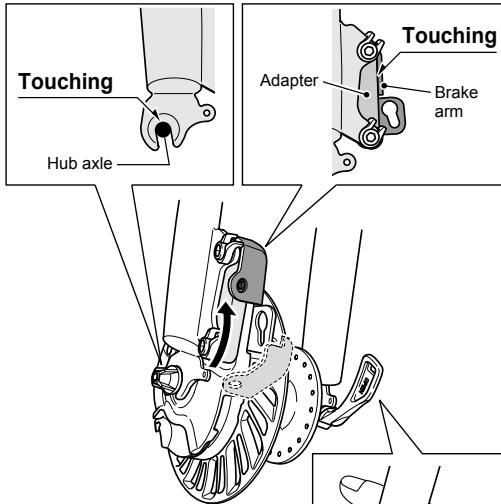

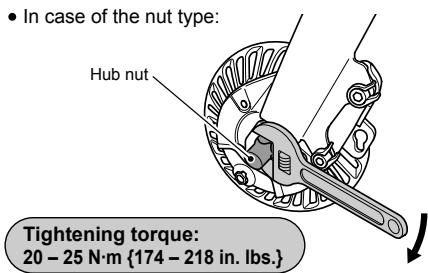

1. Place the wheel with the front brake unit installed into the fork end as far as it will go, and turn the brake arm so that it is touching the adapter. Then set it securely with the quick release or the hub nut.

• In case of the quick release type: Secure the cam lever of the quick release firmly.

Tightening torque: 5-7.5 N·m {44-65 in. lbs.}

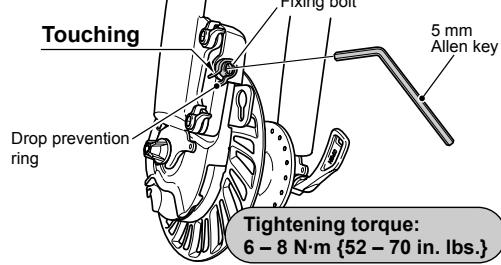

1. Secure the brake arm with the fixing bolt and press-fit the drop-prevention ring. Next, touch the protruding section of the drop prevention ring to the adapter.

Installing the brake cable

1. After checking that the adjusting bolt and adjusting nut are fully tightened, insert the outer casing holder unit into the inner cable in the direction shown below.

1. After checking that the stamp of the back side of the inner cable fixing bolt unit is "F", pass the inner cable through the hole of the inner cable fixing bolt unit.

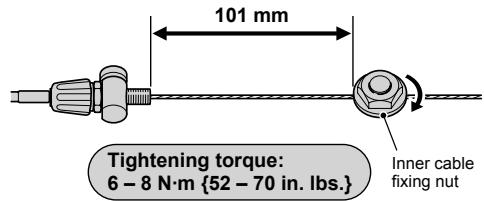

1. Place the components as shown in the following figure and tighten the inner cable fixing nut. At this time, if the TL-IM21 is used, it will be possible to mount the inner cable fixing bolt unit easily.

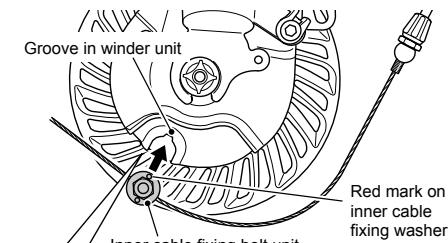

1. Align the red mark on the inner cable fixing washer so that it faces in the direction of the groove in the winder unit, and then insert the inner cable fixing bolt unit and push it into the groove in the winder unit as far as it will go.

Insert the inner cable fixing bolt unit into the groove in the winder unit as far as it will go.

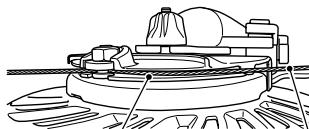

1. Route the inner cable along the groove of the winder unit.

Groove of winder unit
Inner cable

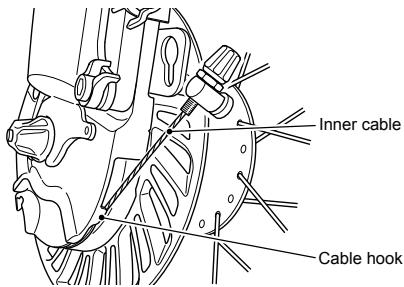

6 Hook the inner cable over the cable hook.

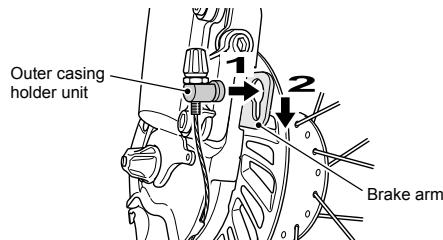

1. Insert the outer casing holder unit into the hole of the brake arm from underneath and slide it to the lower section of the hole.

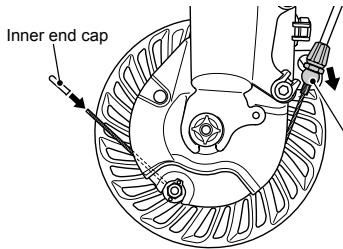

1. After checking that the outer casing holder unit is securely inserted into the back of the brake arm hole attach the inner end cap. Then, set the inner end cap so that it does not touch the fin or the spokes.

Unit is These service instructions explain how to use and maintain the Shimano arm hole, bicycle parts which have been used on your new bicycle. For any questions regarding your bicycle or other matters which are not related to Shimano parts, please contact the place of purchase or the bicycle manufacturer.

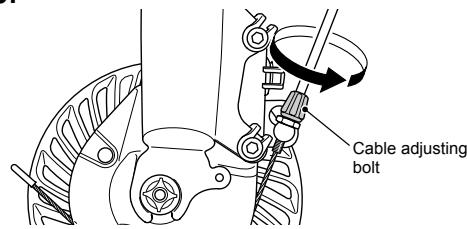

Turn the cable adjusting bolt to tighten the inner cable.

Installation of the brake cable can be completed by the above procedure. When detaching the cable, perform in reverse order.

Adjusting the brake cable

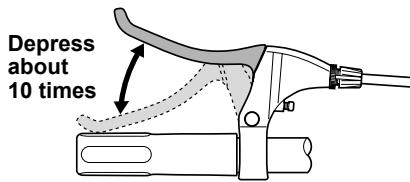

1. After checking that the wheel does not easily turn while the brake cable is being pulled, depress the brake lever about 10 times as far as the grip in order to run in the brake cable.

If the brake cable is not run in, it will need to be adjusted again after only a short period of use.

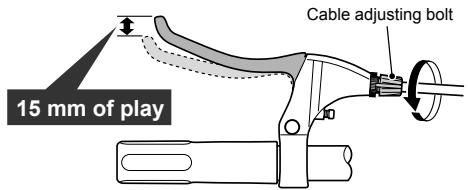

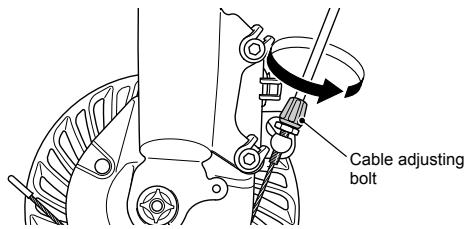

1. Turn the cable adjusting bolt of the brake unit or brake lever so that there is about 15mm of play in the brake lever.

The amount of brake lever play is the distance from the position where the brake lever is not operated to the position where a force is felt suddenly when the brake lever is pulled.

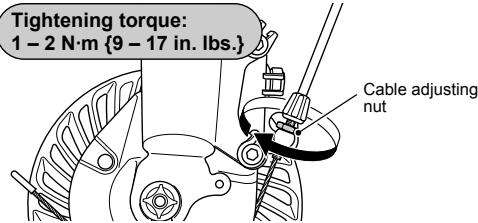

1. After depressing the brake lever to check the braking performance, secure the cable adjusting bolt with the cable adjusting nut.

These service instructions explain how to use and maintain the Shimano bicycle parts which have been used on your new bicycle. For any questions regarding your bicycle or other matters which are not related to Shimano parts, please contact the place of purchase or the bicycle manufacturer.

SHIMANO

SHIMANO AMERICAN CORPORATION

One Holland, Irvine, California 92618, U.S.A. Phone: [phone]

SHIMANO EUROPE B.V.

Industriebweg 24, 8071 CT Nunspeet, The Netherlands Phone: [phone]

SHIMANO INC

3-77 Oimitsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan

• Service Instructions in further languages are available at http://techdocs.shimano.com

Please note: Specifications are subject to change for improvement without notice. (English)
