MODE D'EMPLOI SRM-2100 TYPE 1E ECHO

PARTS CATALOG

BRUSH CUTTER

MODEL SRM-2100

TYPE 1E

SERIAL NUMBER 001001 & UP

MODEL SRM-2110

TYPE 1E

SERIAL NUMBER 001001 & UP

ECHO, INCORPORATED

400 OAKWOOD ROAD

LAKE ZURICH, ILLINOIS 60047

WWW.ECHO-USA.COM

ECHO SRM-2100 TYPE 1E - TYPE 1E - 1

ITEMPART NUMBERQTYDESCRIPTIONREMARKS
1OPTIONAL ENGINE REPOWER
SB10261SHORT BLOCKINCLUDES ITEMS 2-17
SRM-2100 TYPE 1E - S/N 001001-671697, SRM-2110 TYPE 1E - S/N 001001-503538

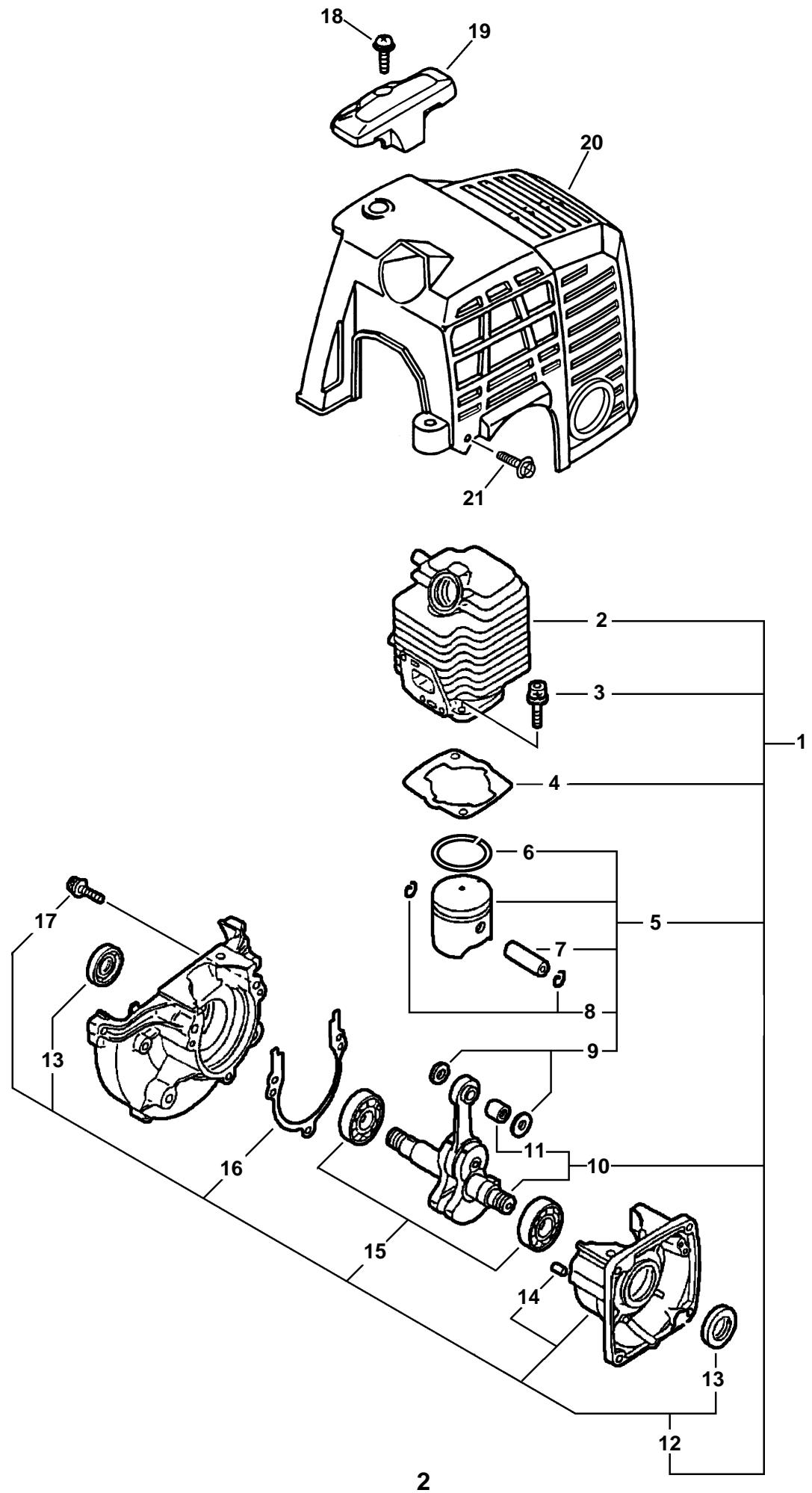

2101011065621CYLINDER
SRM-2100 TYPE 1E - S/N 671698 & UP, SRM-2110 TYPE 1E - S/N 503539 & UP
2A1300000111CYLINDER
3900162050222BOLT 5X22
4101010443321GASKET, CYLINDERALSO CONTAINED IN GASKET KIT 88900042033
5100000487301PISTON KITINCLUDES ITEMS 6-9
6100011053301RING, PISTON
7100013115201PIN, PISTON
8100015046302CIRCLIP, PISTON PIN
9100014115202SPACER, PISTON PIN
10100100541301CRANKSHAFT ASYINCLUDES ITEM 11
11100012512301BEARING, NEEDLE
12100204521301CRANKCASE KITINCLUDES ITEMS 13-17
13100212420302OILSEAL
14100215039302PIN, DOWEL
15900810362012BEARING, BALL 6201
16100242420301GASKET, CRANKCASEALSO CONTAINED IN GASKET KIT 88900042033
17900162050283SCREW 5X28
18900238050161SCREW 5X16
19159912541301GUARD, TOP
20101514489301COVER, CYLINDER
21900162040166SCREW 4X16
GASKET KIT
889000420331GASKET KIT - CONTAINS THE FOLLOWING:
100242420301GASKET, CRANKCASE
101010443321GASKET, CYLINDER
130010420321GASKET, INTAKE
130016420311GASKET, INTAKE
145866420311GASKET, EXHAUST
V1040000021GASKET, EXHAUST
V1040001602GASKET, EXHAUST

ECHO SRM-2100 TYPE 1E - TYPE 1E - 2

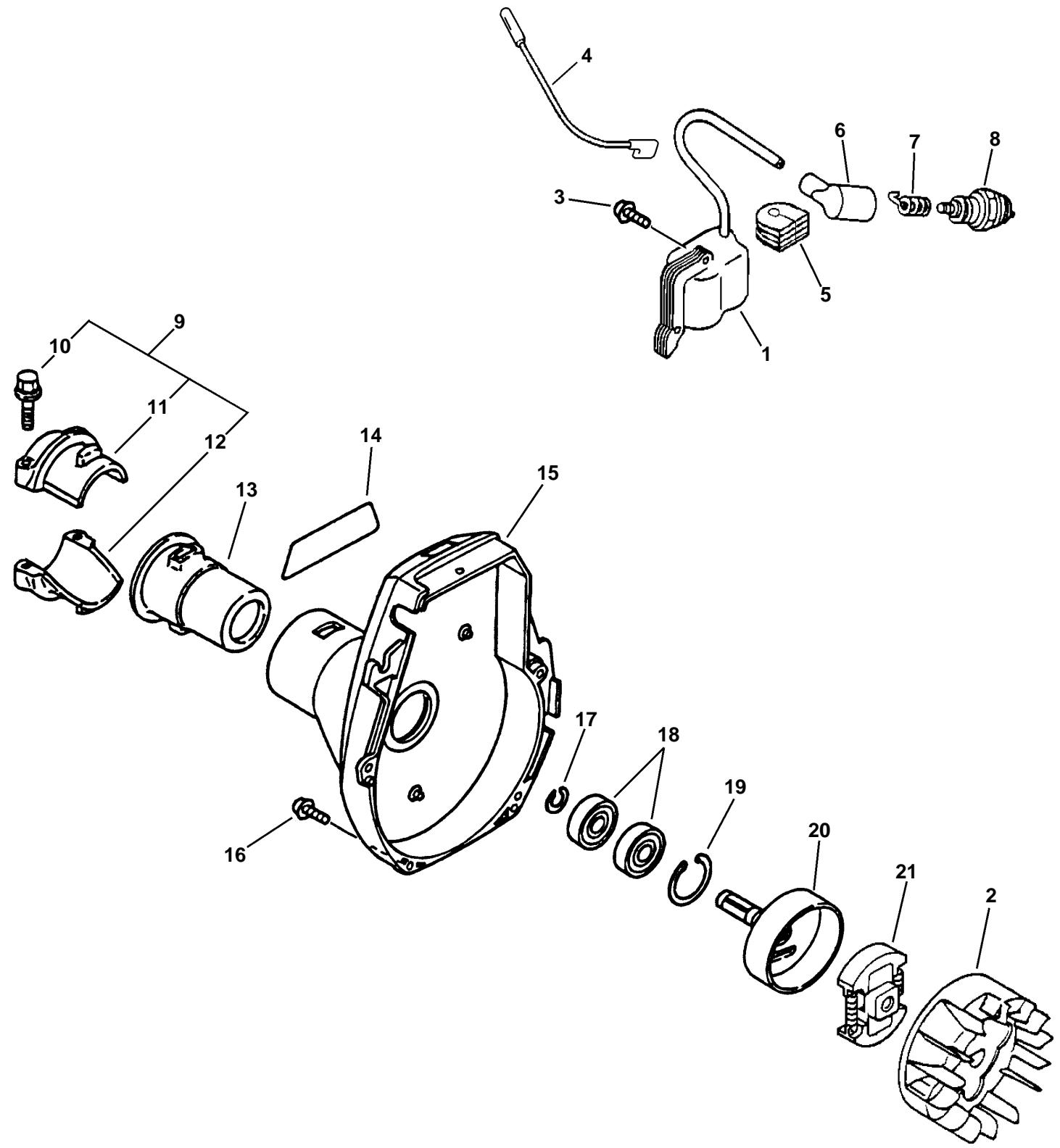

ITEM PART NUMBER QTY DESCRIPTION

REMARKS

SRM-2100 TYPE 1E & SRM-2110 TYPE 1E - S/N 001001-008042

1 15660152130 1 COIL, IGNITION
2 15680144731 FLYWHEEL

SRM-2100 TYPE 1E - S/N 008043 & UP & SRM-2110 TYPE 1E - S/N 501001 & UP

1 15662609660 1 COIL, IGNITION
2 15680109660 1 FLYWHEEL

3 90016204022 2 SCREW 4X22
4 16201052830 LEAD
5 15611240630 1 GROMMET
6 15901201620 CAP,SPARK PLUG
7 15901103432 COIL,SPARK PLUG CAP
8 15901010630 1 PLUG,SPARK BPM-7A
9 61090355230 1 HOLDER KIT INCLUDES ITEMS 10-12
0 90014205025 2 BOLT 5X25
1 61092227432 1 HOLDER - UPPER
2 61092355230 1 HOLDER - LOWER
3 61091055230 1 CUSHION
4 89011554130 1 LABEL,MODEL SRM-2100
4 89011254130 1 LABEL,MODEL SRM-2110
5 10150352131 FAN COVER ASY
6 90016204016 6 SCREW 4X16
7 90070100012 1 CIRCLIP 12
8 90080796001 2 BEARING, BALL 6001
9 90070200028 1 CIRCLIP 28
20 17500548931 1 DRUM,CLUTCH
21 17500049030 1 CLUTCH ASY

ECHO SRM-2100 TYPE 1E - TYPE 1E - 3

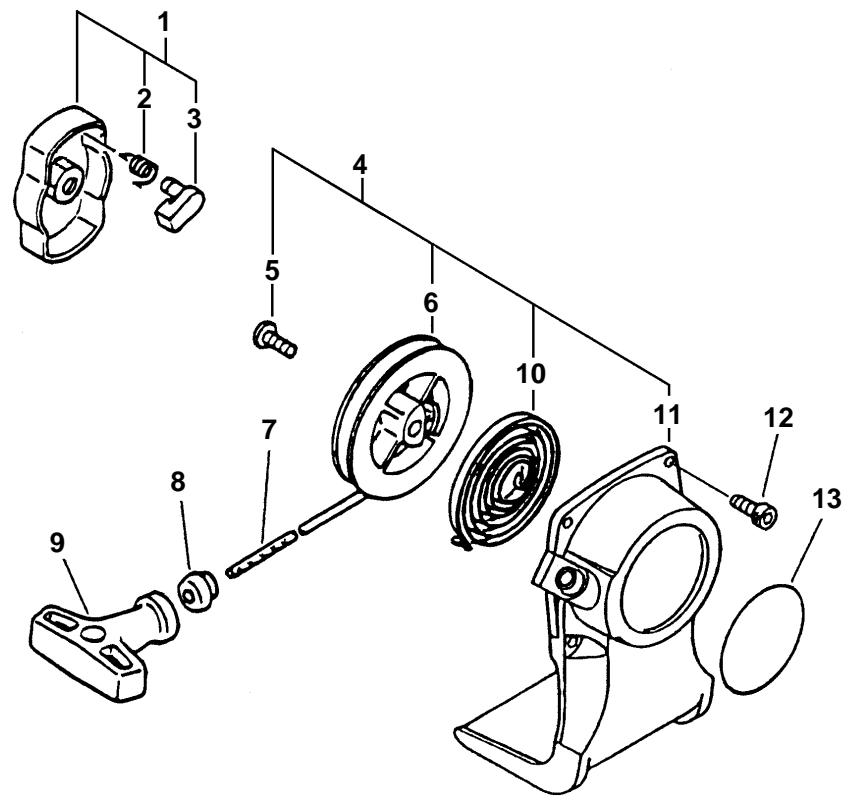

ECHO SRM-2100 TYPE 1E - TYPE 1E - 4

ITEMPART NUMBERQTYDESCRIPTIONREMARKS
1177202443301STARTER PAWL ASYINCLUDES ITEMS 2-3
2177234420301SPRING, RETURN
3177218443301PAWL, STARTER
4177200541301STARTER ASYINCLUDES ITEMS 5-11
5177236443301SCREW
6177215444301DRUM, STARTER
7177226101201ROPE, STARTEROPTIONAL BULK ROPE 99944444000 3mm(1/8in) X 1000mm(39-1/2in)
8177227420301GUIDE, ROPE
9177228065301GRIP, STARTER
10177220420301SPRING, REWIND
11177232443331CASE, STARTER
12900162040222BOLT 4X22
13890118491301LABEL, ECHO
14132010139301PIPE, FUEL - 3X5X180mmOPTIONAL BULK LINE 90014
15132010563301PIPE, RETURN - 3X6X90mmOPTIONAL BULK LINE 90017
16131300564301VENT ASY
17131312443301PIPE, VENT - 3X5X70mmOPTIONAL BULK LINE 90014
18132115467301GROMMET, FUEL
19132013098201CLIP
20131205073201FILTER, FUEL
21131005468301TANK, FUELINCLUDES ITEM 22
22131045282302COLLAR
23900603000052WASHER 5
24900238050162SCREW 5X16
25131004555301FUEL CAP ASYINCLUDES ITEM 26
26131051560301CONNECTOR, FUEL CAP
27131016558301GASKET, FUEL TANK CAP

ECHO SRM-2100 TYPE 1E - TYPE 1E - 5

ECHO SRM-2100 TYPE 1E - TYPE 1E - 6

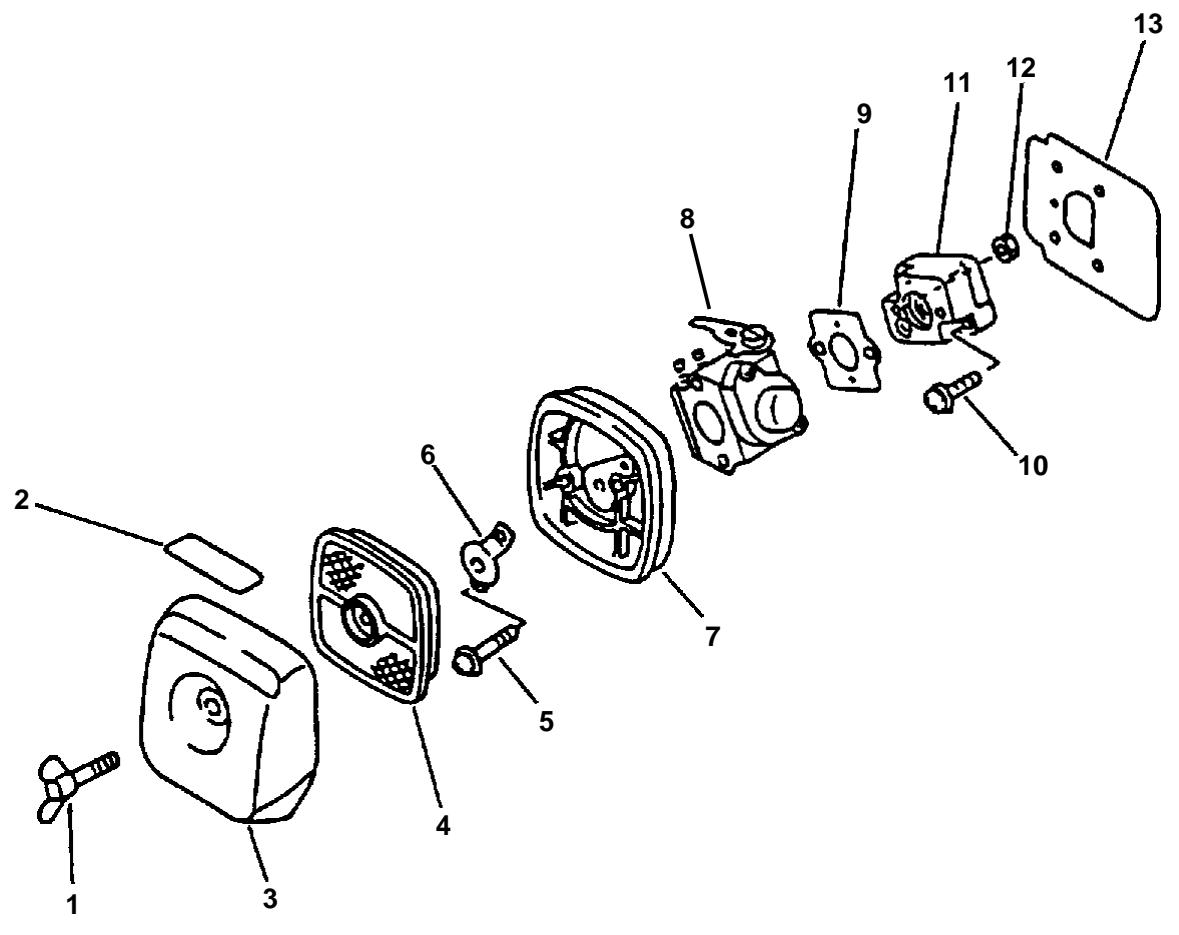

ITEMPART NUMBERQTYDESCRIPTIONREMARKS
1210417527301BOLT, WING
2890121063601LABEL, CHOKE
3130313065631LID, AIR CLEANER
4130310541301FILTER, AIR - HEAVY DUTY
5900242050652SCREW 5X65
6129011527301PLATE, PREVENT
7130307065611CASE, AIR CLEANER
SRM-2100 TYPE 1E & SRM-2110 TYPE 1E - S/N 001001 - 008042

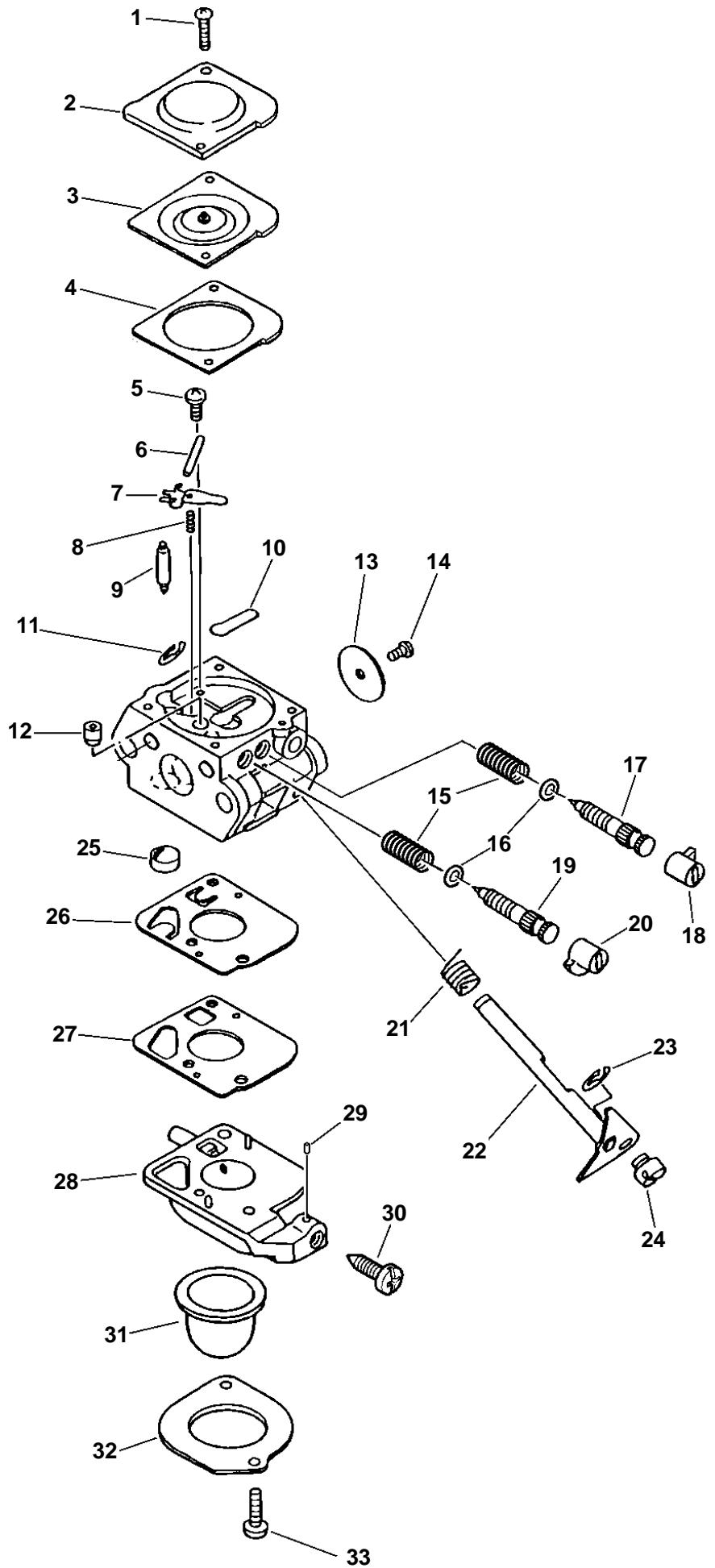

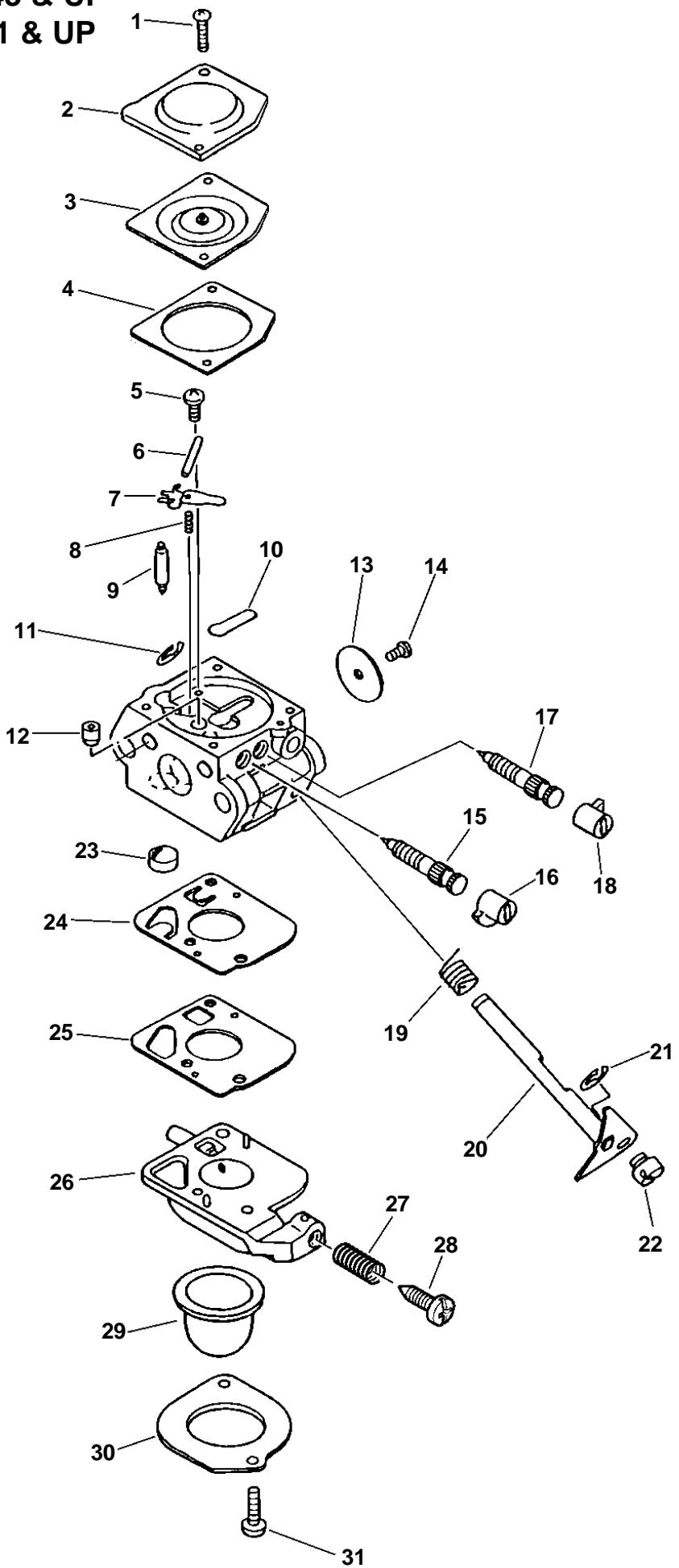

8125200490301CARBURETOR C1U-K47SEE PAGES 18-19
SRM-2100 TYPE 1E - S/N 008043 & UP, SRM-2100 TYPE 1E - 2110 1E S/N 501001 & UP
8125200133111CARBURETOR C1U-K52SEE PAGES 20-21
9130016420311GASKET, INTAKEALSO CONTAINED IN GASKET KIT 88900042033
10900238050202SCREW 5X20
11130017420311INSULATOR
12900500000052NUT 5
13130010420321GASKET, INTAKEALSO CONTAINED IN GASKET KIT 88900042033

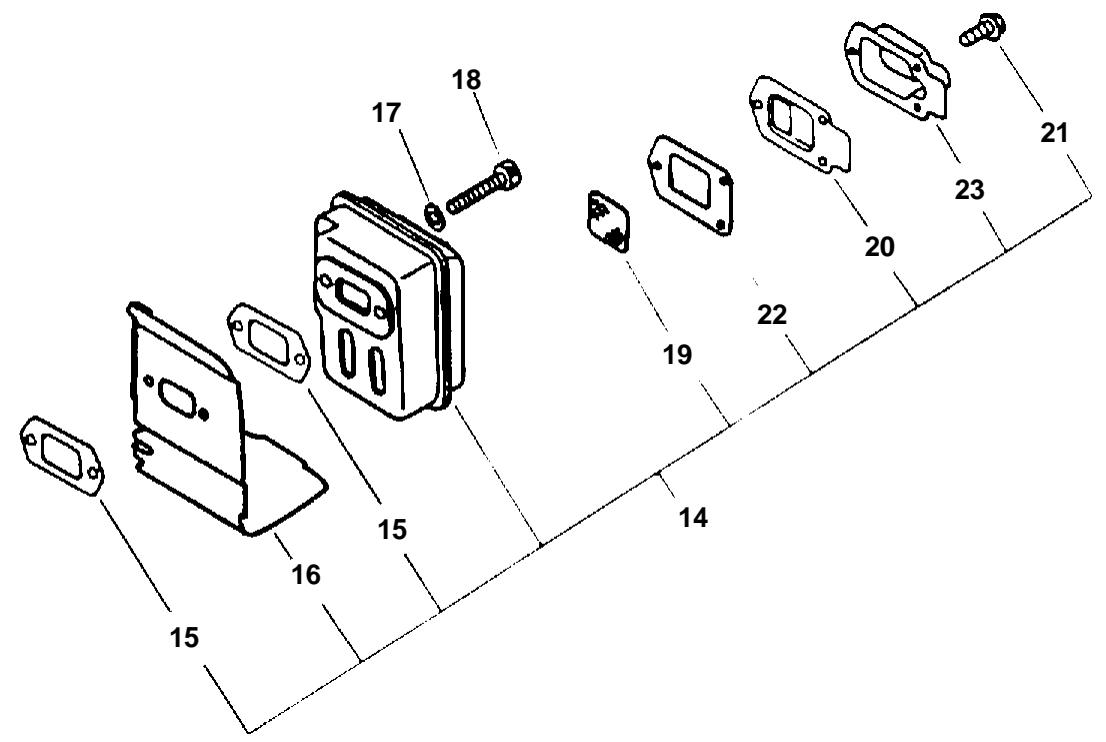

14145800541301MUFFLER ASYINCLUDES ITEMS 15 -21
15V1040001602GASKET, MUFFLERALSO CONTAINED IN GASKET KIT 88900042033
16145871443311COVER, MUFFLER
17900600000052WASHER 5
18900105050552BOLT 5X55
19145862406301SCREEN, MUFFLER
20145876420301GUIDE, EXHAUST - INNER
21900238040103SCREW 4X10
SRM-2100 TYPE 1E - S/N 001001-671697, SRM-2100 TYPE 1E - 2110 1E S/N 001001-503301
22145866420311GASKET, EXHAUSTALSO CONTAINED IN GASKET KIT 88900042033
23145863541301GUIDE, EXHAUST - OUTER
SRM-2100 TYPE 1E - S/N 671698 & UP, SRM-2100 TYPE 1E - 2110 1E S/N 503302 & UP
22V1040000021GASKET, EXHAUSTALSO CONTAINED IN GASKET KIT 88900042033
23A3130000001GUIDE, EXHAUST - OUTER

ECHO SRM-2100 TYPE 1E - TYPE 1E - 7
S/N 001001 - 612595

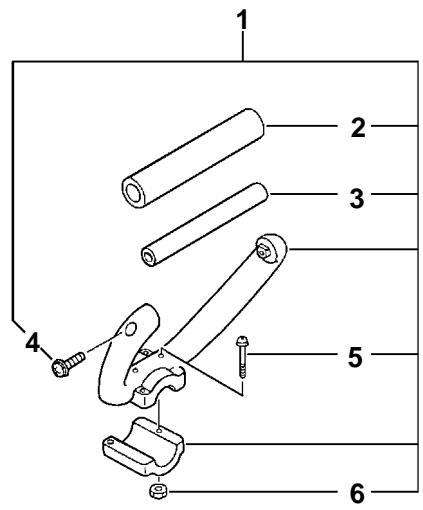

ECHO SRM-2100 TYPE 1E - TYPE 1E - 8
S/N 612596 & UP

ECHO SRM-2100 TYPE 1E - TYPE 1E - 9

ITEMPART NUMBERQTYDESCRIPTIONREMARKS
SRM-2100 1E S/N 001001 - 612595

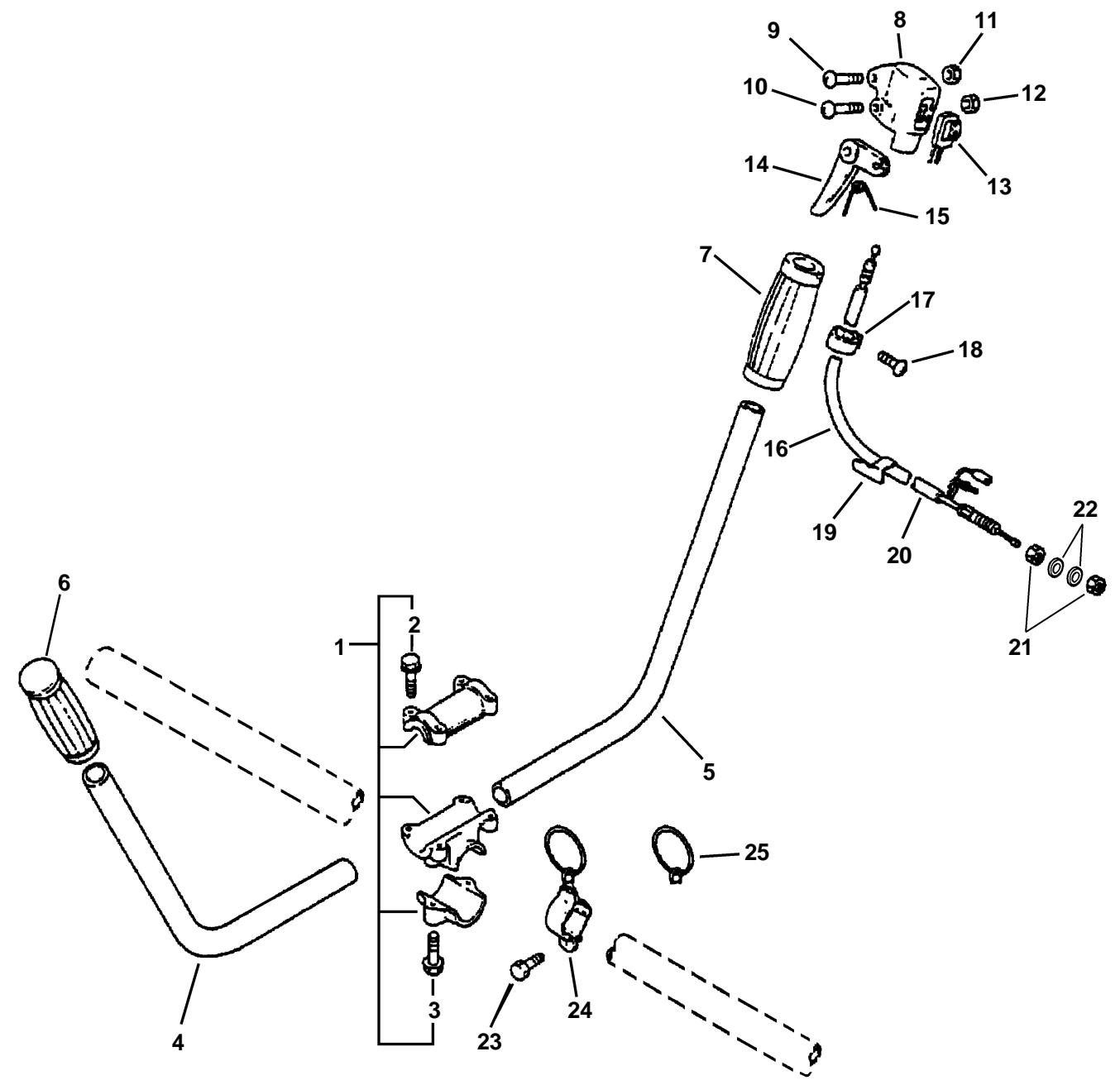

1351201521301LOOP HANDLE ASYINCLUDES ITEMS 2-6
2351213517301GRIP, FRONT HANDLE
3351210517301HANDLE, FRONT
4900246050302SCREW 5X30
5900242060354SCREW 6X35
6900500000064NUT 6

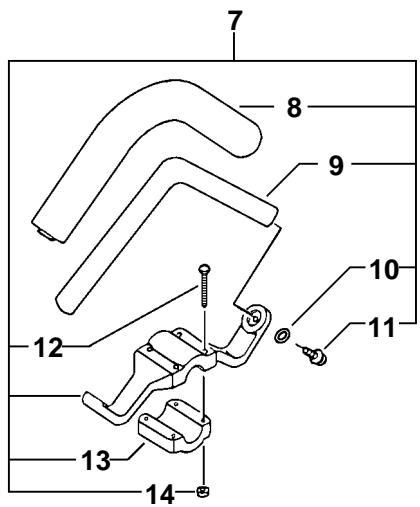

SRM-2100 1E S/N 612596 & UP
7P0210000201LOOP HANDLE ASYINCLUDES ITEMS 7-14
8351216662301GRIP, FRONT HANDLE
9351205662301HANDLE, FRONT
10900600000052WASHER
11889950210602SCREW
12900242050354SCREW 5X35
13351225071301BRACKET, HANDLE
14900500000054NUT 5
15890160541301LABEL, CAUTION
16301200294301BANDINCLUDES ITEM 17
17900242050141SCREW 5X14
18163401556301SWITCH, IGNITION
19178003521301THROTTLE BRACKET SETINCLUDES ITEMS 20-22
20900500000052NUT 5
21900242050351SCREW 5X35
22900242050251SCREW 5X25
23178013526301SPRING, THROTTLE TRIGGER LOCKOUT
24178090526301LEVER, THROTTLE TRIGGER LOCKOUT
25178012526301LOCKOUT, THROTTLE TRIGGER
26178010521301CONTROL, THROTTLE
27178043422301SPRING, THROTTLE RETURN
28178127503301TUBE
SRM-2100 1E S/N 001001-512721
29178001444301CABLE, THROTTLE
SRM-2100 1E S/N 512772 & UP
29178001567301CABLE, THROTTLE
30900502000062NUT 6
31351213521301GRIP, FRONT HANDLE
32610272521301BAND 25INCLUDES ITEMS 33-34
33900242050301SCREW 5X30
34900500000051NUT 5
35610609447301DRIVE SHAFT HOUSING ASYINCLUDES ITEMS 36-37
36610246447302FIXTURE, LINER
37610217447301LINER, FLEXIBLE
38610013447301SHAFT, FLEXIBLE
39890152049301LABEL, ALIGNMENT

ECHO SRM-2100 TYPE 1E - TYPE 1E - 10

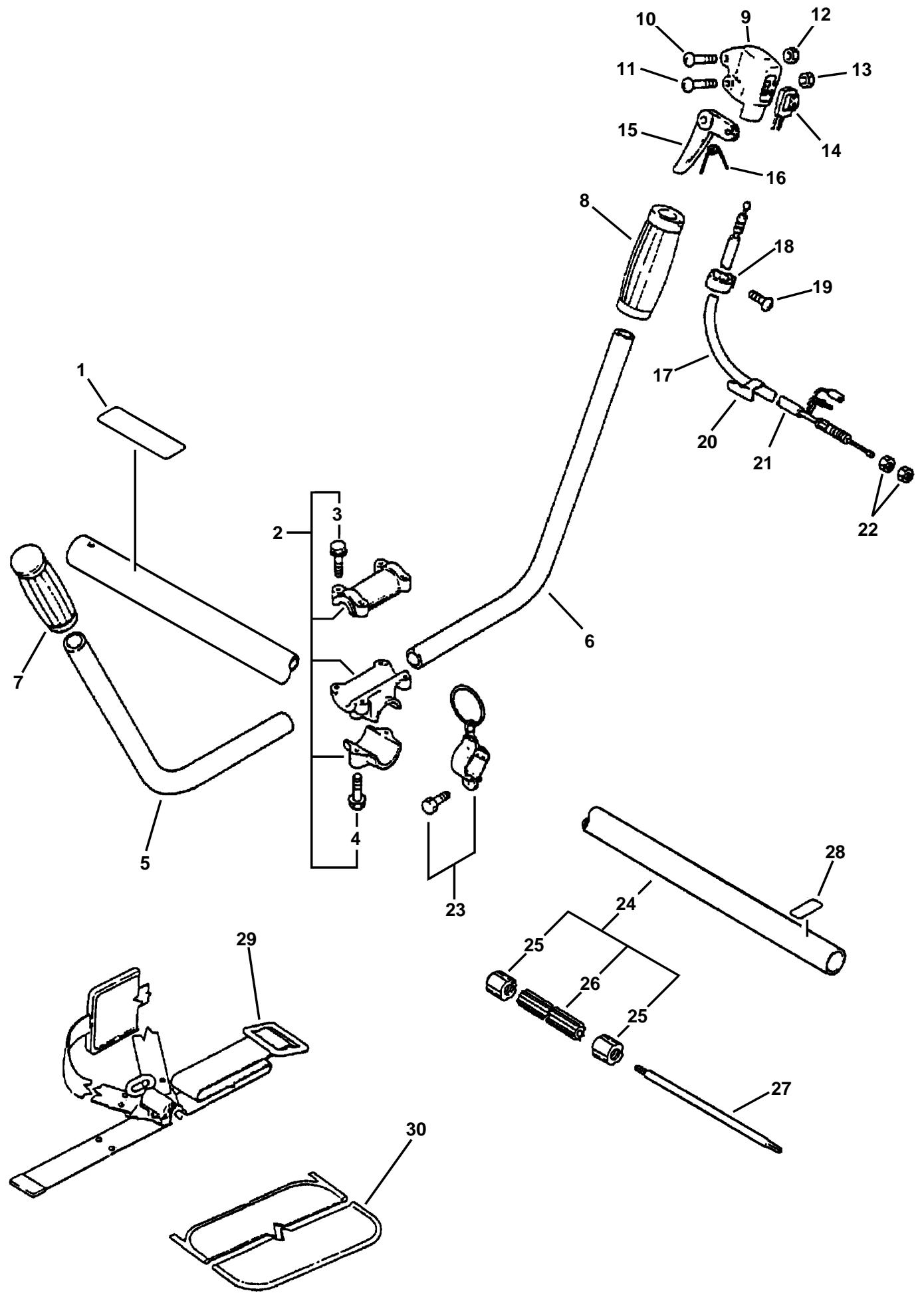

ITEMPART NUMBERQTYDESCRIPTIONREMARKS

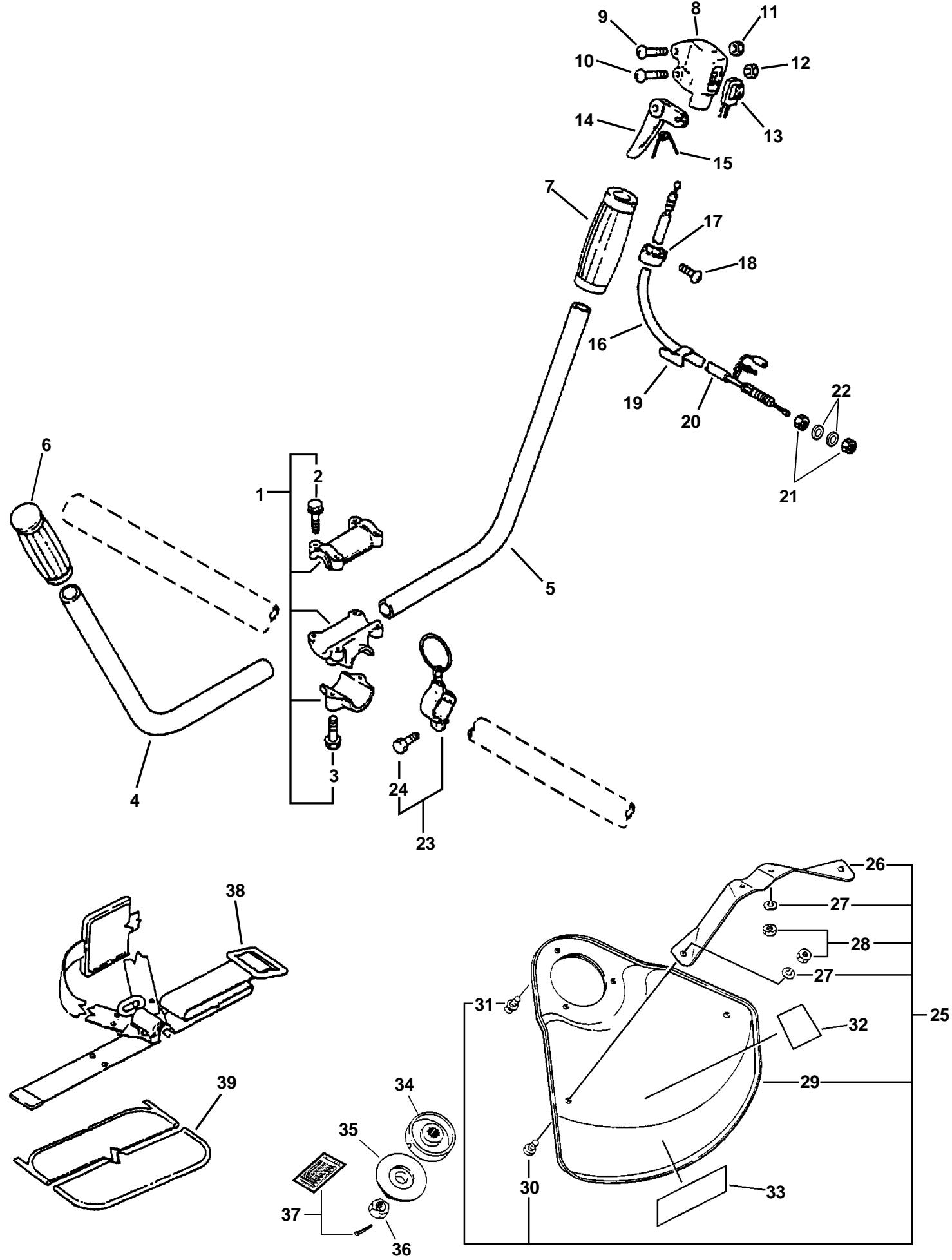

1890160541301LABEL, CAUTION
2351301092301HANDLE BRACKET ASYINCLUDES ITEMS 3-4
3900142050254BOLT 5X25
4900142060302BOLT 6X30
5351210234301HANDLE, FRONT - LEFT
6351010055301HANDLE, FRONT - RIGHT
7351311023301GRIP, HANDLE - LEFT
8351315221301GRIP, HANDLE - RIGHT
9178024418301BRACKET, THROTTLE
10900220050251SCREW 5X25
11178110053301SCREW
12900560000051LOCKNUT 5
13900500000051NUT 5
14163401492301SWITCH, IGNITION
15178010064601CONTROL, THROTTLE
16178043052301SPRING, THROTTLE RETURN
17178001413301CABLE, THROTTLE
18178106053301BAND
19900220050101SCREW 5X10
20178111049301CLIP, THROTTLE WIRE
21178127080301TUBE 10X11X750
22178021055302LOCKNUT
23301205213301RING ASY
24610609447301DRIVESHAFT HOUSING ASYINCLUDES ITEMS 25-26
25610246447302FIXTURE, LINER
26610217447301LINER, FLEXIBLE
27610013447301SHAFT, FLEXIBLE
28890152049301LABEL, ALIGNMENT
29301000521311HARNESS ASY
30301105418301PAD, WAIST

ECHO SRM-2100 TYPE 1E - TYPE 1E - 11

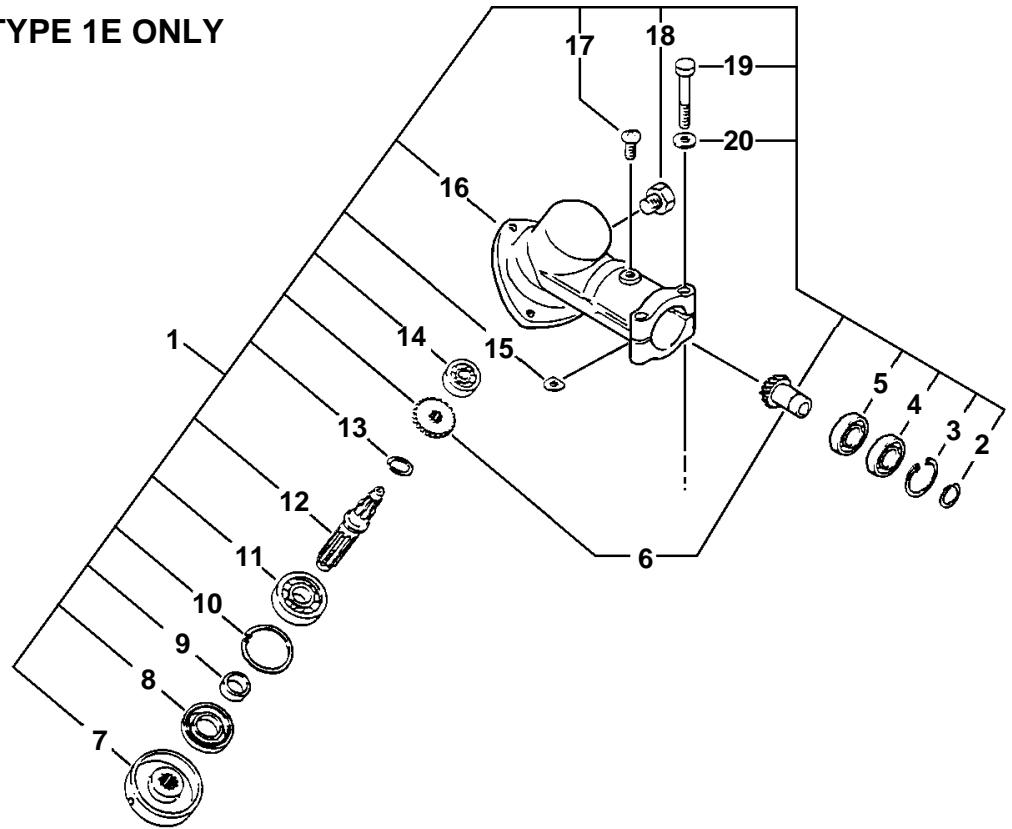

SRM-2100 TYPE 1E ONLY

ECHO SRM-2100 TYPE 1E - TYPE 1E - 12
SRM-2100 TYPE 1E & SRM-2110 TYPE 1ES/N 001001 - 750714

ECHO SRM-2100 TYPE 1E - TYPE 1E - 13
SRM-2100 TYPE 1E & SRM-2110 TYPE 1ES/N 750715 & UP

ECHO SRM-2100 TYPE 1E - TYPE 1E - 14

SRM-2100 TYPE 1E ONLY

1610402477311GEAR HOUSING ASYINCLUDES ITEMS 1-20
2900706000101CIRCLIP 10
3900702000221CIRCLIP 22
4900858069001BEARING, BALL 6900
5900855069001BEARING, BALL 6900
6610300448301GEAR SET, BEVEL
7610313477311PLATE, UPPER ADAPTER
8610413071301SEAL, OIL
9610315071301SPACER
10900702000321CIRCLIP 32
11900810062011BEARING, BALL 6201
12610360089311SHAFT, P.T.O.
13900706000121CIRCLIP 12
14900800006091BEARING, BALL 609
15610239041302WASHER, SHIM
16610460274301HOUSING, GEAR
17900242050101SCREW 5X10
18900100080081BOLT 8X8
19900100050352BOLT 5X35
20900600000052WASHER 5

SRM-2100 TYPE 1E & SRM-2110 TYPE 1ES/N 001001-750714

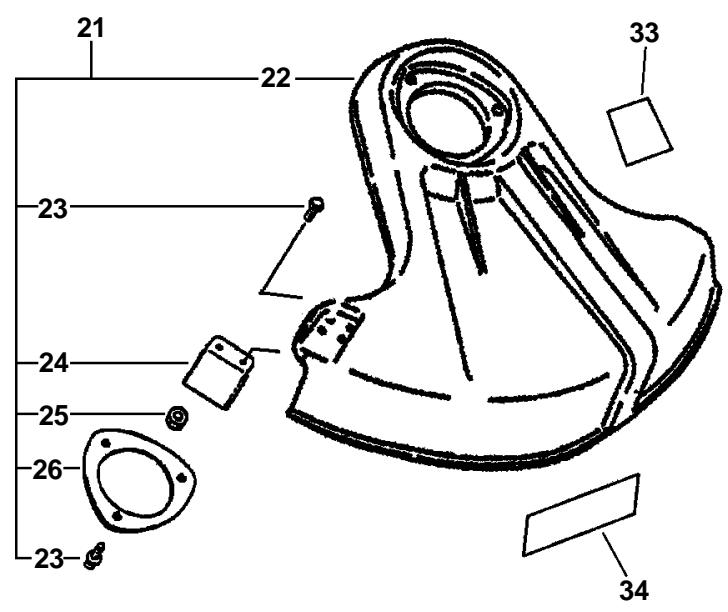

21699004409311SHIELD ASYINCLUDES ITEMS 22-26
22699010272311SHIELD, BLADE
23900242050165SCREW 5X16
24699016443301KNIFE, CORD
25900500000052NUT 5
26699018408301BRACKET, SHIELD

SRM-2100 TYPE 1E & SRM-2110 TYPE 1ES/N 750715 & UP

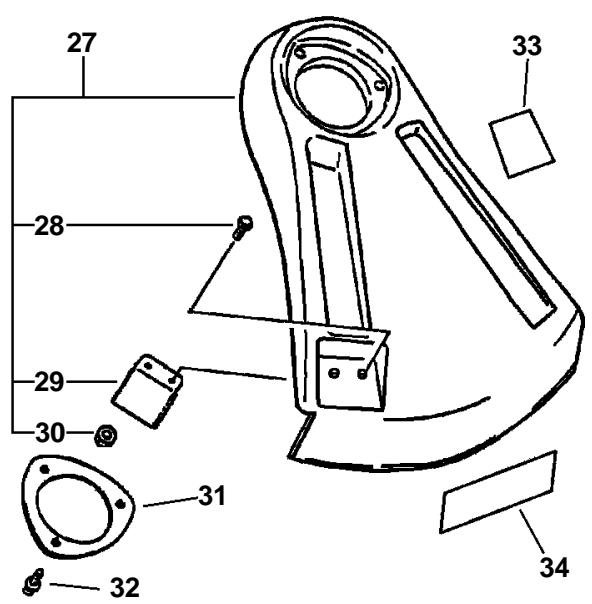

27P0210012601SHIELD ASYINCLUDES ITEMS 28-30
28900242050162SCREW 5X16
29699016443301KNIFE, CORD
30900500000052NUT 5
31699018408301BRACKET, SHIELD
32900242050163SCREW 5X16
33890168448301LABEL, CAUTION
34890118488301LABEL, ECHO

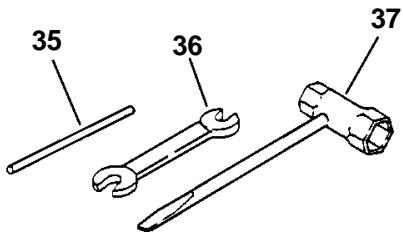

35897518011311LOCKING TOOL
36895112003301SPANNER 8X10
37895410080301WRENCH, W/SCREWDRIVER

ECHO SRM-2100 TYPE 1E - TYPE 1E - 15

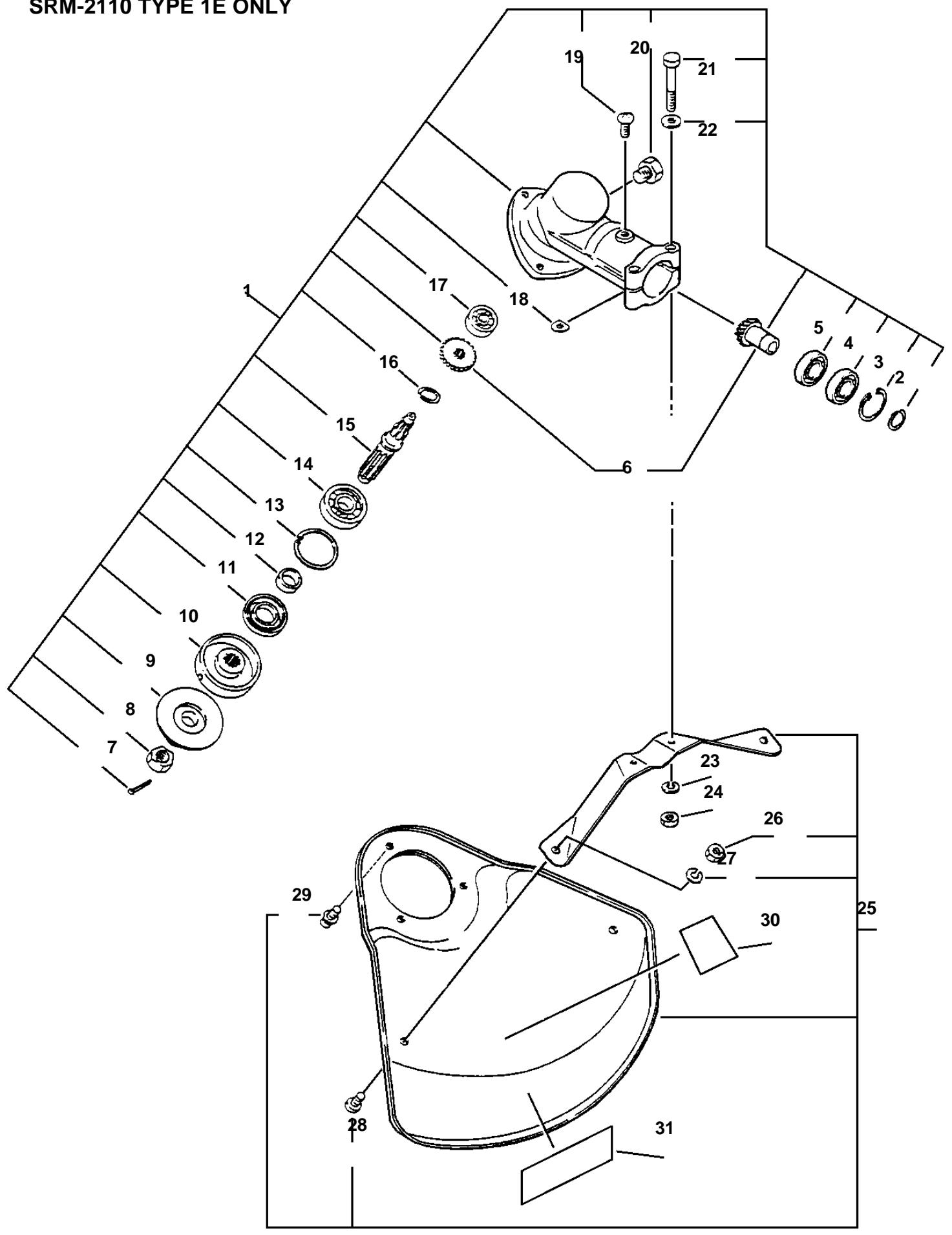

SRM-2110 TYPE 1E ONLY

ITEMPART NUMBERQTYDESCRIPTIONREMARKS
SRM-2110 TYPE 1E ONLY
1610402409301GEAR HOUSING ASYINCLUDES ITEMS 2-22
2900706000101CIRCLIP 10
3900702000221CIRCLIP 22
4900858069001BEARING, BALL 6900
5900855069001BEARING, BALL 6900
6610300448301GEAR SET, BEVEL
7900300200221PIN, SPLIT 2X22
8900511000101NUT 10 - LEFT HAND
9610314041311PLATE, ADAPTER - LOWER
10610338089301PLATE, ADAPTER - UPPER
11610413071301SEAL, OIL
12610315071301SPACER
13900702000321CIRCLIP 32
14900810362011BEARING, BALL 6201
15610360089311SHAFT, P.T.O.
16900706000121CIRCLIP 12
17900800006091BEARING, BALL 609
18610239041302WASHER, SHIM
19900242050101SCREW 5X10
20900100080081BOLT 8X8
21900100050352BOLT 5X35
22900600000052WASHER 5
23900605000052WASHER, SPRING 5
24900500000052NUT 5
25699000234311SHIELD ASYINCLUDES ITEMS 26-29
26900500000052NUT 5
27900605000052WASHER, SPRING 5
28900220050082SCREW 5X8
29900242050103SCREW 5X10
30890168448301LABEL, CAUTION
31890118488301LABEL, ECHO

S/N 001001 - 008042

ECHO SRM-2100 TYPE 1E - TYPE 1E - 16

ITEM PART NUMBER QTY DESCRIPTION

REMARKS

SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042
125200490301CARBURETOR C1U-K47 INCLUDES THE FOLLOWING:
1125344521302SCREW
2125342132101COVER, METERING DIAPHRAGM
3A B1DIAPHRAGM, METERING
4A B1GASKET, METERING DIAPHRAGM
5125339420301SCREW
6A1PIN, METERING ARM
7A1LEVER, METERING
8A1SPRING, METERING LEVER
9A1VALVE, INLET NEEDLE
10A1PLUG, WELCH
11125327151301CLIP
12125376490301NOZZLE, CHECK VALVE
13125316490301VALVE, THROTTLE
14125314139301SCREW
15125319420302SPRING, NEEDLE
16125353205602WASHER
17125318073601NEEDLE, LO SPEED
18125329098601CAP, LIMITER - LO SPEED
19125320073601NEEDLE, HIGH SPEED
20125329390301CAP, LIMITER - HIGH SPEED
21125313420301SPRING, THROTTLE RETURN
22125317490301SHAFT, THROTTLE
23125327139301CLIP
24125372420301SWIVEL
25A1STRAINDER
26A B1DIAPHRAGM, FUEL PUMP
27A B1GASKET, FUEL PUMP
28125383133101BASE, PURGE
29125378139301PIECE, FRICTION
30125334139301SCREW, IDLE ADJUST
31125381086601PUMP, PURGE
32125363116101RETainer, PURGE PUMP
33125310116102SCREW
A125300490301REPAIR KIT
B125303490301GASKET/DIAPHRAGM KIT

SRM-2100 TYPE 1E S/N 008043 & UP

SRM-2110 TYPE 1E S/N 501001 & UP

ECHO SRM-2100 TYPE 1E - TYPE 1E - 17

ITEM PART NUMBER QTY DESCRIPTION

REMARKS

2100 TYPE 1ES/N 008043 & UP & SRM-2110 TYPE 1ES/N 501001 & UP

12520013312 1 CARBURETOR C1U-K52 INCLUDES THE FOLLOWING ITEMS:

1 12534452130 2 SCREW

2 12534213210 COVER, METERING CHAMBER

3 A B 1 DIAPHRAGM, METERING

4 A B 1 GASKET, DIAPHRAGM METERING

5 12533942030 SCREW, METERING PIN

6 A 1 PIN, METERING LEVER

7 A 1 LEVER, METERING

8 A 1 SPRING, METERING LEVER

9 A 1 VALVE,NEEDLE

10 A 1 PLUG, WELCH

11 12532715130 1 CLIP, THROTTLE SHAFT

12 12537649030 1 NOZZLE, CHECK VALVE

13 12531649030 1 VALVE, THROTTL

14 12531413930 1 SCREW, THROTTLE VALVE

15 12532013310 1 NEEDLE, HIGH SPEED

16 12532939030 1 CAP, LIMITER H.S.

17 12531813310 1 NEEDLE,IDLE

18 12532909860 1 CAP, LIMITER L.S.

19 12531342030 1 SPRING, THROTTLE RETURN

20 1 SHAFT, THROTTLE

21 12532713930 CLIP, SWIVEL

22 12537242030 1 SWIVEL

23 A 1 STRainer

24 A B 1 DIAPHRAGM, FUEL PUMP

25 A B 1 GASKET, FUEL PUMP

26 12538313310 BASE, PURGE

27 12533306960 SPRING, IDLE ADJUSTER

28 12533406960 SCREW, IDLE ADJUST

29 12538108660 PUMP, PURGE

30 12536311610 RING

31 12531011610 2 SCREW

A 12530013310 REPAIR KIT

B 12530313310 GASKET/DIAPHRAGM KIT

ECHO SRM-2100 TYPE 1E - TYPE 1E - 18

ECHO SRM-2100 TYPE 1E - TYPE 1E - 19

ITEMPART NUMBERQTYDESCRIPTIONREMARKS
1351301092301BRACKET SET
2900142050254BOLT 5X25
3900142060302BOLT 6X30
4351210234301HANDLE - LEFT
5351010055301HANDLE - RIGHT
6351311023301GRIP, HANDLE - LEFT
7351315221301GRIP, HANDLE - RIGHT
8178024418301HOLDER, TRIGGER
9178110053301SCREW
10900242050251SCREW 5X25
11900560000051LOCKNUT
12900500000051NUT 5
13163400453301SWITCH, IGNITION
14178010235301TRIGGER, THROTTLE
15178043052301SPRING, TRIGGER RETURN
16178001413301CABLE, THROTTLE
17178106053301BAND
18900220050101SCREW
19178111049301CLAMP
20178127080301TUBE
21178021055302NUT 6
22900600000062WASHER
23900100050121BOLT 5X12
24301205213301HOOK, LIFTING
25301015053301RING, HARNESS
26301000521311HARNESS ASY
27301105418301PAD, WAIST

ECHO SRM-2100 TYPE 1E - TYPE 1E - 20

ITEMPART NUMBERQTYDESCRIPTIONREMARKS
1P0210004601BRACKET SETINCLUDES ITEMS 2-3
2900142050254BOLT 5X25
3900142060302BOLT 6X30
4351210055301HANDLE - LEFT
5351010055301HANDLE - RIGHT
6351311224301GRIP, HANDLE - LEFT
7351315221301GRIP, HANDLE - RIGHT
8178024518301BRACKET, THROTTLE
9178110053301SCREW
10900242050251SCREW 5X25
11900560000051LOCKNUT 5
12900500000051NUT 5
13163401492301SWITCH, IGNITION
14178010064601TRIGGER, THROTTLE
15178043052301SPRING, RETURN
16178001413301CABLE, THROTTLE
17178106053301BAND
18900220050101SCREW 5X10
19178111049301CLAMP
20178127080301TUBE
21900503000062NUT 6
22900600000062WASHER 6
23301200213301HOOK
24900100050121BOLT 5X12
25699000234311SHIELD ASYINCLUDES ITEMS 26-31
26699015234311BRACKET
27900605000054WASHER, SPRING 5
28900500000054NUT 5
29699010235311SHIELD
30900220050082SCREW 5X8
31900242050103SCREW 5X10
32890168410301LABEL, CAUTION
33890118488301LABEL, ECHO
34610338089301PLATE, FITTING - UPPER
35610314041311PLATE, FITTING - LOWER
36900511000101NUT 10, LEFT
37900300200221PIN, SPLIT (10 PER PACKAGE)
38301000521311HARNESS ASY
39301105418301PAD, WAIST

ECHO SRM-2100 TYPE 1E - TYPE 1E - 21

ECHO SRM-2100 TYPE 1E - TYPE 1E - 22

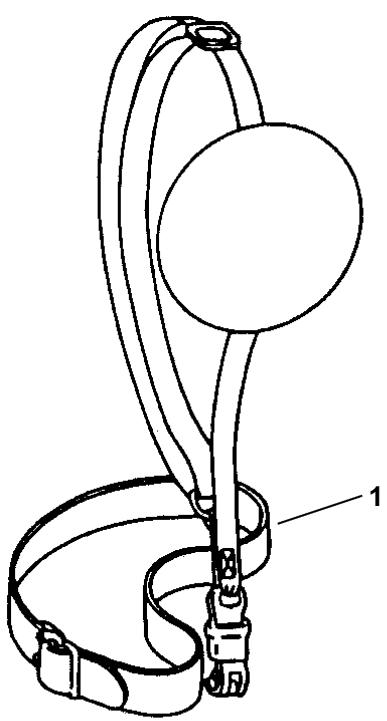

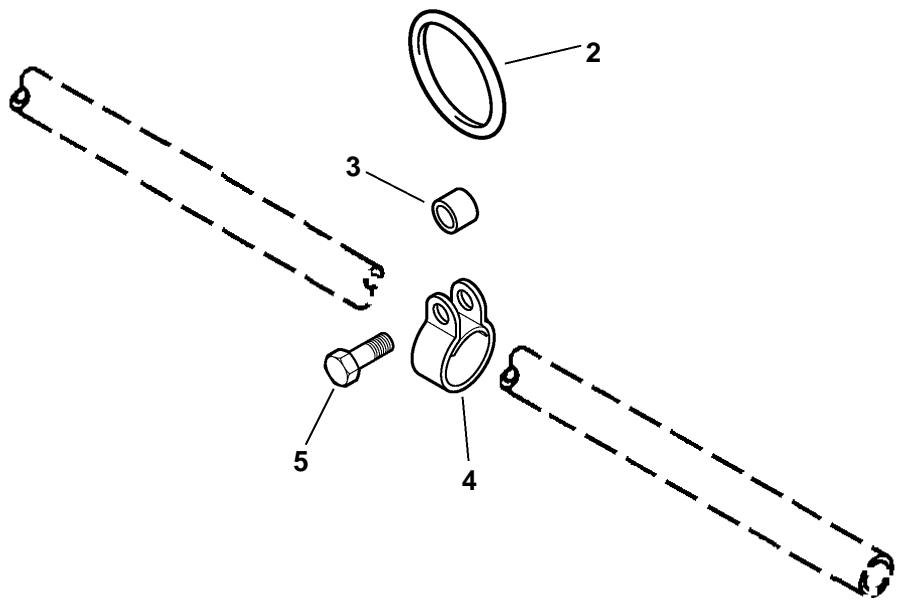

ITEMPART NUMBERQTYDESCRIPTIONREMARKS
1301000521311HARNESS ASY
2301305243301RING
3699012033301SPACER
4301207089301RING, CLAMP
5900100050181BOLT

ECHO SRM-2100 TYPE 1E - TYPE 1E - 23

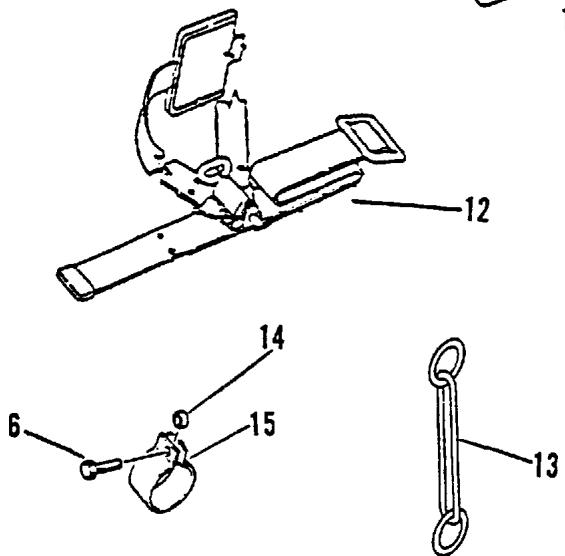

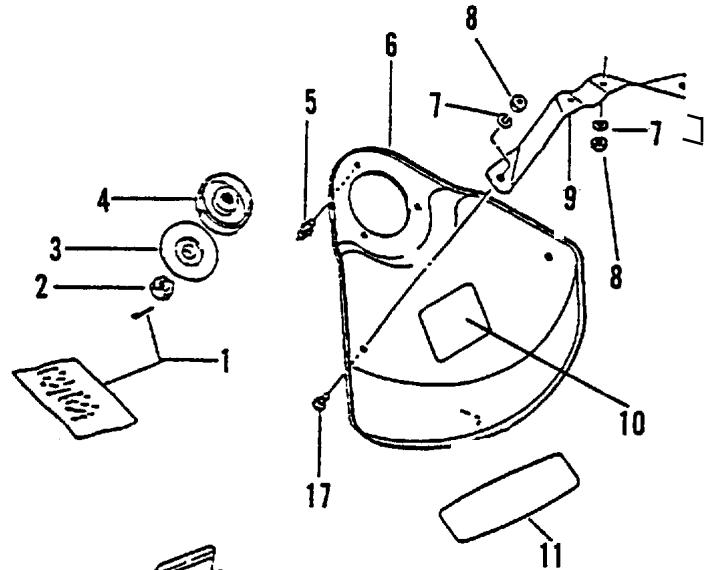

99944200410 BLADE CONVERSION KIT

ECHO SRM-2100 TYPE 1E - TYPE 1E - 24

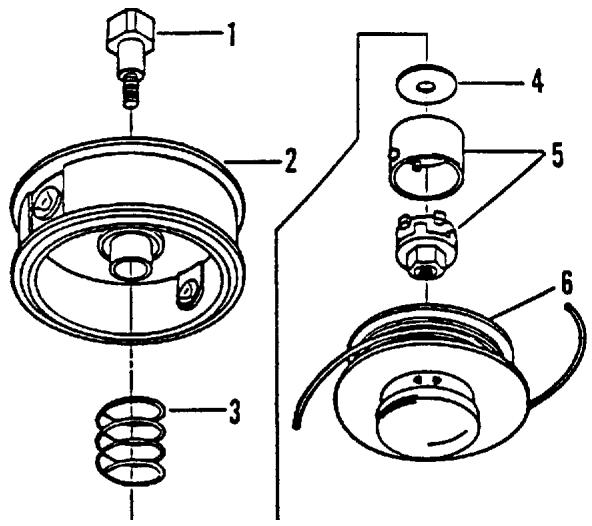

21560050 SEMI-AUTO HEAD

ECHO SRM-2100 TYPE 1E - TYPE 1E - 25

ECHO SRM-2100 TYPE 1E - TYPE 1E - 26
21560060 MANUAL HEAD ASY

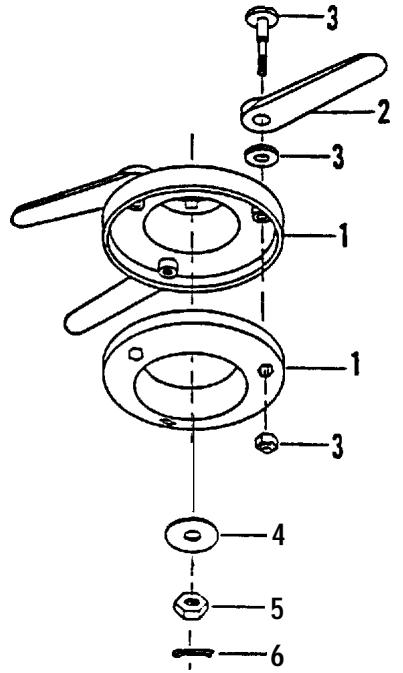

ECHO SRM-2100 TYPE 1E - TYPE 1E - 27
215211 PRO MAXI-CUT

ECHO SRM-2100 TYPE 1E - TYPE 1E - 28
69500120330

ECHO SRM-2100 TYPE 1E - TYPE 1E - 29
69600120330

ITEM PART NUMBER QTY DESCRIPTION

REMARKS

99944200410 BLADE CONVERSION KIT

1 90030020022 1 PIN, SPLIT (10 PER PACKAGE)

2 90051100010 1 NUT 5 - LEFT HAND

3 61031404131 1 PLATE, FITTING - LOWER

4 61033808930 1 PLATE, FITTING - UPPER

5 90024205010 3 SCREW 5X10

6 69901023531 1 SHIELD, METAL

7 90060500005 4 WASHER, SPRING 5

8 90050000005 4 NUT 5

9 69901523431 1 BRACKET, SHIELD

0 89016841030 1 DECAL, CAUTION

1 89011848830 1 DECAL, ECHO

2 30100052130 1 HARNESS ASY

3 30130524330 1 LINK

4 69901203330 1 SPACER

5 30120708930 1 LINK, HOOK

6 90010005018 1 BOLT 5X18

7 90022005008 2 SCREW 5X8

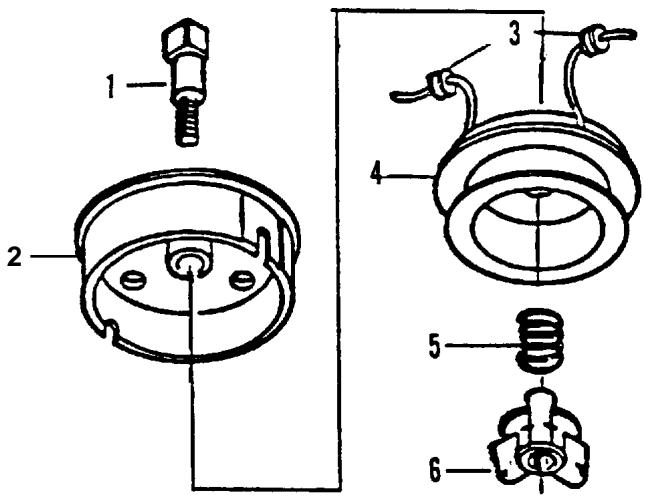

21560050 SEMI-AUTO HEAD

1 215601 1 BOLT, SHAFT M10X1.25 - LEFT HAND

2 215602 1 DRUM W/EELETS

3 215603 1 SPRING

4 215604 1 WASHER

5 215609 1 DRIVE, OUTER & CAM, INNER - LEFT HAND

6 215607 1 SPOOL - LINE DIAMETER 0.095

21560060 MANUAL HEAD ASY

1 215601 1 BOLT, SHAFT M10X1.25 - LEFT HAND

2 215702 1 HOUSING

3 215703 2 EYELETS

4 215704 1 SPOOL - LINE DIAMETER 0.095

5 215705 1 SPRING

6 215706 1 KNOB

215211 PRO MAXI-CIT

1 N/A 1 BODY, HEAD - NOT AVAILABLE SEPARATELY USE ORIGINAL PART NUMBER 215211

2 215212 1 BLADE SET (3)

3 215213 1 FASTENER SET (3)

4 215103 1 WASHER, MOUNTING

5 90051100010 1 NUT, MOUNTING M10X1.25

6 90030020022 2 COTTER PIN

69500120330 8 INCH BRUSH BLADE

69500120330 8 INCH, 8O TOOTH KNIFE BLADE

Assistant notice
Powered by Anthropic
En attente de votre message
Informations produit

Marque : ECHO

Modèle : SRM-2100 TYPE 1E

Catégorie : Débroussailleuse
