F3S-TGR-N C - Capteur de sécurité OMRON - Notice d'utilisation et mode d'emploi gratuit

Type de capteur	Capteur magnétique non-contact
Fonction	Interrupteur de sécurité pour portes de protection
Type de contact	Contacts normalement fermés ou normalement ouverts
Matériau du boîtier	Plastique ou acier inoxydable
Longueur du câble	2 m, 5 m ou 10 m
Connecteur	Connecteur mâle M12, 8 broches (optionnel)
Indicateur	LED pour diagnostic facile
Montage	Vis de fixation avec cache pour hygiène
Compatibilité	Fonctionne avec garnitures en acier inoxydable
Normes de sécurité	Conforme aux catégories de sécurité jusqu'à 4, EN 954-1, EN 60947-5-3
Utilisation	Verrouillage de charnières, portes coulissantes ou amovibles
Résistance à l'usure	Sans abrasion, pas de particules
Tolérances mécaniques	Excellente couverture
Type de capteur disponible	Allongé, petit, miniature
Protection	Non précisé
Température de fonctionnement	Non précisé

FOIRE AUX QUESTIONS - F3S-TGR-N C OMRON

Quel est l'objectif principal de l'OMRON F3S-TGR-N C?

L'OMRON F3S-TGR-N C est un capteur de sécurité conçu pour détecter la présence d'objets et de personnes afin de garantir la sécurité des machines.

Comment installer l'OMRON F3S-TGR-N C?

Pour installer le capteur, suivez les instructions fournies dans le manuel d'utilisation. Assurez-vous de le monter à une hauteur appropriée et de le connecter correctement au système électrique.

Que faire si le capteur ne s'active pas?

Vérifiez que le capteur est correctement alimenté et que les connexions sont sécurisées. Assurez-vous également que rien ne bloque la zone de détection.

Comment régler la sensibilité du capteur?

La sensibilité du capteur peut être ajustée via les paramètres de configuration mentionnés dans le manuel. Consultez le section dédiée à l'ajustement de la sensibilité.

Quels types de dommages peuvent affecter l'OMRON F3S-TGR-N C?

Le capteur peut être endommagé par des chocs physiques, des conditions environnementales extrêmes telles que l'humidité ou la chaleur excessive, ou encore par des surtensions électriques.

Comment effectuer un test de fonctionnement du capteur?

Pour tester le fonctionnement, activez le capteur et vérifiez s'il détecte les objets comme prévu. Suivez les procédures de test recommandées dans le manuel d'utilisation.

Y a-t-il des mises à jour de firmware disponibles pour l'OMRON F3S-TGR-N C?

Vérifiez sur le site officiel d'OMRON ou contactez le service client pour savoir si des mises à jour de firmware sont disponibles pour votre modèle.

Quelle est la garantie de l'OMRON F3S-TGR-N C?

L'OMRON F3S-TGR-N C est généralement couvert par une garantie limitée de 1 à 3 ans, selon le revendeur. Consultez la documentation fournie pour plus de détails.

Comment contacter le service client d'OMRON?

Vous pouvez contacter le service client d'OMRON via leur site internet ou par téléphone. Les informations de contact sont disponibles dans la section 'Assistance' du site.

MODE D'EMPLOI F3S-TGR-N C OMRON

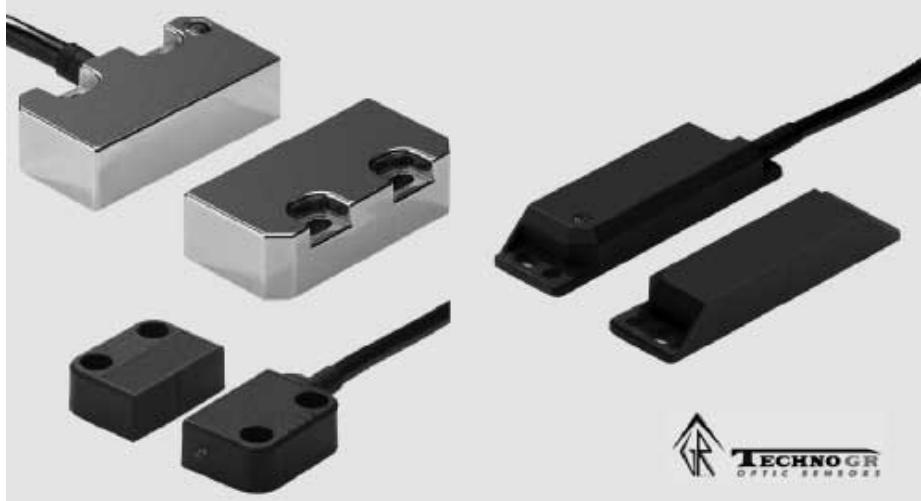

Compact Magnetic Non-contact Safety Switches

F3S-TGR-N□C

Magnetic Coded Non-contact switches are designed to interlock hinge, sliding or removal guard doors. All coded Non-contact switches have a LED for easy diagnosis.

• Coded actuator for applications requiring anti tamper switches
• Non-contact = no abrasion = no particles
• Excellent coverage of mechanical tolerances
• Can operate behind stainless steel fittings
• Screw-hole covers support hygienic design (NMPC)
• Conforms to safety categories up to 4 acc. EN 954-1 and PDF-M acc. EN60947-5-3.

Model Number Structure

F3S-TGR-N□C-□-□ 12 3 4

1. Type

L: Elongated Sensor
S: Small Sensor for NLPC and NSMC
M: Miniature Sensor

1. Housing Material

P: Plastic Housing
M: Stainless Steel Housing

3: Contact configuration

20: 2 Normally Closed Contacts (NC)
21: 2 Normally Closed Contacts (NC) + 1 Normally Open Contact (NO)

4: Cable Length/connection

02: 2m Cable
05: 5m Cable
10: 10m Cable
M1J8: M12 male connector, 8pin

4: Cable Length/connection for NMPC

02: 2m Cable, cable exit to the left
05: 5m Cable, cable exit to the left
10: 10m Cable, cable exit to the left
M1J8: M12 male connector, 8-pin, cable exit to the left

Ordering Information

Elongated Sensors	Type	Cable Connection	Contact Configuration
F3S-TGR-NLPC-20-02	2 m pre-wired	2NC
F3S-TGR-NLPC-20-05 *	5 m pre-wired	2NC
F3S-TGR-NLPC-20-10	10 pre-wired	2NC
F3S-TGR-NLPC-20-M1J8	M12, 8-pin	2NC
F3S-TGR-NLPC-21-02	2 m pre-wired	2NC/1NO
F3S-TGR-NLPC-21-05 *	5 m pre-wired	2NC/1NO
F3S-TGR-NLPC-21-10	10 pre-wired	2NC/1NO
F3S-TGR-NLPC-21-M1J8	M12, 8-pin	2NC/1NO

• . Preferred stock items.

Small Sensor	Type	Cable Connection	Contact Configuration
	F3S-TGR-NSMC-20-02	2 m pre-wired	2NC
	F3S-TGR-NSMC-20-05 *	5 m pre-wired	2NC
	F3S-TGR-NSMC-20-10	10 pre-wired	2NC
	F3S-TGR-NSMC-20-M1J8	M12, 8-pin	2NC
	F3S-TGR-NSMC-21-02	2 m pre-wired	2NC/1NO
	F3S-TGR-NSMC-21-05 *	5 m pre-wired	2NC/1NO
	F3S-TGR-NSMC-21-10	10 pre-wired	2NC/1NO
	F3S-TGR-NSMC-21-M1J8	M12, 8-pin	2NC/1NO

• . Preferred stock items.

Miniature Sensor	Type	Cable Connection	Contact Configuration
	F3S-TGR-NMPC-20-02	2m pre-wired	2NC
	F3S-TGR-NMPC-20-05 *	5m pre-wired	2NC
	F3S-TGR-NMPC-20-10	10m pre-wired	2NC
	F3S-TGR-NMPC-20-M1J8	M12, 8pin	2NC
	F3S-TGR-NMPC-21-02	2m pre-wired	2NC/1NO
	F3S-TGR-NMPC-21-05 *	5m pre-wired	2NC/1NO
	F3S-TGR-NMPC-21-10	10m pre-wired	2NC/1NO
	F3S-TGR-NMPC-21-M1J8	M12, 8pin	2NC/1NO

• . Optional cable exit to the right is available for F3S-TGR-NMPC - types. Please contact your Omron distributor

Accessories

Safety relay units	G9SA	G9SA-301 G9SA-501 G9SA-321-T075 G9SA-321-T15 G9SA-321-T30
	G9SB	G9SB-2002-C G9SB-2002-A G9SB-200-B G9SB-200-D G9SB-3012-A G9SB-301-B G9SB-3012-C G9SB-301-D
	G9SX	G9SX-BC202-R_
		G9SX-AD322-T15-R_ G9SX-AD322-T150-R_ G9SX-ADA222-T15-R_ G9SX-ADA222-T150-R_
Programmable Controllers	Standalone controller 16 inputs	NE1A-SCPU01L
	Standalone controller 40 inputs	NE1A-SCPU02L
	Safety Network controller 16 inputs	NE1A-SCPU01-V1
	Safety Network controller 40 inputs	NE1A-SCPU02
	Safety input terminal	DST1-ID12SL-1
	Safety mixed terminal	DST1-MD16SL-1
	Safety mixed terminal (relay out)	DST1-MRD08SL-1
Cables 8-pin	2 m	F39-TGR-CVL-B-2-R
	5 m	F39-TGR-CVL-B-5-R
	10 m	F39-TGR-CVL-B-10-R
T-Connector Connection cable	for M12 connector - types	F39-TGR-NT
	2m M12-8pin, 2m	F39-TGR-CVL-N-2
	5m M12-8pin, 5m	F39-TGR-CVL-N-5
	10m M12-8pin, 10m	F39-TGR-CVL-N-10

Mechanical Data

		Elongated Sensor	Small Sensor	Miniature Sensor
Operating distance	OFF → ON (Sao)	12mm Close		8mm Close
	ON → OFF (Sar)	17mm Open		12mm Open
Actuator approach speed	Min.	4mm/s
	Max.	1000mm/s
Switching frequency		1Hz
Operating temperature		-25°C...+80°C	-25°C...+105°C	-25°C...+80°C
Enclosure protection	Flying lead M12 connector	IP67
Material		Black Polycarbonate	Stainless Steel 316	Black Polyester
Mounting bolts		2 x M4 recommended
Tightening torque		1Nm		0,8Nm
Mounting position		any
Mechanical life expectancy		10.000.000 cycles
Electrical life expectancy		1.000.000 cycles
	De-rating Safety factor 2	2.000.000 cycles @ 24VDC/100mA
Cable diameter and material		6mm PVC

Electrical Data

		Elongated Sensor	Small sensor	Miniature Sensor
Power supply		24VDC ±15%
Power consumption	Max.	50mA
Switching current	Min.	10mA @ 10VDC
Rated loads	NC contacts	100mA @ 24VDC
	NO contacts	100mA @ 24VDC
Insulation resistance		100MΩ
Rated insulation voltage		250VAC
Output type		electronic output (potential-free optocoupler output)

Approved Standards

EN standards certified by TÜV Rheinland
EN 954-1
EN 60204-1
EN/IEC 60947-5-3
- UL 508, CSA C22.2
BS 5304
EN 1088-1 conformance

Connection diagram

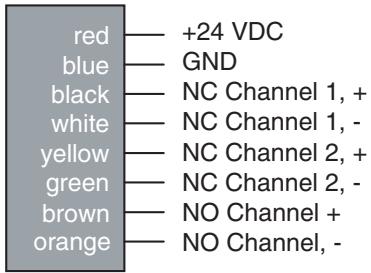

Cable version

Pin No.

Signal name

M12-Connector version

Pin No.

Signal name

Wire color (F39-TGR-SB4-CVLB)

2 +24 VDC

3 GND

7 NC Channel 1, +

1 NC Channel 1, -

4 ——NC Channel 2, +

6 NC Channel 2, -

5 NO Channel +

8 NO Channel, -

— Brown

Green

Blue

White

Yellow

Pink

Grey

Red

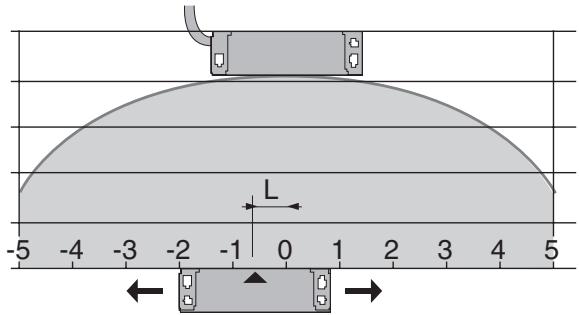

Operating characteristics

5 mm misalignment tolerance after setting

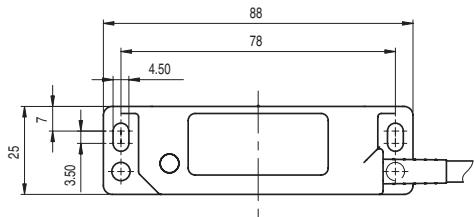

Elongated Sensor (Sensor/Actuator)

F3S-TGR-NLPC

Small Sensor (Sensor/Actuator)

F3S-TGR-NSMC

Miniature Sensor (Sensor/Actuator)

F3S-TGR-NMPC

Wiring examples (Single head connection up to category 4 acc. EN954-1)

G9SA

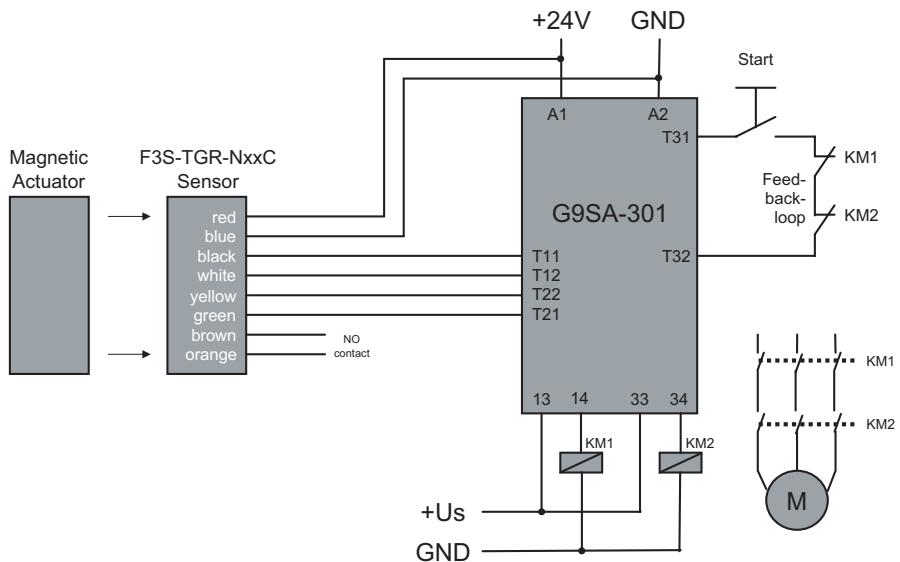

Single Sensor Application with G9SA-301

(up to Safety Category 4 acc. EN954-1)

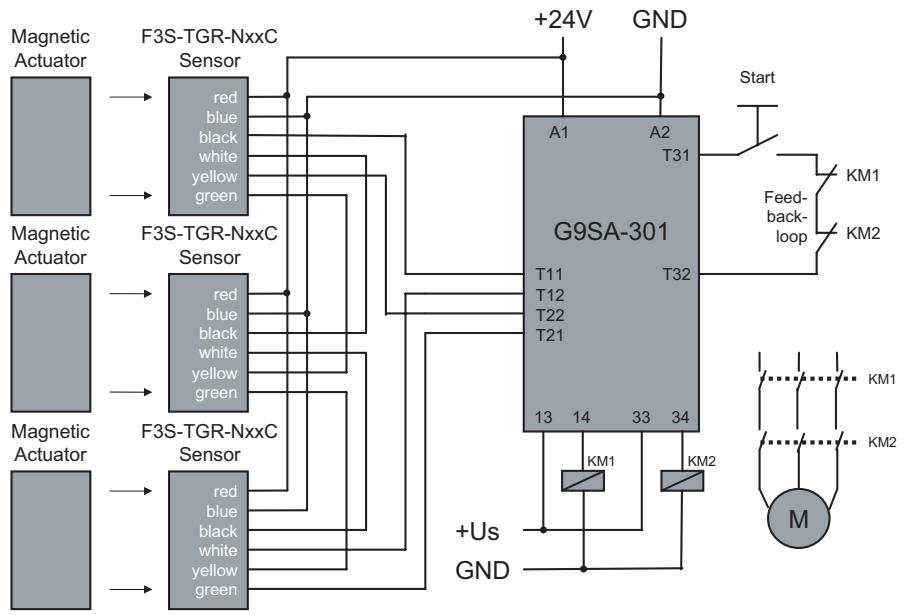

Series connection Application, up to 6 Sensors with G9SA-301

(up to Safety Category 3 acc. EN954-1)

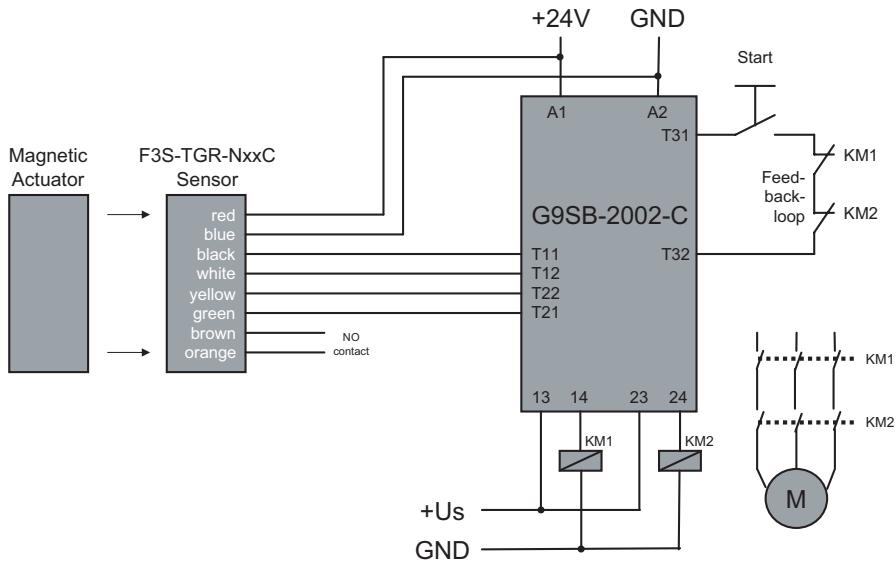

G9SB Single Sensor Application with G9SB-2002-C

(up to Safety Category 4 acc. EN954-1)

Series connection Application, up to 6 Sensors with G9SB-2002-C

(up to safety Category 3 acc. EN954-1)

G9SX

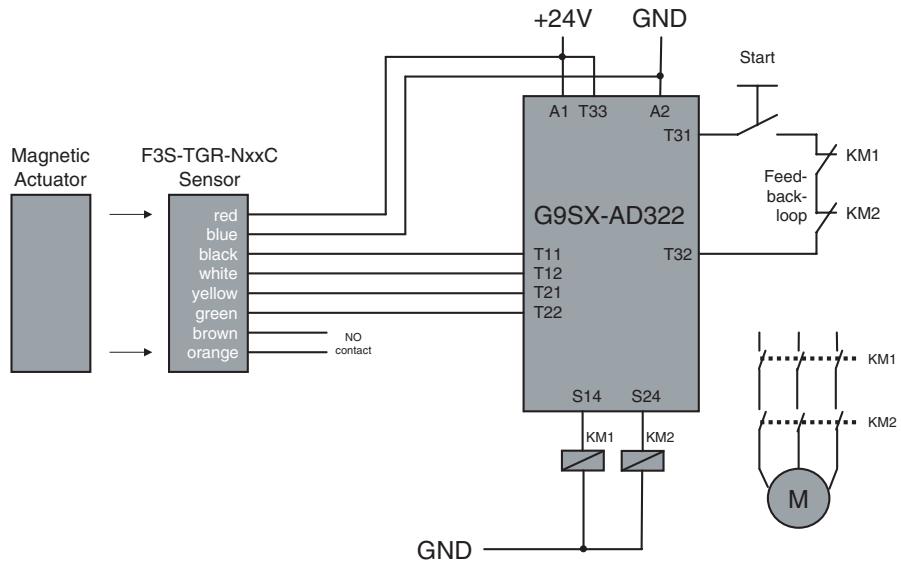

Single Sensor Application with G9SX-AD322-T15

(up to Safety Category 4 acc. EN954-1)

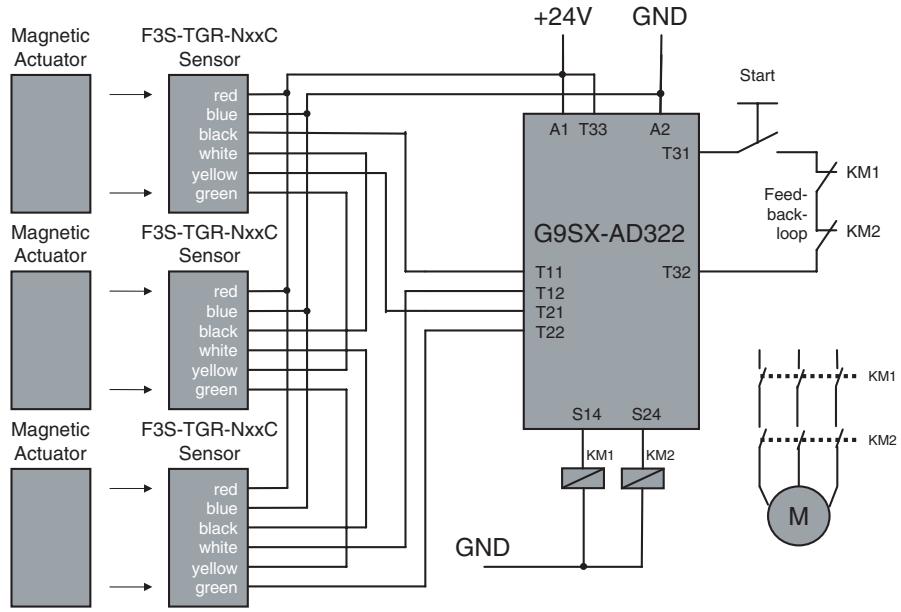

Series connection Application, up to 6 Sensors with G9SX-AD322-T15

(up to Safety Category 3 acc. EN954-1)

DeviceNet Safety NE1A and DST1-I/O-Terminals

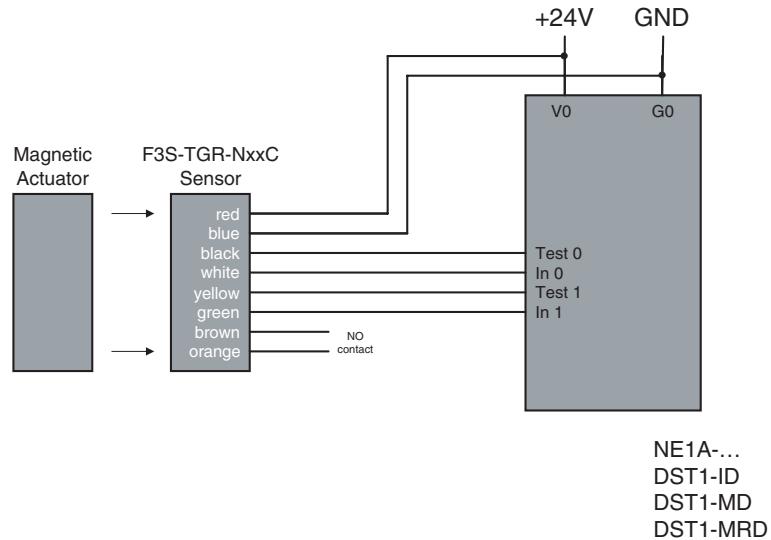

Single Sensor Application with NE1A and DST1-Safety-IO

(up to safety Category 4 acc. EN954-1)

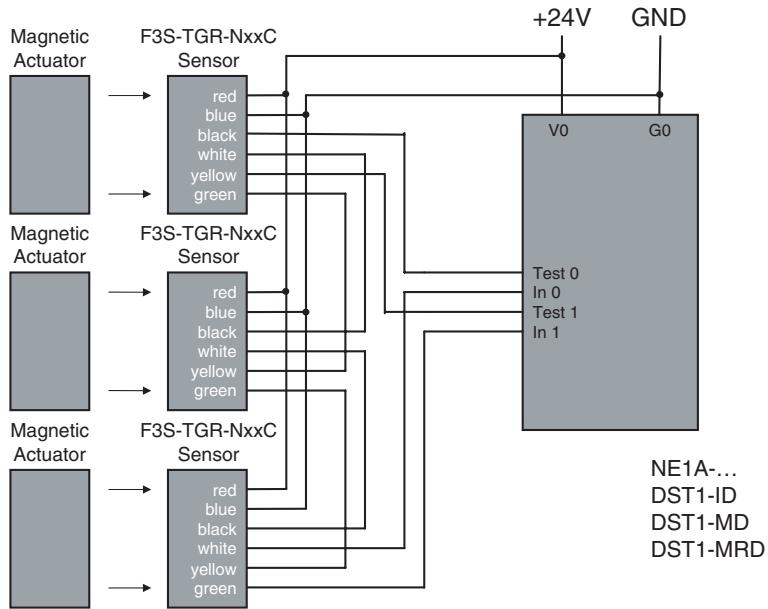

Series connection Application, up to 6 Sensors with NE1A or DST1-Safety-IO

(up to Safety Category 3 acc. EN954-1)

Application with multiple Sensors with NE1A or DST1-Safety-IO

(up to Safety Category 4 acc. EN954-1)

WARNING

Be sure to turn OFF the power before performing wiring. Do not touch charge parts (e.g., terminals) while power is ON. Doing so may result in electric shock.

Do not allow the actuator to come close to the switch with the door open. Doing so may cause machinery to start operating and may result in injury.

Keep actuators (magnets) away from magnetically sensitive equipment like PC harddisks, floppy disks etc. The magnetic field of the magnet will damage existing data.

CAUTION

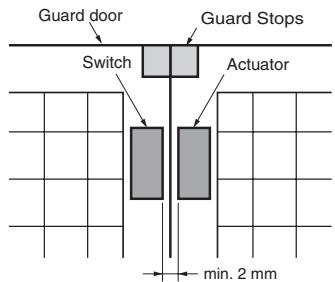

Use guard stops in the way shown below to ensure that the switch and actuator do not make contact when the guard door is closed.

max. 5 mm (Standard Sensor) max. 4 mm (Elongated Sensor)

Application Precautions

• Do not use the product in locations subject to explosive or flammable gases.
• Do not use load currents exceeding the rated value.
• Be sure to wire each conductor correctly.
• Be sure to confirm correct operation after completing mounting and adjustment.
• Do not drop or attempt to disassemble the product.
• Be sure to use the correct combination of switch and actuator.
• Use a power supply of the specified voltage. Do not use power supplies with large ripples or power supplies that intermittently generate incorrect voltages.
• Capacitors are consumable and require regular maintenance and inspection.

Precautions for Safe Use

Mounting Direction of Switch and Actuator

The Sensor will not operate properly if the switch and actuator come towards each other diagonally. The Sensor will, however, operate properly if the switch and actuator come towards each other head-on, horizontally or vertically (as long as the faces have the same orientation).

CORRECT

CORRECT

CORRECT

INCORRECT

Mutual Interference

If the switch and actuator are mounted in parallel, be sure to separate them by at least 25mm , as shown below.

Using for Hinged Doors

On hinged doors, install the Sensor at an opening edge as shown below.

Solvents

Ensure that solvents, such as alcohol, thinner, trichloroethane, or gasoline do not adhere to the product. Solvents may cause markings to fade and components to deteriorate.

Installation Location

Do not install the product in the following locations. Doing so may result in product failure or malfunction.

• Locations subject to direct sunlight
• Locations subject to humidity levels outside the range 35% to 85% or subject to condensation due to extreme temperature changes
• Locations subject to corrosive or flammable gases
• Locations subject to shocks or vibration in excess of the product ratings
• Locations subject to dust (including iron dust) or salts

Take appropriate and sufficient countermeasures when using the product in the following locations.

• Locations subject to static electricity or other forms of noise
• Locations subject to possible exposure to radioactivity
• Locations subject to power supply lines
• It is advisable to mount the switches on non ferrous materials. The presence of ferrous material can effect switching sensitivity.

Wiring

Perform wiring using wire with the following dimensions.

Stranded wire: 2.5 mm^2

Solid wire: 4.0 mm^2

Tighten the terminal screws with the specified torque. Not doing so may result in malfunction or abnormal heat generation.

Terminal screw tightening torque: 1 Nm for NLPC and NSMC 0,8 Nm for NMPC

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
