MODE D'EMPLOI IPC LEICA

The Versatile Alternatives

Envision the new Leica IP C and Leica IP S

ink jet printers in your laboratory -

and see the benefits:

Permanent, legible prints
- Direct printing on cassettes and slides
Reduction of human errors through automation
Traceability of specimens using bar code technology

"With the user, for the user"

Leica Microsystems

Leica Microsystems operates globally in four divisions, where we rank with the market leaders.

- Life Science Division

The Leica Microsystems Life Science Division supports the imaging needs of the scientific community with advanced innovation and technical expertise for the visualization, measurement, and analysis of microstructures. Our strong focus on understanding scientific applications puts Leica Microsystems' customers at the leading edge of science.

- Industry Division

The Leica Microsystems Industry Division's focus is to support customers' pursuit of the highest quality end result. Leica Microsystems provide the best and most innovative imaging systems to see, measure, and analyze the microstructures in routine and research industrial applications, materials science, quality control, forensic science investigation, and educational applications.

- Biosystems Division

The Leica Microsystems Biosystems Division brings histopathology labs and researchers the highest-quality, most comprehensive product range. From patient to pathologist, the range includes the ideal product for each histology step and high-productivity workflow solutions for the entire lab. With complete histology systems featuring innovative automation and Novocastra™ reagents, Leica Microsystems creates better patient care through rapid turnaround, diagnostic confidence, and close customer collaboration.

Surgical Division

The Leica Microsystems Surgical Division's focus is to partner with and support surgeons and their care of patients with the highest-quality, most innovative surgical microscope technology today and into the future.

The statement by Ernst Leitz in 1907, "with the user, for the user," describes the fruitful collaboration with end users and driving force of innovation at Leica Microsystems. We have developed five brand values to live up to this tradition: Pioneering, High-end Quality, Team Spirit, Dedication to Science, and Continuous Improvement. For us, living up to these values means: Living up to Life.

Active worldwide

Australia:	North Ryde	Tel. [phone]	Fax [phone]
Austria:	Vienna	Tel. [phone]	Fax [phone]
Belgium:	Groot Bijngaarden	Tel. [phone]	Fax [phone]
Canada:	Richmond Hill/Ontario	Tel. [phone]	Fax [phone]
Denmark:	Herlev	Tel. [phone]	Fax [phone]
France:	Nanterre Cedex	Tel. [phone]	Fax [phone]
Germany:	Wetzlar	Tel. [phone]	Fax [phone]
Italy:	Milan	Tel. [phone]	Fax [phone]
Japan:	Tokyo	Tel. [phone]	Fax [phone]
Korea:	Seoul	Tel. [phone]	Fax [phone]
Netherlands:	Rijswijk	Tel. [phone]	Fax [phone]
People's Rep. of China:	Hong Kong	Tel. [phone]	Fax [phone]
Portugal:	Lisbon	Tel. [phone]	Fax [phone]
Singapore		Tel. [phone]	Fax [phone]
Spain:	Barcelona	Tel. [phone]	Fax [phone]
Sweden:	Kista	Tel. [phone]	Fax [phone]
Switzerland:	Heerbrugg	Tel. [phone]	Fax [phone]
United Kingdom:	Milton Keynes	Tel. [phone]	Fax [phone]
USA:	Bannockburn/llinois	Tel. [phone]	Fax [phone]

and representatives in more than 100 countries

www.leica-microsystems.com

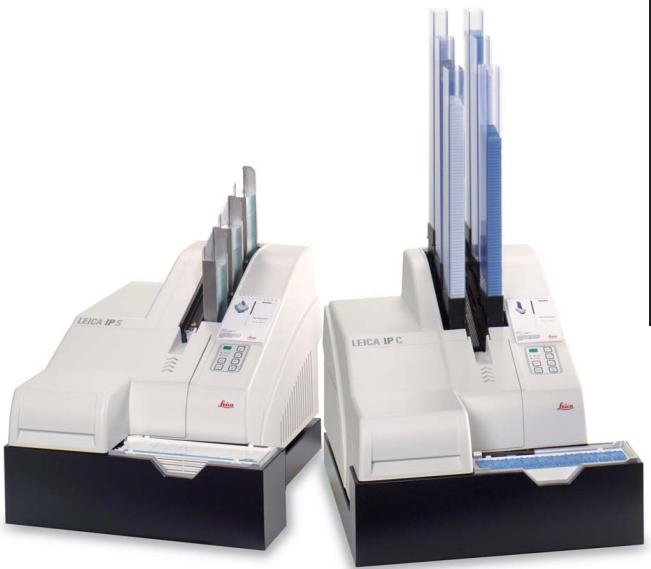

Leica IPC and Leica IPS

Versatile, Automated Printing Systems

for Tissue Cassettes and Microscope Slides

Living up to Life

Leica IPC and Leica IPSInk Jet Printers –

Errors in manual processes are never entirely avoidable - particularly when it comes to tasks such as labeling tissue cassettes and microscope slides. In accuracies can occur in a number of different ways:

Poor legibility of handwritten data

• Mixing up labels

• Transposed numbers

Potential loss of important data

These problems may have serious implications in any work environment, but in sensitive areas such as laboratories, incorrectly or poorly labeled cassettes and slides have dire consequences.

By automating these processes with the new Leica IP C cassette and IP S slide ink jet printers, Leica makes a crucial contribution to solving these problems.

Versatile Printing

that is Legible and Permanent

Leica IPC Cassette Printer

Leica IPS Slide Printer

Your Cassettes and Slides

Will Read Like Never Before

The Leica IP C and IP S printers are perfectly suited for laboratories where high volumes of tissue cassettes and/or microscope slides need to be permanently labeled.

The Leica IP C has been designed for versatile printing of tissue cassettes, including cassettes with lids and different imprint angles. The Leica IP S prints on most standard microscope slides, taking only four seconds per print when running in serial mode. The patented ink, specially designed for Leica, is resistant to most of the chemical exposure and physical wear that typically occurs during specimen processing and staining. Whether alphanumeric characters, bar codes (e.g. data matrix codes) or logos are printed, the print resolution is always excellent with good legibility. Reliable archiving, which allows quick identification, is a specific advantage of bar code imprints. The Leica IP C and IP S can be equipped with an optional automated multi-level unload station for optimized workflow. With the unload station, the printed cassettes or slides are placed onto trays next to each other and in correct order. In this way, up to 100 cassettes or 110 microscope slides can be collected without user intervention. The entire tray can be removed from the instrument at any time.

Both instruments have been designed for LIS integration, but can also be installed in your laboratory as stand-alone, PC-connected, single-user or multiple-user workstations, where several printers can be connected to one PC.

For software-related information and questions with regard to suitable PC equipment or LIS, please contact your local Leica sales representative. Printer drivers and printed documentation/instructions are included in the standard delivery of the printers.

Flexible:

The manual unload station

The Leica IP C comes standard with a manual cassette unload station where printed cassettes can be removed one at a time.

Practical:

The external cassette magazine holder

For safe and convenient loading of the tissue cassette magazines, an external magazine holder is available as an optional accessory for the printer. It can hold up to six cassette magazines simultaneously. In addition, Leica provides another time-saving, patented feature for cassette loading: stacks of 40 cassettes, held together by easily detachable tape! Simply place the entire stack into a cassette magazine and remove the tape. The new cassette stacks are available in many different styles and colors.

m = 311
2 : x^ ( x) = 10y^ ( y) : 2 : x^ ( x) = - 4,y^ ( y) : x^ y^ = 0 x^ y^ = 0 x^ y^ = - 4.
m = 311
13/14

2 : x^ ( x) = y^ ( x) : 2 : x^ ( x) = y^ ( x) : y = x( 0 < x < 1)

Practical:

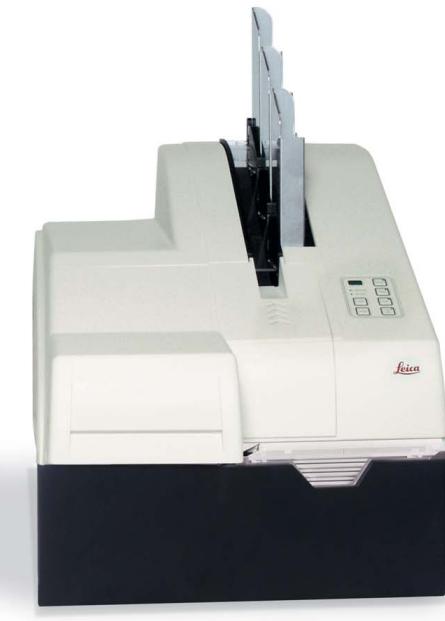

The external slide magazine holder

This optional accessory for the printer provides safe and convenient loading of slide magazines. It holds up to six slide magazines, each with a capacity of 150 slides. Filled magazines are inserted into the load station in no time, which ensures an efficient and ergonomic workflow.

Flexible:

The manual unload station

The Leica IP S comes standard with a manual unload station, where the finished slides are arranged in a stack. The slides can be removed one at a time or as a complete stack.

Time and labor-saving:

The automated multi-level slide unload station

11 slides per tray are unloaded in user-defined order onto a total of 10 trays. Removing any number of trays at any time allows the user to focus on other tasks while the Leica IP S keeps printing and unloading slide after slide.

At a Glance:

New ink jet printing technology with specially formulated, patented ink
- Capable of printing barcodes
180/360 dpi print resolution
Status indicators for 'Reset', 'Power', 'Online', 'Error', 'Magazine Loading Status', 'Ink Status'
Acoustic signal that indicates unload station 'full' and cassette/slide magazine 'empty
- Optional, automatic multi-level unload station

Leica IP C Cassette Printer

• Throughout of up to 15 cassettes per minute in serial mode
  Print angle is adjustable for 35^ and 45^ cassette angles
• Imprints many commercially available cassettes, including cassettes with attached lids
  Capacity: 6 magazines can hold up to 80 cassettes each
• Function for printing individual cassettes
• Barcode readability depends on cassette material and bar code scanner used.

Technical Data:

Power supply: 110 - 125 V/50 - 60 Hz
or 220-230 V/50-60 Hz
Principal fuses: 2 x 3.15 A
Power draw: 700 VA

Dimensions:

Leica IP C basic Instrument: 475 x 650 x 895 mm (W x D x H)
Leica IP C, with multi-level unload station: 548 x 550 x 980 mm (W x D x H)
Weight IP C basic Instrument: approx. 28 kg
Weight IP C, with multi-level unload station: approx. 44 kg
Working temperature range 15°C - 35°C
Relative humidity 10% - 80%, non-condensing
*with cassette magazine inserted

Leica IP S Slide Printer

• Throughput of up to 15 slides per minute in serial mode
  Prints on most commercially available microscope slides
• Capacity: 3 magazines that can hold up to 150 slides each
• Special function for printing individual slides
• Barcode readability depends on slide type/quality and bar code scanner used.

Technical Data

Power supply: 110 - 125 V/50 - 60 Hz

or 220 - 230V / 50 - 60Hz

Principal fuses: 2 x 3,15 A
Power draw: 700 VA

Dimensions:

Leica IP S basic Instrument: 475 x 650 x 560 mm (W x D x H)
Leica IP S, with multi-level unload station: 548 x 550 x 655 mm (W x D x H)
Weight IP S basic Instrument: approx. 28 kg
Weight IP S, with multi-level unload station: approx. 43 kg
Working temperature range 15°C - 35°C
Relative humidity 10% - 80%, non-condensing

*with slide magazine inserted
