EG 1150 - Microtome LEICA - Notice d'utilisation et mode d'emploi gratuit

Marque	Leica
Modèle	EG 1150 (modules EG1150 H et EG1150 C)
Type de produit	Centre d'enrobage de tissus (microtome)
Dimensions module chauffant (EG1150 H)	500 x 640 x 360 mm (L x P x H)
Dimensions plaque froide (EG1150 C)	360 x 650 x 360 mm (L x P x H)
Poids module chauffant	Environ 30 kg
Poids plaque froide	23 kg
Alimentation électrique	100-240 V AC, 50/60 Hz
Puissance absorbée maximale	1100 VA (module chauffant), 350 VA (plaque froide)
Température de travail	Plaque froide : -5°C ; module chauffant : 55°C à 70°C (réglable par paliers de 5°C)
Capacité du réservoir de paraffine	3 L
Capacité de la plaque froide	Environ 70 moules de cassettes standard
Fonctions principales	Enrobage de tissus, distribution de paraffine par gravité, programmation marche/arrêt, mode accéléré pour fusion rapide
Affichage	Écran LED avec affichage des températures et programmation
Ergonomie	Hauteur réglable, repose-bras arrondis, orientation gaucher/droitier
Sécurité	Conforme aux normes UL, CSA, IEC, C-Tick, VDE ; fabrication certifiée ISO 9001
Entretien et nettoyage	Nettoyage régulier des bacs de paraffine amovibles ; éviter l'accumulation de paraffine
Pièces détachées et accessoires	Loupe, pied à bascule, couvercle acrylique, pédale optionnelle ; pièces disponibles auprès de Leica
Informations générales	Utilisation en laboratoire d'histologie ; conception modulaire pour une flexibilité optimale

FOIRE AUX QUESTIONS - EG 1150 LEICA

Comment régler la température du module chauffant?

Utilisez l'écran LED pour sélectionner la température entre 55°C et 70°C, par paliers de 5°C. Les réglages sont disponibles pour les plateaux gauche et droit, le réservoir de paraffine et la surface de travail.

Combien de temps faut-il à la plaque froide pour atteindre -5°C?

À une température ambiante de 22°C, la plaque froide atteint -5°C en environ 20 minutes.

Peut-on utiliser la plaque froide seule sans le module chauffant?

Oui, la Leica EG1150 C peut être utilisée comme unité indépendante pour pré-refroidir les blocs avant la coupe.

Comment nettoyer les bacs de paraffine?

Les deux bacs de paraffine chauffants sont amovibles. Retirez-les et videz-les régulièrement pour éviter l'accumulation de paraffine liquide.

Quelle est la capacité de la plaque froide en nombre de moules?

La plaque froide peut contenir environ 70 moules de cassettes standard.

Comment activer le distributeur de paraffine pour les grands moules?

Repliez le clip du distributeur vers l'arrière et activez le flux de paraffine via la pédale optionnelle (foot switch).

Le système dispose-t-il d'une programmation horaire?

Oui, l'écran LED permet de programmer les heures de marche et d'arrêt pour un fonctionnement automatique de l'appareil.

Quels accessoires sont disponibles en option?

Les accessoires incluent une loupe réglable, une pédale pour l'activation du débit de paraffine, un couvercle acrylique pour la plaque froide, et un porte-forceps chauffant.

Quelles normes de sécurité respecte l'appareil?

L'appareil est conforme aux normes UL, CSA, IEC, C-Tick et VDE, et sa fabrication est certifiée ISO 9001.

Comment organiser le poste de travail pour un usage gaucher ou droitier?

Le système modulaire permet de placer la plaque froide à gauche ou à droite du module chauffant, selon la préférence de l'utilisateur.

MODE D'EMPLOI EG 1150 LEICA

Leica EG1150

Convenient and comfortable tissue embedding center

Living up to Life

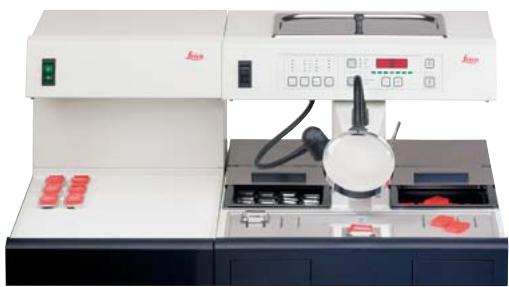

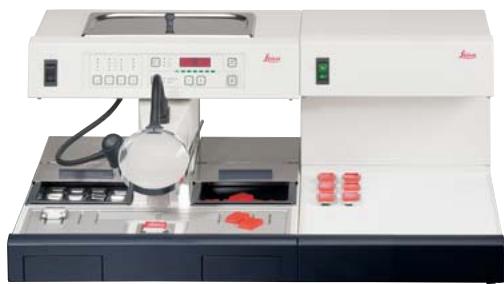

Modern Technology for Comfortable Embedding

The new Leica EG1150 modular tissue embed

ding center incorporates two separate compo

nents, the Leica EG1150 C cold plate and the

Leica EG1150 H heated embedding module. The

independent modules offer the flexibility to

arrange embedding workflow in the direction

that best suits your laboratory.

Adjustable embedding center height

In addition to the already low, comfortable working position, now you can even adjust the work surface height for optimum ergonomics.

Left or right handed workflow

The modular system of the Leica EG1150 allows the placement of the cold plate onto either end of the heated embedding module allowing the tech nician to embed in either a right or left handed direction.

Rounded arm rests

Rounded arm rests provide a comfortable working position free from any hard pressure points on technician's arms.

Tissue cassette and mold warming trays located at the same level

No need for excessive arm movements while embedding. Tissue cassettes and molds are kept at the same level providing a comfortable workflow with minimum effort.

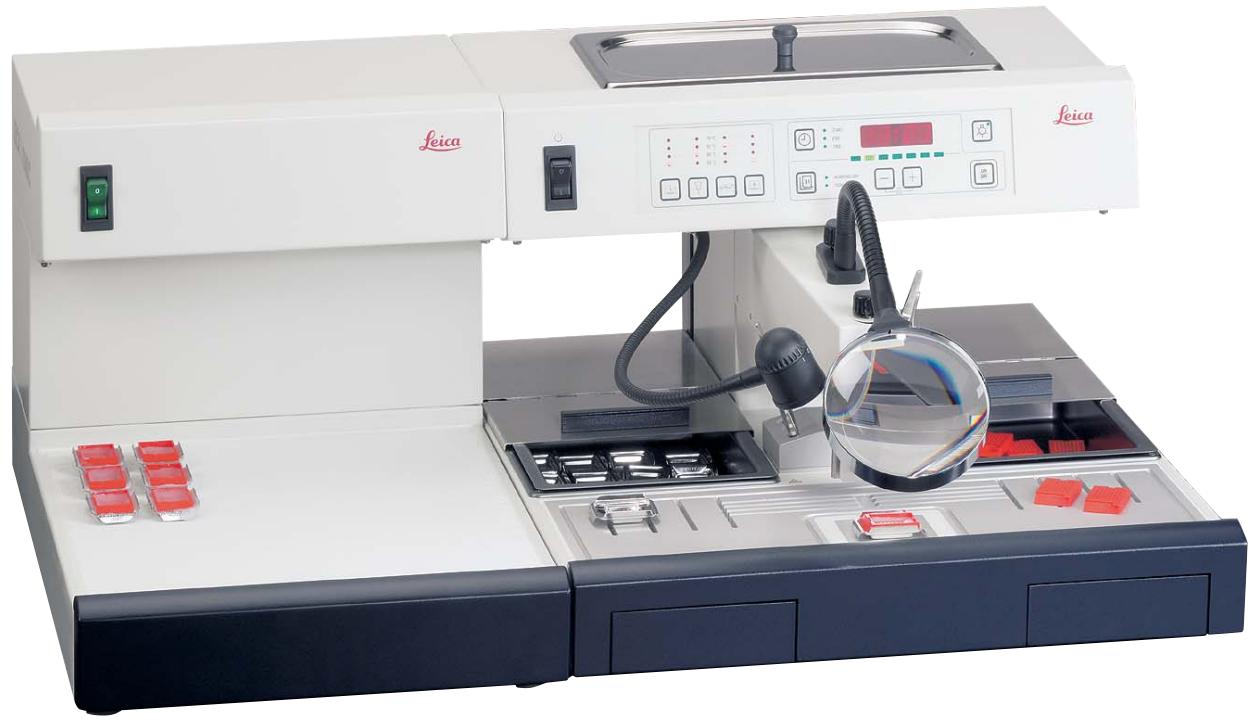

Position adjustable halogen light and magnifier

Bright, even illumination of the work area is provided by the position adjustable halogen lamp. A position adjustable magnifier is also available as an option to facilitate specimen orientation when embedding.

The large Peltier element cold spot is designed to assist tissue orientation even with large Super Mega Cassettes.

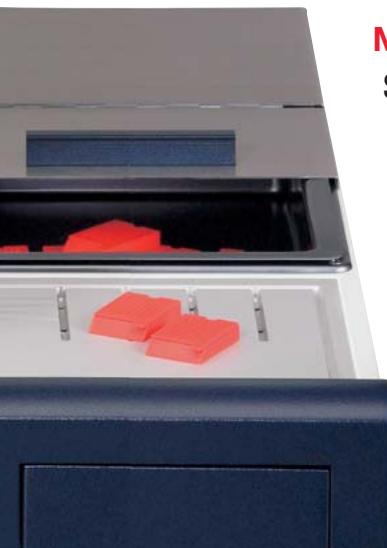

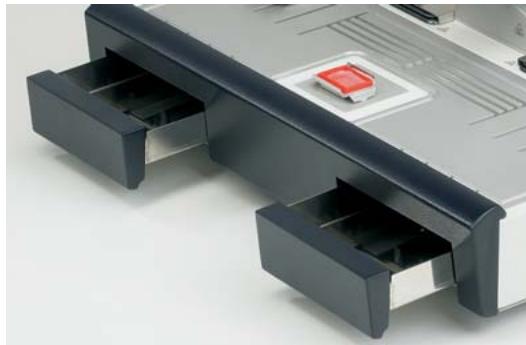

The new paraffin drain system prevents liquid paraffin from accumulating on the spacious work surface. Excess paraffin is drained into one of the two large heated paraffin collecting trays, both of which can be removed for emptying.

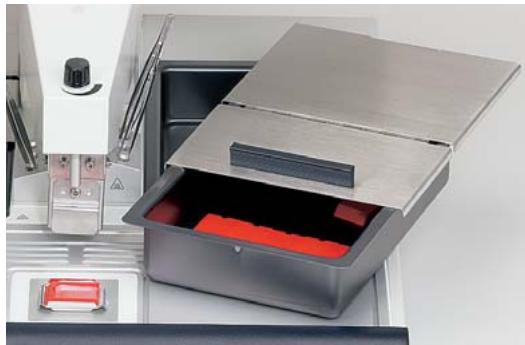

Tissue cassette and mold warming trays are interchangeable to accommodate changes in embedding workflow.

The heated, removable forceps holder is easily accessible from either side.

The Leica EG1150 C cold plate is held at a constant temperature of -5^ . The easy to load, large capacity plate can hold in excess of 70 standard cassette molds. An optional cover reduces frost build up in high humidity environments. Additionally, the cold plate can be used as a stand alone unit for pre- cooling blocks prior to sectioning.
Kuhlplatte EG1150 C

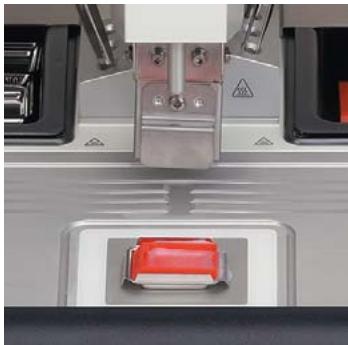

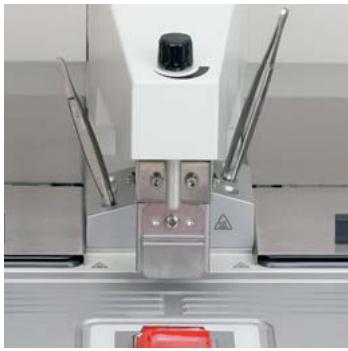

With the especially smooth-running, height-adjustable and rotary dispenser clip, paraffin can either be dispensed manually or by pushing the embedding mold against the clip. A third option, when working with large embedding molds, is to fold the dispenser clip backwards and activate the paraffin flow via the foot switch, available as an optional accessory.

New:

Spacious work surface

The large work surface area with a new, robust finish allows you to set out multiple cassettes and molds in preparation for embedding, greatly improving specimen through put.

At a glance...

Leica EG1150 H

• Height-adjustable, rotary and fold-back clip for activating the paraffin flow with the embedding mold, manually or via foot switch
• Setting screw for precise paraffin flow rate adjustment
• Paraffin flow via gravitational force
• Spacious, heated work surface with paraffin drain system for interim storage of molds and cassettes
• Two heated, removable paraffin collecting trays
• Adjustable temperatures for paraffin reservoir, working surfaces and integrated warming trays, between 55^ to 70^ in 5 K increments
  Enhanced mode, selectable for rapid paraffin melting when working in shifts
• Programmable on and off timer
• Magnifier (optional)
• Foot switch (optional)

Leica EG1150 C

• Constant temperature of the cold plate at -5^
  Approx. 70 cassette molds capacity
• Acrylic cover (optional)

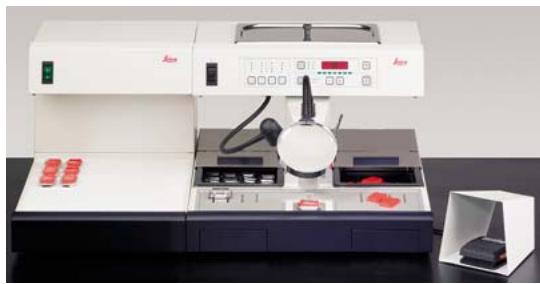

Leica EG1150 with foot switch (optional accessory) to activate paraffin flow.

Easy to operate instrument display

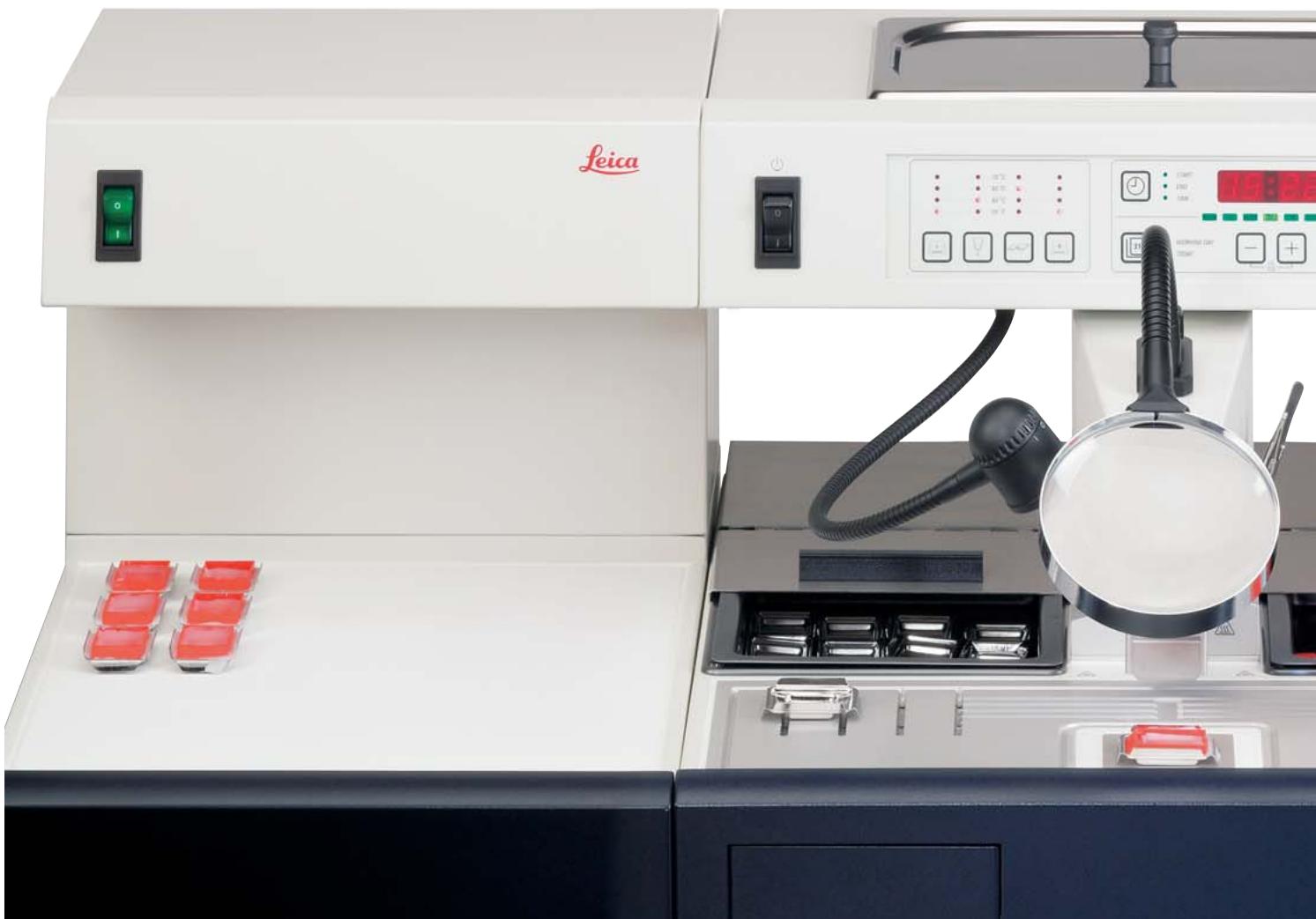

All functions of the Leica EG1150 are controlled through the easy to read L.E.D display, including temperature settings for left and right hand warming trays, paraffin reservoir, and working surface. Work days and times can be programmed for automatic instrument operation.

Leica EG1150 C - Technical specification

Admissions:	UL	Dimensions and weights
Nominal supply voltages (AC ± 10 %):	230 V/50 Hz	Width:	360 mm
	120 V/60 Hz	Depth:	650 mm
	100 V/50 - 60 Hz	Height:	360 mm
	240 V/50 Hz	Cold plate (WxD):	330 x 370 mm
Maximum power draw:	350 VA	Cold plate capacity:	70 standard cassette molds
Operating temperature range:	+18 °C to +40 °C	Weight:	23 kg
Working temperature:	-5 °C at 22 °C ambient temperature, after 20 min.
Relative air humidity:	maximum 60%, non-condensing

Leica EG1150 H - Technical specification

Admissions:	UL	Capacity
Nominal supply voltages:	100 – 120 V, 50/60 Hz	Paraffin reservoir:	3 l
	230 – 240 V, 50/60 Hz	Cassette tray/warming tray:	approx. 100 cassettes
Maximum power draw:	1100 VA	Dimensions and weights
Operating temperature range:	+18 °C to +40 °C	Width:	500 mm
Working temperatures:	55 °C to 70 °C	Depth:	640 mm
	adjustable in 5 K increments	Height:	360 mm
Relative air humidity:	maximum 60 %, non-condensing	Working surface (W x D):	2 x 210 x 175 mm
		Cool spot:	68 x 68 mm
		Weight:	approx. 30 kg

The Leica EG1150 C and Leica EG1150 H instruments are manufactured in accordance with UL, CSA, IEC, C-Tick and VDE standards. The latest in development, production and testing facilities – documented in

accordance with ISO 9001 - ensure the highest quality and reliability. Comprehensive range of accessories on request. Technical specification subject to change.
