| Type de produit | Enregistreur de bande analogique |
| Caractéristiques techniques principales | 2 pistes, 1/4" (6,35 mm) avec une réponse en fréquence de 30 Hz à 20 kHz |
| Alimentation électrique | 220-240 V AC, 50/60 Hz |
| Dimensions approximatives | 482 mm x 132 mm x 350 mm |
| Poids | Environ 12 kg |
| Compatibilités | Compatible avec les bandes de 1/4" et les appareils audio professionnels |
| Type de batterie | Non applicable (fonctionne sur secteur) |
| Tension | 220-240 V |
| Puissance | Consommation d'environ 50 W |
| Fonctions principales | Enregistrement, lecture, et édition de bandes audio |
| Entretien et nettoyage | Nettoyage régulier des têtes d'enregistrement et de lecture, vérification des courroies |
| Pièces détachées et réparabilité | Disponibilité de pièces de rechange via le fabricant et les distributeurs agréés |
| Sécurité | Respecter les consignes de sécurité électrique, éviter l'humidité |
| Informations générales utiles | Idéal pour les studios d'enregistrement professionnels et les passionnés d'audio analogique |
FOIRE AUX QUESTIONS - PR99MKII STUDER
Comment puis-je résoudre un problème de bande qui ne s'avance pas correctement ?
Vérifiez d'abord que la bande est correctement installée sur les bobines. Assurez-vous également que la tension de la bande est réglée correctement et que les capteurs de bande ne sont pas obstrués.
Que faire si le son est distordu ou de mauvaise qualité ?
Vérifiez les têtes de lecture et d'enregistrement pour voir si elles nécessitent un nettoyage. Une accumulation de poussière ou de résidus peut affecter la qualité sonore. Utilisez un nettoyant pour têtes approprié.
Pourquoi mon STUDER PR99MKII ne s'allume-t-il pas ?
Assurez-vous que l'appareil est correctement branché sur une prise fonctionnelle. Vérifiez également le câble d'alimentation pour tout dommage et assurez-vous que le fusible interne n'est pas grillé.
Comment ajuster les niveaux d'enregistrement sur le STUDER PR99MKII ?
Utilisez les boutons de gain d'entrée pour ajuster les niveaux d'enregistrement. Surveillez les indicateurs de niveau pour éviter la saturation.
Que faire si l'appareil fait des bruits étranges lors de la lecture ?
Vérifiez l'état des courroies et des moteurs. Des courroies usées ou des moteurs mal lubrifiés peuvent provoquer des bruits anormaux. Il peut être nécessaire de remplacer ou de lubrifier ces composants.
Comment puis-je changer la bande sur le STUDER PR99MKII ?
Ouvrez le compartiment des bobines et retirez les anciennes bobines. Installez les nouvelles bobines en vous assurant que la bande s'enroule correctement autour des guides. Suivez les instructions de la documentation pour un enfilage correct.
Pourquoi le STUDER PR99MKII ne reconnaît-il pas la bande insérée ?
Vérifiez si la bande est de type compatible avec l'appareil. Assurez-vous également que la bande n'est pas endommagée et que les capteurs de bande fonctionnent correctement.
Comment puis-je calibrer mon STUDER PR99MKII pour un enregistrement optimal ?
Utilisez un enregistreur de test pour calibrer les niveaux d'enregistrement. Suivez les instructions de la documentation pour ajuster les paramètres de calibration selon le type de bande utilisée.
Que faire si les boutons de contrôle ne répondent pas ?
Vérifiez si l'appareil est en mode de lecture ou d'enregistrement. Si le problème persiste, il peut être nécessaire de nettoyer les contacts des boutons ou de vérifier pour des problèmes internes.
Questions des utilisateurs sur PR99MKII STUDER
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Aucune question pour l'instant. Soyez le premier à en poser une.
Téléchargez la notice de votre Enregistreur audio au format PDF gratuitement ! Retrouvez votre notice PR99MKII - STUDER et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil PR99MKII de la marque STUDER.
MODE D'EMPLOI PR99MKII STUDER

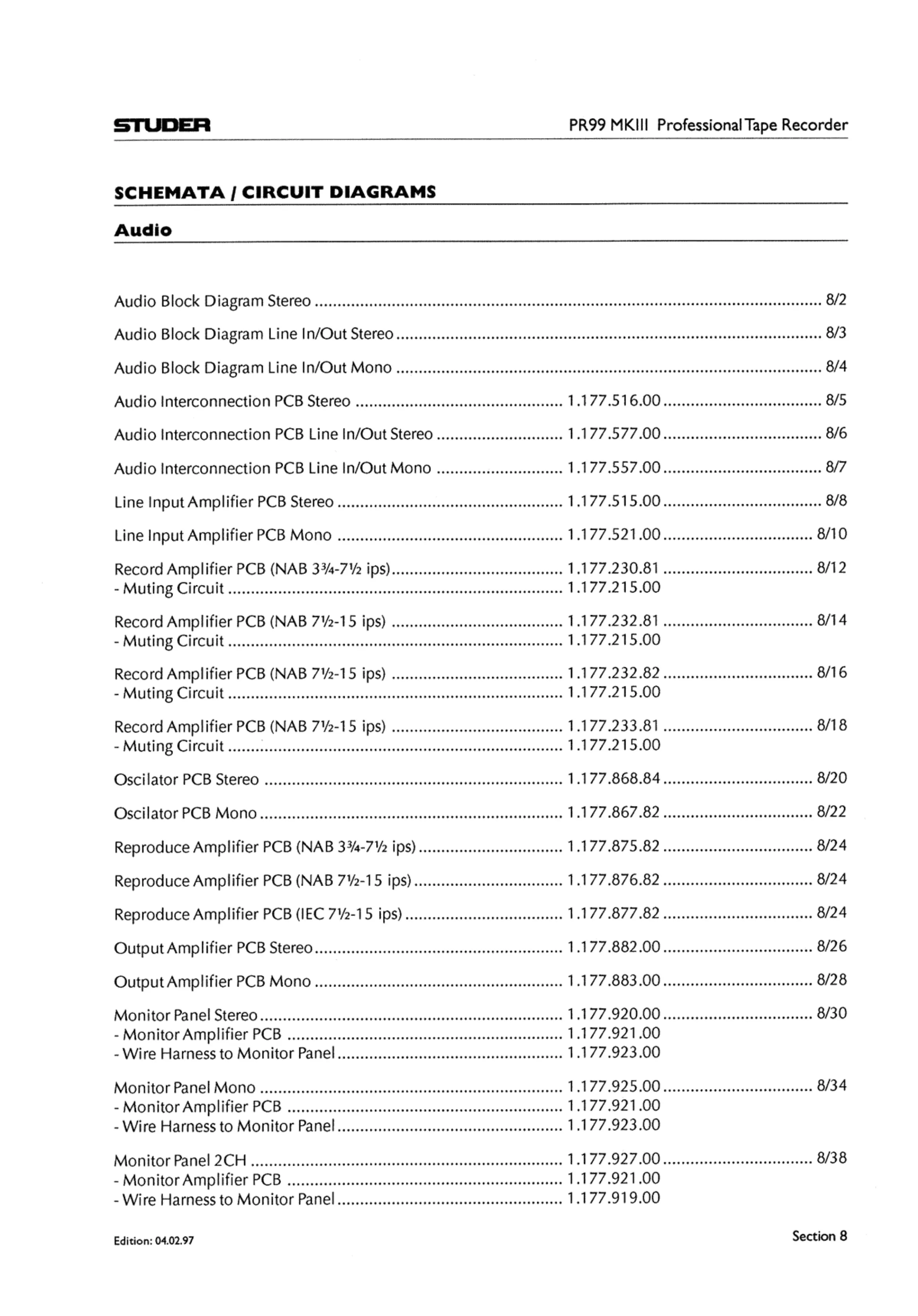

SCHEMATA/CIRCUITDIAGRAMS
Audio
Audio Block Diagram Stereo 8/2
Audio Block Diagram Line In/Out Stereo 8/3
Audio Block Diagram Line In/Out Mono 8/4

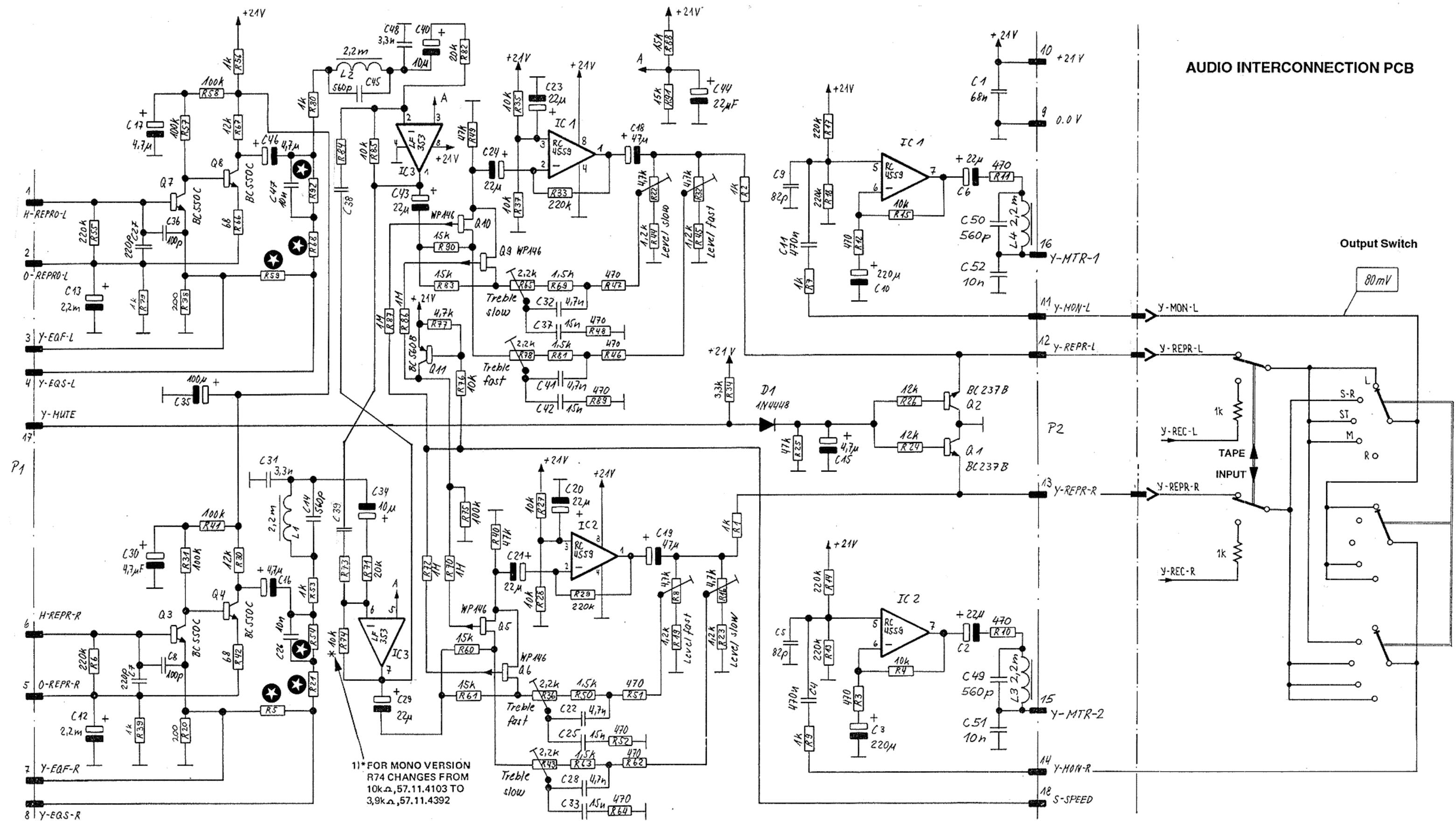

Audio Interconnection PCB Stereo 1.177.516.00 8/5
Audio Interconnection PCB Line In/Out Stereo 1.177.577.00 8/6
Audio Interconnection PCB Line In/Out Mono 1.177.557.00 8/7
Line Input Amplifier PCB Stereo 1.177.515.00 8/8
Line Input Amplifier PCB Mono 1.177.521.00 8/10

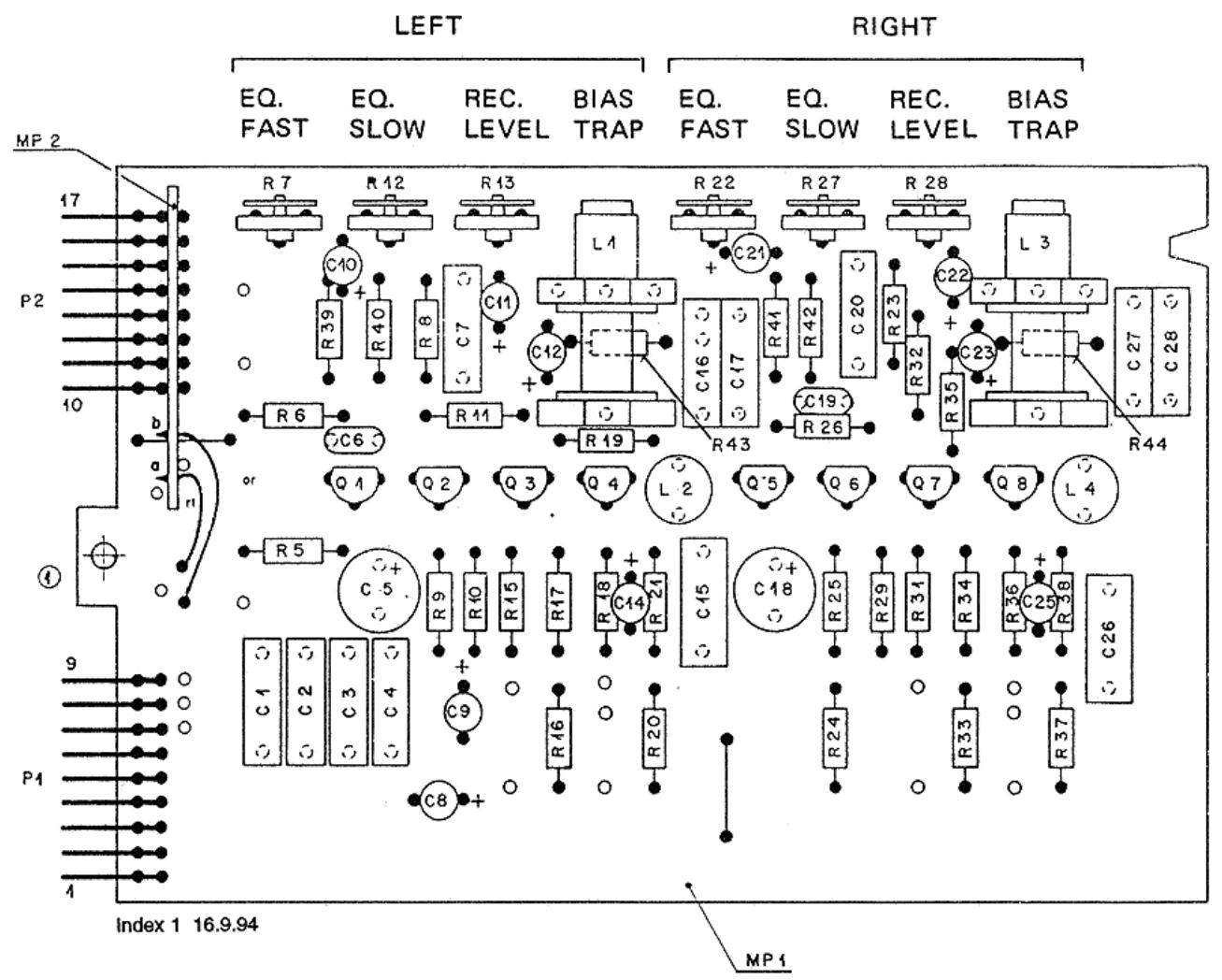

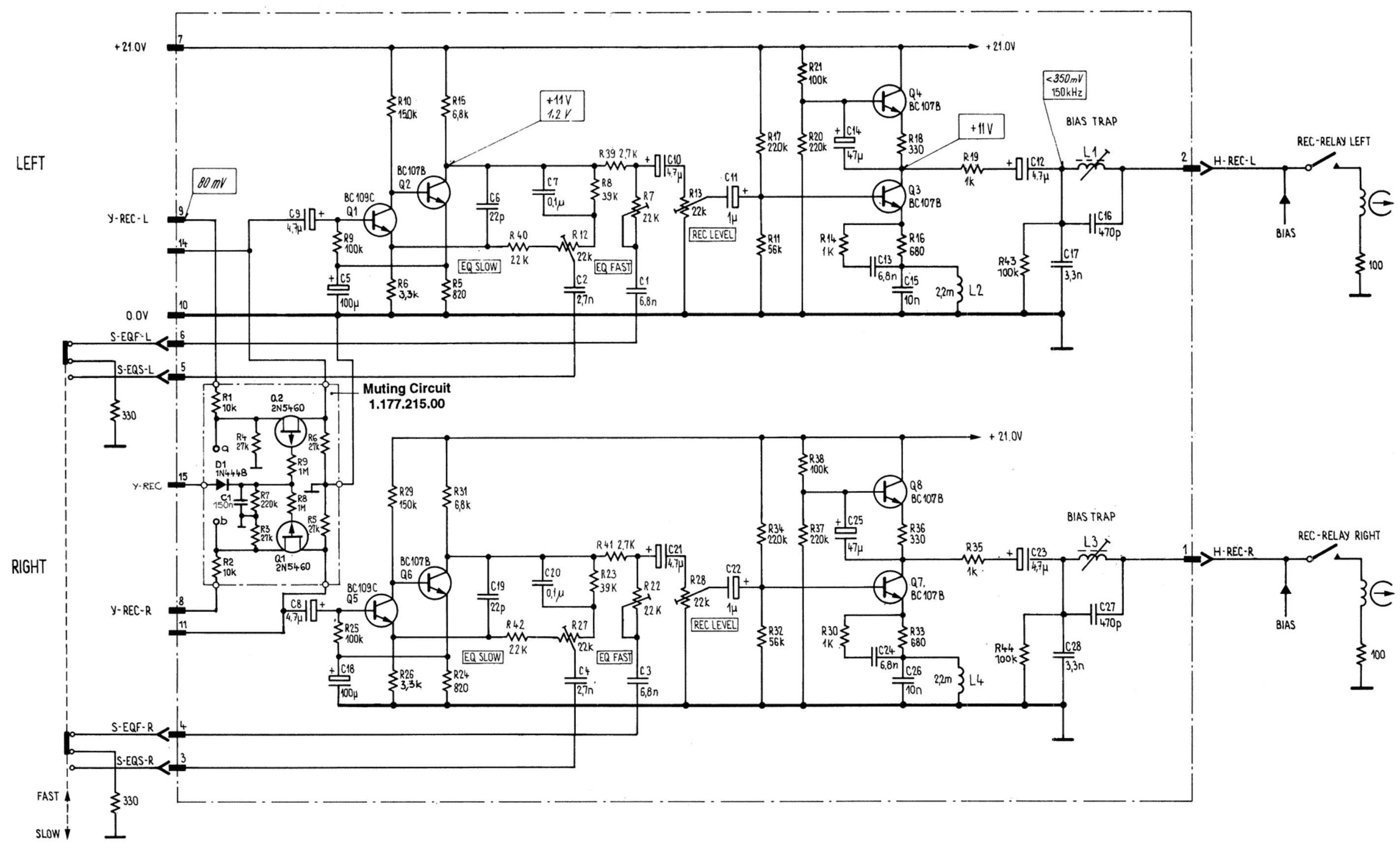

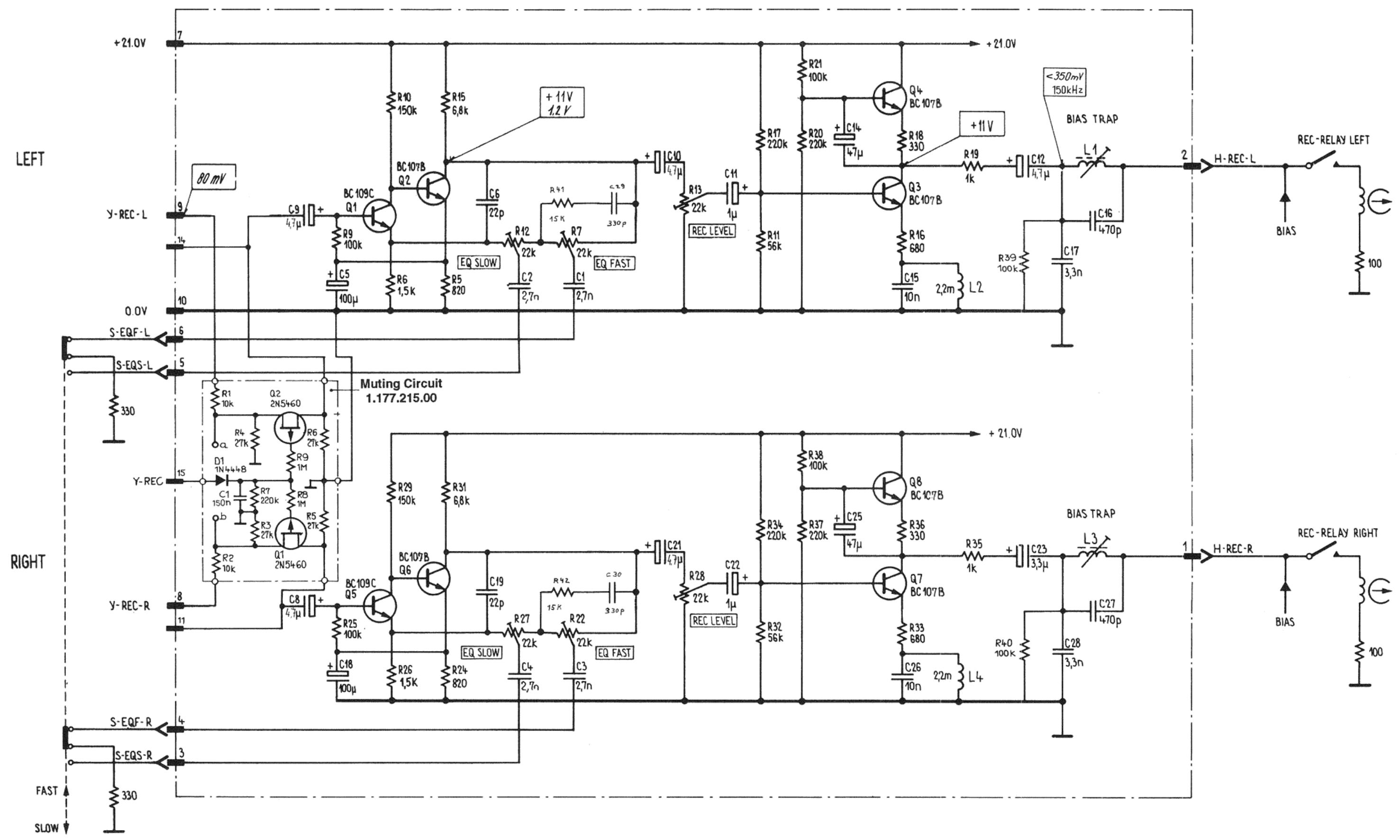

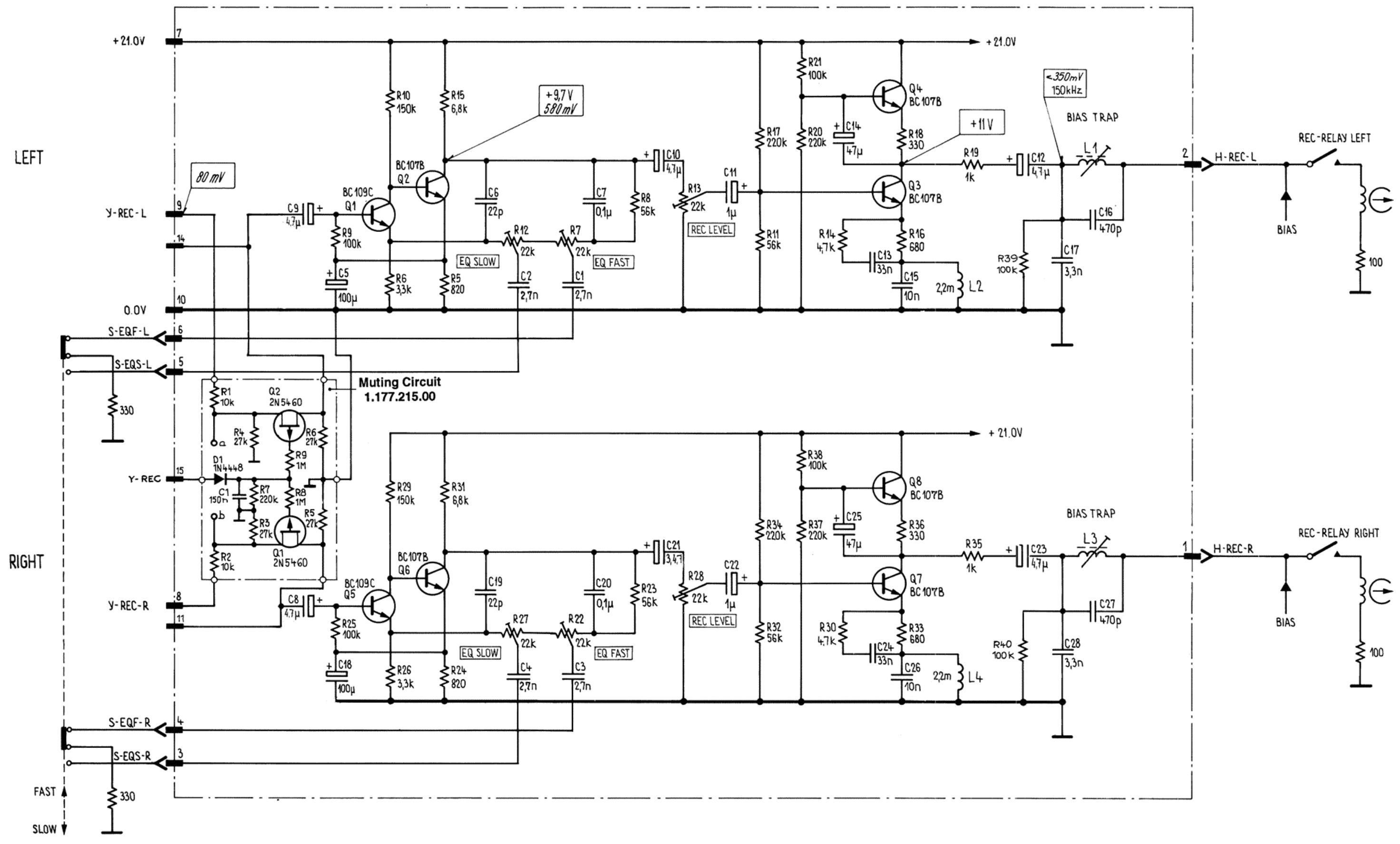

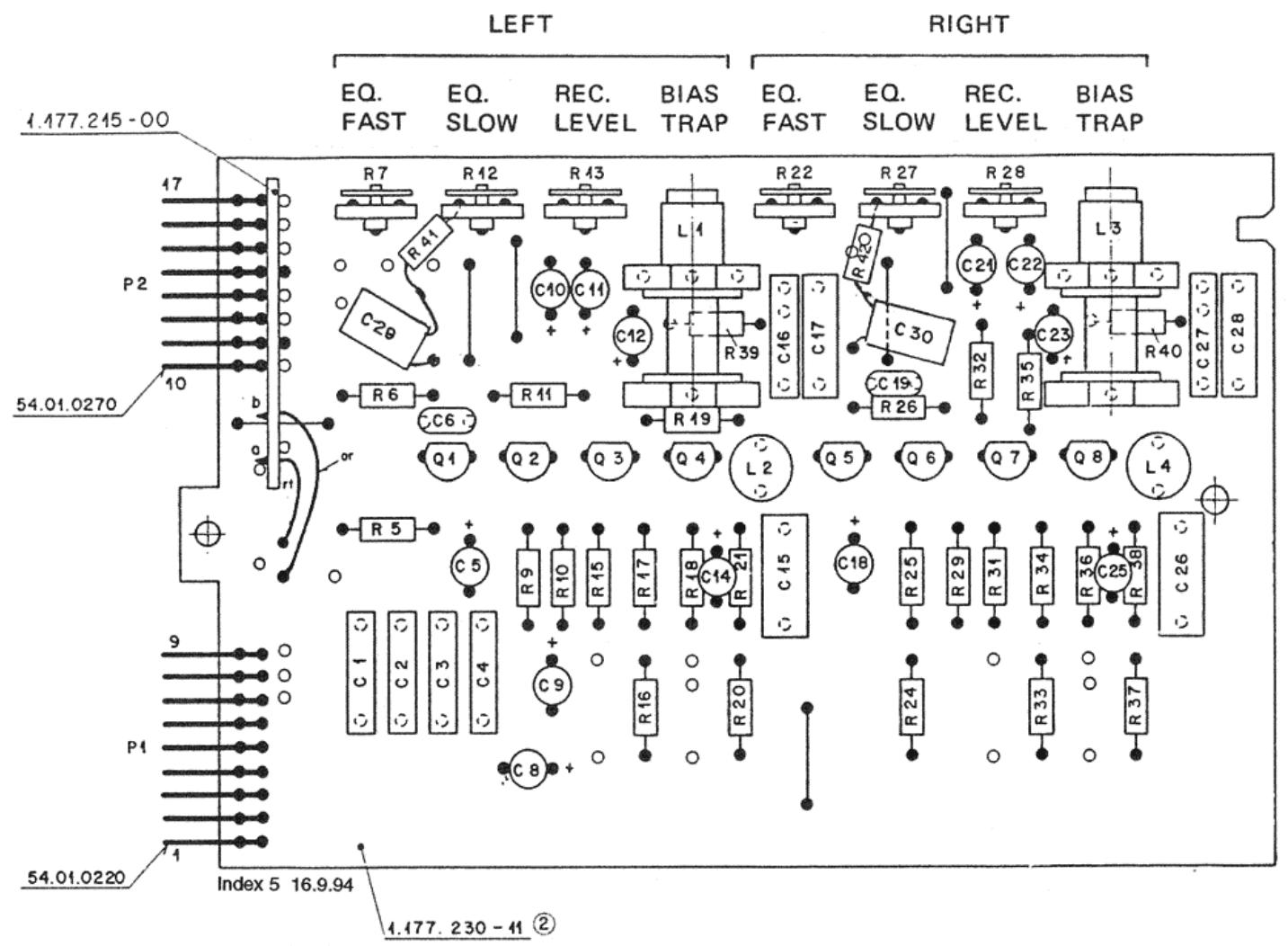

Record Amplifier PCB (NAB 3^3 / 4 - 71 / 2 ips) 1.177.230.81 8/12

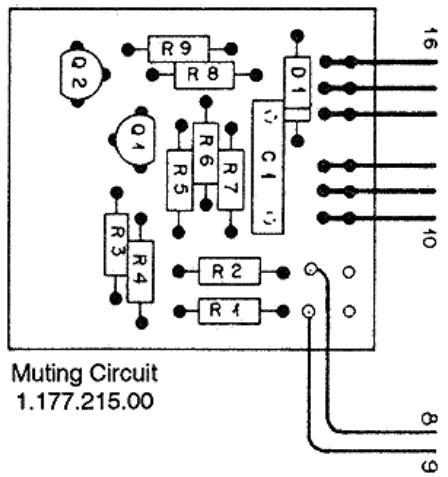

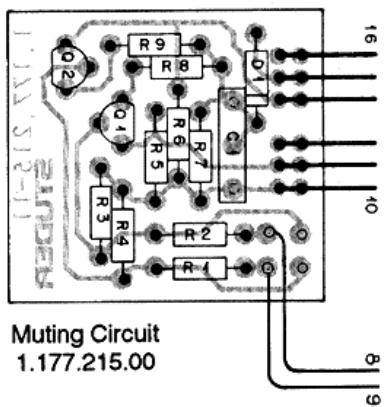

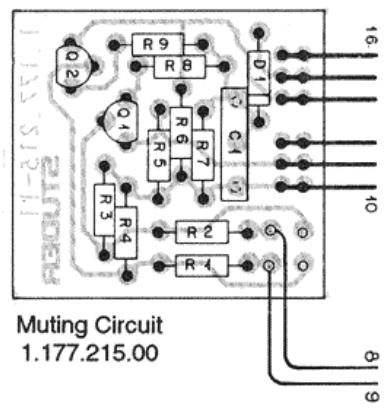

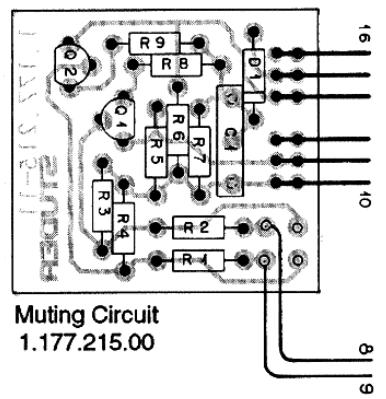

-Muting Circuit 1.177.215.00

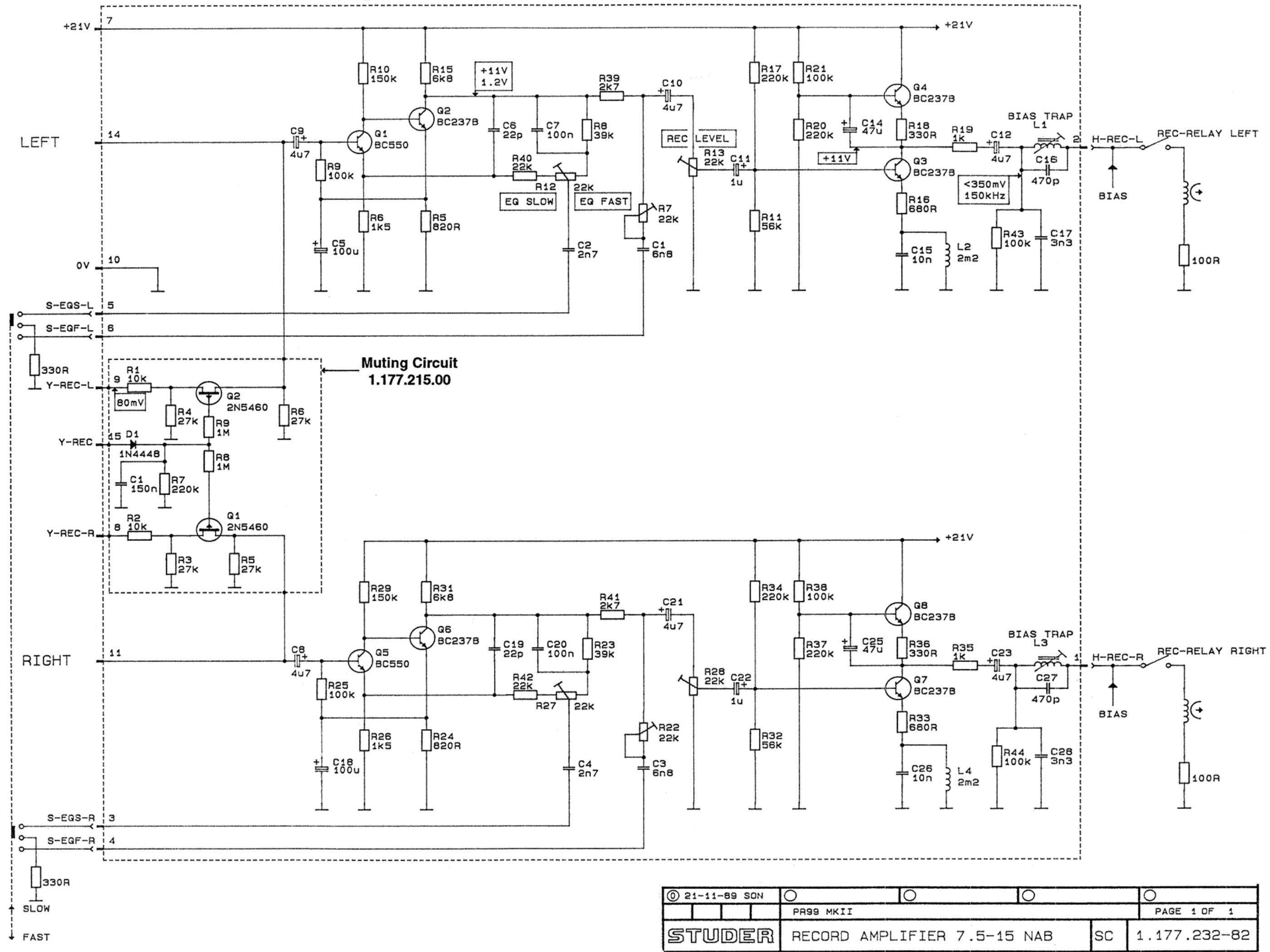

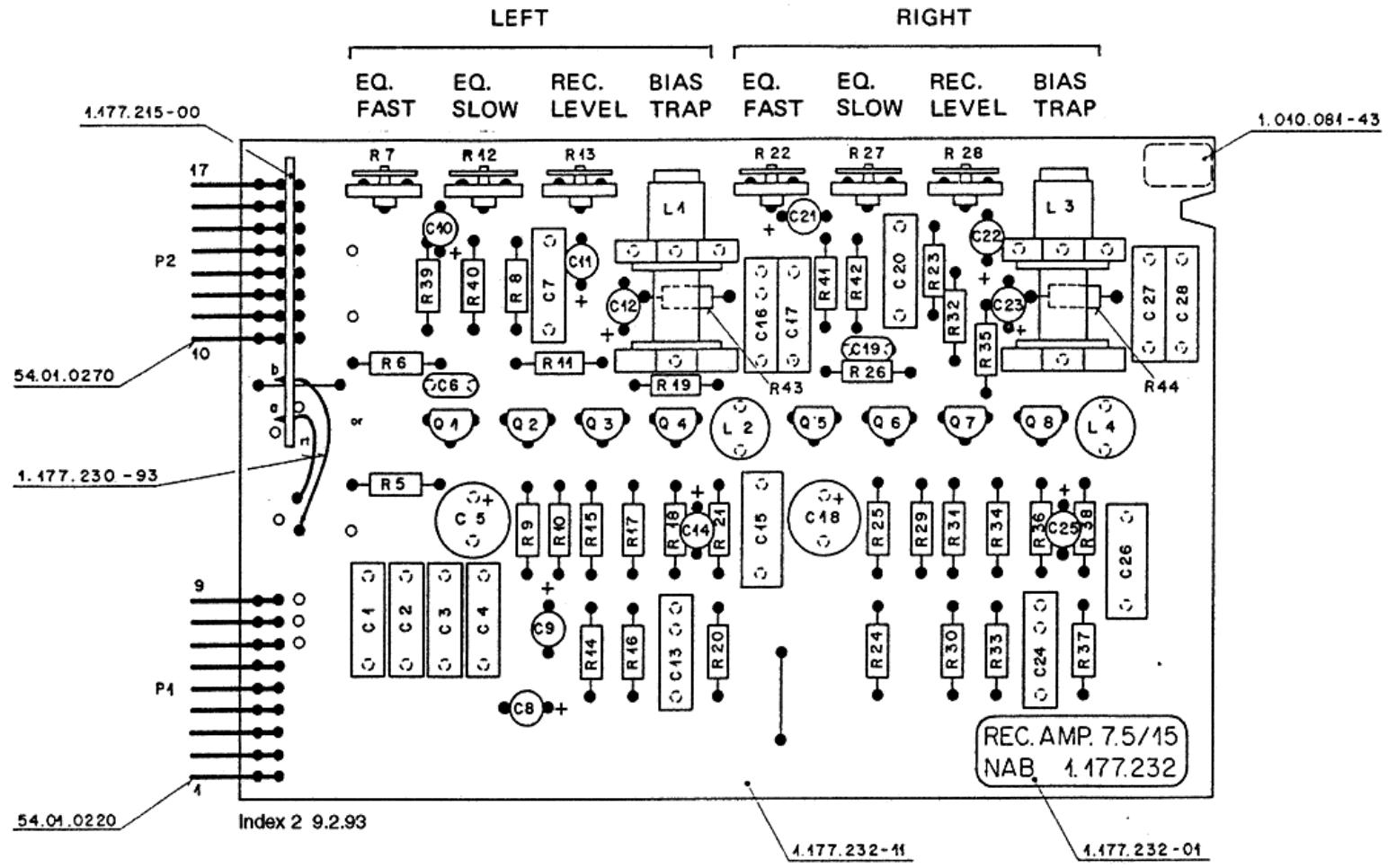

Record Amplifier PCB (NAB 7½-15 ips) 1.177.232.81 8/14
-Muting Circuit 1.177.215.00
Record Amplifier PCB (NAB 7½-15 ips) 1.177.232.82 8/16
-Muting Circuit 1.177.215.00
Record Amplifier PCB (NAB 7½-15 ips) 1.177.233.81 8/18
-Muting Circuit 1.177.215.00

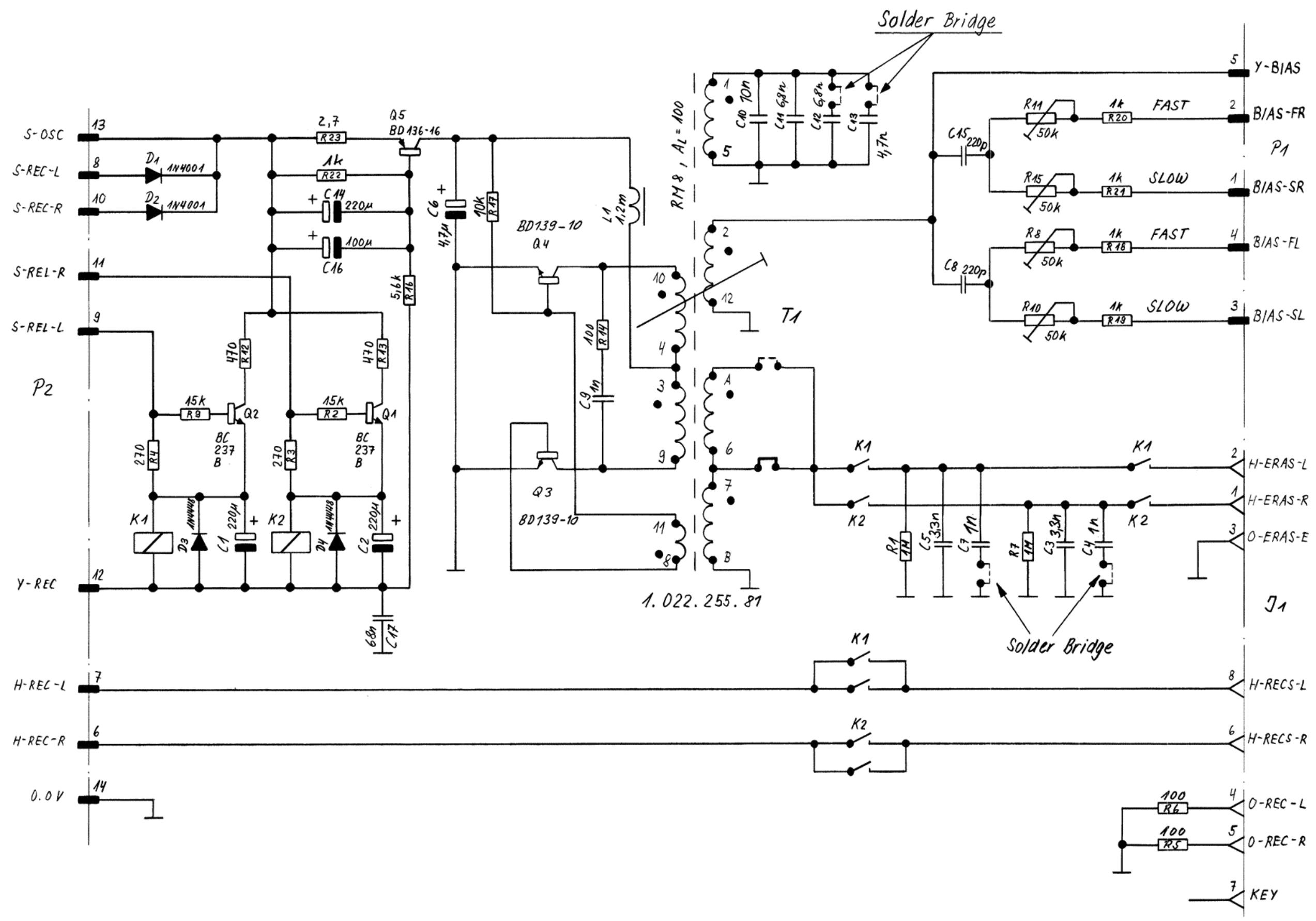

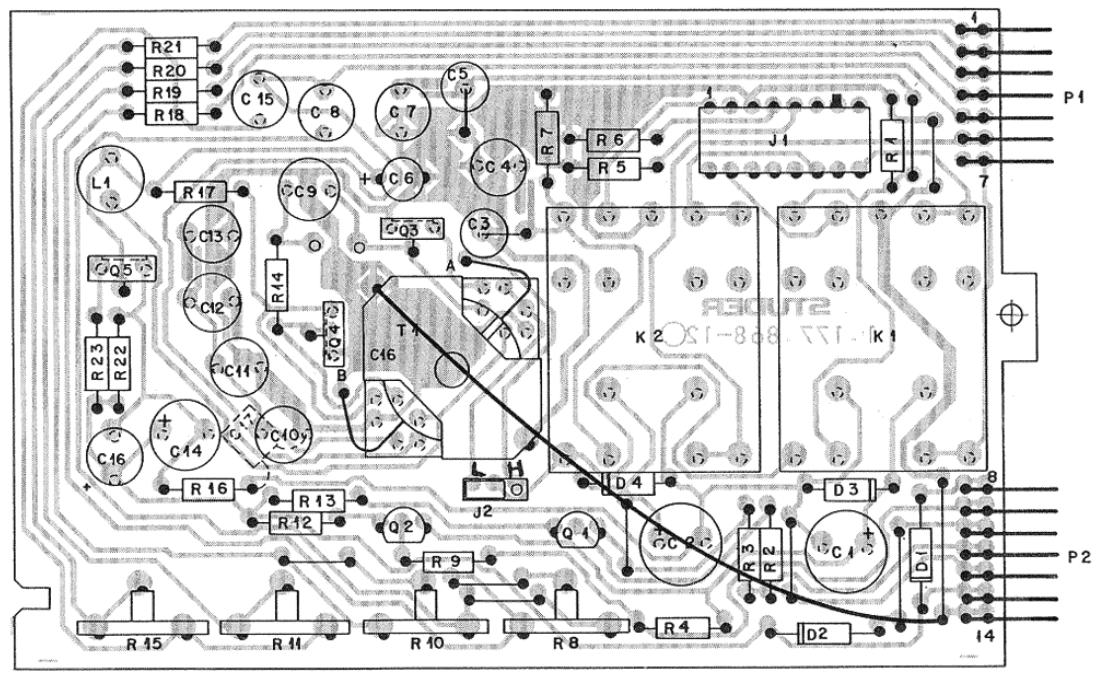

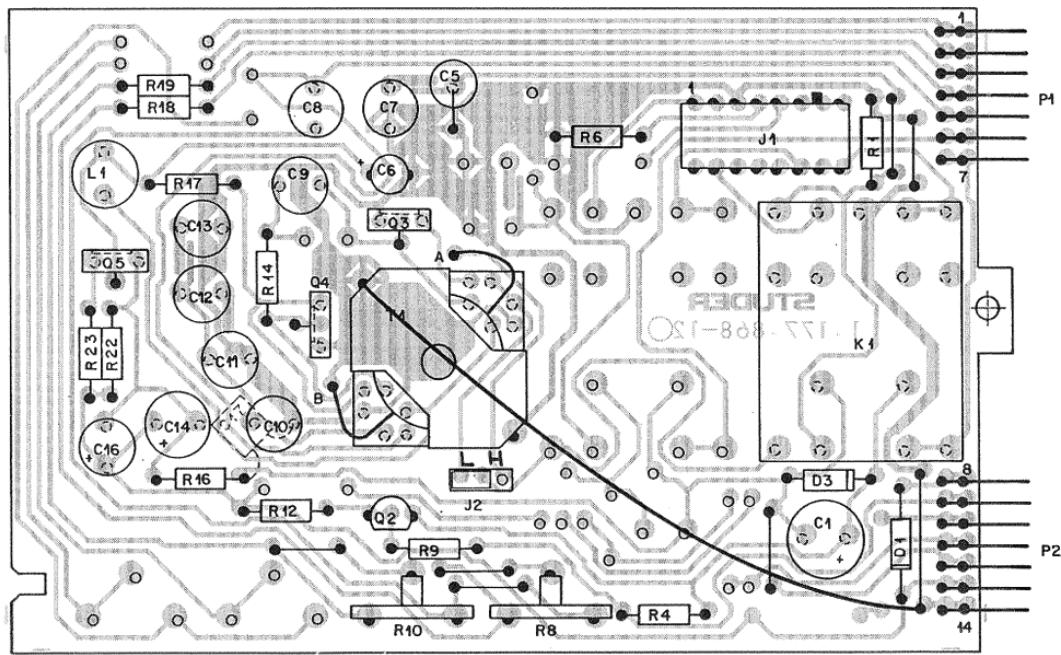

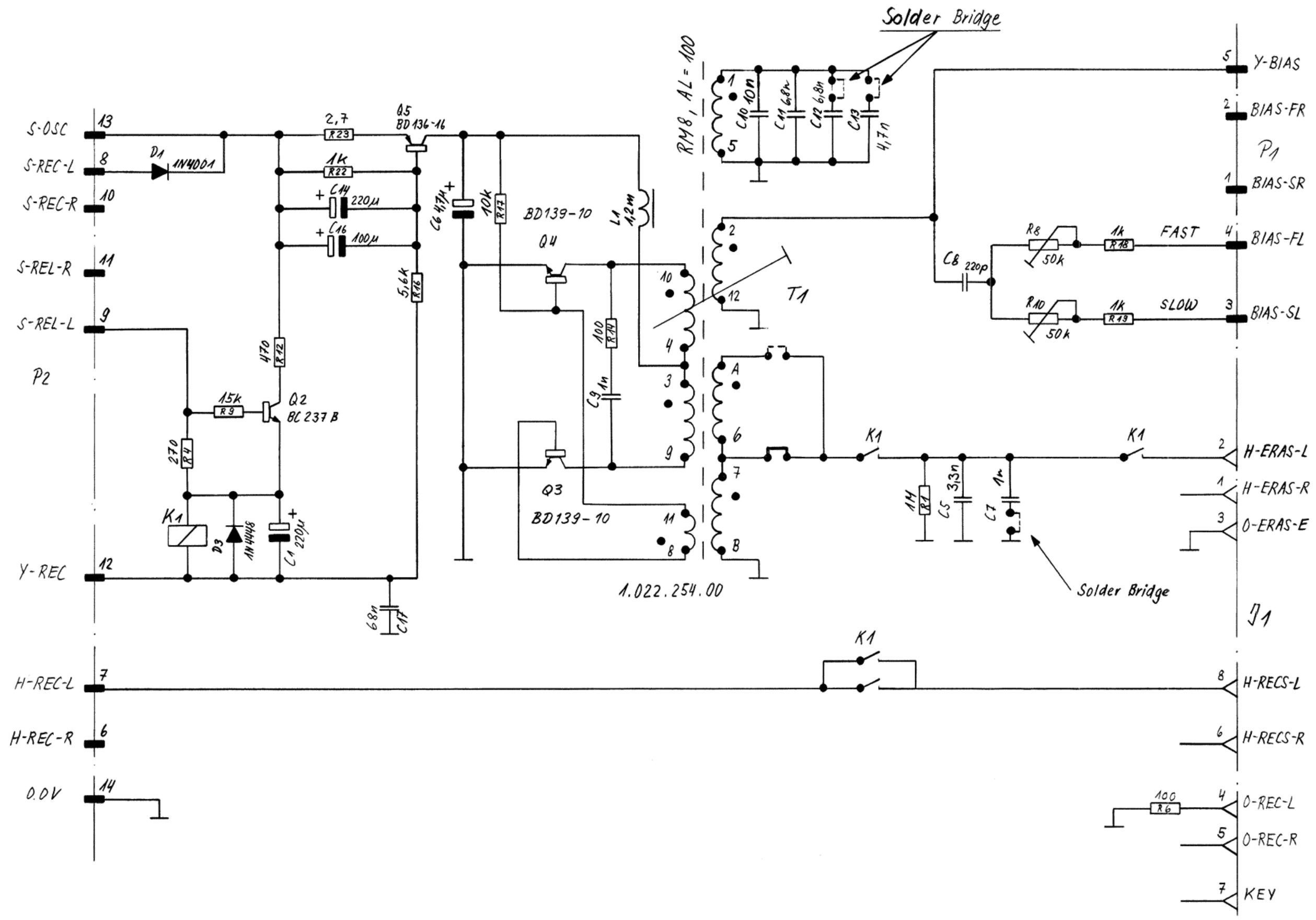

Oscillator PCB Stereo 1.177.868.84 8/20
Oscillator PCB Mono 1.177.867.82 8/22
Reproduce Amplifier PCB (NAB 334 -712 ips) 1.177.875.82 8/24
Reproduce Amplifier PCB (NAB 7½-15 ips) 1.177.876.82 8/24
Reproduce Amplifier PCB (IEC 7½-15 ips) 1.177.877.82 8/24
Output Amplifier PCB Stereo. 1.177.882.00 8/26
Output Amplifier PCB Mono 1.177.883.00 8/28

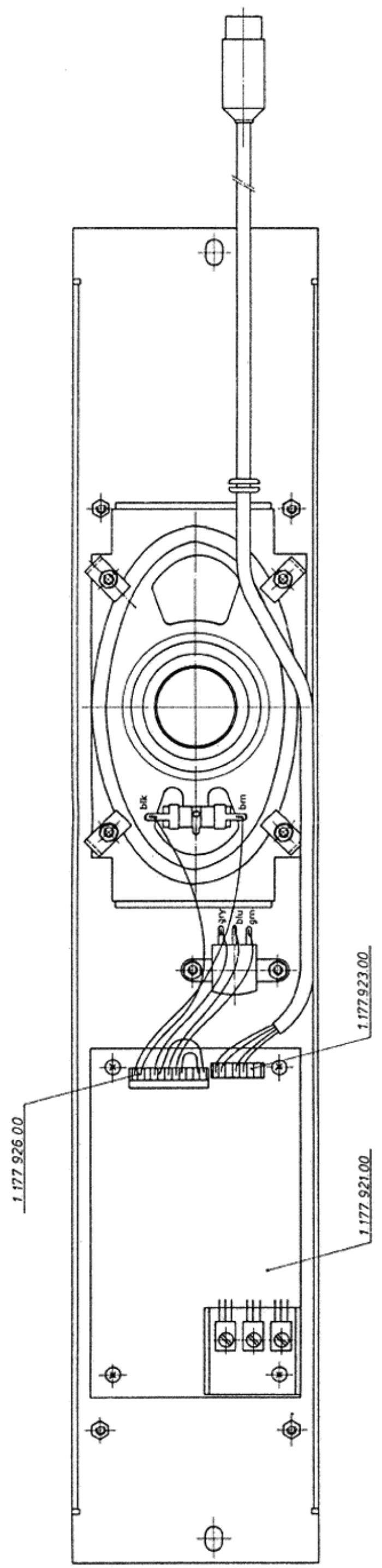

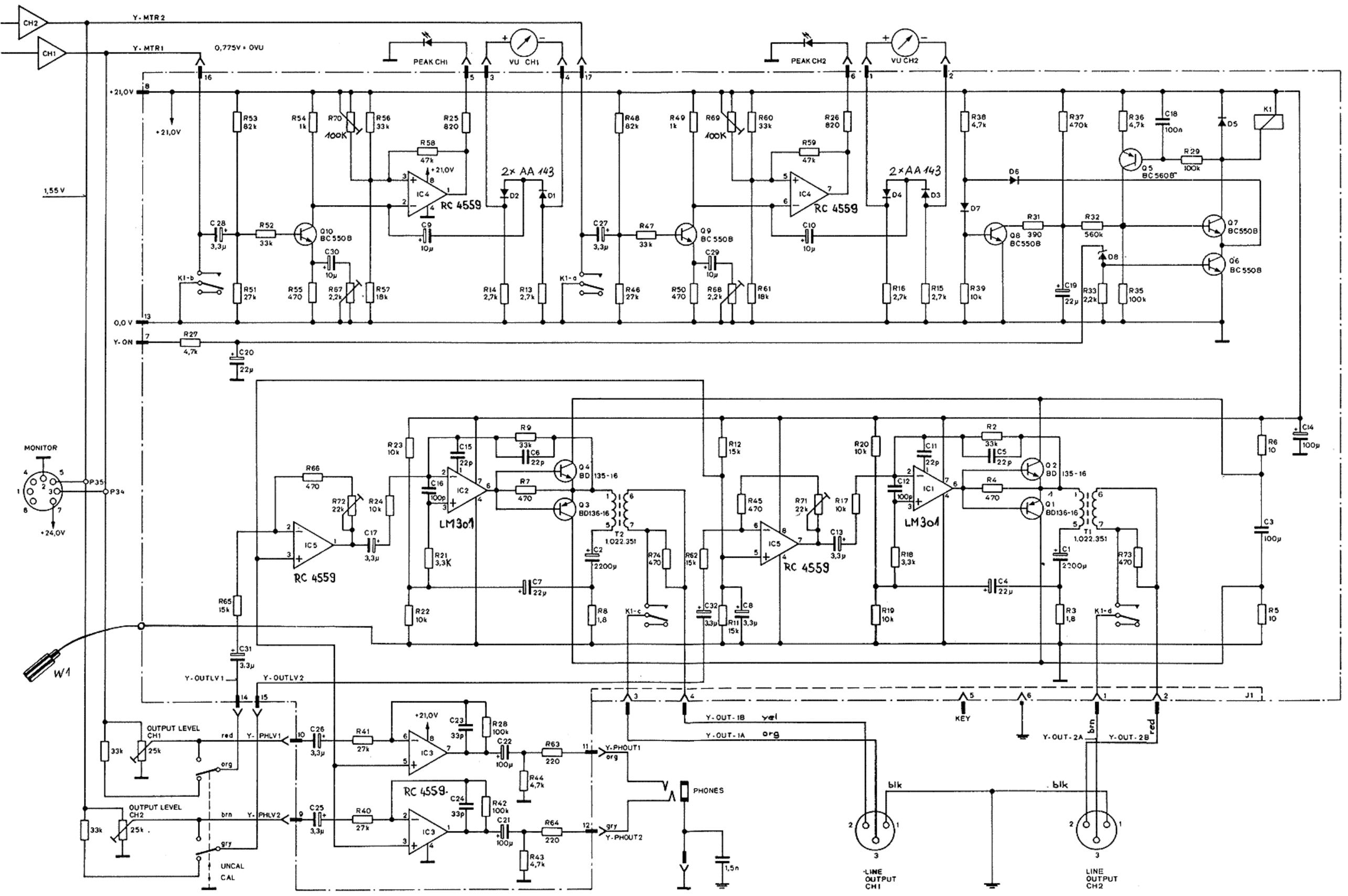

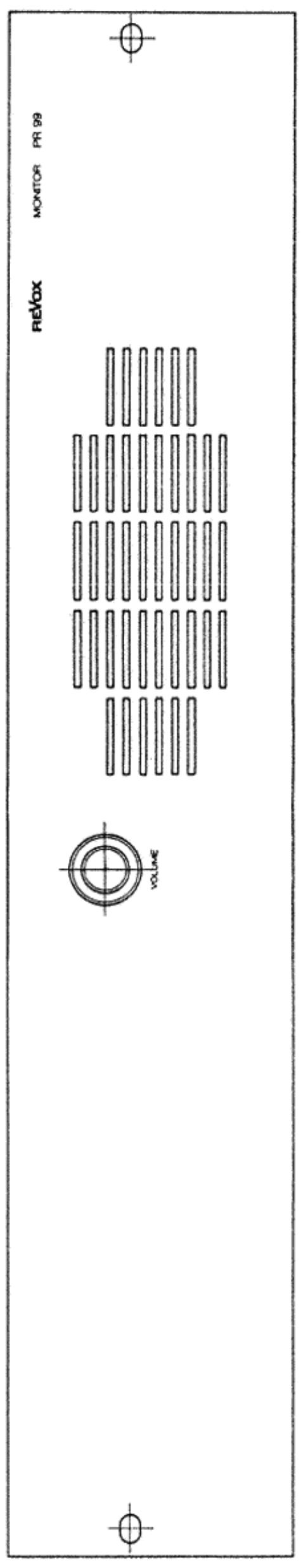

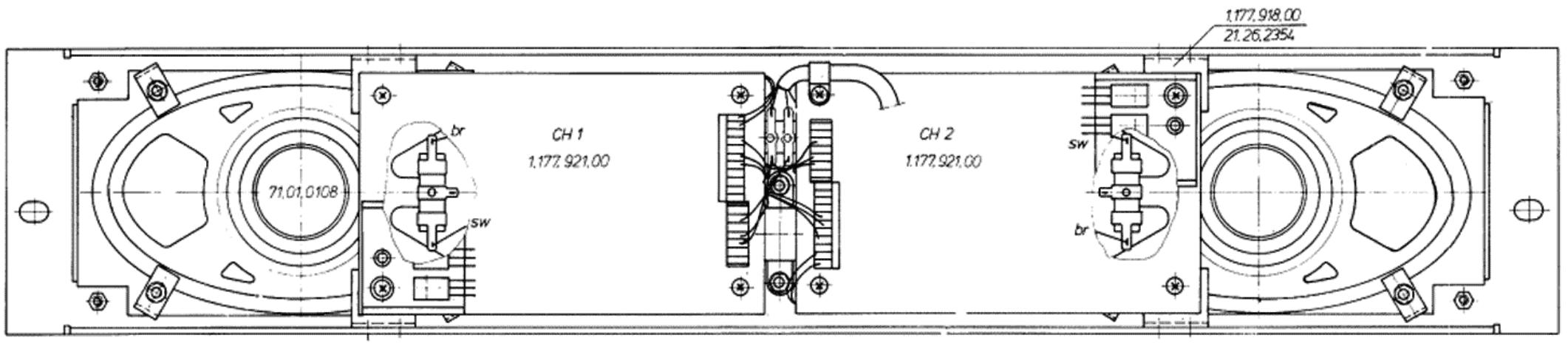

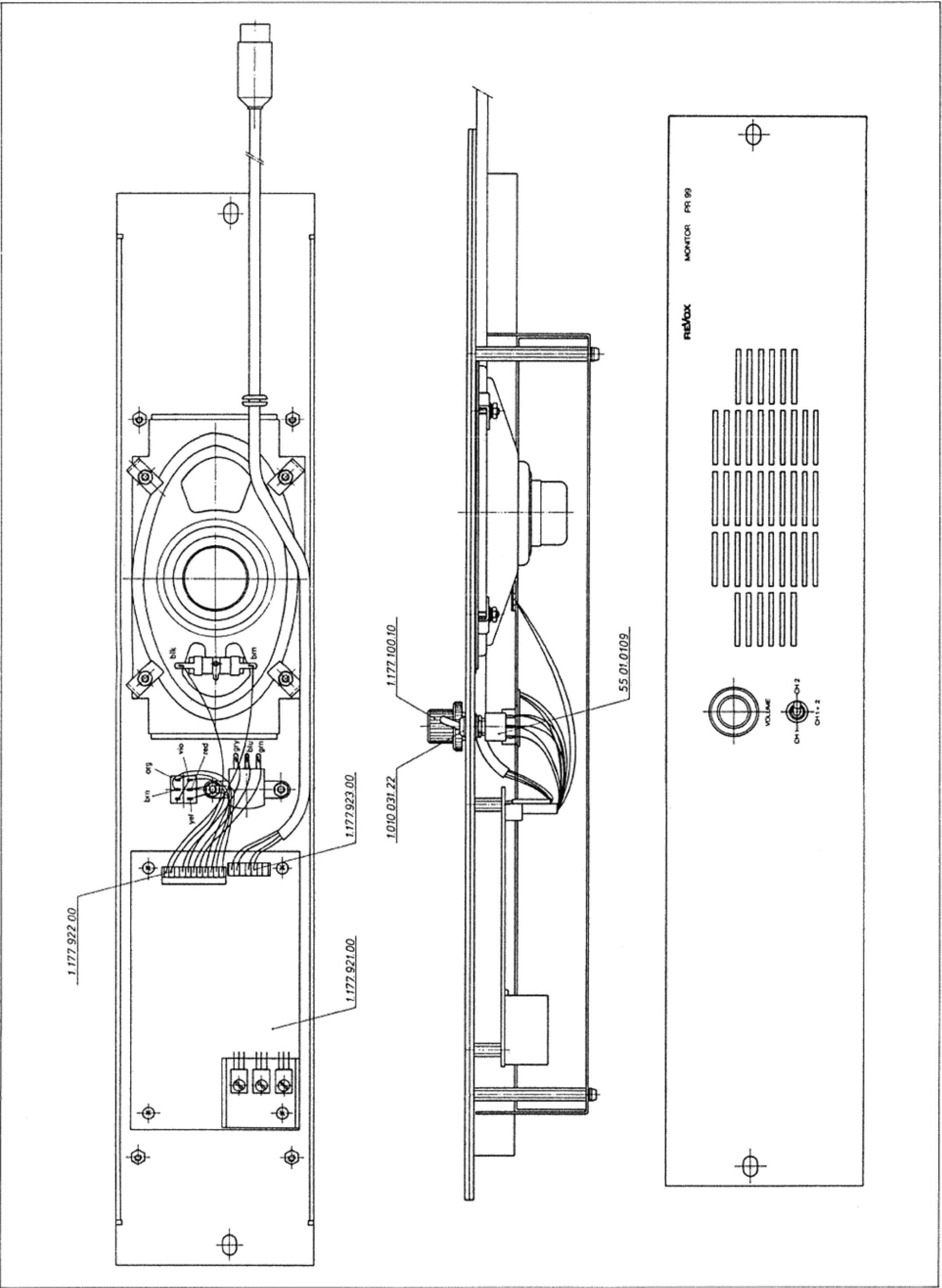

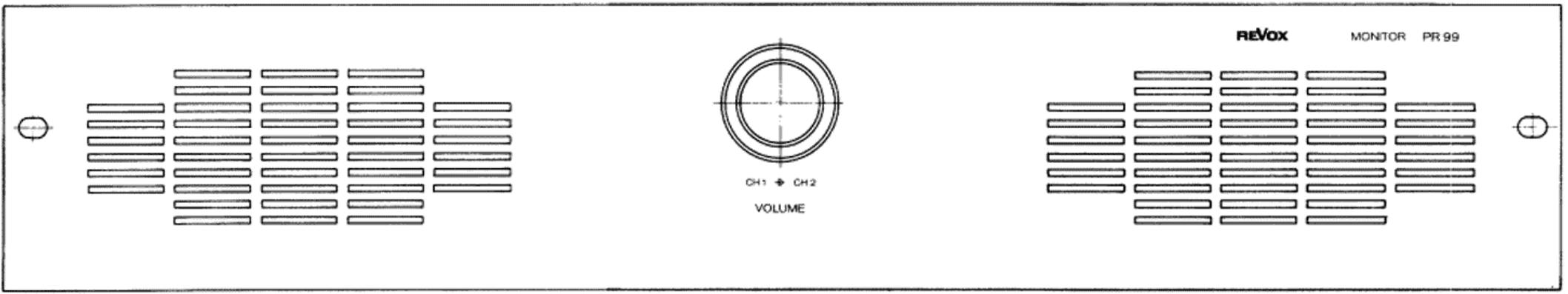

Monitor Panel Stereo 1.177.920.00 8/30
-

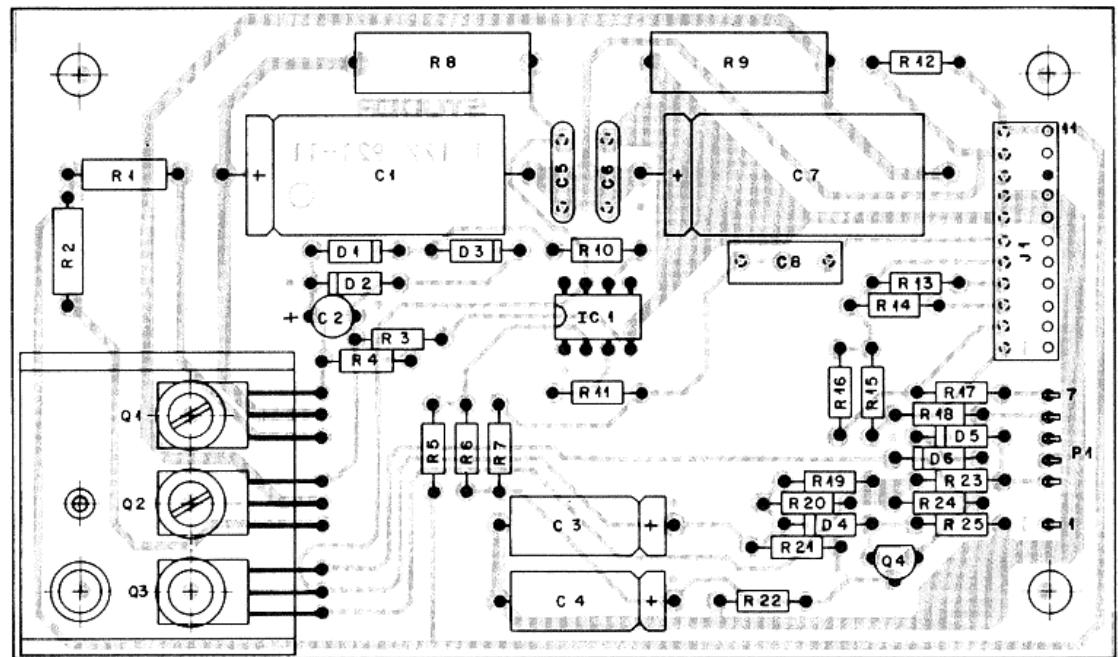

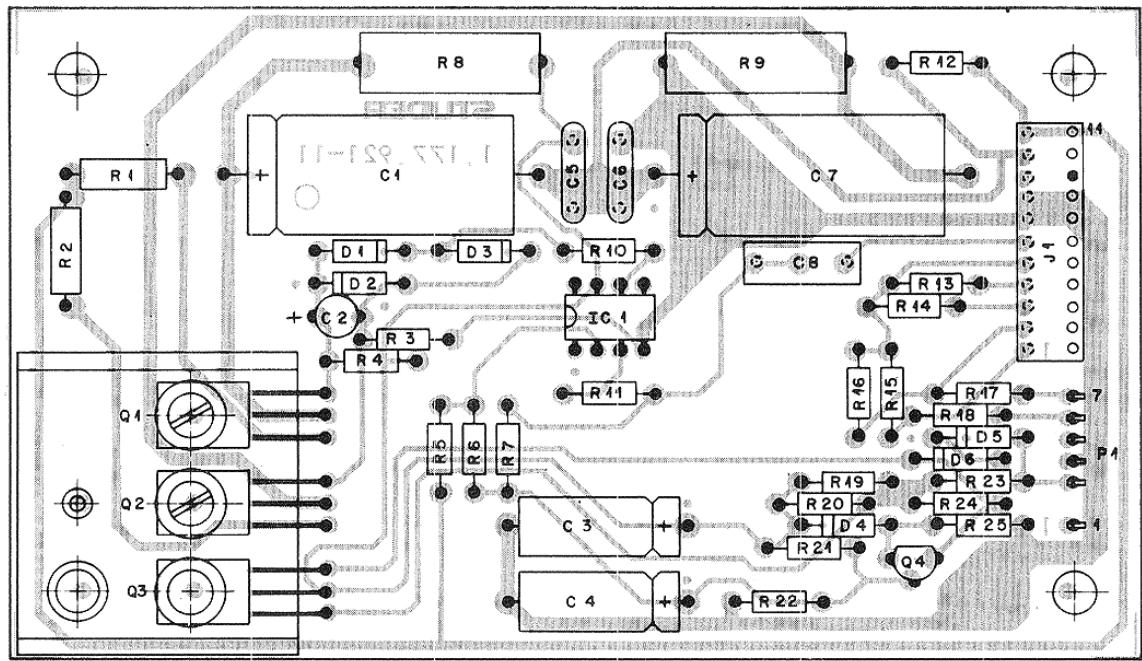

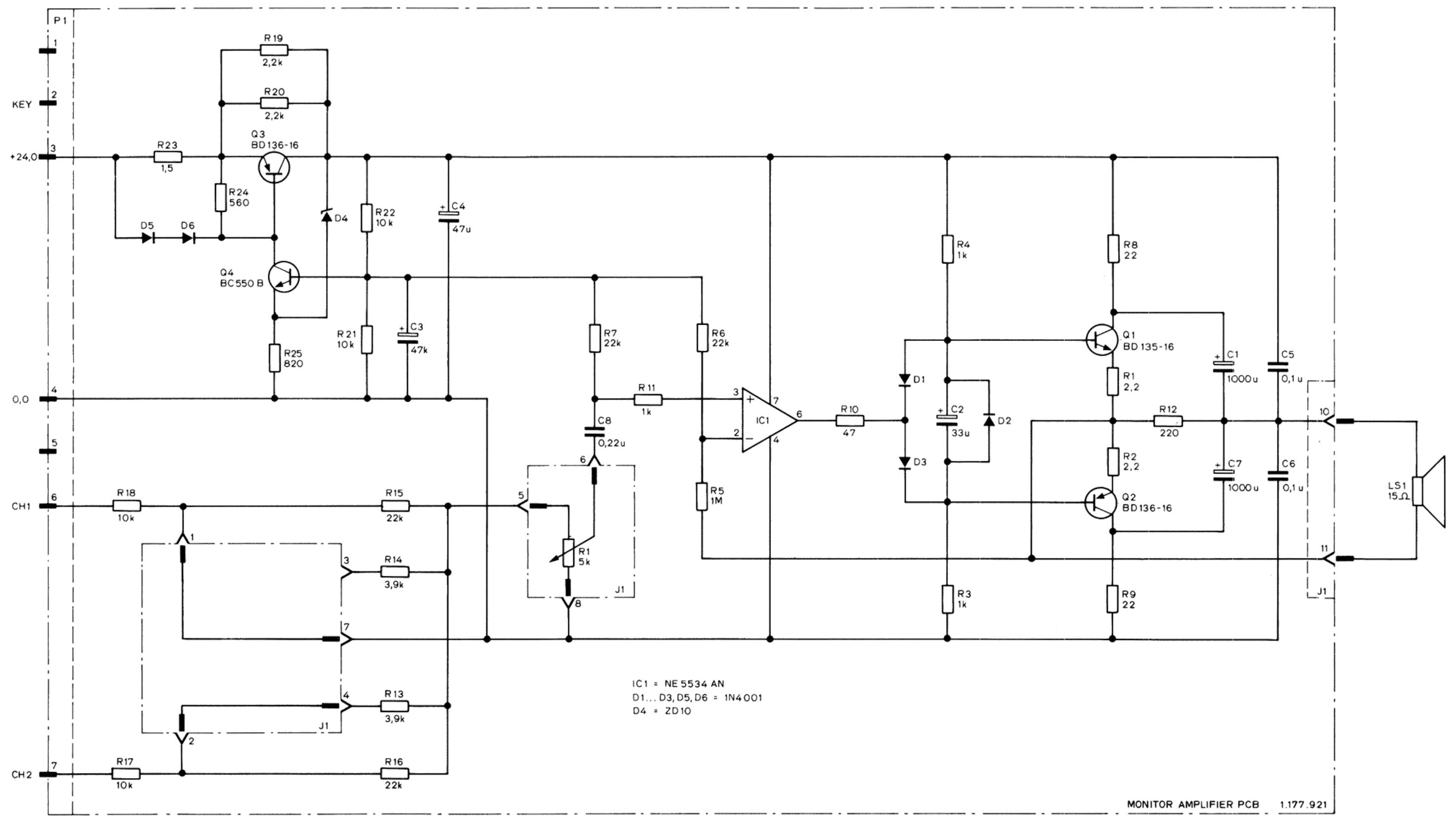

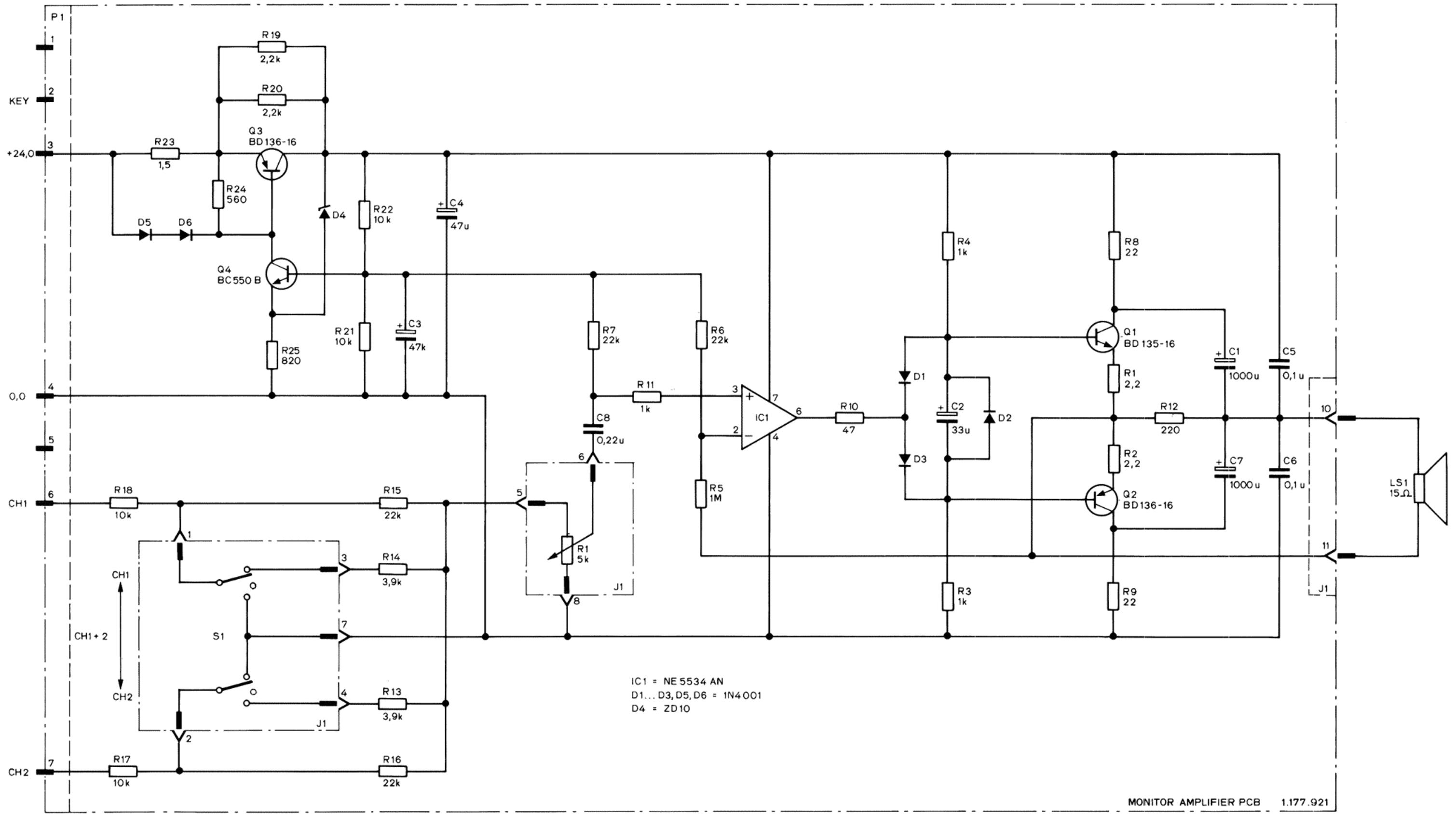

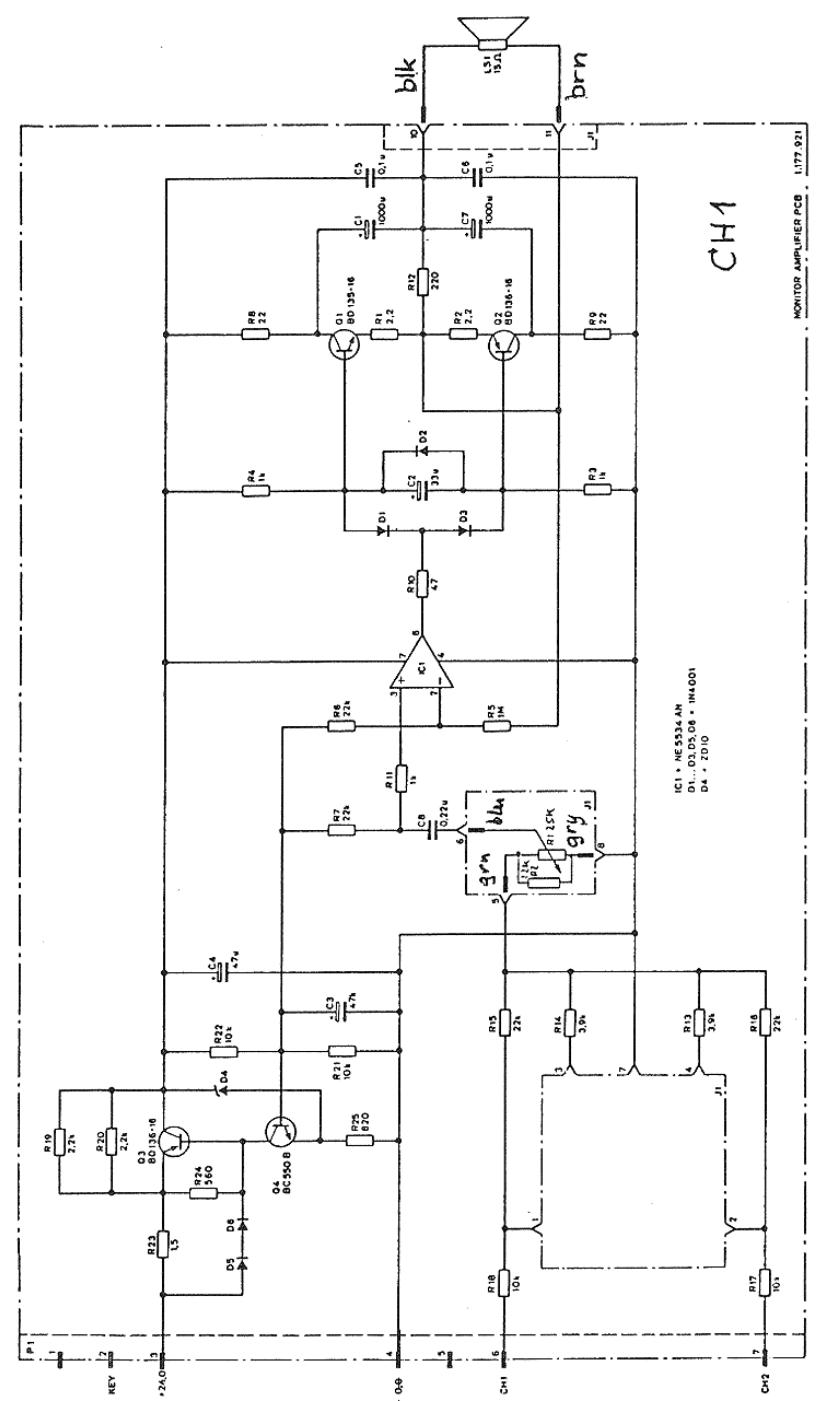

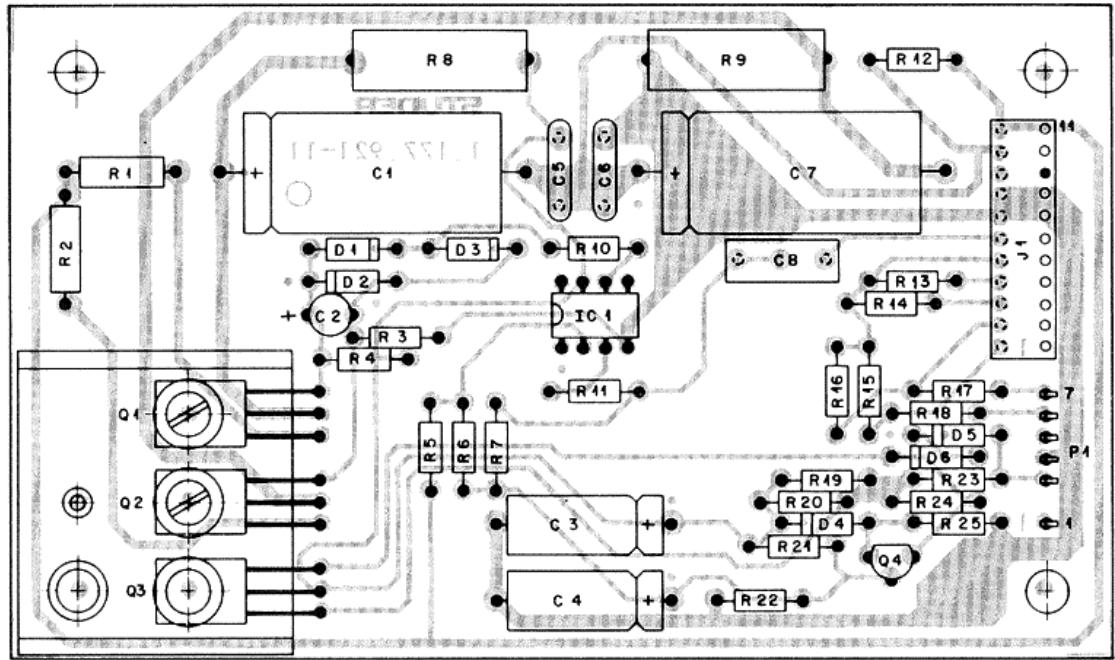

Monitor Amplifier PCB 1.177.921.00
-

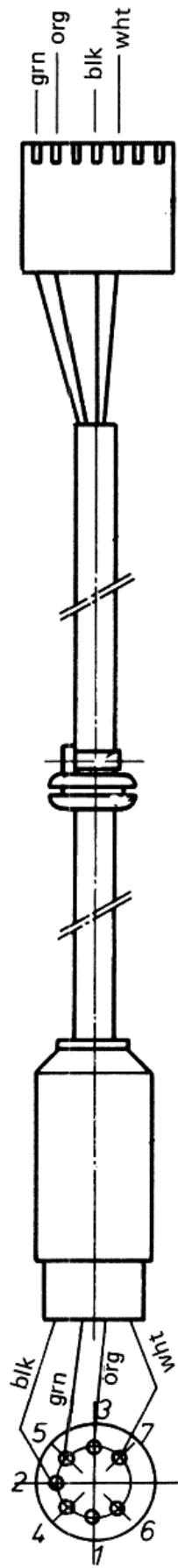

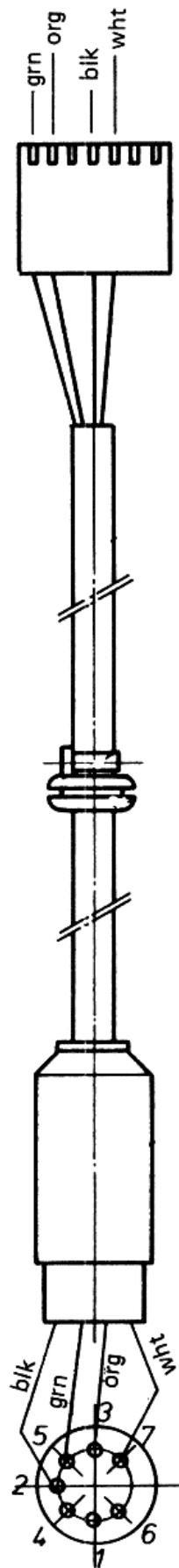

Wire Harness to Monitor Panel 1.177.923.00
Monitor Panel Mono 1.177.925.00 8/34
-
Monitor Amplifier PCB 1.177.921.00
-
Wire Harness to Monitor Panel 1.177.923.00

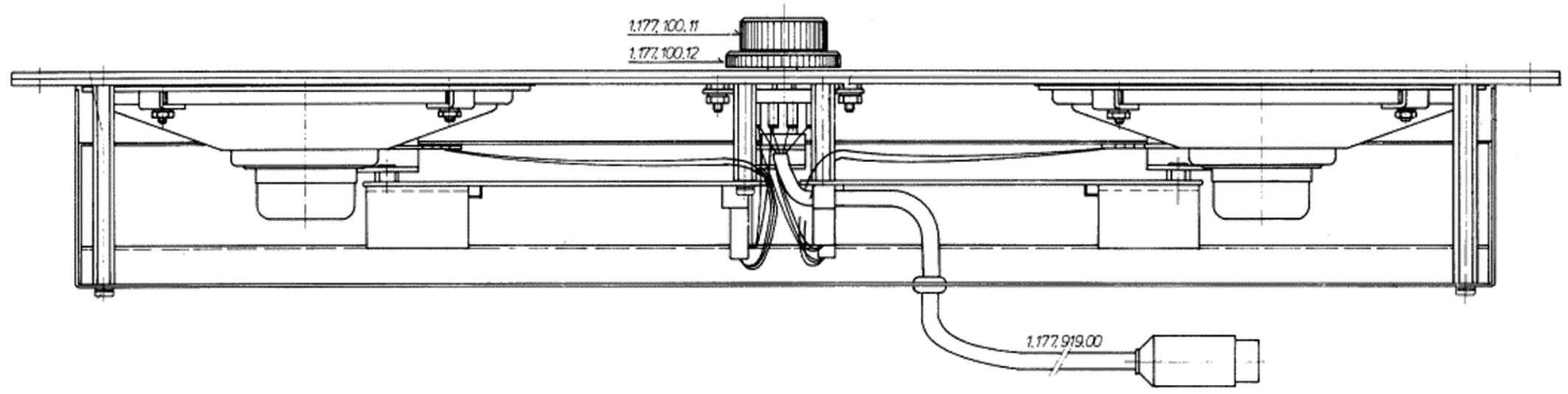

Monitor Panel 2CH 1.177.927.00 8/38
-
Monitor Amplifier PCB 1.177.921.00
-

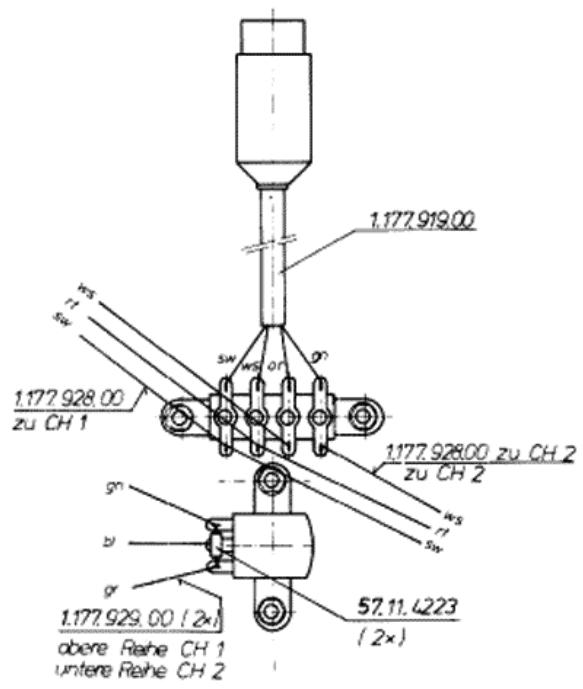

Wire Harness to Monitor Panel 1.177.919.00

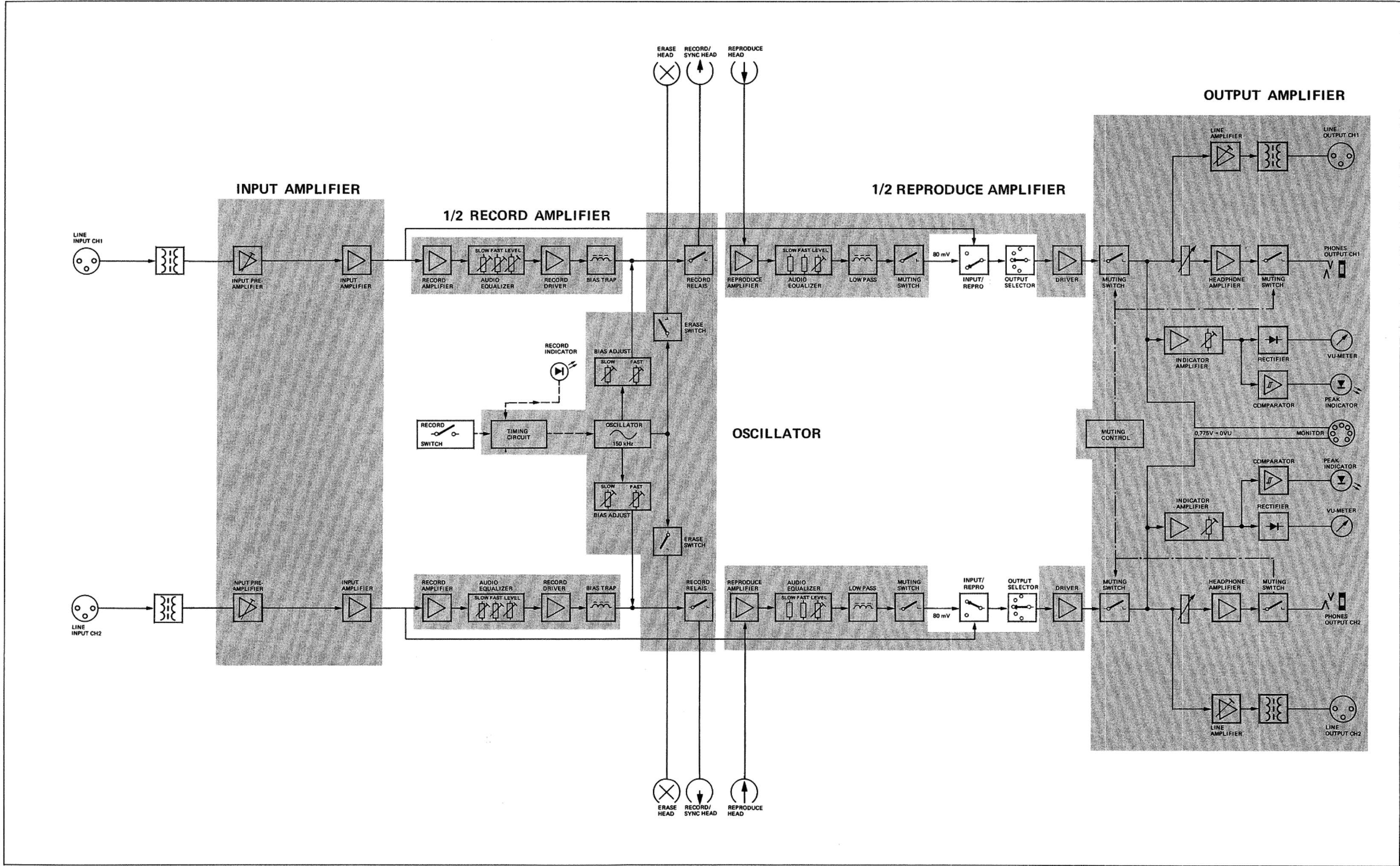

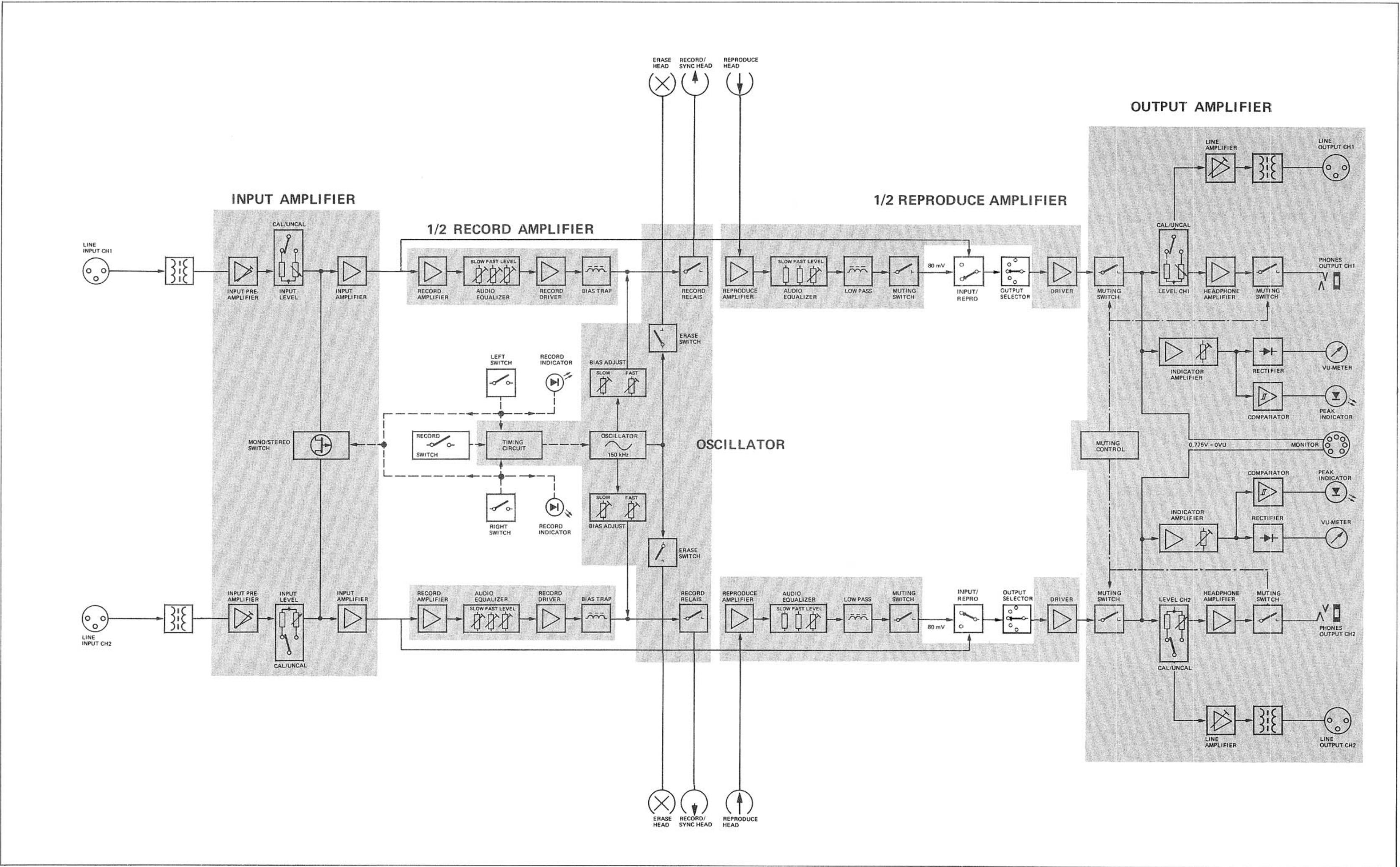

AUDIO BLOCK DIAGRAM STEREO
AUDIO BLOCK DIAGRAM / LINE IN / OUT STEREO

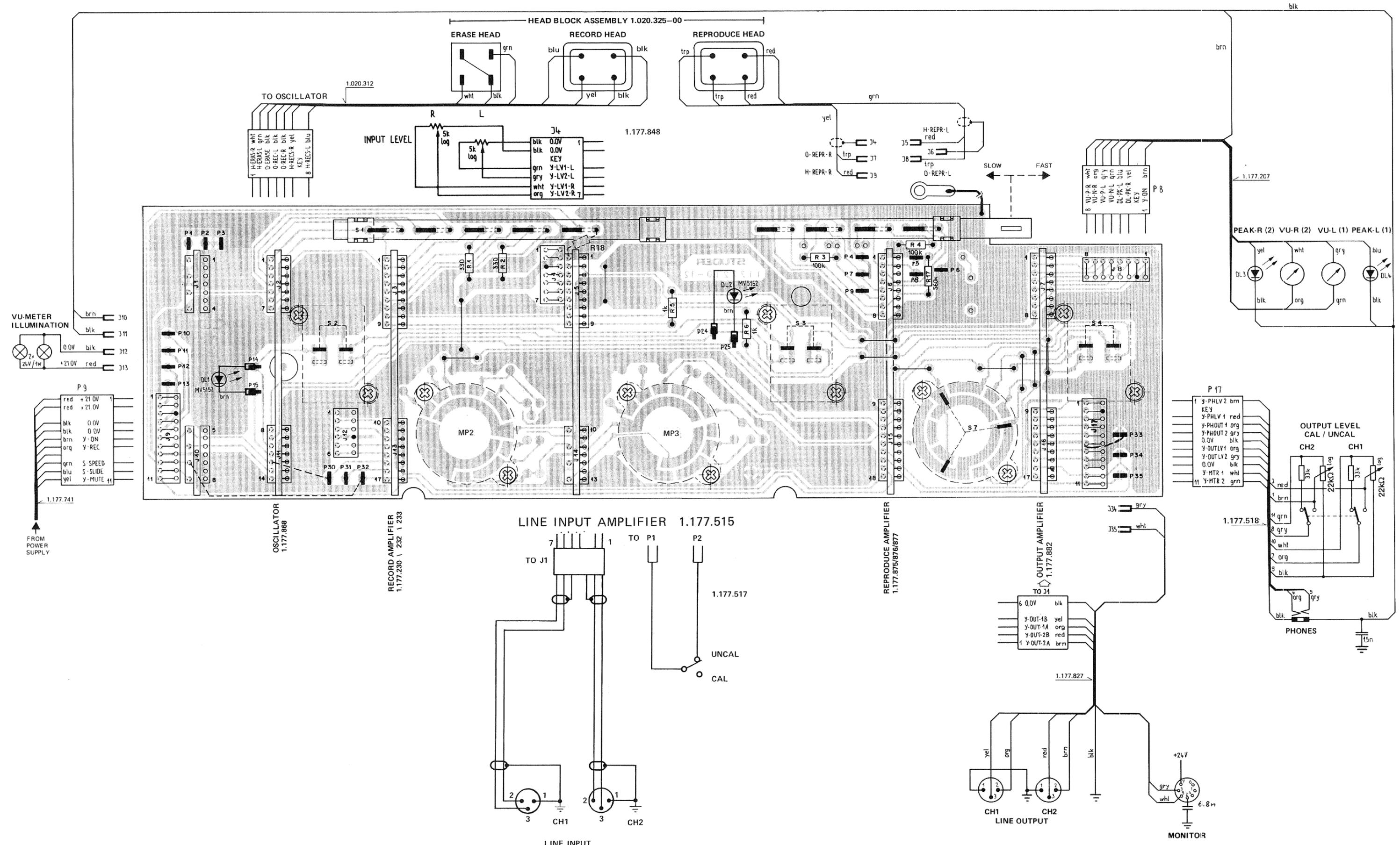

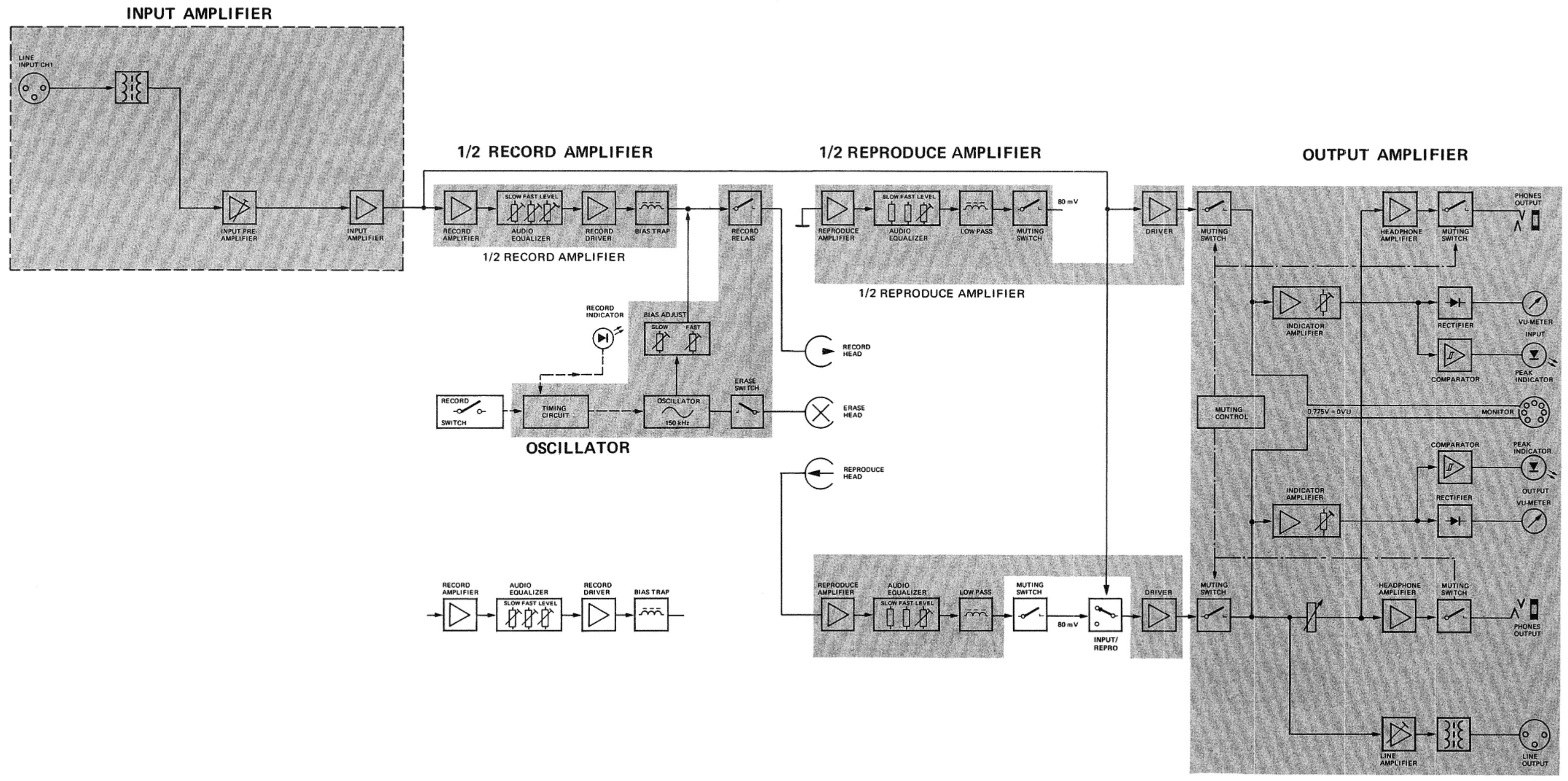

AUDIO BLOCK DIAGRAM / LINE IN / OUT MONO

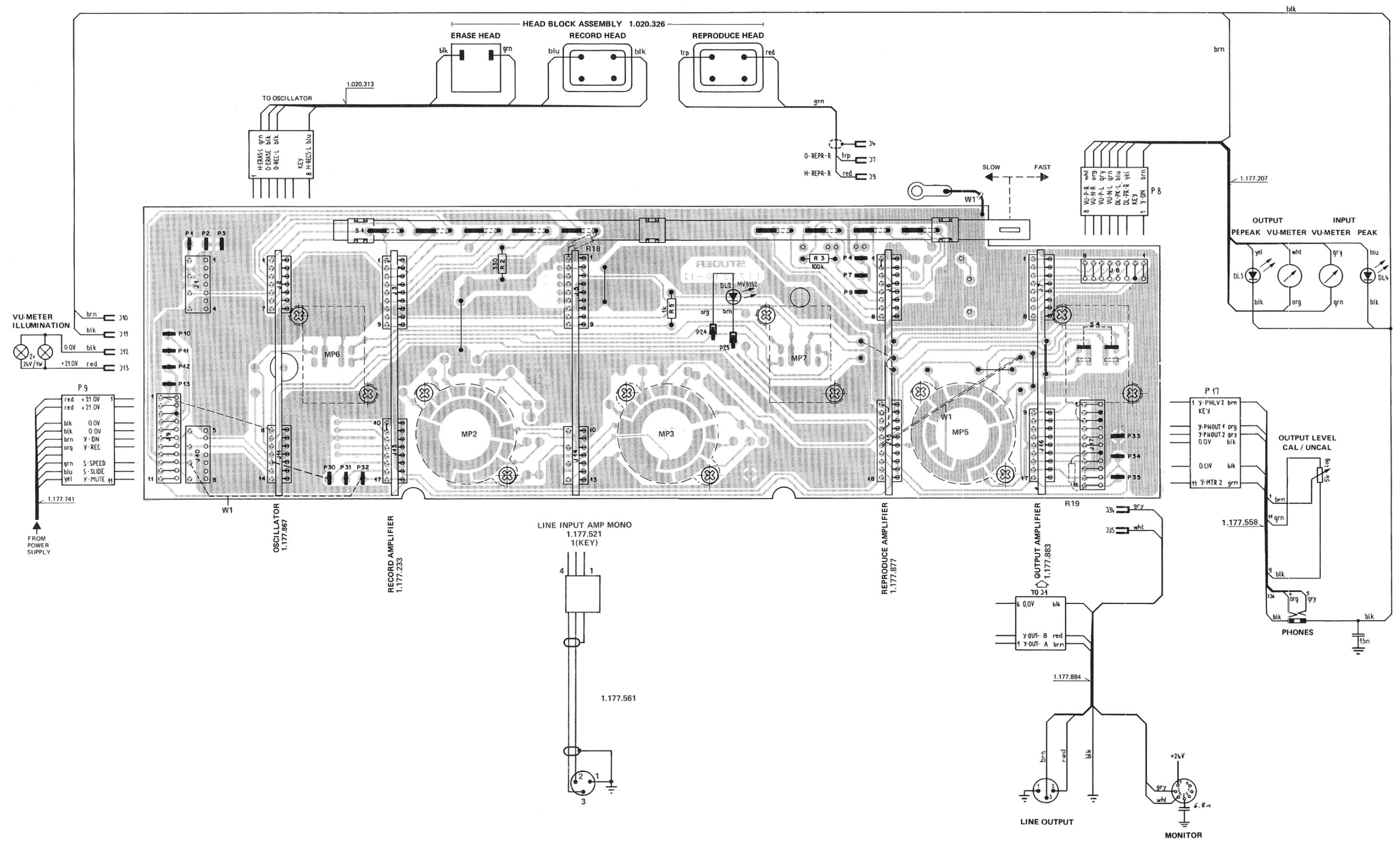

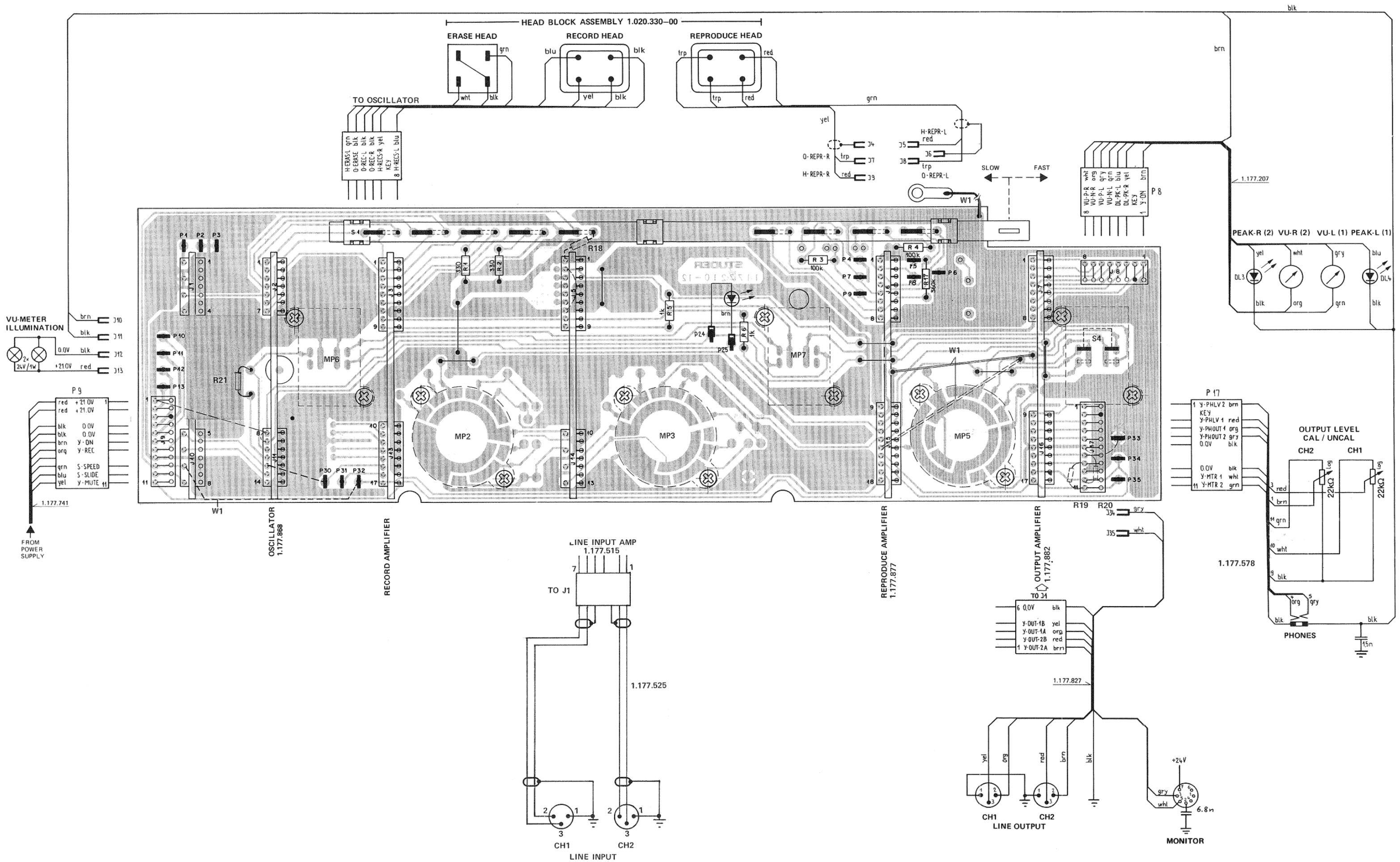

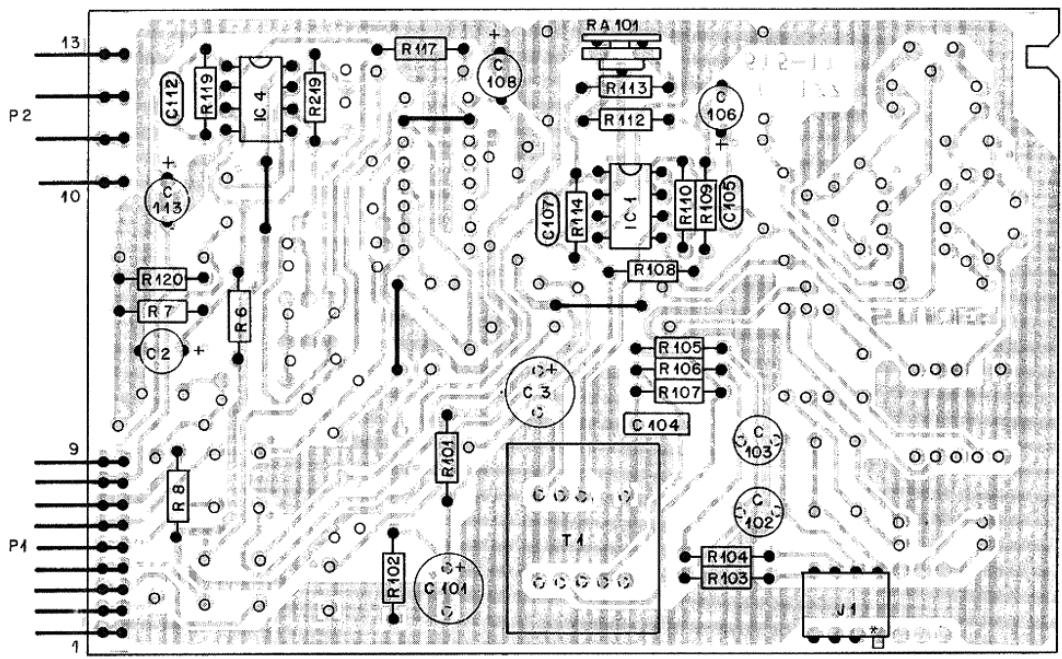

AUDIO INTERCONNECTION PCB LINE IN / OUT MONO 1.177.557.00
| IND. | POS-NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. | ||
| C......1 | 59.06-0104 | 100 nF | 20%, 25V, PE | ||||
| C......2 | 59.22-6100 | 10 UF | -20%, 25V, EI | ||||
| C......3 | 59.22-5101 | 100 UF | -20%, 25V, EI | ||||
| C......101 | 59.22-4101 | 100 UF | -20%, 16V, EI | ||||
| C......102 | 59.05-1581 | 680 PF | 12, 25V, PP | ||||
| C......103 | 59.05-1581 | 680 PF | 12, 25V, PP | ||||
| C......104 | 59.06-0103 | 10 NF | 20%, 25V, PE | ||||
| C......105 | 59.34-4151 | 150 PF | 20%, 25V, Cer | ||||
| C......106 | 59.22-3670 | 47 UF | -20%, 10V, EI | ||||
| C......107 | 59.34-4151 | 150 PF | 20%, 25V, Cer | ||||
| C......108 | 59.22-5220 | 22 UF | -20%, 25V, EI | ||||
| C......109 | 59.22-6100 | 10 UF | -20%, 25V, EI | ||||
| C......111 | 59.22-6100 | 10 UF | -20%, 25V, EI | ||||
| C......112 | 59.34-2670 | 47 PF | 20%, 25V, Cer | ||||
| C......113 | 59.22-6100 | 10 UF | -20%, 25V, EI | ||||
| C......201 | 59.22-4101 | 100 UF | -20%, 16V, EI | ||||
| C......202 | 59.05-1581 | 680 PF | 12, 25V, PP | ||||
| C......203 | 59.34-1581 | 680 PF | 12, 25V, PP | ||||
| C......204 | 59.06-0103 | 10 NF | 20%, 25V, PE | ||||
| C......205 | 59.34-4151 | 150 PF | 20%, 25V, Cer | ||||
| C......206 | 59.22-3670 | 47 UF | -20%, 10V, EI | ||||
| C......207 | 59.34-4151 | 150 PF | 20%, 25V, Cer | ||||
| C......208 | 59.22-5220 | 22 UF | -20%, 25V, EI | ||||
| C......209 | 59.22-6100 | 10 UF | -20%, 25V, EI | ||||
| C......211 | 59.22-6100 | 10 UF | -20%, 25V, EI | ||||
| C......212 | 59.34-2670 | 47 PF | 20%, 25V, Cer | ||||
| C......213 | 59.22-6100 | 10 UF | -20%, 25V, EI | ||||
| I C......1 | 50.09-0107 | RC 4559 | Dual Op, Amp | TI | |||
| I C......2 | 50.09-0107 | RC 4559 | Dual Op, Amp | TI | |||
| I C......3 | 50.07-0015 | MC 14053 | CMOS | Mot | |||
| I C......4 | 50.09-0107 | RC 4559 | Dual Op, Amp | Rat, TI | |||
| J......1 | 51.01-0244 | 7-Pole | Cl-Sin-Pin Case | ||||
| MP......1 | 1.177.515.11 | LINE INPUT PCB | St | ||||
STUDER (01) 8A.06.01 AL LINE INPUT AMPLIFIER PL 1.177.515.00 PAGE L
| IND. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. |
| P.........1 | 54..01..0220 | 9-Pole | Pin-Strip | ||
| P.........2 | 54..01..0470 | 4-Pole | Pin-Strip | ||
| P.........3 | 54..02..0320 | AMP-Connector | |||
| P.........5 | 54..02..0320 | AMP-Connector | |||
| Q.........1 | 50..03..0329 | WP 146 | FET | ||
| Q.........2 | 50..03..0329 | WP 146 | FET | ||
| (00) | R.........1 | 57..11..4472 | 4..7 kOhm | 5 4.., .25W, MF | |
| (01) | R.........1 | 57..11..3102 | 1 kOhm | 5 3.., .25W, MF | |
| R.........2 | 57..11..4104 | 100 kOhm | 5 3.., .25W, MF | ||
| (00) | K.........3 | 57..11..4153 | 15 kOhm | 5 3.., .25W, MF | |
| (01) | R.........3 | 57..11..3562 | 5..6 kOhm | 5 3.., .25W, MF | |
| R.........4 | 57..11..4105 | 1 MOhm | 5 3.., .25W, MF | ||
| R.........5 | 57..11..4333 | 33 kOhm | 5 3.., .25W, MF | ||
| R.........6 | 57..11..4224 | 220 kOhm | 5 3.., .25W, MF | ||
| K.........7 | 57..11..4224 | 220 kOhm | 5 3.., .25W, MF | ||
| R.........8 | 57..11..4470 | 47 Ohm | 5 3.., .25W, MF | ||
| R.........9 | 57..11..5106 | 10 MOhm | 10 3.., .25W, MF | ||
| R.........101 | 57..11..4333 | 33 kOhm | 5 3.., .25W, MF | ||
| R.........102 | 57..11..4333 | 33 kOhm | 5 3.., .25W, MF | ||
| R.........103 | 57..11..3157 | 1..5 kOhm | 1 3.., .25W, MF | ||
| R.........104 | 57..11..3152 | 1..5 kOhm | 1 3.., .25W, MF | ||
| R.........105 | 57..11..4392 | 3..9 kOhm | 5 3.., .25W, MF | ||
| R.........106 | 57..11..4392 | 3..9 kOhm | 5 3.., .25W, MF | ||
| K.........107 | 57..11..4182 | 1..8 kOhm | 5 3.., .25W, MF | ||
| R.........108 | 57..11..4101 | 100 kOhm | 5 3.., .25W, MF | ||
| R.........109 | 57..11..4222 | 2..2 kOhm | 5 3.., .25W, MF | ||
| R.........110 | 57..11..3242 | 2..4 kOhm | 2 3.., .25W, MF | ||
| R.........111 | 57..11..4333 | 33 kOhm | 5 3.., .25W, MF | ||
| R.........112 | 57..11..4332 | 3..3 kOhm | 5 3.., .25W, MF | ||
| R.........113 | 57..11..4102 | 1 kOhm | 5 3.., .25W, MF | ||
| R.........114 | 57..11..4105 | 1 MOhm | 5 3.., .25W, MF | ||
| R.........115 | 57..11..4222 | 2..2 kOhm | 5 3.., .25W, MF | ||
| R.........116 | 57..11..4102 | 1 kOhm | 5 3.., .25W, MF | ||
| R.........117 | 57..11..4103 | 10 kOhm | 5 3.., .25W, MF | ||
| R.........118 | 57..11..4103 | 10 kOhm | 5 3.., .25W, MF |
STUDER (01)88.06.01 AL LINE INPUT AMPLIFIER PL 1.177.515.00 PAGE 2
| IND. | POS-NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. | ||
| R...119 | 57-11-4103 | 10 kOhm | 5 | 2, -25w, MF | |||
| R...120 | 57-11-4672 | 4-7 kOhm | 5 | 2, -25w, MF | |||
| R...201 | 57-11-4333 | 33 kOhm | 5 | 2, -25w, MF | |||
| R...202 | 57-11-4333 | 33 kOhm | 5 | 2, -25w, MF | |||
| R...203 | 57-11-3152 | 1-5 kOhm | 1 | 2, -25w, MF | |||
| R...204 | 57-11-3152 | 1-5 kOhm | 1 | 2, -25w, MF | |||
| R...205 | 57-11-4392 | 3-9 kOhm | 5 | 2, -25w, MF | |||
| R...206 | 57-11-4392 | 3-9 kOhm | 5 | 2, -25w, MF | |||
| R...207 | 57-11-4182 | 1-8 kOhm | 5 | 2, -25w, MF | |||
| R...208 | 57-11-4101 | 100 Ωha | 5 | 2, -25w, MF | |||
| R...209 | 57-11-4222 | 2-2 kOhm | 5 | 2, -25w, MF | |||
| R...210 | 57-11-3242 | 2-4 kOhm | 2 | 2, -25w, MF | |||
| R...211 | 57-11-4333 | 33 kOhm | 5 | 2, -25w, MF | |||
| R...212 | 57-11-4333 | 3-3 kOhm | 5 | 2, -25w, MF | |||
| R...213 | 57-11-4102 | 1 kOhm | 5 | 2, -25w, MF | |||
| R...214 | 57-11-4105 | 1 MΩh | 5 | 2, -25w, MF | |||
| R...215 | 57-11-4222 | 2-2 kOhm | 5 | 2, -25w, MF | |||
| R...216 | 57-11-4102 | 1 kOhm | 5 | 2, -25w, MF | |||
| R...217 | 57-11-4103 | 10 kOhm | 5 | 2, -25w, MF | |||
| R...218 | 57-11-4103 | 10 kOhm | 5 | 2, -25w, MF | |||
| R...219 | 57-11-4103 | 10 kOhm | 5 | 2, -25w, MF | |||
| R...220 | 57-11-4472 | 4-7 kOhm | 5 | 2, -25w, MF | |||
| RA...101 | 58-02-4472 | 4-7 kOhm | 20 | 2, -1 w, PCer | |||
| RA...201 | 58-02-4472 | 4-7 kOhm | 20 | 2, -1 w, PCer | |||
| T...1...1 | 1-022-451-00 | trafo | |||||
| T...2...2 | 1-322-451-00 | trafo | |||||
| INO. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. |
| (OI) | 1. 6.88 | ||||
| Cer=Ceramic, El=Electrolytic, Pe=Polyester, PP=Polypropylen | |||||
| MF=Metal Film, PCr=Pot.Motor Cermet | |||||
| MANUFACTURER: II=Texas Instruments, Ra=Raytheon, | |||||
| St=Studer | |||||
STUDER (01)88.06.01 AL LINE INPUT AMPLIFIER PL 1.177.515.00 PAGE 3
| ORIG 07.08.22 {01} 88.06.01 |
| S T U D E R {01} 88-06-01 AL LINE INPUT AMPLIFIER PL 1.177.515.00 PAGE 4 |

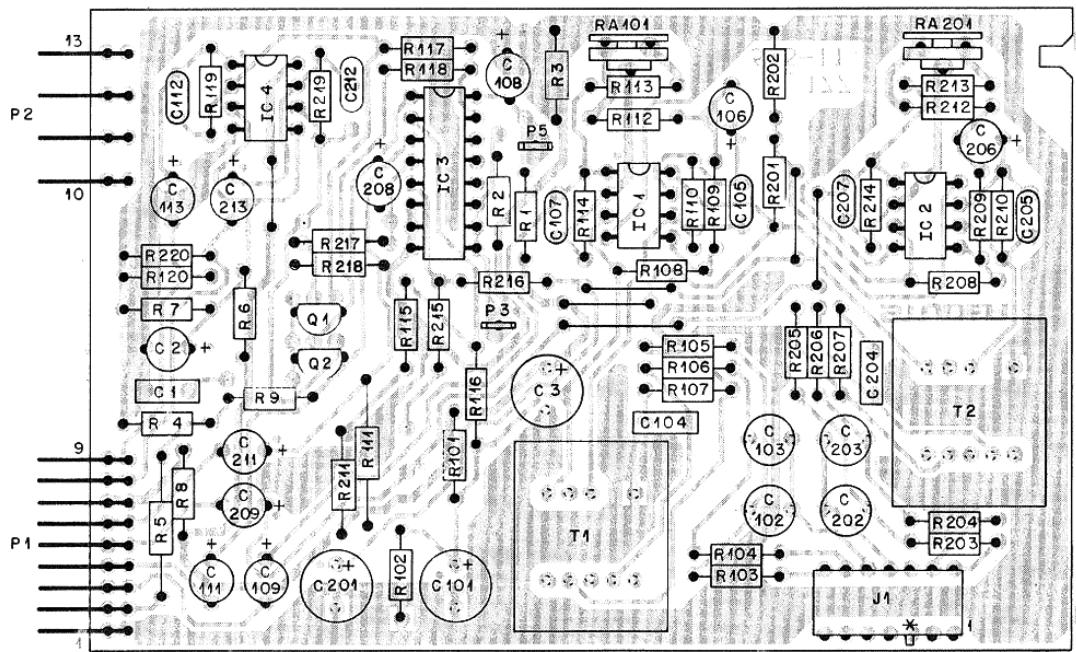

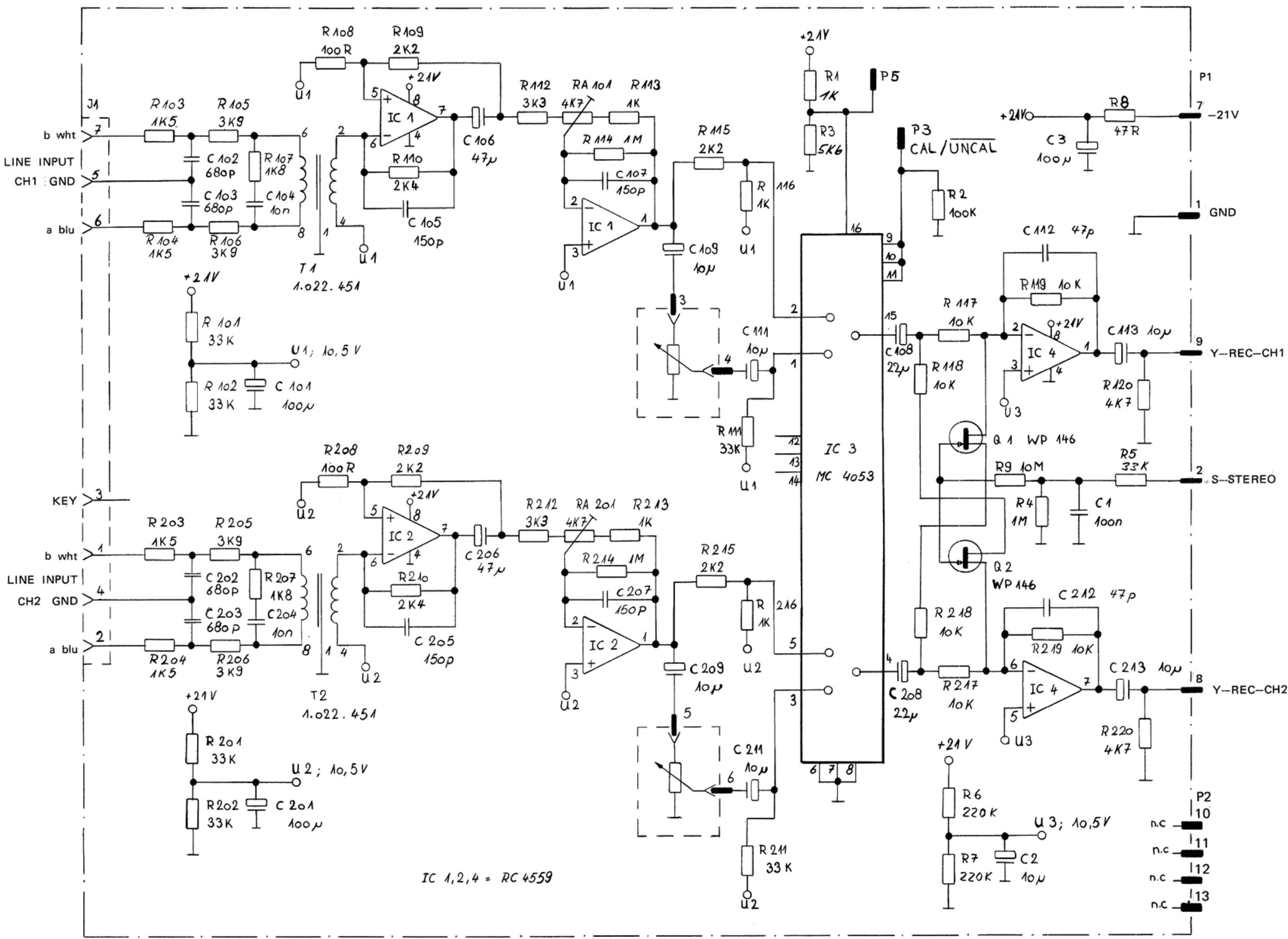

LINE INPUT AMPLIFIER PCB STEREO 1.177.515.00
| 00-G/S-T-L-V | 25 | LdN13N17 | RdNLS | |||
| V F0 V E9d | III W 66 d | |||||
| ···○ | ···○ | ···○ | m88°9'v① | Tt8vr2v① | ||

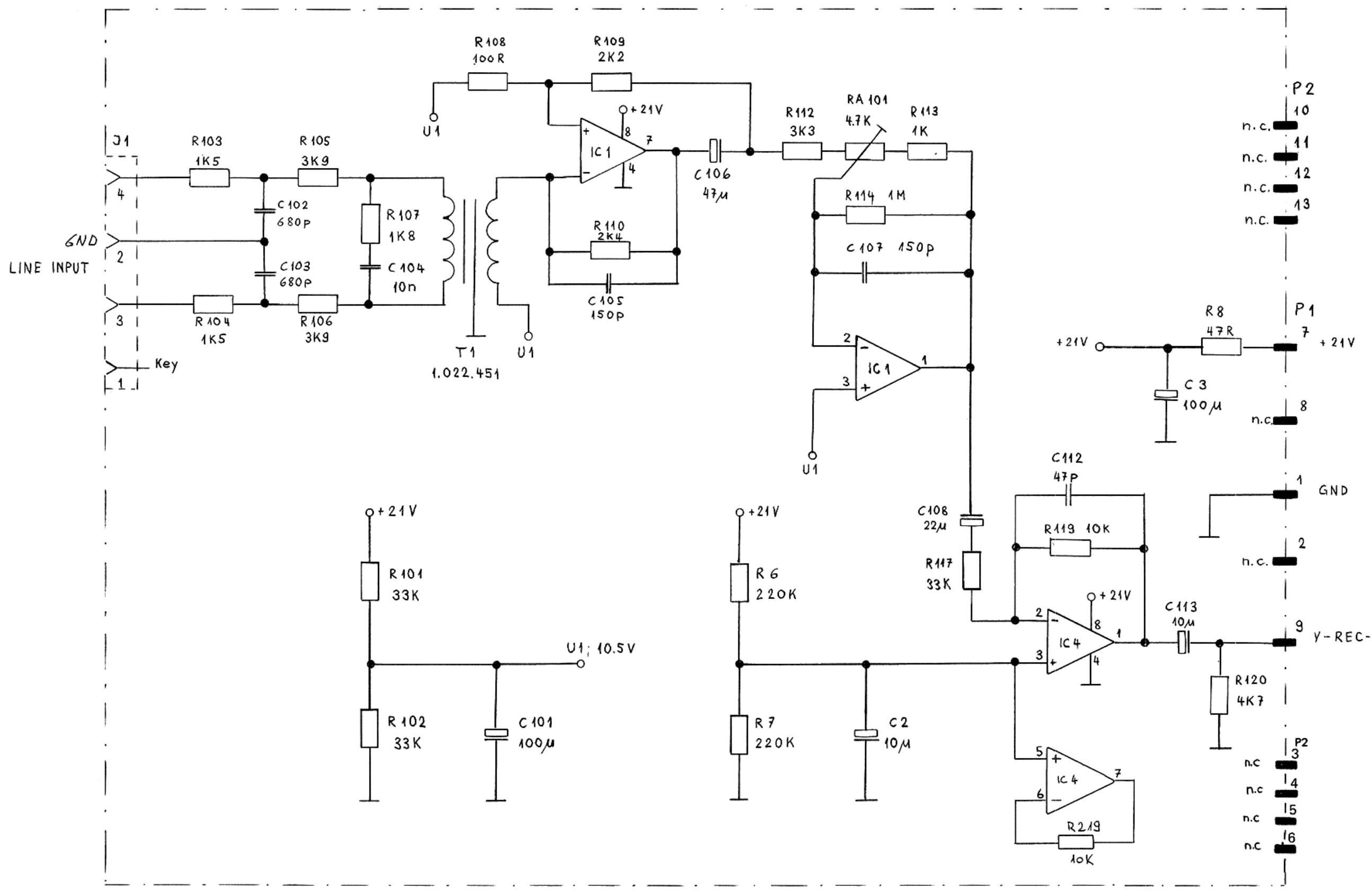

LINE INPUT AMPLIFIER PCB MONO 1.177.521.00
| IND. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. | ||
| C......2 | 59.22-6100 | 10 uF | -20%, 25V, | E1 | |||
| C......3 | 59.22-5101 | 100 uF | -20%, 25V, | E1 | |||
| C......101 | 59.22-4101 | 100 uF | -20%, 16V, | E1 | |||
| C......102 | 59.05-1681 | 680 pF | 13, 25V, | PP | |||
| C......103 | 59.05-1581 | 680 pF | 13, 25V, | PP | |||
| C......104 | 59.06-0103 | 10 nF | 20%, 25V, | PE | |||
| C......105 | 59.34-4151 | 150 pF | 20%, 25V, | Cor | |||
| C......106 | 59.22-3470 | 47 uF | -20%, 10V, | E1 | |||
| C......107 | 59.34-4151 | 150 pF | 20%, 25V, | Cor | |||
| C......108 | 59.22-5220 | 22 uF | -20%, 25V, | E1 | |||
| C......112 | 59.34-2470 | 47 pF | 20%, 25V, | Cor | |||
| C......113 | 59.22-6100 | 10 uF | -20%, 25V, | E1 | |||
| IC......1 | 50.09-0107 | RC 4559 | Dual Op. Amp | TI | |||
| IC......4 | 50.09-0107 | RC 4559 | Dual Op. Amp | R, TI | |||
| J......1 | 54.01-0304 | 4-Pole | Cis-Pin Case | ||||
| MP......1 | 1.177-515-11 | LINE INPUT PCB | St | ||||
| P......1 | 54.01-0220 | 9-Pole | Pin-Strip | ||||
| P......2 | 54.01-0470 | 4-Pole | Pin-Strip | ||||
| R......6 | 57.11-3224 | 220 kOhm | 5 Ω, .25W, MF | ||||
| R......7 | 57.11-3224 | 220 kOhm | 5 Ω, .25W, MF | ||||
| R......8 | 57.11-3470 | 47 Ohm | 5 Ω, .25W, MF | ||||
| R......101 | 57.11-3333 | 33 kOhm | 5 Ω, .25W, MF | ||||
| R......102 | 57.11-3333 | 33 kOhm | 5 Ω, .25W, MF | ||||
| R......103 | 57.11-3152 | 1.5 kOhm | 1 Ω, .25W, MF | ||||
| R......104 | 57.11-3152 | 1.5 kOhm | 1 Ω, .25W, MF | ||||
| R......105 | 57.11-3392 | 3.9 kOhm | 5 Ω, .25W, MF | ||||
| R......106 | 57.11-3392 | 3.9 kOhm | 5 Ω, .25W, MF | ||||
| R......107 | 57.11-3182 | 1.8 kOhm | 5 Ω, .25W, MF | ||||
| R......108 | 57.11-3101 | 100 Ohm | 5 Ω, .25W, MF | ||||
| R......109 | 57.11-3222 | 2.2 kOhm | 5 Ω, .25W, MF | ||||
| R......110 | 57.11-3242 | 2.4 kOhm | 2 Ω, .25W, MF | ||||
| R......112 | 57.11-3332 | 3.3 kOhm | 5 Ω, .25W, MF | ||||
| IND. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. |
| R...113 | 57..11..3102 | 1 kOhm | 5 %, -25W, MF | ||
| R...114 | 57..11..3105 | 1 MOhm | 5 %, -25W, MF | ||
| R...117 | 57..11..3333 | 33 kOhm | 5 %, -25W, MF | ||
| R...119 | 57..11..3103 | 10 kOhm | 5 %, -25W, MF | ||
| R...120 | 57..11..3472 | 4..7 kOhm | 5 %, -25W, MF | ||
| R...219 | 57..11..3103 | 1.0 kOhm | 5 %, -25W, MF | ||
| RA...101 | 58.02..4472 | 4..7 kOhm | 20 %, +1 W, PCer | ||
| T...11 | 1.022..451.00 | trafo | |||
| Cer=Ceramic, E1=Electrolytic, PE=Polyester, PP=PolypropylenMF=Metal Filmm, PCer=Pot.Meter Cermet | |||||
| MANUFACTUREK: T1=Texas Instruments, Ra=Raytheon,St=Studer | |||||
| ORIG 88.05.02 | |||||
| ST U D E R (00) 88.05.02 LINE INPUT MONO AMPLIFIER PL 1.177.521.00 PAGE 2 | |||||
LINE INPUT AMPLIFIER PCB MONO 1.177.521.00
| 0 02.05.88 | O . . . | O . . . | O . . . | O . . . | ||||
| PR 99 Mk III | PAGE 1 OF 1 | |||||||
| STUDER | LINE INPUT MONO | SC | 1.177.521.00 | |||||

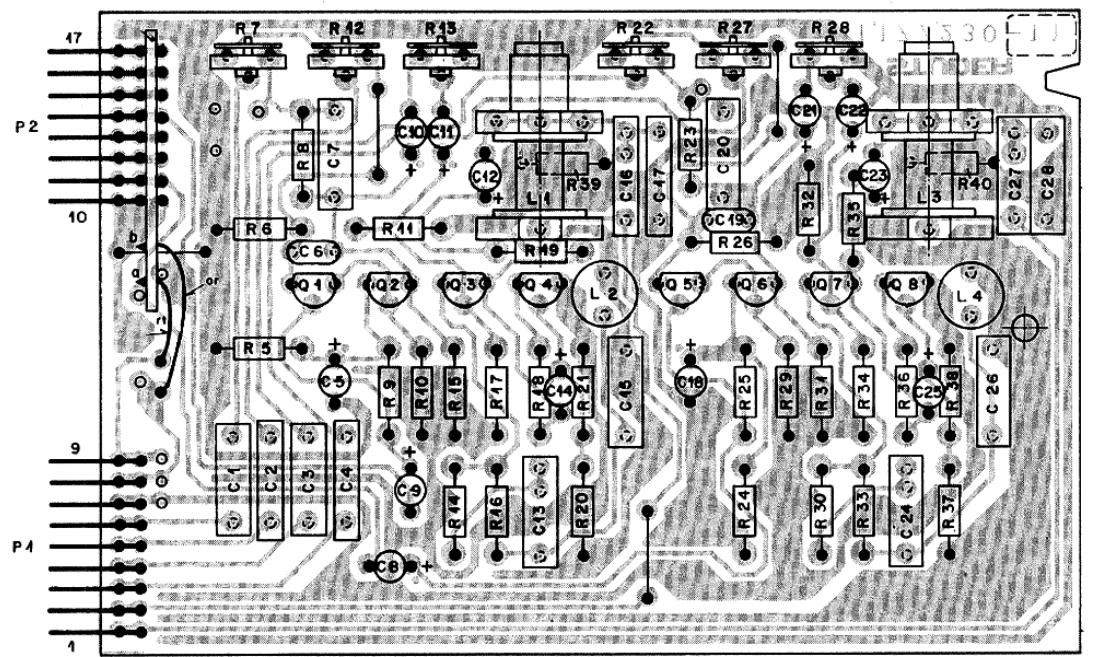

RECORD AMPLIFIER PCB (NAB 3 3/4-7 1/2 ips) 1.177.230.81
-Muting Circuit 1.177.215.00
| IND. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. | ||
| C.........1 | 59..11..6272 | 2700 pF | 5% | 400V, | PC | ||
| C.........2 | 59..11..6272 | 2700 pF | 5% | 400V, | PC | ||
| C.........3 | 59..11..6272 | 2700 pF | 5% | 400V, | PC | ||
| C.........4 | 59..11..6272 | 2700 pF | 5% | 400V, | PC | ||
| C.........5 | 59..22..3101 | 100 uF | 10% | 12V, | EL | ||
| C.........6 | 59..32..0220 | 22 pF | 20% | 500V, | Cer | ||
| C.........7 | 59..31..6104 | 0..1 uF | 10% | 100V, | MPETP | ||
| C.........8 | 59..22..8679 | 4..7 uF | 10% | 50V, | EL | ||
| C.........9 | 59..22..8679 | 4..7 uF | 10% | 50V, | EL | ||
| C.........10 | 59..22..8679 | 4..7 uF | 10% | 50V, | EL | ||
| C.........11 | 59..22..8109 | 1 uF | 10% | 50V, | EL | ||
| C.........12 | 59..22..8679 | 4..7 uF | 10% | 50V, | EL | ||
| C.........13 | 59..99..0257 | 0..033uF | 10% | 160V, | PETP | ||
| C.........14 | 59..22..3670 | 47 uF | 10% | 10V, | EL | ||
| C.........15 | 59..31..9103 | 0..01 uF | 10% | 100V, | PETP | ||
| C.........16 | 59..11..6671 | 470 pF | 5% | 400V, | PC | ||
| C.........17 | 59..11..6332 | 3300 pF | 5% | 400V, | PC | ||
| C.........18 | 59..22..3101 | 100 uF | 10% | 12V, | EL | ||
| C.........19 | 59..12..0220 | 22 pF | 20% | 500V, | Cer | ||
| C.........20 | 59..31..6104 | 0..1 uF | 10% | 100V, | MPETP | ||
| C.........21 | 59..22..8479 | 4..7 uF | 10% | 50V, | EL | ||
| C.........22 | 59..22..8109 | 1 uF | 10% | 50V, | EL | ||
| C.........23 | 59..22..8479 | 4..7 uF | 10% | 50V, | EL | ||
| C.........24 | 59..99..0257 | 0..033uF | 10% | 160V, | PETP | ||
| C.........25 | 59..22..3470 | 47 uF | 10% | 10V, | EL | ||
| C.........26 | 59..31..9103 | 0..01 uF | 10% | 100V, | PETP | ||
| C.........27 | 59..11..6671 | 470 pF | 5% | 400V, | PC | ||
| C.........28 | 59..11..6332 | 3300 pF | 5% | 400V, | PC | ||
| L.........1 | 1..177..231..00 | S | |||||
| L.........2 | 62..02..1222 | 2..2 mH | 5% | ||||
| L.........3 | 1..177..231..00 | S | |||||
| L.........4 | 52..02..1222 | 2..2 mH | 5% | ||||
| P.........1 | 54..01..0220 | 9-Pole | Pin-Strip | AMP | |||
| P.........2 | 54..01..0270 | 8-Pole | Pin-Strip | AMP | |||
| IND. | POS.NO. | PART NU. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. |
| Q-1-1-1 | 50.03.0439 | BC 109 C | NPN | ||
| Q-1-1-2 | 50.03.0436 | BC 107 B | NPN | ||
| Q-1-1-3 | 50.03.0436 | BC 107 B | NPN | ||
| Q-1-1-4 | 50.03.0436 | BC 107 B | NPN | ||
| Q-1-1-5 | 50.03.0439 | BC 109 C | NPN | ||
| Q-1-1-6 | 50.13.0436 | aC 107 B | NPN | ||
| Q-1-1-7 | 50.03.0436 | aC 107 B | NPN | ||
| Q-1-1-8 | 50.03.0436 | BC 107 B | NPN | ||
| R-1-1-1 | |||||
| R-1-1-2 | |||||
| R-1-1-3 | |||||
| R-1-1-4 | |||||
| R-1-1-5 | 57.11.4921 | 820 Μha | 5%; 0.25W+ CF | ||
| K-1-1-6 | 57.11.4332 | 3.3 kohm | 5%; 0.25W+ CF | ||
| K-1-1-7 | 58.02.4223 | 22 kohm | 10%; 0.1 W+ CF | ||
| K-1-1-8 | 57.11.4563 | 56 kohm | 5%; 0.25W+ CF | ||
| K-1-1-9 | 57.11.4104 | 100 kohm | 5%; 0.25W+ CF | ||
| K-1-1-10 | 57.11.4154 | 150 kohm | 5%; 0.25W+ CF | ||
| K-1-1-11 | 57.11.4563 | 56 kohm | 5%; 0.25W+ CF | ||
| K-1-1-12 | 58.02.4223 | 22 kohm | 10%; 0.1 W+ CF | ||
| K-1-1-13 | 58.02.4223 | 22 kohm | 10%; 0.1 W+ CF | ||
| K-1-1-14 | 57.11.4472 | 4.7 kohm | 5%; 0.25W+ CF | ||
| K-1-1-15 | 57.11.4682 | 6.8 kohm | 5%; 0.25W+ CF | ||
| K-1-1-16 | 57.11.4681 | 680 Μha | 5%; 0.25W+ CF | ||
| K-1-1-17 | 57.11.4224 | 220 kohm | 5%; 0.25W+ CF | ||
| K-1-1-18 | 57.11.4331 | 330 Μha | 5%; 0.25W+ CF | ||
| K-1-1-19 | 57.11.4102 | 1 kohm | 5%; 0.25W+ CF | ||
| K-1-1-20 | 57.11.4224 | 220 kohm | 5%; 0.25W+ CF | ||
| K-1-1-21 | 57.11.4104 | 100 kohm | 5%; 0.25W+ CF | ||
| K-1-1-22 | 58.02.4223 | 22 kohm | 10%; 0.1 W+ CF | ||
| K-1-1-23 | 57.11.4563 | 56 kohm | 5%; 0.25W+ CF | ||
| K-1-1-24 | 57.11.4821 | 820 Μha | 5%; 0.25W+ CF | ||
| K-1-1-25 | 57.11.4104 | 100 kohm | 5%; 0.25W+ CF | ||
| K-1-1-26 | 57.11.4332 | 3.3 kohm | 5%; 0.25W+ CF | ||
| K-1-1-27 | 58.02.4223 | 22 kohm | 10%; 0.1 W+ CF | ||
| A-1-1-28 | 58.02.4223 | 22 kohm | 10%; 0.1 W+ CF |
| 1ND. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. |
| R......29 | 37-11-4154 | 150 KOhm | SZ, 0±25W, CF | ||
| R......30 | 37-11-4472 | 4.7 KOhm | SZ, 0±25W, CF | ||
| R......31 | 37-11-4682 | 6.8 KOhm | SZ, 0±25W, CF | ||
| R......32 | 37-11-4563 | 56 KOhm | SZ, 0±25W, CF | ||
| R......33 | 37-11-4681 | 680 OHm | SZ, 0±25W, CF | ||
| R......34 | 37-11-4224 | 220 KOhm | SZ, 0±25W, CF | ||
| K......35 | 37-11-4102 | 1 KOhm | SZ, 0±25W, CF | ||
| R......36 | 37-11-4331 | 330 OHm | SZ, 0±25W, CF | ||
| R......37 | 37-11-4224 | 220 KOhm | SZ, 0±25W, CF | ||
| K......38 | 37-11-4104 | 100 KOhm | SZ, 0±25W, CF | ||
| R......39 | 37-11-4104 | 100 KOhm | SZ, 0±25W, CF | ||
| R......40 | 37-11-4104 | 100 KOhm | SZ, 0±25W, CF |
E1=electrolytic, Cer=oramic, PC=Polycarbonate, MPETP=Metallized Polyster PstP=Polyester
Manufacturer: S&STUDER
ORIG 77/04/07 (01) 81/01/13 (02) 81/12/21
STUDER (02)81/12/21 RN RECORD AMPLIFIER PL 1.177.230.81 PAGE 3
Muting Circuit 1.177.215.00
| IND POS NO | PART NO | VALUE | SPECIFICATIONS/ EQUIVALENT | MFR |
| ③C1 | 59.31.4154 | 150hF | ||
| S' | ||||
| INDI DATE NAME | |||
| ④ | |||
| ③ | 11.3.51 | Wolpinsin | |
| ② | 28.1.84 | WolpinHaler | |
| ① | 14.1.84 | Gautner | |
| ○ | 18.12.80 | Gautner | |
| STUORR | Nuting Circuit | PL | 1.177.215-00 PAGE 1 OF 1 |
RECORD AMPLIFIER PCB (NAB 3 3/4-7 1/2 ips) 1.177.230.81
-Muting Circuit 1.177.215.00
| Idx. | Pos. | Part No. | Qty. | Type/Val. | Description |
| 0 | C 1 | 59.11.3682 | C 6800 P, 5%, 160V, PC | ||
| 0 | C 2 | 59.11.6272 | C 2700 P, 5%, 400V, PC | ||
| 0 | C 3 | 59.11.3682 | C 6800 P, 5%, 160V, PC | ||
| 0 | C 4 | 59.11.6272 | C 2700 P, 5%, 400V, PC | ||
| 0 | C 5 | 59.22.3101 | 100u | EL | 10V, 20%, RM5 |
| 0 | C 6 | 59.32.0220 | C 22 P, 20%, 400V, CER | ||
| 0 | C 7 | 59.31.6104 | 100n | C | .1 U, 10%, 100V, MPETP |
| 0 | C 8 | 59.22.8479 | 4u7 | EL | 50V, 20%, RM5 |
| 0 | C 9 | 59.22.8479 | 4u7 | EL | 50V, 20%, RM5 |
| 0 | C 10 | 59.22.8479 | 4u7 | EL | 50V, 20%, RM5 |
| 0 | C 11 | 59.22.8109 | 1u | EL | 50V, 20%, RM5 |
| 0 | C 12 | 59.22.8479 | 4u7 | EL | 50V, 20%, RM5 |
| 0 | C 13 | 59.11.3682 | C 6800 P, 5%, 160V, PC | ||
| 0 | C 14 | 59.22.3470 | 47u | EL | 10V, 20%, RM5 |
| 0 | C 15 | 59.31.9103 | C .01 U, 10%, 160V, MPETP | ||
| 0 | C 16 | 59.11.6471 | C 470 P, 5%, 400V, PC | ||
| 0 | C 17 | 59.11.6332 | C 3300 P, 5%, 400V, PC | ||
| 0 | C 18 | 59.22.3101 | 100u | EL | 10V, 20%, RM5 |
| 0 | C 19 | 59.32.0220 | C 22 P, 20%, 400V, CER | ||
| 0 | C 20 | 59.31.6104 | 100n | C | .1 U, 10%, 100V, MPETP |
| 0 | C 21 | 59.22.8479 | 4u7 | EL | 50V, 20%, RM5 |
| 0 | C 22 | 59.22.8109 | 1u | EL | 50V, 20%, RM5 |
| 0 | C 23 | 59.22.8479 | 4u7 | EL | 50V, 20%, RM5 |
| 0 | C 24 | 59.11.3682 | C 6800 P, 5%, 160V, PC | ||
| 0 | C 25 | 59.22.3470 | 47u | EL | 10V, 20%, RM5 |
| 0 | C 26 | 59.31.9103 | C .01 U, 10%, 160V, MPETP | ||
| 0 | C 27 | 59.11.6471 | C 470 P, 5%, 400V, PC | ||
| 0 | C 28 | 59.11.6332 | C 3300 P, 5%, 400V, PC | ||
| 0 | L 1 | 1.177.231.00 | SPERRKREISSPULE | ||
| 0 | L 2 | 62.02.1222 | L 2.2 M, 5%, D 8 | ||
| 0 | L 3 | 1.177.231.00 | SPERRKREISSPULE | ||
| 0 | L 4 | 62.02.1222 | L 2.2 M, 5%, D 8 | ||
| 0 | P 1 | 54.01.0220 | 9-P | P LEISTE 9 POL CIS WINKEL | |
| 0 | P 2 | 54.01.0270 | 8-P | P LEISTE 8 POL CIS WINKEL | |
| 0 | Q 1 | 50.03.0439 | BC 239 C ,BC 549 C NPN | ||
| 0 | Q 2 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |
| 0 | Q 3 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |
| 0 | Q 4 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |
| 0 | Q 5 | 50.03.0439 | BC 239 C ,BC 549 C NPN | ||
| 0 | Q 6 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |
| 0 | Q 7 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |
| 0 | Q 8 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |
| 0 | R 5 | 57.11.4821 | R 820 , 2%, 0207 , MF | ||
| 0 | R 6 | 57.11.4332 | R 3.3 K, 2%, 0207 , MF | ||
| 0 | R 7 | 58.02.4223 | 22k | 20%, 0.1W, Carbon | |
| 0 | R 8 | 57.11.4393 | R 39 K, 2%, 0207 , MF | ||
| 0 | R 9 | 57.11.4104 | R 100 K, 2%, 0207 , MF | ||
| 0 | R 10 | 57.11.4154 | R 150 K, 2%, 0207 , MF | ||
| 0 | R 11 | 57.11.4563 | R 56 K, 2%, 0207 , MF | ||
| 0 | R 12 | 58.02.4223 | 22k | 20%, 0.1W, Carbon | |
| 0 | R 13 | 58.02.4223 | 22k | 20%, 0.1W, Carbon | |
| 0 | R 14 | 57.11.4102 | R 1 K, 2%, 0207 , MF | ||
| 0 | R 15 | 57.11.4682 | R 6.8 K, 2%, 0207 , MF | ||
| 0 | R 16 | 57.11.4681 | R 680 , 2%, 0207 , MF | ||
| 0 | R 17 | 57.11.4224 | R 220 K, 2%, 0207 , MF | ||
| 0 | R 18 | 57.11.4331 | R 330 , 2%, 0207 , MF | ||
| 0 | R 19 | 57.11.4102 | R 1 K, 2%, 0207 , MF | ||
| 0 | R 20 | 57.11.4224 | R 220 K, 2%, 0207 , MF | ||
| 0 | R 21 | 57.11.4104 | R 100 K, 2%, 0207 , MF | ||
| 0 | R 22 | 58.02.4223 | 22k | 20%, 0.1W, Carbon | |
| 0 | R 23 | 57.11.4393 | R 39 K, 2%, 0207 , MF | ||
| 0 | R 24 | 57.11.4821 | R 820 , 2%, 0207 , MF | ||
| 0 | R 25 | 57.11.4104 | R 100 K, 2%, 0207 , MF | ||
| 0 | R 26 | 57.11.4332 | R 3.3 K, 2%, 0207 , MF | ||
| 0 | R 27 | 58.02.4223 | 22k | 20%, 0.1W, Carbon | |
| 0 | R 28 | 58.02.4223 | 22k | 20%, 0.1W, Carbon | |
| 0 | R 29 | 57.11.4154 | R 150 K, 2%, 0207 , MF | ||
| 0 | R 30 | 57.11.4102 | R 1 K, 2%, 0207 , MF | ||
| 0 | R 31 | 57.11.4682 | R 6.8 K, 2%, 0207 , MF | ||
| 0 | R 32 | 57.11.4563 | R 56 K, 2%, 0207 , MF | ||
| 0 | R 33 | 57.11.4681 | R 680 , 2%, 0207 , MF | ||
| 0 | R 34 | 57.11.4224 | R 220 K, 2%, 0207 , MF | ||
| 0 | R 35 | 57.11.4102 | R 1 K, 2%, 0207 , MF | ||
| 0 | R 36 | 57.11.4331 | R 330 , 2%, 0207 , MF | ||
| 0 | R 37 | 57.11.4224 | R 220 K, 2%, 0207 , MF | ||
| 0 | R 38 | 57.11.4104 | R 100 K, 2%, 0207 , MF | ||
| 0 | R 39 | 57.11.4272 | R 2.7 K, 2%, 0207 , MF | ||
| Idx. | Pos. | Part No. | Qty. | Type/Val. | Description |
| 0 | R 40 | 57.11.4223 | R 22 K, 2%, 0207, MF | ||
| 0 | R 41 | 57.11.4272 | R 2.7 K, 2%, 0207, MF | ||
| 0 | R 42 | 57.11.4223 | R 22 K, 2%, 0207, MF | ||
| 0 | R 43 | 57.11.4104 | R 100 K, 2%, 0207, MF | ||
| 0 | R 44 | 57.11.4104 | R 100 K, 2%, 0207, MF | ||
| End of List | |||||
Comments:
(01) 13 1 1981
(02) 21.12.1981
1.177.215.00
Muting Circuit
| IND POS NO | PART NO | VALUE | SPECIFICATIONS/EQUIVALENT | MFR |
| ③ | C1 | 59.34.1154 | 150nF | |
| D1 | 50.04.0125 | 11448 | S1' | |
| 71 | 59.04.0227 | 3P01 | CIS | |
| 72 | 59.04.0227 | 3P01 | CIS | |
| Q1 | 50.03.0312 | 2N3760 | PCH Fe1 | |
| Q2 | 50.03.0312 | 2N3760 | PCH Fe1 | |
| ② | P1 | 57.11.4103 | 10k | |
| ② | P2 | 57.11.4103 | 10k | |
| P3 | 57.11.4273 | 27k | ||
| P4 | 57.11.4273 | 27k | ||
| P5 | 57.11.4273 | 27k | ||
| P6 | 57.11.4273 | 27k | ||
| P7 | 57.11.4224 | 220k | ||
| ① | R8 | 57.11.4105 | 114 | |
| ① | R9 | 57.11.4105 | 114 | |
| INDI | DATE | NAME |
| ④ | ||
| ③ | 11.3.51 | Wojciech Sien |
| ② | 28.1.81 | Wojciech Sien |
| ① | 14.1.81 | Ganther |
| ○ | 18.12.01 | Ganther |
| STUDIER | Nanjing | |
RECORD AMPLIFIER PCB (NAB 712 - 15 ips) 1.177.232.81
- Muting Circuit 1.177.215.00
| Idx. | Pos. | Part No. | Qty. | Type/Val. | Description |
| 0 | C 1 | 59.11.3682 | C 6800 P, 5%, 160V, PC | ||
| 0 | C 2 | 59.11.6272 | C 2700 P, 5%, 400V, PC | ||
| 0 | C 3 | 59.11.3682 | C 6800 P, 5%, 160V, PC | ||
| 0 | C 4 | 59.11.6272 | C 2700 P, 5%, 400V, PC | ||
| 0 | C 5 | 59.22.3101 | 100u | EL | 10V, 20%, RMS |
| 0 | C 6 | 59.34.2220 | 22p | CER | 63V, 5%, N150 |
| 0 | C 7 | 59.31.6104 | 100n | C .1U, 10%, 100V, MPETP | |
| 0 | C 8 | 59.22.8479 | 4u7 | EL | 50V, 20%, RMS |
| 0 | C 9 | 59.22.8479 | 4u7 | EL | 50V, 20%, RMS |
| 0 | C 10 | 59.22.8479 | 4u7 | EL | 50V, 20%, RMS |
| 0 | C 11 | 59.22.8109 | 1u | EL | 50V, 20%, RMS |
| 0 | C 12 | 59.22.8479 | 4u7 | EL | 50V, 20%, RMS |
| 0 | C 14 | 59.22.3470 | 47u | EL | 10V, 20%, RMS |
| 0 | C 15 | 59.31.6103 | 10n | C .01U, 10%, 100V, MPETP | |
| 0 | C 16 | 59.11.6471 | C 470 P, 5%, 400V, PC | ||
| 0 | C 17 | 59.11.6332 | C 3300 P, 5%, 400V, PC | ||
| 0 | C 18 | 59.22.3101 | 100u | EL | 10V, 20%, RMS |
| 0 | C 19 | 59.34.2220 | 22p | CER | 63V, 5%, N150 |
| 0 | C 20 | 59.31.6104 | 100n | C .1U, 10%, 100V, MPETP | |
| 0 | C 21 | 59.22.8479 | 4u7 | EL | 50V, 20%, RMS |
| 0 | C 22 | 59.22.8109 | 1u | EL | 50V, 20%, RMS |
| 0 | C 23 | 59.22.8479 | 4u7 | EL | 50V, 20%, RMS |
| 0 | C 25 | 59.22.3470 | 47u | EL | 10V, 20%, RMS |
| 0 | C 26 | 59.31.6103 | 10n | C .01U, 10%, 100V, MPETP | |
| 0 | C 27 | 59.11.6471 | C 470 P, 5%, 400V, PC | ||
| 0 | C 28 | 59.11.6332 | C 3300 P, 5%, 400V, PC | ||
| 0 | L 1 | 1.177.231.00 | SPERRKREISSPULE | ||
| 0 | L 2 | 62.02.1222 | L 2.2 M, 5%, D 8 | ||
| 0 | L 3 | 1.177.231.00 | SPERRKREISSPULE | ||
| 0 | L 4 | 62.02.1222 | L 2.2 M, 5%, D 8 | ||
| 0 | MP 1 | 1.177.232.11 mp | AUFNAHMEVERST PRINT 19/38NAB | ||
| 0 | MP 2 | 1.177.215.00 mp | MUTING CIRCUIT | ||
| 0 | P 1 | 54.01.0220 | 9-P | P LEISTE 9 POL CIS WINKEL | |
| 0 | P 2 | 54.01.0270 | 8-P | P LEISTE 8 POL CIS WINKEL | |
| 1 | Q 1 | 50.03.0407 | BC550C | BC 550 C | |
| 0 | Q 2 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |
| 0 | Q 3 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |
| 0 | Q 4 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |
| 1 | Q 5 | 50.03.0407 | BC550C | BC 550 C | |
| 0 | Q 6 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |
| 0 | Q 7 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |
| 0 | Q 8 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |
| 0 | R 5 | 57.11.3821 | 820R | MF, 1%, 0207 | |
| 0 | R 6 | 57.11.3152 | 1k5 | MF, 1%, 0207 | |
| 0 | R 7 | 58.02.4223 | 22k | R 22 K, 20%, .1 W, PCSCH | |
| 0 | R 8 | 57.11.3393 | 39k | MF, 1%, 0207 | |
| 0 | R 9 | 57.11.3104 | 100k | MF, 1%, 0207 | |
| 3 | R 10 | 57.11.3154 | 150k | MF, 1%, 0207 | |
| 3 | R 11 | 57.11.3563 | 56k | MF, 1%, 0207 | |
| 0 | R 12 | 58.02.4223 | 22k | R 22 K, 20%, .1 W, PCSCH | |
| 0 | R 13 | 58.02.4223 | 22k | R 22 K, 20%, .1 W, PCSCH | |
| 0 | R 15 | 57.11.3682 | 6k8 | MF, 1%, 0207 | |
| 0 | R 16 | 57.11.3681 | 680R | MF, 1%, 0207 | |
| 0 | R 17 | 57.11.3224 | 220k | MF, 1%, 0207 | |
| 0 | R 18 | 57.11.3331 | 330R | MF, 1%, 0207 | |
| 0 | R 19 | 57.11.3102 | 1k0 | MF, 1%, 0207 | |
| 0 | R 20 | 57.11.3224 | 220k | MF, 1%, 0207 | |
| 0 | R 21 | 57.11.3104 | 100k | MF, 1%, 0207 | |
| 0 | R 22 | 58.02.4223 | 22k | R 22 K, 20%, .1 W, PCSCH | |
| 0 | R 23 | 57.11.3393 | 39k | MF, 1%, 0207 | |
| 0 | R 24 | 57.11.3821 | 820R | MF, 1%, 0207 | |
| 0 | R 25 | 57.11.3104 | 100k | MF, 1%, 0207 | |
| 0 | R 26 | 57.11.3152 | 1k5 | MF, 1%, 0207 | |
| 0 | R 27 | 58.02.4223 | 22k | R 22 K, 20%, .1 W, PCSCH | |
| 0 | R 28 | 58.02.4223 | 22k | R 22 K, 20%, .1 W, PCSCH | |
| 0 | R 29 | 57.11.3154 | 150k | MF, 1%, 0207 | |
| 0 | R 31 | 57.11.3682 | 6k8 | MF, 1%, 0207 | |
| 0 | R 32 | 57.11.3563 | 56k | MF, 1%, 0207 | |
| 0 | R 33 | 57.11.3681 | 680R | MF, 1%, 0207 | |
| 0 | R 34 | 57.11.3224 | 220k | MF, 1%, 0207 | |
| 0 | R 35 | 57.11.3102 | 1k0 | MF, 1%, 0207 | |
| 0 | R 36 | 57.11.3331 | 330R | MF, 1%, 0207 | |
| 0 | R 37 | 57.11.3224 | 220k | MF, 1%, 0207 | |
| 0 | R 38 | 57.11.3104 | 100k | MF, 1%, 0207 | |
| 0 | R 39 | 57.11.3272 | 2k7 | MF, 1%, 0207 | |
| 0 | R 40 | 57.11.3223 | 22k | MF, 1%, 0207 | |
| 0 | R 41 | 57.11.3272 | 2k7 | MF, 1%, 0207 | |
| 0 | R 42 | 57.11.3223 | 22k | MF, 1%, 0207 | |
| 0 | R 43 | 57.11.3104 | 100k | MF, 1%, 0207 | |
| 0 | R 44 | 57.11.3104 | 100k | MF, 1%, 0207 |
Comments:
(01) Q1+Q5 50430497 changed to 50030407
Muting Circuit 1.177.215.00
| IND | POS NO | PART NO | VALUE | SPECIFICATIONS/EQUIVALENT | MFR |
| ③ | C1 | 59.3 M 1154 | 150H F | ||
| D1 | 50.04.0125 | 1M9448 | S' | ||
| J1 | 54.01.0227 | 3Po1 | CIS | ||
| J2 | 54.01.0227 | 3B1 | CIS | ||
| Q1 | 50.03.0312 | 2M8460 | PCH Fat | ||
| Q2 | 50.03.0312 | 2M8460 | PCV Fat | ||
| ② | R1 | 57.11.4103 | 10k | ||
| ② | R2 | 57.11.4103 | 10k | ||
| R3 | 57.11.4273 | 27k | |||
| R4 | 57.11.4273 | 27k | |||
| R5 | 57.11.4273 | 27k | |||
| R6 | 57.11.4273 | 27k | |||
| R7 | 57.11.4224 | 220k | |||
| ① | R8 | 57.11.4105 | 1N4 | ||
| ① | R9 | 57.11.4105 | 1N4 | ||
| IND | DATE | NAME | |||
| ④ | |||||
| ③ | 11.3.5.1 | Waxoth Srin | |||
| ② | 28.1.8.1 | Waughen | |||
| ① | 14.1.8.1 | Ganther | |||
| ○ | 18.12.00 | Spunyer | |||
| STUDER | Natuing Circuit | PL | 1.177.245-00 | PAGE 1 OF 1 | |
RECORD AMPLIFIER PCB (NAB 712 - 15 ips) 1.177.232.82
-Muting Circuit 1.177.215.00
| 0 | C 1 | 59.11.6272 | C 2700 P, 5%, 400V, PC | ||||||
| 0 | C 2 | 59.11.6272 | C 2700 P, 5%, 400V, PC | ||||||
| 0 | C 3 | 59.11.6272 | C 2700 P, 5%, 400V, PC | ||||||
| 0 | C 4 | 59.11.6272 | C 2700 P, 5%, 400V, PC | ||||||
| 0 | C 5 | 59.22.3101 | 100u | EL 10V, 20%, RMS | 4 R 42 | 57.11.3153 | 15k | MF, 1%, 0207 | |
| 0 | C 6 | 59.32.0220 | C 22 P, 20%, 400V, CER | ||||||
| 0 | C 8 | 59.22.8479 | 4u7 | EL 50V, 20%, RMS | End of List | ||||
| 0 | C 9 | 59.22.8479 | 4u7 | EL 50V, 20%, RMS | |||||
| 0 | C 10 | 59.22.8479 | 4u7 | EL 50V, 20%, RMS | |||||
| 0 | C 11 | 59.22.8109 | 1u | EL 50V, 20%, RMS | |||||
| 0 | C 12 | 59.22.8479 | 4u7 | EL 50V, 20%, RMS | |||||
| 0 | C 14 | 59.22.3470 | 47u | EL 10V, 20%, RMS | |||||
| 0 | C 15 | 59.31.9103 | C .01 U, 10%, 160V, MPETP | ||||||
| 0 | C 16 | 59.11.6471 | C 470 P, 5%, 400V, PC | ||||||
| 0 | C 17 | 59.11.6332 | C 3300 P, 5%, 400V, PC | ||||||
| 0 | C 18 | 59.22.3101 | 100u | EL 10V, 20%, RMS | |||||
| 0 | C 19 | 59.32.0220 | C 22 P, 20%, 400V, CER | ||||||
| 0 | C 21 | 59.22.8479 | 4u7 | EL 50V, 20%, RMS | |||||
| 0 | C 22 | 59.22.8109 | 1u | EL 50V, 20%, RMS | |||||
| 0 | C 23 | 59.22.8479 | 4u7 | EL 50V, 20%, RMS | |||||
| 0 | C 25 | 59.22.3470 | 47u | EL 10V, 20%, RMS | |||||
| 0 | C 26 | 59.31.9103 | C .01 U, 10%, 160V, MPETP | ||||||
| 0 | C 27 | 59.11.6471 | C 470 P, 5%, 400V, PC | ||||||
| 4 | C 28 | 59.11.6332 | C 3300 P, 5%, 400V, PC | ||||||
| 3 | C 29 | 59.34.4331 | 330p | CER 63V, 5%, N750 | |||||
| 3 | C 30 | 59.34.4331 | 330p | CER 63V, 5%, N750 | |||||
| 0 | L 1 | 1.177.231.00 | SPERRKREISSPULE | ||||||
| 0 | L 2 | 62.02.1222 | L 2.2 M, 5%, D 8 | ||||||
| 0 | L 3 | 1.177.231.00 | SPERRKREISSPULE | ||||||
| 0 | L 4 | 62.02.1222 | L 2.2 M, 5%, D 8 | ||||||
| 0 | P 1 | 54.01.0220 | 9-P | P LEISTE 9 POL CIS WINKEL | MUTING Circuit | ||||
| 0 | P 2 | 54.01.0270 | 8-P | P LEISTE 8 POL CIS WINKEL | |||||
| 4 | Q 1 | 50.03.0407 | BC550C | BC 550 C | |||||
| 0 | Q 2 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |||||
| 0 | Q 3 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |||||
| 0 | Q 4 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |||||
| 4 | Q 5 | 50.03.0407 | BC550C | BC 550 C | |||||
| 0 | Q 6 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |||||
| 0 | Q 7 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |||||
| 0 | Q 8 | 50.03.0436 | BC237B | BC 237 B, 547 B, 550 B, | |||||
| 4 | R 5 | 57.11.3821 | 820R | MF, 1%, 0207 | |||||
| 4 | R 6 | 57.11.3152 | 1k5 | MF, 1%, 0207 | |||||
| 0 | R 7 | 58.02.4223 | 22k | 20%, 0.1W, Carbon | |||||
| 4 | R 9 | 57.11.3104 | 100k | MF, 1%, 0207 | |||||
| 4 | R 10 | 57.11.3154 | 150k | MF, 1%, 0207 | |||||
| 4 | R 11 | 57.11.3563 | 56k | MF, 1%, 0207 | |||||
| 0 | R 12 | 58.02.4223 | 22k | 20%, 0.1W, Carbon | |||||
| 0 | R 13 | 58.02.4223 | 22k | 20%, 0.1W, Carbon | |||||
| 4 | R 15 | 57.11.3682 | 6k8 | MF, 1%, 0207 | |||||
| 4 | R 16 | 57.11.3681 | 680R | MF, 1%, 0207 | |||||
| 4 | R 17 | 57.11.3224 | 220k | MF, 1%, 0207 | |||||
| 4 | R 18 | 57.11.3331 | 330R | MF, 1%, 0207 | |||||
| 4 | R 19 | 57.11.3102 | 1k0 | MF, 1%, 0207 | |||||
| 4 | R 20 | 57.11.3224 | 220k | MF, 1%, 0207 | |||||
| 4 | R 21 | 57.11.3104 | 100k | MF, 1%, 0207 | |||||
| 0 | R 22 | 58.02.4223 | 22k | 20%, 0.1W, Carbon | |||||
| 4 | R 24 | 57.11.3821 | 820R | MF, 1%, 0207 | |||||
| 4 | R 25 | 57.11.3104 | 100k | MF, 1%, 0207 | |||||
| 4 | R 26 | 57.11.3152 | 1k5 | MF, 1%, 0207 | |||||
| 4 | R 27 | 58.02.4223 | 22k | 20%, 0.1W, Carbon | |||||
| 4 | R 28 | 58.02.4223 | 22k | 20%, 0.1W, Carbon | |||||
| 4 | R 29 | 57.11.3154 | 150k | MF, 1%, 0207 | |||||
| 4 | R 31 | 57.11.3682 | 6k8 | MF, 1%, 0207 | |||||
| 4 | R 32 | 57.11.3563 | 56k | MF, 1%, 0207 | |||||
| 4 | R 33 | 57.11.3681 | 680R | MF, 1%, 0207 | |||||
| 4 | R 34 | 57.11.3224 | 220k | MF, 1%, 0207 | |||||
| 4 | R 35 | 57.11.3102 | 1k0 | MF, 1%, 0207 | |||||
| 4 | R 36 | 57.11.3331 | 330R | MF, 1%, 0207 | |||||
| 4 | R 37 | 57.11.3224 | 220k | MF, 1%, 0207 | |||||
RECORD AMPLIFIER PCB (NAB 712 - 15 ips) 1.177.233.81
-Muting Circuit 1.177.215.00
OSCILLATOR PCB STEREO 1.177.868.84
| IND. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. | ||
| C.……1 | 59.22-4221 | 220 uF | -10%, | 16V, | EL | ||
| C.……2 | 59.22-4221 | 220 uF | -10%, | 16V, | EL | ||
| C.……3 | 59.05-2332 | 3+3 uF | 2.5%, | 160V, | PP | ||
| C.……4 | 59.05-2102 | 1 nF | 2.5%, | 630V, | PP | ||
| C.……5 | 59.05-2332 | 3+3 nF | 2.5%, | 160V, | PP | ||
| C.……6 | 59.22-8679 | 4-7 uF | -10%, | 50V, | EL | ||
| C.……7 | 59.05-2102 | 1 nF | 2.5%, | 630V, | PP | ||
| C.……8 | 59.05-2221 | 220 pF | 2.5%, | 630V, | PP | ||
| C.……9 | 59.05-2102 | 1 nF | 2.5%, | 630V, | PP | ||
| C.……10 | 59.05-2103 | 10 nF | 2.5%, | 63V, | PP | ||
| C.……11 | 59.05-2582 | 6+8 nF | 2.5%, | 63V, | PP | ||
| C.……12 | 59.05-2582 | 6+8 nF | 2.5%, | 63V, | PP | ||
| C.……13 | 59.05-2472 | 4-7 nF | 2.5%, | 63V, | PP | ||
| C.……14 | 59.22-3221 | 220 uF | -10%, | 10V, | PP | ||
| C.……15 | 59.05-2221 | 220 pF | 2.5%, | 630V, | PP | ||
| C.……16 | 59.22-3101 | 100 uF | -10%, | 10V, | EL | ||
| C.……17 | 59.99-0246 | 68 nF | -20%, | 63V, | CER | ||
| D.……1 | 50.04-0122 | 1N4001 | SI | ||||
| D.……2 | 50.04-0122 | 1N4001 | SI | ||||
| D.……3 | 50.04-0125 | 1N4448 | SI | ||||
| D.……4 | 50.04-0125 | 1N4448 | SI | ||||
| J.……1 | 54.01-0306 | 8-Pole | Cis Socket Strip | AMP | |||
| J.……2 | 54.01-0021 | Jumper | |||||
| K.……1 | 56.24-0149 | 12 V | LZN 403 | ||||
| K.……2 | 56.04-0149 | 12 V | LZN 403 | ||||
| L.……1 | 62-02-2122 | 1+2 mH | |||||
| P.……1 | 54.01-0223 | 7-Pole | Pin Strip | AMP | |||
| P.……2 | 54.01-0223 | 7-Pole | Pin Strip | AMP | |||
| Q.……1 | 50.03-0436 | BC 237 B | NPN | ||||
| Q.……2 | 50.03-0436 | BC 237 B | NPN | ||||
| Q.……3 | 50.03-0451 | BD 139-10 | NPN | ||||
| IND. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. |
| Q-1444 | 50-03-0451 | 80 139-10 | NPN | ||
| Q-1445 | 50-03-0510 | 80 136-16 | NPN | ||
| K-1446 | 57-11-3105 | 1 MDhm | 2%, 0-25W, MF | ||
| K-1447 | 57-11-3153 | 15 kOhm | 2%, 0-25W, MF | ||
| R-1448 | 57-11-3271 | 270 Ohm | 2%, 0-25W, MF | ||
| R-1449 | 57-11-3271 | 270 Ohm | 2%, 0-25W, MF | ||
| R-1450 | 57-11-3101 | 100 Ohm | 2%, 0-25W, MF | ||
| R-1451 | 57-11-3101 | 100 Ohm | 2%, 0-25W, MF | ||
| R-1452 | 57-11-3105 | 1 MDhm | 2%, 0-25W, MF | ||
| R-1453 | 58-19-2503 | 50 kOhm | 20% | PCSCH | |
| R-1454 | 57-11-3153 | 15 kOhm | 2%, 0-25W, MF | ||
| R-1455 | 58-19-2503 | 50 kOhm | 20% | PCSCH | |
| R-1456 | 58-19-2503 | 50 kOhm | 20% | PCSCH | |
| R-1457 | 58-19-2503 | 50 kOhm | 20% | PCSCH | |
| R-1458 | 57-11-3471 | 470 Ohm | 2%, 0-25W, MF | ||
| R-1459 | 57-11-3471 | 470 Ohm | 2%, 0-25W, MF | ||
| R-1460 | 57-11-3101 | 100 Ohm | 2%, 0-25W, MF | ||
| R-1461 | 58-19-2503 | 50 kOhm | 20% | PCSCH | |
| R-1462 | 57-11-3562 | 5-6 kOhm | 2%, 0-25W, MF | ||
| R-1463 | 57-11-3103 | 10 kOhm | 2%, 0-25W, MF | ||
| R-1464 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1465 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1466 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1467 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1468 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1469 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1470 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1471 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1472 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1473 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1474 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1475 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1476 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1477 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1478 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1479 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1480 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1481 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1482 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1483 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1484 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1485 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1486 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1487 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1488 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1489 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1490 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1491 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1492 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1493 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1494 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1495 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1496 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF | ||
| R-1497 | 57-11-3102 | 1 kOhm | 2%, 0-25W, MF |
STUDER (01)88/12/15 SON OSCILLATOR STEREO PL 1-177-868-84 PAGE 2
IND. POS.NO. PART NO. VALUE SPECIFICATIONS/EQUIVALENT MANUF
(01) 15.12.88 SOFT RE-1N/OUT
EL=Electrolytic, PP=Polypropylen, SI=Silicon, MF=Metal Film, PS=Polystyrol, PCSCH=Carbon Film, CER=Ceramic
MANUFACTURER: AMP=AMP
ORIG 86/04/18 (01) 83/12/15
STUDER (01) 88/12/15 SON OSCILLATOR STEREO
PL 1.177.868.84 PAGE 3
OSCILLATOR PCB STEREO 1.177.868.84
| 0 18.4.86 J.m.F.C | O . . . | O . . . | O . . . | O . . . | |||||
| PRG9 MK II | PAGE 1 OF 1 | ||||||||
| STUDER | STEREO-OSCILLATOR | 1.177.868.84 | |||||||
OSCILLATOR PCB MONO 1.177.867.82
| IND. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. | ||
| C.........1 | 59.22-4221 | 220 uF | ~103, | 16V, | EL | ||
| C.........2 | |||||||
| C.........3 | |||||||
| C.........4 | |||||||
| (00) | C.........5 | 59.12-8472 | 4.7 nF | 12, | 125V, | PS | |
| C.........5 | 59.05-2332 | 3.3 nF | 2.5x, | 160V, | PP | ||
| C.........6 | 59.22-8479 | 4.7 uF | ~103, | 50V, | EL | ||
| (00) | C.........7 | 59.05-2152 | 1.5 nF | 2.5x, | 160V, | PP | |
| C.........7 | 59.05-2102 | 1 nF | 2.5x, | 630V, | PP | ||
| C.........8 | 59.05-2221 | 220 pF | 2.5x, | 630V, | PP | ||
| C.........9 | 59.05-2102 | 1 nF | 2.5x, | 630V, | PP | ||
| (00) | C.........10 | 59.05-2682 | 6.8 nF | 2.5x, | 63V, | PP | |
| C.........10 | 59.05-2103 | 10 nF | 2.5x, | 63V, | PP | ||
| C.........11 | 59.35-2882 | 6.8 nF | 2.5x, | 63V, | PP | ||
| C.........12 | 59.05-2982 | 6.0 nF | 2.5x, | 63V, | PP | ||
| C.........13 | 59.05-2672 | 4.7 nF | 2.5x, | 63V, | PP | ||
| C.........14 | 59.22-3221 | 220 uF | ~103, | 10V, | EL | ||
| C.........15 | |||||||
| C.........16 | 59.22-3101 | 100 uF | ~103, | 10V, | EL | ||
| C.........17 | 59.99-0246 | 68 nF | ~203, | 63V, | CER | ||
| D.........1 | 50.04-0122 | 1N4001 | SI | ||||
| D.........2 | 50.04-0125 | 1N4448 | SI | ||||
| D.........4 | |||||||
| J.........1 | 54.31-0306 | 8-Pole | Cis Socket Strip | AMP | |||
| J.........2 | 54.01-0021 | Jumper | |||||
| K.........1 | 56.04-0149 | 12 V | LZN 403 | ||||
| K.........2 | |||||||
| L.........1 | 62.02-2122 | 1.2 mH | |||||
| P.........1 | 54.01-0223 | 7-Pole | Pin Strip | AMP | |||
| P.........2 | 54.31-0223 | 7-Pole | Pin Strip | AMP | |||
| STUDER (01) B8/12/15 SUN OSCILLATOR MONO PL 1.177-867-82 PAGE 1 | |||||||
| IND. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. | ||
| Q-1-1-12-2-3-4-5-6-7-8-9-10-11-12-13-14-15-16-17-18-19-20-21-22-23-24-25-26-27-28-29-30-31-32-33-34-35-36-37-38-39-40-41-42-43-44-45-46-47-48-49-50-51-52-53-54-55-56-57-58-59-60-61-62-63-64-65-66-67-68-69-70-71-72-73-74-75-76-77-78-79-80-81-82-83-84-85-86-87-88-89-90-91-92-93-94-95-96-97-98-99-10-11-12-13-14-15-16-17-18-19-20-21-22-23-24-25-26-27-28-29-30-31-32-33-34-35-36-37-38-39-40-41-41-42-43-44-45-46-47-48-49-50-51-52-53-54-55-56-57-58-59-60-61-62-63-64-65-66-67-68-69-70-71-72-73 | 50.03-0436 | BC 237 B | NPN | ||||
| 50.03-0451 | BD 139-10 | NPN | |||||
| 50.03-0451 | BD 139-10 | NPN | |||||
| 50.03-0510 | BD 136-16 | NPN | |||||
| 57.11-3105 | 1 MDhm | 2%, 0.25W, MF | |||||
| 57.11-3271 | 270 Ohm | 2%, 0.25W, MF | |||||
| 57.11-3101 | 100 Ohm | 2%, 0.25W, MF | |||||
| 58.19-2503 | 50 kOhm | 20%, PC5CH | |||||
| 57.11-3153 | 15 kOhm | 2%, 0.25W, MF | |||||
| 58.19-2503 | 50 kOhm | 20%, PC5CH | |||||
| 57.11-3471 | 470 Ohm | 2%, 0.25W, MF | |||||
| 57.11-3101 | 100 Ohm | 2%, 0.25W, MF | |||||
| 57.11-3562 | 5=6 kOhm | 2%, 0.25W, MF | |||||
| 57.11-3153 | 15 kOhm | 2%, 0.25W, MF | |||||
| 57.11-3103 | 10 kOhm | 2%, 0.25W, MF | |||||
| 57.11-3102 | 1 kOhm | 2%, 0.25W, MF | |||||
| 57.11-3102 | 1 kOhm | 2%, 0.25W, MF | |||||
| 57.11-3102 | 1 kOhm | 2%, 0.25W, MF | |||||
| 57.11-3101 | 1 kOhm | 2%, 0.25W, MF | |||||
| 57.11-3102 | 1 kOhm | 2%, 0.25W, MF | |||||
| 57.11-3102 | 1 kOhm | 2%, 0.25W, MF | |||||
| 57.11-3279 | 2-7 Ohm | 2%, 0.25W, MF | |||||
| T-1-1 | 1.322.254.00 | Mono Oscillator Coil | |||||
| M-1-1 | 1.177.868.93 | Wire List | |||||
| IND. POS.NO. PART NO. VALUE SPECIFICATIONS / EQUIVALENT MANUF. |
| (01) 15-12-B8 SOFT REC-IN/DUT EL=Electrolytic, PP=Polypropylen, Si=Silicon, MF=Metal Film, PS=Polystyrol, PCSCH=Carbon Film, CER=Ceramic |
| MANUFACTURER: AMP=AMP |
| ORIG 85/07/04 (01) 88/12/15 |
OSCILLATOR PCB MONO 1.177.867.82
| 28.198.1t1.1 | 2016771250-ONOW | ### | |||||
| V DE PA | πH 66 8d | ||||||
| ···○ | ···○ | ···○ | ···○ | 100mm S8°30'9① | |||
| Idx. Pos. | Part No. | Qty. | Type/Val. | Description |
| C 1 | 59.99.2004 | C .068 U ,-20%, 63V, CER | ||
| C 2 | 59.22.5220 | 22u | EL 25V, 20%, RM5 | |
| C 3 | 59.22.4221 | 220u | EL 16V, 20%, RM5 | |
| C 4 | 59.06.0474 | 470n | PETP, 63V, 10%, RM5 | |
| C 5 | 59.34.4820 | 82p | CER 63V, 5%, N750 | |
| C 6 | 59.22.5220 | 22u | EL 25V, 20%, RM5 | |
| C 7 | 59.32.1221 | 220p | C 220 P, 10%, 400V, CER | |
| C 8 | 59.32.1101 | 100p | C 100 P, 10%, 400V, CER | |
| C 9 | 59.34.4820 | 82p | CER 63V, 5%, N750 | |
| C 10 | 59.22.4221 | 220u | EL 16V, 20%, RM5 | |
| C 11 | 59.06.0474 | 470n | PETP, 63V, 10%, RM5 | |
| C 12 | 59.22.2222 | 2m2 | EL 6.3V, 20%, RM5 | |
| C 13 | 59.22.2222 | 2m2 | EL 6.3V, 20%, RM5 | |
| C 14 | 59.32.2561 | 560p | C 560 P, 10%, 50V, CER | |
| C 15 | 59.22.8479 | 4u7 | EL 50V, 20%, RM5 | |
| C 16 | 59.22.8479 | 4u7 | EL 50V, 20%, RM5 | |
| C 17 | 59.22.8479 | 4u7 | EL 50V, 20%, RM5 | |
| C 18 | 59.22.3470 | 47u | EL 10V, 20%, RM5 | |
| C 19 | 59.22.3470 | 47u | EL 10V, 20%, RM5 | |
| C 20 | 59.22.5220 | 22u | EL 25V, 20%, RM5 | |
| C 21 | 59.22.5220 | 22u | EL 25V, 20%, RM5 | |
| C 22 | 59.05.2472 | 4n7 | PP, 2.5%, 63V | |
| C 23 | 59.22.5220 | 22u | EL 25V, 20%, RM5 | |
| C 24 | 59.22.5220 | 22u | EL 25V, 20%, RM5 | |
| C 25 | 59.06.5153 | 15n | PETP, 63V, 5%, RM5 | |
| C 26 | 59.05.2103 | 10n | PP, 2.5%, 63V | |
| C 27 | 59.32.1221 | 220p | C 220 P, 10%, 400V, CER | |
| C 28 | 59.05.2472 | 4n7 | PP, 2.5%, 63V | |
| C 29 | 59.22.5220 | 22u | EL 25V, 20%, RM5 | |
| C 30 | 59.22.8479 | 4u7 | EL 50V, 20%, RM5 | |
| C 31 | 59.32.2332 | 3n3 | C 3300 P, 10%, 50V, CER | |
| C 32 | 59.05.2472 | 4n7 | PP, 2.5%, 63V | |
| C 33 | 59.06.5153 | 15n | PETP, 63V, 5%, RM5 | |
| C 34 | 59.22.6100 | 10u | EL 35V, 20%, RM5 | |
| C 35 | 59.22.5101 | 100u | EL 25V, 20%, RM5 | |
| C 36 | 59.32.1101 | 100p | C 100 P, 10%, 400V, CER |
| Idx. | Pos. | FOR | Part No. | Qty. | Type/Val. | Description |
| 1 | C 37 | 59.06 | 5153 | 15n | PETP, 63V, 5%, RM5 | |
| C 40 | 59.22 | 6100 | 10u | EL 35V, 20%, RM5 | ||
| C 41 | 59.05 | 2472 | 4n7 | PP, 2.5%, 63V | ||
| C 42 | 59.06 | 5153 | 15n | PETP, 63V, 5%, RM5 | ||
| C 43 | 59.22 | 5220 | 22u | EL 25V, 20%, RM5 | ||
| C 44 | 59.22 | 5220 | 22u | EL 25V, 20%, RM5 | ||
| C 45 | 59.32 | 2561 | 560p | C 560 P, 10%, 50V, CER | ||
| C 46 | 59.22 | 8479 | 4u7 | EL 50V, 20%, RM5 | ||
| C 47 | 59.05 | 2103 | 10n | PP, 2.5%, 63V | ||
| C 48 | 59.32 | 2332 | 3n3 | C 3300 P, 10%, 50V, CER | ||
| C 49 | 59.32 | 2561 | 560p | C 560 P, 10%, 50V, CER | ||
| C 50 | 59.32 | 2561 | 560p | C 560 P, 10%, 50V, CER | ||
| C 51 | 59.06 | 0103 | 10n | PETP, 63V, 10%, RM5 | ||
| C 52 | 59.06 | 0103 | 10n | PETP, 63V, 10%, RM5 | ||
| 1 | D 1 | 50.04 | 0125 | 1N4448 | 75V, 150mA, 4ns, DO-35 | |
| IC 1 | 50.09 | 0107 | RC4559 | IC RC 4559 N, UPC 4559 ,A | ||
| IC 2 | 50.09 | 0107 | RC4559 | IC RC 4559 N, UPC 4559 ,A | ||
| IC 3 | 50.09 | 0101 | TL072 | IC TL 072 CN ,A | ||
| L 1 | 62.02 | 1222 | L 2.2 M, 5%, D 8 | |||
| L 2 | 62.02 | 1222 | L 2.2 M, 5%, D 8 | |||
| L 3 | 62.02 | 1222 | L 2.2 M, 5%, D 8 | |||
| L 4 | 62.02 | 1222 | L 2.2 M, 5%, D 8 | |||
| 1 | P 1 | 54.01 | 0270 | 8-P | P LEISTE 8 POL CIS WINKEL | |
| P 2 | 54.01 | 0271 | 10-P | P LEISTE 10 POL CIS WINKEL | ||
| Q 1 | 50.03 | 0436 | BC237B | BC 237 B, 547 B, 550 B, | ||
| Q 2 | 50.03 | 0436 | BC237B | BC 237 B, 547 B, 550 B, | ||
| Q 3 | 50.03 | 0407 | BC550C | BC 550 C | ||
| Q 4 | 50.03 | 0407 | BC550C | BC 550 C | ||
| Q 5 | 50.03 | 0329 | P 1087 | P 1087 | ||
| Q 6 | 50.03 | 0329 | P 1087 | P 1087 | ||
| Q 7 | 50.03 | 0407 | BC550C | BC 550 C | ||
| Q 8 | 50.03 | 0407 | BC550C | BC 550 C | ||
| Q 9 | 50.03 | 0329 | P 1087 | P 1087 | ||
| Q 10 | 50.03 | 0329 | P 1087 | P 1087 | ||
| Q 11 | 50.03 | 0515 | BC307B | BC 307 B, BC 557 B .PNP | ||
| R 1 | 57.11 | 3102 | 1k0 | MF, 1%, 0207 | ||
| R 2 | 57.11 | 3102 | 1k0 | MF, 1%, 0207 | ||
| R 3 | 57.11 | 3471 | 470R | MF, 1%, 0207 | ||
| R 4 | 57.11 | 3103 | 10k | MF, 1%, 0207 | ||
| R 5 | 1.177.875.82 | 57.11 | 3392 | 3k9 | MF, 1%, 0207 NAB 3% - 7% ips | |
| R 5 | 1.177.876.82 | 57.11 | 3102 | 1k0 | MF, 1%, 0207 NAB 7% - 15 ips | |
| R 5 | 1.177.877.82 | 57.11 | 3272 | 2k7 | MF, 1%, 0207 IEC 7% - 15 ips | |
| R 6 | 57.11 | 3224 | 220k | MF, 1%, 0207 | ||
| R 7 | 57.11 | 3102 | 1k0 | MF, 1%, 0207 | ||
| R 8 | 58.02 | 4472 | 4k7 | R 4.7 K, 20%, .1 W, PCSCH | ||
| R 9 | 57.11 | 3102 | 1k0 | MF, 1%, 0207 | ||
| R 10 | 57.11 | 3471 | 470R | MF, 1%, 0207 | ||
| R 11 | 57.11 | 3471 | 470R | MF, 1%, 0207 | ||
| R 12 | 57.11 | 3471 | 470R | MF, 1%, 0207 | ||
| R 13 | 57.11 | 3224 | 220k | MF, 1%, 0207 | ||
| R 14 | 57.11 | 3224 | 220k | MF, 1%, 0207 | ||
| R 15 | 57.11 | 3103 | 10k | MF, 1%, 0207 | ||
| R 16 | 58.02 | 4472 | 4k7 | R 4.7 K, 20%, .1 W, PCSCH | ||
| R 17 | 57.11 | 3224 | 220k | MF, 1%, 0207 | ||
| R 18 | 57.11 | 3224 | 220k | MF, 1%, 0207 | ||
| R 19 | 57.11 | 3122 | 1k2 | MF, 1%, 0207 | ||
| R 20 | 57.11 | 3201 | 200R | MF, 1%, 0207 | ||
| R 21 | 1.177.875.82 | 57.11 | 3472 | 4k7 | MF, 1%, 0207 NAB 3% - 7% ips | |
| R 21 | 1.177.876.82 | 57.11 | 3472 | 4k7 | MF, 1%, 0207 NAB 7% - 15 ips | |
| R 21 | 1.177.877.82 | 57.11 | 3332 | 3k3 | MF, 1%, 0207 IEC 7% - 15 ips | |
| R 22 | 58.02 | 4472 | 4k7 | R 4.7 K, 20%, .1 W, PCSCH | ||
| R 23 | 57.11 | 3122 | 1k2 | MF, 1%, 0207 | ||
| R 24 | 57.11 | 3123 | 12k | MF, 1%, 0207 | ||
| R 25 | 57.11 | 3473 | 47k | MF, 1%, 0207 | ||
| R 26 | 57.11 | 3123 | 12k | MF, 1%, 0207 | ||
| R 27 | 57.11 | 3103 | 10k | MF, 1%, 0207 | ||
| R 28 | 57.11 | 3103 | 10k | MF, 1%, 0207 | ||
| R 29 | 57.11 | 3224 | 220k | MF, 1%, 0207 | ||
| R 30 | 57.11 | 3123 | 12k | MF, 1%, 0207 | ||
| R 31 | 57.11 | 3104 | 100k | MF, 1%, 0207 | ||
| R 32 | 58.02 | 4472 | 4k7 | R 4.7 K, 20%, .1 W, PCSCH | ||
| R 33 | 57.11 | 3224 | 220k | MF, 1%, 0207 | ||
| R 34 | 57.11 | 3332 | 3k3 | MF, 1%, 0207 | ||
| R 35 | 57.11 | 3103 | 10k | MF, 1%, 0207 | ||
| R 36 | 58.02 | 4222 | 2k2 | R 2.2 K, 20%, .1 W, PCSCH | ||
| R 37 | 57.11 | 3103 | 10k | MF, 1%, 0207 | ||
| R 38 | 57.11 | 3201 | 200R | MF, 1%, 0207 | ||
| R 39 | 57.11 | 3102 | 1k0 | MF, 1%, 0207 |
| Idx. | Pos. | FOR | Part No. | Qty. | Type/Val. | Description |
| R 40 | 57.11.3473 | 47k | MF, 1%, 0207 | |||
| R 41 | 57.11.3104 | 100k | MF, 1%, 0207 | |||
| R 42 | 57.11.3680 | 68R | MF, 1%, 0207 | |||
| R 43 | 58.02.4222 | 2k2 | R 2.2 K, 20%, .1 W, PCSCH | |||
| R 44 | 57.11.3122 | 1k2 | MF, 1%, 0207 | |||
| R 45 | 57.11.3122 | 1k2 | MF, 1%, 0207 | |||
| R 46 | 57.11.3471 | 470R | MF, 1%, 0207 | |||
| R 47 | 57.11.3471 | 470R | MF, 1%, 0207 | |||
| R 48 | 57.11.3471 | 470R | MF, 1%, 0207 | |||
| R 49 | 57.11.3473 | 47k | MF, 1%, 0207 | |||
| R 50 | 57.11.3152 | 1k5 | MF, 1%, 0207 | |||
| R 51 | 57.11.3471 | 470R | MF, 1%, 0207 | |||
| R 52 | 57.11.3471 | 470R | MF, 1%, 0207 | |||
| R 53 | 57.11.3102 | 1k0 | MF, 1%, 0207 | |||
| R 54 | 1.177.875.82 | 57.11.3394 | 390k | MF, 1%, 0207 NAB 3% - 7% lps | ||
| R 54 | 1.177.876.82 | 57.11.3334 | 330k | MF, 1%, 0207 NAB 7% - 15 lps | ||
| R 54 | 1.177.877.82 | 57.11.3684 | 680k | MF, 1%, 0207 IEC 7% - 15 lps | ||
| R 55 | 57.11.3224 | 220k | MF, 1%, 0207 | |||
| R 56 | 57.11.3102 | 1k0 | MF, 1%, 0207 | |||
| R 57 | 57.11.3104 | 100k | MF, 1%, 0207 | |||
| R 58 | 57.11.3104 | 100k | MF, 1%, 0207 | |||
| R 59 | 1.177.875.82 | 57.11.3392 | 3k9 | MF, 1%, 0207 NAB 3% - 7% lps | ||
| 1 | R 59 | 1.177.876.82 | 57.11.3102 | 1k0 | MF, 1%, 0207 NAB 7% - 15 lps | |
| R 59 | 1.177.877.82 | 57.11.3272 | 2k7 | MF, 1%, 0207 IEC 7% - 15 lps | ||
| R 60 | 57.11.3153 | 15k | MF, 1%, 0207 | |||
| R 61 | 57.11.3153 | 15k | MF, 1%, 0207 | |||
| R 62 | 57.11.3471 | 470R | MF, 1%, 0207 | |||
| R 63 | 57.11.3152 | 1k5 | MF, 1%, 0207 | |||
| R 64 | 57.11.3471 | 470R | MF, 1%, 0207 | |||
| R 65 | 58.02.4222 | 2k2 | R 2.2 K, 20%, .1 W, PCSCH | |||
| R 66 | 57.11.3680 | 68R | MF, 1%, 0207 | |||
| R 67 | 57.11.3123 | 12k | MF, 1%, 0207 | |||
| R 68 | 1.177.875.82 | 57.11.3472 | 4k7 | MF, 1%, 0207 NAB 3% - 7% lps | ||
| R 68 | 1.177.876.82 | 57.11.3472 | 4k7 | MF, 1%, 0207 NAB 7% - 15 lps | ||
| R 68 | 1.177.877.82 | 57.11.3332 | 3k3 | MF, 1%, 0207 IEC 7% - 15 lps | ||
| R 69 | 57.11.3152 | 1k5 | MF, 1%, 0207 | |||
| R 70 | 57.11.3105 | 1M0 | MF, 1%, 0207 | |||
| R 71 | 57.11.3203 | 20k | MF, 1%, 0207 | |||
| R 72 | 57.11.3105 | 1M0 | MF, 1%, 0207 | |||
| R 74 | 57.11.3103 | 10k | MF, 1%, 0207 | |||
| R 75 | 57.11.3104 | 100k | MF, 1%, 0207 | |||
| R 76 | 57.11.3103 | 10k | MF, 1%, 0207 | |||
| R 77 | 57.11.3472 | 4k7 | MF, 1%, 0207 | |||
| R 78 | 58.02.4222 | 2k2 | R 2.2 K, 20%, .1 W, PCSCH | |||
| R 79 | 57.11.3102 | 1k0 | MF, 1%, 0207 | |||
| R 80 | 57.11.3102 | 1k0 | MF, 1%, 0207 | |||
| R 81 | 57.11.3152 | 1k5 | MF, 1%, 0207 | |||
| R 82 | 57.11.3203 | 20k | MF, 1%, 0207 | |||
| R 83 | 57.11.3153 | 15k | MF, 1%, 0207 | |||
| R 85 | 57.11.3103 | 10k | MF, 1%, 0207 | |||
| R 86 | 57.11.3105 | 1M0 | MF, 1%, 0207 | |||
| R 87 | 57.11.3105 | 1M0 | MF, 1%, 0207 | |||
| R 88 | 57.11.3153 | 15k | MF, 1%, 0207 | |||
| R 89 | 57.11.3471 | 470R | MF, 1%, 0207 | |||
| R 90 | 57.11.3153 | 15k | MF, 1%, 0207 | |||
| R 91 | 57.11.3153 | 15k | MF, 1%, 0207 | |||
| R 92 | 1.177.875.82 | 57.11.3394 | 390k | MF, 1%, 0207 NAB 3% - 7% lps | ||
| R 92 | 1.177.876.82 | 57.11.3334 | 330k | MF, 1%, 0207 NAB 7% - 15 lps | ||
| R 92 | 1.177.877.82 | 57.11.3684 | 680k | MF, 1%, 0207 IEC 7% - 15 lps |
End of List
Comments:
(1) increase treble range (Jumper replaced by 1k Ohm)

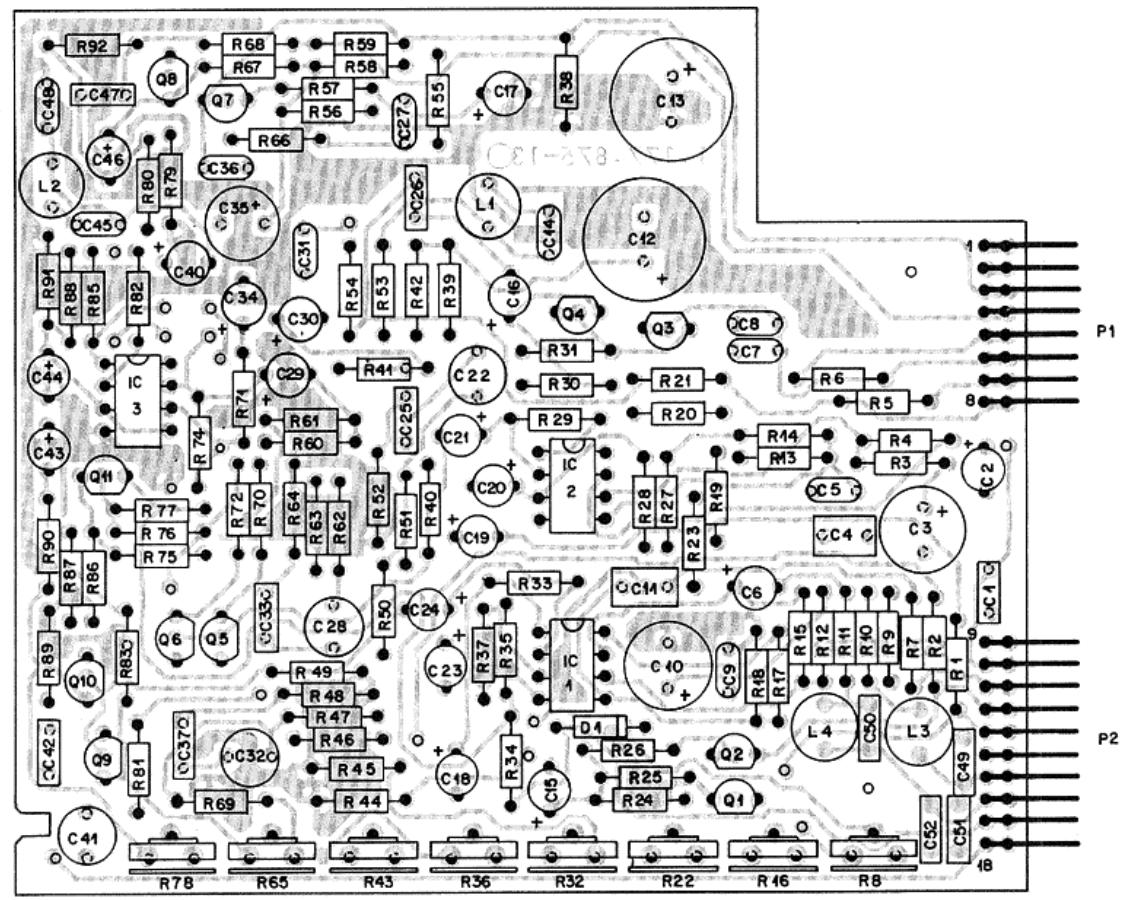

REPRODUCE AMPLIFIER PCB (NAB 3% - 712 ips) 1.177.875.82
REPRODUCE AMPLIFIER PCB (NAB 7 12 - 15 ips) 1.177.876.82
REPRODUCE AMPLIFIER PCB (IEC 712 - 15 ips) 1.177.877.82
SEE PART LIST
| 25.09.84 P MHz | 23.11.84 M. En. | O.. | O.. | O.. | ||||
| PR 99 MK II | PAGE 1 OF 1 | |||||||
| STUDER | REPRODUCE HPLC FIER NAB 33/4,71/2 ip.s. | 1.477.875.82 2.477.875.82 3.477.875.82 | ||||||

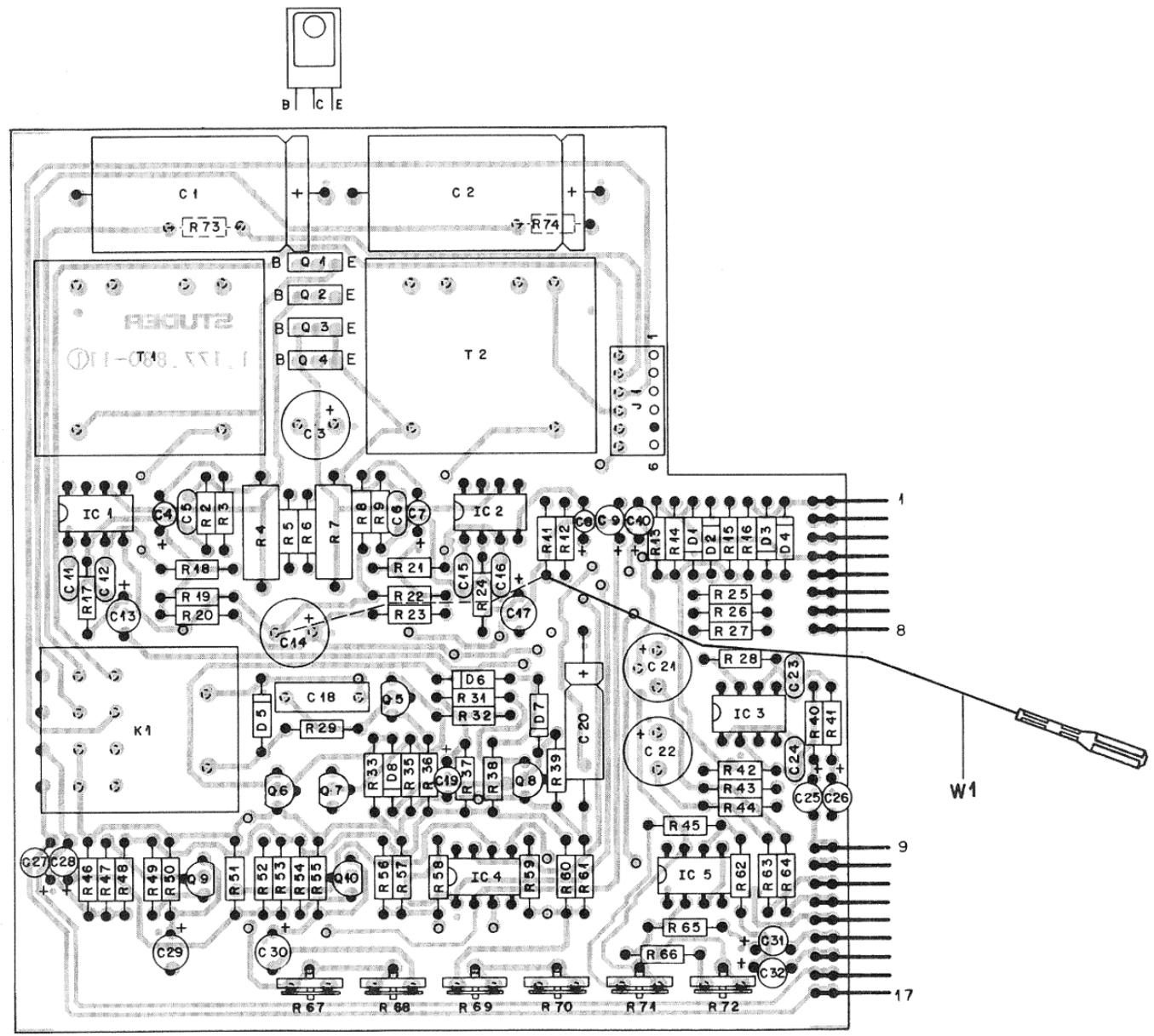

OUTPUT AMPLIFIER PCB STEREO 1.177.882.00
| IND. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. |
| C.........1 | 59..25..3222 | 2200 uF | -20%, | 25V, E1 | |
| C.........2 | 59..25..3222 | 2200 uF | -20%, | 25V, E1 | |
| C.........3 | 59..22..5101 | 100 uF | -20%, | 25V, E1 | |
| C.........4 | 59..30..4220 | 22 uF | -20%, | 25V, To | |
| C.........5 | 59..32..0220 | 22 pF | 10%, | 25V, Cor | |
| C.........6 | 59..32..0220 | 22 pF | 10%, | 25V, Cor | |
| C.........7 | 59..30..4220 | 22 uF | -20%, | 25V, Ta | |
| C.........8 | 59..30..4339 | 3..3 uF | -20%, | 25V, Ta | |
| C.........9 | 59..30..4100 | 10 uF | -20%, | 25V, Ta | |
| C.........10 | 59..30..4100 | 10 uF | -20%, | 25V, Ta | |
| C.........11 | 59..32..0220 | 22 pF | 10%, | 25V, Cor | |
| C.........12 | 59..34..4101 | 100 pF | 10%, | 25V, Cor | |
| C.........13 | 59..30..4339 | 3..3 uF | -20%, | 25V, Ta | |
| C.........14 | 59..22..5101 | 100 uF | -20%, | 25V, E1 | |
| C.........15 | 59..32..0220 | 22 pF | 10%, | 25V, Cor | |
| C.........16 | 59..34..4101 | 100 pF | 10%, | 25V, Cor | |
| C.........17 | 59..30..4339 | 3..3 uF | -20%, | 25V, Ta | |
| C.........18 | 59..31..1104 | 100 nF | 10%, | 25V, MPEPT | |
| C.........19 | 59..30..4220 | 22 uF | -20%, | 25V, Ta | |
| C.........20 | 59..25..5220 | 22 uF | -20%, | 40V, E1 | |
| C.........21 | 59..22..4101 | 100 uF | -20%, | 16V, E1 | |
| C.........22 | 59..22..4101 | 100 uF | -20%, | 16V, E1 | |
| C.........23 | 59..32..1330 | 33 pF | 10%, | 25V, Cor | |
| C.........24 | 59..32..1330 | 33 pF | 10%, | 25V, Cor | |
| C.........25 | 59..30..4339 | 3..3 uF | -20%, | 25V, Ta | |
| C.........26 | 59..30..4339 | 3..3 uF | -20%, | 25V, Ta | |
| C.........27 | 59..30..4339 | 3..3 uF | -20%, | 25V, Ta | |
| C.........28 | 59..30..4339 | 3..3 uF | -20%, | 25V, Ta | |
| C.........29 | 59..30..4100 | 10 uF | -20%, | 25V, Ta | |
| C.........30 | 59..30..4100 | 10 uF | -20%, | 25V, Ta | |
| C.........31 | 59..30..4339 | 3..3 uF | -20%, | 25V, Ta | |
| C.........32 | 59..30..4339 | 3..3 uF | -20%, | 25V, Ta | |
| D.........1 | 50..04..0953 | AA 143 | |||
| D.........2 | 50..04..0953 | AA 143 | |||
| D.........3 | 50..04..0953 | AA 143 | |||
| D.........4 | 50..04..0953 | AA 143 |
STU OER (00)68.02.26 AL OUTPUT AMPLIFIER A PL1.177.882.00 PAGE 1
| TNO. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. |
| R.........48 | 57..11..4623 | 82 kOhm | 52, -25M, MF | ||
| R.........49 | 57..11..4102 | 1 kOhm | 52, -25M, MF | ||
| R.........50 | 57..11..4471 | 470 Ohm | 52, -25M, MF | ||
| R.........51 | 57..11..4273 | 27 kOhm | 52, -25M, MF | ||
| R.........52 | 57..11..4333 | 33 kOhm | 52, -25M, MF | ||
| R.........53 | 57..11..4623 | 82 kOhm | 52, -25M, MF | ||
| R.........54 | 57..11..4102 | 1 kOhm | 52, -25M, MF | ||
| R.........55 | 57..11..4471 | 470 Ohm | 52, -25M, MF | ||
| R.........56 | 57..11..4333 | 33 kOhm | 52, -25M, MF | ||
| R.........57 | 57..11..4183 | 18 kOhm | 52, -25M, MF | ||
| R.........58 | 57..11..4473 | 47 kOhm | 52, -25M, MF | ||
| R.........59 | 57..11..4473 | 47 kOhm | 52, -25M, MF | ||
| R.........60 | 57..11..4333 | 33 kOhm | 52, -25M, MF | ||
| R.........61 | 57..11..4183 | 18 kOhm | 52, -25M, MF | ||
| R.........62 | 57..11..4153 | 15 kOhm | 52, -25M, MF | ||
| K.........63 | 57..11..4221 | 220 Ohm | 52, -25M, MF | ||
| R.........64 | 57..11..4221 | 220 Ohm | 52, -25M, MF | ||
| R.........65 | 57..11..4153 | 15 kOhm | 52, -25M, MF | ||
| R.........66 | 57..11..4471 | 470 Ohm | 52, -25M, MF | ||
| R.........67 | 58..02..4222 | 2.2 kOhm | 202, -1 W, PCSCH | ||
| R.........68 | 58..02..4222 | 2.2 kOhm | 202, -1 W, PCSCH | ||
| R.........69 | 58..02..4104 | 100 kOhm | 202, -1 W, PCSCH | ||
| R.........70 | 58..02..4104 | 100 kOhm | 202, -1 W, PCSCH | ||
| R.........71 | 58..02..4223 | 22 kOhm | 202, -1 W, PCSCH | ||
| R.........72 | 58..02..4223 | 22 kOhm | 202, -1 W, PCSCH | ||
| R.........73 | 57..11..4471 | 470 Ohm | 52, -25M, MF | ||
| R.........74 | 57..11..4471 | 470 Ohm | 52, -25M, MF | ||
| T.........1 | 1.022..351..00 | 1:2,7 | Trafo | ||
| T.........2 | 1.022..351..00 | 1:2,7 | Trafo | ||
| H..........1 | 1.177..882..93 | Wire List |
STUDER (00)88.02-26 AL OUTPUT AMPLIFIER A PL1.177.882.00 PAGE 4
| TND. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. | |
| D......5 | 50.04.0125 | IN4448 | ||||
| D......6 | 50.04.0125 | IN4448 | ||||
| D......7 | 50.04.0125 | IN4448 | ||||
| D......8 | 50.04.1109 | L 20 V | 5%, | 0.4W | ||
| IC......1 | 50.05.0144 | LM 301 AN | DP AMP | Mot | ||
| IC......2 | 50.05.0144 | LM 301 AN | Op. Amp. | Mot | ||
| IC......3 | 50.09.0107 | RC 4559 | Dual Op. Amp. | Ra,TI | ||
| IC......4 | 50.09.0107 | RC 4559 | Dual Op. Amp. | Ra,TI | ||
| IC......5 | 50.09.0107 | RC 4559 | Dual Op. Amp. | Ra,TI | ||
| J......1 | 54.01.0216 | 6-Pole | CIS-Socket-Strip | AMP | ||
| K......1 | 56.04.0120 | P24 | Relais | |||
| MP......1 | 1.177.880.11 | OUTPUT AMPLIFIER PCB | St | |||
| P......1 | 54.01.0270 | 8-Pole | Cis Pin Strip | AMP | ||
| P......2 | 54.01.0220 | 9-Pole | Cis Pin Strip | AMP | ||
| Q......1 | 50.03.0510 | BD 136-16 | PNP | 1TT,TI | ||
| Q......2 | 50.03.0495 | BD 135-16 | NPN | 1TT,TI | ||
| Q......3 | 50.03.0510 | BD 136-16 | PNP | 1TT,TI | ||
| Q......4 | 50.03.0495 | BD 135-16 | NPN | 1TT,TI | ||
| Q......5 | 50.03.0515 | BC 307 | PNP | 1TT,TI | ||
| Q......6 | 50.03.0436 | BC 237 | NPN | 1TT,TI | ||
| Q......7 | 50.03.0436 | BC 237 | NPN | 1TT,TI | ||
| Q......8 | 50.03.0436 | BC 237 | NPN | 1TT,TI | ||
| Q......9 | 50.03.0436 | BC 237 | NPN | 1TT,TI | ||
| Q......10 | 50.03.0436 | BC 237 | NPN | 1TT,TI | ||
| R......2 | 57.11.4333 | 33 kOhm | 52, | +25W, MF | ||
| R......3 | 57.11.4189 | 1.8 Ohm | 52, | +25W, MF | ||
| R......4 | 57.3+4471 | 470 Ohm | 52, | +5 W, MF | ||
| R......5 | 57.11.4100 | 10 Ohm | 52, | +25W, MF | ||
| R......6 | 57.11.4100 | 10 Ohm | 52, | +25W, MF | ||
| R......7 | 57.3+4471 | 470 Ohm | 52, | +5 W, MF | ||
STUDER (00)88.02.26 AL OUTPUT AMPLIFIER A PL1.177.882.00 PAGE 2
| IND. POS.NO. PART NO. VALUE SPECIFICATIONS / EQUIVALENT MANUF. |
| Cer=Ceramic, EII=Electrolytic, Ta=Tantalum, MF=Metal Film, PCSCH= Pot.Meter |
| MANUFACTURER:Hot=Motorola, TI=Texas Instruments, Ra=Raytheon St=Studer |
| ORIG 88-02-26 |
STUDER 00）88.02.26 AL OUTPUT AMPLIFIER A PL1.177.882.00 PAGES
| TNO. | PDS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. | ||
| R-······8 | 37-11-4189 | 1..8 | Ohm | 5% | ..25W, MF | ||
| R-······9 | 37-11-4333 | 33 | kUHa | 5% | ..25W, MF | ||
| R-······11 | 37-11-4153 | 15 | kUHa | 5% | ..25W, MF | ||
| R-······12 | 37-11-4153 | 15 | kUHa | 5% | ..25W, MF | ||
| R-······13 | 37-11-4272 | 2..7 | kUHa | 5% | ..25W, MF | ||
| R-······14 | 37-11-4272 | 2..7 | kUHa | 5% | ..25W, MF | ||
| R-······15 | 37-11-4272 | 2..7 | kUHa | 5% | ..25W, MF | ||
| R-······16 | 37-11-4272 | 2..7 | kUHa | 5% | ..25W, MF | ||
| R-······17 | 37-11-4103 | 10 | kUHa | 5% | ..25W, MF | ||
| R-······18 | 37-11-4332 | 3..3 | kUHa | 5% | ..25W, MF | ||
| R-······19 | 37-11-4103 | 10 | kUHa | 5% | ..25W, MF | ||
| R-······20 | 37-11-4103 | 10 | kUHa | 5% | ..25W, MF | ||
| R-······21 | 37-11-4332 | 3..3 | kUHa | 5% | ..25W, MF | ||
| R-······22 | 37-11-4103 | 10 | kUHa | 5% | ..25W, MF | ||
| R-······23 | 37-11-4103 | 10 | kUHa | 5% | ..25W, MF | ||
| R-······24 | 37-11-4103 | 10 | kUHa | 5% | ..25W, MF | ||
| R-······25 | 37-11-4821 | 820 | Oha | 5% | ..25W, MF | ||
| R-······26 | 37-11-4821 | 820 | Oha | 5% | ..25W, MF | ||
| R-······27 | 37-11-4472 | 4..7 | kUHa | 5% | ..25W, MF | ||
| R-······28 | 37-11-4104 | 100 | kUHa | 5% | ..25W, MF | ||
| R-······29 | 37-11-4104 | 100 | kUHa | 5% | ..25W, MF | ||
| R-······31 | 37-11-4391 | 390 | Oha | 5% | ..25W, MF | ||
| R-······32 | 37-11-4564 | 560 | kUHa | 5% | ..25W, MF | ||
| R-······33 | 37-11-4222 | 2..2 | kUHa | 5% | ..25W, MF | ||
| R-······35 | 37-11-4104 | 100 | kUHa | 5% | ..25W, MF | ||
| R-······36 | 37-11-4472 | 4..7 | kUHa | 5% | ..25W, MF | ||
| R-······37 | 37-11-4474 | 470 | kUHa | 5% | ..25W, MF | ||
| R-······38 | 37-11-4472 | 4..7 | kUHa | 5% | ..25W, MF | ||
| R-······39 | 37-11-4103 | 10 | kUHa | 5% | ..25W, MF | ||
| R-······40 | 37-11-4273 | 27 | kUHa | 5% | ..25W, MF | ||
| R-······41 | 37-11-4273 | 27 | kUHa | 5% | ..25W, MF | ||
| R-······42 | 37-11-4104 | 100 | kUHa | 5% | ..25W, MF | ||
| R-······43 | 37-11-4472 | 4..7 | kUHa | 5% | ..25W, MF | ||
| R-······44 | 37-11-4472 | 4..7 | kUHa | 5% | ..25W, MF | ||
| R-······45 | 37-11-4471 | 470 | Oha | 5% | ..25W, MF | ||
| R-······46 | 37-11-4273 | 27 | kUHa | 5% | ..25W, MF | ||
| R-······47 | 37-11-4333 | 33 | kUHa | 5% | ..25W, MF | ||
STUDER (00)88.02.26 AL OUTPUT AMPLIFIER A PL1.177-882.00 PAGE 3

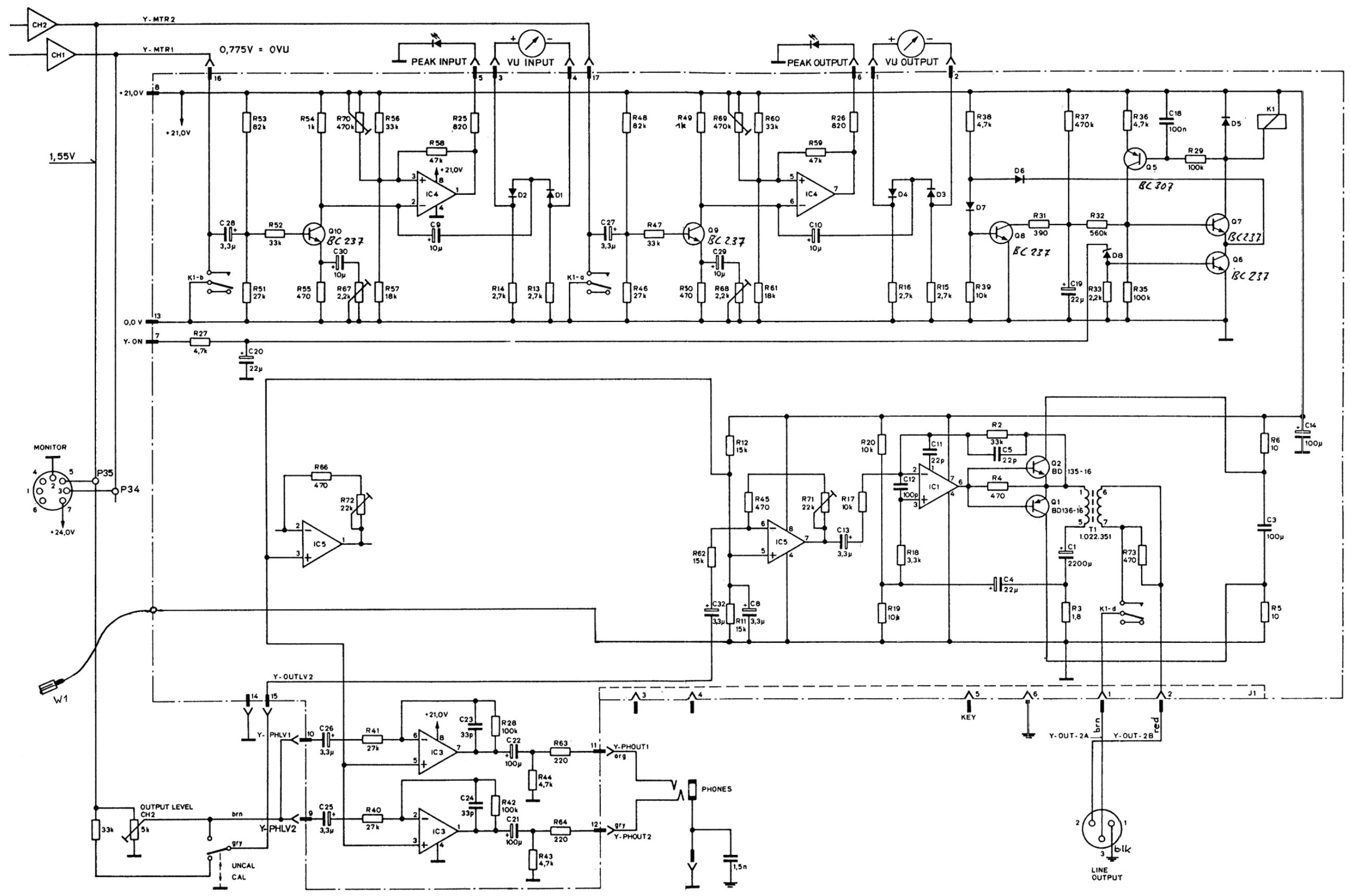

OUTPUT AMPLIFIER PCB STEREO 1.177.882.00

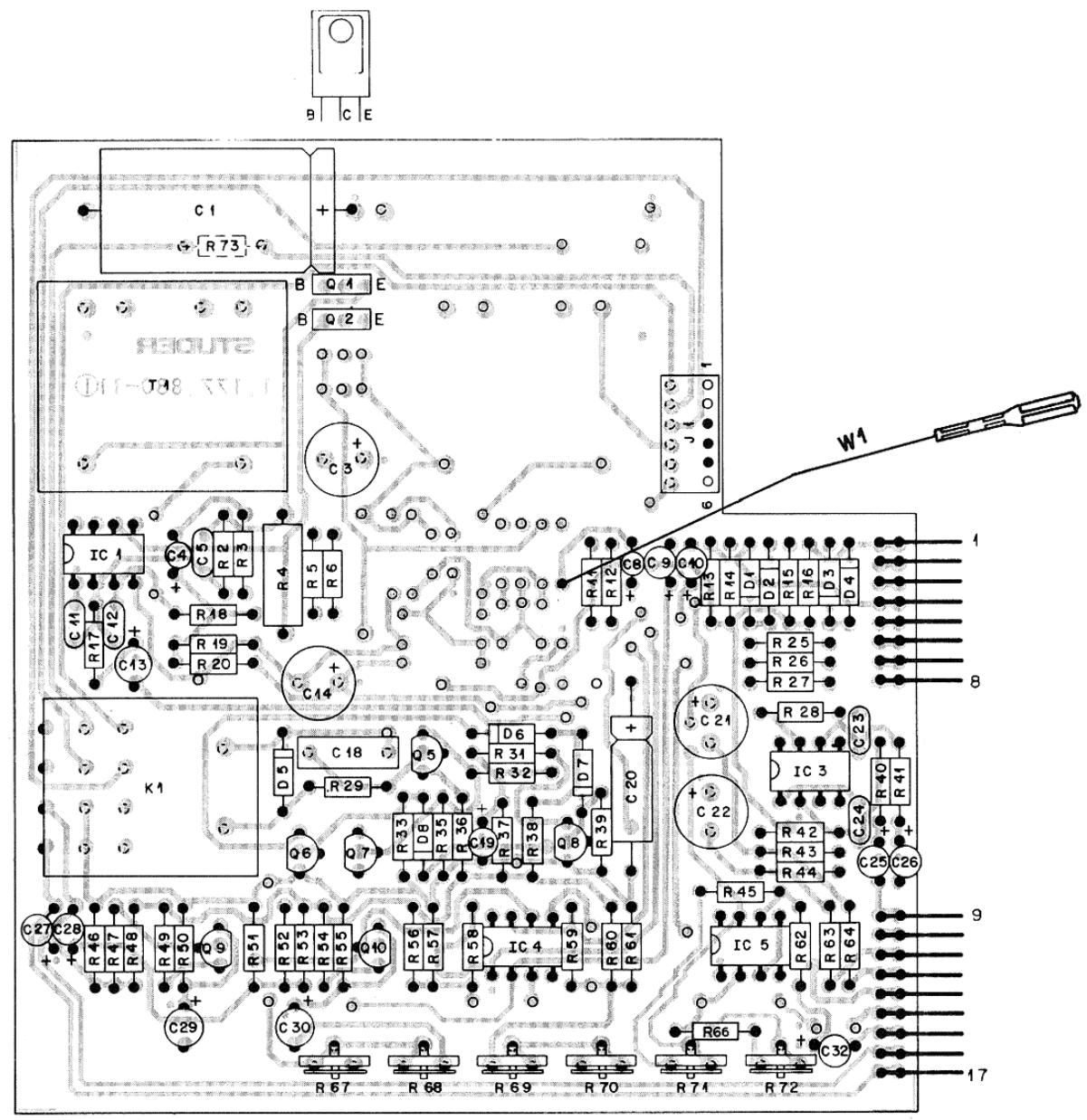

| 26.2.88 AL | O.. | O.. | O.. | O.. | |||
| PR 99 HK 3 | PAGE / OF / | ||||||
| STUDER | OUTPUT A HPLIFIER A | SC | 1.177.882-00 | ||||
| IND. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. | |
| C.........1 | 59..25..3222 | 2200 uF | -20%, 25V, E1 | |||
| C.........2 | not connected | |||||
| C.........3 | 59..22..5101 | 100 uF | -20%, 25V, E1 | |||
| C.........4 | 59..30..4220 | 22 uF | -20%, 25V, Ta | |||
| C.........5 | 59..32..0220 | 22 pF | 10%, 25V, Cor | |||
| C.........6 | not connected | |||||
| C.........7 | not connected | |||||
| C.........8 | 59..30..4339 | 3..3 uF | -20%, 25V, Ta | |||
| C.........9 | 59..30..4100 | 10 uF | -20%, 25V, Ta | |||
| C.........10 | 59..30..4100 | 10 uF | -20%, 25V, Ta | |||
| C.........11 | 59..32..0220 | 22 pF | 10%, 25V, Cor | |||
| C.........12 | 59..34..4101 | 100 pF | 10%, 25V, Cor | |||
| C.........13 | 59..30..4339 | 3..3 uF | -20%, 25V, Ta | |||
| C.........14 | 59..22..5101 | 100 uF | -20%, 25V, E1 | |||
| C.........15 | not connected | |||||
| C.........16 | not connected | |||||
| C.........17 | not connected | |||||
| C.........18 | 59..31..1104 | 100 nF | 10%, 25V, MPEPT | |||
| C.........19 | 59..30..4220 | 22 uF | -20%, 25V, Ta | |||
| C.........20 | 59..25..5220 | 22 uF | -20%, 40V, E1 | |||
| C.........21 | 59..22..4101 | 100 uF | -20%, 16V, E1 | |||
| C.........22 | 59..22..4101 | 100 uF | -20%, 16V, E1 | |||
| C.........23 | 59..32..1330 | 33 pF | 10%, 25V, Cor | |||
| C.........24 | 59..32..1330 | 33 pF | 10%, 25V, Cor | |||
| C.........25 | 59..30..4339 | 3..3 uF | -20%, 25V, Ta | |||
| C.........26 | 59..30..4339 | 3..3 uF | -20%, 25V, Ta | |||
| C.........27 | 59..30..4339 | 3..3 uF | -20%, 25V, Ta | |||
| C.........28 | 59..30..4339 | 3..3 uF | -20%, 25V, Ta | |||
| C.........29 | 59..30..4100 | 10 uF | -20%, 25V, Ta | |||
| C.........30 | 59..30..4100 | 10 uF | -20%, 25V, Ta | |||
| C.........31 | not connected | |||||
| C.........32 | 59..30..4339 | 3..3 uF | -20%, 25V, Ta | |||
| D..........1 | 50..04..0953 | AA 143 | ||||
| D..........2 | 50..04..0953 | AA 143 | ||||
| D..........3 | 50..04..0953 | AA 143 | ||||
| D..........4 | 50..04..0953 | AA 143 | ||||
STUDER (00)88.09.05 OUTPUTAMPLIFIERMONO A PL1.177-883.00 PAGE 1
| TND. | POS. NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. |
| R- | 44 | 57-11-3472 | 4.7 kOhm | 52, -25w, MF | |
| R- | 45 | 57-11-3471 | 470 Ohm | 52, -25w, MF | |
| R- | 46 | 57-11-3273 | 27 kOhm | 52, -25w, MF | |
| R- | 47 | 57-11-3333 | 33 kOhm | 52, -25w, MF | |
| R- | 48 | 57-11-3823 | 02 kOhm | 52, -25w, MF | |
| R- | 49 | 57-11-3102 | 1 kOhm | 52, -25w, MF | |
| R- | 50 | 57-11-3471 | 470 Ohm | 52, -25w, MF | |
| R- | 51 | 57-11-3273 | 27 kOhm | 52, -25w, MF | |
| R- | 52 | 57-11-3333 | 33 kOhm | 52, -25w, MF | |
| K- | 53 | 57-11-3823 | 02 kOhm | 52, -25w, MF | |
| K- | 54 | 57-11-3102 | 1 kOhm | 52, -25w, MF | |
| K- | 55 | 57-11-3471 | 470 Ohm | 52, -25w, MF | |
| K- | 56 | 57-11-3333 | 33 kOhm | 52, -25w, MF | |
| K- | 57 | 57-11-3183 | 18 kOhm | 52, -25w, MF | |
| K- | 58 | 57-11-3473 | 47 kOhm | 52, -25w, MF | |
| K- | 59 | 57-11-3473 | 47 kOhm | 52, -25w, MF | |
| K- | 60 | 57-11-3333 | 33 kOhm | 52, -25w, MF | |
| K- | 61 | 57-11-3103 | 18 kOhm | 52, -25w, MF | |
| K- | 62 | 57-11-3153 | 15 kOhm | 52, -25w, MF | |
| K- | 63 | 57-11-3221 | 220 Ohm | 52, -25w, MF | |
| K- | 64 | 57-11-3221 | 220 Ohm | 52, -25w, MF | |
| R- | 65 | not connected | |||
| R- | 66 | 57-11-3471 | 470 Ohm | 52, -25w, MF | |
| R- | 67 | 58-02-4222 | 2.2 kOhm | 20%, -1 W, PCSCH | |
| R- | 68 | 58-02-4222 | 2.2 kOhm | 20%, -1 W, PCSCH | |
| R- | 69 | 58-02-4104 | 100 kOhm | 20%, -1 W, PCSCH | |
| R- | 70 | 58-02-4104 | 100 kOhm | 20%, -1 W, PCSCH | |
| R- | 71 | 58-02-4223 | 22 kOhm | 20%, -1 W, PCSCH | |
| R- | 72 | 58-02-4223 | 22 kOhm | 20%, -1 W, PCSCH | |
| R- | 73 | 57-11-3471 | 470 Ohm | 52, -25w, MF | |
| R- | 74 | not connected | |||
| I- | 1 | 1.022.351.00 | 1:2,7 | Trafo | |
| T- | 2 | not connected | |||
| M- | 1 | 1.177.883.93 | Wire List |
STUDER (00)88.09.05 OUTPUT AMPLIFIER MONO A PL1.177.883.00 PAGE 4
| IND. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. | |
| D.........5 | 50..04..0125 | 1N4448 | ||||
| D..........6 | 50..04..0125 | 1N4448 | ||||
| D..........7 | 50..04..0125 | 1N4448 | ||||
| D..........8 | 50..04..1109 | Z 20 V | 5x, | 0..4W | ||
| IC..........1 | 50..05..0144 | LM 301 AN | not | DP AMP connected | Mot | |
| IC..........2 | ||||||
| IC..........3 | 50..09..0107 | RC 4559 | Dual Op- Amp- | Ra,TI | ||
| IC..........4 | 50..09..0107 | RC 4559 | Dual Op- Amp- | Ra,TI | ||
| IC..........5 | 50..09..0107 | RC 4559 | Dual Op- Amp- | Ra,TI | ||
| J..........1 | 54..01..0216 | b-Pole | CIS-Socket-Strip | AMP | ||
| K..........1 | 56..04..0120 | P24 | Relais | |||
| MP..........1 | 1..177..880..11 | OUTPUT AMPLIFIER PCB | St | |||
| P..........1 | 56..01..0270 | 8-Pole | Cis Pin Strip | AMP | ||
| P..........2 | 54..01..0220 | 9-Pole | Cis Pin Strip | AMP | ||
| Q..........1 | 50..03..0510 | BD 136-16 | PNP | ITT,TI | ||
| Q..........2 | 50..33..0495 | BD 135-16 | NPN | ITT,TI | ||
| Q..........3 | not connected | |||||
| Q..........4 | not connected | |||||
| Q..........5 | 50..03..0515 | BC 307 | PNP | ITT,TI | ||
| Q..........6 | 50..03..0436 | BC 237 | NPN | ITT,TI | ||
| Q..........7 | 50..03..0436 | BC 237 | NPN | ITT,TI | ||
| Q..........8 | 50..03..0436 | BC 237 | NPN | ITT,TI | ||
| Q..........9 | 50..03..0436 | BC 237 | NPN | ITT,TI | ||
| Q..........10 | 50..03..0436 | BC 237 | NPN | ITT,TI | ||
| R..........1 | not connected | |||||
| R..........2 | 57..11..3333 | 33 kOhm | 5x, .25w, MF | |||
| R..........3 | 57..11..3189 | 1..8 ohm | 5x, .25w, MF | |||
| R..........4 | 57..43..3471 | 470 ohm | 5x, .5 w, MF | |||
| K..........5 | 57..11..3100 | 10 ohm | 5x, .25w, MF | |||
| K..........6 | 57..11..3100 | 10 ohm | 5x, .25w, MF | |||
STUDER (00)88.09-05 OUTPUT AMPLIFIER MONO A PL1.177.883.00 PAGE 2
| Cer=Ceramic, El=Electrolytic, Ta=Tantalum, MF=Metal Film, PCSCH=Pot.Mater MANUFACTURER:Mot=Motorola, TI=Texas Instruments, Ra=Raytheon St=Stujer |
| IND. | POS.NO. | PART NO. | VALUE | SPECIFICATIONS / EQUIVALENT | MANUF. |
| R.........7 | not connected | ||||
| R..........8 | not connected | ||||
| R..........9 | not connected | ||||
| R..........10 | not connected | ||||
| R..........11 | 57-11-3153 | 15 kohm | 5%, -25w, MF | ||
| R..........12 | 57-11-3153 | 15 kohm | 5%, -25w, MF | ||
| K..........13 | 57-11-3272 | 2-7 kohm | 5%, -25w, MF | ||
| R..........14 | 57-11-3272 | 2-7 kohm | 5%, -25w, MF | ||
| R..........15 | 57-11-3272 | 2-7 kohm | 5%, -25w, MF | ||
| R..........16 | 57-11-3272 | 2-7 kohm | 5%, -25w, MF | ||
| R..........17 | 57-11-3103 | 10 kohm | 5%, -25w, MF | ||
| K..........18 | 57-11-3332 | 3-3 kohm | 5%, -25w, MF | ||
| R..........19 | 57-11-3103 | 10 kohm | 5%, -25w, MF | ||
| R..........20 | 57-11-3103 | 10 kohm | 5%, -25w, MF | ||
| K..........21 | not connected | ||||
| R..........22 | not connected | ||||
| R..........23 | not connected | ||||
| K..........24 | not connected | ||||
| R..........25 | 57-11-3821 | 820 Uohm | 5%, -25w, MF | ||
| R..........26 | 57-11-3821 | 820 Uohm | 5%, -25w, MF | ||
| R..........27 | 57-11-3672 | 4-7 kohm | 5%, -25w, MF | ||
| K..........28 | 57-11-3104 | 100 kohm | 5%, -25w, MF | ||
| R..........29 | 57-11-3104 | 100 kohm | 5%, -25w, MF | ||
| K..........30 | not connected | ||||
| R..........31 | 57-11-3391 | 390 Uohm | 5%, -25w, MF | ||
| R..........32 | 57-11-3564 | 560 kohm | 5%, -25w, MF | ||
| K..........33 | 57-11-3222 | 2-2 kohm | 5%, -25w, MF | ||
| R..........34 | not connected | ||||
| R..........35 | 57-11-3104 | 100 kohm | 5%, -25w, MF | ||
| R..........36 | 57-11-3472 | 4-7 kohm | 5%, -25w, MF | ||
| K..........37 | 57-11-3474 | 470 kohm | 5%, -25w, MF | ||
| R..........38 | 57-11-3472 | 4-7 kohm | 5%, -25w, MF | ||
| R..........39 | 57-11-3103 | 10 kohm | 5%, -25w, MF | ||
| K..........40 | 57-11-3273 | 27 kohm | 5%, -25w, MF | ||
| R..........41 | 57-11-3273 | 27 kohm | 5%, -25w, MF | ||
| R..........42 | 57-11-3104 | 100 kohm | 5%, -25w, MF | ||
| K..........43 | 57-11-3672 | 4-7 kohm | 5%, -25w, MF |
STUDER (00)88.09.05 OUTPUTAMPLIFIERMONO A PL1.177.883.00 PAGE 3
OUTPUT AMPLIFIER PCB MONO 1.177.883.00
| 00-88'22'4' | 25 | ONOH 2317dH V LndLNO | 830nLS | |||
| V F0 V 64d | IIIN 66 dd | |||||
| ···O | ···O | ···O | ···O | m 88°6'9 ① | ||
MONITOR PANEL STEREO 1.177.920.00
- Monitor Amplifier PCB 1.177.921.00
- Wire Harness to Monitor Panel 1.177.923.00
| POS NO | PART NO | VALUE | SPECIFICATIONS | EQUIVALENT MFR | ||
| C1 | 59.25.4102 | 10004 | -10% 25V EL | |||
| C2 | 59.30.3330 | 3334 | -20% 10V TR | |||
| C3 | 59.25.4470 | 4344 | -10% 25V EL | |||
| C4 | 59.25.4470 | 4344 | -10% 25V EL | |||
| C5 | 59.32.3104 | 9144 | -80% 25V REP | |||
| C6 | 59.32.3104 | 9144 | -80% 25V REP | |||
| C7 | 59.25.4102 | 10004 | -10% 25V EL | |||
| C8 | 59.12.2224 | 9224 | 3% 100V HEP | |||
| D1...3 | 50.04.0122 | 1N4001 | 51 | |||
| D4 | 50.04.1114 | 2010 | 51 | |||
| D5...6 | 50.04.0122 | 1N4001 | 51 | |||
| T1 | 50.05.0244 | NESS34H | OP AHP | |||
| T1 | 50.04.0291 | 1P01 | SOCKET STRIP AHP | |||
| P1 | 50.04.0317 | 7POL | PIN STRIP AHP | |||
| Q1 | 50.03.0485 | BD135/16 | MHN | |||
| Q2 | 50.03.0510 | BD136/16 | PNP | |||
| Q3 | 50.03.0510 | BD136/16 | PNP | |||
| Q4 | 50.03.0436 | BC550B | HNN | BC1078 | ||
| P1 | 57.13.4229 | 22 | ,5W | |||
| P2 | 57.13.4229 | 22 | ,5W | |||
| P3 | 57.11.4102 | 14 | ||||
| P4 | 57.11.4102 | 14 | ||||
| P5 | 57.11.4105 | 14 | ||||
| P6 | 57.11.4223 | 22k | ||||
| P7 | 57.11.4223 | 22k | ||||
| P8 | 57.56.5220 | 22 | 10% 4w DR | |||
| P9 | 57.56.5220 | 22 | 10% 4w DR | |||
| P10 | 57.11.4470 | 47 | ||||
| P11 | 57.11.4402 | 14 | ||||
| P12 | 57.11.4421 | 220 | ||||
| P13 | 57.11.4392 | 39k | ||||
| P14 | 57.11.4392 | 39k | ||||
| P15 | 57.11.44223 | 22k | ||||
| P16 | 57.11.44223 | 22k | ||||
| P17 | 57.11.44103 | 10k | ||||
| P18 | 57.11.44103 | 10k | ||||
| P19 | 57.11.44222 | 22k | ||||
| P20 | 57.11.44222 | 22k | ||||
| P21 | 57.11.44103 | 10k | ||||
| P22 | 57.11.44103 | 10k | ||||
| ④ | W | |||||
| ⑤ | 28.4.81 | |||||
| ⑥ | 212.80 | |||||
| IND | DATE | |||||
| STUDER | Monitor-Ampifier | 1.177.921-00 | PAGE 1 of 2 | |||
| POS NO | PART NO | VALUE | SPECIFICATIONS EQUIVALENT MFR | |||
| R23 | 57.11.4159 | 1.5 | ||||
| R24 | 57.11.4561 | 560 | ||||
| R25 | 57.11.4821 | 820 | ||||
| 4 | 5 | 6 | ||||
| 5.4 | 138 | 142 | ||||
| -12 | 0 | Waplcua | ||||
| IND | DATE | NAME | ||||
| STUDER | Monitor Amplifier | 1197.22.100 | PAGE 2 of 2 | |||
| IND | POS NO | PART NO | VALUE | SPECIFICATIONS/EQUIVALENT | MFR |
| A1 | 1.177.921.00 | Monitor Amplifier | |||
| LS1 | 71.01.0108 | 15ohms | Loudspeaker | ||
| R1 | 1.177.200.01 | 5k | Potmeter | ||
| SA | 55.01.0109 | 2xON | Switch | ||
| IND DATE NAME | ||
| (4) | ||
| ③ | ||
| ② | ||
| ① | ||
| ⑤ | 30.3.1971 | Wen#u# |
| ### | ||
WIRE HARNESS TO MONITOR PANEL 1.177.923

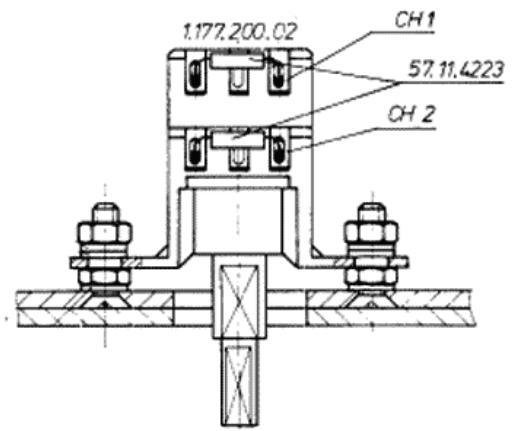

MONITOR PANEL STEREO 1.177.920.00
MONITOR PANEL STEREO 1.177.920.00
- Monitor Amplifier PCB 1.177.921.00
- Wire Harness to Monitor Panel 1.177.923.00
MONITOR PANEL MONO 1.177.925.00
- Monitor Amplifier PCB 1.177.921.00
- Wire Harness to Monitor Panel PCB 1.177.923.00
| POS NO | PART NO | VALUE | SPECIFICATIONS | EQUIVALENT | MFR |
| CA1 | 59.25.4102 | 10004 | -10% 2SV EL | ||
| CA2 | 59.30.3330 | 3334 | -20% 10V TH | ||
| CA3 | 59.25.4470 | 4344 | -10% 2SV EL | ||
| CA4 | 59.25.4470 | 4344 | -10% 2SV EL | ||
| CA5 | 59.32.3104 | 0.14 | -80% 2SV NER | ||
| CA6 | 59.32.3104 | 0.14 | -80% 2SV NER | ||
| CA7 | 59.25.4102 | 10004 | -10% 2SV EL | ||
| CA8 | 59.12.2224 | 0.224 | 5% 100V HPETP | ||
| D1...3 | 50.04.0122 | 1N4001 | 51 | ||
| D4 | 50.04.114 | 2010 | 51 | ||
| DS...6 | 50.04.0122 | 1N4001 | 51 | ||
| IC1 | 50.05.0244 | NE55348 | OP AHP | ||
| J1 | 54.04.0291 | 1N Pol | SOCKET STRIP AHP | ||
| PA1 | 54.04.0317 | 7Pol | PIN STRIP AHP | ||
| Q1 | 50.03.0495 | 80135/16 | NHR | ||
| O2 | 50.03.0510 | 80136/16 | FIVI | ||
| O3 | 50.03.0510 | 80136/16 | FIVI | ||
| O4 | 50.03.0936 | 8CSS08 | FIVI | ||
| PA1 | 57.13.4229 | 22 | .5W | ||
| P2 | 57.13.4229 | 22 | .5W | ||
| P3 | 57.13.4102 | 14 | |||
| P4 | 57.13.4102 | 14 | |||
| P5 | 57.13.4105 | 14 | |||
| P6 | 57.13.4223 | 22k | |||
| P7 | 57.13.4223 | 22k | |||
| P8 | 57.56.5220 | 22 | 10% 4W DP | ||
| P9 | 57.56.5220 | 22 | 10% 4W DP | ||
| P10 | 57.13.4470 | 47 | |||
| PM1 | 57.13.4102 | 14 | |||
| PM2 | 57.13.4221 | 220 | |||
| PM3 | 57.13.4392 | 35k | |||
| PM4 | 57.13.4392 | 39k | |||
| PM5 | 57.13.4223 | 22k | |||
| PM6 | 57.13.4223 | 22k | |||
| PM7 | 57.13.4103 | 10k | |||
| PM8 | 57.13.4103 | 10k | |||
| PM9 | 57.13.4222 | 22k | |||
| PM10 | 57.13.4103 | 10k | |||
| R21 | 57.13.4103 | 10k | |||
| R22 | 57.13.4103 | 10k |
| POS NO | PART NO | VALUE | SPECIFICATIONS | EQUIVALENT MFR | |||
| P23 | 57.1M.4459 | 1.5 | |||||
| P24 | 57.1M.4561 | 560 | |||||
| P25 | 57.1M.4821 | 820 | |||||
| @ | S. 4.1381 | @ | |||||
| IND | DATE | NAME | PAGE 2 of 2 | ||||
| STUDER | Monitor-Amplifier | 1.137, 32.100 | |||||
| INDPOS NO | PART NO | VALUE | SPECIFICATIONS/EQUIVALENT | MFR | ||||
| A1 | 1.177.921.00 | Monitor Amplifier | ||||||
| LS1 | 71.01.0108 | 15ohms | Loudspeacher | |||||
| RA | 1.177.200.01 | 5Kohms | Potmeter | |||||
| INDDATE | NAME | |||||||
| ④ | ||||||||
| ③ | ||||||||
| ② | ||||||||
| ① | ||||||||
| ○ | 30.3.132 | Wachkaler | ||||||
| STUDER | Monitor Panel Mono | PL | 1.177.925.00 | PAGE 1 OF 1 | ||||
WIRE HARNESS TO MONITOR PANEL 1.177.923

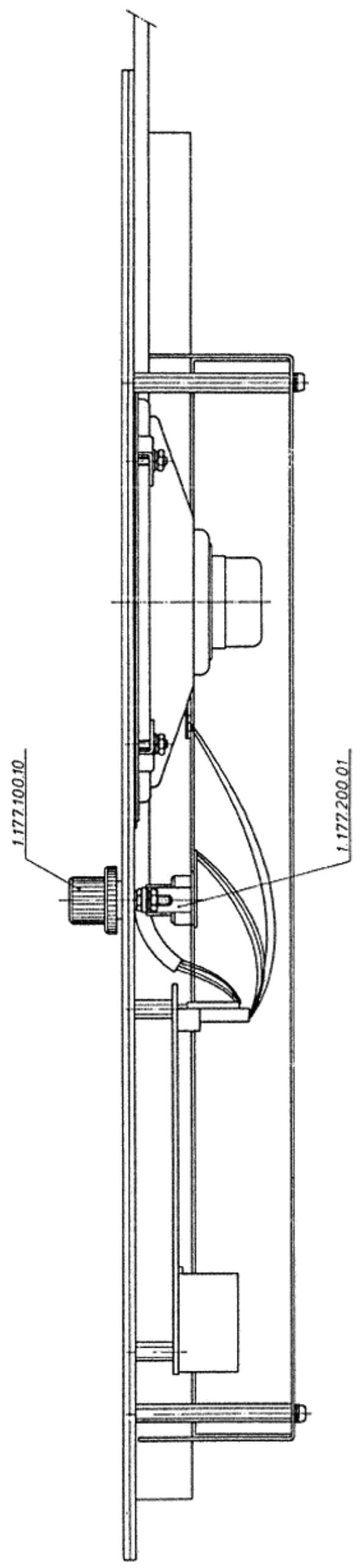

MONITOR PANEL MONO 1.177.925.00
MONITOR PANEL MONO 1.177.925.00
- Monitor Amplifier PCB 1.177.921.00
- Wire Harness to Monitor Panel PCB 1.177.923.00

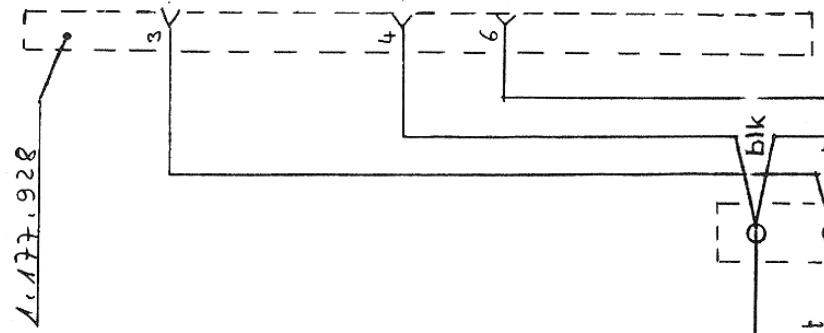

MONITOR PANEL 2CH WIRING 1.177.927.00
-Monitor Amplifier PCB 1.177.921.00
- Wire Harness to Monitor Panel 1.177.919.00
| POS NO | PART NO | VALUE | SPECIFICATIONS | EQUIVALENT MFR | ||
| C1 | 59.25.4102 | 10004 | -10% 2SV EL | |||
| C2 | 59.30.3330 | 3334 | -20% MOV TH | |||
| C3 | 59.25.4470 | 4474 | -10% 2SV EL | |||
| C4 | 59.25.4470 | 4474 | -10% 2SV EL | |||
| C5 | 59.32.3104 | 914 | +80% 2SV KER | |||
| C6 | 59.32.3104 | 914 | +80% 2SV KER | |||
| C7 | 59.25.44102 | 10004 | -10% 2SV EL | |||
| C8 | 59.12.2224 | 9224 | 5% 100V MPETP | |||
| D1...3 | 50.04.0122 | 11N4001 | SI | |||
| D4 | 50.04.1148 | 2010 | SI | |||
| D5...6 | 50.04.0122 | 11N4001 | SI | |||
| I C1 | 50.05.0244 | NE55384W | OP AMP | |||
| J1 | 54.01.0281 | 11Pol | SOCKET STRIP AMP | |||
| P1 | 54.01.0317 | 7POL | PIN STRIP AMP | |||
| Q1 | 50.03.0485 | 801357/16 | MNP | |||
| Q2 | 50.03.0570 | 801365/16 | MNP | |||
| O3 | 50.03.0510 | 801364/16 | MNP | |||
| Q4 | 50.03.0436 | BCSS0B | MNP | BC1028 | ||
| R1 | 57.13.4229 | 22 | ,5W | |||
| R2 | 57.13.4229 | 22 | ,5W | |||
| R3 | 57.11.4402 | 14 | ||||
| R4 | 57.11.4402 | 14 | ||||
| R5 | 57.11.4405 | 14 | ||||
| R6 | 57.11.4223 | 22k | ||||
| R7 | 57.11.4223 | 22k | ||||
| R8 | 57.56.5220 | 22 | 10% 4W DP | |||
| R9 | 57.56.5220 | 22 | 10% 4W DP | |||
| R10 | 57.11.4470 | 47 | ||||
| R11 | 57.11.4402 | 14 | ||||
| R12 | 57.11.4421 | 220 | ||||
| R13 | 57.11.4392 | 3.9k | ||||
| R14 | 57.11.4392 | 3.9k | ||||
| R15 | 57.11.4223 | 22k | ||||
| R16 | 57.11.4223 | 22k | ||||
| R17 | 57.11.4103 | 10k | ||||
| R18 | 57.11.4103 | 10k | ||||
| R19 | 57.11.4222 | 22k | ||||
| R20 | 57.11.4222 | 22k | ||||
| R21 | 57.11.4103 | 10k | ||||
| R22 | 57.11.4103 | 10k | ||||
| ④ | 28.4.81 | Page 1 of 2 | ||||
| IND | DATE | NAME | ||||
| STUDER | Monitor-Amplifier | 1.177.921-00 | ||||
| POS NO | PART NO | VALUE | SPECIFICATIONS | EQUIVALENT MFR | ||
| P23 | 57.11.4159 | 1.5 | 560 | |||
| P24 | 57.11.4561 | 820 | ||||
| P25 | 57.11.4821 | |||||
| ④ | ⑤ | ⑥ | ||||
| ⑦ | ⑧ | WenqiuLiu | ||||
| IND | DATE | NAME | ||||
| STUDER | Monitor-Amplifier | 1177.92.1.00 | PAGE 2 of 2 | |||
MONITOR PANEL 2CH 1.177.927.00
- Monitor Amplifier PCB 1.177.921.00
- Wire Harness to Monitor Panel 1.177.919.00
