MP C4000 - Imprimante multifonction couleur RICOH - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Imprimante multifonction couleur
Fonctions principales	Impression, copie, numérisation, fax
Technologie d'impression	Laser couleur
Vitesse d'impression	40 pages par minute (ppm) en noir et couleur
Résolution d'impression	1200 x 1200 dpi
Capacité du bac d'alimentation	Standard : 500 feuilles, optionnel : jusqu'à 2 300 feuilles
Dimensions approximatives	600 x 600 x 750 mm
Poids	Environ 70 kg
Alimentation électrique	220-240 V, 50/60 Hz
Consommation électrique	Environ 1,5 kW (max)
Connectivité	USB 2.0, Ethernet, Wi-Fi (optionnel)
Compatibilités	Windows, macOS, Linux
Type de toner	Cartouches de toner couleur (cyan, magenta, jaune, noir)
Entretien et nettoyage	Nettoyage régulier des rouleaux et de l'unité d'impression recommandés
Pièces détachées et réparabilité	Disponibilité de pièces détachées, réparabilité modérée
Sécurité	Fonctionnalités de sécurité intégrées, protection des données
Garantie	1 an (extension possible)

FOIRE AUX QUESTIONS - MP C4000 RICOH

Comment résoudre un bourrage papier sur la RICOH MP C4000 ?

Pour résoudre un bourrage papier, ouvrez les couvercles du bac d'alimentation et de la sortie de papier, puis retirez délicatement le papier coincé. Assurez-vous que le papier est correctement chargé dans le bac avant de refermer les couvercles.

Que faire si la qualité d'impression est médiocre ?

Si la qualité d'impression est médiocre, vérifiez le niveau des toners et remplacez-les si nécessaire. Vous pouvez également effectuer un nettoyage des têtes d'impression à partir du menu d'entretien de l'imprimante.

Comment connecter la RICOH MP C4000 à un réseau Wi-Fi ?

Pour connecter la RICOH MP C4000 à un réseau Wi-Fi, accédez au menu des paramètres, sélectionnez 'Réseau', puis 'Wi-Fi'. Suivez les instructions pour sélectionner votre réseau et entrer le mot de passe.

Que faire si l'écran de l'imprimante reste noir ?

Si l'écran de l'imprimante reste noir, vérifiez si l'imprimante est allumée et correctement branchée. Si le problème persiste, essayez de redémarrer l'imprimante. Si cela ne fonctionne pas, contactez le support technique.

Comment effectuer une réinitialisation des paramètres d'usine ?

Pour effectuer une réinitialisation des paramètres d'usine, accédez au menu 'Administration', sélectionnez 'Réinitialiser' et choisissez 'Réinitialiser les paramètres d'usine'. Notez que cela effacera toutes les configurations personnalisées.

Comment imprimer en recto-verso avec la RICOH MP C4000 ?

Pour imprimer en recto-verso, sélectionnez l'option 'Impression recto-verso' dans les paramètres d'impression de votre document avant de lancer l'impression.

Quel type de papier est recommandé pour la RICOH MP C4000 ?

Il est recommandé d'utiliser du papier de qualité, avec un grammage compris entre 60 et 300 g/m², selon le type d'impression que vous souhaitez effectuer.

Comment vérifier le niveau de toner sur la RICOH MP C4000 ?

Pour vérifier le niveau de toner, accédez au menu principal de l'imprimante, sélectionnez 'État des consommables' et consultez les niveaux de toner affichés.

Pourquoi mon document n'imprime pas et affiche une erreur 'Imprimante hors ligne' ?

Si votre document n'imprime pas et que l'imprimante affiche une erreur 'Imprimante hors ligne', vérifiez la connexion entre votre ordinateur et l'imprimante. Assurez-vous que l'imprimante est allumée et sélectionnée comme imprimante par défaut.

Comment mettre à jour le firmware de la RICOH MP C4000 ?

Pour mettre à jour le firmware, téléchargez la dernière version depuis le site Web de RICOH, puis suivez les instructions fournies pour installer la mise à jour via l'interface de l'imprimante.

MODE D'EMPLOI MP C4000 RICOH

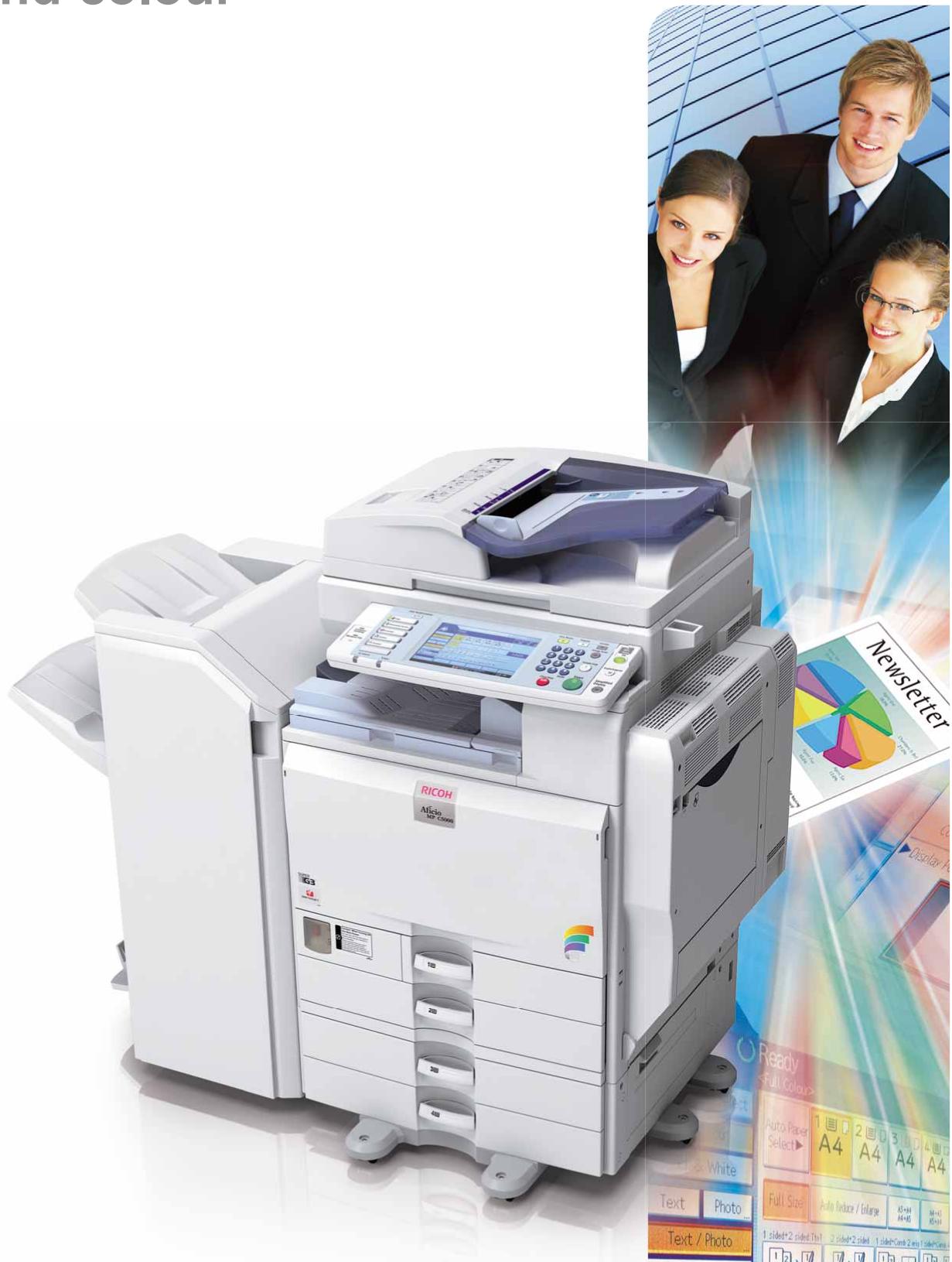

Outstanding multifunctional performers in B/W and colour

Promotional image featuring a RICOH printer and business professionals with text editing interface elements.

Astonish with in-house professional documents

With deadlines creeping closer, pressure is on the rise. Impeccable output needs to be delivered faster and more cost-efficiently. The Aficio™MP C4000/MP C5000 offer all the features you need. Every black-and-white functionality in the book is present. You also obtain additional colour capabilities, advanced faxing and colour network scanning. Superior in many ways, these compact and user-friendly document managers will fit right into your existing network. They boast fast output speeds and versatile finishing options to produce professional-looking output swiftly. In addition, these network communication hubs place a wealth of distribution and security possibilities at your fingertips. Put your company in the spotlights through quality and efficiency.

• All-in-one: print, copy, scan and fax from one device.
• Fast output speeds: 40/50 ppm in both black and white and colour.
• Excellent usability & up-to-date security.
• Outstanding 1,200 dpi image quality with PxPTM toner.
  • Full colour scanning at 60 pages per minute.
• Astonishing productivity guaranteed by Induction Heating Technology.
• Scan to USB function.

Business professionals in business attire gathered around a woman at a desk with a laptop and documents (no visible text or symbols)

Raising the bar for document management

Optimise your entire document-handling process to achieve a more efficient office workflow. The Aficio™MP C4000/MP C5000 bring you all the necessary tools to do just that. With the added value of colour, these multifunctional devices will lift your office to a higher standard.

Complex tasks made easy I…

Designed to simplify your daily workflow, the MP C4000/MP C5000 allow you to create first-class documents with the greatest ease.

• Advanced widescreen colour LCD touch panel for straightforward usability.
• Simplified display showing only your most frequently used functions.
• Animated user guidance in case of irregularities.
• Easy-handling paper trays for increased accessibility.
• Simple and fast toner replacement.

Experts in finishing

Why resort to expensive outsourcing when you can create professionally-finished documents in-house? The MP C4000/MP C5000 offer an entire range of possibilities to meet your needs. Staple and collate with the 1,000-sheet or 3,000-sheet finisher. Alternatively, create attractive sales, training and presentation material with the 2,000-sheet booklet finisher.

High Quality Finding in Labor and Job! National Funding Preferences SALON IT ASSET SALON IT ASSET LOREM IPSUM

Impressive colour

Boost your business image with high-impact colour documents. The MP C4000/MP C5000 ensure that you obtain expert results with impeccable detail and sharp images. For special applications like menu cards and cover pages, the devices handle stock of up to 256 g/m ^2 . Everything is available to increase the effect of your business communication!

Cost-saving Internet faxing

Reduce costs and optimise efficiency by using the Internet for long distance faxing. Not only do you save the cost of international phone calls, you also increase your productivity. Internet faxing is as easy as sending an e-mail.

d ities er. NICOM Airline C5000 MP C5000 or special


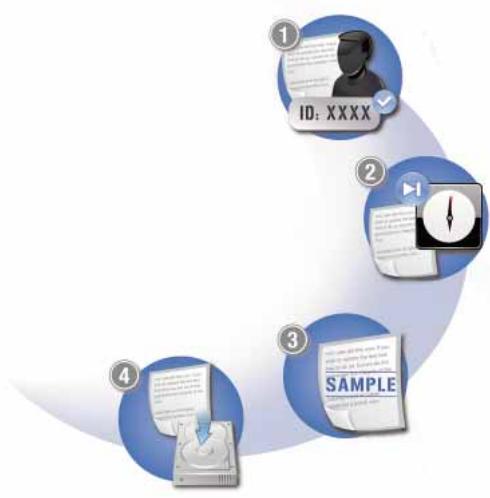

Efficient printing

With RPCSTM's icon-based interface, any print job is only one click away. You can even save your own print settings under a personal icon for future one-click use. Additionally, the MP C4000/MP C5000 boast a number of practical print functionalities:

① Protect documents with a password.
② Hold print jobs until a more convenient time.
③ Produce print samples to avoid misprints.
④ Store print jobs for quick and easy reprinting.

Exterior view of a modern office typewriter with front panel and control panel (no visible text or symbols)

Optimal document management

For streamlined document handling, all your print, copy, fax and scan data can be stored and managed. Simply access the device via the widescreen colour LCD touch panel. Then browse through your stored data in a list or with thumbnail view. Web Image Monitor provides extensive management functions anywhere, anytime. Retrieve, view, re-organise, change or delete stored data and files through a web browser at your convenience.

Advanced business faxing

Turn your fax communications into a very smooth-running and efficient workflow.

A wealth of smart capabilities is at your disposal:

• Automatically distribute incoming faxes to e-mail or folder.
• Forward faxes to a single person or an entire workgroup for optimum efficiency.
  Inbound fax messages automatically go to the right person. You eliminate the distribution of printed faxes and save costs.

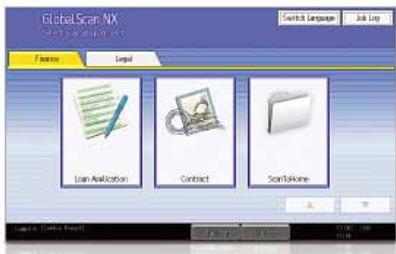

GlobalScan NX Search Engine Switch Language Job Log Finance Legal Loan Application Contract ScanBank

GlobalScan NX

Our intuitive GlobalScan NX streamlines your workflow with flexible scanning and distribution. Via an easy-to-use Graphical User Interface (GUI), preset icons with your customised document format and workflow. You can now scan in a single step from the MP C4000/MP C5000's control panel.

Two hands cupping soil with a small green sprout emerging from the center (no text or symbols visible)

Think green

Ricoh uses toxic-free materials for all its hardware. Our low-energy toner production methods are unique. With low power consumption, clean and quiet operation and duplex functionality, the Aficio™MP C4000/MP C5000 take environmental care even further.

Your intelligent, multi-talented office partner

As your business grows, so does the number of office tasks. To cope with current and future demands, the Aficio™ MP C4000/MP C5000 are productive, customisable document managers. Integrating efficient distribution and optimum security, they will be your preferred office partners for years to come.

• Excellent colour and B/W productivity.
- Flexible distribution.
- Extended security features.
- Embedded Software Architecture™.

First-class multifunctional performance

The MP C4000/MP C5000 efficiently combine printing, copying, scanning and faxing. Short warm-up times and first output speeds make short work of any job. Simplex, duplex and full-colour outputs are produced at a swift 40/50 ppm. The Induction Heating fusing belt system produces prints fast without compromising on quality. Even demanding jobs are completed in one smooth run with a 4,400-sheet paper capacity.

Distribution to fit your needs

In the digital info flow, transition between electronic and hard-copy documents must be seamless. Scanned documents can easily be filed for later retrieval. Deliver them to any location worldwide via shared network folders, e-mail or the web (using FTP). To reduce network traffic, heavy files can be downsized into high-compression PDFs.

Those maintain excellent image quality while minimising overloads.

Safeguard access & information

Protecting your business against security threats is vital.

The Aficio™MP C4000/MP C5000 guarantee your peace of mind without ever interrupting your workflow. Equipped with the latest in security, they:

• Prevent unauthorised access, using Windows® authentication and a PIN code to access print jobs.
• Overwrite temporary data on the systems' Hard Disk Drive using the Data Overwrite Security Unit.
• Make unauthorised copying result in illegible output with the Copy Data Security Unit.
• Encrypt scanned PDF data for safe transmission.

Duis eum iriure dolor Full colour: 40/50 ppm

Customised software solutions

The Aficio™MP C4000/MP C5000 feature Ricoh's Embedded Software Architecture™ to meet your current and future requirements.

This innovative Java ^™ (J2ME ^™ )-compatible software development platform designs customised key applications. Integrated solutions control the way in which the MP C4000/MP C5000 interact with and enhance your document workflow.

COPIER

Copying process:	Laser beam scanning and electro-photographic printing
Copy speed:	MP C4000:	B/W / full colour: 40 copies per minute
	MP C5000:	B/W / full colour: 50 copies per minute
Resolution:	600 dpi
Multiple copy:	Up to 999
Warm-up time:	MP C4000:	34 seconds
	MP C5000:	51 seconds
First output speed:	MP C4000:	B/W / full colour: 3.9/6.5 seconds
	MP C5000:	B/W / full colour: 3.5/5.9 seconds
Zoom:	25 - 400% (in 1% steps)
Memory:	Standard:	1,024 MB + 160 GB Hard Disk Drive (shared with printer/fax/scanner function)
Paper input capacity:	Standard:	2 x 550-sheet paper trays1 x 100-sheet bypass tray
	Maximum:	4,400 sheets
Paper output capacity:	Maximum:	3,675 sheets
Paper size:	A6 - A3
Paper weight:	Paper trays:	60 - 256 g/m2
	Bypass tray:	60 - 256 g/m2
	Duplex tray:	60 - 169 g/m2
Duplexing:	Standard
Dimensions (W x D x H):	670 x 677 x 760 mm
Weight:	Less than 130 kg (with ARDF)
Power source:	220 - 240 V, 50/60 Hz
Power consumption:	Operation:	Maximum 1.6 kW
	Energy saver mode:	Less than 137 W
	Auto Off mode:	Less than 2.9 W

PRINTER

Print speed:	MP C4000:	B/W / full colour: 40 prints per minute
	MP C5000:	B/W / full colour: 50 prints per minute
Printer language:	Standard:	PCL5c, PCL6, RPCSTM
	Option:	Adobe® PostScript® 3TM
Resolution:	1,200 x 1,200 dpi
Interface:	Standard:	USB 2.0
		USB Host I/F
		Ethernet 10 base-T/100 base-TX
	Option:	Bi-directional IEEE 1284/ECP
		Bluetooth
		Ethernet 1000 base-T
		USB 2.0/SD Slot
Network protocol:	TCP/IP, IPX/SPX, AppleTalk
Supported environments:	Windows® 2000/XP/Vista/Server 2003/Server 2008Novell® NetWare® 3.12/3.2/4.1/4.11/5.0/5.1/6/6.5UNIX Sun® Solaris 2.6/7/8/9/10HP-UX 10.x/11.x/11iv2/11iv3SCO OpenServer 5.0.6/5.0.7/6.0RedHat® Linux 6.x/7.x/8.x/9.x/EnterpriseIBM® AIX v4.3/5L v5.1/5L v5.2/5L v5.3Macintosh OS 8.6 or later (OS X Classic)Macintosh OS X v10.1 or later (native mode)IBM® System i5TM HPTSAP® R/3®NDPS GatewayAS/400® using OS/400 Host Print Transform

SCANNER

Scan speed:	B/W / full colour:	Maximum 63/60 originals per minute (LEF, A4)
Resolution:	Maximum 1,200 dpi
Original size:	A5 - A3
Output formats:	PDF/JPEG/TIFF/High compression PDF
Bundled drivers:	Network, TWAIN
Scan to e-mail:	SMTP (optionally with POP authentication)
Scan to e-mail destination addresses:	Maximum 500 per job
Stored destination addresses:	Maximum 2,000
Address book:	Via LDAP or locally on Hard Disk Drive
Scan to folder:	SMB, FTP, NCP
Scan to folder destination:	Maximum 50 folders per job

SOFTWARE

SmartDeviceMonitorTM, Web SmartDeviceMonitorTM, Web Image Monitor, DeskTopBinderTM Lite

FAX (option)

Circuit:	PSTN, PBX
Compatibility:	ITU-T (CCITT) G3ITU-T (T.37 full mode) Internet faxITU-T (T.38) IP fax
Modem speed:	Maximum 33.6 Kbps
Resolution:	Standard/detail:	200 x 100/200 dpi
	Maximum:	400 x 400 dpi (option)
Compression method:	MH, MR, MMR, JBIG
Scanning speed:	0.50 seconds (A4, SEF, standard/detail mode)
Memory capacity:	Standard:	4 MB
	Maximum:	28 MB
Memory backup:	Yes

OTHER OPTIONS

Platen cover, 100-sheet Auto Reverse Document Feeder, Scanner accessibility option, 2 x 550-sheet paper trays, 1,200-sheet side large capacity tray, 2,000-sheet large capacity tray, 1,000-sheet multi-tray finisher, 2,000-sheet booklet finisher, 3,000-sheet finisher, Several punch kits, 2nd G3 port, Fax memory unit, Internal shift tray, Browser unit, Camera Direct Print card, VM card, File Format Converter, Data Overwrite Security Unit, Copy Data Security Unit, HDD encryption unit, Counter interface unit, Key counter bracket, One bin tray, Bridge unit, Remote communication gate, GlobalScan NX, Card authentication package, Professional software solutions

For availability of models, optional apparatus and software, please contact your local Ricoh supplier.

ISO9001: 2000 certified ISO14001 certified

Ricoh has designed these products to meet EC ENERGY STAR guidelines for energy efficiency.

Ricoh believes in conserving the earth's precious natural resources. This brochure is printed on environmentally friendly paper: 50% recycled fibres, 50% chlorine free bleached pulp.

All brand and/or product names are trademarks of their respective owners. Specifications and external appearance are subject to change without notice. The colour of the actual product may vary from the colour shown in the brochure. The images in this brochure are not real photographs and slight differences in detail might appear.

Copyright © 2008 Ricoh Europe PLC. All rights reserved. This brochure, its contents and/or layout may not be modified and/or adapted, copied in part or in whole and/or incorporated into other works without the prior written permission of Ricoh Europe PLC.
