TTS COUPE - Coupé sportif AUDI - Notice d'utilisation et mode d'emploi gratuit

Intitulé	Description
Type de produit	Coupé sportif
Moteur	2.0 TFSI, 4 cylindres en ligne, turbo
Puissance	310 ch (228 kW)
Couple	400 Nm
Transmission	Transmission intégrale Quattro, boîte S tronic à 7 rapports
Dimensions	Longueur : 4 190 mm, Largeur : 1 832 mm, Hauteur : 1 353 mm
Poids	1 450 kg
Vitesse maximale	250 km/h (limitée électroniquement)
Accélération 0-100 km/h	5,2 secondes
Consommation de carburant	7,4 L/100 km (cycle mixte)
Émissions de CO2	169 g/km
Capacité du réservoir	55 litres
Entretien et nettoyage	Révisions tous les 15 000 km ou 1 an, nettoyage régulier de la carrosserie et de l'intérieur
Pièces détachées et réparabilité	Disponibilité des pièces d'origine, réseau de réparateurs agréés Audi
Sécurité	Équipements de sécurité avancés, y compris l'ABS, l'ESP, et plusieurs airbags
Garantie	2 ans ou 100 000 km (selon la première éventualité)
Informations générales	Modèle sportif de la gamme Audi, design dynamique, technologie avancée

FOIRE AUX QUESTIONS - TTS COUPE AUDI

Comment régler le siège du conducteur sur l'AUDI TTS COUPE ?

Utilisez le levier situé sur le côté du siège pour avancer ou reculer le siège. Pour régler l'inclinaison du dossier, utilisez le bouton situé à l'arrière du siège.

Que faire si les phares de l'AUDI TTS COUPE ne s'allument pas ?

Vérifiez d'abord le commutateur des phares sur le tableau de bord. Si les phares ne s'allument toujours pas, vérifiez les fusibles et les ampoules.

Comment réinitialiser le système d'infodivertissement de l'AUDI TTS COUPE ?

Appuyez et maintenez enfoncé le bouton de volume pendant environ 10 secondes pour effectuer une réinitialisation du système.

Comment vérifier la pression des pneus de l'AUDI TTS COUPE ?

Utilisez un manomètre pour vérifier la pression des pneus. La pression recommandée est généralement indiquée sur l'étiquette à l'intérieur de la porte côté conducteur.

Que faire si le moteur de l'AUDI TTS COUPE ne démarre pas ?

Vérifiez si la batterie est chargée et si les câbles sont bien connectés. Si le problème persiste, contactez un professionnel.

Comment activer le mode sport dans l'AUDI TTS COUPE ?

Appuyez sur le bouton 'Drive Select' situé sur le tableau de bord et sélectionnez le mode 'Sport' pour activer les réglages dynamiques.

Comment changer l'huile moteur de l'AUDI TTS COUPE ?

Pour changer l'huile, soulevez le véhicule, vidangez l'huile usagée via le bouchon de vidange, remplacez le filtre à huile et remplissez avec de l'huile neuve selon les spécifications du constructeur.

Comment utiliser le système de navigation de l'AUDI TTS COUPE ?

Appuyez sur le bouton 'Navigation' sur le système d'infodivertissement, entrez votre destination à l'aide de l'écran tactile ou du contrôleur, puis suivez les instructions à l'écran.

Que faire si l'air conditionné de l'AUDI TTS COUPE ne fonctionne pas ?

Vérifiez si le système est allumé et que la température est réglée correctement. Si le problème persiste, il peut être nécessaire de vérifier le niveau de réfrigérant ou de consulter un professionnel.

Comment vérifier les niveaux de liquide dans l'AUDI TTS COUPE ?

Ouvrez le capot et localisez les réservoirs pour le liquide de refroidissement, le liquide de frein, et le liquide de lave-glace. Vérifiez que chaque niveau est entre les repères 'Min' et 'Max'.

MODE D'EMPLOI TTS COUPE AUDI

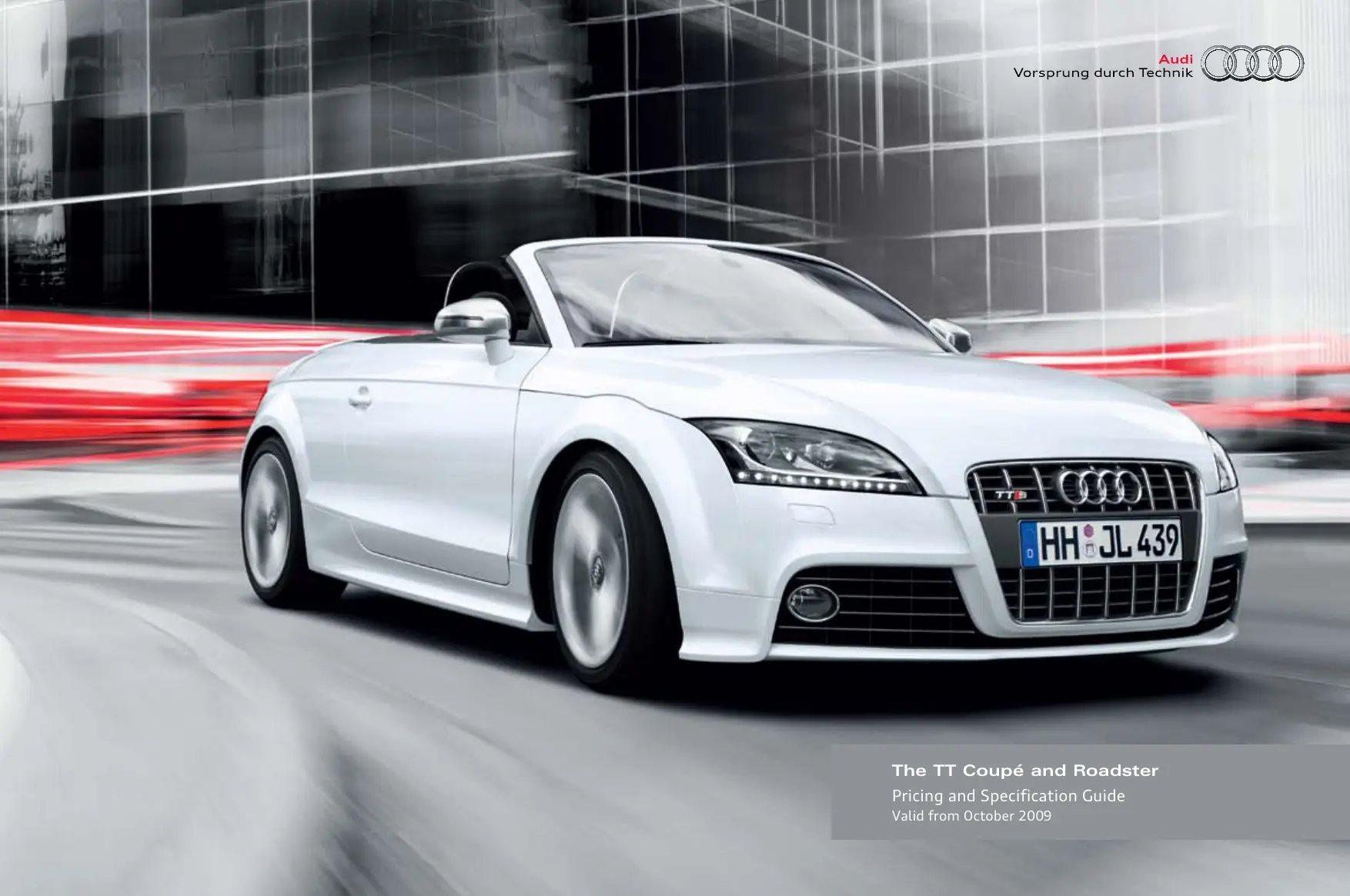

White Audi 439 convertible sports car with license plate, displayed in motion (no visible text or symbols on body)

The TT Coupé and Roadster

Pricing and Specification Guide

Valid from October 2009

Personalising your Audi TT

This guide has been designed to help you tailor and price your TT quickly and logically. At the back of this guide you will find information on CO2 emissions-based vehicle excise duty and the other services offered by Audi, including Finance and Insurance.

The Audi TT

Efficiency 10
Engines and transmissions 12
quattro ^® 14

Model details and prices

Standard model equipment 16
S line model equipment 18
S line Special Edition model equipment 19
TTS model equipment 20
Model prices 22

Audi exclusive

Audi exclusive 24

Colour and upholstery

Paint finishes 28
Upholstery options 30
Colour and trim guide 36
Inlays 38

Options

Wheels, tyres and suspension 40
Audio and communication 44
Seats 46
Safety and security 47
Exterior equipment 47
Interior equipment 48
Audi merchandise 50
Audi accessories 51

Technical details

Technical data 52

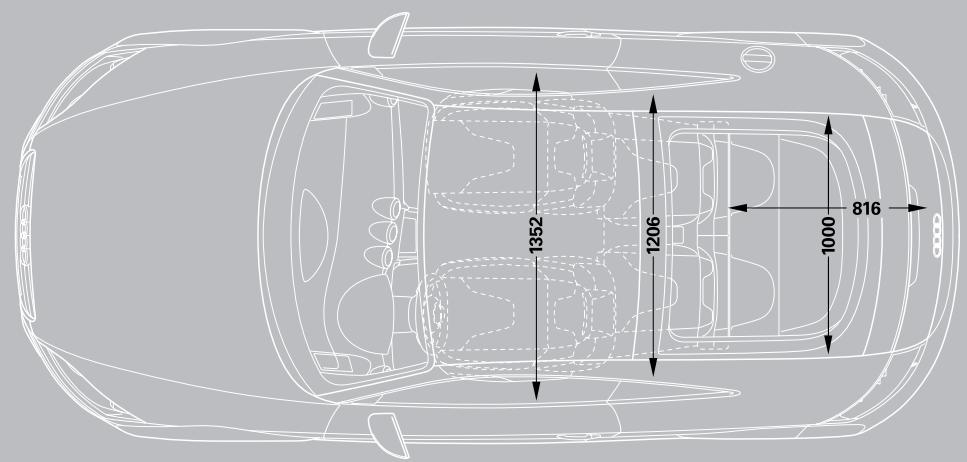

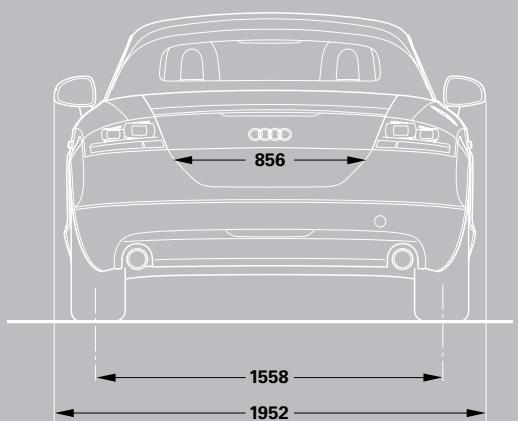

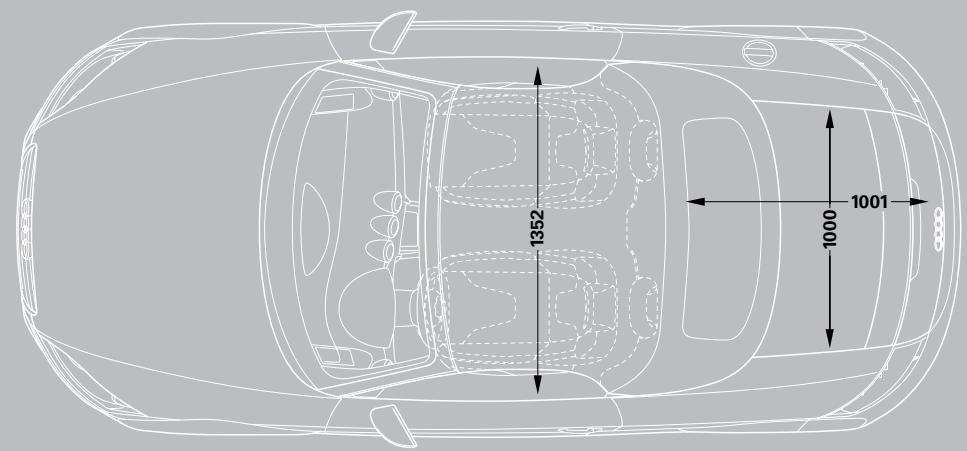

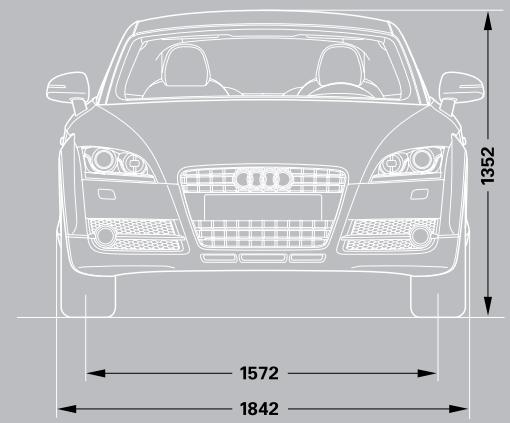

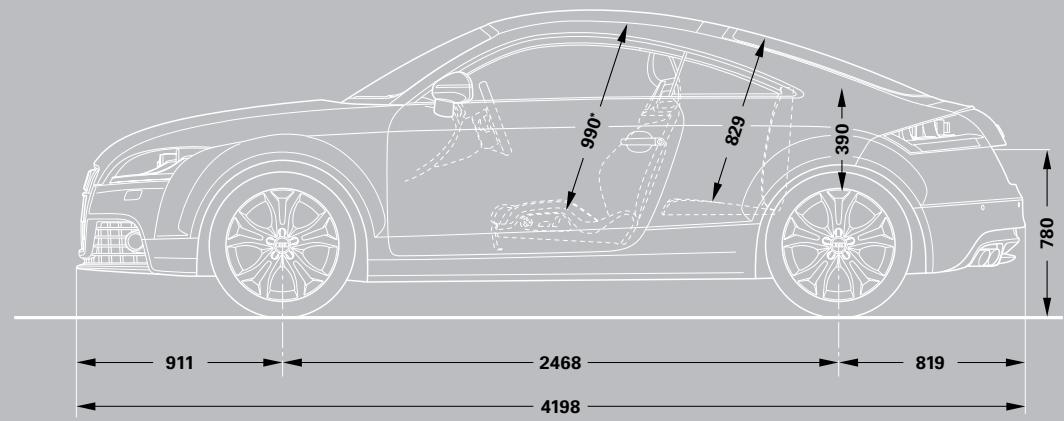

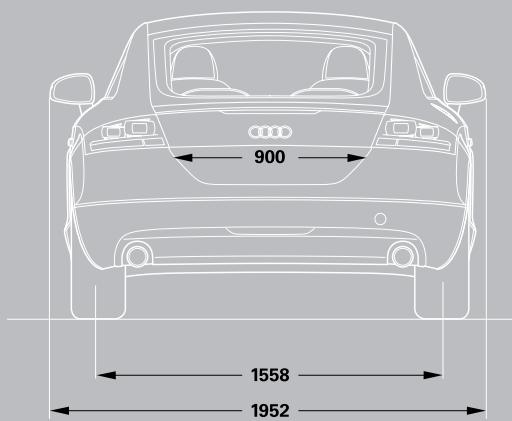

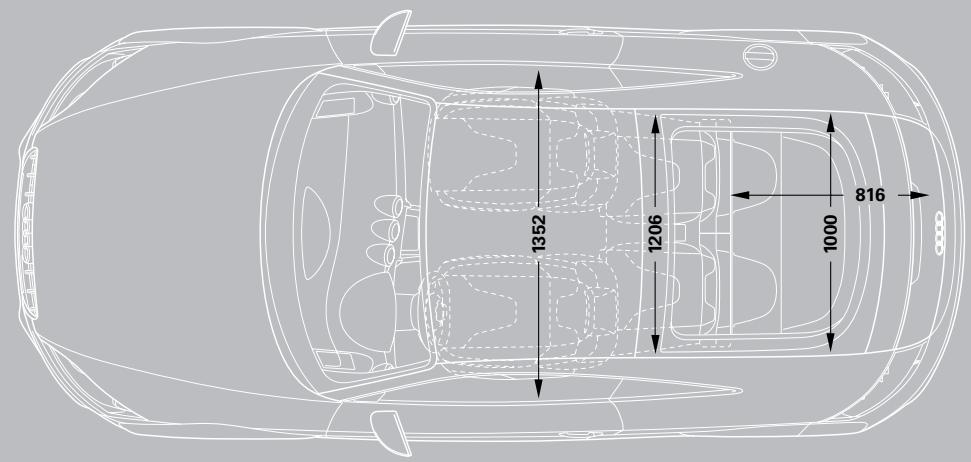

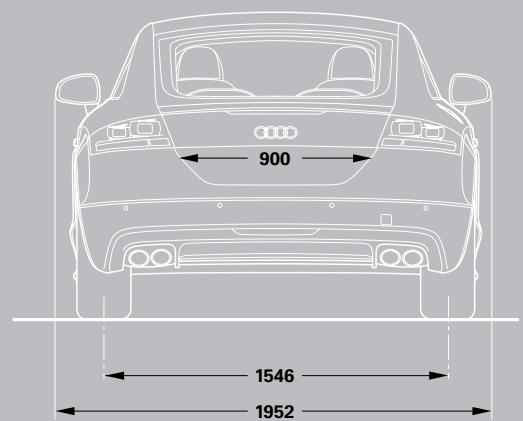

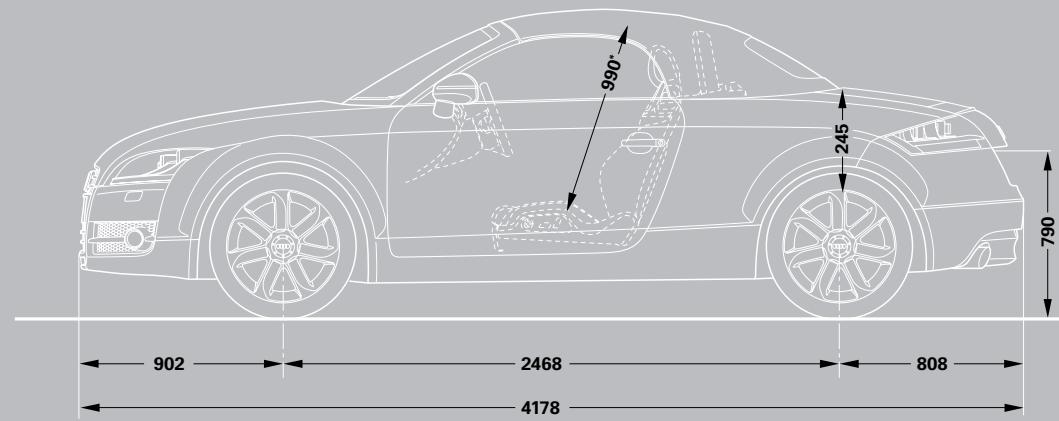

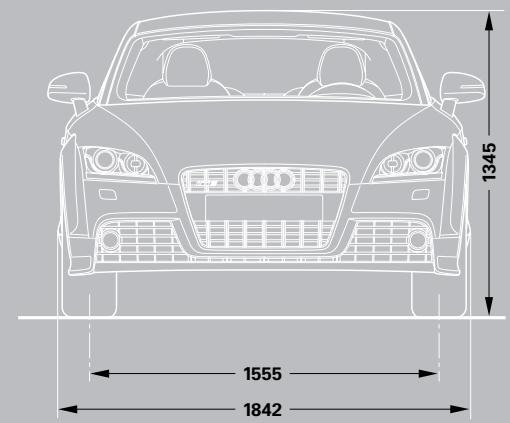

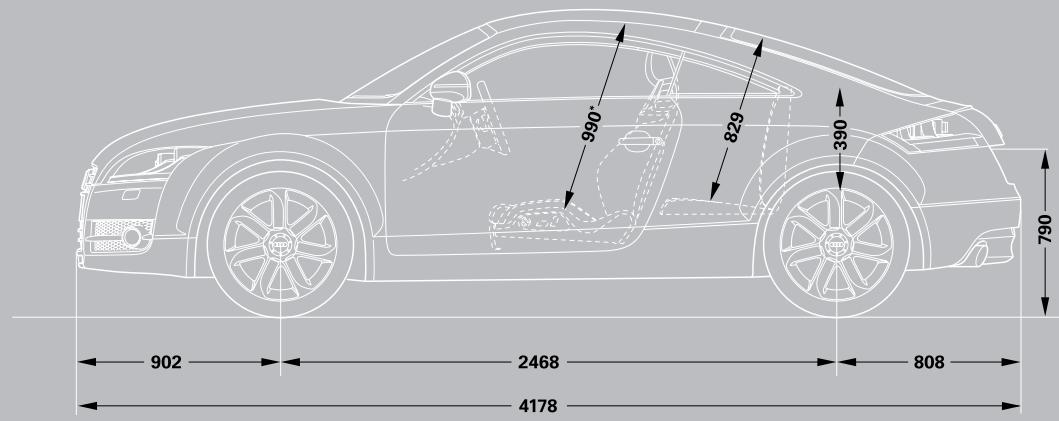

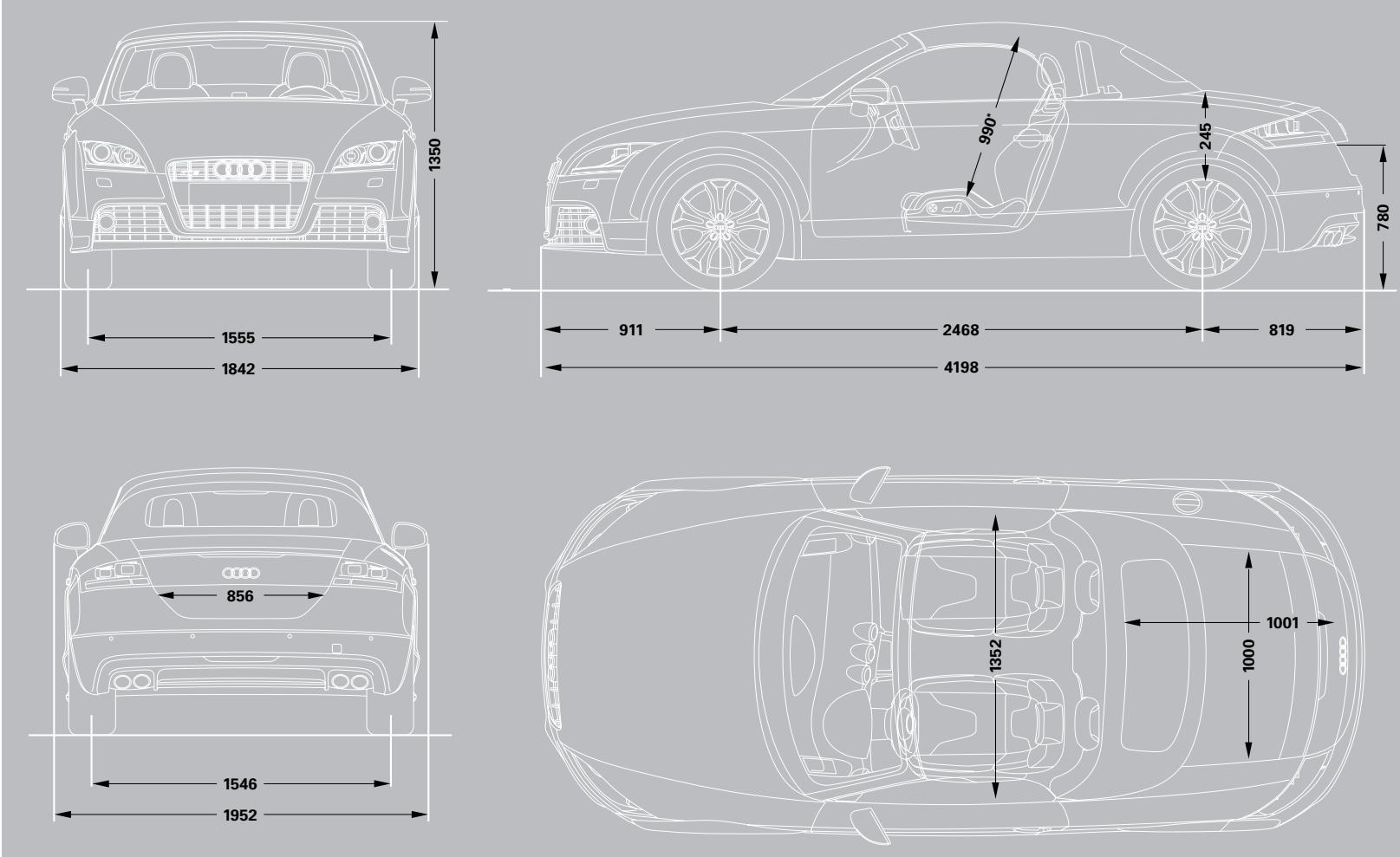

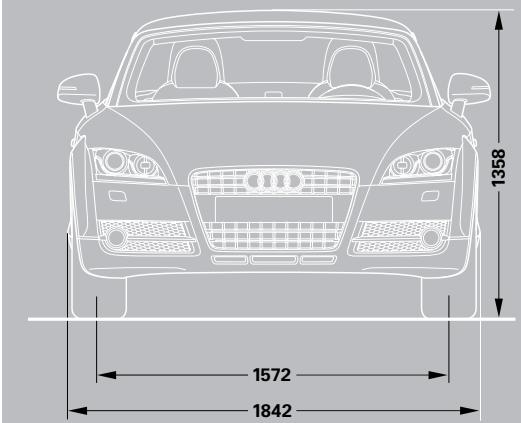

Dimensions 54
Additional information 58

Racing scene with three cars on a curved track, including a blue and silver Buick and a black FSI Power scooter, under bright sunlight (no visible text or symbols)

Racing car with 'Infineon' and 'MICHELIN' branding, no visible text or symbols on the vehicle itself

Vorsprung durch Technik.

Three words that express the very essence of Audi.

Vorsprung durch Technik isn't a slogan. It's our way of seeing the world. It is the driving force behind our history of innovation that continues

into the 21st century. Indeed, many technologies that Audi pioneered remain in our cars today. Some are milestones in the history of the motorcar.

From our beginnings in 1899, to the Auto Union team's Grand Prix successes in the 1930s and our more recent wins at Le Mans, we have always been at the forefront of the motor industry.

Vorsprung durch Technik makes us who we are. To see more of its influence, just read on.

The Audi TT is a landmark in design.

The Audi TT is one of the most iconic cars in our range. Both the Coupé and Roadster are available with road-holding quattro® all-wheel-drive and fuel-efficient TDI engines – the same technologies that have given us unprecedented success in the Le Mans 24-hour race. There’s also a wide choice of alloys and optional upholsteries for ultimate comfort. It all means that you can enjoy driving the Audi TT purely for pleasure.

Front view of a white Audi car with 'HH JL 439' license plate, driving on a road under cloudy skies (no visible text or symbols beyond license plate)

Front view of two red Audi cars on a city road, one white and one red, with city skyline in background (no visible text or symbols)

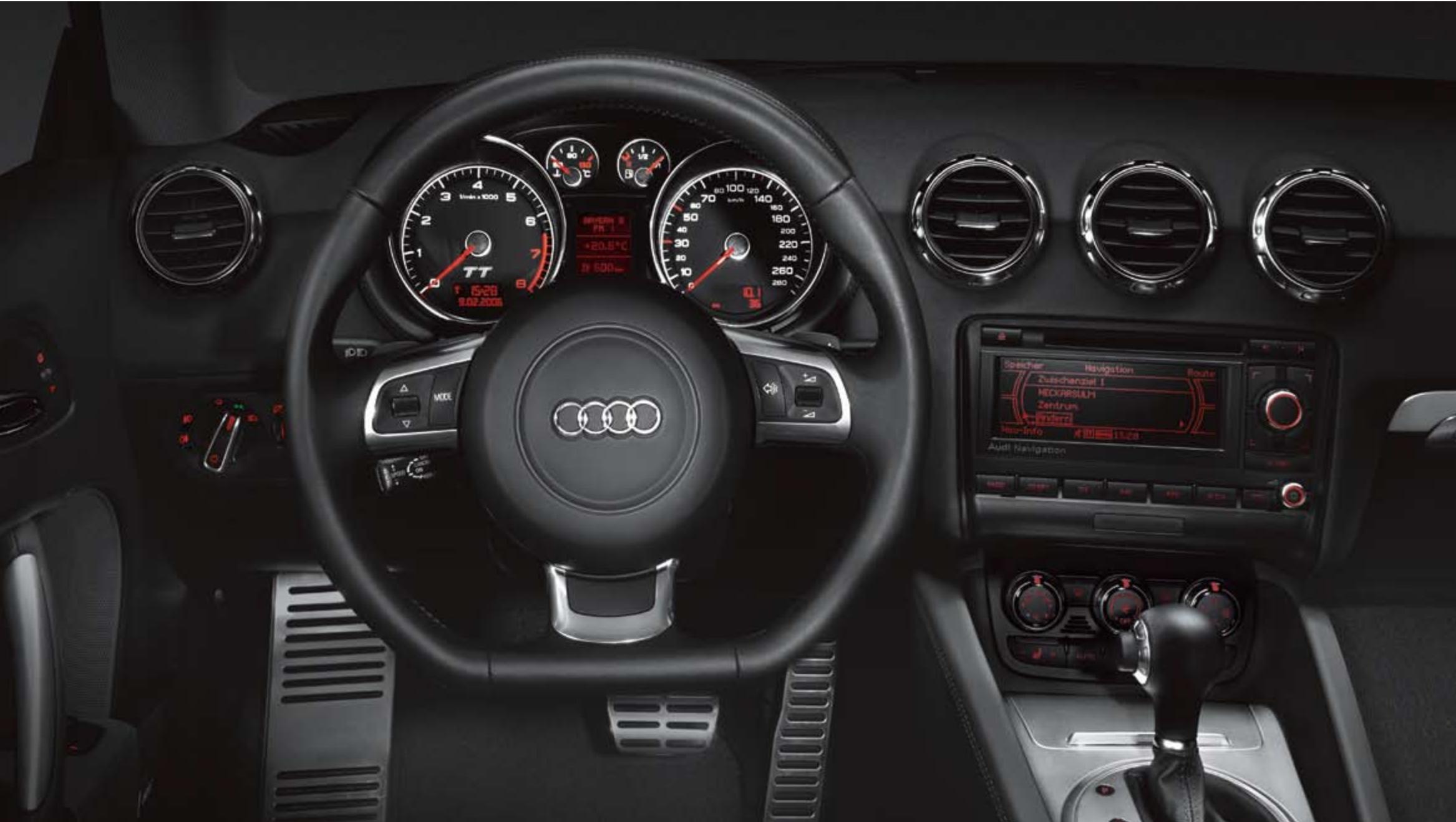

Interior view of a Audi car dashboard with steering wheel, speedometer, and digital gauges (no readable text or symbols)

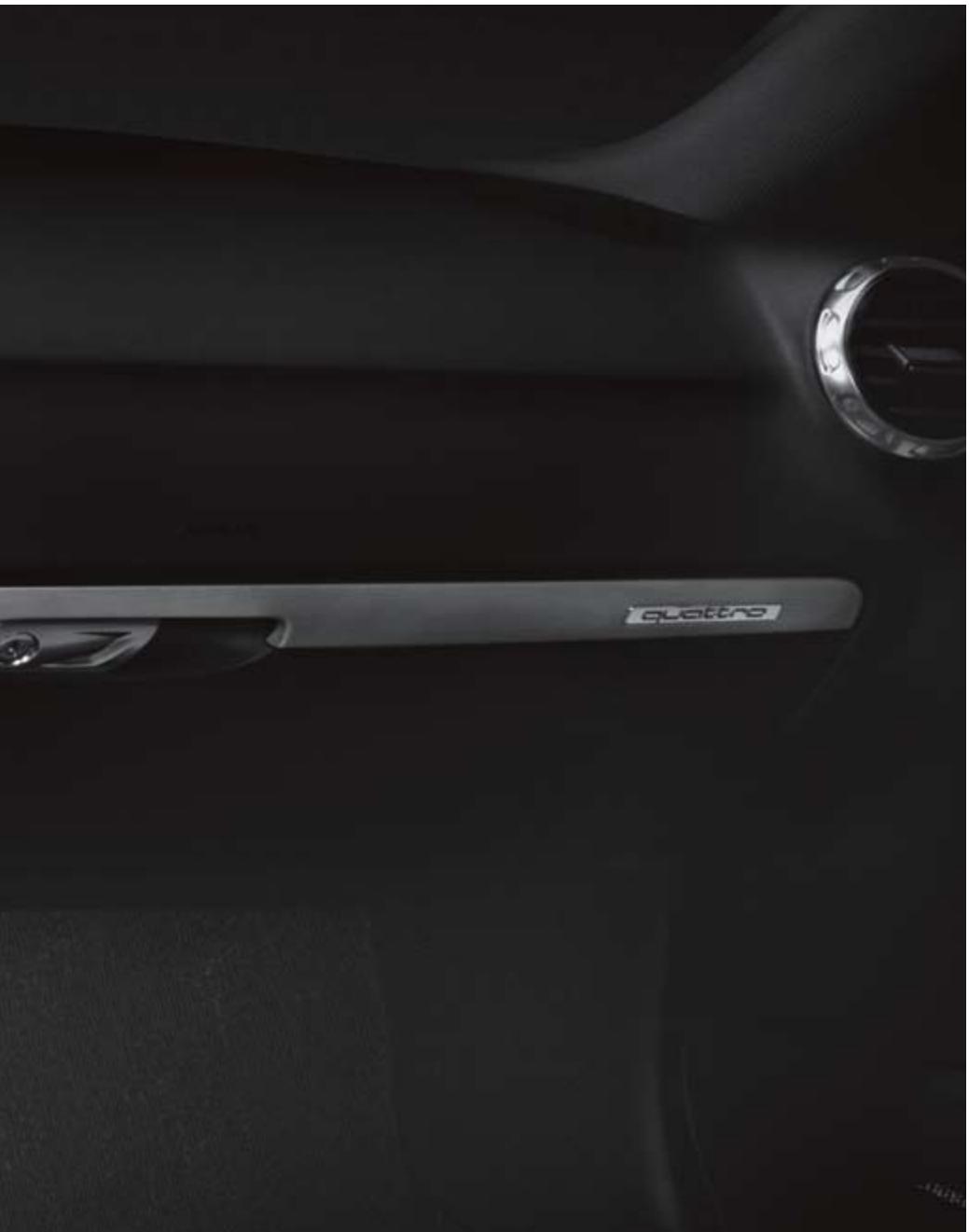

Close-up of a car's interior showing the brand name 'quattro' on its side, with no visible text or symbols beyond the logo.

Inside the Audi TT.

The Audi TT comes with a comprehensive range of equipment as standard, including a 3-spoke ‘flat-bottom’ leather steering wheel, Sports seats and electronic climate control. There’s also a wide selection of optional interior features, such as the Audi Music Interface, iPod connection and electrically-adjustable front seats, all of which you can choose when you place your order.

Efficiency

At Audi, doing less is something we're trying to do more of. We're working to use less fuel, release less CO2 and waste less energy. It's why we've incorporated a number of more efficient technologies into the Audi TT.

S tronic

Efficient driving is all about thinking ahead, which is what the optional S tronic transmission does in the Audi TT. When you're accelerating in second gear, it's preparing to step up to third. Once the switch happens, it's already thinking about fourth. Thanks to two clutches working together, gear changes occur almost instantly, leading to smoother acceleration and increased economy.

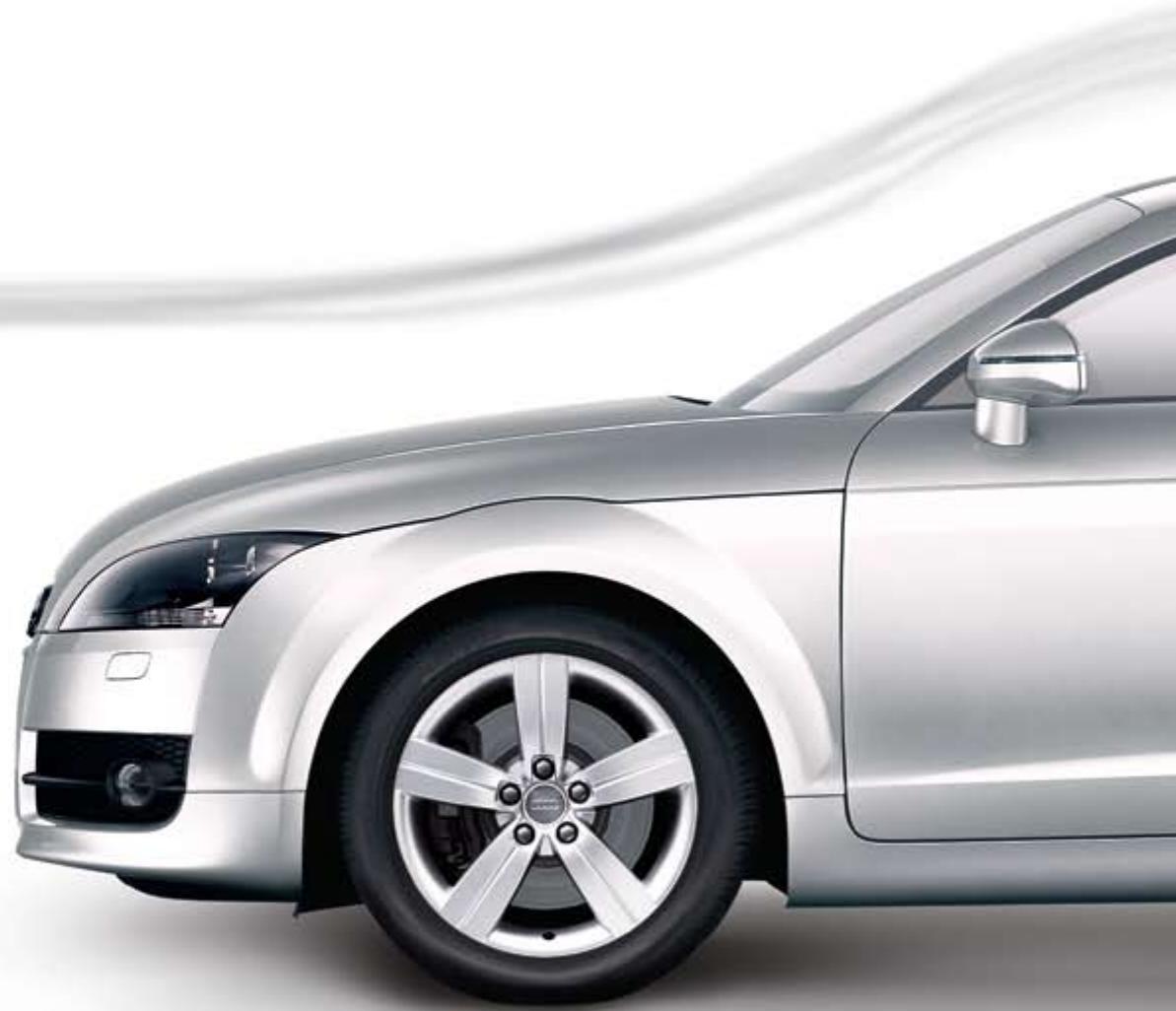

Side profile of a silver sedan car with visible wheel and alloy rim (no text or symbols)

Side profile of a silver sedan car with red accent highlights and alloy wheel (no text or symbols visible)

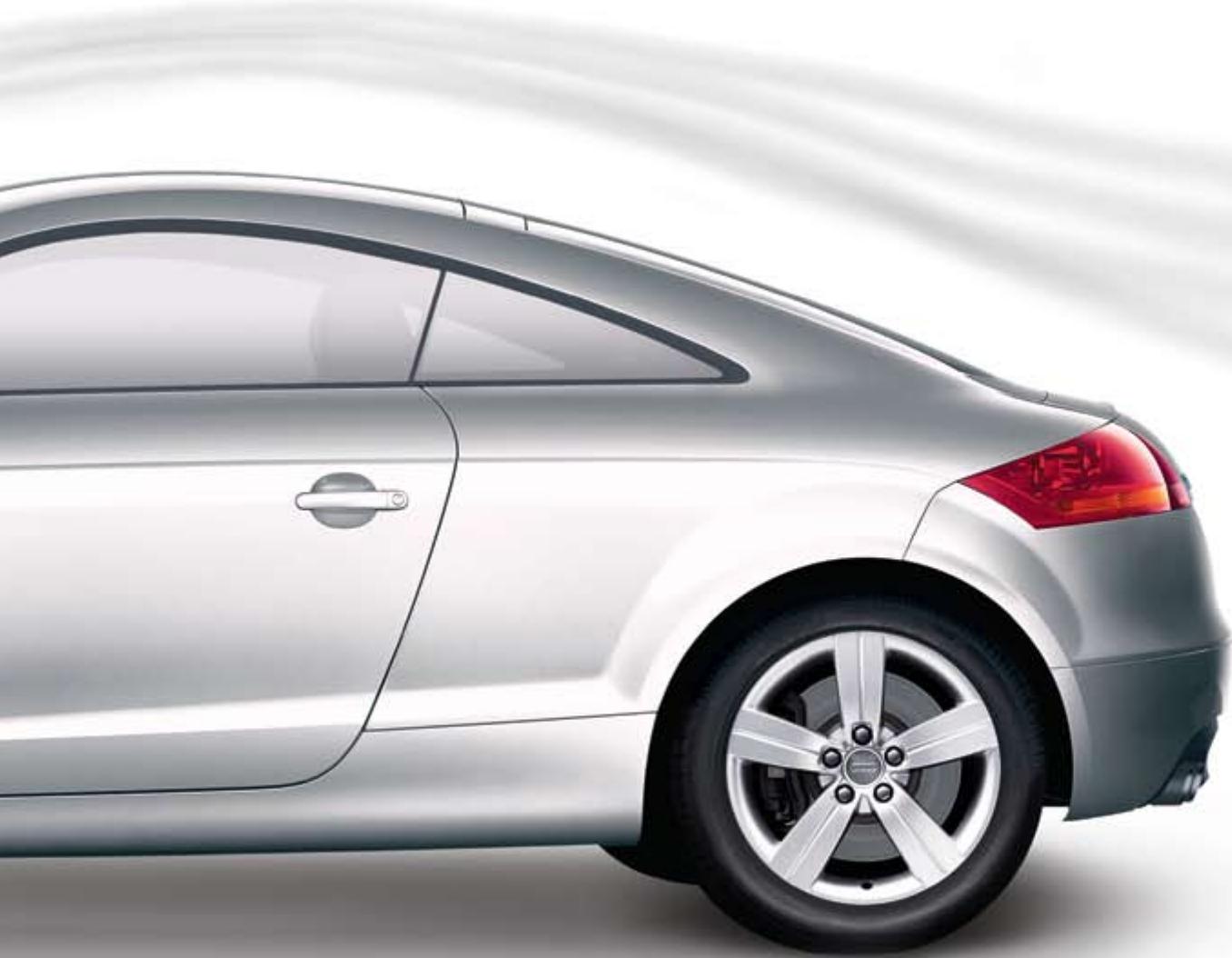

Aerodynamics

When we designed the Audi TT, we gave it a smooth, flowing shape. As a result, its drag coefficient – a measure of aerodynamic resistance, which affects both fuel consumption and CO2 emissions – remains surprisingly low.

Engines

Petrol

There are two kinds of petrol engines available for the TT – the standard petrol engine and the TFSI turbocharged direct-injection engine. TFSI is a unique Audi innovation, combining turbocharging with the FSI technology originally developed for the Le Mans 24-hour endurance race to deliver increased power and torque as well as enhanced fuel efficiency. The way it does this is, in theory, very simple. Precisely the right amount of fuel and air are injected directly into the combustion chambers, enabling the engine to ‘breathe’ more easily. At the same time, electronics monitor the engine load and adjust the injection process. The result – reduced heat-loss and increased output, with around a 15% reduction in fuel consumption and significantly lower exhaust emissions. Ideal for the buyer who wants a sporty, exhilarating drive without the drawbacks of excessive fuel costs or high emissions.

Diesel

We introduced TDI to the roads in 1989, marking a departure from the noisy, fuel-thirsty diesel engines of the past. And since then, we've continuously refined it, recently developing common-rail technology for even more efficiency and power. Under this system, a series of piezo injectors use electrical charge to control precisely the amount of fuel injected into the engine. As well as reducing noise, this allows combustion to happen at a lower temperature, with less oxygen, which cuts down emissions.

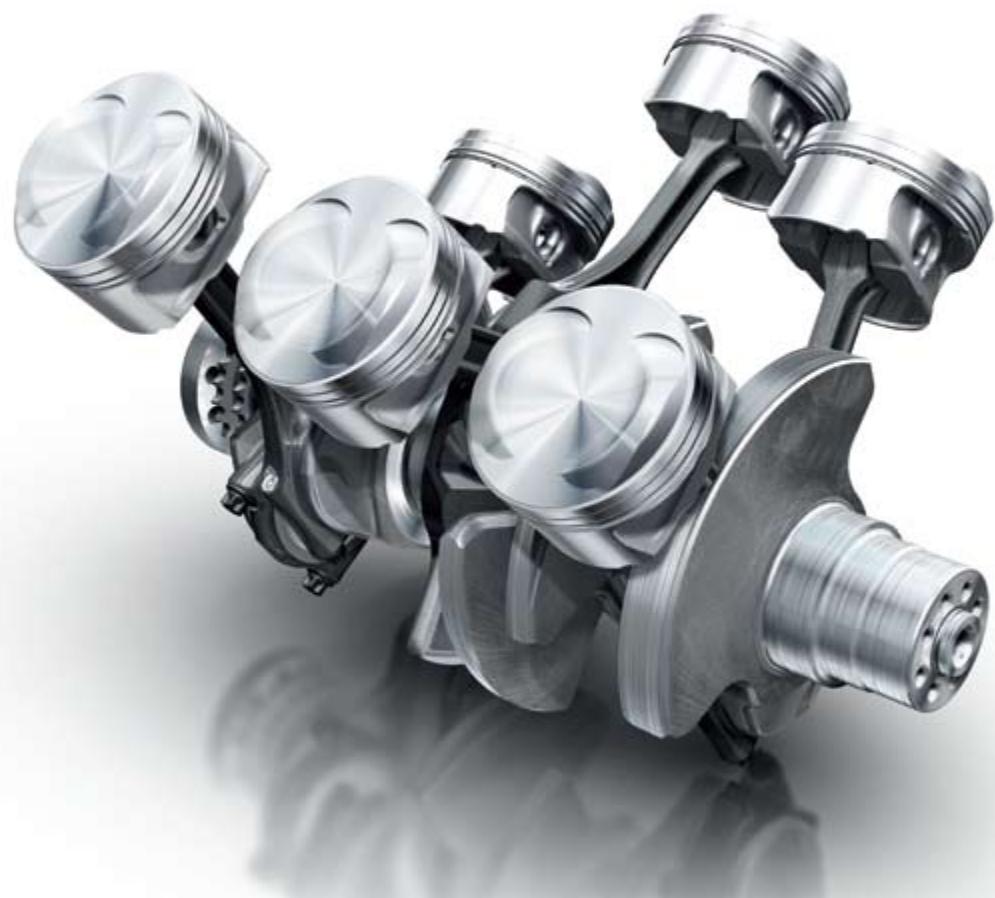

3D rendering of an internal combustion engine cylinder (no text or symbols visible)

3D rendered mechanical gear assembly showing interlocking gears and shafts (no text or symbols visible)

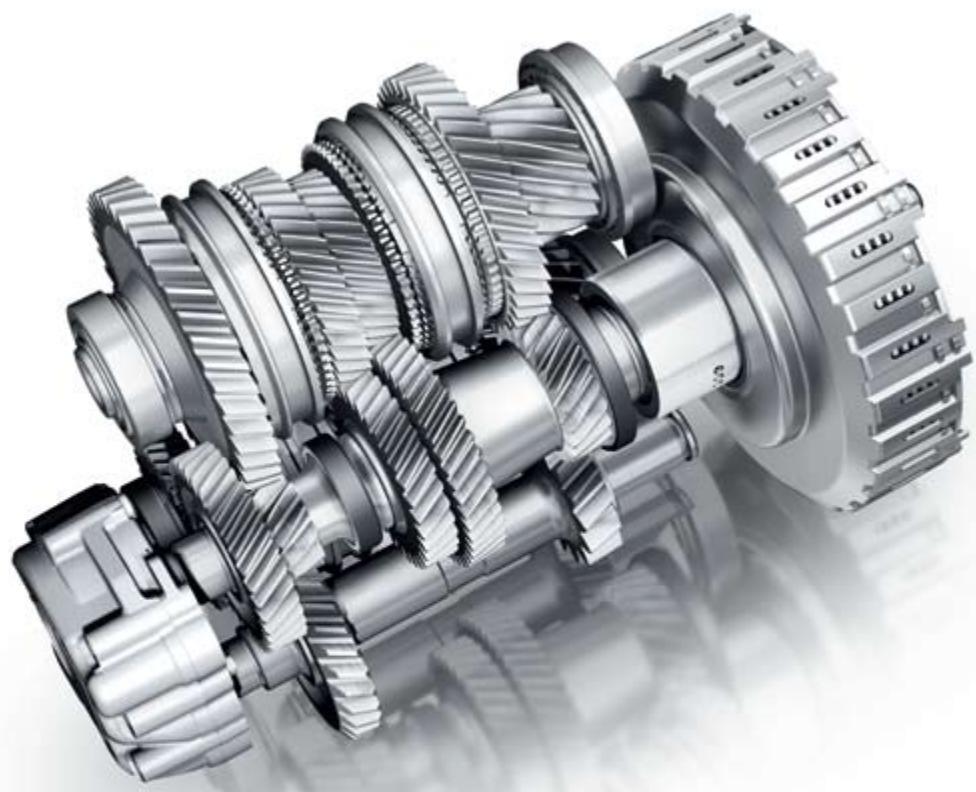

Transmission

Audi offers two transmission options to suit your requirements and driving style. In addition to the classic manual gearbox is an innovative, semi-automatic transmission. To help you come to an informed decision, each of these is described in detail below.

S tronic (6-speed)

The revolutionary S tronic gearbox combines the agility and responsiveness of a conventional 6-speed manual gearbox with the convenience and smooth, uninterrupted power of an automatic transmission. The technical basis of the S tronic gearbox is the double clutch. This consists of two lubricated plates with hydraulically-regulated contact pressure. One engages the odd-numbered, the other the even-numbered gears, enabling gear-shifts to be made in a fraction of a second, with no disruption to the power flow. Depending on how the mood takes you, you can either allow gear changes to take place automatically or, for a sportier driving style, operate the S tronic system using the gear-shift paddles on the steering wheel.

Short-shift manual transmission

For fast, crisp gear changes in a sporty, manual set-up, you can choose to specify your Audi TT with short-shift manual transmission. This simple yet effective gear-change pattern means that the gearstick has a shorter distance to travel between each shift-gate, minimising the effort you have to make with each up or down-shift, whilst maximising your driving enjoyment.

quattro®

The latest generation of the tried and tested quattro® permanent all-wheel-drive system has been adapted for an even better response to different driving situations.

The varying speeds of the front and rear wheels are balanced swiftly and precisely and the control electronics of the electro-hydraulic multi-plate clutch take into account the various driving conditions.

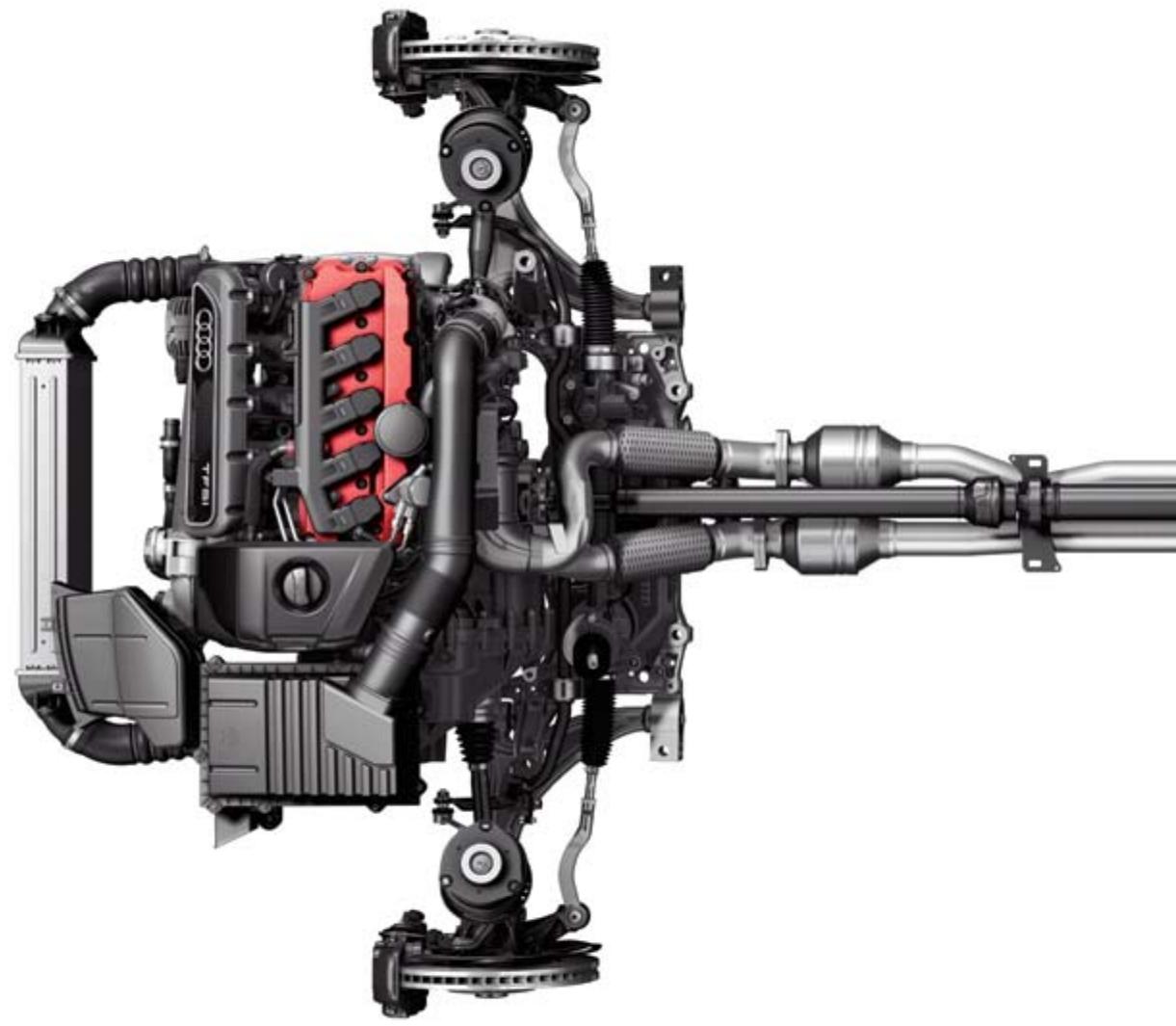

Detailed cutaway view of an Audi vehicle engine showing internal components like pistons, crankshaft, and suspension brackets (no text or labels visible)

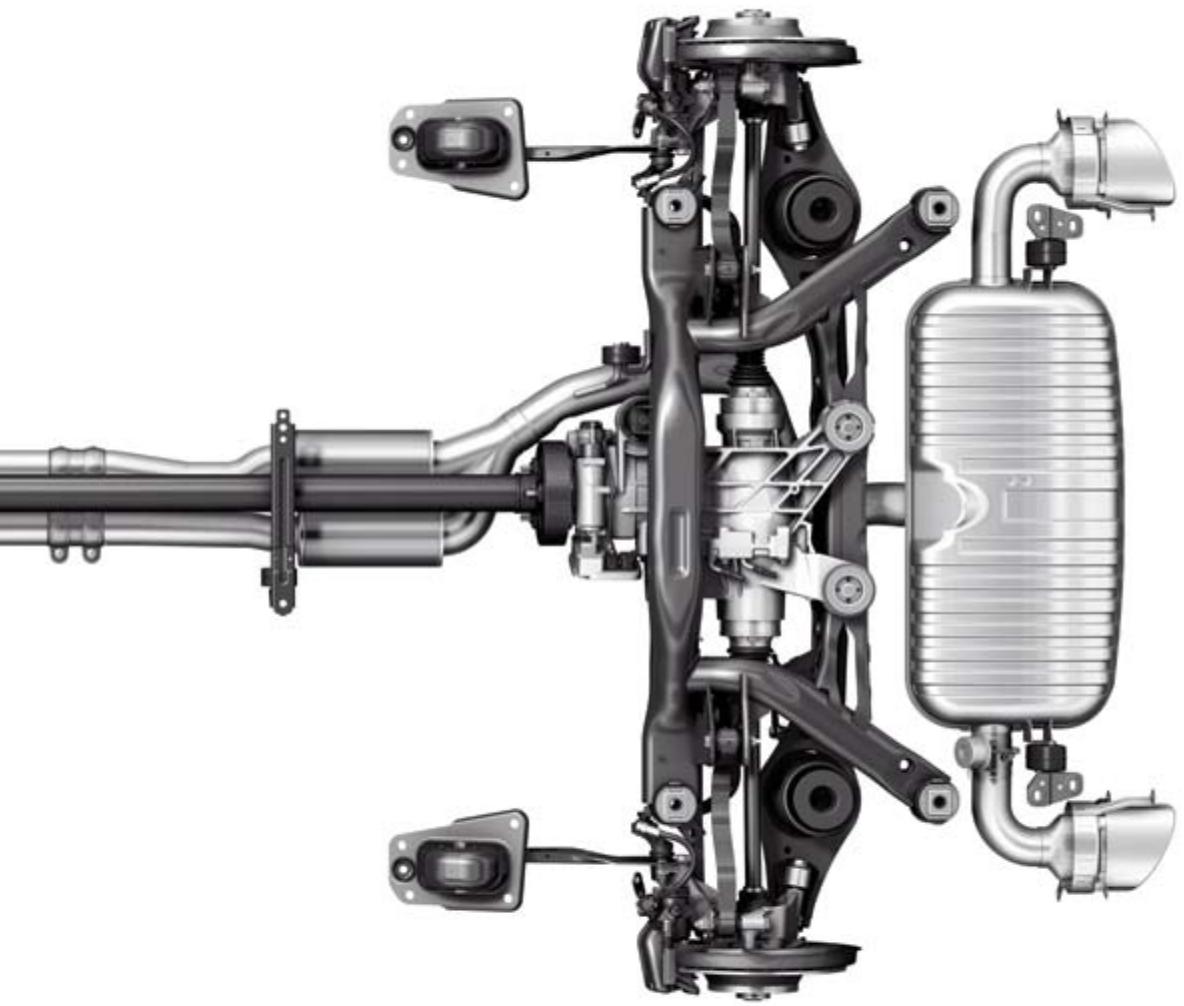

Technical illustration of a vehicle suspension system with hoses, brackets, and a pressure vessel (no text or labels)

There's direct drive for the front wheels via a differential gear and the multi-plate clutch controls the torque for the rear wheels.

The map control for the multi-plate clutch allows extremely fast torque build-up, ensuring stability in bends and when driving in a straight line.

Standard model equipment

All TT models have the following items of Standard equipment

Wheels, tyres and suspension

17" x 8.5J '7-Y-spoke' design alloy wheels with 245/45 R17 Y tyres (1.8 TFSI Roadster only) Tyre Mobility System

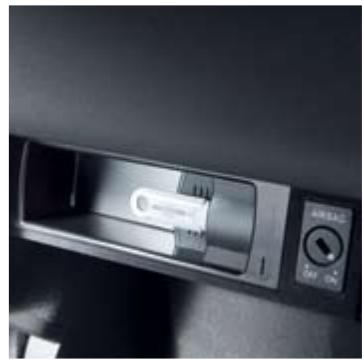

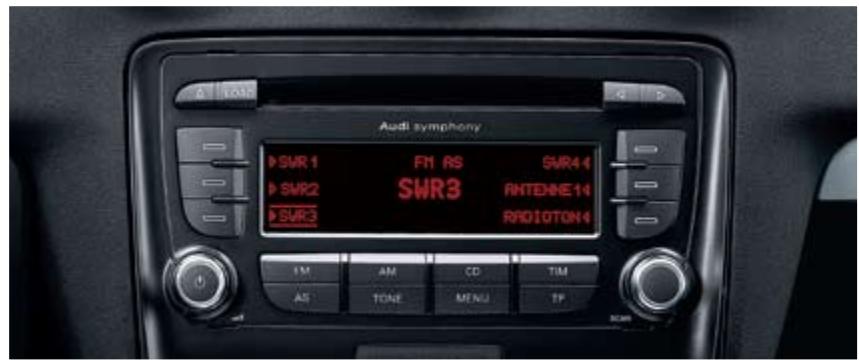

Audio and communication

Audi Chorus radio, with front-loading CD player (1.8 TFSI Roadster only)

Seats

Front Sports seats Tetrus cloth (1.8 TFSI Roadster only)

Safety and security

Anti-lock Braking System (ABS) Anti-Slip Regulation (ASR) – traction control Anti-theft device – Thatcham Category 1 approved Driver and front passenger airbags Electronic Differential Lock (EDL) – traction control Electronic Stability Programme (ESP) First-aid kit

Front ISOFIX and front passenger airbag de-activation switch Locking wheel bolts Roll-over protection hoops (Roadster onl Servotronic – electromechanical, speed-sensitive, power-assisted steering Side airbags for front seats Tool kit and car jack Warning triangle

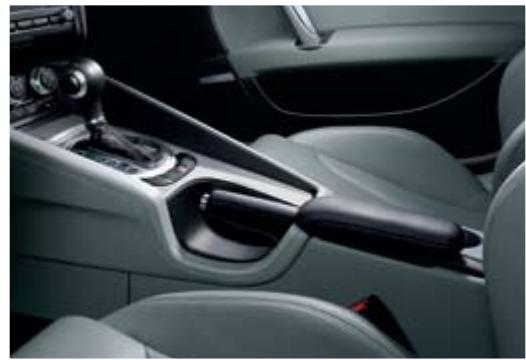

Interior equipment

3-spoke Sports ‘flat-bottom’ design leather steering wheel Aluminium Laser interior detailing Black leather handbrake grip, centre console armrest pad and door handle Driver’s Information System (DIS) Electronic climate control Front floor mats Fully automatic electrically-operated soft-top which opens in 12 seconds, with integrated wind deflector (Roadster only)

Exterior equipment

Door mirrors – electrically operated and heated Electric front windows Exhaust pipes – twin on left-hand side Front and rear fog lights Halogen headlights Retractable rear spoiler, which deploys and retracts automatically at set speeds or when the centre console button is pushed

Two metallic brake pressors on a dark surface, no text or symbols visible

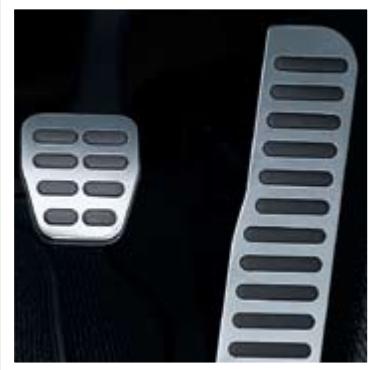

Aluminium foot pedals

Close-up of a modern car's roof and side mirror (no text or symbols visible)

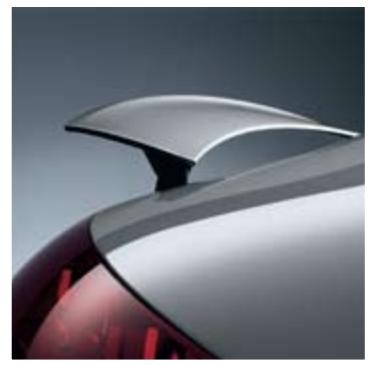

Retractable rear spoiler

Close-up of a car wheel rim with silver alloy and black tires (no text or symbols visible)

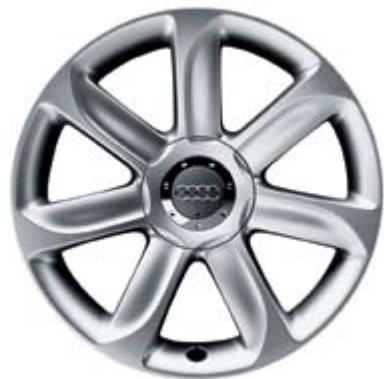

17" x 8.5J '7-Y-spoke' design alloy wheels

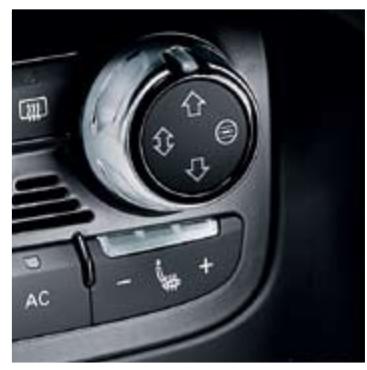

Close-up of a car dashboard with directional control buttons and a circular dial (no readable text or symbols)

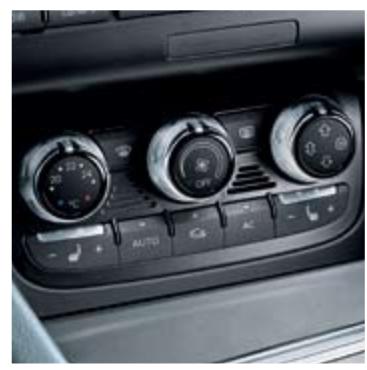

Heated front seats (optional, except on 3.2 FSI and TTS)

Additional items for 2.0 TFSI, 2.0 TFSI quattro® and 2.0 TDI quattro® models:

17" x 8J '5-arm Trapez' design alloy wheels with 225/50 R17 Y tyres

Concert audio system – MP3 file-compatible single CD player and radio with 9 loudspeakers (140 Watt) and 5-channel amplifier including AUX-IN socket

Leather/Alcantara upholstery

Split-folding rear seat (Coupé only)

Additional equipment for 3.2 FSI quattro® models:

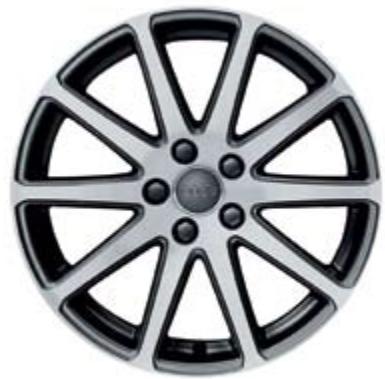

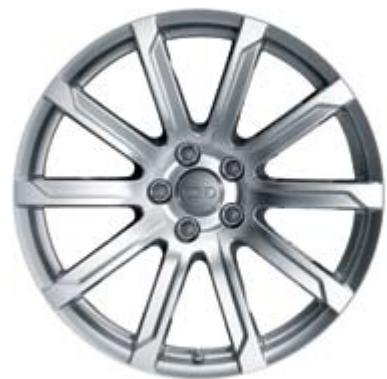

18" x 9J '10-spoke' design alloy wheels with 245/40 R18 Y tyres

Enhanced braking system

Exhaust pipes – single on left and right-hand side in chrome rolled finish

Exterior light styling pack – chrome detailed headlight surrounds and darkened rear light clusters

Fine Nappa leather upholstery

Heated front seats

Phantom black painted grille

quattro® permanent all-wheel-drive

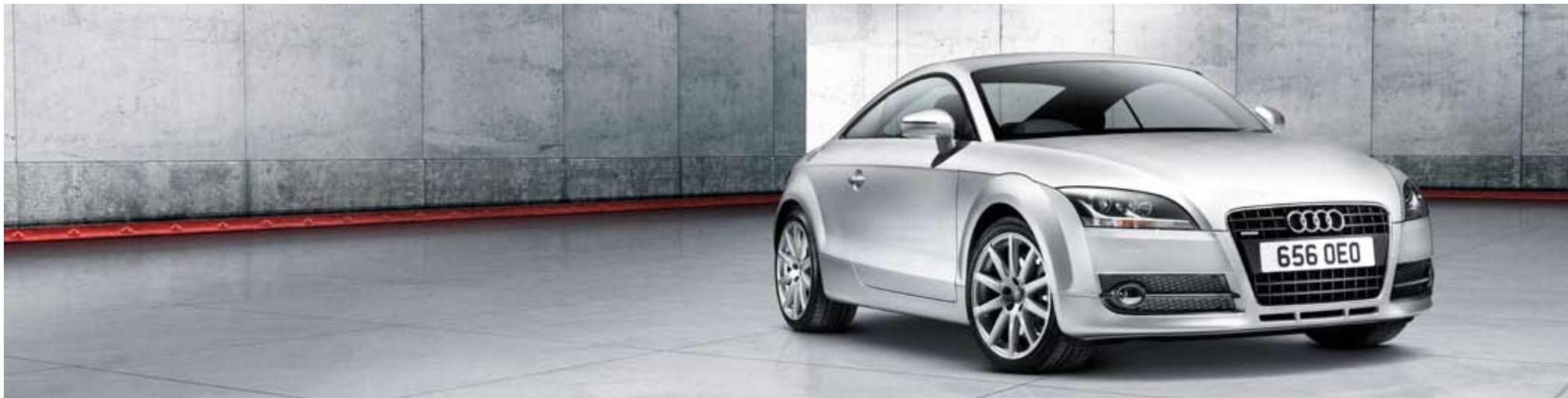

Silver Audi 656 0E0 sedan parked in front of a concrete wall and red carpet (no visible text or symbols on the car body)

S line model equipment

In addition to Standard model equipment

Basic RRP

4-cylinder £1,404.35

6-cylinder £895.65

Total RRP inc VAT

4-cylinder £1,615.00

6-cylinder £1,030.00

Wheels, tyres and suspension

18" x 9J '5-spoke' design alloy wheels with

245/40 R18 tyres

S line Sports suspension lowered by 10mm

Seats

S line embossed front Sports seats.

Fine Nappa leather (6-cylinder models)

Leather/Alcantara (4-cylinder models)

Interior equipment

3-spoke S line multi-function leather

steering wheel (includes gear-shift

paddles for S tronic models)

Black headlining

Door sill trims with S line badge

Matt-brushed aluminium inlays

Short-shift manual gearbox

Exterior equipment

Chrome plated tailpipe (4-cylinder models)

Headlight washers

S line exterior package: S line design front

and rear bumpers, side grilles and diffusers

in platinum grey

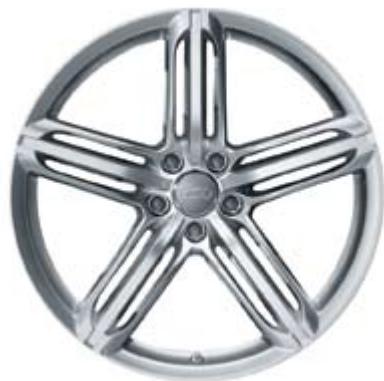

Close-up of a car wheel rim and tire, showing metallic alloy wheel and black tire (no text or symbols visible)

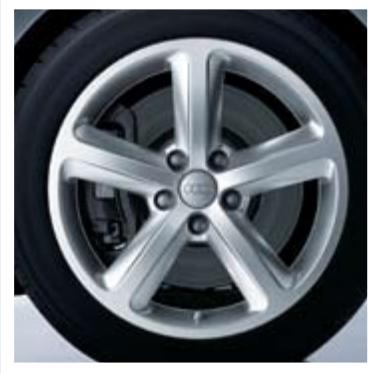

18" x 9J '5-spoke' design alloy wheels

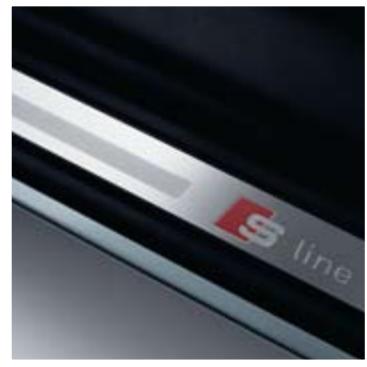

Close-up of a car's side panel showing the S line logo (no readable text or symbols beyond branding)

Door sill trims with S line badge

Interior view of a car dashboard with Audi logo and steering wheel (no visible text or symbols)

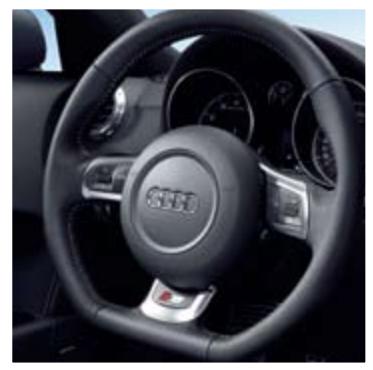

3-spoke S line multi-function leather steering wheel

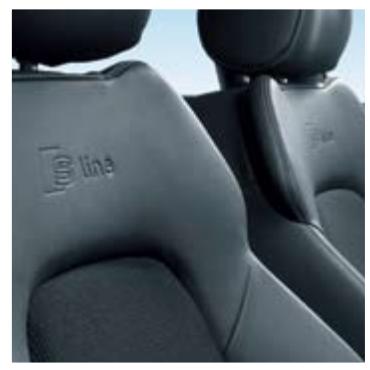

Interior view of a car seat with visible branding (S line logo) on the backrest, showing no text or symbols beyond the logo.

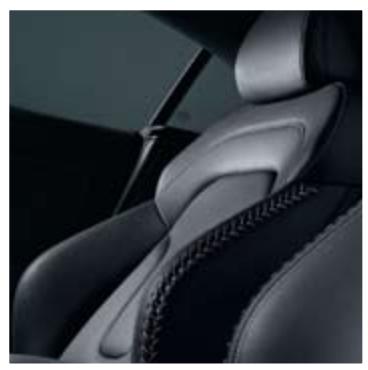

S line embossed front Sports seats
Fine Nappa leather

S line Special Edition model equipment

In addition to S line model equipment

Wheels, tyres and suspension

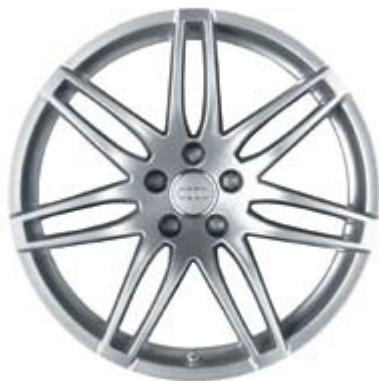

Unique 19" x 9J '7-twin-spoke titanium look' design alloy wheels with 255/35 R19 tyres

Audio and communication

BOSE ^® sound system

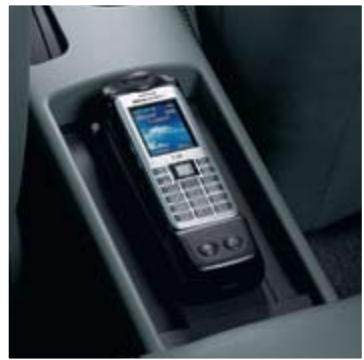

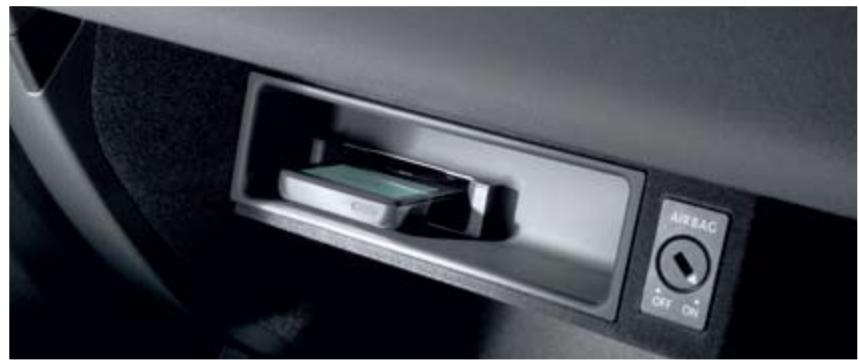

Mobile phone preparation – Bluetooth interface

Basic RRP

£565.22

Total RRP inc VAT

£650.00*

Offer applies to factory orders placed up to 31 December 2009. *Subject to availability.

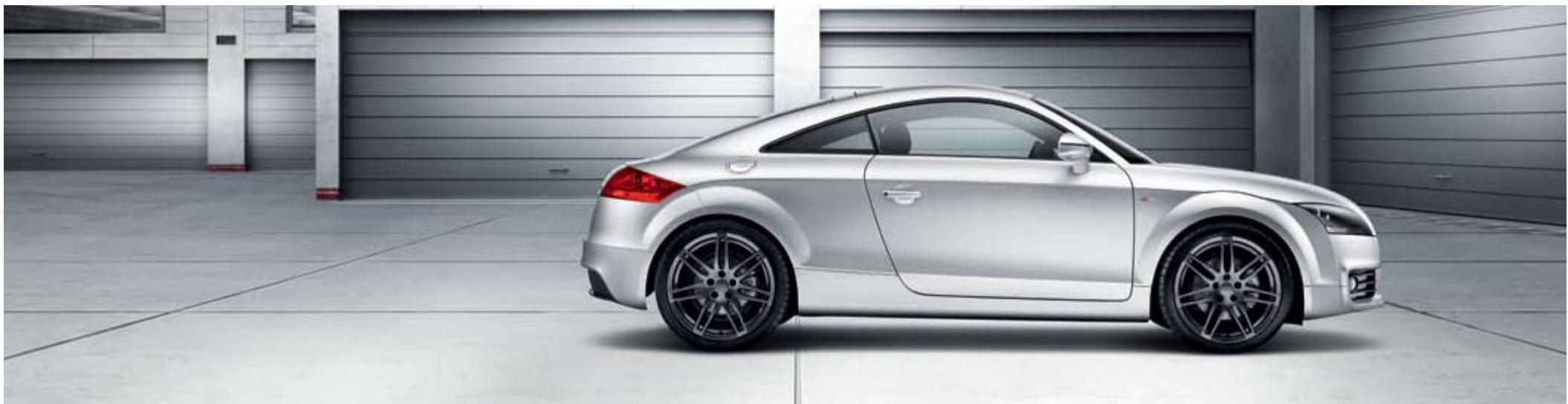

Side profile of a silver Audi TT Model parked in front of a modern garage (no visible text or symbols)

RRP – Recommended Retail Price. VAT is calculated at 15% but this may alter to reflect any change in the applicable VAT rate.

TTIS

TTS model equipment

Since its launch, the Audi TT has become a motoring icon. There's no mistaking its sleek curves and unique form, but there's something extra-special about the new TTS. It features 18" alloy wheels and a sports exhaust system. Its athletic 2.0-litre TFSI engine delivers 350 Nm of torque and is capable of taking you from 0 to 62mph in just 5.2 seconds. For this model, a number of key engine components were re-engineered in order to optimise performance and handling. The result: an even more dynamic and responsive TT.

Wheels, tyres and suspension

18" x 9J '5-parallel-spoke' design alloy wheels with 245/40 R18 tyres

Audi magnetic ride – 'S' version – 10mm lower ride height

Seats

Silk Nappa leather upholstery – two-tone with seat centres in Silver, Magma red or Signal orange. Seat side sections and head restraints in black with decorative stitching to match seat centres. Seats also available in all-over black with silver stitching

Safety and security

ESP – with Sport mode

TTS enhanced braking system with black painted brake callipers with TTS logo

Xenon Plus headlights with LED daytime-running lights and headlight washer system

Interior equipment

3-spoke 'flat-bottom' multi-function steering wheel with TTS badge (with paddle-shift gear-change on S tronic models)

Extended leather package – black with decorative stitching to match seat centres

Front floor mats with leather piping to match seat centres

Instrument dials in grey with white illumination and TTS logo

Leather and aluminium gear knob with TTS logo

Matt-brushed aluminium interior detailing

Short-shift manual gearbox

Exterior equipment

Aluminium-look door mirror housings

'S' Platinum grey grille with double vertical chrome struts and TTS badge

Scuff plates with TTS logo

Sports exhaust system with twin exhaust pipes on left and right-hand side in chrome rolled finish

TTS body styling – restyled front and rear bumpers and side sill extensions

Close-up of a car gear shift lever with black and silver buttons (no visible text or symbols)

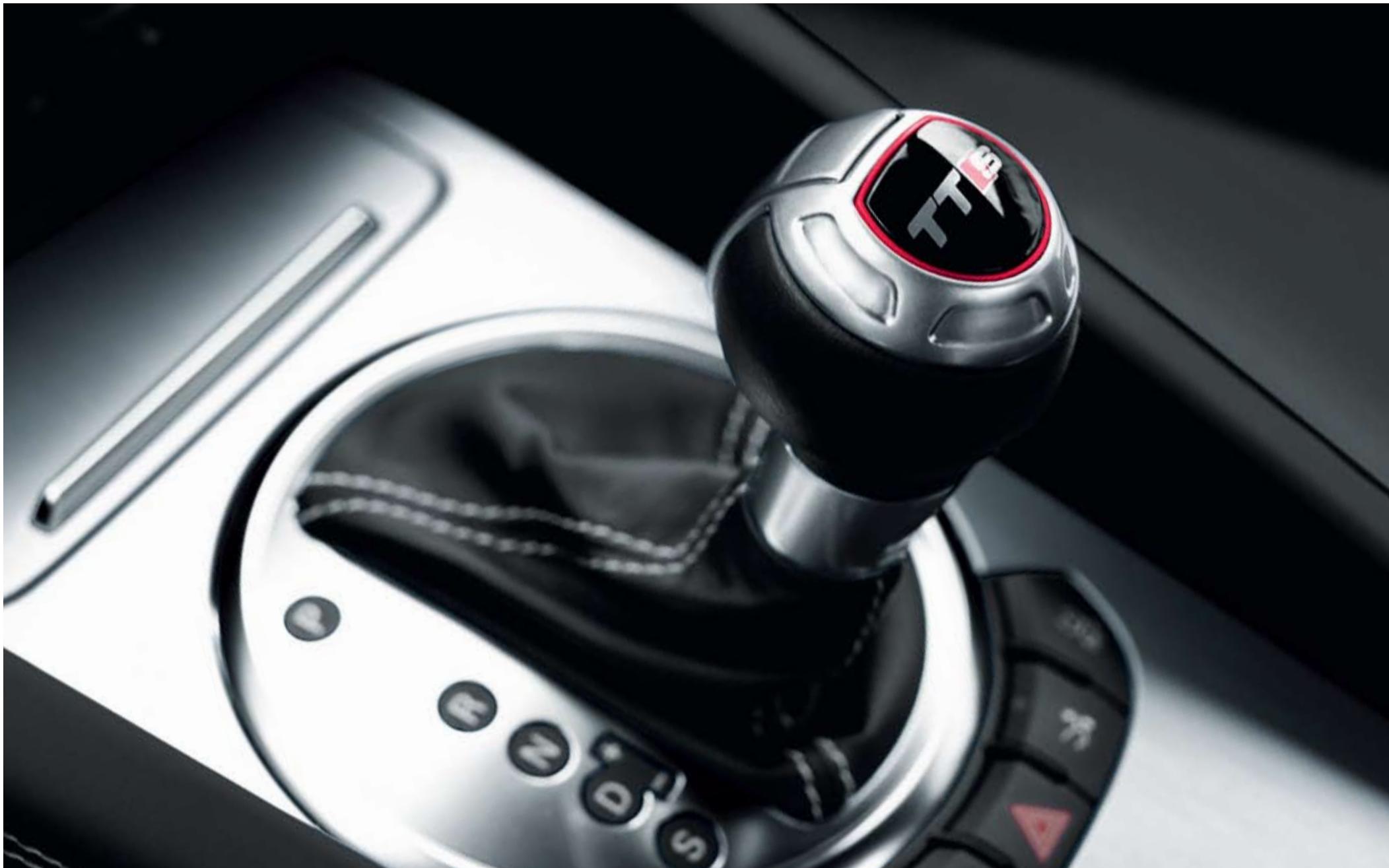

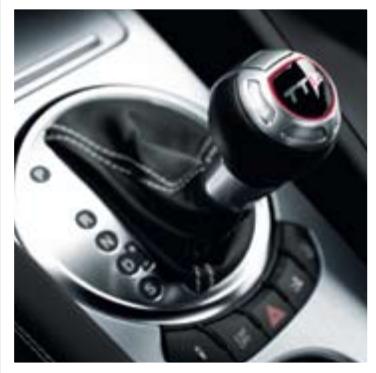

Leather and aluminium gear knob with TTS logo

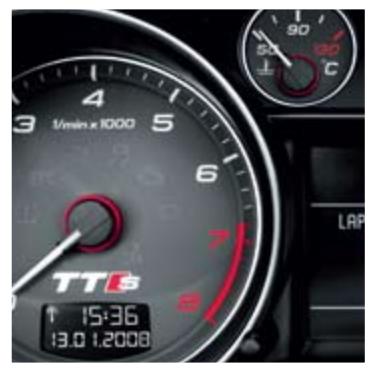

1/min x 1000 TTS 15:36 13.0 1.2008

Instrument dials in grey with white illumination

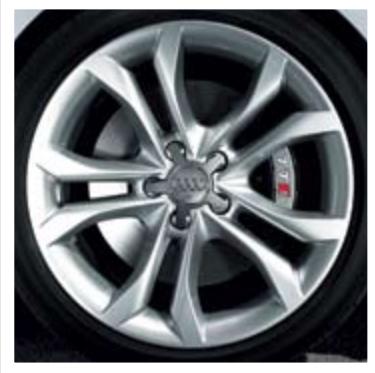

Close-up of a car wheel rim with metallic alloy and tire, no visible text or symbols

18" x 9J '5-parallel-spoke' design alloy wheels

Close-up of a car's rear seatbelt and dashboard (no visible text or symbols)

Silk Nappa leather upholstery

Two Audi cars in white and red cars on a highway, with motion blur and lane markings visible (no text or symbols on the cars themselves)

TT Coupé Standard

Engines	Power	Transmission	Basic RRP	Total RRP inc VAT	Recommended OTR
2.0 TFSI	200PS	6-speed manual	£21,413.04	£24,625.00	£25,420.00
2.0 TFSI quattro®	200PS	6-speed S tronic	£23,839.13	£27,415.00	£28,210.00
3.2 FSI quattro®	250PS	6-speed manual	£25,326.09	£29,125.00	£30,150.00
2.0 TDI quattro®	170PS	6-speed manual	£22,421.74	£25,785.00	£26,525.00

TT Roadster Standard

Engines	Power	Transmission	Basic RRP	Total RRP inc VAT	Recommended OTR
1.8 TFSI	160PS	6-speed manual	£20,126.09	£23,145.00	£23,915.00
2.0 TFSI	200PS	6-speed manual	£23,065.22	£26,525.00	£27,360.00
2.0 TFSI quattro®	200PS	6-speed S tronic	£25,491.30	£29,315.00	£30,110.00
3.2 FSI quattro®	250PS	6-speed manual	£26,978.26	£31,025.00	£32,050.00
2.0 TDI quattro®	170PS	6-speed manual	£24,073.91	£27,685.00	£28,430.00

TT Coupé S line

Engines	Power	Transmission	Basic RRP	Total RRP inc VAT	Recommended OTR
2.0 TFSI	200PS	6-speed manual	£22,817.39	£26,240.00	£27,035.00
2.0 TFSI quattro®	200PS	6-speed S tronic	£25,243.48	£29,030.00	£29,825.00
3.2 FSI quattro®	250PS	6-speed manual	£26,221.74	£30,155.00	£31,180.00
2.0 TDI quattro®	170PS	6-speed manual	£23,826.09	£27,400.00	£28,140.00

TT Roadster S line

Engines	Power	Transmission	Basic RRP	Total RRP inc VAT	Recommended OTR
2.0 TFSI	200PS	6-speed manual	£24,469.57	£28,140.00	£28,975.00
2.0 TFSI quattro®	200PS	6-speed S tronic	£26,895.65	£30,930.00	£31,725.00
3.2 FSI quattro®	250PS	6-speed manual	£27,873.91	£32,055.00	£33,080.00
2.0 TDI quattro®	170PS	6-speed manual	£25,478.26	£29,300.00	£30,045.00

TT Coupé S line Special Edition

Engines	Power	Transmission	Basic RRP	Total RRP inc VAT	Recommended OTR
2.0 TFSI	200PS	6-speed manual	£23,382.61	£26,890.00	£27,685.00
2.0 TFSI quattro®	200PS	6-speed S tronic	£25,808.70	£29,680.00	£30,475.00
2.0 TDI quattro®	170PS	6-speed manual	£24,391.30	£28,050.00	£28,790.00

TT Roadster S line Special Edition

Engines	Power	Transmission	Basic RRP	Total RRP inc VAT	Recommended OTR
2.0 TFSI	200PS	6-speed manual	£25,034.78	£28,790.00	£29,625.00
2.0 TFSI quattro®	200PS	6-speed S tronic	£27,460.87	£31,580.00	£32,375.00
2.0 TDI quattro®	170PS	6-speed manual	£26,043.48	£29,950.00	£30,695.00

TTS Coupé

Engines	Power	Transmission	Basic RRP	Total RRP inc VAT	Recommended OTR
TTS quattro®	272PS	6-speed manual	£28,339.13	£32,590.00	£33,425.00

TTS Roadster

Engines	Power	Transmission	Basic RRP	Total RRP inc VAT	Recommended OTR
TTS quattro®	272PS	6-speed manual	£29,991.30	£34,490.00	£35,325.00

Transmission

	Automatic S tronic transmission (6-speed)	Short-shift manual gearbox(standard on S line models with manual transmission)
1.8 TFSI Roadster	-	●
2.0 TDI quattro®	-	●
2.0 TFSI	●	●
2.0 TFSI quattro®	S	-
3.2 FSI quattro®	●	●
TTS quattro®	●	S
Basic RRP	£1,234.78	£126.09
Total RRP	£1,420.00	£145.00

• = Not available • = Available S = Standard

Audi exclusive

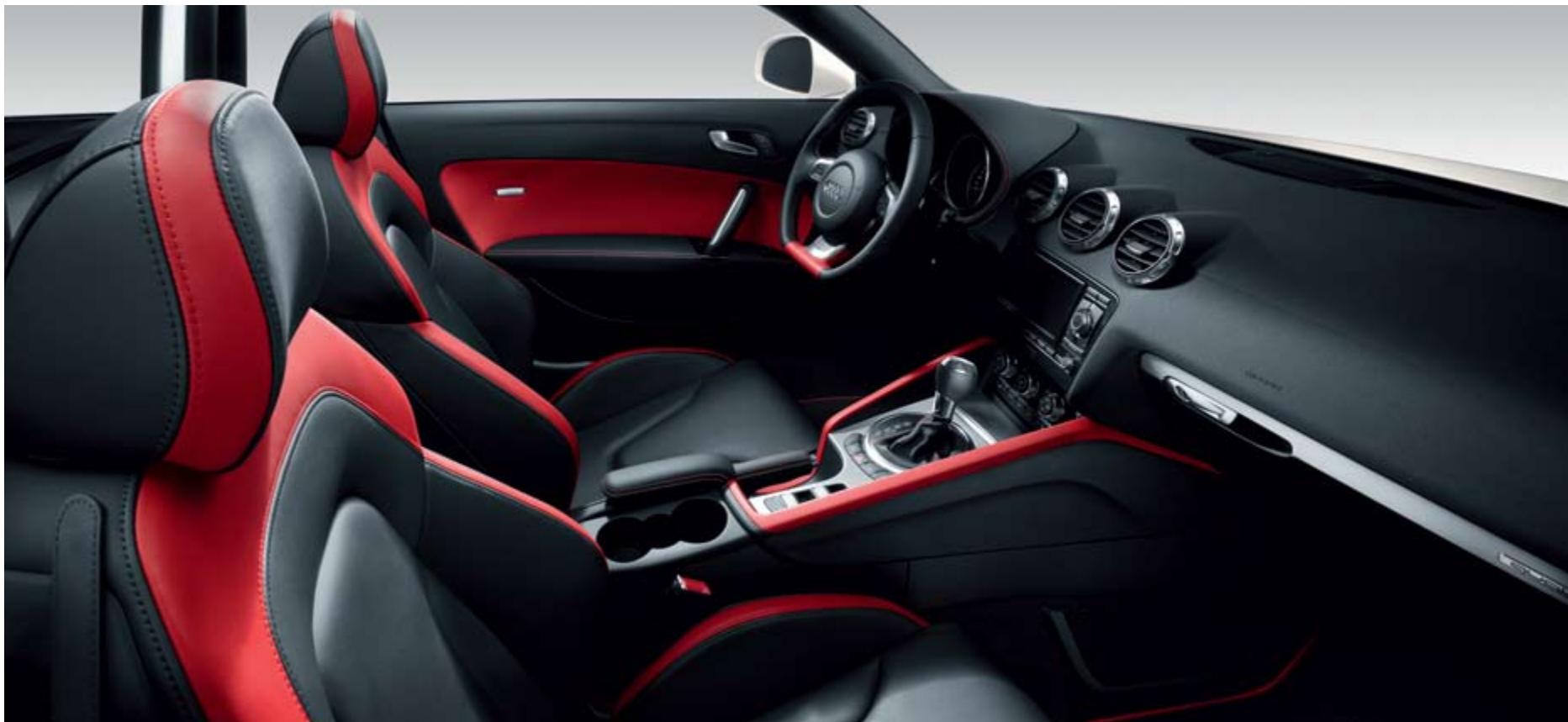

Interior view of a modern sports car with red and black leather seats, dashboard, and steering wheel (no visible text or symbols)

Completely black image with no visible content or text.

Audi exclusive

Every Audi is intrinsically exclusive. It’s the breathtaking design, the exceptional engineering, the Vorsprung durch Technik. But for that special touch you can specify your new TT with options from Audi exclusive. Whether you want a unique, custom-mixed paint colour or seats in a combination of complementary shades, Audi exclusive will enable you to drive the car you’ve always imagined.

Both the exclusive and standard options can be found on the following pages.

Close-up of a hand holding a white object over a textured brown surface, with a faint circular mark on the ground (no text or symbols visible)

Close-up of hands using a pair of scissors to cut or spread material on a wooden surface (no text or symbols visible)

Close-up of hands using a tool to apply material or equipment (no visible text or symbols)

Close-up of a hand threading thin red and black threads on a dark fabric (no text or symbols visible)

Audi exclusive line

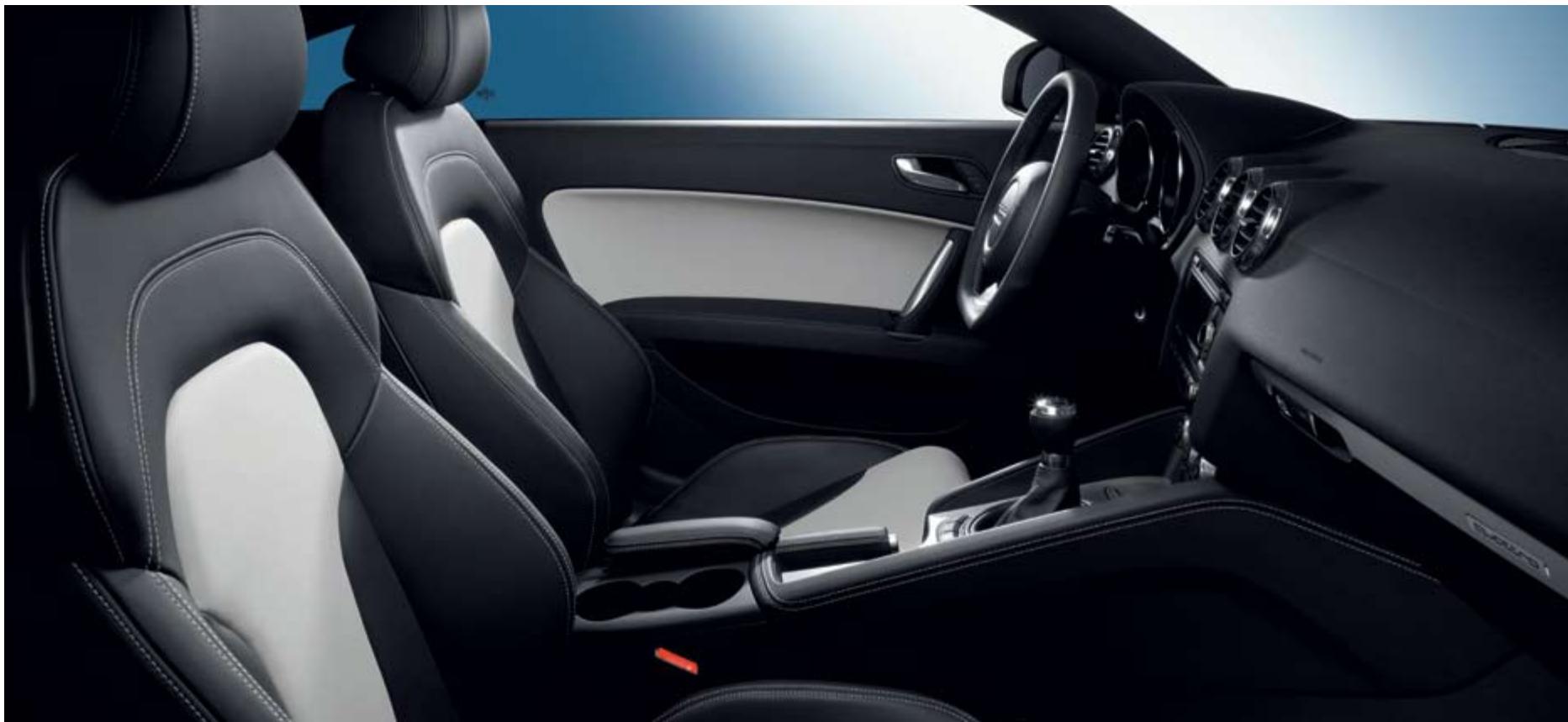

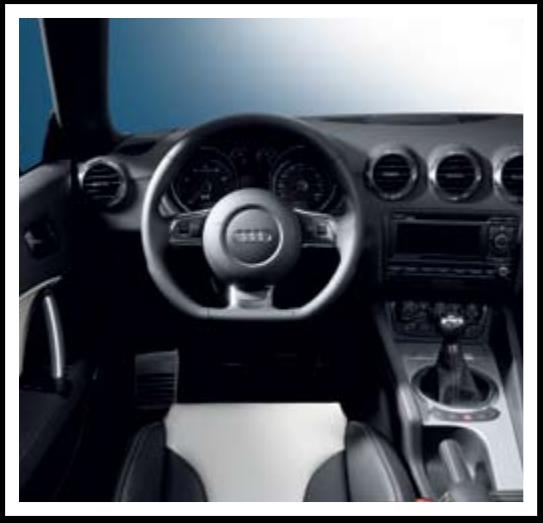

Interior view of a modern car cockpit with black and white leather seats, dashboard, and steering wheel (no visible text or symbols)

Completely black image with no visible content or text.

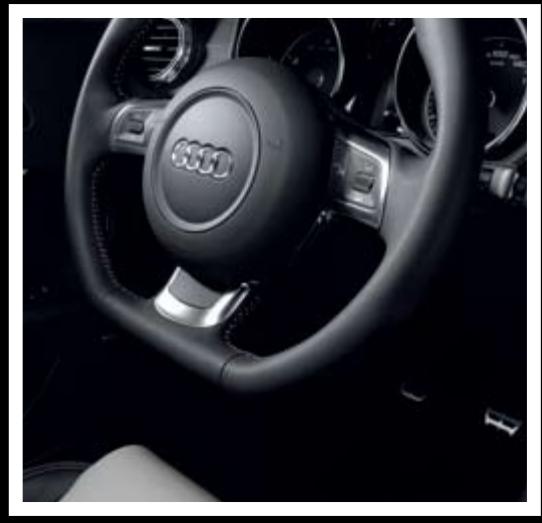

Interior view of a car dashboard and steering wheel (no visible text or symbols)

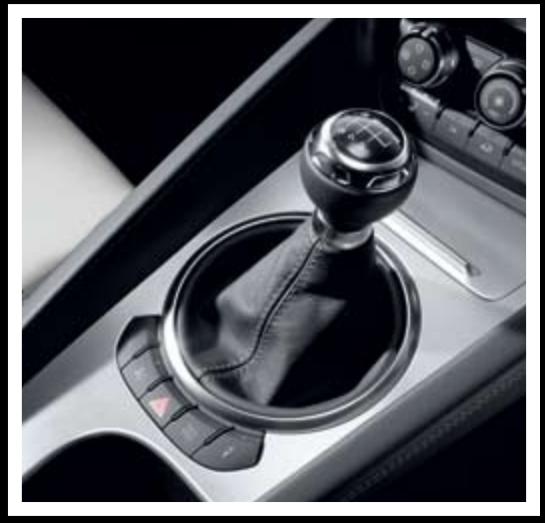

Close-up of a car gear shift lever on a car intake manifold (no visible text or symbols)

Interior view of a car showing the Audi wheel and dashboard (no visible text or symbols)

Paint

Standard and optional colours

You can select one of the Standard colours shown opposite or, for a different look, choose from the range of optional finishes.

Options are subject to availability and may extend delivery.

^+ Not available on TTS.

*Not available on Roadster.

All the colour swatches on this page are matched as accurately as possible to the actual paint colours used. However, due to print processes, Audi UK cannot guarantee that colours shown are 100% accurate.

Visit your local Audi Centre for a more accurate colour swatch.

RRP – Recommended Retail Price.

VAT is calculated at 15% but this may alter to reflect any change in the applicable VAT rate.

Standard colours

Plain beige circular shape with no text, symbols, or markings

Ibis white - T9

Optional colours

Solid black circular shape with no text, symbols, or markings

Phantom black pearl effect - L8

Plain light gray circular shape with no text, symbols, or markings

Ice silver metallic - P5

S line only colours

Solid red circular shape with no text or symbols

Misano red, pearl effect - N9

Solid black circular shape with no text, symbols, or markings

Brilliant black - A2

Solid blue circular shape with no text or symbols

Aruba blue pearl effect - Q9 ^+*

Solid dark blue circular shape with no text or symbols

Deep sea blue pearl effect - 8A

Solid light blue circular shape with no text, symbols, or patterns

Monza silver, metallic - U7

Solid red circular shape with no text or symbols

Brilliant red - C8

Solid dark blue circular shape with no text, symbols, or patterns

Meteor grey pearl effect - X5

Solid dark gray circular shape with no text, symbols, or patterns

Condor grey metallic - 5Q

Solid beige circular shape with no text, symbols, or patterns

Dakar beige metallic - 9X ^+

Solid gray circular shape with no text, symbols, or patterns

Sahara silver metallic - 9T

Optional colours

Basic RRP

£426.09

Total RRP inc VAT

£490.00

TTS additional colours

Solid orange circular shape with no text or symbols

Solar orange - 3F

Hood colours

Solid black circular shape with no visible text, symbols, or features.

Black - PA

Solid blue circular shape with no text or symbols

Sprint blue pearl effect - 5N

Circular dark pattern with no visible text, symbols, or identifiable objects

Dark grey - SW

Solid yellow circular shape with no text or symbols

Imola yellow - 1T

Circular textured pattern with uniform dark gray squares (no text or symbols)

Beige - PD

TTS colours

Basic RRP

£426.09

Total RRP inc VAT

£490.00

Paint

Audi exclusive

Everyone has a favourite colour. No matter what yours is, Audi exclusive provides a range of unique colours that have been designed to set your car apart. Choose from the swatches here, or specify any other paint colour in the Audi range – whether it's Jet blue from the Audi R8 or Alpine white from the original Audi quattro®. The choice is yours.

Customised

If you have a particular colour in mind, we'll mix the exact metallic or pearl-effect shade you want.*

*Custom paint is subject to factory approval, and is available for metallic and pearl-effect water-based paints only. Three-colour process colours and two-tone schemes are not available.

All the colour swatches on this page are matched as accurately as possible to the actual paint colours used. However, due to print processes, Audi UK cannot guarantee that colours shown are 100% accurate.

Visit your local Audi Centre for a more accurate colour swatch.

RRP – Recommended Retail Price.

VAT is calculated at 15% but this may alter to reflect any change in the applicable VAT rate.

Circular gradient image with a diagonal white line across the center (no text or symbols)

Palace blue, pearl effect

Circular gradient image with a diagonal light streak, no text or symbols present.

Morning dew, metallic

Circular dark image with a diagonal white line across the center (no text or symbols)

Saddle brown, pearl effect

Circular gradient image with a diagonal white line through the center, no text or symbols present.

Sand beige, pearl effect

Circular gradient image with a diagonal white line across the center, no text or symbols present.

Velvet purple, pearl effect

Any colour in the Audi range

Circular gradient image with a diagonal white line across the center, no text or symbols present.

Classic red, pearl effect

Circular grayscale image with a diagonal light streak, no text or symbols present.

Oak green, metallic

Audi exclusive

Basic RRP

£1,447.83

Total RRP inc VAT

£1,665.00

Gradient-colored rounded rectangle with blue-to-red diagonal stripes (no text or symbols)

Customised paint

Customised

Basic RRP

£2,043.48

Total RRP inc VAT

£2,350.00

Upholstery

Standard Sports seats

Choose your favourite upholstery from the swatches shown opposite to give your car's interior the look and feel you want.

Options are subject to availability and may extend delivery.

- = Not available

- = Available

S = Standard

All leather upholstery choices include seats, head restraints, door inserts and front centre armrest (if fitted) in leather.

				1.8 TFSI Roadster	2.0 TFSI / 2.0 TDI	3.2 FSI quattro®	TTS quattro®	Basic RRP	Total RRP inc VAT
Tetrus cloth	Black - JN/JW			S	-	-	-	No charge	No charge
Leather/Alcantara	Black - JN/JW	Light grey - TN/TH		●	S	-	-	£852.17	£980.00
Fine Nappa leather	Black - JN/JW	Light grey - TN/TH	Luxor beige - TQ/TB	●	-	-	-	£1,321.74	£1,520.00
				-	●	S	-	£469.57	£540.00
	Magma red - TR	Mustang brown - JZ

Upholstery

S line Sports seats

TTS Sports seats

					1.8 TFSI Roadster	2.0 TFSI / 2.0 TDI	3.2 FSI quattro®	TTS quattro®	Basic RRP	Total RRP inc VAT
Leather/Alcantara					-	S	●	-	No charge	No charge
	Black - QE	Black with Silver stitching - QF
Fine Nappa leather					-	●	-	-	£469.57	£540.00
	Black - QE				-	-	S	-	No charge	No charge
					1.8 TFSI Roadster	2.0 TFSI / 2.0 TDI	3.2 FSI quattro®	TTS quattro®	Basic RRP	Total RRP inc VAT
Silk Nappa leather					-	-	-	S	No charge	No charge
	Black, with Silver stitching - ZM/FF	Black/silver,with Silver stitching - ZR/FE	Black/Magma red,with Magma red stitching - FA/FB	Black/Signal orange, with Signal orange stitching - ZC/ZD

Upholstery

Impulse leather

Impulse leather

Close-up of a dark textured circular surface with no visible text or symbols

Black - ZM

Impulse leather

Seats in black Fine Nappa leather with moccasin seams in black/grey and silver stitching. Steering wheel, gear-shift gaiter, handbrake grip and centre console armrest pad in black leather with coloured stitching. Must be combined with a multi-function steering wheel (not available on S line)

1.8 TFSI Roadster	2.0 TFSI / 2.0 TDI	3.2 FSI quattro®	TTS quattro®	Basic RRP	Total RRP inc VAT
●	-	-	-	£1,530.47	£1,760.00
-	●	-	-	£682.61	£785.00
-	-	●	●	£213.04	£245.00
●	-	-	-	£1,530.47	£1,760.00
-	●	-	-	£682.61	£785.00
-	-	●	●	£213.04	£245.00

Impulse leather

Solid brown circular shape with textured texture (no text or symbols)

Chennai brown - TZ

Options are subject to availability and may extend delivery.

• = Not available
• = Available

All leather upholstery choices include seats, head restraints, door inserts and front centre armrest (if fitted) in leather.

RRP - Recommended Retail Price.

VAT is calculated at 15% but this may alter to reflect any change in the applicable VAT rate.

Interior view of a modern car with beige leather seats and dashboard (no visible text or symbols)

Colour and trim guide

Interior trim colours

Coupé

Standard Sports seats

To help you choose the right interior for your TT, please use the guide opposite that shows which carpet, dashboard and headlining colours have been matched to your chosen upholstery.

S line Sports seats

TTS Sports seats

Options are subject to availability and may extend delivery.

- = Not available

- = Available

Order Code	Upholstery	Carpet	Dashboard (upper/lower)	Headlining	Leather/Alcantara (N7U)	Fine Nappa leather (N3Q)	Impulse leather (N1W)
JN	Black	Black	Black	Black	●	●	—
JW	Black	Black	Black	Light grey	●	●	—
TH	Light grey	Light grey	Black	Black	●	●	—
TN	Light grey	Light grey	Black	Light grey	●	●	—
TB	Luxor beige	Luxor beige	Black	Black	—	●	—
TQ	Luxor beige	Luxor beige	Black	Luxor beige	—	●	—
TR	Magma red	Black	Black	Black	—	●	—
JZ	Mustang brown	Black	Black	Black	—	●	—
ZM	Black	Black	Black	Black	—	—	●
TZ	Chennai brown	Black	Black	Black	—	—	●

Order Code	Upholstery	Carpet	Dashboard (upper/lower)	Headlining	Alcantara/leather (N7K)	Fine Nappa leather (N2R)
QE	Black with Black stitching	Black	Black	Black	●	●
QF	Black with Silver stitching	Black	Black	Black	●	—

Order Code	Upholstery	Carpet	Dashboard (upper/lower)	Headlining	Silk Nappa leather (N1U)	Impulse leather (N1W)
FF	Black	Black	Black	Light grey	●	—
ZR	Black/Silver	Black	Black	Black	●	—
FE	Black/Silver	Black	Black	Light grey	●	—
FA	Black/Magma red	Black	Black	Black	●	—
FB	Black/Magma red	Black	Black	Light grey	●	—
ZC	Black/Signal orange	Black	Black	Black	●	—
ZD	Black/Signal orange	Black	Black	Light grey	●	—
ZM	Black	Black	Black	Black	●	●
TZ	Chennai brown	Black	Black	Black	—	●

Colour and trim guide

Interior trim colours

Roadster

Standard Sports seats

To help you choose the right interior for your TT, please use the guide opposite that shows which carpet, dashboard and headlining colours have been matched to your chosen upholstery.

S line Sports seats

TTS Sports seats

Options are subject to availability and may extend delivery.

- = Not available

- = Available

Order Code	Upholstery	Carpet	Dashboard (upper/lower)	Headlining	Tetrus cloth (N2J)	Leather/Alcantara (N7U)	Fine Nappa leather (N3Q)	Impulse leather (N1W)
JN	Black	Black	Black	Black	●	●	●	—
TH	Light grey	Black	Light grey	Black	—	●	●	—
TB	Luxor beige	Black	Luxor beige	Black	—	—	●	—
TR	Magma red	Black	Black	Black	—	—	●	—
JZ	Mustang brown	Black	Black	Black	—	—	●	—
TZ	Chennai brown	Black	Black	Black	—	—	—	●
ZM	Black	Black	Black	Black	—	—	—	●

Order Code	Upholstery	Carpet	Dashboard (upper/lower)	Headlining	Alcantara/leather (N7K)	Fine Nappa leather (N2R)
QE	Black with Black stitching	Black	Black	Black	●	●
QF	Black with Silver stitching	Black	Black	Black	●	—

Order Code	Upholstery	Carpet	Dashboard (upper/lower)	Headlining	Leather/Alcantara (N7U)	Silk Nappa leather (N1U)	Impulse leather (N1W)
ZM	Black	Black	Black	Black	●	●	—
ZR	Black/Silver	Black	Black	Black	●	●	—
FA	Black/Magma red	Black	Black	Black	—	●	—
ZC	Black/Signal orange	Black	Black	Black	—	●	—
TZ	Chennai brown	Black	Black	Black	—	—	●
ZM	Black	Black	Black	Black	—	—	●

Upholstery

Audi exclusive

With Audi exclusive, you can specify your seats in an array of different colours shown to the right in Fine Nappa leather.

Choose just one all-over shade for each seat, or customise each panel in two or more complementary colours from the distinctive Audi exclusive palette. You can even choose the colour of the decorative stitching – to match or contrast with your chosen upholstery – from this varied collection. Whatever combination you decide upon, we think you’ll be extremely comfortable with the result.

Options are subject to availability and may extend delivery.

• = Not available
• = Available

All leather upholstery choices include seats, head restraints, door inserts and front centre armrest (if fitted) in leather.

RRP – Recommended Retail Price.

VAT is calculated at 15% but this may alter to reflect any change in the applicable VAT rate

Order

Code

PYA/

S3G

PS5/

PYA/

S3G

PYG/

S3G

Audi exclusive leather package 1 in Fine Nappa leather – including Sports seats, seat centre section, seat side sections, door trim inserts and head restraints in Fine Nappa leather, as well as floor mats with leather piping (seat side trims and add-on seat parts are not colour coded and come in black)

PYG/ Audi exclusive leather package 2 in Fine Nappa leather – comprising leather package 1 plus: handbrake handle, centre armrest pad, door armrests and handles, side of centre console and dashboard hood in leather (seat side trims and add-on seat parts come in the interior trim colour)

PS5/

PYA/

S3G

Audi exclusive leather package 2 in Fine Nappa leather in combination with front bucket seats (not available on S line)

1.8 TFSI Roadster	2.0 TFSI / 2.0 TDI	3.2 FSI quattro®	TTS quattro®
				Basic RRP	Total RRP inc VAT
-	●	-	-	£1,617.39	£1,860.00
●	-	-	-	£1,530.43	£1,760.00
-	-	●	-	£1,147.83	£1,320.00
-	●	-	-	£3,530.43	£4,060.00
●	-	-	-	£3,360.87	£3,865.00
-	-	●	-	£2,595.65	£2,985.00
-	●	-	-	£2,000.00	£2,300.00
●	-	-	-	£1,913.04	£2,200.00
-	-	●	-	£1,530.43	£1,760.00
-	-	-	●	£1,147.83	£1,320.00
-	●	-	-	£3,913.04	£4,500.00
-	-	●	-	£2,978.26	£3,425.00
-	-	-	●	£2,595.65	£2,985.00
●	-	-	-	£1,404.35	£1,615.00

Solid dark circular shape with textured texture, no text or symbols visible

Chestnut brown

Solid dark blue circular shape with no text, symbols, or discernible features.

Jet grey

Plain beige circular background with no text, symbols, or discernible features.

Alabaster white

Solid brown circular shape with textured texture, no text or symbols visible

Sand beige

Solid brown circular shape with textured texture (no text or symbols)

Cocos

Solid brown circular shape with textured texture (no text or symbols)

Cognac

Solid maroon circular shape with textured texture (no text or symbols)

Saddle brown

Solid red circular shape with textured fill (no text or symbols)

Crimson red

Solid dark blue circular shape with textured texture (no text or symbols)

Palace blue

Plain beige circular surface with no text, symbols, or markings

Magnolia

Circular brown textured surface with no visible text, symbols, or markings

Havanna brown

Upholstery

Audi exclusive line

Audi exclusive is ultimately about choice – but if you’d rather leave some of the decisions in the capable hands of our designers, the expert team at quattro® GmbH have compiled Audi exclusive line, combining some of the most popular elements of the exclusive range in one, beautifully coordinated package.

Options are subject to availability and may extend delivery.

- = Not available

- = Available

*Not available on S line models

RRP – Recommended Retail Price.

VAT is calculated at 15% but this may alter to reflect any change in the applicable VAT rate.

Order Code

WQK Audi exclusive line

1.8 TFSI Roadster	2.0 TFSI / 2.0 TDI	3.2 FSI quattro®	TTS quattro®
				Basic RRP	Total RRP inc VAT
●	-	-	-	£2,343.47	£2,695.00
-	●	-	-	£1,491.30	£1,715.00
-	-	●	-	£1,021.74	£1,175.00

Close-up of a red object inside a dark, curved container (no text or symbols visible)

Crimson red - QY

Close-up of a car interior showing a curved surface and a reddish-brown highlight (no text or symbols visible)

Saddle brown - XA

Close-up of a car's seat with orange seat highlighted (no text or symbols visible)

Signal orange - XB

Close-up of a car's front wheel and side seat (no visible text or symbols)

Silver - QL

The package gives you

Sports seats in two-tone Fine Nappa leather, with black seat-side sections with coloured stitching and coloured seat-centre section in silver (QL), crimson red (QY), saddle brown (XA) or signal orange (XB)
- Front door panels in Fina Nappa leather to match seat centres. Rear door panels in black (Coupé only)

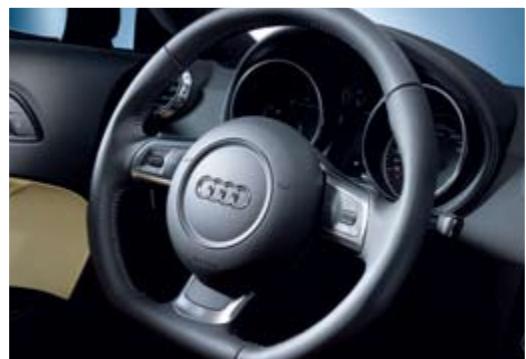

3-spoke Sports ‘flat-bottom’ design leather multi-function steering wheel, handbrake grip and gear-lever gaiter stitching to match seat centres
▶ Front floor mats with coloured stitching to match seat centres
▶ Extended leather package (instrument panel cover, door armrest and sides of centre console) in black leather with stitching to match seat centres
▶ Black headlining
▶ Audi exclusive scuff plates

Inlays

Inlays are the all-important finishing touch that add flair and interest to your car's interior.

Order Code

5MU Aluminium Laser

5TG Matt-brushed aluminium

1.8 TFSI Roadster	2.0 TFSI / 2.0 TDI	3.2 FSI quattro®	TTS quattro®
				Basic RRP	Total RRP inc VAT
S	S	S	-	No charge	No charge
-	-	-	S	No charge	No charge

Options are subject to availability and may extend delivery.

- = Not available

S = Standard

RRP - Recommended Retail Price.

VAT is calculated at 15% but this may alter to reflect any change in the applicable VAT rate.

Plain gray circular shape with no text, symbols, or markings

Aluminium Laser - 5MU

Plain circular textured surface with no visible text, symbols, or markings

Matt-brushed aluminium - 5TG

Close-up of a car gear shift lever with a red circular head and black lever handle (no visible text or symbols)

Wheels, tyres and suspension

Choose a set of specially selected low-profile alloy wheels to subtly enhance the way your car looks and drives. And you can also specify Audi magnetic ride: a suspension system that applies just the right amount of damping force to each wheel to deal with changing road conditions.

Close-up of a car wheel rim with black and silver alloy segments (no text or symbols visible)

18" x 9J '10-spoke' design alloy wheels in bi-colour finish – PRC

Close-up of a silver Audi car wheel with eight spokes and a central logo (no text or symbols visible)

18" x 9J 'Turbine' design alloy wheels – PRW

Close-up of a metallic car wheel rim with radial spokes and mounting holes (no text or symbols visible)

18" x 9J '10-spoke exclusive' design alloy wheels – PQ5

Wheels, tyres and suspension

Order Code		1.8 TFSI Roadster	2.0 TFSI / 2.0 TDI	3.2 FSI quattro®	TTS quattro®	Basic RRP	Total RRP inc VAT
PRE CK1	17" x 8.5J '7-Y-spoke' design alloy wheels with 245/40 R17 Y tyres	S	-	-	-	No charge	No charge
PRD	18" x 9J '5-spoke Star' design alloy wheels with 245/40 R18 tyres	●	-	-	-	£1,234.78	£1,420.00
		-	●	-	-	£1,065.22	£1,225.00
		-	-	●	-	£300.00	£345.00
PRT	18" x 9J '10-spoke' design alloy wheels with 245/40 R18 Y tyres*	●	-	-	-	£934.78	£1,075.00
		-	●	S	-	£765.22	£880.00
PQ5	18" x 9J '10-spoke exclusive' design alloy wheels with 245/40 R18 Y tyres	●	-	-	-	£1,234.78	£1,420.00
		-	●	-	-	£1,065.22	£1,225.00
		-	●	-	-	£300.00	£345.00
	S line	-	-	●	-	£300.00	£345.00
PRC	18" x 9J '10-spoke' design alloy wheels in bi-colour finish with 245/40 R18 Y tyres*	●	-	-	-	£1,104.35	£1,270.00
		-	●	-	-	£934.78	£1,075.00
PRW	18" x 9J 'Turbine' design alloy wheels with 245/40 R18 Y tyres*	●	-	-	-	£1,234.78	£1,420.00
		-	●	-	-	£1,065.22	£1,225.00
		-	-	●	-	£300.00	£345.00

*Not available on S line models

Options are subject to availability and may extend delivery.

- = Not available

- = Available

S = Standard

RRP – Recommended Retail Price

VAT is calculated at 15% but this may alter to reflect any change in the applicable VAT rate.

Wheels, tyres and suspension

Close-up of a metallic car wheel rim with eight spokes and mounting holes (no text or symbols visible)

19" x 9J '7-arm double-spoke' design alloy wheels – PQF

Close-up of a metallic car wheel rim with eight spokes and a central hub (no text or symbols visible)

19" x 9J '5-spoke Star' design alloy wheels – PQG

Close-up of a metallic car wheel rim with six spokes (no text or symbols visible)

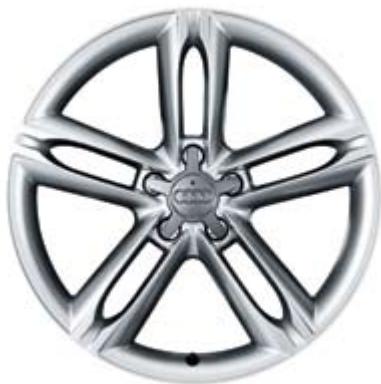

19" x 9J '5-segment-spoke' design alloy wheels – PQ6

Wheels, tyres and suspension

*Not available on S line models

**Audi magnetic ride on TTS has a 10mm lower ride height than standard Audi magnetic ride

Options are subject to availability and may extend delivery.

- = Not available

- = Available

S = Standard

RRP – Recommended Retail Price

VAT is calculated at 15% but this may alter to reflect any change in the applicable VAT rate.

Order Code		1.8 TFSI Roadster	2.0 TFSI / 2.0 TDI	3.2 FSI quattro®	TTS quattro®	Basic RRP	Total RRP inc VAT
PQS	19” x 9J ‘20-spoke’ design two-piece alloy wheels with 255/35 R19 Y tyres*	●	-	-	-	£1,573.91	£1,810.00
		-	●	-	-	£1,404.35	£1,615.00
		-	-	●	●	£639.13	£735.00
	S line	-	●	●	-	£639.13	£735.00
PQF	19” x 9J ‘7-arm double-spoke’ design alloy wheels with 255/35 R19 Y tyres	●	-	-	-	£1,573.91	£1,810.00
		-	●	-	-	£1,404.35	£1,615.00
		-	-	●	●	£639.13	£735.00
	S line	-	●	-	-	£639.13	£735.00
	S line Special Edition	-	●	-	-	No charge	No charge
PQ6	19” x 9J ‘5-segment-spoke’ design alloy wheels with 255/35 R19 Y tyres*	●	-	-	-	£1,573.91	£1,810.00
		-	●	-	-	£1,404.35	£1,615.00
		-	-	●	●	£639.13	£75.00
	S line	-	●	●	-	£639.13	£735.00
PQG	19” x 9J ‘5-spoke Star’ design alloy wheels with 255/35 R19 Y tyres*	-	-	-	●	£639.13	£735.00
1BL PC2	Audi magnetic ride. Adaptive suspension system with two selectable modes (Normal or Sport). Sensors in the car monitor the road conditions and adjust the damping effect by varying a magnetic charge which passes through a fluid-based shock absorber for improved road handling, outstanding chassis control and excellent driving comfort. Includes painted brake callipers in grey (cannot be combined with Sports suspension)	●	●	●	S**	£978.26	£1,125.00
1BV	Sports suspension. 10mm lower ride height with stiffer damper and spring rates (cannot be combined with Audi magnetic ride)	●	●	●	-	£360.87	£415.00

Audio and communication

Stay in touch using our range of communication functions, and give each journey its own soundtrack with our advanced audio equipment.

Options are subject to availability and may extend delivery.

- = Not available

- = Available

S = Standard

RRP – Recommended Retail Price.

VAT is calculated at 15% but this may alter to reflect any change in the applicable VAT rate.

Order Code		1.8 TFSI Roadster	2.0 TFSI / 2.0 TDI	3.2 FSI quattro®	TTS quattro®	Basic RRP	Total RRP inc VAT
RCL	Concert radio. AM/FM twin tuner with TP memo function. Single front-loading CD player with MP3 compatibility. Active front and rear speakers. Includes AUX-IN socket	●	S	S	S	£186.96	£215.00
UF7	Audi Music Interface (AMI). Universal connection for use with stereo audio sources, USB and MP3 devices including Apple iPod generation 4 onwards (iPod, iPod classic, iPod mini, iPod nano, iPod photo, iPod video, iPod touch). Provides intuitive control through the audio system and multi-function steering wheel, where fitted. It also replicates the iPod display on the audio screen and DIS, including track titles. The interface provides charging function (dependent on device). Only in combination with DVD-based Satellite Navigation system	●	●	●	●	£213.04	£245.00
RSL	Symphony radio. AM/FM twin tuner with TP memo function. Front-loading 6-CD changer with MP3 compatibility and active front and rear speakers. Includes AUX-IN socket	●	-	-	-	£413.04	£475.00
		-	●	●	●	£226.09	£260.00
8RY	BOSE® surround sound system. Dynamic noise-compensation, 8-channel amplifier, 13 loudspeakers including centre speaker in the dashboard and 2 surround loudspeakers in the rear shelf. Total output of 255 Watts	●	●	●	●	£404.35	£465.00
		-	S	-	-	No charge	No charge
7A2	CD changer. For six CDs with MP3 compatibility. Cannot be combined with iPod or USB connection. Integrated into rear shelf between seats	●	●	●	●	£273.91	£315.00
UF1	iPod connection. For playing/charging your iPod. Located in glovebox and controllable via radio or multi-function steering wheel (if fitted). Cannot be combined with CD changer or USB connection	●	●	●	●	£152.17	£175.00

Audi symphony ▶ SWR 1 FH AS SWR4 ▶ SWR2 SWR3 ANTENNE14 ▶ SWR3 RADIOTON4 FM AM CD TIM AS TONE MENU TF SCM

Symphony radio

Close-up of a car airbag inside a vehicle compartment, showing the internal component and control buttons (no text or symbols on the main subject)

iPod connection

Audio and communication

Options are subject to availability and may extend delivery.

• = Not available
• = Available
  S = Standard

RRP – Recommended Retail Price.

VAT is calculated at 15% but this may alter to reflect any change in the applicable VAT rate.

Order Code		1.8 TFSI Roadster	2.0 TFSI / 2.0 TDI	3.2 FSI quattro®	TTS quattro®	Basic RRP	Total RRP inc VAT
9ZX	Mobile telephone preparation - Bluetooth interface provides handsfree connection via Bluetooth using mobile phone aerial. Please contact your Audi Centre for phone compatibility. Only in combination with multi-function steering wheel	S line Special Edition	-	S	-	-	£208.70
							No charge
9ZF	Mobile telephone preparation - Low with Bluetooth and voice control. Provides handsfree connection via Bluetooth using mobile phone aerial. Alternatively, it can use a cradle with charging facility for optimal reception via external aerial. Cradle available at extra cost - please contact your Audi Centre for phone compatibility. Only in conjunction with a multi-function steering wheel. Located on centre console between front seats	S line Special Edition	-	●	-	-	£326.09
							£117.39
PNX 7RF	Satellite Navigation system - CD-ROM based. Route-planning and guidance using voice and pictogram instructions. Includes AM/FM radio with TP memo function. Single front-loading CD player with MP3-compatibility. Includes AUX-IN socket, MMI operating logic and UK CD-ROM disc. Please note that this option does not include UK TMC functionality. Limited use of navigation system possible when playing audio CDs so a CD changer, USB or iPod connection is recommended with this option	-	-	-	-	£739.13	£850.00
			-	●	●	●	£552.17
PNC	DVD-based Satellite Navigation system. Integrated into the MMI is a clear map display with special destinations indicated by symbols, high-speed map loading, zoom function, bird's eye view function, selection of address book destinations, target memory, dynamic route guidance with TMC (with vehicle life subscription), including Europe DVD (where digitised), and Satellite Navigation disc-reader located in the spare-wheel well under the boot. Audio or MP3 CDs cannot be used at the same time as the DVD-based Navigation system, so CD changer or AMI is recommended. Not available in combination with iPod connection or USB connection	-	-	-	-	£1,591.30	£1,830.00
			-	●	●	●	£1,404.35
QV9	TV reception - analogue and digital. TV tuner for reception of 'free-to-air' TV channels. Picture display only possible on MMI screen when vehicle is stationary, audio available at all times. Reception dependent upon local digital network availability. Only in combination with DVD-based Satellite Navigation system	●	●	●	●	£682.61	£785.00
UF2	USB connection. For playing your USB stick. Located in glovebox and controlled via radio or multi-function steering wheel (if fitted). Cannot be combined with CD changer, iPod connection or AMI	●	●	●	●	£152.17	£175.00

AUG Time: 10.00 Time: 12.00 AUG Transportation plane

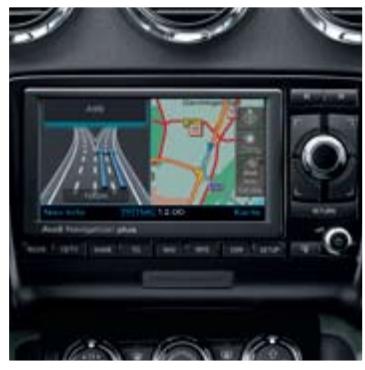

Satellite Navigation system Plus

Close-up of a mobile phone inside a car trunk case, showing its screen and keypad (no visible text or symbols)

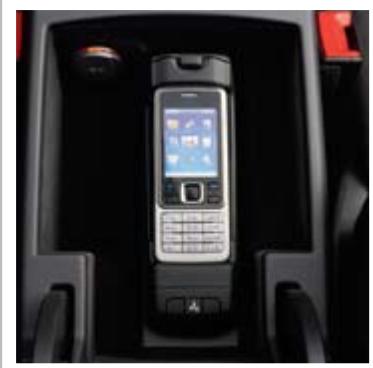

Mobile telephone preparation – Low

Bluetooth®
Mobile telephone preparation – Bluetooth interface

Interior view of a refrigerator with open refrigerator and control panel (no visible text or symbols)

USB connection

Seats

From dynamic bucket seats to supportive electrically-adjustable and heated options, choose precisely the seats that suit you.

Order Code		1.8 TFSI Roadster	2.0 TFSI / 2.0 TDI	3.2 FSI quattro®	TTS quattro®	Basic RRP	Total RRP inc VAT
7P1	Electric lumbar support. For front seats with horizontal and vertical adjustment	●	●	●	●	£160.87	£185.00
PV1	Electrically-adjustable front seats. Includes adjustment for height, forwards and backwards position, backrest angle and lumbar support	●	●	●	●	£617.39	£710.00
PS5	Front bucket seats in black Fine Nappa leather upholstery with manual adjustment. Please note, this option deletes front ISOFIX seats and front airbag deactivation. Not available in combination with storage pack, electric front seats or any other seat upholstery option	●	-	-	-	£2,765.22	£3,180.00
		-	●	-	-	£1,913.04	£2,200.00
		-	-	●	●	£1,447.83	£1,665.00
4A3	Heated front seats. Individually controlled variable temperature adjustment	●	●	S	S	£213.04	£245.00

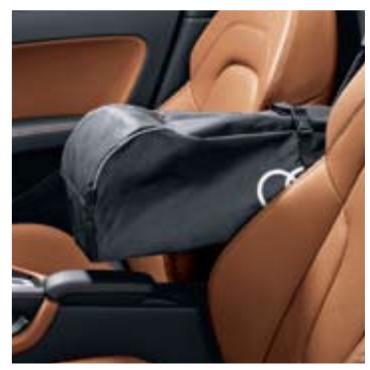

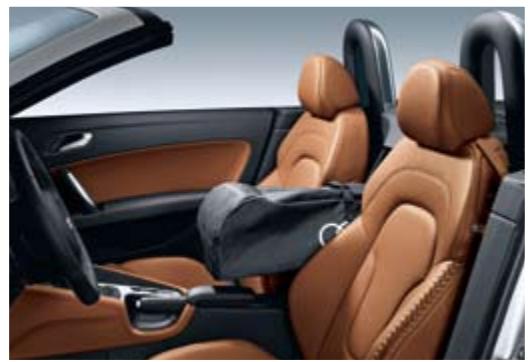

3X2	Through-load facility. Includes removable ski bag for transporting long objects. Roadster only	●	●	●	●	£82.61	£95.00

Options are subject to availability and may extend delivery.

• = Not available
• = Available
  S = Standard

RRP – Recommended Retail Price.

VAT is calculated at 15% but this may alter to reflect any change in the applicable VAT rate.

Interior view of a car seat with three 3D-printed plastic components and a circular button (no text or symbols visible)

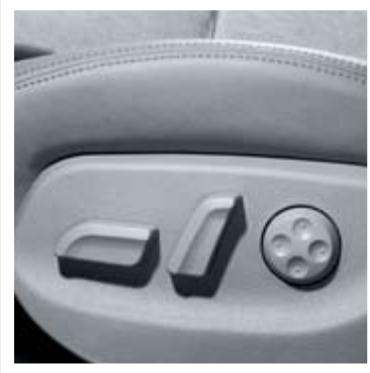

Electrically-adjustable front seats

Interior view of a car showing three circular air conditioners and a control panel (no visible text or symbols)

Heated front seats

Interior view of a car's rear seat and side panel (no visible text or symbols)

Front bucket seats

Close-up of a car seatbelt with black strap and orange leather seats (no visible text or symbols)

Through-load facility

Safety and security

Choose from a variety of safety and security options, so you can completely relax in your Audi.

Order Code		1.8 TFSI Roadster	2.0 TFSI / 2.0 TDI	3.2 FSI quattro®	TTS quattro®	Basic RRP	Total RRP inc VAT
7X1	Acoustic parking system (rear only). Aids parking by acoustically indicating distances to obstacles	●	●	●	●	£256.52	£295.00
UG1	Audi hill-hold assist. Prevents roll-back on hills for up to 5 seconds by maintaining brake force	●	●	●	●	£78.26	£90.00
3B4	ISOFIX child-seat preparation for outer rear seats. Only available on Coupé models	-	●	●	●	£30.43	£35.00
7K6	Tyre pressure loss indicator. A visual and acoustic warning when the system detects a potential loss of tyre pressure	●	●	●	●	£65.22	£75.00

Exterior equipment

Make sure your car looks exactly as you want it to by selecting some of the striking options from our detailed list.

PX48Q5	Adaptive headlights. Swivelling headlights for improved illumination of a winding road. Includes Xenon Plusheadlights with LED daytime-running lights and headlight washers. Also includes light styling pack with chromedetailed headlight surrounds and darkened rear light clusters	●	●	●	-	£830.43	£955.00
		-	-	-	●	£278.26	£320.00
8N7	High-beam assist. Automatically adjusts headlights from high-beam to dipped-beam when another vehicle isapproaching. Only in combination with light and rain sensor pack	●	●	●	●	£86.96	£100.00
VW1	Privacy glass. Dark tinted glass from B-pillar backwards. Only available on Coupé	-	●	●	●	£278.26	£320.00

Warranty extensions

EA6	1-year Warranty Extension. Audi Warranty Extension, prolonging your 3-year/60,000-mile Audi warranty to 4 years or 75,000 miles (whichever comes sooner). Comprehensive cover equivalent to the Audi warranty, protecting you against unexpected repairs. Only available as a new car option. Transferable between owners	●	●	●	●	£326.09	£375.00
EA9	2-year Warranty Extension. Audi Warranty Extension, prolonging your 3-year/60,000-mile Audi warranty to 5 years or 90,000 miles (whichever comes sooner). Comprehensive cover equivalent to the Audi warranty, protecting you against unexpected repairs. Only available as a new car option. Transferable between owners	●	●	●	●	£773.91	£890.00

Options are subject to availability and may extend delivery.

- = Not available

- = Available

RRP – Recommended Retail Price.

VAT is calculated at 15% but this may alter to reflect any change in the applicable VAT rate.

Interior equipment

Specify every detail of your car's interior with this range of exclusive options.

Options are subject to availability and may extend delivery.

- = Not available

- = Available

S = Standard

*HomeLink® is a registered trademark of Johnson Controls. For information on compatibility, visit www.homelink.com

RRP – Recommended Retail Price.

VAT is calculated at 15% but this may alter to reflect any change in the applicable VAT rate.

Order Code		1.8 TFSI Roadster	2.0 TFSI / 2.0 TDI	3.2 FSI quattro®	TTS quattro®	Basic RRP	Total RRP inc VAT
8T2	Cruise control. For holding any speed above 25mph	●	●	●	●	£182.61	£210.00
7HC	Extended leather package - black. Includes instrument panel cover, door armrest and side of centre console	●	●	●	S	£300.00	£345.00
7HD	Extended leather package - colour. Includes side of centre console in the same colour as seat upholstery and instrument panel cover in black leather. In combination with Magma red or Mustang brown - door armrest and door handle in black leather. In combination with Chennai brown, TTS Silk Nappa leather interior colours or exclusive line - door armrest and door handle in black leather with colour stitching to match seat centres. In combination with Mineral grey, Light grey and Luxor beige interior colours - door armrest and door handle in coloured leather to match seat upholstery (not available in combination with black leather interior)	●	●	●	-	£382.61	£440.00
		-	-	-	●	£86.96	£100.00
VC1	Garage door opener (Homelink®*). Programmable radio-operated remote control for compatible doors/gates. Control buttons integrated in the front roof module	●	●	●	●	£147.83	£170.00
QQ1	Interior light pack. Includes front footwell lighting, illuminated vanity mirrors, inside door handles and glovebox, puddle and ambient lighting	●	●	●	●	£100.00	£115.00
6XK 4L6 4GP	Light and rain sensor pack. Includes auto-dimming rear-view mirror and door mirrors, automatic headlight activation, automatic windscreen wipers and sunband for windscreen. Also includes electrically adjustable, heated, folding door mirrors	●	●	●	●	£382.61	£440.00
1XW 1XX	Multi-function flat-bottomed design steering wheel. For control of audio equipment and telephone (if fitted). Includes gearshift paddles on S-tronic models	●	●	●	S	£152.17	£175.00
		S line	-	S	-	No charge	No charge

Interior view of a car showing two seats with brown leather seats and a black seatbelt, no visible text or symbols.

Through-load facility

Interior view of a car showing the left-hand side of a modern vehicle with a black lever handle (no visible text or symbols)

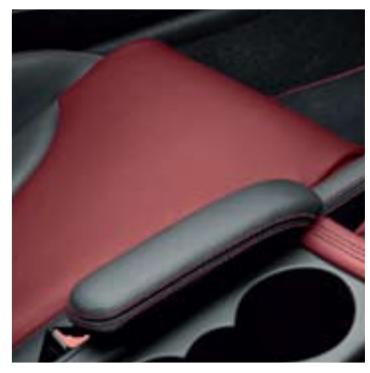

Extended leather pack – coloured

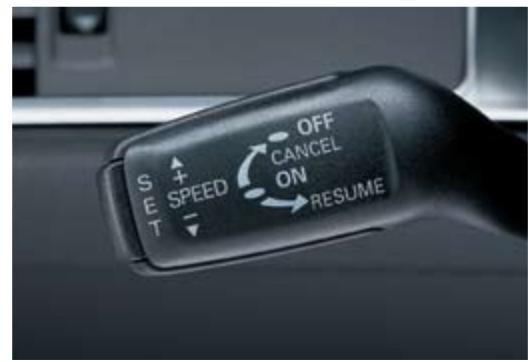

S E T + SPEED - OFF CANCEL ON RESUME

Cruise control

Interior equipment

Options are subject to availability and may extend delivery.

- = Available

^+ Available in any colour shown on page 36

RRP – Recommended Retail Price.

VAT is calculated at 15% but this may alter to reflect any change in the applicable VAT rate.

Order Code		1.8 TFSI Roadster	2.0 TFSI / 2.0 TDI	3.2 FSI quattro®	TTS quattro®	Basic RRP	Total RRP inc VAT
QE1	Storage pack. Comprising storage compartment under the front seats, luggage net in boot and net on side of centre console (Coupé only)	-	●	●	●	£100.00	£115.00
4GP	Windscreen sunband. Standard on Roadster	S	●	●	●	£47.83	£55.00
YRH/S3G	Audi exclusive leather-covered steering wheel (not in combination with YRB/S3G) ^	●	●	●	●	£291.30	£335.00
YRB/S3G	Audi exclusive controls pack (includes steering wheel, gear lever knob, gear lever gaiter and handbrake grip) ^	●	●	●	●	£508.70	£585.00
YUG/S3G	Audi exclusive leather-covered roll-over protection bars (only available on Roadster models) ^	●	●	●	●	£426.09	£490.00
YSK/S3G	Audi exclusive headlining in Alcantara (only available on Coupé models) ^	●	●	●	●	£1,347.83	£1,550.00

Interior view of a car dashboard featuring the Audi logo and steering wheel (no visible text or symbols)

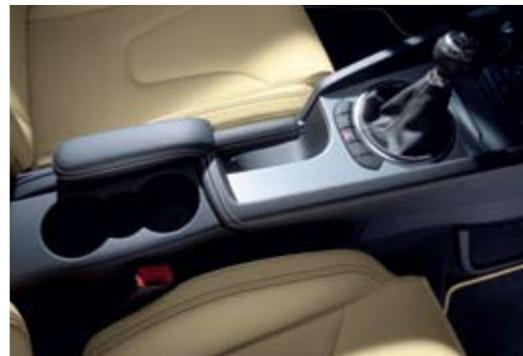

Interior view of a car showing the rear intake console and gear shift (no text or symbols visible)

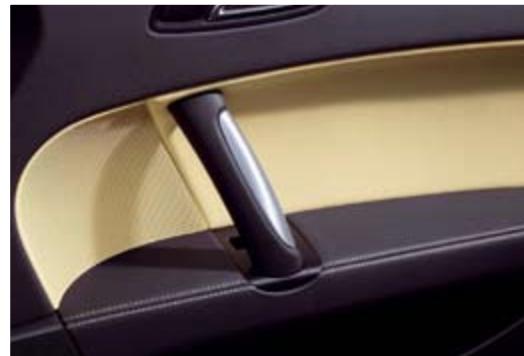

Close-up of a car's side panel showing a black handle and yellow interior (no text or symbols visible)

Merchandise

From the enthusiasts' motorsport collection to the sophisticated Audi collection, there's a wide variety of adults' and children's clothing, lifestyle accessories and collectables, all of which bear the Audi name.

Please speak to a member of our team at your local Audi Centre to see the full Audi collection and to place an order. A selection of Audi merchandise is also available to buy from audi.co.uk/merchandise.

Red toy car with black wheels and steering wheel, isolated on white background (no text or symbols)

Audi kids

Brown leather belt with silver buckle, isolated on white background (no text or symbols)

Bags and leather goods

Exterior view of a white and black winter ski jacket with hooded cover (no text or symbols visible)

Clothing

White and gray sports jacket with hooded front panel, no visible text or symbols

Motorsports

Black and white athletic bag with a silver strap, resting on a white surface (no text or symbols visible)

Sport and travel

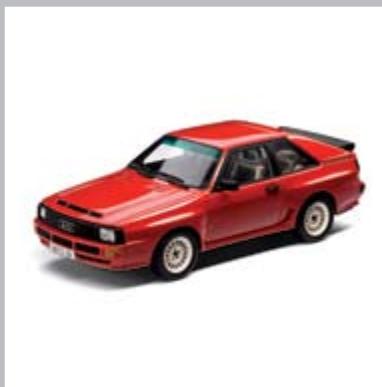

Red sports car model with black accents and white trim, isolated on white background (no text or symbols)

Model cars

Accessories

Choosing an Audi isn't just a matter of deciding on the model you want; it's about creating a car that suits your needs perfectly. And that's why we've developed a whole range of accessories to enhance your TT, enabling you to customise it down to the last detail. Like your Audi, all these accessories are developed to the highest possible standards. And they're all available exclusively from Audi.

To find out more, just visit audi.co.uk/accessories or contact your local Audi Centre.

Warranty

All of the accessories available on the TT are covered by a three-year warranty* if they are ordered and included in the purchase price of the car at date of delivery. Any accessories ordered and installed after delivery include a two-year warranty.*

*Excluding Road Angel products.

Audi Accessories warranty terms and conditions can be found at audi.co.uk

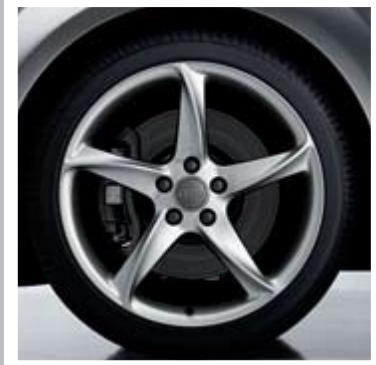

Close-up of a car wheel rim with five spokes and a metallic alloy wheel (no text or symbols visible)

Sport and design

Side view of a silver car trunk with open lid and side-mounted lock (no visible text or symbols)

Transport and touring

Interior view of a mobile phone car with control panel and display screen (no visible text or symbols)

Entertainment and communication

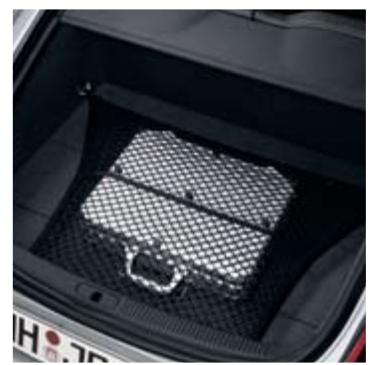

Interior view of a car trunk with a mesh-covered storage tray (no visible text or symbols)

Comfort and protection

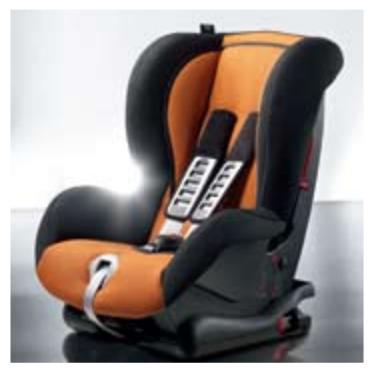

Orange and black car comfort seat with black and orange design (no text or symbols visible)

Family

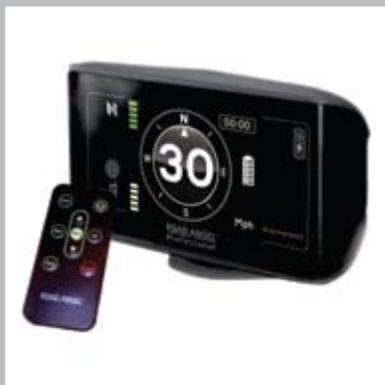

Black outdoor phone with 'ROAD PANGE' status and 30-degree compass, connected to a remote (no visible text or symbols on device body)

Safety and security

TT Coupé technical data

*Highest insurance group rating shown. Group may be lower dependent on trim level. Please visit www.thatcham.org/abigrouprating for details.

^1 The given values have been determined according to the prescribed measurement process (the latest version of Directive 80/1269/EEC).

^2 Regulated.

^3 The given values were calculated in accordance with the specified measurement procedure (the respective current version of Directive 80/1268/EEC). This information does not relate to a single vehicle and does not comprise part of the offer but is merely intended for the purpose of comparison between the different vehicle types. The data does not relate to any single vehicle and does not comprise part of the offer but is merely intended for the purpose of comparison between the different vehicle types.

^4 Vehicle unladen weight without driver (calculated in accordance with the current applicable version of Directive 92/21/EEC). Optional equipment may increase the car's unladen weight and drag coefficient, whereby the possible payload limit and top speed will be correspondingly reduced.

Engine	Petrol							Diesel
	2.0 TFSI	2.0 TFSI	2.0 TFSI quattro®	3.2 quattro®	3.2 quattro®	TTS quattro®	TTS quattro®	2.0 TDI quattro®
Transmission	6-speed manual	6-speed S tronic	6-speed S tronic	6-speed manual	6-speed S tronic	6-speed manual	6-speed S tronic	6-speed manual
Cylinder	4-cylinder	4-cylinder	4-cylinder	V6	V6	4-cylinder	4-cylinder	4-cylinder
Displacement, cubic cm (valves per cylinder)	1984 (4)	1984 (4)	1984 (4)	3189 (4)	3189 (4)	1984 (4)	1984 (4)	1968 (4)
Max. power ^1 , PS at rpm	200/5100-6000	200/5100-6000	200/5100-6000	250/6300	250/6300	272/6000	272/6000	170/4200
Max. torque, Nm at rpm	280/1800-5000	280/1800-5000	280/1800-5000	320/2500-3000	320/2500-3000	350/2500-5000	350/2500-5000	350/1750-2500
0-62mph acceleration, seconds	6.6	6.4	6.2	5.9	5.7	5.4	5.2	7.5
Top speed, mph	149	149	148	155^2	155^2	155^2	155^2	140
CO _2 emissions ^3 , g/km	183	183	181	247	224	191	188	139
Benefit in kind (BIK)%	24	24	24	35	32	26	25	18
Fuel consumption, mpg (l/100km) Urban	26.4 (10.7)	26.6 (10.6)	26.9 (10.5)	19.2 (14.7)	21.9 (12.9)	25.9 (10.9)	25.7 (11.0)	40.4 (7.0)
Fuel consumption, mpg (l/100km) Extra Urban	47.1 (6.0)	47.1 (6.0)	46.3 (6.1)	36.2 (7.8)	38.7 (7.3)	44.8 (6.3)	46.3 (6.1)	65.7 (4.3)
Fuel consumption, mpg (l/100km) Combined	36.7 (7.7)	36.7 (7.7)	36.7 (7.7)	27.4 (10.3)	30.1 (9.4)	35.3 (8.0)	35.8 (7.9)	53.3 (5.3)
ABI insurance group 1-20/1-50*	17/34 E	17/34 E	17/34 E	18/36 E	18/36 E	19/38 E	19/38 E	16/32 E
Unladen weight ^4	1260	1280	1360	1410	1430	1395	1415	1370
Gross weight limit	1660	1680	1760	1810	1830	1795	1815	1770
Roof/Boot lid load limit	75	75	75	75	75	75	75	75
Luggage compartment capacity, litres	290/700	290/700	290/700	290/700	290/700	290/700	290/700	290/700
Fuel tank capacity approx, litres	55	55	60	60	60	60	60	60

TT Roadster technical data

*Highest insurance group rating shown. Group may be lower dependent on trim level. Please visit www.thatcham.org/abigrouprating for details.

^1 The given values have been determined according to the prescribed measurement process (the latest version of Directive 80/1269/EEC).

^2 Regulated.

^3 The given values were calculated in accordance with the specified measurement procedure (the respective current version of Directive 80/1268/EEC). This information does not relate to a single vehicle and does not comprise part of the offer but is merely intended for the purpose of comparison between the different vehicle types. The data does not relate to any single vehicle and does not comprise part of the offer but is merely intended for the purpose of comparison between the different vehicle types.

^4 Vehicle unladen weight without driver (calculated in accordance with the current applicable version of Directive 92/21/EEC). Optional equipment may increase the car's unladen weight and drag coefficient, whereby the possible payload limit and top speed will be correspondingly reduced.

Engine	Petrol								Diesel
	1.8 TFSI	2.0 TFSI	2.0 TFSI	2.0 TFSI quattro®	3.2 quattro®	3.2 quattro®	TTS quattro®	TTS quattro®	2.0 TDI quattro®
Transmission	6-speed manual	6-speed manual	6-speed S tronic	6-speed S tronic	6-speed manual	6-speed S tronic	6-speed manual	6-speed S tronic	6-speed manual
Cylinder	4-cylinder	4-cylinder	4-cylinder	4-cylinder	V6	V6	4-cylinder	4-cylinder	4-cylinder
Displacement, cubic cm (valves per cylinder)	1798 (4)	1984 (4)	1984 (4)	1984 (4)	3189 (4)	3189 (4)	1984 (4)	1984 (4)	1968 (4)
Max. power1, PS at rpm	160/4500-6200	200/5100-6000	200/5100-6000	200/5100-6000	250/6300	250/6300	272/6000	272/6000	170/4200
Max. torque, Nm at rpm	250/1500-4500	280/1800-5000	280/1800-5000	280/1800-5000	320/2500-3000	320/2500-3000	350/2500-5000	350/2500-5000	350/1750-2500
0-62mph acceleration, seconds	7.4	6.7	6.5	6.4	6.1	5.9	5.6	5.4	7.7
Top speed, mph	139	147	147	146	155^2	155^2	155^2	155^2	139
CO2 emissions3, g/km	159	186	186	184	250	227	194	190	144
Benefit in kind (BIK)%	19	25	25	24	35	33	26	26	18
Fuel consumption, mpg (l/100km) Urban	31.0 (9.1)	26.4 (10.7)	26.2 (10.8)	26.9 (10.5)	19.1 (14.8)	21.7 (13.0)	25.7 (11.0)	25.0 (11.3)	39.2 (7.2)
Fuel consumption, mpg (l/100km) Extra Urban	50.4 (5.6)	45.6 (6.2)	46.3 (6.1)	44.8 (6.3)	36.2 (7.8)	38.2 (7.4)	43.5 (6.5)	45.6 (6.2)	62.8 (4.5)
Fuel consumption, mpg (l/100km) Combined	40.9 (6.9)	36.2 (7.8)	36.2 (7.8)	36.2 (7.8)	27.2 (10.4)	29.7 (9.5)	34.4 (8.2)	35.3 (8.0)
ABI insurance group 1-20/1-50*	16/32 E	17/34 E	17/34 E	17/34 E	18/36 E	18/36 E	19/38 E	19/38 E	16/32 E
Unladen weight4	1285	1295	1315	1405	1470	1490	1455	1475	1415
Gross weight limit	1605	1615	1635	1725	1790	1810	1775	1795	1735
Roof/Boot lid load limit	20	20	20	20	20	20	20	20	20
Luggage compartment capacity, litres	250	250	250	250	250	250	250	250	250
Fuel tank capacity approx, litres	55	55	55	60	60	60	60	60	60

TT Coupé dimensions

The technical drawings opposite show the exact dimensions of the TT Coupé, so you can check everything – from whether the car will fit in your garage to whether your luggage will fit in the boot.

1352 1572 1842

990° 829 390 790 902 2468 808 4178

900 1558 1952

1352 1206 1000 816

Dimensions were measured at unladen weight. Luggage compartment volume 250/700l (measured in accordance with the VDA method using 200 x 100 x 50 mm blocks; second figure: with rear seat folded down and the vehicle loaded up to roof height). Turning circle approx. 10.9m.

Dimensions in millimetres.

*Maximum headroom.

TT Roadster dimensions

The technical drawings opposite show the exact dimensions of the

TT Roadster, so you can check everything – from whether the car will fit in your garage to whether your luggage will fit in the boot.

1358 1572 1842

990° 245 790 902 2468 808 4178

856 1558 1952

1352 1000 1001

Dimensions were measured at unladen weight.

Luggage compartment volume 250/700l

(measured in accordance with the VDA method using 200 x 100 x 50 mm blocks;

second figure: with rear seat folded down and the vehicle loaded up to roof height). Turning circle approx. 10.9m.

Dimensions in millimetres.

*Maximum headroom.

TTS Coupé dimensions

The technical drawings opposite show the exact dimensions of the TTS Coupé, so you can check everything – from whether the car will fit in your garage to whether your luggage will fit in the boot.

1345 1555 1842

990° 829 390 780 911 2468 819 4198

900 1546 1952

1352 1206 816 1000

Dimensions were measured at unladen weight. Luggage compartment volume 250/700l (measured in accordance with the VDA method using 200 x 100 x 50 mm blocks; second figure: with rear seat folded down and the vehicle loaded up to roof height). Turning circle approx. 10.9m.

Dimensions in millimetres.

*Maximum headroom.

TTS Roadster dimensions

The technical drawings opposite show the exact dimensions of the TTS Roadster, so you can check everything – from whether the car will fit in your garage to whether your luggage will fit in the boot.

Dimensions were measured at unladen weight. Luggage compartment volume 250/700l (measured in accordance with the VDA method using 200 x 100 x 50 mm blocks; second figure: with rear seat folded down and the vehicle loaded up to roof height). Turning circle approx. 10.9m.

Dimensions in millimetres.

*Maximum headroom.

Additional information

CO _2 data and information

CO2 emissions-based Vehicle Excise Duty

Vehicle Excise Duty (Road Fund Licence) is based upon the amount of Carbon Dioxide (CO2) a vehicle emits, measured in grams per kilometre (g/km). The DVLA has created thirteen categories:

Petrol and Diesel engines

A - up to 100g/km	£0.00
B - 101 to 110g/km	£35.00
C - 111 to 120g/km	£35.00
D - 121 to 130g/km	£120.00
E - 131 to 140g/km	£120.00
F - 141 to 150g/km	£125.00
G - 151 to 165g/km	£150.00
H - 166 to 175g/km	£175.00
I - 176 to 185g/km	£175.00
J - 186 to 200g/km	£215.00
K* - 201 to 225g/km	£215.00
L - 226 to 255g/km	£405.00
M - over 255g/km	£405.00

*Band K includes cars that have a CO2 figure over 225g/km but were registered before 23 March 2006.

Servicing tailored to your needs

Regular servicing is key to safeguarding your Audi's performance and a full Audi service history could help you preserve the future re-sale value. To make servicing easy, the Audi Service Schedules have been designed to work with your individual driving style and vehicle.

There are two schedules available and your Audi Centre will advise which schedule is most suited to your needs. The conventional fixed Audi Inspection Service schedule has fixed intervals for the Oil-change and Inspection Service that are based on time

and distance, whichever comes first. With the Audi LongLife Service schedule, sensors take account of driving style and conditions in which the vehicle is used to indicate when the Oil-change Service is required. Oil-change Service intervals are therefore variable and are conveniently indicated via the on-board service interval display.

Fixed Inspection Service Schedule
Variable LongLife Service Schedule

	Vehicle usage:		Vehicle usage:
Mileage	Less than 10,000 miles per annum	Mileage		More than 10,000 miles per annum
Type of journey	Mainly city/town centre driving.Short journeys	Type of journey		Motorway and main road driving. Mainly longer distance journeys. Constant speeds
Conditions	Frequent cold starts.High engine loading – e.g. frequent hill climbs, vehicle fully loaded, towing	Conditions		Normal engine loading – e.g. with little or no towing, with little or no hill climbs. Normal vehicle loading
Driving style	Uneconomical – e.g. heavy acceleration,heavy braking, constant changes in speed,constant use of high revs, ‘sporty’ driving	Driving style		Moderate acceleration, moderate braking,engine revs mainly below 3,000
	Service Intervals:		Service Intervals:
Oil-change Service	Fixed to every 9,000* miles/1 year	Oil-change Service		Variable to a maximum of every 19,000* miles/2 years
Inspection Service	Fixed to every 19,000* miles/2 years	Inspection Service		Fixed to every 19,000* miles/2 years

*As indicated by the service interval display. Mileages are approximate as the Service Indicator system uses kilometres as its distance measurement.

Additional information

Welcome to Audi

By placing an order for your Audi, you're choosing to get behind the wheel of one of the most sophisticated cars on the road. And because we believe the service we offer should be just as advanced, we wanted to let you know exactly what you can expect from us, now and in the future.

We've agreed a set of standards with all our Centres, which governs the way we do business with you. It outlines the kind of service we promise to deliver for every customer, right down to filling each new Audi we sell with half a tank of fuel.

So whether you're interested in the date your car will arrive in the UK or the way we'll dispose of non-biodegradable materials after we service your Audi, you can have total confidence in us.

Audi Promise

Audi Centres

We guarantee that all of our Centres will be open as follows:

Sales: Monday to Friday 9am-6pm Saturday 9am-5pm

Service: Monday to Friday 8am-6pm Saturday 8.30am-1pm

Sunday opening is at local discretion.

New car delivery

Once we've confirmed a delivery date for your car, we'll keep you informed of progress. Subject to reasonable notice, we'll then deliver it to a place of your choice, whether that's your home or place of work. In the unlikely event of a delay, we'll provide a courtesy car to minimise inconvenience and keep you mobile.

The experts in Vorsprung durch Technik

Would you entrust your Audi to anyone who hasn't been regularly trained to Audi standards? Our network of Audi Approved Master Technicians have undergone an impressive 100,000 hours of training over a 10-year programme to ensure they have the latest technical expertise for maintaining and servicing your Audi. All of our Service Advisors undergo a specialist induction and training to ensure they are Audi professionals and able to talk to you about any issues you may have with your Audi vehicle. What's more, we have so much expertise and experience in looking after Audi vehicles that we are able to make a note of your mileage and the state of your vehicle as and when we see it and predict when certain key events may occur. As part of our duty of care, we will notify you in plenty of time so you can make an appointment with us.

Your convenience comes first

At Audi you can choose from a range of convenient services that suit your needs. Why not book a ‘service while you wait’ appointment* and enjoy our complimentary refreshments while your car is with us? Or, if you need to be mobile, take advantage of one of our courtesy cars which we can even collect and deliver to you.* We guarantee we can service your Audi within 5 days without a courtesy car, or within 10 days if you need transport. We will also ensure your car is returned to you with a full valet.

Audi Genuine Parts

Would you put a part into your Audi that wasn't the same quality as the factory fitted original? You can rest assured that only Audi Genuine Parts will be used on your vehicle. What's more, Audi parts and labour come with a 2-year guarantee.** We stock a wide variety of parts, so we are well covered. However, if we don't have a part in stock at our Centre we have the back-up of parts at other Audi Centres, at our national warehouse and our factory and can usually source the relevant part very quickly.

We don't like surprises either

We believe strongly in transparency and there will be no hidden costs. For added peace of mind, we will give you a quotation over the phone for the work you have requested and email you the price confirmation. We'll consult you if any additional work on your car is needed when it is with us. We won't carry out any extra work without asking your permission first.

The Audi Stamp

Regular servicing is key to safeguarding your Audi's performance and a full Audi service history could help you preserve the future re-sale value of your car. Only the Audi Stamp will prove your approved Audi service history.

Getting better every time

We continually gather feedback from our Audi Trained Technicians, as well as our customers, to ensure our vehicles are running as they should. Whenever we see an Audi for a service, we connect it directly to our headquarters in Ingolstadt which enables us to check your car's software and make sure it's as up-to-date as possible. If the factory has released a software upgrade for your model, it can be applied immediately – improving anything from your car's efficiency to the precision of its parking system.

Environmental commitment

We promise to dispose of all non-biodegradable materials from your vehicle in a responsible manner

*Subject to availability.

**Excludes wear and tear.

Pricing information

Pricing

Prices and specifications given are correct at the time of printing. Always check details with your Audi Centre, as Audi policies are continually developing. We reserve the right to change prices or specifications at any time.

All prices are subject to VAT, currently charged at 15%, but this may alter to reflect any change in the applicable VAT rate.

Delivery charges and number plates are not included in the vehicle price.

Delivery charge	£471.30
Number plate	£20.00
VAT	£73.70
Total	£565.00

Audi Roadside Assistance

Your new car comes complete with complimentary roadside assistance and recovery across the UK provided by RAC Motoring Services. Also included is roadside assistance throughout Europe, managed by RAC Motoring Services.

Audi Customer Care

Every new Audi benefits from the comprehensive Audi Customer Care Package, which comprises:

▶ A 3-year Audi warranty, which covers you for unlimited mileage in the first 2 years of ownership, with a full mechanical and electrical warranty which covers you for up to 60,000 miles in the 3rd year
▶ A 3-year paint warranty
▶ A 12-year anti-corrosion warranty
- 3 years’ UK roadside assistance and recovery

This package, together with Audi variable service intervals, offers a combination unmatched by any other major manufacturer.

Contact your Audi Centre for full details.

Extended Warranty

1-year Warranty Extension.

Audi Warranty Extension prolongs your 3-year / 60,000-mile Audi warranty to 4 years or 75,000 miles (whichever comes sooner). Comprehensive cover equivalent to the Audi warranty protects you against unexpected repairs. This is only available when you buy a new car and it is transferable between owners.

Contact your Audi Centre for full details.

2-year Warranty Extension.

Audi Warranty Extension prolongs your 3-year / 60,000-mile Audi warranty to 5 years or 90,000 miles (whichever comes sooner). Comprehensive cover equivalent to the Audi warranty protects you against unexpected repairs. This is only available when you buy a new car and it is transferable between owners.

Contact your Audi Centre for full details.

Audi Tax-Free Sales

If you are entitled to purchase a vehicle free of VAT, normally through Military or Diplomatic privilege, please contact your local Audi Centre for full details.

Should you have any difficulty obtaining the information you require, please call Freephone 0800 585878.

Audi Finance

Audi Finance specialise in providing funding solutions for Audi drivers. Whether your Audi is for private or business use, there are a range of funding options to choose from.

Below is the full range of finance products.

• Solutions – a Personal Contract Plan
  ▶ Hire purchase
  ▶ Lease purchase
  ▶ Finance lease
  Contract hire

With all products, you can choose a fixed-cost maintenance plan designed to help you budget accurately.

No matter what Audi model you choose, your local Audi Centre can provide you with a personalised quote which could fit your budget and motoring needs.

Audi Finance is a trading name of Volkswagen Financial Services (UK) Limited. An offer of finance depends on certain conditions. Available to people over 18 in the UK only.

Audi Insurance

Competitive comprehensive motor insurance designed specially for Audi drivers. All new Audi models come with complimentary seven-day cover upon request – we'll email a cover note directly to your Audi Centre, enabling them to tax your car easily. This way, you can drive straight out of the showroom. Taking out an annual policy is easy and it can begin as soon as your free 7-day cover expires.

For more information, contact your local Audi Centre. Alternatively, call 0800 051 3146 for a quote and to receive 7 days' complimentary cover for your new Audi.

Audi Insurance is underwritten and administered by Zurich Insurance Company.

Notes

Audi UK

Customer Services

Selectapost 29

Sheffield

S97 3FG

0800 699888

www.audi.co.uk

Specifications and prices subject

to change without notice.

© Audi (UK)

Printed in the UK

Edition 1.0 10/09

2010 Model Year

FSC

Mixed Sources

Product group from well-managed

forests and other controlled sources

Cert no. TT-COC-002327

www.fsc.org

© 1996 Forest Stewardship Council
