304 - Tableau d'affichage Quartet - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Tableau d'affichage
Marque	Quartet
Modèle	304
Dimensions (L x H x P)	90 x 60 x 2 cm
Poids	2,5 kg
Surface d'affichage	Liège naturelle
Couleur du cadre	Argenté (aluminium)
Méthode de fixation	Crochets muraux inclus
Orientation	Paysage ou portrait
Fonctions principales	Affichage de documents avec punaises
Entretien et nettoyage	Nettoyer avec un chiffon sec ou légèrement humide
Sécurité	Bords arrondis pour éviter les blessures
Pièces détachées et réparabilité	Non applicable (produit non réparable par l'utilisateur)
Garantie	2 ans
Contenu de l'emballage	Tableau d'affichage, kit de fixation, notice d'utilisation
Utilisation recommandée	Bureau, salle de réunion, école
Matériau du cadre	Aluminium
Épaisseur du liège	5 mm
Température de stockage	-10 à 50 °C
Humidité relative	10% à 90% (sans condensation)

FOIRE AUX QUESTIONS - 304 Quartet

Comment installer le tableau Quartet 304 au mur ?

Utilisez le kit de fixation fourni. Marquez les trous au mur, percez, insérez les chevilles et vissez les supports. Accrochez le tableau en alignant les crochets.

Quel type de punaises utiliser sur la surface en liège ?

Utilisez des punaises standard ou des aiguilles à tête large. Évitez les punaises trop longues qui pourraient traverser le liège.

Comment nettoyer le tableau d'affichage ?

Utilisez un chiffon sec ou légèrement humide pour enlever la poussière. N'utilisez pas de produits chimiques agressifs.

Le tableau peut-il être utilisé en orientation portrait ?

Oui, les supports muraux permettent une installation en paysage ou en portrait.

Quelles sont les dimensions exactes du modèle 304 ?

Les dimensions sont de 90 cm de largeur, 60 cm de hauteur et 2 cm de profondeur.

Le cadre en aluminium est-il résistant à la rouille ?

Oui, l'aluminium est naturellement résistant à la corrosion.

Puis-je fixer des aimants sur le tableau ?

Non, la surface est en liège et n'est pas magnétique. Utilisez uniquement des punaises.

Le tableau est-il livré avec des accessoires de fixation ?

Oui, le kit de fixation (vis, chevilles, supports) est inclus.

Comment entretenir la surface en liège ?

Nettoyez régulièrement avec un chiffon doux. Évitez l'humidité excessive.

Quelle est la garantie du tableau Quartet 304 ?

La garantie est de 2 ans à compter de la date d'achat.

MODE D'EMPLOI 304 Quartet

EURO ALUMINUM FRAME BOARD - Mounting Instructions

*NOTE - For Dry-Erase Boards:

Before mounting board to wall, please refer to instructions in "Accessory Kit" to attach the marker tray to the board frame.

Step 1 Step 2

Determine board location. To position top hanging brackets, mark center hole of hanger 6" from outside edge of board and 1-3/8" down from top of board (A). Drill holes for each hanger in marked locations using a 1/4" drill bit. Tap anchor into hole flush to wall with metal "teeth" firmly embedded. Turn screw clockwise to expand metal legs. Stop when strong resistance is felt and legs are fully expanded.

Turn screw counter-clockwise to remove screw from anchor and re-insert through hanging bracket into wall anchor (B). Tighten firmly. Holding the board at (approx.) 15° angle, place the channel in the back of the frame over the wall hangers. Lower the board so it is flush to the wall (C).

Remove plastic corner caps (D), mark wall through top hole of each corner (E). Remove board from wall and drill holes in marked locations using a 1/4" drill bit. Install wall anchors as indicated in Step #1 (F). Re-hang board and insert screw through plastic corner and into wall anchor. Tighten firmly. Replace corner caps by pressing into place over the screws. (L-Brackets & Truss Head Screws are not required.)

ALUMINUM FRAME BOARD - Mounting Instructions

*NOTE - For Dry-Erase Boards:

Before mounting board to wall, please refer to instructions in "Accessory Kit" to attach the marker tray to the board frame.

Step 1

Determine board location. To position top hanging brackets, mark center hole of hanger 6" from outside edge of board and 7/8" down from top of board (A). Drill holes for each hanger in marked locations using a 1/4" drill bit. Tap anchor into hole flush to wall with metal "teeth" firmly embedded. Turn screw clockwise to expand metal legs. Stop when strong resistance is felt and legs are fully expanded.

Turn screw counter-clockwise to remove screw from anchor and re-insert through hanging bracket into wall anchor (B). Tighten firmly. Holding the board at (approx.) 15° angle, place the channel in the back of the frame over the wall hangers. Lower the board so it is flush to the wall (C).

Step 2

To position bottom "L" brackets, mark wall 1-5/8" up from bottom of board 6" from each outside edge (D). To position top "L" brackets, mark wall 1-5/8" down from top of board and a 1/4 of the board width from each outside edge. Drill holes in marked locations using a 1/4" drill bit. Insert wall anchors and mount "L" brackets as indicated in Step #1 (E). Hang board and mark frame through hole in each "L" bracket. Remove board and drill pilot hole at each mark with 1/8" drill bit. Re-hang board and insert #8 x 1/2" truss head screw through each "L" bracket and into pilot hole in frame (F). Tighten firmly.

WOOD FINISH FRAME BOARD – Mounting Instructions

*NOTE - For Dry-Erase Boards:

Before mounting board to wall, please refer to instructions in "Accessory Kit" to attach the marker tray to the board frame.

Step 1

Determine board location. To position top hanging brackets, mark center hole of hanger 6" from outside edge of board and 2-1/4" down from top of board (A). Drill holes for each hanger in marked locations using a 1/4" drill bit. Tap anchor into hole flush to wall with metal "teeth" firmly embedded. Turn screw clockwise to expand metal legs. Stop when strong resistance is felt and legs are fully expanded.

insert screws through hanging brackets into the wall anchor (B). Tighten firmly. Place the channel in the back of the frame over the wall hangers. Push top of frame down until board is fully engaged on hangers (C).

Step 2

To position bottom "L" brackets, mark wall 2-1/2" up from bottom of board 6" from each outside edge (D). To position top "L" brackets, mark wall 2" down from top of board and a 1/4 of the board width from each outside edge. Drill holes in marked locations using a 1/4" drill bit. Insert wall anchors and mount "L" brackets as indicated in Step #1 (E). Hang board and mark frame through hole in each "L" bracket. Remove board and drill pilot hole at each mark with 1/8" drill bit. Re-hang board and insert #8 x 1/2" truss head screw through each "L" bracket and into pilot hole in frame (F). Tighten firmly.

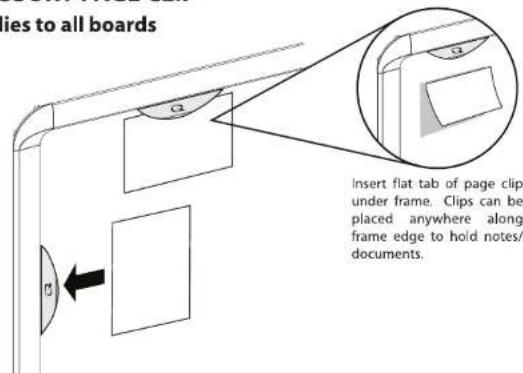

ACCESSORY PAGE CLIP

- Applies to all boards

Hardware Kit

Dry-Erase and Bulletin Board Installation Instructions

Illustration of a flat-screen monitor with a textured screen and a magnified inset showing the front portion (no text or symbols)
