2308 - Tableau d'affichage Quartet - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Tableau d'affichage
Marque	Quartet
Modèle	2308
Dimensions (L x H x P)	90 x 120 x 2 cm
Poids	2 kg
Matériaux	Cadre en aluminium, surface en liège ou tissu
Montage	Mural, avec système de fixation inclus (chevilles et vis)
Couleur	Gris ou noir (selon version)
Utilisation	Affichage de documents, notes, photos avec punaises ou aimants (selon surface)
Entretien	Nettoyer avec un chiffon doux et sec ; ne pas utiliser de produits abrasifs
Accessoires fournis	Kit de fixation murale, poignée de transport
Garantie	2 ans
Réparabilité	Surface remplaçable ; cadre réparable avec pièces détachées disponibles
Contenu de l'emballage	Tableau, kit de fixation, notice d'utilisation

FOIRE AUX QUESTIONS - 2308 Quartet

Comment fixer le tableau 2308 au mur ?

Utilisez le kit de fixation fourni. Percez des trous aux emplacements marqués, insérez les chevilles et vissez les supports muraux. Accrochez le tableau en alignant les encoches.

Quelle est la capacité de charge du tableau ?

Le tableau supporte jusqu'à 50 punaises ou 30 aimants légers (si surface magnétique).

Puis-je utiliser des aimants sur ce tableau ?

Cela dépend de la surface. Le modèle 2308 peut être fourni avec une surface magnétique. Vérifiez l'étiquette sur l'emballage.

Comment nettoyer le tableau sans l'abîmer ?

Utilisez un chiffon doux et sec pour dépoussiérer. Pour les taches, humidifiez légèrement le chiffon avec de l'eau et essuyez délicatement. N'utilisez pas de produits chimiques.

La surface est-elle réversible ou remplaçable ?

Oui, la surface en liège ou en tissu peut être retirée et remplacée. Contactez le service client Quartet pour commander une surface de rechange.

Quelles sont les dimensions exactes du tableau ?

Le tableau mesure 90 cm de large, 120 cm de haut et 2 cm d'épaisseur. La surface utile est de 88 x 118 cm.

Puis-je utiliser des punaises classiques ?

Oui, des punaises standard conviennent pour la surface en liège. Évitez les punaises trop longues qui pourraient traverser le panneau.

Le tableau est-il livré avec des accessoires ?

Oui, le kit de fixation murale (chevilles et vis) est inclus, ainsi qu'une poignée de transport pour faciliter le déplacement.

Comment transporter le tableau en toute sécurité ?

Utilisez la poignée intégrée au dos. Gardez le tableau à plat ou légèrement incliné pour éviter les chocs.

Où trouver la notice d'utilisation complète ?

La notice est disponible au format PDF sur le site notice-facile.com. Vous pouvez la télécharger gratuitement.

MODE D'EMPLOI 2308 Quartet

EURO ALUMINUM FRAME BOARD - Mounting Instructions

*NOTE - For Dry-Erase Boards:

Before mounting board to wall, please refer to instructions in "Accessory Kit" to attach the marker tray to the board frame.

Step 1 Step 2

Determine board location. To position top hanging brackets, mark center hole of hanger 6" from outside edge of board and 1-3/8" down from top of board (A). Drill holes for each hanger in marked locations using a 1/4" drill bit. Tap anchor into hole flush to wall with metal "teeth" firmly embedded. Turn screw clockwise to expand metal legs. Stop when strong resistance is felt and legs are fully expanded.

Turn screw counter-clockwise to remove screw from anchor and re-insert through hanging bracket into wall anchor (B). Tighten firmly. Holding the board at (approx.) 15° angle, place the channel in the back of the frame over the wall hangers. Lower the board so it is flush to the wall (C).

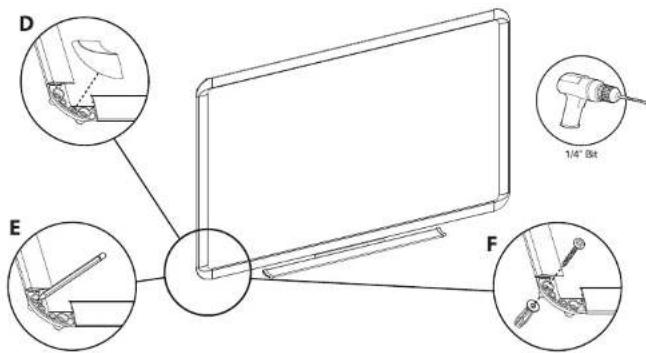

Remove plastic corner caps (D), mark wall through top hole of each corner (E). Remove board from wall and drill holes in marked locations using a 1/4" drill bit. Install wall anchors as indicated in Step #1 (F). Re-hang board and insert screw through plastic corner and into wall anchor. Tighten firmly. Replace corner caps by pressing into place over the screws. (L-Brackets & Truss Head Screws are not required.)

ALUMINUM FRAME BOARD - Mounting Instructions

*NOTE - For Dry-Erase Boards:

Before mounting board to wall, please refer to instructions in "Accessory Kit" to attach the marker tray to the board frame.

Step 1

Determine board location. To position top hanging brackets, mark center hole of hanger 6" from outside edge of board and 7/8" down from top of board (A). Drill holes for each hanger in marked locations using a 1/4" drill bit. Tap anchor into hole flush to wall with metal "teeth" firmly embedded. Turn screw clockwise to expand metal legs. Stop when strong resistance is felt and legs are fully expanded.

Turn screw counter-clockwise to remove screw from anchor and re-insert through hanging bracket into wall anchor (B). Tighten firmly. Holding the board at (approx.) 15° angle, place the channel in the back of the frame over the wall hangers. Lower the board so it is flush to the wall (C).

Step 2

To position bottom "L" brackets, mark wall 1-5/8" up from bottom of board 6" from each outside edge (D). To position top "L" brackets, mark wall 1-5/8" down from top of board and a 1/4 of the board width from each outside edge. Drill holes in marked locations using a 1/4" drill bit. Insert wall anchors and mount "L" brackets as indicated in Step #1 (E). Hang board and mark frame through hole in each "L" bracket. Remove board and drill pilot hole at each mark with 1/8" drill bit. Re-hang board and insert #8 x 1/2" truss head screw through each "L" bracket and into pilot hole in frame (F). Tighten firmly.

WOOD FINISH FRAME BOARD – Mounting Instructions

*NOTE - For Dry-Erase Boards:

Before mounting board to wall, please refer to instructions in "Accessory Kit" to attach the marker tray to the board frame.

Step 1

Determine board location. To position top hanging brackets, mark center hole of hanger 6" from outside edge of board and 2-1/4" down from top of board (A). Drill holes for each hanger in marked locations using a 1/4" drill bit. Tap anchor into hole flush to wall with metal "teeth" firmly embedded. Turn screw clockwise to expand metal legs. Stop when strong resistance is felt and legs are fully expanded.

insert screws through hanging brackets into the wall anchor (B). Tighten firmly. Place the channel in the back of the frame over the wall hangers. Push top of frame down until board is fully engaged on hangers (C).

Step 2

To position bottom "L" brackets, mark wall 2-1/2" up from bottom of board 6" from each outside edge (D). To position top "L" brackets, mark wall 2" down from top of board and a 1/4 of the board width from each outside edge. Drill holes in marked locations using a 1/4" drill bit. Insert wall anchors and mount "L" brackets as indicated in Step #1 (E). Hang board and mark frame through hole in each "L" bracket. Remove board and drill pilot hole at each mark with 1/8" drill bit. Re-hang board and insert #8 x 1/2" truss head screw through each "L" bracket and into pilot hole in frame (F). Tighten firmly.

ACCESSORY PAGE CLIP

- Applies to all boards

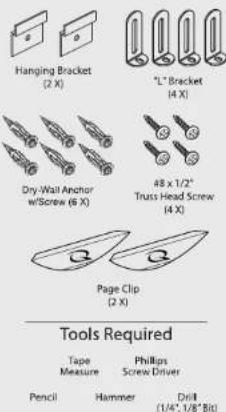

Hardware Kit

Dry-Erase and Bulletin Board Installation Instructions

Illustration of a flat-screen monitor with a textured screen and a magnified inset showing the front portion (no text or symbols)
