O 152 - Four à micro-ondes DELONGHI - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Four à micro-ondes
Marque	DeLonghi
Modèle	O 152
Dimensions extérieures (HxLxP)	225 x 425 x 330 mm
Dimensions intérieures (HxLxP)	170 x 295 x 265 mm
Volume de la cavité	12,5 L
Alimentation	220-240 V, 50/60 Hz
Puissance maximale	Voir plaque signalétique
Plage de température	60 °C à 270 °C
Minuterie	Jusqu'à 120 minutes, arrêt automatique avec signal sonore
Fonctions principales	Maintien au chaud, cuisson traditionnelle, grill, cuisson pizza sur pierre
Éléments chauffants	Supérieur et inférieur
Éclairage intérieur	Oui, allumé pendant le grill
Accessoires fournis	Lèchefrite, grille diététique, plateau de cuisson, pierre à pizza, poignée de grille
Nettoyage	Grille, lèchefrite et grille diététique lavables au lave-vaisselle ; surface extérieure avec éponge humide ; intérieur sans produits corrosifs
Sécurité	Porte en verre fragile, surfaces chaudes, ne pas immerger dans l'eau
Reparabilité	Ampoule remplaçable par un service agréé
Consommation énergétique	0,6 kWh pour chauffer à 200 °C et maintenir 1 heure

FOIRE AUX QUESTIONS - O 152 DELONGHI

Comment utiliser la fonction grill ?

Placez la grille en position 5 et la lèchefrite sur l'élément chauffant inférieur. Préchauffez 8 à 10 minutes à 270 °C. Fermez la porte jusqu'au premier clic. Utilisez la minuterie si nécessaire.

Quels accessoires sont fournis avec le four ?

Le four est livré avec une lèchefrite, une grille diététique, un plateau de cuisson, une pierre à pizza et une poignée de grille.

Comment nettoyer la pierre à pizza ?

Retirez les résidus avec une spatule. Pour un nettoyage plus poussé, chauffez la pierre au four et frottez avec une éponge abrasive. Rincez à l'eau chaude. N'utilisez pas de détergent.

Puis-je utiliser le four sans préchauffage ?

Il est conseillé de préchauffer le four à la température souhaitée pour de meilleurs résultats de cuisson, surtout pour la cuisson traditionnelle et le grill.

Comment régler la minuterie ?

Tournez le bouton de minuterie dans le sens horaire jusqu'au temps désiré (max 120 minutes). Pour moins de 10 minutes, tournez à fond puis revenez au temps voulu. Un signal sonore retentit à la fin.

Que faire si l'éclairage intérieur ne fonctionne plus ?

Vous pouvez continuer à utiliser le four. Pour remplacer l'ampoule, débranchez l'appareil, dévissez le capot en verre dans le sens antihoraire et remplacez par une ampoule de même type (résistante à la chaleur). Contactez un service agréé si nécessaire.

Est-il possible de cuire plusieurs plats en même temps ?

Oui, mais utilisez différentes positions de grille. Par exemple, les biscuits cuisent mieux en position 3, les pizzas en position 4. Adaptez les temps de cuisson.

Comment entretenir les parois intérieures en aluminium ?

N'utilisez pas de produits corrosifs pour l'aluminium (comme les sprays détergents). Nettoyez avec une éponge humide et du savon doux. Ne grattez pas avec des objets pointus.

Pourquoi la porte en verre doit-elle être manipulée avec précaution ?

Le verre est fragile et peut se briser en cas de choc ou de variation brutale de température. Ne versez pas de liquide froid sur la porte chaude. Remplacez la porte si elle est ébréchée ou rayée.

Quelle est la hauteur minimale pour installer le four ?

Placez le four sur une surface plane à au moins 85 cm du sol, hors de portée des enfants. Assurez-vous que la prise est correctement mise à la terre (10 A minimum).

MODE D'EMPLOI O 152 DELONGHI

GB

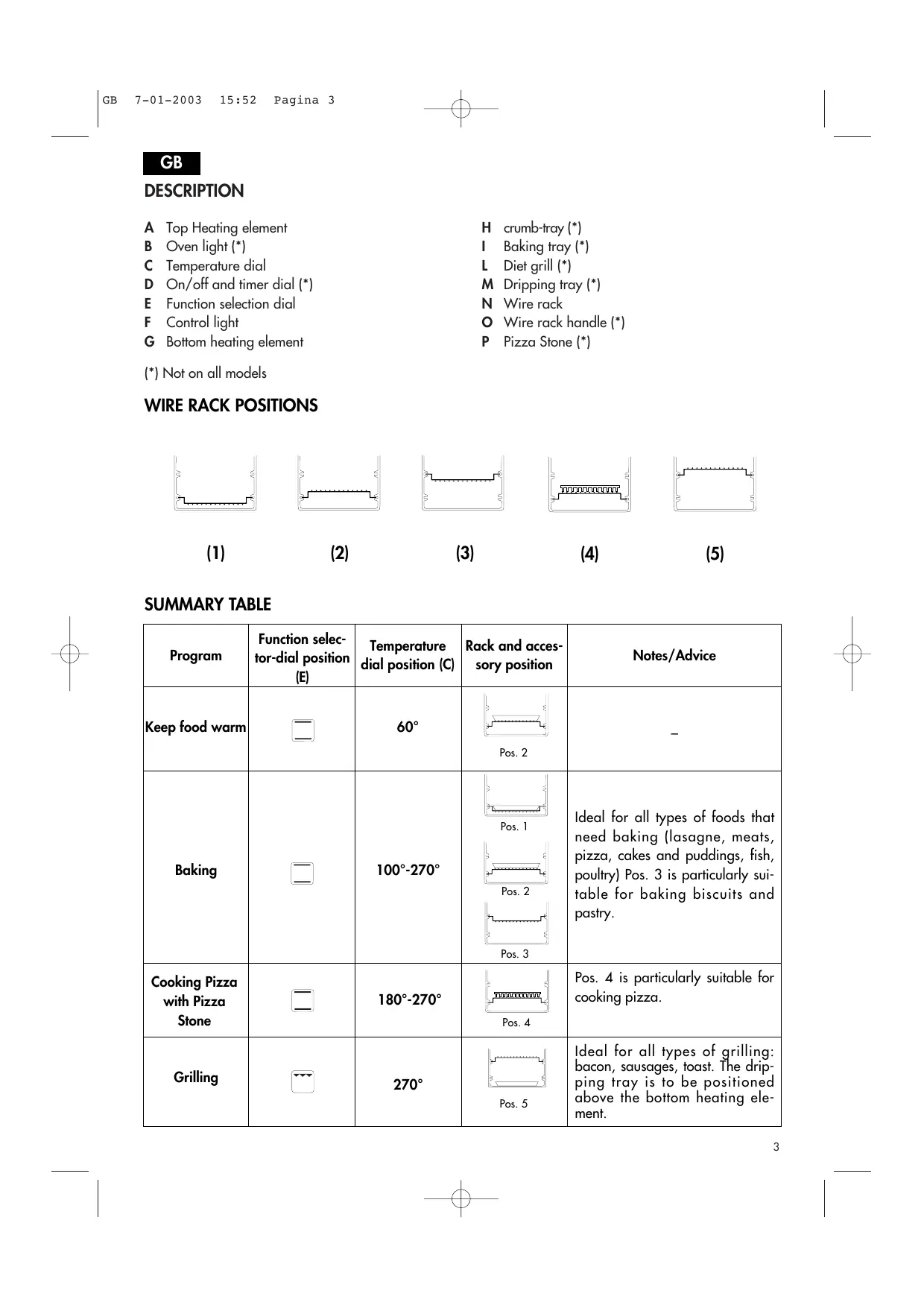

DESCRIPTION

A Top Heating element
B Oven light (^)
C Temperature dial
D On/off and timer dial (^)
E Function selection dial
F Control light
G Bottom heating element

H crumb-tray (^)
Baking tray (^)
L Diet grill (^)
M Dripping tray (^)
N Wire rack
Wire rack handle (^)
P Pizza Stone (^)

(^*) Not on all models

WIRE RACK POSITIONS

(1)

(2)

(3)

(4)

(5)

SUMMARY TABLE

Program	Function selec- tor-dial position (E)	Temperature dial position (C)	Rack and acces- sory position	Notes/Advice
Keep food warm		60°	Pos. 2	-
Baking		100°-270°	Pos. 1 Pos. 2 Pos. 3	Ideal for all types of foods that need baking (lasagne, meats, pizza, cakes and puddings, fish, poultry) Pos. 3 is particularly sui- table for baking biscuits and pastry.
Cooking Pizza with Pizza Stone		180°-270°	Pos. 4	Pos. 4 is particularly suitable for cooking pizza.
Grilling		270°	Pos. 5	Ideal for all types of grilling: bacon, sausages, toast. The dri- ping tray is to be positioned above the bottom heating ele- ment.

TECHNICAL DATA

Power rating see rating plate

Max. power load see rating plate

Outside dimensions (HxWxD) mm 225x425x330

Inside dimensions (HxWxD) mm 170x295x265

Cavity volume 12,5

ENERGY CONSUMPTION (CENELEC HD 376 NORM)

To heat to 200^ . .kW 0,1

To maintain 200^ for one hour kW 0,5

Total .kw 0,6

This appliance complies with Directive EEC 89/336 regarding the electromagnetic compatibility. All materials and objects destined to come into contact with foodstuffs are in compliance with what is set forth by EEC directive 89/109 and the enforcement Law Decree of January 25, 1992, n. 108.

WARNING:

1. This oven has been designed to cook foods. It must not be used for other purposes and should not be modified or tampered with in any way.
2. Prior to use, make sure that the appliance has not sustained damages during transport.
3. Place the appliance on a flat surface at least 85~cm high, out of reach of children.
4. While in use, the metal parts and the glass become very hot, operate the appliance by touching the plastic dials and handles only.

5. Before plugging in your appliance, check that:

6. the power supply corresponds to that shown on the rating plate, found on the bottom of the appliance;

7. the power socket has a minimum of 10A and is properly earthed:
   the manufacturer declines any responsibility in case this safety norm is not followed.

8. Carefully wash all accessories prior to use.

9. Before using, run the appliance without any foodstuffs, setting the temperature dial to max. level for at least 15 minutes to eliminate the "new" smell and some of the smoke caused by protective substances which are applied to the heating element for protection during transport. Air the room during this procedure.

10. Do not move the appliance while in use.
11. In case of replacement, use only power cables that are in compliance with the law, made of HO5 RRF rubber identical to that supplied with the appliance.

WARNING: Once having removed the appliance from the packaging, check that the door is intact. As the door is made from glass, it is fragile, and should be replaced if visibly chipped, scored or scratched. Furthermore, when using, cleaning or moving the appliance, do not slam or bang the door or pour cold liquids on the glass when the appliance is hot.

OPTIONAL ACCESSORIES

• DRIPPING TRAY (M):

• BAKING TRAY (I):

• DIET GRILL (L):

must be positioned below the diet grill. May be also used to cook liquid food. During the grill function it is to be positioned above the bottom heating element (G) so as to collect dripping fat.

must be positioned directly on to the diet grill. Ideal for cooking pastries and biscuits.

may be inserted inside of the dripping tray (M) in two different positions:

higher position

lower position

• WIRE RACK HANDLE (O):

for removing the wire rack during use.

OVEN LIGHT (B):

when the grill is in operation, the oven-light is always on.

If the light were to go out, you may continue to use the oven without any problems. See an authorized dealer for the light's replacement.

Some models are equipped with a twist-off light casing (1). To replace the light do the following: unplug the appliance from the wall, untwist the glass light-casing turning it anti-clockwise and replace the light with one of the same type (heat resistant) then twist back the glass light casing (1) into place.

USING THE COMMANDS

- Temperature dial (C)

Select the desired temperature, as follows:

• To keep food warm:
  Traditional oven baking:
  Grilling in general:

Temperature dial on position 60

Temperature dial position between 100^ and 270^ .

Temperature dial on position 270^

(not on all models)

• To turn oven on:
• To switch oven off:
• To program cooking times :

Turn dial to position.

Turn dial to "0" position.

Turn dial clockwise until desired time is set (max. 120 minutes) once set time has elapsed the appliance will give off a sound (^) and the oven will switch off automatically.
(^) only on some models.

For cooking times of less than 10 minutes, turn the dial all the way and then set it on to the desired time.

• Function selector dial (E)

GRILL

(upper element only, at maximum power)

TRADITIONAL OVEN

(upper and lower elements)

When turned this dial selects the functions available for your different types of cooking, meaning:

Control light (F)

When the control light is on this means the oven is heating up, when the light switches off this means that the oven has reached the pre-set temperature.

USING THE OVEN

- General advice

• When baking or grilling, it is advisable to always pre-heat the oven to the desired temperature, to get the best possible cooking results.
• Cooking times depend on the product quality, the food temperature and on individual taste. The times shown in the table are only indicative of thus susceptible to variations and do not take into account the time needed to pre-heat the oven.
• When cooking freeze-dried foods, check the times suggested in the products' packaging.

IMPORTANT

If your oven comes with a diet grill:

we suggest cooking chicken and roasts directly on the diet grill which rests directly on the dripping tray (see fig. on side) to avoid fat dripping to the bottom of the oven and on to the walls. Refer to the following paragraphs for further details.

- Keeping food hot

• Set the function control dial on
• Set the On-Off/Timer dial on (not on all models)
• Set the temperature to 60 , the control light (F) will come on.
• Insert the wire rack as shown in the table on page 3, and place the food on top of it.

Do not leave the food in the oven for a long time as it may become too dry.

Baking

• Insert the wire rack as show in the table on page 3.
• Set the function control dial to .
• Select the required temperature by turning the temperature dial (C).
• Set the On-Off/Timer dial (if fitted) on or to the required cooking time.
  Wait for the oven to reach the set temperature (control light goes out), then put the food in.

Recipe/quantity	Temperature	Time	Wire rack position	Comments and advice
Pizza (500gr)	270°	15'-18'	2	Use a well greased dripping tray
Bread (500gr)	270°	22'-26'	2	Use anoiled dripping tray
Lasagne (1kg)	200°	18'-22'	2	Use a Pyrex dish, turn after 10'.
Macaroni au gratin (1 kg)	200°	18'-22'	2	Use a Pyrex dish, turn after 10'.
Chicken (1 kg)	200°	70'-80'	1	Turn over when half cooked
Roast pork (1 kg)	200°	70'-80'	1	Turn over when half cooked
Meat loaf (650gr)	200°	45'-50'	2	Turn over when half cooked
Rabbit (800gr)	200°	50'-60'	2	Turn over when half cooked
Trout (500gr)	180°	30'-35'	2	Use a dripping tray, turn when half cooked
Fish au gratin (4 fillets)	180°	18'-22'	2	Use a dripping tray, turn when half cooked
Baked hake (4 slices)	180°	25'-30'	2	Use a dripping tray, turn when half cooked
Tomatoes au gratin (4, medium)	180°	40'-45'	2	Use an oiled dripping tray
Stuffed courgettes (2, halved)	180°	45'-50'	2	Use a dripping tray, turn when half cooked
Cauliflower cheese (800gr)	200°	18'-20'	2	Use a dripping tray
Roast potatoes (500gr)	200°	35'-40'	2	Turn 2-3 times during cooking
Plum cake	160°	85'-90'	1	Use rectangular cake-tin, turn when half baked
Biscuits (shortbreads)	170°	15'-18'	3	Use a dripping pan or baking tray, turn after 9 minutes
Jam tart	160°	40'-45'	2	Use a dripping tray, turn when half baked
Strudel	160°	35'-40'	2	Use a dripping tray, turn when half baked
Sponge cake	160°	25'-30'	2	Use a cake-tin, turn when half baked

Note: If supplied, the use of the appropriate accessories (baking tray, diet grill and dripping tray) is recommended.

• Cooking pizza with Pizza Stone
• Place the wire rack to position 4 (see "Summary Table") and place the special pizza stone on the rack.
• Set the temperature to 270^ and pre-heat the oven for 5-7 min.
• Set the function control dial to .
• Place the pizza on the pizza stone and cook for about 8 minutes at a temperature of 270^ C

N.B. Do not use oil or fat when cooking pizza.

Grilling
Insert the wire rack to position 5 and the dripping tray on to the bottom heating element. We suggest pouring two glasses of water into the dripping tray so as to avoid smoke and bad odors resulting from burning fat, and for ease in cleaning.
Turn the function selector dial to position
- Preheat the oven for about 8 to 10 minutes.
- Place food inside.
- Shut the door panel only until the first click, as shown in the diagram on the side.
The ON/OFF timer dial (if included) may be either on the setting or on the desired time setting (see: "use of commands" paragraph).

Recipe/quantity	Temperature dial	Times	Wire rack Position	Suggestions
Pork chop (2)	270°	19 min.	4	Turn over after 11 min.
Fresh hamburgers (2)	270°	13 min.	4	Turn over after 7 min.
Sausages (4)	270°	20 min.	4	Turn over after 11 min.
Toast (4 slices)	270°	2 min.	4	Turn over after 1 min. (*)

() : Dripping tray is not required when toasting bread.

CLEANING

CLEANING THE PIZZA STONE

• Remove cooking residue from the pizza stone with a spatula or a broad-blade knife. For more thorough cleaning, heat the pizza stone in the oven and clean with an abrasive pad. Rinse well in hot water. Do not use detergents.
  After a time, the pizza stone will tend to become darker. This does not affect its characteristics in any way.

CLEANING THE APPLIANCE

• Frequent cleaning avoids smoke and bad odors during cooking.
  Before any type of cleaning unplug the appliance from the wall.
• Never immerse the appliance in water.
  The grill, drip tray and diet grill may be washed as other kitchen ware, either by hand or in the dishwasher.
  To clean the outside surface always use a moist sponge. Avoid using abrasive products that could damage the finish. Ensure water or soap does not penetrate the inside of the oven through the vents positioned on top of the oven.
  To clean the inside aluminum walls never use aluminum-corrosive products (spray detergents) and never scrape the walls with sharp or pointed objects.

Some models come with a bottom opening-panel for easier access as well as cleaning, open the (H) panel by pressing on the spring-latch (fig.A), position the oven on its back (vertically) (fig.B). In this manner, your cleaning will be easier. Once cleaning is finished, close the panel and make sure that the latch is well closed.

fig.A

fig.B

GUARANTEE

If the guarantee is printed onto the packaging, it should be cut out, filled out completely and kept aside along with proof of purchase and showed to the technician prior to repairs being made.
