| Type product | LCD-monitor |
| Merk | IIYAMA |
| Model | ProLite E2208HDS |
| Schermdiagonaal | 21,5 inch (55 cm) |
| Resolutie (max.) | 1920 x 1080 (Full HD) |
| Paneeltype | a-Si TFT active matrix |
| Helderheid | 300 cd/m² (typisch) |
| Contrastverhouding | 1000:1 (typisch), ACR beschikbaar |
| Responstijd | 2 ms (grijs-naar-grijs) |
| Kijkhoek | 85° links/rechts/boven, 75° onder (typisch) |
| Aantal kleuren | 16,7 miljoen |
| Aansluitingen | D-Sub (VGA), DVI-D, audio-ingang (3,5 mm jack) |
| Luidsprekers | 2 x 1 W stereo |
| Afmetingen (b x h x d) | 516,5 x 386,0 x 193,0 mm |
| Gewicht | 4,2 kg |
| Voeding | 100-240 VAC, 50/60 Hz, 1,5 A |
| Stroomverbruik (typisch) | 43 W |
| Stroomverbruik (slaapstand) | < 1 W |
| Kantelhoek | 20° omhoog, 5° omlaag |
| VESA-montage | 100 x 100 mm |
| Plug & Play | VESA DDC2B compliant |
| Functies | Auto Setup, ACR, ECO-modus, OptiColor (Standaard/Kantoor/Film/Game/Landschap) |
| Reiniging | Zachte droge doek; bij hardnekkig vuil mild reinigingsmiddel |
| Veiligheid | Oververhittingsbeveiliging, netschakelaar, slot voor beveiligingskabel |
Veelgestelde vragen - ProLite E2208HDS IIYAMA
Gebruikersvragen over ProLite E2208HDS IIYAMA
0 vraag over dit apparaat. Beantwoord die u kent of stel uw eigen vraag.
Stel een nieuwe vraag over dit apparaat
Download de handleiding voor uw Scherm in PDF-formaat gratis! Vind uw handleiding ProLite E2208HDS - IIYAMA en neem uw elektronisch apparaat weer in handen. Op deze pagina staan alle documenten die nodig zijn voor het gebruik van uw apparaat. ProLite E2208HDS van het merk IIYAMA.
GEBRUIKSAANWIJZING ProLite E2208HDS IIYAMA
USER MANUAL ProLite
LCD Monitor
Dear user, we congratulate you on the purchase of your iiyama LCD.
For details on warranty and locally used pixel policies that apply directly after installation of your product please check the iiyama website.
To report a fault, please contact your local support centre found at www.iiyama.com/service
Things to check before you call the iiyama information line
| if the power cable is connected securely and turned on?
| if the display has been turned on?
I if the signal cable is connected securely and the correct input selected?
| if the computer has been restarted with the display connected?
| if the graphics card is correctly installed with the latest drivers possible?
| if the correct native resolution has been selected via 'Display Properties'?
| If the R/G/B signal configuration is correct?
| if the displays On Screen Menu is shown?
| if the correct brightness and contrast settings have been set?
I if given display tolerances and compatibility have been considered?
| if via the On Screen Menu you have performed a Factory Reset/Recall?
Before reporting the screen defect, please prepare the following information/evidence:
| model number *
| purchase receipt and serial number *
| name and address for collection
| telephone/fax number, for availability during the day
| convenient collection date (date, time)
| short description of the defect
Important Note:
If there is no fault found in the collected equipment after inspection, the transferring party shall incur charges for transport and administration.
If you have checked all of the above and there is still no picture, call our information line for assistance in your country.
TABLE OF CONTENTS
FOR YOUR SAFETY.... 1
SAFETY PRECAUTIONS 1
SPECIAL NOTES ON LCD MONITORS.... 3
CUSTOMER SERVICE.... 3
CLEANING.... 3
BEFORE YOU OPERATE THE MONITOR.... 4
FEATURES 4
CHECKING THE CONTENTS OF THE PACKAGE 4
FITTING AND REMOVAL OF BASE 5
CONTROLS AND CONNECTORS 6
CONNECTING YOUR MONITOR....7
COMPUTER SETTING 8
ADJUSTING THE HEIGHT AND THE VIEWING ANGLE 8
OPERATING THE MONITOR.... 9

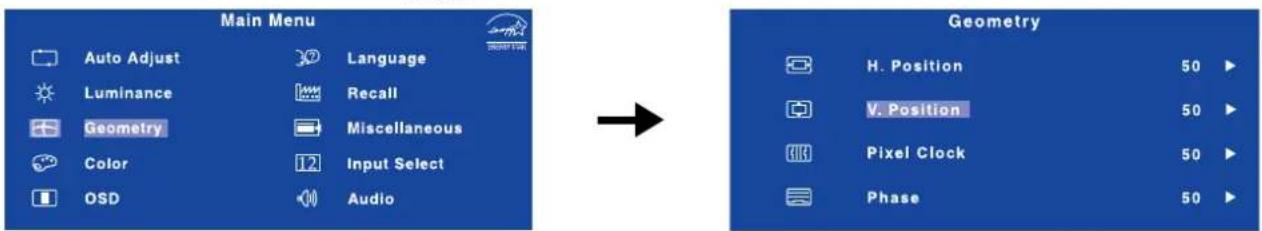

ADJUSTMENT MENU CONTENTS 10
SCREEN ADJUSTMENTS....15
POWER MANAGEMENT FEATURE 18
TROUBLE SHOOTING 19
RECYCLING INFORMATION....20
APPENDIX 21
SPECIFICATIONS : ProLite E2208HDS 21
SPECIFICATIONS : ProLite E2208HDD 22
DIMENSIONS 23
COMPLIANT TIMING....23
CE MARKING DECLARATION OF CONFORMITY
This LCD monitor complies with the requirements of the EC Directive 2004/108/EC "EMC Directive", 2006/95/EC "Low Voltage Directive" and 2005/32/EC "EuP Directive".
The electro-magnetic susceptibility has been chosen at a level that gives correct operation in residential areas, business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings. All places of operation are characterised by their connection to the public low voltage power supply system.
We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address:
http://www.iiyama.com
You can access the Web page of different countries from there.
■ We reserve the right to change specifications without notice.
■ All trademarks used in this user manual are the property of their respective owners.
FOR YOUR SAFETY
SAFETY PRECAUTIONS
WARNING
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE
If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.
NEVER REMOVE THE CABINET
High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of fire or electric shock.
DO NOT PUT ANY OBJECT INTO THE MONITOR
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage.
INSTALL THE MONITOR ON A FLAT, STABLE SURFACE
The monitor may cause an injury if it falls or is dropped.
DO NOT USE THE MONITOR NEAR WATER
Do not use where water may be splashed or spilt onto the monitor as it may cause fire or electric shock.
OPERATE UNDER THE SPECIFIED POWER SUPPLY
Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will cause malfunction and may cause fire or electric shock.
PROTECT THE CABLES
Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy objects on the cables. If damaged, the cables may cause fire or electric shock.
ADVERSE WEATHER CONDITIONS
It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may cause electric shock.
CAUTION
INSTALLATION LOCATION
Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor.
DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION
The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
MAINTAIN GOOD VENTILATION
Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fire. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls.
Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the cabinet will be blocked and the monitor may overheat if the stand is removed. This may cause fire or damage. Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also cause damage.
DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR
When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal cable is disconnected. If you do not disconnect them, it may cause fire or electric shock.
UNPLUG THE MONITOR
If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid accidents.
HOLD THE PLUG WHEN DISCONNECTING
To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself as this may cause fire or electric shock.
DO NOT TOUCH THE PLUG WITH WET HANDS
Pulling or inserting the plug with wet hands may cause electric shock.
WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER
Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage your computer.
DO NOT USE THE MONITOR FOR 24-HOURS CONTINUOUSLY
The monitor is not designed to work for 24-hours continuously, do not use the monitor for 24-hours continuously.
OTHERS
ERGONOMIC RECOMMENDATIONS
To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room. For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches) away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is recommended as looking at the screen continuously can cause eye strain.
SPECIAL NOTES ON LCD MONITORS
The following symptoms are normal with LCD monitors and do not indicate a problem.
NOTE
■ When you first turn on the LCD monitor, the picture may not fit in the display area because of the type of computer that is used. In this case, adjust the picture position to the correct position.
■ Due to the nature of the backlight, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.
■ You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
■ Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours.
■ Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself.
CUSTOMER SERVICE
NOTE
■ The fluorescent light used in the LCD monitor may have to be periodically replaced. For the warranty coverage on this component, please check with local iiyama service center.
If you have to return your unit for service and the original packaging has been discarded, please contact your dealer or iiyama service center for advice or replacement packaging.
CLEANING
WARNING
If you drop any materials or liquids such as water into the monitor when cleaning, unplug the power cable immediately and contact your dealer or iiyama service center.
■ For safety reasons, turn off the power switch and unplug the monitor before you clean it.
■ To protect the LCD panel, do not scratch or rub the screen with a hard object.
■ Never use any of the following strong solvents. These will damage the cabinet and the LCD screen.
CAUTION
NOTE
| Thinner | Spray-type cleaner |
| Benzine | Wax |
| Abrasive cleaner | Acid or Alkaline solvent |
■ Touching the cabinet with any product made from rubber or plastic for a long time may cause degeneration or loss of paint on the cabinet.
CABINET
Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then wipe the cabinet with a soft dry cloth.
LCD
Periodic cleaning with a soft dry cloth is recommended.
SCREEN
Don't use tissue paper etc. because these will damage the LCD screen.
BEFORE YOU OPERATE THE MONITOR
FEATURES
◆ Supports Resolutions up to 1920 × 1080
◆ High Contrast 1000:1 (Typical), ACR Function Available / Brightness 300cd/m² (Typical)
◆ Quick Response Time 2ms (Gray to Gray) : ProLite E2208HDS
Quick Response Time 5ms (Typical) : ProLite E2208HDD
◆ Digital Character Smoothing
◆ Automatic Set-up
◆ Stereo Speakers : ProLite E2208HDS 2 × 1W Stereo Speakers
◆ Plug & Play VESA DDC2B Compliant Windows® 95/98/2000/Me/XP/Vista/7 Compliant
◆ Power Management (VESA DPMS Compliant)
◆ VESA Mounting Standard (100mm×100mm) Compliant
Keyhole for Security Lock
CHEKING THE CONTENTS OF THE PACKAGE
The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.
■ Power Cable*1
■ D-Sub Signal Cable
■ DVI-D Cable
■ Audio Cable *2
■ Stand-Base
■ Quick Start Guide
CAUTION
*1 The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using a power supply higher than this rating, then a power cable with a rating of 10A/250V must be used. However, all guarantees and warranties are void for any problems or damage caused by a power cable not supplied by iiyama. *2 Accessory for ProLite E2208HDS.
FITTING AND REMOVAL OF BASE
The monitor is supplied complete with a stand. If you prefer to wall mount the monitor, please follow the instructions below to remove the stand. Be sure to include the stand with the monitor if it is necessary to return the unit.
CAUTION
- Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped.
■ Do not give a strong impact to the monitor. It may cause damage.
■ Unplug the monitor before removal or installation to avoid electric shock or damage.
① Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down.
② The Stand-Bottom is pulled up as shown in the figure.
③ Install the Stand-Base to the Stand-Bottom.


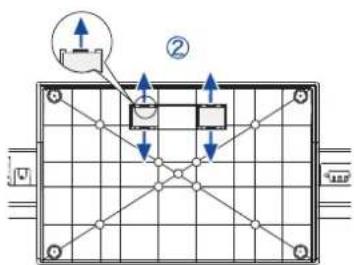

② Hold down the hooks outside and pull the Stand-Base away from the Stand-Bottom.
CONTROLS AND CONNECTORS
① Power Indicator
NOTE
Blue: Normal operation
Orange: Power Management
The monitor enters into power management mode which reduces the power consumption to less than 1W when receiving no horizontal and/or vertical sync signal.
② Power Switch ( ⏻ )
③ Menu / Select Button (ENTER)
④ Scroll Up / Brightness Button (▶)
⑤ Scroll Down / ECO Mode Button 1 (◀)
⑥ Exit / OptiColor Button 1 (EXIT)
⑦ Auto Button (AUTO)
⑧ Speakers*2
⑨ D-SUB mini 15pin Connector (D-SUB)
⑩ DVI-D 24pin Connector (DVI-D)
⑪ AC Connector (POWER IN)
⑫ Audio Connector *2 (LINE IN)
⑬ Keyhole for Security Lock
NOTE
You can fasten a security lock and cable to prevent the monitor from being removed without your permission.
1 You can skip the Menu items and display an adjustment scale directly.
2 Available for ProLite E2208HDS only.
CONNECTING YOUR MONITOR
① Ensure that both the computer and the monitor are switched off.
② Connect the computer to the monitor with the signal cable.
③ Connect the monitor to the audio equipment with the Audio Cable for computer when using the audio features.
④ Connect the Power Cable to the monitor first and then to the power supply.
⑤ Power of the monitor and the computer is turned on.
NOTE
■ The signal cables used for connecting the computer and monitor may vary with the type of computer used. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.
■ For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor.
■ Make sure you tighten the finger screws at each end of the signal cable.
[Example of Connection]
* Available for ProLite E2208HDS only.

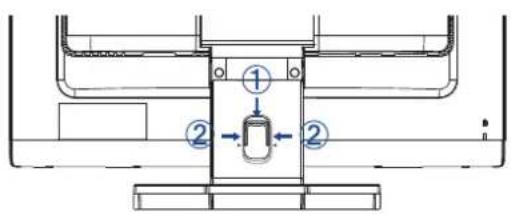

[ Fitting and Removal of Cable Holder ]
- Removal
① Pull out the hook.
② Hold the both sides of the hook, and remove one tab at a time.
- Fitting
① Collect cables at the back of the stand.
② Hold the both sides of the hook, and insert one tab at a time into the holes.
COMPUTER SETTING
■ Signal Timing
Change to the desired signal timing listed on page 23: COMPLIANT TIMING.
■ Windows 95/98/2000/Me/XP/Vista/7 Plug & Play
The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied.
For installation on Windows 95/98/2000/Me/XP: The monitor Information File for iiyama monitors may be necessary for your computer and obtained via the Internet, using the address:
http://www.iiyama.com
NOTE
■ For additional information on how to download the driver for your touch screen monitor, please access the internet site noted above.
■ Monitor Drivers are not required in most cases for Macintosh or Unix operating systems. For further information, please contact your computer dealer first for advice.

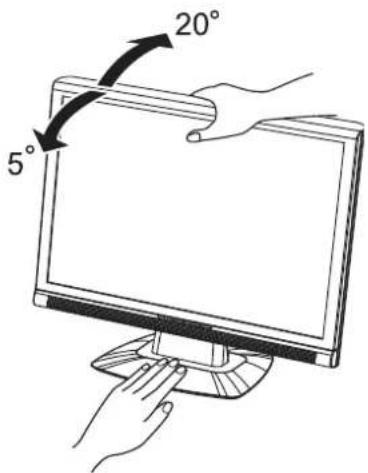

ADJUSTING THE VIEWING ANGLE
■ For optimal viewing it is recommended to look at the full face of the monitor.
■ Hold the stand so that the monitor does not topple when you change the monitor's angle.
■ You are able to adjust the monitor's angle up to 20irc upward, 5irc downward.
In order to ensure a healthy and relaxed body position when using the monitor at visual display workstations, it is recommended that the adjusted tilt angle should not exceed 10 degrees. Adjust the monitor's angle to your own preference.
NOTE
■ Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
■ Careful attention is required not to catch your fingers or hands when you change the angle.
■ Do not tilt the post beyond 20 degrees except when repacking the monitor in its box.
To do so may cause the monitor to fall over and break.
OPERATING THE MONITOR
To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 23. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 15 for SCREEN ADJUSTMENTS.
① Press the ENTER Button to start the On Screen Display feature. There are additional Menu items which can be switched by using the ◀/▶ Buttons.
② Select the Menu item which contains the adjustment icon relating to the adjustment you want to make. Press the ENTER Button. Then, use the ◀/▶ Buttons to highlight the desired adjustment icon.
③ Press the ENTER Button again. Use the ◀/▶ Buttons to make the appropriate adjustment or setting.
④ Press the EXIT Button to leave the menu, and the settings you just made would be automatically saved.
For example, to correct for vertical position, select Menu item of Geometry and then press the ENTER Button. Then, select □ (V.Position) by using the ◀/▶ Buttons.
An adjustment page appears after you press the ENTER Button. Then, use the ◀/▶ Buttons to change the vertical position settings. The vertical position of the overall display should be changing accordingly while you are doing this.
Press the EXIT Button lastly, it ends, all changes are saved in the memory.
NOTE
■ When button operations are aborted during adjustment, On-Screen Display disappears when the time set for the OSD Time has passed. Also, press the EXIT button to quickly turn off the On-Screen Display.
■ Any changes are automatically saved in the memory when the On Screen Display disappears. Turning off the power should be avoided while using the Menu.
■ Adjustments for H. / V. Position, Pixel Clock and Phase are saved for each signal timing. Except for these adjustments, all other adjustments have only one setting which applies to all signal timings.
9 OPERATING THE MONITOR
ADJUSTMENT MENU CONTENTS
| Auto Adjust Only Analog Input | ||
| Adjustment Item | Problem / Option | Button to Press |
| Auto Adjust * Direct | Adjust H. / V. Position, Pixel Clock and Phase automatically. | |
* For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 15 for SCREEN ADJUSTMENTS.
Direct
You can skip the Menu items and display an adjustment scale directly by using the following button operations.
● Auto Adjust: Press the Auto Button when the Menu is not displayed.
 Luminance *1 | |||
| Adjustment Item | Problem / Option | Button to Press | |
 Brightness *2 Direct | Too darkToo bright | ||
 Contrast | Too dullToo intense | ||
*1 Luminance adjustment disabled when ACR mode is active.
*2 Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright.
Direct
You can skip the Menu items and display an adjustment scale directly by using the following button operations.
● Brightness: Press the ▶ Button when the Menu is not displayed.
| [27G5] Geometry Only Analog Input | |||
| Adjustment Item | Problem / Option | Button to Press | |
 H. Position | Too leftToo right | ||
 V. Position | Too lowToo high | ||
 Pixel Clock | Too narrowToo wide | ||
 Phase | To correct flickering text or lines | ||
| Adjustment Item | Problem / Option | Button to Press | ||
| 9300K | Bluish white | |||
| 7500K | Yellowish white | |||
| 6500K | Reddish white | |||
| User Preset | Red | Too weakToo strong | ||
| Green | ||||
| Blue | ||||
| Adjustment Item | Problem / Option | Button to Press | ||
 | H.Position | OSD is too leftOSD is too right | ||
 | V.Position | OSD is too lowOSD is too high | ||
 | OSD Time | You can set the OSD display duration time between 5 and 30 seconds. | ||
| Language | |||||
| Adjustment Item | Problem / Option Button to Press | ||||
| Language | English | English | Español Spanish | ||
| Français | French | Nederlands Dutch | |||
| Deutsch | German | 日本語 Japanese | |||
| Italiano | Italian | 简体中文 Simplified Chinese | |||
| Polski | Polish | Русский Russian | |||
| Recall | |||
| Adjustment Item | Problem / Option | Button to Press | |
| Recall All | Yes | Factory-preset data is restored. | |
| No | Return to Menu. | ||
 Miscellaneous | |||
| Adjustment Item | Problem / Option | Button to Press | |
 Sharpness | 1 2 3 4 5  You can change the picture quality from 1 to 5 (sharp to soft).Press the ► Button to change the picture quality in numerical order. Press the ◀ Button to change the picture quality in reverse numerical order. | ||
 DDC/CI | On | DDC/CI is turned ON. | |
| Off | DDC/CI is turned OFF. | ||
 DDC/CI On and Off are switched as follows by pressing the ► Button successively.→On → Off — | |||
 Display Information | Displays information regarding the current input signal coming from the graphic card in your computer.MiscellaneousDisplay Information1920x1080 @ 60 HzNOTE See your graphic card user guide for more information about changing the resolution and refresh. | ||
 ACR | On | Increased Contrast Ratio | |
| Off | Typical Contrast Ratio | ||
 Display Mode | Full | Expansion display | |
| Aspect | Expansion display of Aspect | ||
 OD* | On | Increased Response time | |
| Off | Typical Response time | ||
* Available for ProLite E2208HDS only.
| 12 Input Select | |||
| Adjustment Item | Problem / Option Button to Press | ||
| 12 Input Select | D-sub | Select the Analog input. | |
| DVI | Select the Digital input. | ||
| NOTE When only one of the two signal inputs is connected to the signal source, the one connected is automatically selected. Input Select function is not available if there is no signal input from the selected connector or during the power management mode. | |||
| Audio* | |||
| Adjustment Item | Problem / Option | Button to Press | |
| Volume | Too softToo loud | ||
| Mute | On | Turn off the sound temporarily. | |
| Off | Return the sound volume to the previous level. | ||
| NOTE ▪ Mute On and Off are switched as follows by pressing the ▶ Button successively.→ On → Off — | |||
* Available for ProLite E2208HDS only.
Direct
You can skip the Menu items and display an adjustment scale directly by using the following button operations.
- ECO Mode : Press the ◀ Button when the Menu is not displayed.
On : Brightness of back light is reduced.
Off : Normal
- OptiColor : Press the EXIT Button when the Menu is not displayed.
Standard : For general windows environment and monitor default setting.
Office : For text editing and viewing in a word processing environment.
Movie : For movie and video environment.
Game : For PC game environment.
Scenery : For displaying outdoor scenery images.
SCREEN ADJUSTMENTS
Adjust the image by following the procedure below to get the desired picture when selecting Analog input.
■ The screen adjustments described in this manual are designed to set image position and minimize flicker or blur for the particular computer in use.
■ The monitor is designed to provide the best performance at resolution of 1920 × 1080 , but can not provide the best at resolutions of less than 1920 × 1080 because the picture is automatically stretched to fit the full screen. It is recommended to operate at resolution of 1920 × 1080 in normal use.
■ Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to the screen enlargement process.
It is preferable to adjust the image position and frequency with the monitor controls, rather than the computer software or utilities.
■ Perform adjustments after a warm-up period of at least thirty minutes.
■ Additional adjustments may be required after the Auto Adjust depending on the resolution or signal timing.
■ The Auto Adjust may not work correctly when displaying the picture other than the screen adjustment pattern. In this case, manual adjustments are required.
There are two ways to adjust the screen. One way is automatic adjustment for Position, Pixel Clock and Phase. The other way is performing each adjustment manually.
Perform the Auto Adjust first when the monitor is connected to a new computer, or resolution is changed. If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com).
Adjust the image by following the procedure below to get the desired picture. This manual explains adjustment under Windows 95/98/2000/Me/XP/Vista/7.
① Display the picture at the optimum resolution.
② Enter the Test.bmp (screen adjustment pattern) to wallpaper.
NOTE
■ Consult the appropriate documentation for doing this.
■ Test.bmp is made at resolution of 1280 × 1024. Set the display position to center in the wallpaper setting dialogue box. If you use Microsoft® PLUS! 95/98 cancel the setting of "Stretch desktop wallpaper to fit the screen".
[Adjustment pattern]
③ Press the Auto Button. (Auto Adjust)
④ Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust.
⑤ Adjust the V.Position so that the top and bottom of the picture frame will fit to the display area.


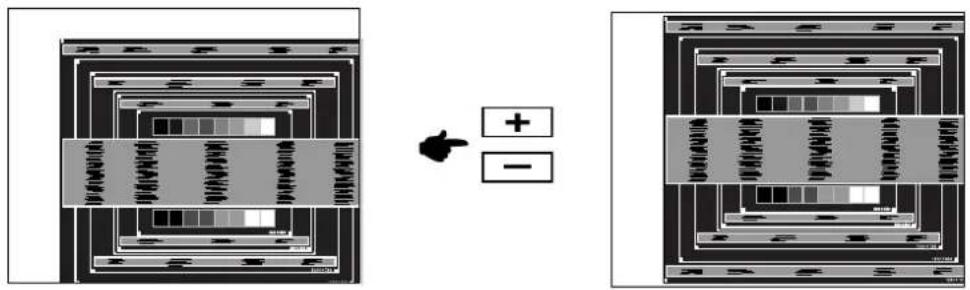

⑥ 1) Adjust the H.Position so that the left side of the picture frame will move to the left edge of the display area.


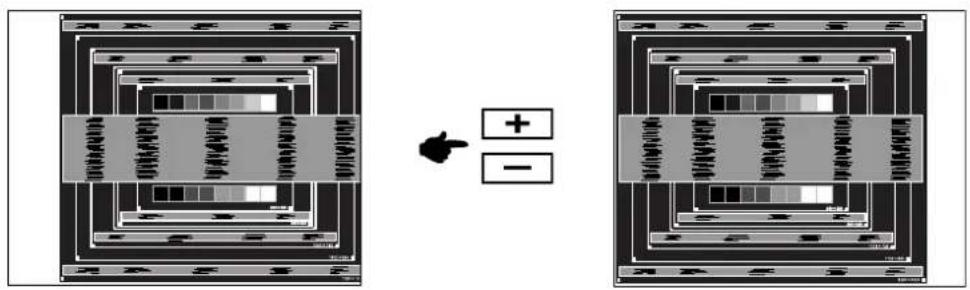

2) Stretch the right side of the picture frame to the right edge of the display area by adjusting the Pixel Clock.
NOTE
■ When the left side of the picture frame moves apart from the left edge of the display area during the Pixel Clock adjustment, adjust steps 1) and 2).
■ Another way to make the Pixel Clock adjustment is to correct the vertical wavy lines in the zebra pattern.
■ The picture may flicker during the Pixel Clock, H.Position and V.Position adjustment.
In case the picture frame is bigger or smaller than the data display area after the Pixel Clock adjustment, repeat steps from ③.

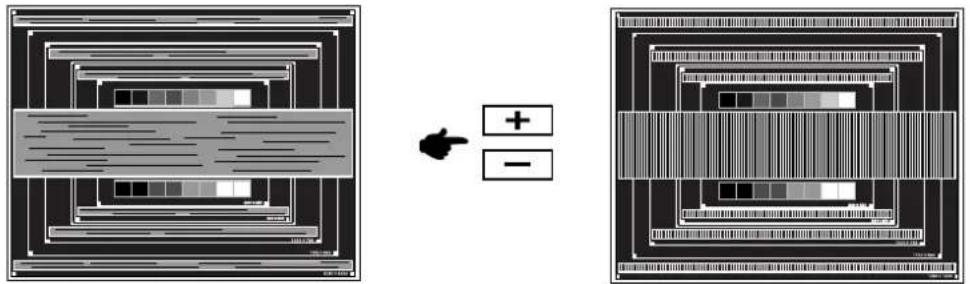

⑦ Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern.
NOTE
In case the strong flicker or blurs remain on a part of the screen, repeat steps ⑥ and ⑦ because the Pixel Clock may not be adjusted correctly. If the flicker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from ③ again.
■ Adjust the H.Position after the Phase adjustment if the horizontal position moves during the adjustment.
⑧ Adjust the Brightness and Color to get the desired picture after you complete the Pixel Clock and Phase adjustments.
Put back your favorite wallpaper.
POWER MANAGEMENT FEATURE
The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use.
To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured.
■ Power Management Mode
When the H-sync signal / V-sync signal / H and V sync signals from the computer are off, the monitor enters into Power Management Mode which reduces the power consumption to less than 1W. The screen becomes dark, and the power indicator turns to orange. From Power Management Mode, the image reappears in several seconds when either the keyboard or the mouse are touched again.
NOTE
■ Even when using the power management mode, the monitor consumes electricity. Turn off the Power Switch whenever the monitor is not in use, during the night and weekends, to avoid unnecessary power consumption.
It is possible that the video signal from the computer may be on while the H or V sync signal is missing. In this instance, the POWER MANAGEMENT feature may not work properly.
TROUBLE SHOOTING
If the monitor fails to operate correctly, please follow the steps below for a possible solution.
- Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you have. If the monitor does not get a picture, skip to 2.
- Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists.
- If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance.
Problem
① The picture does not appear.
(Power indicator does not light up.)
Check
☐ The Power Cable is firmly seated in the socket.
☐ The Power Switch is turned ON.
☐ The AC socket is live. Please check with another piece of equipment.
(Power indicator is blue.)
☐ If the blank screen saver is in active mode, touch the keyboard or the mouse.
☐ Increase the Contrast and/or Brightness.
□ The computer is ON.
☐ The Signal Cable is properly connected.
☐ The signal timing of the computer is within the specification of the monitor.
(Power indicator is orange.)
☐ If the monitor is in power management mode, touch the keyboard or the mouse.
□ The computer is ON.
☐ The Signal Cable is properly connected.
☐ The signal timing of the computer is within the specification of the monitor.
② The screen is not synchronized.
☐ The Signal Cable is properly connected.
☐ The signal timing of the computer is within the specification of the monitor.
☐ The video output level of the computer is within the specification of the monitor.
③ The screen position is not in the center.
☐ The signal timing of the computer is within the specification of the monitor.
④ The screen is too bright or too dark.
☐ The video output level of the computer is within the specification of the monitor.
Problem
Check
⑤ The screen is shaking.
- The power voltage is within the specification of the monitor. - The signal timing of the computer is within the specification of the monitor.
⑥ No sound.
- The audio equipment (computer etc.) is ON. - The Audio Cable is properly connected. - The Volume is turned up. - The Mute is OFF. - The audio output level of the audio equipment is within the specification of the monitor.
⑦ The sound is too loud or too quiet.
☐ The audio output level of the audio equipment is within the specification of the monitor.
⑧ A strange noise is heard.
☐ The Audio Cable is properly connected.
RECYCLING INFORMATION
For better environment protection please don't dispose your monitor.
Please visit our web site: www.iiyama.com/recycle for monitor recycling.
SPECIFICATIONS : ProLite E2208HDS
| Size Category | 22" | |
| LCD Panel | Driving system | a-Si TFT Active Matrix |
| Size | Diagonal: 21.5" (55cm) | |
| Pixel pitch | 0.248mm H × 0.248mm V | |
| Brightness | 300cd/m2(Typical) | |
| Contrast ratio | 1000 : 1 (Typical), ACR Function Available | |
| Viewable angle | Right / Left : 85 degrees each, Up : 85 degrees , Down : 75 degrees (Typical) | |
| Response time | 2ms (Gray to Gray) | |
| Display Colors | Approx.16.7M | |
| Sync Frequency | Horizontal: 31.0-83.0kHz, Vertical: 56-75Hz | |
| Maximum Resolution | 1920 × 1080, 2.1 MegaPixels | |
| Input Connector | D-Sub mini 15 pin, DVI-D 24 pin | |
| Plug & Play | VESA DDC2B TM | |
| Input Sync Signal | Separate sync: TTL, Positive or Negative | |
| Input Video Signal | Analog: 0.7Vp-p (Standard), 75Ω, PositiveDigital: DVI (Digital Visual Interface Standard Rev.1.0) compliance | |
| Input Audio Connector | ø 3.5mm mini jack (Stereo) | |
| Input Audio Signal | 0.5Vrms maximum | |
| Speakers | 1W × 2 (Stereo speakers) | |
| Maximum Screen Size | 476.64mm W × 268.11mm H / 18.8" W × 10.6" H | |
| Power Source | 100-240VAC, 50/60Hz, 1.5A | |
| Power Consumption* | 43W typical, Power management mode: 1W maximum | |
| Dimensions / Net Weight | 516.5 × 386.0 × 193.0mm / 20.3 × 15.2 × 7.6" (W×H×D)4.2kg / 9.3lbs | |
| Tilt Angle | Upward: 20 degrees Downward: 5 degrees | |
| Environmental Considerations | Operating: Temperature 5 to 35°C / 41 to 95°FHumidity 10 to 80% (No condensation)Storage: Temperature -20 to 60°C / -4 to 140°FHumidity 10 to 70% (No condensation) | |
| Approvals | CE, TÜV-Bauart, VCCI-B, CU | |
NOTE
* Audio equipment is not connected.
SPECIFICATIONS : ProLite E2208HDD
| Size Category | 22" | |
| LCD Panel | Driving system | a-Si TFT Active Matrix |
| Size | Diagonal: 21.5" (55cm) | |
| Pixel pitch | 0.248mm H × 0.248mm V | |
| Brightness | 300cd/m2(Typical) | |
| Contrast ratio | 1000 : 1 (Typical), ACR Function Available | |
| Viewable angle | Right / Left : 85 degrees each, Up : 85 degrees , Down : 75 degrees (Typical) | |
| Response time | 5ms (Typical) | |
| Display Colors | Approx.16.7M | |
| Sync Frequency | Horizontal: 31.0-83.0kHz, Vertical: 56-75Hz | |
| Maximum Resolution | 1920 × 1080, 2.1 MegaPixels | |
| Input Connector | D-Sub mini 15 pin, DVI-D 24 pin | |
| Plug & Play | VESA DDC2BTM | |
| Input Sync Signal | Separate sync: TTL, Positive or Negative | |
| Input Video Signal | Analog: 0.7Vp-p (Standard), 75Ω, PositiveDigital: DVI (Digital Visual Interface Standard Rev.1.0) compliance | |
| Maximum Screen Size | 476.64mm W × 268.11mm H / 18.8" W × 10.6" H | |
| Power Source | 100-240VAC, 50/60Hz, 1.5A | |
| Power Consumption* | 43W typical, Power management mode: 1W maximum | |
| Dimensions / Net Weight | 516.5 × 386.0 × 193.0mm / 20.3 × 15.2 × 7.6" (W×H×D)4.2kg / 9.3lbs | |
| Tilt Angle | Upward: 20 degrees Downward: 5 degrees | |
| Environmental Considerations | Operating: Temperature 5 to 35°C / 41 to 95°FHumidity 10 to 80% (No condensation)Storage: Temperature -20 to 60°C / -4 to 140°FHumidity 10 to 70% (No condensation) | |
| Approvals | CE, TÜV-Bauart, VCCI-B, CU | |
NOTE
* Audio equipment is not connected.
DIMENSIONS
COMPLIANT TIMING
PC Input
| Video Mode | Horizontal Frequency | Vertical Frequency | Dot Clock | ||
| VESA | VGA | 640×480 | 31.469kHz | 59.940Hz | 25.175MHz |
| 37.500kHz | 75.000Hz | 31.500MHz | |||
| SVGA | 800×600 | 37.879kHz | 60.317Hz | 40.000MHz | |
| 46.875kHz | 75.000Hz | 49.500MHz | |||
| XGA | 1024×768 | 48.363kHz | 60.004Hz | 65.000MHz | |
| 60.023kHz | 75.029Hz | 78.750MHz | |||
| SXGA | 1280×1024 | 63.981kHz | 60.020Hz | 108.000MHz | |
| 79.976kHz | 75.025Hz | 135.000MHz | |||
| WXGA+ | 1440×900 | 55.935kHz | 59.887Hz | 106.500MHz | |
| 70.635kHz | 74.984Hz | 136.750MHz | |||
| UXGA | 1600×1200 | 75.000kHz | 60.000Hz | 162.000MHz | |
| WSXGA+ | 1680×1050 | 65.290kHz | 60.000Hz | 146.250MHz | |
| Full HD | 1920×1080 | 66.590kHz | 59.930Hz | 138.500MHz | |
| VGA TEXT | 640×350 | 31.469kHz | 70.087Hz | 25.175MHz | |
| 720×400 | 31.469kHz | 70.087Hz | 28.322MHz | ||
NOTE * DVI input is not compliant.
- USER MANUAL ProLite
- LCD Monitor
- Dear user, we congratulate you on the purchase of your iiyama LCD.
- To report a fault, please contact your local support centre found at www.iiyama.com/service
- Things to check before you call the iiyama information line
- Before reporting the screen defect, please prepare the following information/evidence:
- Important Note:
- TABLE OF CONTENTS
- CE MARKING DECLARATION OF CONFORMITY
- FOR YOUR SAFETY
- SAFETY PRECAUTIONS
- WARNING
- STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE
- NEVER REMOVE THE CABINET
- DO NOT PUT ANY OBJECT INTO THE MONITOR
- INSTALL THE MONITOR ON A FLAT, STABLE SURFACE
- DO NOT USE THE MONITOR NEAR WATER
- OPERATE UNDER THE SPECIFIED POWER SUPPLY
- PROTECT THE CABLES
- ADVERSE WEATHER CONDITIONS
- CAUTION
- INSTALLATION LOCATION
- DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION
- MAINTAIN GOOD VENTILATION
- DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR
- UNPLUG THE MONITOR
- HOLD THE PLUG WHEN DISCONNECTING
- DO NOT TOUCH THE PLUG WITH WET HANDS
- WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER
- DO NOT USE THE MONITOR FOR 24-HOURS CONTINUOUSLY
- OTHERS
- ERGONOMIC RECOMMENDATIONS
- SPECIAL NOTES ON LCD MONITORS
- NOTE
- CUSTOMER SERVICE
- CLEANING
- CABINET
- LCD
- SCREEN
- BEFORE YOU OPERATE THE MONITOR
- FEATURES
- CHEKING THE CONTENTS OF THE PACKAGE
- FITTING AND REMOVAL OF BASE
- CONTROLS AND CONNECTORS
- CONNECTING YOUR MONITOR
- [ Fitting and Removal of Cable Holder ]
- - Removal
- - Fitting
- COMPUTER SETTING
- ■ Signal Timing
- ■ Windows 95/98/2000/Me/XP/Vista/7 Plug & Play
- ADJUSTING THE VIEWING ANGLE
- OPERATING THE MONITOR
- ADJUSTMENT MENU CONTENTS
- Direct
- SCREEN ADJUSTMENTS
- POWER MANAGEMENT FEATURE
- ■ Power Management Mode
- TROUBLE SHOOTING
- Problem
- Check
- RECYCLING INFORMATION
- SPECIFICATIONS : ProLite E2208HDS
- SPECIFICATIONS : ProLite E2208HDD
- DIMENSIONS
- COMPLIANT TIMING
Merk : IIYAMA
Model : ProLite E2208HDS
Categorie : Scherm
