Product Type	Label Printer
Brand	EC Line
Model	EC-PM-80320
Printing Technology	Direct Thermal / Thermal Transfer
Print Resolution	203 dpi
Print Speed	Up to 127 mm/s
Max Print Width	108 mm
Max Media Width	118 mm
Supported Media	Labels, tags, receipts
Connectivity	USB, Serial, Ethernet
Power Supply	AC 100-240V, 50/60Hz
Weight	Approx. 2.5 kg
Dimensions (W x D x H)	285 x 226 x 172 mm
Operating Temperature	5°C to 40°C
Humidity	20% to 85% non-condensing
Control Panel	Buttons and LEDs
Included Accessories	Power adapter, USB cable, quick start guide
Cleaning	Use cleaning pen or alcohol swab for printhead
Safety Features	Overheat protection, auto power off
Repairability	Modular design, replaceable printhead and platen roller

Frequently Asked Questions - EC-PM-80320 EC Line

How do I load labels into the EC-PM-80320?

Open the top cover, release the media holder, insert the label roll with the printing side facing up, adjust the guides, and close the cover. Ensure the labels feed smoothly.

What types of labels can I use with this printer?

The printer supports direct thermal and thermal transfer labels, tags, and receipts up to 118 mm wide. Use label rolls with a core diameter of 25 mm to 76 mm.

How do I clean the printhead?

Turn off the printer, open the cover, and use a cleaning pen or isopropyl alcohol swab to gently wipe the printhead. Allow it to dry before closing.

What connectivity options are available?

The EC-PM-80320 offers USB, Serial (RS-232), and Ethernet interfaces for connection to a computer or network.

Why is the printer not printing?

Check if the printer is powered on, the USB cable is connected, the label roll is properly loaded, and the printhead is clean. Also verify that the correct driver is installed.

How do I replace the ribbon for thermal transfer printing?

Open the top cover, remove the used ribbon core, install a new ribbon roll with the ink side facing out, thread it through the printhead, and close the cover.

What is the maximum print speed?

The maximum print speed is up to 127 mm/s (5 ips) depending on the label size and print density setting.

How do I perform a self-test?

Power off the printer, press and hold the Feed button, then power on. Release the button when the printer starts printing a self-test page.

Can I print from mobile devices?

The printer does not have built-in wireless. However, you can connect it to a computer via USB or Ethernet and use software that supports mobile printing through the network.

Where can I find the user manual?

The user manual is available for free download in PDF format from notice-facile.com. You can also request a translated version by email.

USER MANUAL EC-PM-80320 EC Line

White beige medical scanner or printer with a closed lid and visible paper edge (no text or symbols)

Safety Notice

* Don't touch the Head of printer with anything.
* Don't touch the cutter blade.
* Don't bend the power cord excessively or place any heavy objects onto it.
* Don't use the printer when it is out of order. This can cause a fire or and electrocution.
* Only use the power cord excessively or place any heavy objects onto it.
* When connecting or disconnecting the plug, always hold the plug-not the cord.
* Keep the desiccant out of children's reach.
* Use only approved accessories and do not try to disassemble, repair or remodel it for yourself.
* Install the printer on the stable surface. Choose firm, level surface where avoid vibration.
* Don't let water or other foreign objects in the printer.
* Don't connect a telephone line into the peripheral drive connector.
* We recommend that you unplug the printer from the power outlet if no use it for long periods.

Available fields

* Print POS system Receipts
* Print EFT POS system Receipts
* Print Gym, Post, hospital, civil aviation system Receipts
* Print Inquiry, Service system Receipts
* Print Instrument test Receipts
* Print Tax, Tab Receipts

Main Features

* Command protocol is based on ESC/POS standard
* Low-noise thermal printing.
* Various Layouts are possible by using page mode.
* Repeated operation and copy printing are possible.
* Character font size optional.
* Easy paper-roll installation.
* Easy paper jam clearance.
* Easy maintenance for tasks such as head cleaning.
* Built-in interface provides control capability for cash drawer

Technique Spec.

Print method	Thermal line printing
Print speed 160&220mm/ sec.
OPOS Support Support OPOS instruction (GP-80220XX series)
Paper width	79.5±0.5mm
Print columns 576dots/line
Character	ANK Character: Font A: 12*24dotsFont B: 9*17 dotsSimplify/Traditional: 24*24 dots
Print command Compatible with ESC/POS
Interface Parallel/Serial (RS232C)/USB/Wireless/Ethernet
Barcode mode	UPC-A/UC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/CODABAR/CODE93/CODE128
Reliability print 100 kilometers
Paper thickness 0.06~0.08mm
Adaptor power input AC 110V/220V, 50~60Hz
Adaptor power output DC24V/2.5A
Printer power input DC24V/2.5A
Cash Drawer	DC 12-24V/1A
Work Temperature	0~45°C, Dampness: 10~80%
Storage temperature -10~50°C, Dampness: 10~90%

Connection

a. Connect the adapter cable to power connector of the printer.
b. Connect the interface cable to the connector on the rear panel of the printer.
c. Connect the cash drawer's RJ-11 phone jack to the connector on the rear panel.

Paper Roll Installation

a. Open the top cover, install the paper roll as the picture showing direction.
b. Set the paper roll into the hollow, and pull on the leading edge of the paper toward you as shown:
c. Press the center of printer cover firmly to prevent paper miss-loading.
d. Tear off the paper outside the cover as shown.

Set Print Mode (DIP Switch)

Set print mode by the DIP Switch, such as Black mark, Cutter, Language, Beep, Density, Speed mode...

a. Insert the bundled CD disk into the CD-ROM drive, in the CD-Rom menu, click DRV80EN V4.4G file to begin driver installation

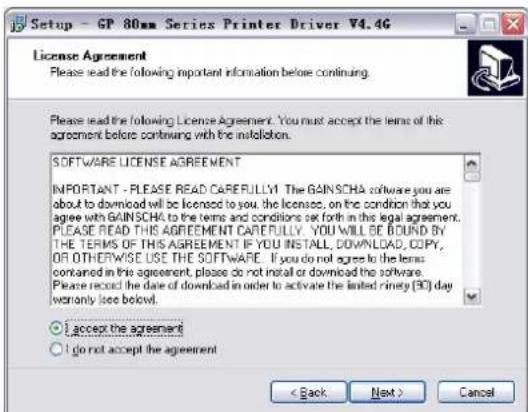

b. Please read and accept the principle first, and then continue installation.

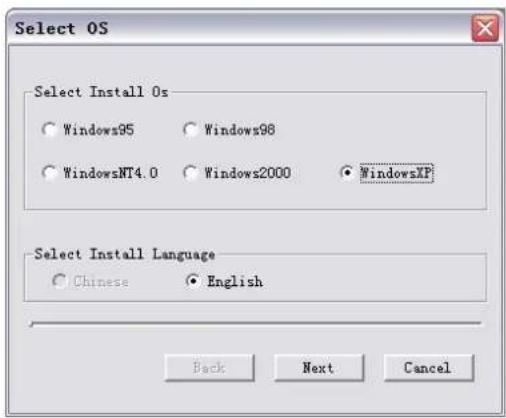

c. Please choose the OS that matches with your computer system and press next.

d. Please select GP-80220II Series for Install module.

Welcome to choose our "EC PRINTER" mini printers, if you have some questions and advices for our company, please contact with us directly or visit http://www.eclineproducts.com, we are ready to supply the best service for you!
