EC-PM-80220 - Label printer EC Line - Free user manual and instructions

Brand	EC Line
Model	EC-PM-80220
Product Type	Label Printer
Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	2.24 inches (57 mm)
Max Print Speed	5 ips (127 mm/s)
Supported Media Width	1.0" to 2.24" (25.4 mm to 57 mm)
Connectivity	USB 2.0
Power Supply	24 V DC, 2.5 A
Dimensions (W x D x H)	7.9 x 6.3 x 5.5 inches (200 x 160 x 140 mm)
Weight	2.2 lbs (1.0 kg)
Display	None (button interface)
Operating Temperature	41°F to 104°F (5°C to 40°C)
Humidity	20% to 85% (non-condensing)
Compatible OS	Windows, macOS, Linux
Media Sensors	Gap, Black mark, Continuous
Print Head Life	30 km (approx)
Maintenance	Clean print head with isopropyl alcohol and lint-free swab
Included Accessories	Power adapter, USB cable, Quick start guide

Frequently Asked Questions - EC-PM-80220 EC Line

How do I load labels into the EC-PM-80220?

Open the top cover, insert the label roll onto the spindle, feed the label through the guide, and close the cover. Ensure the labels align with the sensor.

What type of labels does this printer support?

It supports continuous, die-cut, and black mark labels with a width between 1.0 and 2.24 inches (25.4-57 mm). Use direct thermal or thermal transfer labels.

How do I connect the printer to my computer?

Use the included USB cable to connect to a USB port on your computer. Install the driver from the CD or download from the EC Line website.

Why is the printer not printing?

Check power, USB connection, and that the label roll is properly loaded. Ensure the print head is clean and the ribbon (if using thermal transfer) is installed correctly.

How do I clean the print head?

Turn off the printer, open the cover, and gently wipe the print head with a lint-free swab moistened with isopropyl alcohol. Allow to dry before use.

What software is compatible with this printer?

It works with most label design software like Bartender, NiceLabel, or LabelView. It also supports ZPL commands.

Can I use it without a ribbon?

Yes, if you use direct thermal labels. For thermal transfer labels, a ribbon is required.

What is the maximum label length?

The printer can handle labels up to 39 inches (1 meter) in length, depending on the software settings.

How do I perform a factory reset?

Turn off the printer, press and hold the feed button, then turn on the printer. Release the button when the LED blinks. This resets to default settings.

Where can I download the user manual?

Visit notice-facile.com and search for EC-PM-80220 to download a free PDF manual.

USER MANUAL EC-PM-80220 EC Line

White beige medical scanner or printer with a closed lid and visible paper edge (no text or symbols)

Safety Notice

* Don't touch the Head of printer with anything.
* Don't touch the cutter blade.
* Don't bend the power cord excessively or place any heavy objects onto it.
* Don't use the printer when it is out of order. This can cause a fire or and electrocution.
* Only use the power cord excessively or place any heavy objects onto it.
* When connecting or disconnecting the plug, always hold the plug-not the cord.
* Keep the desiccant out of children's reach.
* Use only approved accessories and do not try to disassemble, repair or remodel it for yourself.
* Install the printer on the stable surface. Choose firm, level surface where avoid vibration.
* Don't let water or other foreign objects in the printer.
* Don't connect a telephone line into the peripheral drive connector.
* We recommend that you unplug the printer from the power outlet if no use it for long periods.

Available fields

* Print POS system Receipts
* Print EFT POS system Receipts
* Print Gym, Post, hospital, civil aviation system Receipts
* Print Inquiry, Service system Receipts
* Print Instrument test Receipts
* Print Tax, Tab Receipts

Main Features

* Command protocol is based on ESC/POS standard
* Low-noise thermal printing.
* Various Layouts are possible by using page mode.
* Repeated operation and copy printing are possible.
* Character font size optional.
* Easy paper-roll installation.
* Easy paper jam clearance.
* Easy maintenance for tasks such as head cleaning.
* Built-in interface provides control capability for cash drawer

Technique Spec.

Print method	Thermal line printing
Print speed 160&220mm/ sec.
OPOS Support Support OPOS instruction (GP-80220XX series)
Paper width	79.5±0.5mm
Print columns 576dots/line
Character	ANK Character: Font A: 12*24dotsFont B: 9*17 dotsSimplify/Traditional: 24*24 dots
Print command Compatible with ESC/POS
Interface Parallel/Serial (RS232C)/USB/Wireless/Ethernet
Barcode mode	UPC-A/UC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/CODABAR/CODE93/CODE128
Reliability print 100 kilometers
Paper thickness 0.06~0.08mm
Adaptor power input AC 110V/220V, 50~60Hz
Adaptor power output DC24V/2.5A
Printer power input DC24V/2.5A
Cash Drawer	DC 12-24V/1A
Work Temperature	0~45°C, Dampness: 10~80%
Storage temperature -10~50°C, Dampness: 10~90%

Connection

a. Connect the adapter cable to power connector of the printer.
b. Connect the interface cable to the connector on the rear panel of the printer.
c. Connect the cash drawer's RJ-11 phone jack to the connector on the rear panel.

Paper Roll Installation

a. Open the top cover, install the paper roll as the picture showing direction.
b. Set the paper roll into the hollow, and pull on the leading edge of the paper toward you as shown:
c. Press the center of printer cover firmly to prevent paper miss-loading.
d. Tear off the paper outside the cover as shown.

Set Print Mode (DIP Switch)

Set print mode by the DIP Switch, such as Black mark, Cutter, Language, Beep, Density, Speed mode...

a. Insert the bundled CD disk into the CD-ROM drive, in the CD-Rom menu, click DRV80EN V4.4G file to begin driver installation

b. Please read and accept the principle first, and then continue installation.

c. Please choose the OS that matches with your computer system and press next.

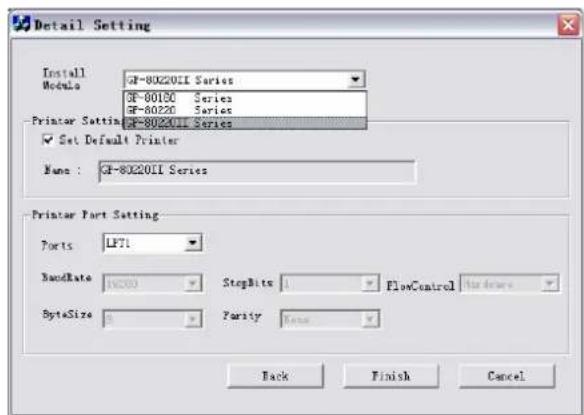

d. Please select GP-80220II Series for Install module.

Welcome to choose our "EC PRINTER" mini printers, if you have some questions and advices for our company, please contact with us directly or visit http://www.eclineproducts.com, we are ready to supply the best service for you!

-THERMAL RECEIPT PRINTER-
