Joinsee 450 - Webcam Soyntec - Free user manual and instructions

Product Type	Webcam
Brand	Soyntec
Model	Joinsee 450
Resolution	1280 x 720 pixels (HD)
Frame Rate	30 fps
Image Sensor	CMOS
Connectivity	USB 2.0
Built-in Microphone	Yes
Field of View	60°
Focus Type	Fixed focus
Dimensions (approx.)	9.5 x 5.5 x 5.5 cm
Weight	120 g
Power Supply	Via USB cable
Cable Length	1.5 m
Mounting	Clip-on or tripod mount
Compatible Operating Systems	Windows, macOS, Linux
Main Functions	Video calling, streaming, recording, photo capture
Cleaning and Maintenance	Wipe lens with soft dry cloth; avoid liquids
Safety Precautions	Keep away from water and heat; do not disassemble
Replaceable Parts	None, device is user-serviceable only for cleaning

Frequently Asked Questions - Joinsee 450 Soyntec

How do I install the Soyntec Joinsee 450 webcam?

Simply plug the webcam into a USB port on your computer. The system should automatically detect and install the necessary drivers. For full features, download the latest driver from the Soyntec website.

Is the Joinsee 450 compatible with my operating system?

The webcam is compatible with Windows 7/8/10/11, macOS 10.12 or later, and most Linux distributions with UVC support.

What video resolution does the webcam support?

It supports 1280x720 (HD) at 30 frames per second for smooth video. It also supports lower resolutions like 640x480.

Does the webcam have a built-in microphone?

Yes, the Joinsee 450 includes a built-in microphone for capturing audio during video calls or recordings.

Can I use the webcam in low-light conditions?

The webcam features low-light correction technology, but for best results, ensure adequate lighting. It is not designed for complete darkness.

How do I mount the webcam on my monitor?

The webcam has a universal clip that attaches securely to monitors, laptops, or flat surfaces. It also has a tripod mount at the bottom.

What software can I use with the webcam?

The webcam works with any application that recognizes a standard USB camera, such as Zoom, Skype, Microsoft Teams, OBS Studio, and many others.

How to clean the webcam lens?

Gently wipe the lens with a soft, lint-free cloth. Avoid using liquids or abrasive materials to prevent damage.

Is there a warranty for the Joinsee 450?

Yes, Soyntec offers a 2-year limited warranty against manufacturing defects. Keep your purchase receipt as proof of warranty.

What should I do if the webcam is not detected by my computer?

Try plugging into a different USB port, restart your computer, or check Device Manager. If the issue persists, download and install the latest driver from the Soyntec support page.

USER MANUAL Joinsee 450 Soyntec

Soyntec thanks you for purchasing your new webcam Joinsee.

We wish you enjoy using it.

Fitted with 1.3MP CMOS Sensor, High Quality, HIGH-SPEED USB

2.0, Video Surveillance and Intelligent Face Tracking System.

Includes comfortable headset with Hi-Fi microphone and speaker.

Dual innovative and compact design.

We suggest reading this user manual for enjoying this product is a safe way and with the best performance.

Main features

• True 1,3 Megapixels Image Sensor.
• High Definition Video (HD).
• Video resolution: SXGA 1280x1024.

• Still resolution: SXGA 1280x1024.

• Capture Speed: Up to 30 fps (VGA) and up to 15 fps (SXGA).

• Includes special button for taking photos.
• Photos: 5 Megapixels by interpolation.
• Features status LED indicator.
• USB 2.0 connection compatible with USB 1.1/1.0.
• Compatible with Mac, Windows VISTA / XP / 2000 / 98SE / ME.

Product contents

• Joinsee Webcam.
• Headset.
• CD with Drivers and Software.
• Multilingual user manual.

Product overview

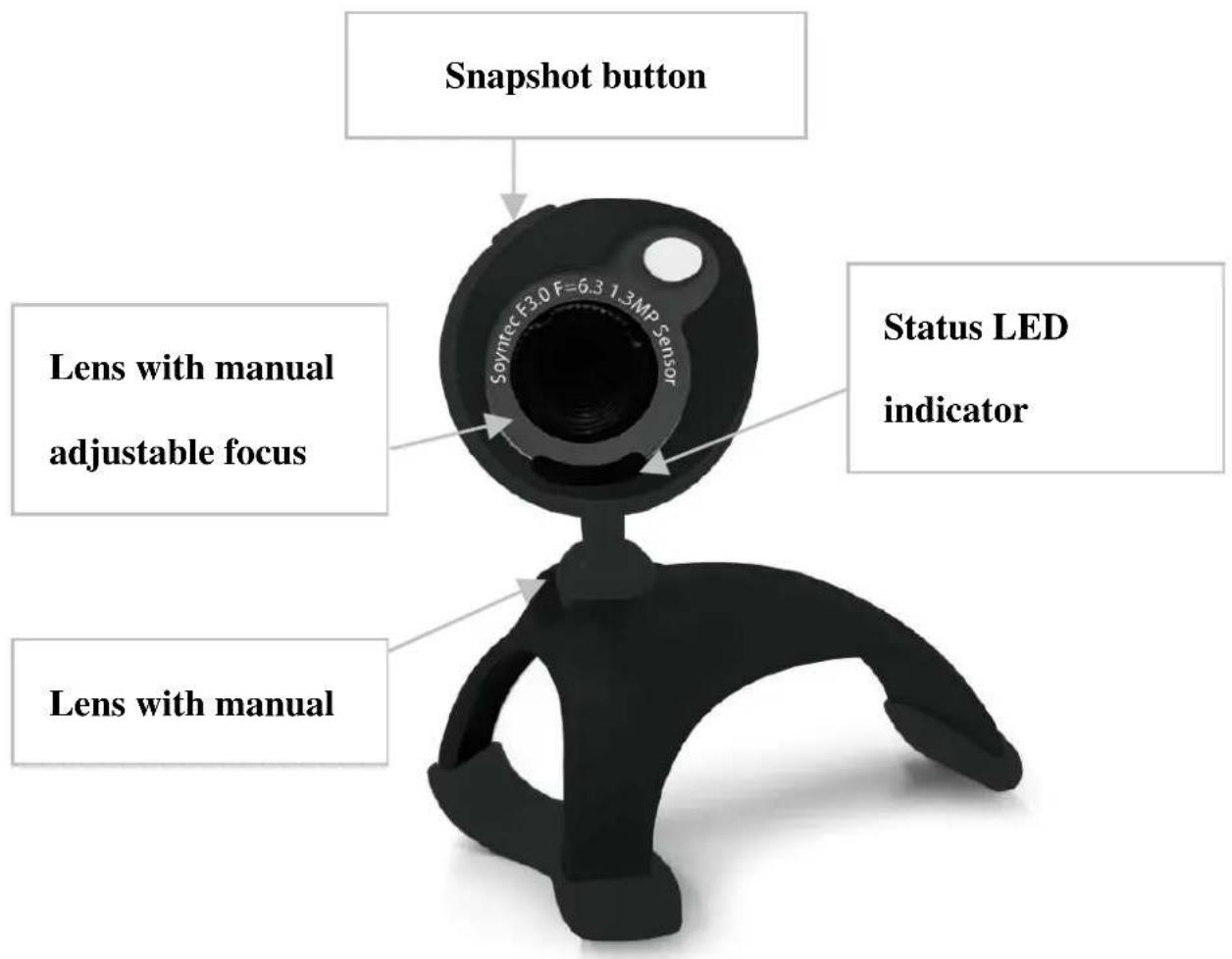

The following picture shows the main parts of the webcam:

Figura A: Webcam JOINSEE 450 Black example main parts

Specifications are subject to change without notice. © 2008/09 by Soyntec. All rights reserved.

Webcam installation

Please note that in order to install the webcam you need a free USB connector in your computer.

Follow these steps to install the webcam:

1. Connect the webcam to a free USB connector. The operating system will detect the webcam and it will be ready to use.
2. Press the snapshot button on top of the webcam to launch the monitoring software and check that the webcam has been properly installed.

ArcSoft VideoImpression software installation

1. Insert the provided drivers CD and select “ArcSoft VideoImpression” then click over it”.
2. Select the installation language.
3. Click the "Next" button.
4. The license contract will appear. Click “Yes”.
5. The installation folder can be modified. It is recommended to leave the default folder. Click the “Next” button.
6. The new program group can also be modified. Just leave the default program group and click “Next”. The copy of files will start.
7. Click “Finish” to close the installation wizard.

ArcSoft WebCam Companion 2 software installation

1. Insert the provided drivers CD and select “ArcSoft WebCam Companion 2”.
2. Select the installation language.
3. Click the "Next" button.
4. The license contract will appear. Click "Yes".
5. The installation folder can be modified. It is recommended to leave the default folder. Click the “Next” button.
6. The new program group can also be modified. Just leave the default program group and click “Next”. The copy of files will start.
7. Click “Finish” to close the installation wizard.

ArcSoft ArcSoft Magic-i software installation

1. Insert the provided drivers CD and select "ArcSoft Magic-i".
2. Select the installation language.
3. Click the "Next" button.
4. The license contract will appear. Click "Yes".
5. The installation folder can be modified. It is recommended to leave the default folder. Click the “Next” button.
6. The new program group can also be modified. Just leave the default program group and click “Next”. The copy of files will start.
7. Click "Finish" to close the installation wizard.

Special guarantee

Energy Sistem guarantees that your product does not have any material, design or manufacture defect and provides a 36 month guarantee.

Operation of the Guarantee

1) Entering http://support.energysistem.com and after selecting your product you will be able to find FAQ's (answers to the frequently asked questions) manual, guides of user, drivers and updates.
2) If you do not obtain the solution in the support section please contacting us on: [e-mail]
3) Optionally can be directed to the place where it has bought the product, presenting its invoice or ticket of purchase.

Specifications are subject to change without notice.

© 2008 by Energy Sistem Soyntec. All rights reserved.

Trademarks

All company, brand and product names are trademarks or registered trademarks of their respective companies.

DECLARATION OF CONFORMITY

Supplier Name: Energy Sistem Soyntec S. A.

Address: Pol. Ind. Finestrat C/ Calpe esq. C/ Alicante S/N, 03509 Finestrat

Alicante - Tel: [phone] - Fax: [phone]

NIF: A53107488

We declare under our own exclusive responsibility the product conformity:

Soyntec® WebCam 1.3MP Real Joinsee™ 450 Series, Face tracking and Headset included

Manufacturing country: China

Specifications are subject to change without notice.

© 2008/09 by Soyntec. All rights reserved.
