TZR34 - Heating TERMOZETA - Free user manual and instructions

Product Type	Electric Heater
Model	TZR34
Brand	Termozeta
Power Consumption	2000 W
Voltage	220-240 V ~ 50/60 Hz
Heating Element	Ceramic
Number of Heat Settings	2 (1000 W / 2000 W)
Fan	Yes, for air circulation
Oscillation	Yes, 70°
Thermostat	Adjustable
Timer	Yes, up to 12 hours
Remote Control	Yes
Safety Features	Overheat protection, tip-over switch
Dimensions (WxHxD)	20 x 50 x 20 cm
Weight	2.5 kg
Cord Length	1.8 m
Noise Level	< 45 dB
Room Size Recommendation	Up to 25 m²
Cleaning	Wipe with a damp cloth; do not immerse
Spare Parts Availability	Contact Termozeta support
Repairability Index	5.5 / 10 (estimated)

Frequently Asked Questions - TZR34 TERMOZETA

What is the power consumption of the TZR34?

The TZR34 has a maximum power consumption of 2000 W (2 kW), with two settings: 1000 W and 2000 W.

Does the heater have a thermostat?

Yes, it features an adjustable thermostat to maintain your desired room temperature.

Is the TZR34 suitable for bathrooms?

The TZR34 is not designed for bathrooms or high-humidity areas unless specified IP rating. Use in dry locations only.

How do I clean the heater?

Unplug the heater and let it cool. Wipe the exterior with a soft damp cloth. Do not use abrasive cleaners or immerse in water.

What safety features does it have?

The heater includes overheat protection and a tip-over switch that automatically turns it off if knocked over.

Can I use the heater with an extension cord?

It is recommended to plug directly into a wall outlet. If necessary, use a heavy-duty extension cord rated for at least 2000 W.

Does the heater have a timer?

Yes, it has a timer function that can be set up to 12 hours for automatic shut-off.

Is there a remote control?

Yes, the remote control allows you to adjust settings from a distance.

What should I do if the heater stops working?

Check if it is plugged in and the power switch is on. If the overheat protection triggered, unplug it, let it cool, and try again. Contact Termozeta support if the issue persists.

How can I obtain spare parts?

Contact Termozeta customer service or visit their website to order spare parts such as the fan or heating element.

USER MANUAL TZR34 TERMOZETA

Exterior view of a modern office building (no signage)

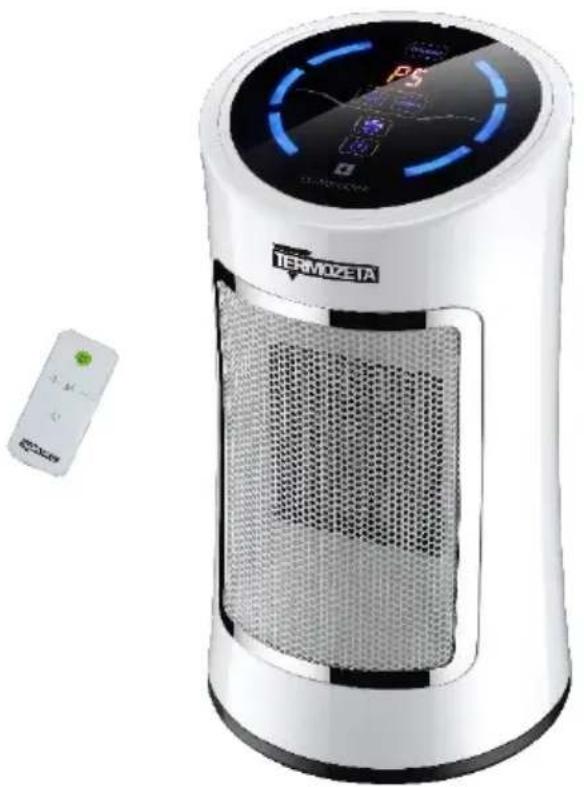

DESIGN TOWER PTC HEATER WITH REMOTE CONTROL

MODEL: TZR34

Exterior view of a modern white industrial power supply unit (TERMOZETA) with digital display and control panel (no readable text or symbols)

This product is only suitable for well insulated spaces or occasional use.

INSTRUCTION MANUAL

CAUTION: To prevent overheating do not cover the appliance. The appliance must not be placed below electric socket on the wall.

SAFETY WARNINGS

1. Children of less than 3 years should be kept away unless continuously supervised.
2. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
5. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

8. This appliance must only be used for the purpose for which it has been manufactured, i.e. for additional electrical heating in rooms. Any other use is considered improper and therefore dangerous.

9. The manufacturer is not responsible for any damage caused by improper, incorrect or unreasonable use.
10. Before cleaning or carrying out maintenance on the appliance, disconnect it from the electrical mains by removing the plug from the electrical outlet or by switching off the system switch.

DO NOT COVER

WARNING: In order to avoid overheating, do not cover the heater.

1. The heater must not be located immediately below a socket-outlet.
2. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
3. The heater must be installed so that switches and other controls cannot be touched by a person in the bath or shower.
4. In order to avoid overheating, do not cover the heater.
5. Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire.
6. Do not plug or unplug the product from the electrical outlet with a wet hand.
7. Keep the power cord and product away from heated surfaces.
8. Do not operate the heater with a damaged cord or plug. been dropped or damaged in any manner.
9. In case of abnormal situation turn off the appliance immediately and contact the dealer or the Service.
10. It is absolutely forbidden to remove or repair the unit: risk of electrical shock; contact your dealer or Service Center.
11. ATTENTION: Do not use this product near bathtubs, showers, pools.

12. Do not insert anything inside the slots of the unit.

13. Before connecting the unit to the electricity distribution network ensure that the main voltage is correct as shown on the label of the product and that the unit is compliant with the current regulations.

14. Do not use flying sockets or damaged cables.
15. Hold the plug firmly when disconnecting from the electric socket to prevent electric shock, short circuit or fire.
16. Before connecting the unit to the electricity distribution network ensure that the main voltage is correct as shown on label of the product and that the unit is compliant with the current regulations.
17. Do not use the product for purposes other than those for which he 'was built Don't use improperly the appliance.
18. Do not use flying sockets or damaged cables.
19. The heater must not be located immediately below an electrical socket-outlet.
20. Don't use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
21. Never locate the heater where it may fall into bathtub or other water container.
22. Before performing maintenance and cleaning, disconnect the appliance from the main supply.
23. Not use aerosols spray (for ex. Insecticides, hair spray, etc.), it may cause damage to the housing.
24. In case the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person to avoid any hazard.
25. Never use outdoors and never expose the appliance to atmospheric agents.
26. Do not cover abnormal situations immediately switch off the appliance and contact your dealer or service center.

27. Do not use outdoors or obstruct any of the heat outlet grilles or the air intake openings of the heater

28. Keep the heater far from curtain or places where the air inlet can easily be blocked.

29. Only use the appliance for domestic purposes and in the way indicated in these instructions.
30. Never immerse the appliance in water or any other liquid for any reason whatsoever.
31. Switch off the appliance and remove the plug from the electrical outlet when not in use.
32. Do not use the appliance near sources of water such as baths, showers or swimming pools.
33. Do not touch the appliance with wet or damp hands or feet.
34. Do not use the appliance in the presence of potentially flammable or explosive liquids or gases.
35. Do not leave the appliance plugged in when not required. Unplug the appliance from the mains after having switched it off when not in use.
36. Do not obstruct the ventilation or heat dispersion openings.
37. Do not use the appliance in the presence of potentially flammable or explosive liquids or gases.
38. Do not use the appliance in the presence of potentially flammable or explosive liquids or gases.
39. It is absolutely for bitten to remove or repair the unit: risk of electric shock; contact your dealer or Service Center.
40. Never leave the heater unattended while it is in use. Always turn the product to the OFF position and unplug it from the electrical outlet when not in use.

PRECAUTIONS FOR REMOTE CONTROLLER – BATTERIES

1. If the appliance is not used for a long time, please remove batteries from remote controller.

2. To remove batteries open the cover on the back side of the remote controller. Only use CR2025 batteries and check correct battery polarity.

3. Lithium batteries are recommended for a longer remote controller operation.
4. Please remove batteries if remote controller won't be used for a long period or if batteries get hot during operation.
5. Batteries must be correctly installed inside the proper compartment on backside of the remote controller.
6. When batteries need to be replaced because they're exhausted or damaged, dispose of batteries according to national regulations written below.
7. In case of loss of battery fluid, remove all batteries, preventing fluid leaking from coming into contact with skin or clothes.
8. If the battery fluid comes into contact with skin or clothes, wash the skin with water immediately. Before inserting new batteries thoroughly clean the battery compartment with a cloth or paper towel and follow the manufacturer's recommendations for cleaning the battery.
9. CAUTION: Risk of explosion if the battery is replaced by an incorrect type. Use and replace only with battery of the same size and type.

10. Improper use of the batteries may cause leakage, overheating or explosion. Fluid is corrosive and may be toxic, can cause skin burns and hurt eyes and is harmful to ingest.

11. To reduce the risk of injury:

Keep batteries out of the reach of children.

Do not heat, open, puncture, shred or dispose of batteries in fire.

Do not mix old and new batteries or different types (for example, the carbon-zinc and alkaline batteries).

Do not leave metal objects that can come into contact with the battery terminals and then may become hot and / or cause burns.

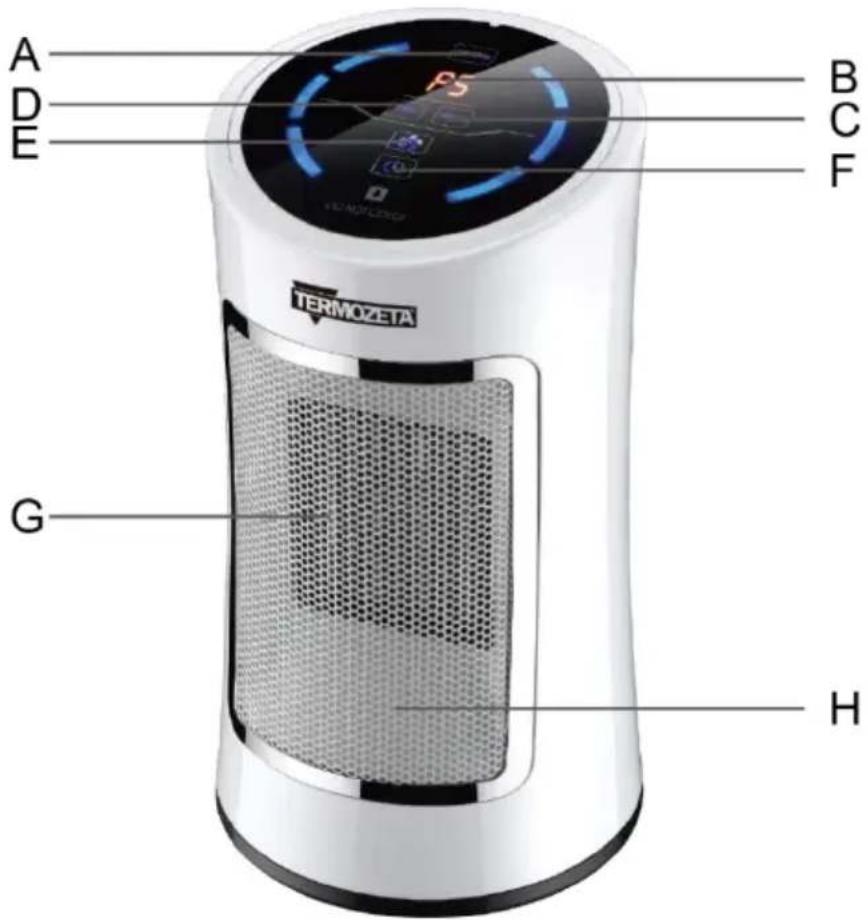

GENERAL DESCRIPTION

A. VENTILATION/HEATING

B. LED DISPLY

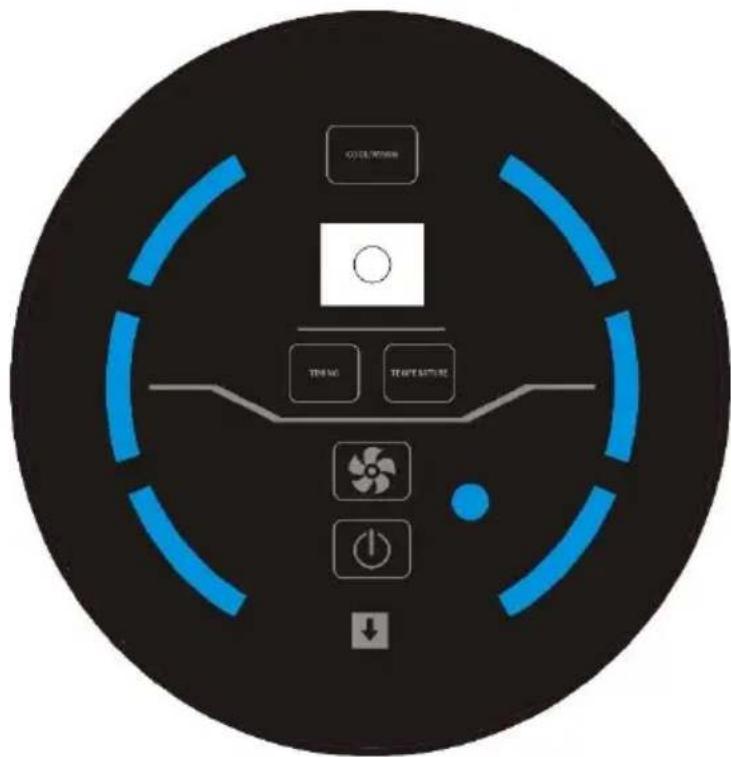

HOW TO USE

1. Always position the product on a stable and flat surface.
2. Select the F button to switch ON or OFF the product.
3. Selecting A button it is possible to choose between FAN and HEATING functions.
4. Selecting C button is possible to fix the target temperature. The heater will go on heating till this temperature will be reached in the ambient. When the ambient temperature will go down over a determined limit, heater automatically will start working again.
5. Selecting D button it is possible to set the OFF time. When this time has passed, the product automatically will stop working and will switch off.
6. Selecting E button, it is possible to set the working fan speed. Two selections are possible.

NOTE After switching OFF the product ventilation will remain active for around one minute to allow the heat to exit the product and prevent possible overheating problems.

CLEANING AND MANTEINANCE

• Always disconnect the plug from socket before any cleaning operation.
- When your heater needs cleaning, wipe exterior surfaces of the heater with a dry soft cloth.
- Don't use direct water or other liquids
- Don't use solvents or abrasive liquids.
- Store the product in a dry place and cover it to repair from dust.

TECHNICAL DATA

MODEL: TZR34

POWER: 1500W

Model identifier(s):		TZR34
Item	Symbol	Value Unit Item Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1.4-1.5	kW		Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	0.6-0.7	kW		Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	1.4-1.5	kW		Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption					Fan assisted heat output	No
At nominal heat output	el_max	N/A kW			Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A kW			Single stage heat output and no room temperature control	No
In standby mode	el_SB	0.8	kW		Two or more manual stages, no room temperature control	No
					temperature control	YesW
					With electronic room temperature control	No
					Electronic room temperature control plus day timer	No
					Electronic room temperature control plus week timer	No
					Other control options (multiple selections possible)
					Room temperature control, with presence detection	No
					Room temperature control, with open window detection	No
					With distance control option No
					With adaptive start control No
					With working time limitation No
					With black bulb sensor No
Contact details	Lange Distribution S.r.l. Via Treviso, 35 - 20127, Milano - Italymail: [e-mail] www.termozeta.comTel. +39 02.28506-1

In accordance with European Directive 2012/19/UE on electric and electronic equipment waste disposal.

1. The barred symbol of the rubbish bin shown on the equipment indicates that, at the end of its useful life, the product must be collected separately from waste.
2. Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis.
3. The adequate separate collection for the subsequent start-up of the equipment sent to be recycle, treated and disposal of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus.
4. Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws in force.

Lange Distribution S.r.l. reserves the right to introduce technical and/or aesthetic changes to its products intended to improve performances. Termozeta is an international trademark. Copyright © 1995. All rights reserved. Lange Distribution S.r.l. -Via Treviso,35-20127 Milano-Italy
