Product Type	Fan Heater
Dimensions (WxHxD)	200 x 250 x 150 mm
Weight	1.5 kg
Power Source	220-240 V ~ 50 Hz
Power Consumption	2000 W
Heating Settings	Low (1000 W), High (2000 W), Fan Only
Thermostat	Adjustable thermostat with auto shut-off
Safety Features	Overheat protection, tip-over switch
Maintenance	Clean grille with dry cloth; do not immerse in water
Spare Parts	Not available separately; contact service center
Repairability	Professional repair only; do not disassemble
Usage Location	Indoor, dry areas only
Noise Level	Approximately 45 dB
Cord Length	1.5 m
Color	White / Grey

Frequently Asked Questions - TZR17 TERMOZETA

How do I clean the Termozeta TZR17 heater?

Unplug the heater and let it cool. Use a dry cloth to wipe the grille and exterior. Do not use water or abrasive cleaners.

Can I use the TZR17 in a bathroom?

No, this heater is not designed for damp locations. Use only in dry indoor areas.

Why is my heater not producing heat?

Check the power cord and plug. Ensure the thermostat is set above room temperature. If the overheat protection has tripped, turn off and let it cool.

Does the heater have overheat protection?

Yes, it has overheat protection and a tip-over switch that automatically shuts off the heater.

How do I adjust the thermostat?

Turn the thermostat dial clockwise to increase the desired temperature. The heater will cycle on/off to maintain it.

Is the TZR17 noisy?

It has a typical fan noise of about 45 dB, similar to a quiet conversation.

Can I leave the heater unattended?

It is not recommended to leave the heater unattended for long periods. Always unplug when not in use.

How much energy does the TZR17 consume?

On high setting, it consumes 2000 W (2 kWh per hour). On low, 1000 W. Use the thermostat to save energy.

What is the warranty period?

The standard warranty is 2 years from the date of purchase. Keep your receipt.

How should I store the heater in summer?

Clean it, unplug, and store in a cool, dry place. Protect from dust with a cover.

USER MANUAL TZR17 TERMOZETA

Exterior view of a white electric heater with a black vent and control panel (no visible text or symbols)

Technical line drawing of a mechanical component with a screwdriver and striped panel (no text or symbols)

GUIDA ALL'USO

Exterior view of a white electric heater with a black vent and control panel (no visible text or symbols)

This product is not suitable for well insulated for well insulated spaces or occasional use.

INSTRUCTION MANUAL

Please READ and RETAIN for future reference.

SAFETY WARNINGS

1. Do not use the heater unless the feet are correctly attached if the heater is used as portable appliance.
2. This appliance has been designed for domestic use on
3. It as room heater. Never use the appliance for other purposes.
4. Ensure the power supply to the socket into which the heater is plugged is in accordance with the rating label on the heater and that the socket is earthed.
5. Keep the mains lead away from the hot body of the heater.
6. The heater is not intended for use in bathrooms, laundry areas or similar indoor locations.
7. Never place the heater where it may fall into a bathtub or other water container.
8. Do not use outdoors.
9. The heater must not be located immediately below a socket-outlet.
10. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool
11. Do not cover or obstruct any of the heat outlet grilles or the air intake openings of the heater.
12. Do not place the heater on carpets having a very deep pile.
13. Always ensure that the heater is placed on a firm flat stable surface.
14. Ensure that the heater is not positioned close to curtains or furniture as this could create a fire hazard.
15. Do not position the heater in front of, or immediately below, a wall socket.
16. Do not insert any object through the heat outlet or air intake grilles of the heater.
17. Do not use the heater in areas where flammable liquids are stored or where flammable fumes may be present.

18. Particular care should be taken when the heater is situated in areas occupied by children or invalids.

19. Always unplug the heater when moving it from one location to another.

20. Do not use the heater if the power cord is damaged. If the power cord is damaged it must be replaced by a recognised service agent or other qualified person. If the plug is damaged, see Plug Replacement details below.
21. Young children should be supervised to ensure that they do not play with the appliance.
22. Children of less than 3 years should be kept away unless continuously supervised.
23. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
24. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
25. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
26. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
27. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out this appliance must not be supplied through an external switching device such as a timer or connected to a circuit that is regularly switched on and off by the utility.
28. Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire.
29. Position the product far from flammable materials suche as curtains furniture. Always keep a safety distance.

30. Do not plug or unplug the product from the electrical outlet with a wet hand.

31. Keep the power cord and product away from heated surfaces.

32. Do not operate the heater with a damaged cord or plug. been dropped or damaged in any manner.
33. Before cleaning and maintenance disconnect the appliance from electrical socket
34. In case of abnormal situation turn off the appliance immediately and contact the dealer or the Service.
35. It is absolutely forbidden to remove or repair the unit; risk of electric shock; contact your dealer or Service Center.
36. ATTENTION: Do not use this product near bathtubs, showers, pools.

37. DO NOT COVER

ATTENTION! To avoid overheating do not cover the appliance.

1. Do not insert anything inside the slots of the unit

2. Before connecting the unit to the electricity distribution network ensure that the main voltage is correct as shown on the label of the product and that the unit is compliant with the current regulations,

3. Do not use flying sockets or damaged cables.

4. Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

5. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool

6. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way.

7. Do not wind the cord around the appliance and do not bend it.

8. Stand the appliance on a stable surface so that it cannot fall.

9. Do not place the appliance under a power socket. The power socket must not be in the hot airflow of the appliance.

10. Always position the heater in such a way that inflammable materials (such as curtains) cannot be ignited. Ensure at all times

that the unit is placed solidly on its base. Make sure that the air inlet and outlet openings are not blocked. To avoid any risk of fire, do not cover the heater (ex. With clothes).

1. Never immerse the appliance in water or any other liquid for any reason whatsoever. When cleaning the appliance, refer to the instructions in the paragraph “Cleaning and care” because the water penetration through the openings can be very dangerous for your appliance.
2. Never use the appliance near hot surfaces or flammable materials
3. Before cleaning and when you do not use the appliance, always unplug the appliance from the power supply.
4. After use, disconnect the product from main supply
5. .Do not attempt to remove the plug from the wall socket with wet hands.
6. Never use the appliance outside and always place it in a dry environment.
7. Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
8. This product is compliant to LVD Directive 2014/35/CEE, EMC Directive 2014/30/CEE and RoHS II 2011/65/CEE.

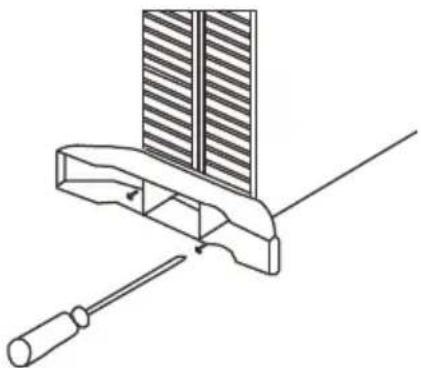

Before using the heater, the feet (supplied separately in the carton), must be fitted to the unit. These are to be attached to the base of the heater using the 4 self-tapping screws provided, taking care to ensure that they are located correctly in the bottom ends of the heater side moldings.

Technical line drawing of a mechanical clamp or bracket assembly with a screwdriver (no text or symbols)

HOW TO USE

• Before inserting the plug into an electrical outlet, make sure that the electrical supply in your area matches that on the rating label on the unit.
  • Always position the product on a flat stable surface

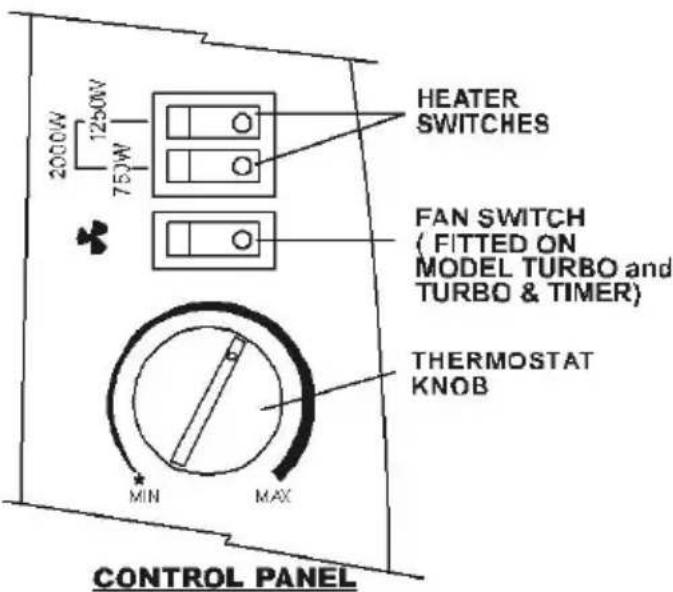

• This product also incorporates an internal fan, which can be switched on independently of the heatin gelements.
• Fan Operation (TURBO MODE): -This is operated by means of the switch with the fan symbol along side of the product. The fan will only operate with the thermostat in the “on” position and can be used when the heating elements are “on” to blow warm air into the room.
• In warm conditions the fan can be used with the heating elements "off" to blow cool air into the room. In this condition the product will ventilate only.

TECHNICAL SPECS

MODEL: TZR17 Convector heater with thermostat and fan.

RATED POWER INPUT: 2000W

RATED VOLTAGE RANGE: AC220-230V 50-60Hz

MAINTENANCE

When your heater needs cleaning, wipe exterior surfaces of the heater with a moistened cloth. Not rinse with water directly. Be sure to unplug before cleaning.

Pull out filters and clean them, when it's very dirty.

To prolong the heater life, not disassemble it personally when malfunction occurs.

Send your heater to relative identification after-sold service center or provider for the convenience inspecting.

INFORMATION REQUIREMENTS FOR LOCAL SPACE HEATERS

Model identifier(s):		TZR17
Item	Symbol	Value Unit Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2.0 kW		Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	1.0 kW		Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	2.0 kW		Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				Fan assisted heat output	No
At nominal heat output	el_max	N/A kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A kW		Single stage heat output and no room temperature control	No
In standby mode	el_SB	N/A kW		Two or more manual stages, no room temperature control	No
				temperature control	YesW
				With electronic room temperature control	No
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	No
				With distance control option No
				With adaptive start control No
				With working time limitation No
				With black bulb sensor No
Contact details	Lange Distribution S.r.l. Via Treviso, 35 - 20127, Milano - Italy mail: [e-mail] www.termozeta.com Tel. [phone]

In accordance with European Directive 2012/19/UE on electric and electronic equipment waste disposal.

1. The barred symbol of the rubbish bin shown on the equipment indicates that, at the end of its useful life, the product must be collected separately from waste.
2. Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis.
3. The adequate separate collection for the subsequent start-up of the equipment sent to be recycle, treated and disposal of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus.
4. Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws in force.

Lange Distribution S.r.l. reserves the right to introduce technical and/or aesthetic changes to its products intended to improve performances. Termozeta is an international trademark. Copyright © 1995. All rights reserved. Lange Distribution S.r.l. -Via Treviso,35-20127 Milano-Italy
