TZR07 - Heating TERMOZETA - Free user manual and instructions

Product Type	Portable Electric Heater
Brand	Termozeta
Model	TZR07
Power Supply	220-240V ~ 50/60Hz
Max Power Output	1000W (High), 500W (Low)
Heating Element	PTC (Positive Temperature Coefficient)
Fan Modes	Fan only (no heat), Low heat, High heat
Controls	Rotary knob, 4 positions (Off, Fan, 500W, 1000W)
Safety Features	Anti-tip switch, Thermal cut-off (overheat protection)
Materials	Metal grille, plastic housing
Color	White
Min Distance from Objects	1 m (100 cm) from walls and flammable objects
Usage Location	Indoor domestic use only; not for bathrooms, outdoors, or near water
Maintenance	Wipe with slightly damp lint-free cloth; vacuum grilles for dust
Certifications	CE, EMC, RoHS
Included Accessories	Heater, instruction manual
IP Rating	Not rated for bathroom use

Frequently Asked Questions - TZR07 TERMOZETA

How do I clean the Termozeta TZR07 heater?

Unplug the heater and let it cool completely. Wipe the housing with a slightly damp, lint-free cloth. Do not use water or immerse. For dust in the air outlet openings, use a vacuum cleaner.

What do the different positions on the rotary knob mean?

The knob has four positions: 0 = Off, Fan = fan only (no heat), 1 = 500W low heat output, || = 1000W full heat output.

Can I use this heater in a bathroom?

No. The manual explicitly states the product is not designed for bathrooms and must not be used in the immediate surroundings of a bath, shower, or swimming pool.

What safety features does the heater have?

It has an anti-tip switch that cuts power if the unit falls over, and a thermal cut-off device that switches off the heater if internal temperature exceeds a safe level.

Why does the heater emit a smell when first used?

A slight smell is normal during first use due to manufacturing residues. Ensure good ventilation; the smell will disappear quickly.

What should I do if the heater tips over?

The anti-tip safety device will automatically cut power. Place the heater upright on a stable, flat surface and it will resume operation.

Can I use an extension cord or timer with this heater?

No. Do not use a programmer, timer, or any device that automatically turns on the unit. Use only a single-output socket. If the cord is damaged, have it replaced by a qualified technician.

How far should the heater be from walls or furniture?

Maintain a minimum distance of 1 meter (100 cm) from walls, curtains, furniture, and other flammable objects.

Is the heater safe for use around children?

Some parts become very hot. Children under 3 should be kept away. Children aged 3-8 can only switch on/off under supervision. Children 8+ and persons with reduced capabilities can use it if supervised. Do not allow children to play with or clean the heater.

What voltage does the heater require?

The heater requires 220-240V ~ 50/60Hz. Always check the voltage label on the product before connecting to mains.

USER MANUAL TZR07 TERMOZETA

White portable electric heater with mesh grille and control knob (no visible text or symbols)

MANUALE D'ISTRUZIONI

Termozeta is an international trademark. Copyright © 1995. All rights reserved

Databratic S.p.A. - Via Agordat, 34 - 20127 Milano - Italy

INFORMATION FOR USERS

In accordance with European Directive 2012/19/UE on electric and electronic equipment, waste disposal.

•The barred symbol of the rubbish ton shown on the equipment indicates that, at the end of its useful life, the product must be collected separately from other waste.

• Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis.

• The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposal of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus.

- Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws in force.

Datamatic S.p.A. reserves the right to introduce technical and/or aesthetic changes to its products intended to improve performances. Termozeta is an international trademark. Copyright © 1995. All rights reserved. Datamatic S.p.A. - Via Agordat, 34 - 20127 Milano - Italy

1. Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
2. To avoid the risk of electric shock, do not clean the heater with water and do not immerse it.
3. The housing may be wiped with a slightly damp ,lint-fee cloth.
4. If necessary, dust particles accumulated in the air outlet openings may be removed with a vacuum cleaner.

AVVERTENZE GENERALI

The heater should only be operated at a minimum distance of 100 cm from any wall or other object. Position the air flow in order to optimise the heating of the room.

When the appliance is switched on for the first time, a slight smell may be emitted. Please ensure sufficient ventilation. This smell will disappear very quickly.

FUNCTION SELECTION

0 OFF

Fan without heater

1

500W(low heat output)

||

1000W(full heat output)

PROTECTIONS

ANTI-TIPPING SAFE DEVICE

The product has an anti tilt device that interrupts the mains supply in case the product falls down.

In this case put the product in vertical position on a stable and flat surface to restart the operation.

THERMOSTAT

The product has installed a safety thermal device which power off the product when the internal temperature reaches a determined value.

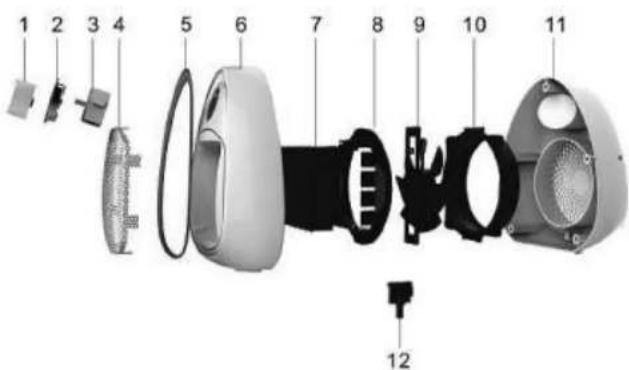

EXPLODED VIEW

1. Rotary knob
2. Switch cover
3. Switch
4. Metal Grille
5. Decorative ring

6. Front shell

7. PTC

8. The outside casing of PTC
9. Fan
10. The outside casing of fan
11. Back shell
12. Anti tilt switch

1. In case of malfunctions, immediately disconnect the product from main supply.
2. The appliance must not be unnecessarily plugged in. Switch it off and unplug it when you do not use it.
3. Never pull the power cord.
4. Never let the appliance without supervision, it could be dangerous.
5. Never obstruct the air grilles, not to create overheating of the product.
6. Never touch the product with wet hands.
7. Don't use the product barefoot.
8. Never pull the power cord to disconnect the product from main supply.
9. Position the product and its cord far from any hot sources, Do not place heavy objects on the cables. The cables may be damaged.
10. Don't position the product near water sources or flammable or explosive materials.
11. Don't position the power cable just of front of heating elements.
12. Don't insert any object inside the grilles and the slots of the product.
13. This appliance must be used only for domestic use according to the rules written in this instruction manual. This unit must be considered as extra heating apparatus and not as main heating apparatus.
14. The appliance becomes very hot, just touch buttons and handle. Do not get close to the radiant panel.

15. This product is compliance to Low Voltage Directive 2014/35/CE, EMC Directive 2014/30/CE and RoHS II 2011/65/CE.

16. Hazard: Do not use the product for purposes other than those for which it was built. Don't use the appliance in the wrong way.

17. Before maintenance and cleaning, disconnect the plug of the appliance from socket
18. Do not use aerosols sprays (eg . Insecticides , hair spray , etc .), it may cause damage to the housing .
19. In case of abnormal situations immediately turn off the power and contact your dealer or service center.
20. Do not use this heater with a programmer, timer or any other device that automatically turns on the unit since in case the device is covered or positioned incorrectly there's risk of fire.
21. Do not use flying sockets or damaged cables.
22. Hold the plug firmly when you disconnect the product to avoid electric shock, short circuit or fir
23. Do not fix Safety switches with duct tape, risk of fire hazard.
24. It's absolutely forbidden to disassemble or repair the unit by the danger of electric shock; contact your dealer or service center.
25. Do not insert objects through the slots of the unit.
26. Before connecting to the mains supply, make sure the voltage is correct as reported on the label of the product and that the installation complies with current regulations
27. Never touch the power connections with wet hands
28. Do not use multiple sockets but only socket with single output and specific power.
29. If the power cable is damaged it must be replaced by the Technical Center or by qualified technician.
30. The heater must not be located immediately below a socket outlet.
31. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
32. The product has not been designed to be used in bathrooms.
33. Never use the product outdoor. Never expose the appliance to atmospheric agents (rain, sun, etc.)
34. Warning: In order to avoid overheating, do not cover the heater.
35. Be sure that the product is positioned at least a 1m from any other flammable objects such curtains,

White portable electric heater with mesh grille and control knob (no visible text or symbols)

INSTRUCTION MANUAL

Please READ and RETAIN for future reference.

SAFETY WARNINGS

CAUTION: To prevent overheating do not cover the appliance.

The appliance must not be placed below electric socket on the wall

1. Use the appliance only for the mentioned purpose, namely for heating for domestic use. Do not use it for any other application as it could get dangerous. The manufacturer is not responsible for any eventual damages caused by improper or faulty use.
2. Remove the packing and make sure that the appliance is intact. The appliance must be intact without visible damages which could be caused by transport. In case of doubt do not use it and contact our after-sales service.
3. Do not leave packaging materials like plastic bags, foam polystyrene, buttons and staples within reach of children.
4. Children of less than 3 years should be kept away unless continuously supervised.
5. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
6. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
7. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision
8. Caution — some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
