ISJ-1000 - Juicer Imarflex - Free user manual and instructions

Product Type	Juicer
Brand	Imarflex
Model	ISJ-1000
Juicing Method	Centrifugal
Power Consumption	800 W
Voltage	220-240 V, 50/60 Hz
Pulp Container Capacity	1.0 L
Juice Jug Capacity	0.8 L
Feeding Tube Diameter	70 mm
Material (Main Body)	ABS Plastic
Material (Strainer)	Stainless Steel
Dimensions (W x D x H)	25 x 20 x 35 cm
Net Weight	2.5 kg
Dishwasher Safe Parts	Yes (excluding motor base)
Safety Features	Safety lock arm, non-slip feet, overload protection
Spare Parts Availability	Replacement jugs and strainers available from Imarflex service centers
Warranty	1 year limited warranty
Certifications	CE, RoHS

Frequently Asked Questions - ISJ-1000 Imarflex

How do I assemble the Imarflex ISJ-1000 juicer?

Place the motor base on a flat surface. Insert the strainer basket into the housing, then attach the pulp container. Lock the arm into place. Attach the feed chute and place the juice jug under the spout. Ensure all parts are securely locked before use.

Can I juice leafy greens like spinach or wheatgrass?

Yes, the ISJ-1000 can handle leafy greens. For best results, roll leaves into a tight bundle before feeding. Use the pusher to gently guide them through the chute.

How do I clean the juicer after use?

Unplug the juicer. Disassemble all removable parts (jug, pulp container, strainer, lid). Rinse immediately under running water. Most parts are dishwasher safe (top rack). Use the included cleaning brush for the strainer. Wipe the motor base with a damp cloth.

What is the maximum operating time?

The ISJ-1000 can run continuously for up to 2 minutes. After that, allow it to cool for at least 1 minute before resuming. This prevents motor overheating.

Why is the juicer vibrating excessively?

Excessive vibration usually indicates an unbalanced load or that the strainer is not correctly seated. Ensure the strainer is properly locked and that you are not overloading the feed chute. Also check that the non-slip feet are clean and on a level surface.

Can I juice frozen fruits?

No, frozen fruits should not be juiced directly as they can damage the strainer. Thaw frozen fruits completely before juicing. Alternatively, use them in a blender.

Is the pulp container adjustable?

No, the pulp container is fixed in size. When it becomes full, you can stop and empty it during large juicing sessions. Some models allow you to divert pulp to a separate container (check your manual).

What safety features does the juicer have?

The ISJ-1000 includes a safety lock arm that prevents operation if not properly closed, non-slip feet for stability, and overload protection that shuts off the motor if it gets too hot.

How do I store the juicer?

Clean and dry all parts thoroughly. Reassemble the juicer or store parts separately. Keep the cord wrapped around the base or in a cord storage compartment. Store in a dry place away from direct sunlight.

Where can I find replacement parts?

Replacement parts such as the juice jug, pulp container, and strainer basket can be ordered from Imarflex service centers or authorized dealers. Visit the Imarflex website or contact customer support for specific part numbers.

USER MANUAL ISJ-1000 Imarflex

1. Carefully clean the spinning brush periodically by removing the silicone "brushes" to prevent staining or mold.
2. Thoroughly rinse and clean after each use to minimize staining.
3. For best cleaning results, use warm and a mild detergent.
4. Do not use rough abrasives or harsh chemicals as they can scratch or damage the plastic.
5. Make sure extraction packing is pulled-out completely when cleaning. Plug back in securely after cleaning to prevent leaks.

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By: Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China

SPECIFICATION

MODEL NO. : ISJ-1000

RATED VOLTAGE : 230 Va.c. 60Hz

POWER CONSUMPTION : 150 watts

BOX DIMENSION : 540×210×335mm

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.

2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use a two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest Imarflex Authorized Service Center.

5. Do not place the unit near a gas stove, an electric burner or in a heated oven.

6. Place the unit on stable surface; keep it away from the edge of counter to avoid accident.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. To protect against electric shock, do not immerse the base in water or any other liquid.

10. Use of accessories or equipment not supplied by the manufacturer may cause damage or malfunctioning of your appliance or result in injuries.

11. Use on a hard, flat level surface only, to avoid interruption of air flow underneath the appliance.

12. Switch off the appliance and unplug the unit before replacing any of its accessories or before cleaning the appliance.

13. Do not extract above the maximum capacity (700cc). Juice may overflow.

14. Do not use the appliance if any of the appliance part is damaged or has a visible crack.

15. Do not immerse the appliance in water or any other liquid.

16. This appliance is not intended for outdoor use.

17. Never place the appliance near hot surfaces.

18. In case of malfunctions, please bring the appliance to the nearest Authorized Imarflex Service Center.

19. Avoid water spillage into the socket, connector, cord and alike.

20. Do not use the appliance other than its intended use.

21. For household use only; not intended for any business purposes

22. Save this instruction manual for future reference.

23. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

The unit vibrates.	Sign of motor is working properly.	Vibration is perfectly normal. However, severe shaking which causes imbalance of the unit should be checked for defective screw.
Strainer damage.	Ice, frozen foods, large hard seeds or pits, unknown substance, or excess food in bowl.	Refer to Instruction Manual for proper usage. Remember not to overcrowd food or force foods in.
Deformation of attachments.	Exposed to heat or abrasive materials.	Do not clean any attachments in dishwasher or use hard cleaners. Plastics tend to deform when expose to high heat.
Too much pulp coming out.	Excess food in bowl clogging up the strainer or food not cut inot small pieces.	Cut food, especially fibrous foods, into smaller pieces to avoid the fibers wrapping around the screw. Also input food at a slow pace allowing all the pulp to eject before adding more food.

CLEANING AND MAINTENANCE

1. Make sure to switch off and unplug the unit before moving or cleaning the appliance.
2. Twist the top set to the right and lift to remove it from the base.
3. Detachable parts can be washed using soap and water.
4. For consistent juicing results always ensure that the filter and blade is thoroughly cleaned. Using a nylon brush, hold the filter and blade under running water and brush from the inside to outer rim. If the holes are blocked, soak the filter and blade in hot water with 10% lemon juice to loosen the blocked holes.
5. Some vegetables such as carrot may cause discoloration of the plastic, to avoid discoloration wash thoroughly after use.
6. Dry all parts thoroughly, then assemble the juice extractor and turn the power ON to spin out any excess water in the Filter/Blade Assembly.
7. Wipe the base of the unit with damp cloth.
8. Do not use abrasive materials to avoid scratches. Note: Do not immerse the unit in water or any other liquid

Order to Disassemble.

HOW TO USE

1. Assemble the unit properly. (Kindly refer to Assemble Instruction). Note: Unit will not work, if not properly installed.
2. Three settings of Torque Juicer

"ON" Starts motor/makes juice

"REV" Reverses motor and is to be used only when food is stuck

"OFF" stops motor/turns off the unit

1. Putting the food into the Torque Juicer:

Wash the fruits/vegetables and remove the skin and seeds:

• If using fruit with hard or inedible skins such as mangoes, melons or pineapple, always peel before juicing
• Fruit can be juiced. Simply remove the skin and seeds
• All fruits with pits, hard seeds or stones from nectarines, peaches, mangoes, apricots, plums and cherries must be removed before juicing
• Be sure to cut the fruit or vegetable into pieces, no larger than 2 inches for optimal extraction, and remove any large hard seeds.

• Turning "ON" the Torque Juicer, drop the fruit or vegetable into the feeding tube. Do not push, force, or overstuff. Use the provided pusher in the unit to use when the food becomes stuck. Insert the fruit or vegetable at a slow pace, allowing all the pulp to extract.

• Juice will flow into the cup or container through the juice spout and the separated pulp will accumulate in the pulp container. Always watch the level of juice in the cup or container. Do not overfill, as juice will continue to drip from the cup or container after you have stopped juicing. Switch OFF the unit and allow the drippings to stop before removing the cup or container.

• Turn off the unit after every use.

Note: Do not extract above the maximum capacity (700cc). Juice may overflow.

TROUBLESHOOTING

PROBLEM	POSSIBLE REASON/S	SOLUTION
Bowl is stuck and does not detach from the base.	Excessive food in the bowl.	Press the reverse button for about 3-5 seconds. Repeat the process 2-3 times. Then push bowl upward while turning.
Hopper/lid is stuck.	Excessive food in the bowl.	Press the reverse button for about 3-5 seconds. Repeat the process 2-3 times. Then push bowl upward while turning.
Motor is stuck or has stopped.	Excessive food in the bowl. Safety feature: Automatic shut-off due to overheating.	Press the reverse button for about 3-5 seconds. Repeat the process 2-3 times. Then push bowl upward while turning.
Leaking from underneath the bowl.	Extraction packing not plugged in correctly.	Be sure to plug-in extraction packing tightly after cleaning.
Squeaking noise when juicing.	Friction between the squeezing screw and bowl or food.	Squeaking sound is perfectly normal. Do not run the juicer without any food.

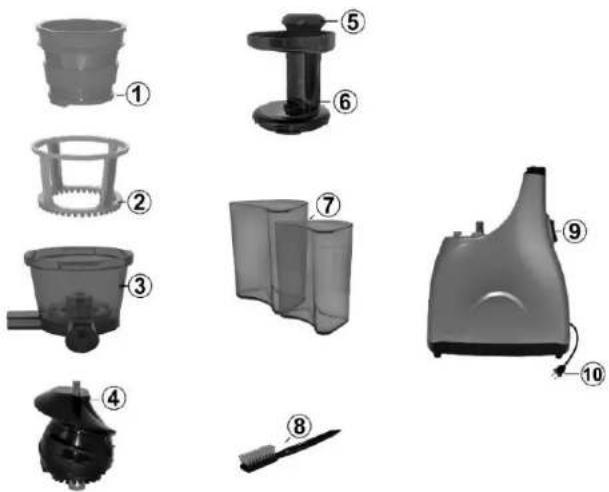

DESCRIPTION OF PARTS

1	Strainer
2	Spinning Brush
3	Container
4	Auger
5	Pusher
6	Hopper Lid
7	Pulp/Juice Container
8	Brush
9	Switch Button
10	Power Cord

ASSEMBLE INSTRUCTION:

1	1. Place the strainer into the spinning brush.	2Red dot on Strainer Red dot on Container
		2. Place the strainer and spinning brush into the bowl.- Be sure to align the red dot on the top of the strainer and the red arrow on the top of the bowl.- When the dot and arrow are properly aligned, strainer should be lock into the bowl preventing it from moving around.
3	3. Place the squeezing screw inside the strainer and rotate until it falls into place.	4 4. Assemble the hopper onto the bowl.- Be sure to align the arrow on the hopper to the red arrow on the top of the strainer and bowl, and twist to close so that the arrow is pointing to the "Close" position.

Diagram of a hand pump tool with two curved blades, one with a downward arrow indicating motion (no text or symbols)

1. Plug in the unit and place the containers under both nozzles. (Juice and pulp nozzle).

Illustration of a hand inserting a plug into a cleaner's juice brush (no text or symbols visible)

1. Assemble the entire top set onto the base.

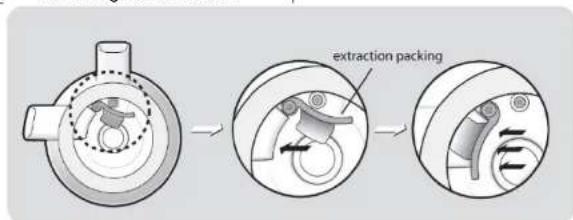

2. Underneath the bowl, there is a yellow rubber pad called the extraction packing which allows all of the juice to only discharge from the juice outlet. Before juicing, please make sure the extraction packing is plugged in completely to prevent any leakage.
