IJ-65 - Juicer Imarflex - Free user manual and instructions

Product Type	Centrifugal Juicer
Brand	Imarflex
Model	IJ-65
Dimensions (approx.)	30 x 25 x 40 cm
Weight (approx.)	3.5 kg
Power Consumption	500 W
Voltage	220-240 V, 50/60 Hz
Feeding Tube Diameter	70 mm
Pulp Container Capacity	1.5 L
Juice Jug Capacity	1 L
Speed Settings	2 speeds (low/high)
Main Functions	Juicing fruits and vegetables with pulp separation
Cleaning	Dishwasher-safe removable parts (strainer, lid, pulp container)
Maintenance	Regular cleaning after each use; avoid prolonged juicing of fibrous produce
Safety Features	Safety locking arm, non-slip feet, overload protection
Spare Parts	Replacement strainer and pulp container available
Repairability	Modular design; motor unit serviceable by qualified technician
Warranty	1 year limited warranty
Material	Stainless steel strainer, BPA-free plastic body

Frequently Asked Questions - IJ-65 Imarflex

How do I assemble the Imarflex IJ-65 juicer?

Place the motor base on a flat surface. Attach the pulp container, then the strainer basket. Lock the lid with the safety arm. Finally, place the juice jug under the spout.

Can I juice leafy greens like spinach?

Yes, but for best results, roll leafy greens into a ball or juice them together with hydrating produce like cucumber or celery.

How do I clean the strainer basket?

Rinse immediately after use under running water. Use the included cleaning brush to remove pulp. The strainer is also dishwasher-safe (top rack).

Why is my juicer vibrating excessively?

Check that the pulp container is properly locked and the juicer is on a level surface. Also ensure the strainer basket is not unbalanced due to uneven produce loading.

What is the maximum operating time?

To prevent overheating, do not run the juicer continuously for more than 2 minutes. Let it cool for at least 5 minutes before restarting.

Can I juice whole apples without cutting?

The feeding tube has a diameter of 70 mm, so small apples can be juiced whole. Larger ones should be cut into quarters.

How do I switch between speeds?

Use the control dial on the front: low speed (1) for soft fruits like berries, high speed (2) for hard produce like carrots and beets.

Is the juice jug dishwasher-safe?

Yes, the juice jug and lid are dishwasher-safe (top rack). Hand wash is recommended to prolong the clarity of the plastic.

What safety features does the IJ-65 have?

It includes a safety locking arm that prevents operation if the lid is not correctly secured, plus non-slip feet and an overload protector that shuts off the motor if it gets too hot.

Where can I buy replacement parts?

Replacement strainer baskets, pulp containers, and juice jugs are available through Imarflex authorized dealers or online customer service. Check the manual for part numbers.

USER MANUAL IJ-65 Imarflex

CLEANING AND MAINTENANCE

1. Unplug the unit from the convenience outlet before cleaning.
2. All parts are washable with soap and water except the motor base.
3. Wipe the motor base with damp cloth.
4. Do not use abrasive materials to avoid scratches.

REMINDER: Please do not forget to fill up and send the warranty card

ELECTRIC Citrus Juicer

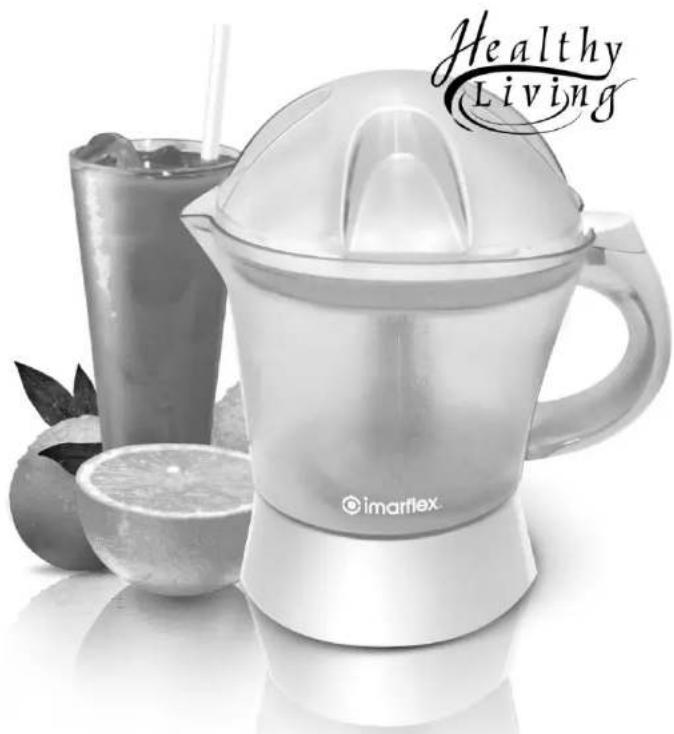

Black-and-white product photo featuring a modern imartex juicer, a glass of juice, and a halved orange fruit (no text or symbols visible on main objects)

www.imarflex.com

IJ-65

SPECIFICATION

MODEL NO. : IJ-65

RATED VOLTAGE : 230Va.c. \~ 60Hz

POWER CONSUMPTION : 25 watts

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the citrus juicer, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
4. Do not use two-way socket with other appliance.
5. Do not place the citrus juicer near gas stove or electric stove.
6. Put the citrus juicer on flat stable surface; keep it away from the edge of counter to avoid accident.
7. Children should be supervised to ensure that they do not play with the appliance.
8. This appliance is not intended to use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
9. To protect against electric shock, do not immerse the base in water.
10. Do not use the citrus juicer other than its intended use.
11. In case of malfunctions, please bring the unit to the nearest Authorized Imarflex Service Center.
12. For household use only.
13. Save this instruction for future reference.

HOW TO USE

1. For initial use, wash detachable parts thoroughly with soap and water except the motor base.
2. Assemble the Citrus Juicer (See description of parts).
3. Use Small Cone Reamer for lime, lemons, etc. and use the Large Cone Reamer for orange, ponkan, etc.
4. Cut the citrus fruits into half.
5. Adjust the Strainer to desired juice consistency.

6. Plug the unit into the convenience outlet.

7. One hand will hold the handle for support and the other hand for pressing the citrus fruit towards the cone reamer, it will automatically turn the juicer ON.

8. Unplug the unit after use.

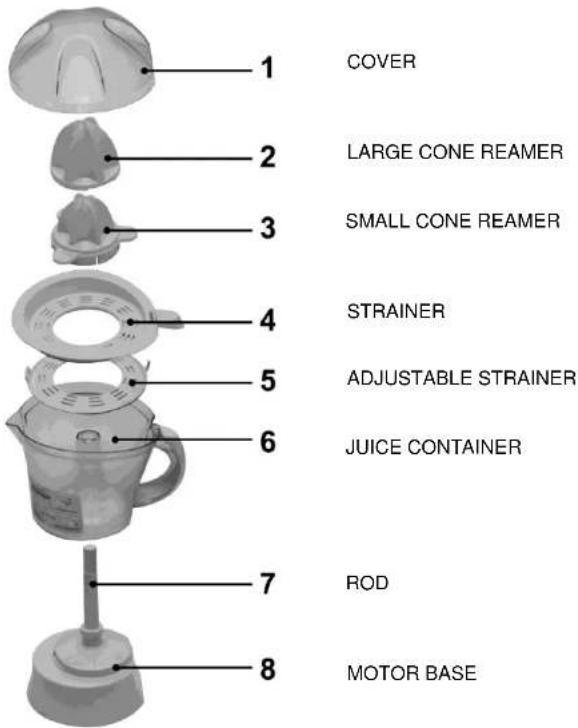

DESCRIPTION OF PARTS
