IJE-3000 - Juicer Imarflex - Free user manual and instructions

Product Type	Centrifugal Juicer
Brand	Imarflex
Model	IJE-3000
Color	White and Transparent
Dimensions (WxDxH)	30 x 20 x 35 cm
Weight	3.2 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	300 W
Speed Settings	2 speeds (low/high)
Juice Container Capacity	0.8 L
Pulp Container Capacity	1.2 L
Feeding Tube Diameter	5 cm (whole apple compatible)
Material	Stainless steel blade, BPA-free plastic
Functions	Juicing fruits and vegetables, pulp separation
Safety Features	Safety lock arm, non-slip feet, overload protection
Cleaning	Detachable parts dishwasher safe; blade rinse immediately
Maintenance	Regular cleaning of filters; descaling monthly
Spare Parts Available	Juice jug, pulp container, filter, pusher, lid
Repairability	Replaceable parts; service centers available
Warranty	1 year limited warranty
Certifications	CE, RoHS
Included Accessories	Juice jug, pulp container, cleaning brush, instruction manual

Frequently Asked Questions - IJE-3000 Imarflex

How do I assemble the Imarflex IJE-3000 juicer?

Start by placing the pulp container on the base, then attach the filter basket and locking arm. Slide the juice jug under the spout, place the lid on top, and secure the feeding tube. Ensure the safety lock clicks into place before operation.

Can I juice whole apples with the IJE-3000?

Yes, the feeding tube has a 5 cm diameter, allowing whole apples to be juiced without pre-cutting. However, for harder fruits like carrots, it is recommended to cut them into pieces to avoid overloading.

How do I clean the juicer after use?

Unplug the juicer and disassemble all removable parts. Rinse the filter and lid immediately under running water. Most parts are dishwasher safe (top rack). Use the cleaning brush to remove pulp from the filter mesh.

What should I do if the juicer stops working during operation?

The juicer has overload protection. If it stops, unplug and let it cool for 15 minutes. Check for blockages in the feeding tube or filter, clear them, and try again. If the issue persists, contact customer support.

Is the juice jug capacity sufficient for a family?

The juice jug holds 0.8 L, suitable for 2-3 servings. For larger quantities, you can empty the jug during juicing or use a separate container. The pulp container holds 1.2 L, enough for continuous juicing.

Can I juice leafy greens like spinach or kale?

Yes, the IJE-3000 can handle leafy greens. For best results, roll the leaves into a tight ball and feed them through the tube. Alternate with softer fruits like cucumber to help push the greens through.

How often should I replace the filter?

With regular use and proper cleaning, the stainless steel filter can last 12-18 months. If you notice reduced juice output or excessive vibration, it may be time to replace the filter. Check the user manual for part numbers.

Does the juicer have a safety feature to prevent accidents?

Yes, the IJE-3000 includes a safety lock arm that prevents operation unless the lid is properly secured. Additionally, non-slip feet keep the base stable during use.

Why is there pulp in my juice?

A small amount of pulp is normal in centrifugal juicers. If excessive, the filter may be clogged. Clean it thoroughly, or check if the filter is damaged. Also ensure you are not overloading the juicer with too much produce at once.

Where can I find replacement parts for the IJE-3000?

Replacement parts such as juice jugs, pulp containers, filters, and pushers are available from Imarflex authorized dealers or online retailers. Use the model number IJE-3000 when searching for parts.

USER MANUAL IJE-3000 Imarflex

1. Make sure that the appliance is in OFF position before plugging in the convenience outlet.

2. Assemble the Juicer (See How to Assemble)

3. Wash the fruits/vegetables and remove the skin and seeds:

4. If using fruit with hard or inedible skins such as mangoes, melons or pineapple, always peel before juicing

5. Citrus fruit can be juiced. Simply remove the skin and seeds

6. All fruits with pits, hard seeds or stones from nectarines, peaches, mangoes, apricots, plums and cherries must be removed before juicing

7. Put a cup or container under the Juice Spout.

8. Select the desired speed by turning the speed selector.

• Speed 1 – Function is for juicing soft vegetables, soft fruits or any light mixture
- Speed 2 – Function is for juicing hard vegetables and hard fruits

1. Juice will flow into the cup or container through the juice spout and the separated pulp will accumulate in the pulp container. Always watch the level of juice in the cup or container. Do not overfill, as juice will continue to drip from the cup or container after you have stopped juicing. Switch OFF the unit and allow the drippings to stop before removing the cup or container.

NOTE: THE UNIT WAS EQUIPPED WITH OVERLOAD PROTECTION. IT WILLAUTOMATICALLY STOP WHEN THE MOTOR GET HOT. UNPLUG THE UNITTHEN LET IT COOL

1. Unplug every after use.

CLEANING AND MAINTENANCE:

It is important to thoroughly clean the unit after each use to avoid the buildup of food residue.

1. Make sure to switch off and unplug the unit before moving or cleaning the appliance.
2. Detachable parts can be washed using soap and water.
3. For consistent juicing results always ensure that the filter and blade is thoroughly cleaned. Using a nylon brush, hold the filter and blade under running water and brush from the inside to outer rim. If the holes are blocked, soak the filter and blade in hot water with 10% lemon juice to loosen the blocked holes.
4. Some vegetables such as carrot may cause discoloration of the plastic, to avoid discoloration wash thoroughly after use.
5. Dry all parts thoroughly, then assemble the juice extractor and turn the power ON to spin out any excess water in the Filter/Blade Assembly.
6. Wipe the base of the unit with damp cloth.
7. Do not use abrasive materials to avoid scratches. Note: Do not immerse the unit in water or any other liquid.

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By: Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China

SPECIFICATION:

MODEL NO. : IJE-3000

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 300 watts

BOX DIMENSION : 259*217*288mm

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.

2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use a two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest lmarflex Authorized Service Center.

5. Do not place the unit near a gas stove, an electric burner or in a heated oven.

6. Place the unit on stable surface; keep it away from the edge of counter to avoid accident.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. To protect against electric shock, do not immerse the base in water or any other liquid.

10. Use of accessories or equipment not supplied by the manufacturer may cause damage or malfunctioning of your appliance or result in injuries.

11. Use on a hard, flat level surface only, to avoid interruption of air flow underneath the appliance.

12. Switch off the appliance and unplug the unit before replacing any of its accessories or before cleaning the appliance.

13. Do not extract above the maximum capacity (350cc). Juice may overflow.

14. Do not use the appliance if any of the appliance part is damaged or has a visible crack.

15. Do not immerse the appliance in water or any other liquid.

16. This appliance is not intended for outdoor use.

17. Never place the appliance near hot surfaces.

18. In case of malfunctions, please bring the appliance to the nearest Authorized Imarflex Service Center.

19. Avoid water spillage into the socket, connector, cord and alike.

20. Do not use the appliance other than its intended use.

21. For household use only; not intended for any business purposes

22. Save this instruction manual for future reference.

23. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

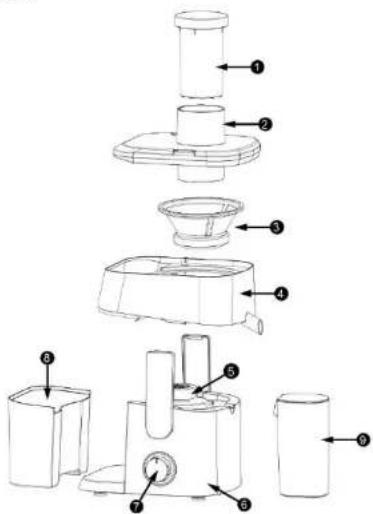

DESCRIPTION OF PARTS:

NO.	DESCRIPTION	NO.	DESCRIPTION
1	Pusher	5	Handle
2	Cover	6	Pulp Container
3	Stainless Steel Filter Basket	7	Speed Selector
4	Filter and Blade Holder	8	Juice Container

HOW TO ASSEMBLE:

IMPORTANT: Your juicer parts are subject to wear during normal use. Always inspect the unit and parts for nicks, chips or cracks. Always inspect for broken, cracked or loose parts. Do not use the unit if damage. Contact the Imarflex Authorized Service Center to obtain evaluation and repair.

1. For initial use, wash detachable parts thoroughly.
2. Place the Filter/Blade Holder on the Motor Base.
3. Place the Filter on the Filter/Blade Holder.
4. Put the Blade on the Filter Basket.
5. Mount the Cover on the Filter/Blade Holder. Make sure that the Cover is fitted on the Filter/Blade Holder and pull up the handle until it locks.
6. Put the Pulp Container in the lower hinge of the unit.
7. Place the juice container in front of the spout.
