ICM-910S - Coffee maker Imarflex - Free user manual and instructions

Product Type	Coffee Maker
Brand	Imarflex
Model	ICM-910S
Capacity	10 cups (approx. 1.5L)
Power Supply	120V ~ 60Hz
Power Consumption	900W
Dimensions (approx.)	25 cm x 20 cm x 30 cm
Weight	2.5 kg
Material	Plastic body, glass carafe
Water Tank	Removable, with level indicator
Brewing System	Drip filter
Filter Type	Permanent reusable filter (included) or paper filter
Keep Warm Function	Automatic keep warm plate
Anti-drip System	Yes, pause & serve
Auto Shut-off	After 2 hours
Water Level Indicator	Yes
Carafe Type	Glass carafe with marking
Cleaning	Wipe with damp cloth; descale regularly
Safety Features	Overheat protection, auto shut-off
Accessories	Permanent filter, measuring spoon
Repairability	Spare parts available from Imarflex service centers
Certifications	ETL, FCC

Frequently Asked Questions - ICM-910S Imarflex

How many cups does the ICM-910S make?

It brews up to 10 cups (about 1.5 liters) of coffee.

What type of filter does it use?

It comes with a permanent reusable filter, but you can also use standard paper filters.

Does it have an automatic shut-off?

Yes, the coffee maker automatically shuts off after 2 hours for safety.

Can I brew a small amount of coffee?

Yes, the water level indicator allows you to brew as little as 2 cups.

How do I clean the coffee maker?

Unplug and let cool. Remove the filter basket and wash with warm soapy water. Wipe the exterior with a damp cloth. Descale regularly with a vinegar solution.

Is there a pause-and-serve feature?

Yes, the anti-drip system allows you to pour a cup mid-brew without spills.

What is the warranty period?

Imarflex typically offers a 1-year limited warranty. Check your manual for details.

Why is my coffee not hot enough?

Ensure the carafe is properly placed on the warming plate. The keep warm function maintains temperature, but coffee will cool over time.

Can I use ground coffee directly?

Yes, add ground coffee to the filter basket. Use a medium grind for best results.

Where can I find replacement parts?

Contact Imarflex customer service or visit their website for official spare parts like carafes and filters.

USER MANUAL ICM-910S Imarflex

ICM-910S

SPECIFICATION

MODEL NO : ICM-910S

RATED VOLTAGE : 230Va.c. 60Hz

When using electrical appliances, basic safety precautions should always be followed, including the following.

1. Read all instructions carefully.
2. Before using the coffee maker, check if the voltage indicated corresponds with the electric outlet (230Vac).
3. Do not use two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it must be replaced with the same type and size or bring the unit to the nearest Imarflex Authorized Service Center.

5. Do not use the coffee maker if the water tank is empty.

6. Do not place the coffee maker near gas stove, electric burner or heated oven.

7. Put the coffee maker on stable surface; keep it away from the edge of counter to avoid accident.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. Children should be supervised to ensure that they do not play with the appliance.

10. Do not allow cord to touch hot surface of the coffee maker.

11. To protect against electric shock, do not immerse the coffee maker in water.

12. Do not use carafé for other purposes.

13. Avoid placing the carafé on a wet or cold surface.

14. Do not use the carafé if it has a crack or the handle is not stable.

15. Switch OFF after use and unplug the unit from the convenience outlet.

16. Do not use the unit for outdoor use.

17. Do not use this unit other than its intended use.

18. For household use only, not intended for any business purposes.

19. After use, always switch OFF and unplug the unit from the convenience outlet.

20. Save this instruction manual for reference.

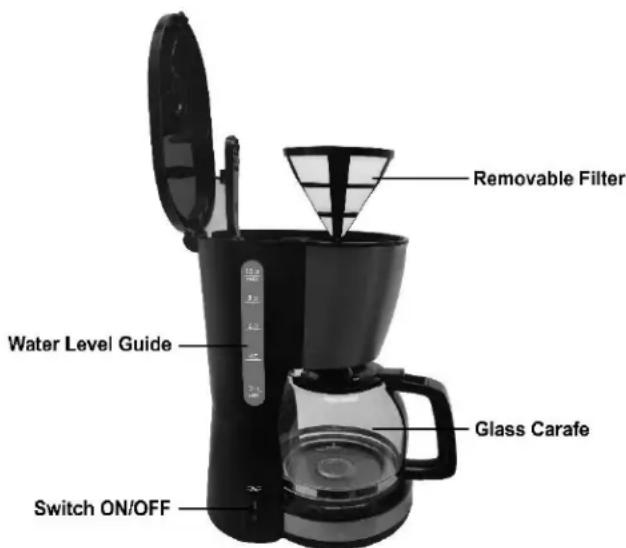

DESCRIPTION OF PARTS

HOW TO USE

1. For initial use, wash filter basket, filter holder and the carafé thoroughly.
2. Plug the unit into a convenience outlet, always make it sure that the unit is in OFF position.
3. Put the filter basket into the filter holder.
4. Put ground coffee into the filter basket using a measuring spoon, standard measurement is one scoop of ground coffee (7 to 8 grams) for a cup of water (8oz.), but you may adjust according to personal taste, and then close the funnel.
5. Open the lid of the water tank, pour the desired amount of water and close the then. Note: Do not fill water tank above its maximum level as indicated on water level window.
6. Wipe and place the carafé into the keep warm plate.
7. Switch the unit ON.
8. During the brew cycle, the water will automatically drip into the carafé.

NOTE: The appliance is designed with an anti-drip feature, if you wish, at any time during brewing cycle, you can temporarily remove carafe to pour and serve a cup of hot coffee. The brewing cycle will not be interrupted and no coffee will drip from the unit, simply return the glass carafe onto the warming plate to restart the brewing cycle, but do not remove the glass carafe longer than 30 seconds

1. Remove carafe to serve after the brewing cycle, (about one minute later after the coffee stops dripping out).

NOTE: The coffee you get will be less than the water you have poured, as some water is absorbed by coffee ground.

CAUTION: When pouring coffee, make sure that the angle of the carafe does not exceed 45 degrees in reference to the vertical position, you can pour the coffee slowly until the carafe is empty, be careful not to over tilt and spill the hot contents of the carafe. The hot contents of the carafe burn the skin on contact.

1. After brewing, the appliance will automatically switch to the warming mode, which will continue to keep your coffee warm until you press the button to the "O" position. It is suggested that warming time shall be not more than 1 hour; aroma and coffee taste will decrease as long as it is exposed. For the best coffee taste, serve it just after brewing.

2. After use, switch OFF and unplug the unit from the convenience.

NOTE: Always turn off the unit if the carafé is empty.

HINTS FOR GREAT-TASTING COFFEE

1. A clean coffee maker is essential for making great-tasting coffee. Regularly clean the coffee maker as specified in the "CLEANING AND MAINTENANCE" section.
2. Always use fresh tap water in brewing coffee.
3. Store unused ground coffee in a cool, dry place. After opening a package of ground coffee, store it in an airtight container to maintain its freshness.
4. For the best coffee taste, buy whole coffee beans and finely grind them just before brewing.
5. Do not reuse ground coffee since this will greatly reduce the coffee flavor.
   Reheating coffee is not recommended as coffee is at its peak flavor after brewing.
6. Clean the coffee maker when over-extraction caused oiliness. Small oil droplets on the surface of brewed, black coffee are due to the extraction of oil from the ground coffee.
7. Oiliness may occur more frequently if heavily roasted coffees are used.

CLEANING AND MAINTENANCE

How to clean the Water Tank:

1. Pour water on the water tank with one pint vinegar.
2. Put the carafé into the keep warm plate.
3. Switch the unit ON.
4. After one minute switch OFF.
5. Allow the vinegar inside the water tank for at least 30 minutes. Switch ON. The water will flow into the carafé after boiling.
6. Empty carafé and rinse it thoroughly.
7. Pour water on the water tank and repeat the brewing cycle.
8. Switch OFF.
9. Wash the carafé once more.

NOTE: Do not use damp cloth to clean the water tank, this will leave some residue of lint and may clog your coffee maker, simply rinse with fresh tap water periodically.

Removing Mineral Deposits on the Water Tank

To keep your coffee maker operating efficiently, periodically clean mineral deposits left by the water according to the water quality in your area and the frequency of use, we recommend removing mineral deposits as follows:

1. Fill the tank with water and de-scaling solution to the max level as indicated on water gauge (the scale of water and solution is 4:1; the detail refers to the instruction of the solution. Please use "household solution"; you may also use the citric acid instead of the solution (the one hundred parts of water and three parts of citric acid).
2. Insert glass carafe onto the warming plate.
3. Make sure that the filter (without ground coffee) and funnel are assembled properly.
4. Switch the unit on and allow it to process the de-scaling solution.
5. After processing one-cup solution, switch off the appliance.
6. Leave the solution for 15 minutes and repeat steps 3-5.
7. Switch ON the appliance and run off the solution until the water tank is completely empty.
8. Rinse the unit by processing with fresh water at least 3 times.

How to clean the Keep Warm Plate and the Filter Basket:

1. Unplug and allow the unit to cool OFF before cleaning.
2. Wipe the plate with damp cloth and wipe it dry.
3. Wash the Filter Basket and Filter Basket Holder with soap and water.

How to clean the Carafé

1. Make it sure that it is completely cool.
2. Wash the carafé using a mild detergent.
3. To remove stains, fill carafé with water and mild soap, allow these inside the carafé overnight.
4. Rinse the carafé thoroughly.
5. Do not clean with cleansers, steel wool pads, or other abrasive materials.

NOTE: Never pour brewed coffee into the water tank for reheating as it may damage the unit.

REMINDER: Please do not forget to fill up and send the warranty card
