IES-1000S - Coffee maker Imarflex - Free user manual and instructions

Product Type	Coffee Maker
Brand	Imarflex
Model	IES-1000S
Power	1000 W
Capacity	1.2 L (approx. 12 cups)
Dimensions (H x W x D)	32 x 25 x 20 cm (estimated)
Weight	2.0 kg (estimated)
Voltage	220-240 V, 50/60 Hz
Water Reservoir	Removable, transparent
Filter Type	Permanent mesh filter (included)
Brewing Technology	Drip coffee maker
Keep Warm Function	Automatic keep warm plate
Auto Shut-off	Yes, after 2 hours
Anti-Drip Mechanism	Yes, allows removing carafe mid-brew
Carafe Material	Glass with clear markings
Controls	On/off switch with indicator light
Cord Storage	Under base
Safety Features	Boil-dry protection, overheat protection
Cleaning	Descaling recommended every 3 months
Spare Parts Available	Carafe, filter, and other parts (check support)

Frequently Asked Questions - IES-1000S Imarflex

How do I descale the Imarflex IES-1000S coffee maker?

Mix a solution of equal parts water and white vinegar and fill the reservoir. Run a brew cycle without coffee, then let it sit for 30 minutes. Run two more cycles with fresh water to rinse.

Why is my coffee maker not brewing?

Check that the water reservoir is filled and the carafe is properly placed. Ensure the filter is not clogged and the machine is plugged in. If still not working, try descaling.

Can I use ground coffee other than medium grind?

It's recommended to use medium grind coffee for optimal extraction. Fine grind may clog the filter, while coarse grind may result in weak coffee.

How many cups does the IES-1000S make?

The carafe has a capacity of 1.2 liters, which yields about 12 cups of coffee (standard 100ml cup size).

Can I brew tea in this coffee maker?

Yes, you can use the coffee maker to brew tea by placing tea leaves or bags in the filter. However, be aware that residual coffee flavors may affect the taste.

How do I clean the permanent filter?

Rinse the permanent mesh filter under running water after each use. For deeper cleaning, soak it in hot soapy water and scrub gently with a soft brush.

What does the anti-drip mechanism do?

The anti-drip function stops the flow of coffee when you remove the carafe mid-brew, preventing spills. Always replace the carafe quickly to continue brewing.

Why is my coffee weak?

Weak coffee can result from using too little coffee grounds or a too coarse grind. Use the recommended 1-2 tablespoons per cup and ensure a medium grind.

How do I replace the carafe?

If the glass carafe breaks, you can purchase a replacement carafe from Imarflex or authorized dealers. Use only compatible carafes designed for this model.

Is the coffee maker safe to leave unattended?

The coffee maker has an automatic shut-off after 2 hours, making it safe for short periods. However, it's always recommended to turn off and unplug when not in use.

USER MANUAL IES-1000S Imarflex

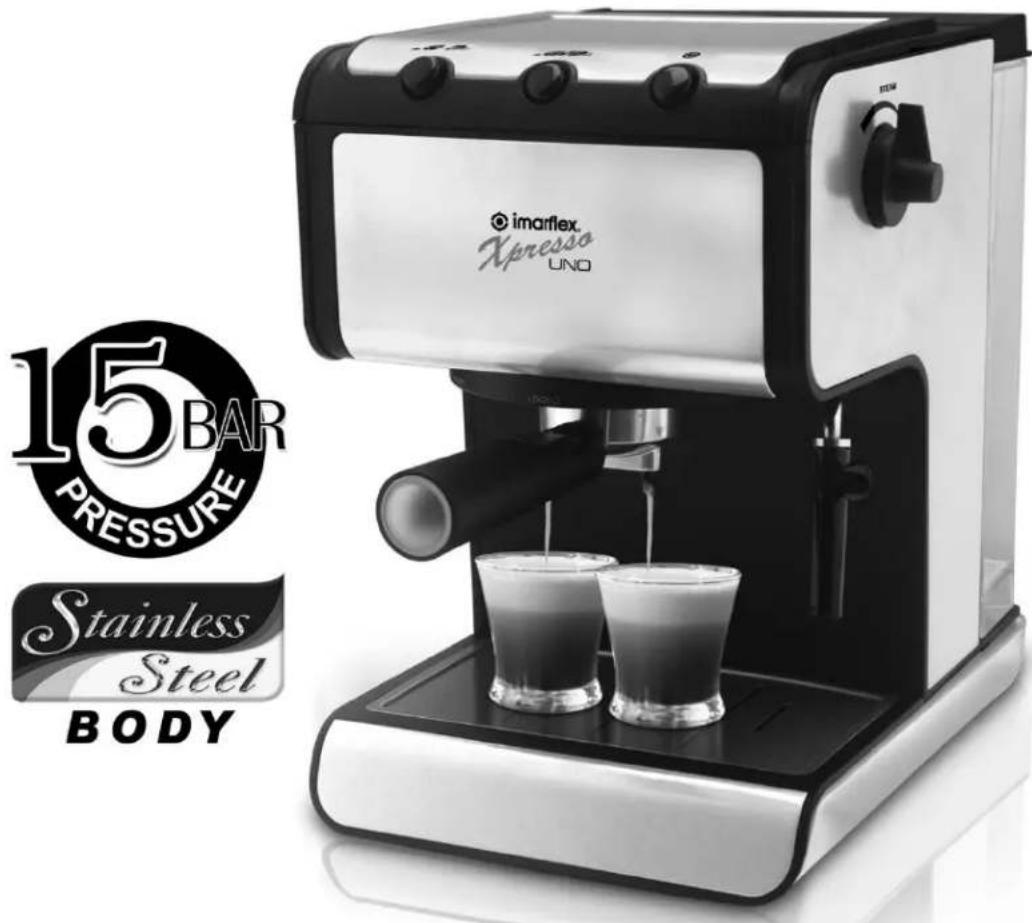

Xpresso UNO

• Power/Ready light indicator • Anti-drip feature
- Removable water tank • Coffee/Steam & dripping buttons
- Cup warmer - Detachable water tank
- Steam control knob • Milk frothing steam pipe

imarflex®

In Every Home.

www.imarflex.com

IES-1000S

SPECIFICATION

MODEL NO. : IES-1000S

RATED VOLTAGE : 230Va.c \~ 60Hz

Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c)
3. Do not use any appliance with a damage cord or plug, if the cord is damaged it should be replaced with same type and size or bring the unit to the nearest Imarflex Authorized Service Center.
4. Do not place the coffee maker on hot surface or beside fire to avoid damage.
5. The use of accessory which is not recommended by manufacturer may cause injury to persons or damage to appliance.
6. Place the appliance on flat stable surface, do not hang its power cord over the edge of table or counter to avoid accident.
7. Ensure that the power cord does not touch hot surface of the unit.
8. Some parts of appliance are hot when operated; do not touch with hand directly.
9. Unplug the unit before cleaning and when not in use. Allow appliance to cool down completely before taking Off, attaching components or before cleaning.
10. Do not immerse the unit or power cord into water or any other liquid.
11. Children should be supervised to ensure that they do not play with the appliance.
12. This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety.
13. Do not use outdoors.
14. Save these instructions booklet for future reference.
15. FOR HOUSEHOLD USE ONLY.

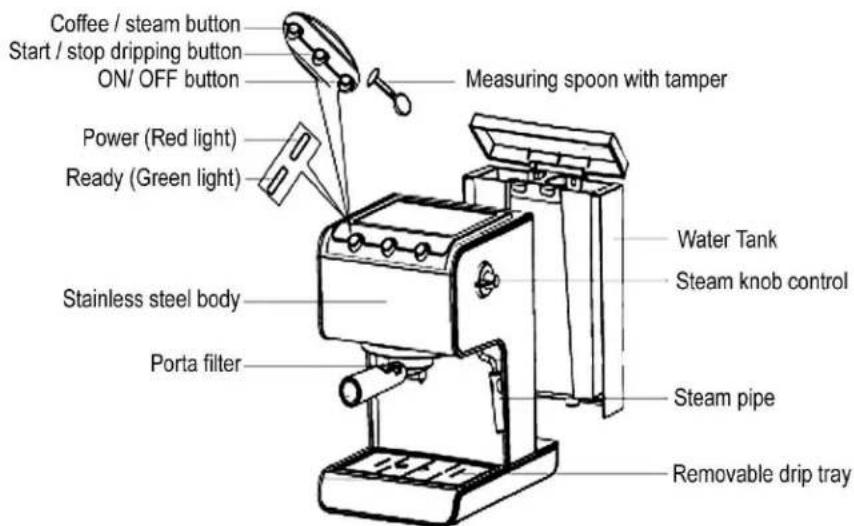

DESCRIPTION OF PARTS

PRODUCING STEAM TO HEAT LIQUIDS

The steam wand (without the frothing device) can be used to make hot beverages like drinking chocolate, water or tea.

Method:

1. Open the top cover, remove the water tank and fill it with desired water, the water level should not exceed the "MAX" mark in the tank. Then place the tank into the unit properly.
2. Replace the top cover, press down the ON/OFF button to the lower position which is the "1" position, the heat light indicator is illuminated.
3. Press down the star/stop button to the lower position which is the "P" position, make sure the coffee/steam button is on the higher position which is the position, when there is water flowing out, close the pump immediately, pressing down the coffee/steam button to the lower position which is the position and waiting for a moment, the unit begins to be heated until the green light indicator is illuminated, it shows the heating is finish.
4. Remove the frothing device from the milk frothing steam pipe.
5. Dip the steam pipe into the liquid to be heated. Turn the steam control knob in anti-clockwise slowly to start making steam.
6. When the required temperature is reached, you can turn the steam control knob to OFF position.
7. Press and release the ON/OFF button to the higher position which is the "0" position to cut the power source off.

FOR INITIAL USE

Clean the unit before using. Follow these simple steps.

1. Wash Porta Filter With soap and water.
2. Remove the water into the unit,
3. Rinse thoroughly and put it back into the slot.
4. Fill the tank with water first,

ESPRESSO COFFEE RPROCEDURE;

Close-up of a hand pressing down on a mechanical device component (no visible text or symbols)

Remove the water tank in the unit.

Close-up of a transparent plastic container with an open lid (no visible text or symbols)

Open the water tank cover and fill with water up to the maximum level.

Person using a sewing machine to press or install a package, with a downward arrow indicating compression (no visible text or symbols)

Return the water tank in the unit.

Exterior view of a modern office building (no signage)

Close the water tank cover.

Hand inserting a device into a control panel (no visible text or symbols)

Remove the portafilter in the unit.

Close-up of hands using a tool to adjust or install a small mechanical component (no text or symbols visible)

Put the filter into the portafilter holder.

Close-up of hands using a spoon to extract granular substance from a metal container (no text or symbols visible)

Put a scoop of ground coffee into the portafilter using the scoop provided.

Close-up of a hand using a tool to adjust or install a small component on a wooden surface (no visible text or symbols)

Press the ground coffee tightly with tamper.

Hand pressing a button on a computer monitor with an arrow indicating rotation (no text or symbols visible)

Insert the portafilter into the unit by turning counter clockwise until it is at the lock position.

Close-up of a hand using a coffee machine to press a cup (no visible text or symbols)

Put a cup under the portafilter.

Press the power button.

When the light indicator "ready" is turn on, press the START/STOP button.

Close-up of a white 3D printer presser dispensing liquid into a cup (no visible text or symbols)

When the light indicator "ready" is turn on, press the START/STOP button

1. Remove the water tank to Espresso Coffee.
2. Fill the Water into Water tank (1.5 water capacity)
3. Close the Cover.
4. Place the water tank into the unit.

5. Remove the Porta Filter Turn in clockwise

6. Put the filter into the porta filter holder.

7. Put a Measuring of Ground Coffee to the Porta Filter. (2 Measuring Spoon)
8. Tamp the Coffee Using Measuring Spoon with Tamper.
9. Return the Porta Filter Holder into the slot and turn to lock
10. Place Espresso Cup on Drip Tray Make sure the Adjustable Steam Knob is turn Off.
11. Press ON/OFF Button to the lower position which is the ON.
12. The Heat light indicator is ON.
13. After 1-2 Minutes the Ready light Indicator (green) is automatic
14. Turn ON when preheating is complete.
15. Press Start/Stop Button, Start Dripping of espresso coffee. After Dripping, press Start/Stop Button to higher position to Stop Dripping

CLEANING AND MAINTENANCE:

1. Remove the water tank in the unit.
2. Open the water tank fill the water into water tank
3. Turn the water tank in the unit
4. Press the Filter lock into the thumb then tilt Filter Holder
5. Wash Filter, Filter Holder Drip tray with soap and water.
6. Wipe the base with damp cloth.

Plug the unit into the convenience outlet

CLEANING AND MAINTENANCE:

1. Switch off then unplug the cord let the coffee maker cool down completely before cleaning.
2. Clean housing of coffee maker with moisture-proof sponge often and clean water tank, drip tray and removable shelf regularly then dry them.

Note: Do not clean with alcohol or solvent cleanser. Never immerse the housing in water for cleaning.

1. Detach the porta filter through turn it clockwise, get rid of coffee residue inside, then you can clean it with cleanser, but at last you must rinse with clear water.
2. Clean all the attachments in the water and dry thoroughly.

CLEANING MINERAL DEPOSITS

1. To make sure your coffee maker operating efficiently, internal piping is cleanly and the peak flavor of coffee, you should clean away the mineral deposits left every 2-3 months.
2. Fill the tank with water and descaler to the MAX level (the scale of water and descaler is 41, the detail refers to the instruction of descaler. Please use "household descaler", you can use the citric acid (obtainable from chemist's or drug stores) instead of the descaler (the one hundred parts of water and three parts of citric acid).
3. According to the program of pre-heating, put the metal funnel (no coffee powder in it) and carafe (jug) in place. Brewing water per "PRE-HEATING".
4. Press down the ON/OFF button to the lower position which is the "1" position, the power light indicator is illuminated, you should press the start/stop button to the lower position which is the P position,

make sure the coffee/steam button is on the higher position which is the ☐ position, when there is water flowing out and close the stop, and waiting for a moment, the coffee maker begins to be heated.

1. When the green light indicator is illuminated, it shows the heating is finish. Pressing down the pump control button to the lower position which is the "P" position and make two cups coffee (about 2Oz). Then close the pump and wait for 5s.
2. Press down the coffee/steam button to the lower position which is the 🔊 position, waiting for until the green light indicator is illuminated. Make steam for 2 minutes then turn the steam control knob to OFF position to stop making steam. Press and release the ON/OFF to the higher position which is the "0" position to stop the unit immediately make the descalers deposit in the unit at least 15 minutes.
3. Restart the unit and repeat the steps of 4-6 at least 3 times.
4. Then pressing and release the coffee/steam button to the higher position which is the ☐ position, when the green light indicator is illuminated, press down the pump control button to the lower position which is the "P" position to brew until no descaler is left.
5. Then brewing coffee (no coffee powder) with tap water in the MAX level, repeat the steps of 4-6 for 3 times (it is not necessary to wait for 15 minutes in step of 6), then brewing until no water is left in the tank.
6. Repeat the step of 9 at least 3 times to make sure the piping is cleanly.

TROUBLE SHOOTING

TROUBLE	Cause	REMEDY
Carafe leakage water or water leaks out from lid of carafe	The carafe is not located properly	Let centreline of carafe aligns with leakage opening of brew basket well.
	The level of water in the tank exceeds the scale of MAX.	The water level in the tank should be within the scale of MIN and MAX.
The metal parts in the tank have rust.	The descaler is not recommended type. It may corrode the metal parts in the tank.	Use the descaler recommended by manufacturer.
Water leaks from the bottom of coffee maker.	There is much water in the drip tray.	Please clean the drip tray.
	The coffee maker is malfunction.	Please contact with the authorized service facility for repairing.
Water leaks out of outer side of filter.	There is some coffee powder on filter edge.	Get rid of them.
Acid (vinegar) taste exists in Espresso coffee.	No clean correctly after cleaning mineral deposits.	Clean coffee maker per the content in “before the first use” for several times.
	The coffee powder is stored in a hot, wet place for a long time. The coffee powder turns bad.	Please use fresh coffee powder, or store unused coffee powder in a cool, dry place. After opening a package of coffee powder, reseal it tightly and store it in a refrigerator to maintain its freshness.
The coffee maker cannot work any more.	The power outlet is not plugged well.	Plug the power cord into a wall outlet correctly, if the appliance still does not work, please contact with the authorized service facility for repairing.
The steam cannot froth.	The steam ready indicator (green indicator) is not illuminated.	Only after the steam ready indicator (green indicator) is illuminated, the steam can be used to froth.
	The container is too big or the shape is not fit.	Use high and narrow cup.
	You have used skimmed milk	Use whole milk or half-skimmed milk
