Product Type	Coffee Maker
Brand	Imarflex
Model	ICM-500A
Dimensions (Approx.)	25 x 20 x 30 cm
Weight (Approx.)	1.5 kg
Power Supply	220-240V ~ 50/60Hz
Power Consumption	800-1000 W
Water Tank Capacity	1.5 L
Carafe Capacity	Approx. 12 cups
Brewing System	Drip filter
Filter Type	Permanent mesh filter or paper filter (#4)
Keep Warm Function	Yes, automatic
Anti-Drip System	Yes
Indicators	Power on/off light
Housing Material	Plastic and stainless steel
Cleaning	Wipe with damp cloth; carafe and filter washable
Descaling	Recommended every 3 months with vinegar or descaling solution
Safety Features	Auto shut-off, overheat protection
Accessories	Glass carafe, permanent filter, scoop
Repairability	Common spare parts available; professional service recommended

Frequently Asked Questions - ICM-500A Imarflex

How do I clean the coffee maker?

After each use, unplug the unit and let it cool. Remove the filter and carafe. Wash the carafe and filter with warm soapy water. Wipe the exterior with a damp cloth. Do not immerse the base in water.

How often should I descale the coffee maker?

Descaling is recommended every 3 months or more frequently if you notice slow brewing or mineral buildup. Use a mixture of white vinegar and water (1:2) or a commercial descaling solution.

Can I use paper filters?

Yes, you can use #4 paper cone filters. The machine also comes with a permanent mesh filter if you prefer.

What is the maximum capacity of the water tank?

The water tank holds up to 1.5 liters, which brews approximately 12 cups of coffee.

Why is my coffee maker not brewing?

Check that the unit is plugged in, the water tank is filled, and the filter basket is properly inserted. Also ensure the carafe is correctly placed on the warming plate. If still not working, descaling may be needed.

How does the auto shut-off feature work?

The coffee maker automatically turns off after 2 hours of inactivity to save energy and prevent accidents.

Can I brew only half a pot?

Yes, you can fill the water tank with the desired amount. The coffee maker will brew accordingly, though the warming function may still be active.

What type of coffee grounds should I use?

Use medium grind coffee. Too fine may cause overflow, too coarse may result in weak coffee.

Is the coffee maker BPA-free?

All parts that come into contact with water and coffee are made from BPA-free materials.

How do I prevent coffee from spilling during brewing?

Ensure the filter basket is correctly seated and not overfilled with grounds. Also make sure the carafe is centered on the warming plate. The anti-drip system stops flow when the carafe is removed.

USER MANUAL ICM-500A Imarflex

Black and white photo of a teacup filled with dark coffee, accompanied by a spoon (no text or symbols visible)

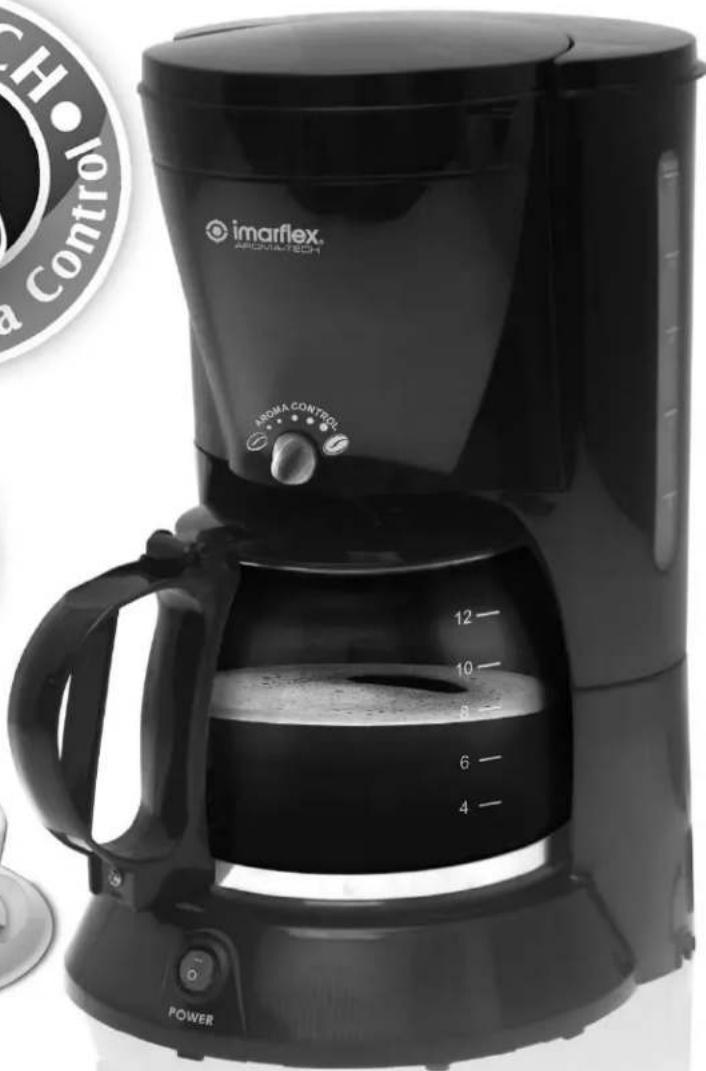

Black IMARFLEX ARIONA TECH Aroma Control coffee maker with water filter, no visible text or symbols on the device itself.

imarflex®

In Every Home.

www.imarflex.com

ICM-500A

SPECIFICATION

MODEL NO : ICM-500A

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 950 Watts

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the coffee maker, check if the voltage indicated corresponds with the electric outlet (230Va.c.).
3. Do not use two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest lmarflex authorized service center.

5. Do not use the coffee maker if the water tank is empty.

6. Do not place the coffee maker near gas stove, electric burner or heated oven.

7. Put the coffee maker on flat surfaced; keep it away from the edge of counter to avoid accident.

8. Children should be supervised to ensure that they do not play with the appliance.

9. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

10. Do not allow cord to touch hot surface of the coffee maker.

11. To avoid electric shock, do not immerse the coffee maker in water.

12. The use of accessory not recommended by appliance manufacturer may result in fire, electric shock or injury to the user.

13. Avoid placing the carafé on a wet or cold surface especially when hot.

14. Do not use the carafé if it has a crack or the handle is not stable.

15. Do not use carafé for other purposes.

16. Do not use the unit for outdoor use.

17. Do not use this unit other than its intended use.

18. For household use only; not intended for any business purposes

19. After use, always switch OFF and unplug the unit from the convenience outlet.

20. Save this instruction manual for reference.

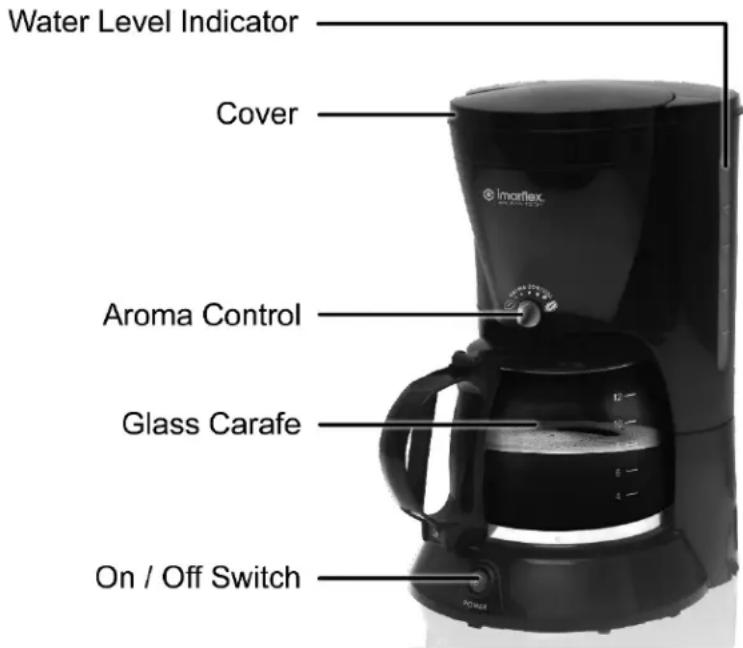

DESCRIPTION OF PARTS

HOW TO USE

1. For initial use, wash filter basket and the carafé thoroughly.
2. Plug the unit into a convenience outlet, always make it sure that the unit is in OFF position.
3. Swing out the Funnel; place the Filter Basket Holder with the Filter Basket and make it sure that is properly assembled.
4. Put ground coffee into the filter basket using a measuring spoon, standard measurement is one scoop of ground coffee (7 to 8 grams) for a cup of water (8oz.), but you may adjust according to personal taste, and then close the funnel.
5. Fill carafe with the desired amount of water. Open the lid of the water tank, pour water from the carafé and close then.

Note: Do not fill water tank above its maximum level as indicated on water gauge.

1. Wipe and place the carafe into the keep warm plate.
2. Switch the unit ON.
3. During the brew cycle, the water will automatically drip into the carafé.

NOTE: The appliance is designed with a pause-and-serve feature, if you wish, at any time during brewing cycle, you can temporarily remove carafe to pour and serve a cup of hot coffee. The brewing cycle will not be interrupted and no coffee will drip from the unit, simply return the glass carafe onto the warming plate to restart the brewing cycle, but do not remove the glass carafe longer than 30 seconds.

1. Remove carafe to serve after the brewing cycle, (about one minute later after the coffee stops dripping out).

NOTE: The coffee you get will be less than the water you have poured, as some water is absorbed by coffee ground.

CAUTION: When pouring coffee, make sure that the angle of the carafe does not exceed 45 degrees in reference to the vertical position, you can pour the coffee slowly until the carafe is empty, be careful not to over tilt and spill the hot contents of the carafe. The hot contents of the carafe burn the skin on contact.

1. After brewing, the appliance will automatically switch to the warming mode, which will continue to keep your coffee warm until you press the button to the "O" position. It is suggested that warming time shall be not more than 1 hour; aroma and coffee taste will decrease as long as it is exposed. For the best coffee taste, serve it just after brewing.
2. After use, switch OFF and unplug the unit from the convenience outlet

NOTE: Always turn off the unit if the carafé is empty.

HINTS FOR GREAT-TASTING COFFEE

1. A clean coffee maker is essential for making great-tasting coffee. Regularly clean the coffee maker as specified in the "CLEANING AND MAINTENANCE" section.
2. Always use fresh tap water in brewing coffee.
3. Store unused ground coffee in a cool, dry place. After opening a package of ground coffee, store it in an airtight container to maintain its freshness.
4. For the best coffee taste, buy whole coffee beans and finely grind them just before brewing.
5. Do not reuse ground coffee since this will greatly reduce the coffee flavor.
6. Reheating coffee is not recommended as coffee is at its peak flavor after brewing.
7. Clean the coffee maker when over-extraction caused oiliness. Small oil droplets on the surface of brewed, black coffee are due to the extraction of oil from the ground coffee.
8. Oiliness may occur more frequently if heavily roasted coffees are used.

CLEANING AND MAINTENANCE

How to clean the Water Tank:

1. Pour water on the water tank with one pint vinegar.
2. Put the carafé into the keep warm plate.
3. Switch the unit ON.
4. After one minute switch OFF.
5. Empty carafé and rinse it thoroughly.
6. Pour water on the water tank and repeat the brewing cycle.
7. Switch OFF.

8. Wash the carafé once more.

9. Allow the vinegar inside the water tank for at least 30 minutes. Switch ON. The water will flow into the carafé after boiling.

NOTE: Do not use damp cloth to clean the water tank, this will leave some residue of lint and may clog your coffee maker, simply rinse with fresh tap water periodically.

Removing Mineral Deposits on the Water Tank

To keep your coffee maker operating efficiently, periodically clean mineral deposits left by the water according to the water quality in your area and the frequency of use, we recommend removing mineral deposits as follows:

1. Fill the tank with water and de-scaling solution to the max level as indicated on water gauge (the scale of water and solution is 4:1; the detail refers to the instruction of the solution. Please use "household solution"; you may also use the citric acid instead of the solution (the one hundred parts of water and three parts of citric acid).
2. Insert glass carafe onto the warming plate.
3. Make sure that the filter (without ground coffee) and funnel are assembled properly.
4. Switch the unit on and allow it to process the de-scaling solution.
5. After processing one-cup solution, switch off the appliance.
6. Leave the solution for 15 minutes and repeat steps 3-5.
7. Switch ON the appliance and run off the solution until the water tank is completely empty.
8. Rinse the unit by processing with fresh water at least 3 times.

How to clean the Keep Warm Plate and the Filter Basket:

1. Unplug and allow the unit to cool OFF before cleaning.
2. Wipe the plate with damp cloth and wipe it dry.
3. Wash the Filter Basket and Filter Basket Holder with soap and water.

How to clean the Carafé

1. Make it sure that it is completely cool.
2. Wash the carafé using a mild detergent.
3. To remove stains, fill carafé with water and mild soap, allow these inside the carafé overnight.
4. Rinse the carafé thoroughly.
5. Do not clean with cleansers, steel wool pads, or other abrasive materials.

REMINDER: Please do not forget to fill up and send the warranty card
