HEG-K2000CP - Griddle Heinner - Free user manual and instructions

Type	Electric griddle / contact grill
Model	HEG-K2000CP
Brand	Heinner
Power consumption	2000 W
Rated voltage	220-240 V
Rated frequency	50/60 Hz
Color	Stainless steel
Construction materials	Stainless steel housing, non-stick coated cooking plates
Temperature control	Adjustable thermostat knob (MIN to MAX)
Indicator lights	Power light (red) and ready light (green)
Grill positions	Contact grill (closed), press grill, open grill (180° flat)
Floating hinge	Yes, adjusts to food thickness
Drip tray	Removable oil tray for collecting grease
Preheating time	Approximately 3-5 minutes
Cooking surface	Non-stick ribbed plates
Cleaning	Cooking plates dishwasher safe; exterior wipe with damp cloth; drip tray washable
Safety	Grounded plug, do not immerse in water, keep away from children, hot surface warning
Storage	Power cord wraps around base for storage

Frequently Asked Questions - HEG-K2000CP Heinner

What should I do before using the grill for the first time?

Remove all packaging, clean the cooking plates with a damp cloth, and lightly coat with cooking oil. The grill may emit slight smoke or odor on first use; this is normal.

How do I preheat the grill?

Close the grill and plug it in. The red power light will turn on. Set the thermostat knob to your desired temperature. When the green ready light comes on (after 3-5 minutes), the grill is ready.

Can I use the grill as an open griddle?

Yes. With one hand on the handle, pull the 180° angle button and push the handle back until the top plate rests flat, creating a large cooking surface.

What utensils should I use on the non-stick plates?

Always use plastic or wooden spatulas. Never use metal tongs, knives, or abrasive tools as they can damage the non-stick coating.

How do I clean the grill?

Unplug and let it cool. The cooking plates are removable and dishwasher safe. Wipe the exterior with a damp cloth. The drip tray can be washed in warm soapy water. Do not immerse the main unit.

What is the maximum cooking temperature?

The thermostat knob adjusts from MIN (lower temperature) to MAX (higher temperature). The exact temperature is not specified, but MAX is suitable for browning and searing.

Can I cook bone-in chicken on the open grill?

It is not recommended because bone-in chicken may not cook evenly on an open grill. Use the contact grill for even cooking of boneless pieces.

Is the grill safe to use with children around?

The grill gets very hot. Children aged 8 and above can use it under supervision. Keep the appliance and cord out of reach of children under 8.

What should I do if the power cord is damaged?

Stop using the grill immediately. The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

How do I store the grill?

Unplug and let it cool completely. Wrap the power cord around the base of the grill and store in a dry place. Ensure it is clean and dry.

USER MANUAL HEG-K2000CP Heinner

Exterior view of a modern kitchen grater with black and white panels, no visible text or symbols on the main body.

• Grill electric
• Putere: 2000 W
• Culoare: inox

Exterior view of a modern kitchen grater with black and silver casing (no visible text or symbols)

• Electric grill
• Power: 2000W
  • Color: stainless steel

Thank you for choosing this product!

I. INTRODUCTION

Please read this instruction manual carefully before using it and kee it for later information

This manual is conceived for offering you all of the necessary info regarding installation, using and maintenance of the machine. For a correctly and safely use of the machine, please, read this manual before installation and using.

II. PACKAGE CONTENTS

Electric grill
➢ Instruction Manual
Warranty card

III. SAFETY MEASURES

IMPORTANT SAFEGUARDS

• READ ALL INSTRUCTIONS
• Use only on AC 220-240 Volt, use only for household.
• Do not touch hot surfaces. Use handle or knobs.
• To protect against risk of electric shock, do not immerse the cord, plug or cooking unit in water or any other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning appliance.
• Do not operate any appliance with a damaged has malfunctioned or has been damaged in any manner. In order to avoid the risk of an electric shock, never try to repair the Grill yourself. Take it to an authorized service station for examination and repair. An incorrect reassembly could present a risk of electric shock when the Grill is used.
• The use of accessory attachments not recommended by the manufacturer may result in fire, electrical shock, or risk of injury to persons.
• Do not use outdoors or for commercial purposes.
• Do not let power cord hang over the edge of the table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner or heated oven.
• Unplug the unit when finished using.
• Do not use appliance for other than intended use.
• Do not intend to operate by means of an external timer or separate remote-control system.
• Extreme caution must be exercised when moving an appliance containing hot oil or other hot liquids.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The temperature of accessible surfaces may be high when the appliance is operating.

• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

• CAUTION: hot surface.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

CAUTION:

• The grilling surfaces as well as the sides and top of the appliance get very hot. Avoid any contact. Danger of burning! Only hold by the handle.
• The appliance must always be positioned horizontally during use.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Do not immerse the appliance in any liquid.
• The temperature of accessible surfaces may be high when the appliance is operating.
• WARNING: Charcoal or similar combustible fuels must not be used with this appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, ONLY AUTHORIZED PERSONNEL SHOULD DO REPAIRS.

SAVE THESE INSTRUCTIONS

To reduce the risk of electric shock this appliance has a grounded plug. If the plug does not fit fully into the electrical outlet contact a qualified electrician. Do not modify the plug in any way or use an adaptor.

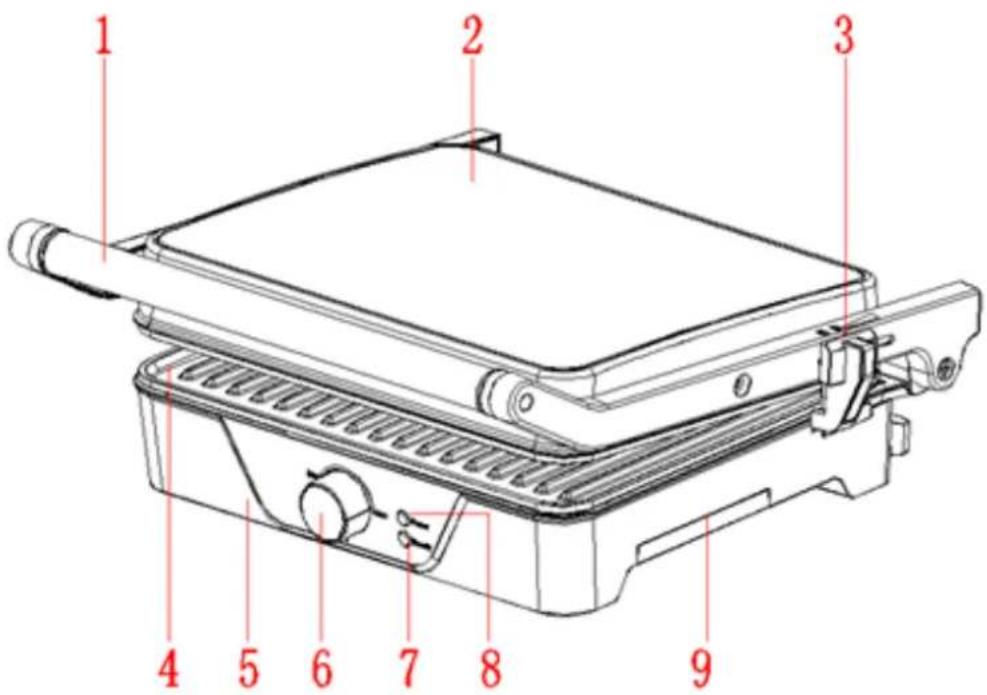

IV. PRODUCT DESCRIPTION

1. Handle	2. Upper housing	3. Height fixed button
4. Grill non-stick plate	5. Bottom housing	6. Thermostat knob
7. Ready light	8. Power light	9. Oil tray

V. USING THE APPLIANCE

BEFORE FIRST USE

• Read all instructions carefully and keep them for future reference.
• Remove all packaging
• Clean the Cooking Plates by wiping a sponge or cloth dampened in warm water.

DO NOT IMMERSE THE UNIT AND DO NOT RUN WATER DIRECTLY ONT THE COOKING SURFACES.

• Dry with a cloth or paper towel.
- For best results, lightly coat the cooking plates with a little cooking oil or cooking spray.

Notice: When your Grill is heated for the first time, it may emit slight smoke or odor. This is normal with many heating appliances. This does not affect the safety of your appliance.

HOW TO USE

Before using the appliance for the first time, peel off any promotional materials and packaging materials, and check that the cooking plates are clean and free of dust. If necessary, wipe over with a damp cloth. For best results, pour a teaspoon of vegetable oil on to the non-stick plates. Spread over with an absorbent kitchen towel and wipe off any excess oil.

PREPARING YOUR GRILL

• Close the Grill and plug it into the wall outlet, You will find the red power lights, indicating that the Grill has begun preheating. As this time, you can be the right Thermostat Knob to set the temperature control to your desired setting: "MIN" for light colored food and "MAX" for darker food. At first, try a setting in the max. You may later adjust it lower according to your preference. Different foods will also cook up differently.
• It will preheating approximately 3\~5 minutes to reach baking temperature, the green ready lights, the Grill is ready for use.

COOKING

To Use as a Contact Grill

• Set the Grill Temperature Control to your desired setting. At first, try a setting in the max.You may later adjust it lower according to your preference.
  • Prepare the burgers, boneless pieces of meat and thin cuts of meat or other foods as directed and place it onto the bottom cooking plate.

• Close the top cooking plate which has a floating hinge that is designed to evenly press down on the food. The top plate must be fully lowered to achieve Grill marks on the selected foods.

• When the foods is cooked use the handle to open the lid. Remove the food with the help of a plastic spatula. Never use metal tongs or a knife as these can cause damage to the non-stick coating of the cook plates.
• Use the Grill as a contact grill to cook burgers, boneless pieces of meat and thin cuts of meat and vegetables.
• Use the Grill as a contact grill, when you want to cook something in a short amount of time or when you are looking for a healthy method of grilling. When cooked on the contact grill, food will cook quickly because you are grilling both sides of the food at the same time. The ribs on the grill plates combined with the grease spout at the corner of the plate allow the grease to drip from the meat and drain off the plates.

To Use as Press grill

• Set the Grill Temperature Control to your desired setting. At first, try a setting in the "MAX". You may later adjust it lower according to your preference.
• Prepare the sandwiches as directed and place it onto the bottom cooking plate. Always place sandwiches towards the rear of the bottom cooking plate.
• Close the top cooking plate which has a floating hinge that is designed to evenly press down on the sandwich. The top plate must be fully lowered to cook sandwiches.
• Cook for about 3 to 6 minutes or until golden brown, adjusting the time to suit your own individual taste.
• When the sandwich is cooked use the handle to open the lid. Remove the sandwich with the help of a plastic spatula. Never use metal tongs or a knife as these can cause damage to the non-stick coating of the cook plates.
  • Use the Grill as a Press grill to grill sandwiches, breads and quesadillas.
• The Grill was designed with a unique handle and hinge that allows the cover to adjust to the thickness of the food. You can easily grill anything from a thinly-sliced potato to a thick sirloin steak with even results.
• When cooking more than one food item in the contact grill, it is important that the thickness of food items is consistent so the cover will close evenly on the food.

To Use as Open grill

• Place Grill on a clean flat surface where you intend to cook. The Grill can be positioned in flat position.
• Upper plate/cover is level with lower plate/base. The upper and lower plates line up to create one large cooking surface. The Grill to this position,

• With you right hand on the handle, use your left pull the 180° angle button. Push the handle back until the cover rests flat on the counter. The unit will stay in this position until you lift the handle and cover to return it to the closed position.

• Use the Grill as an open grill to cook burgers, steak, poultry (we do not recommend cooking bone-in chicken, since it does not cook evenly on an open grill), fish and vegetables.

• Cooking on the open grill is the most versatile method of using the Grill. In the open position, you have double the surface area for grill.
• You have the option of cooking different types of foods on separates without combining their flavors, or cooking large amounts of the same type of food. The open position also accommodates different cuts of meat with varying thicknesses, allowing you to cook each piece to you liking.

VI. CLEANING AND MAINTENANCE

• Always unplug the Grill and allow it to cool before cleaning. The unit is easier to clean when slightly warm. There is no need to disassemble Grill for cleaning. Never immerse the Grill in water or place in dishwasher.
• The cooking plates can be cleaned in water or dishwasher.
• Wipe cooking plates with a soft to remove food residue. For baked on food residue squeeze some warm water mixed with detergent over the food residue then clean with a non abrasive plastic scouring pad or place wet kitchen paper over the grill to moisten the food residue.
• Do not use anything abrasive that can scratch or damage the non-stick coating.
• Do not use metal utensils to remove your foods, they can damage the non-stick surface.
• Wipe the outside of the grill with a damp cloth only. Do not clean the outside with any abrasive scouring pad or steel wool, as this will damage the finish. Do not immerse in water or any other liquid.
• Do not place in the dishwasher.
• Remove and empty the drip tray after each use and wash the tray in warm, soapy water. Avoid the use of scouring pads or harsh detergents as they may damage the surface.Rinse and dry thoroughly with a clean, soft cloth and replace.

STORAGE

• Always unplug the Grill before storage.
• Always make sure the Grill is cool and dry before string.
• The power cord can be wrapped around the bottom of base for storing.

Rated voltage	220-240 V
Rated frequency	50/60Hz
Power	2000W

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

http://www.heinner.com, http://www.nod.ro

CE

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, no 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro
