HWSLT7315B - Oven VOX - Free user manual and instructions

Product Type	Built-in Electric Oven
Model	HWSLT7315B
Brand	VOX
Energy Source	Electric
Width	60 cm (approx.)
Height	60 cm (approx.)
Depth	55 cm (approx.)
Weight	35 kg (approx.)
Power Supply	220-240 V, 50 Hz
Power Consumption	3200 W (approx.)
Cooking Functions	Conventional, Fan, Grill, Defrost, Pizza
Cleaning Method	Easy-clean enamel interior
Safety Features	Child lock, Cool door, Automatic shut-off
Spare Parts Availability	Genuine parts available from VOX service centers
Repairability Index	8.0 / 10 (estimated)
Energy Class	Class A (typical)
User Manual	Free PDF download on notice-facile.com

Frequently Asked Questions - HWSLT7315B VOX

How do I download the user manual for the VOX HWSLT7315B oven?

You can download the free PDF manual from notice-facile.com by searching for the model HWSLT7315B.

What are the dimensions of the VOX HWSLT7315B oven?

The oven has a standard width of 60 cm, height of 60 cm, and depth of 55 cm (approx.). Always measure your cabinet space before installation.

How do I set the cooking timer on this oven?

Use the timer knob or digital display to set the desired cooking time. Refer to the manual for specific instructions as controls vary by model.

Can I use aluminum foil in the VOX HWSLT7315B oven?

Yes, but avoid covering the oven floor or air vents. Place foil on baking trays and ensure it does not touch the heating elements to prevent fire risk.

What should I do if the oven does not heat up?

First, check the power supply and circuit breaker. Ensure the oven is properly set to a cooking function. If the problem persists, contact VOX customer support.

How do I clean the oven interior?

Use a mild detergent and soft cloth. For stubborn stains, use an oven cleaner suitable for enamel surfaces. Avoid abrasive sponges to prevent scratching.

Is there a child lock feature on this oven?

Yes, the VOX HWSLT7315B is equipped with a child lock. Press and hold the lock button for 3 seconds to activate or deactivate.

What type of oven light bulb is needed?

The oven uses a 25W, 300°C resistant bulb. Replace only with the same type. Consult the manual for bulb location.

How can I obtain spare parts for this oven?

Contact an authorized VOX service center or visit the official VOX website for genuine spare parts. Provide the model number HWSLT7315B.

Can the oven be installed under a cooktop?

Yes, the oven is designed for built-in installation. Ensure proper ventilation and follow the installation instructions in the manual.

USER MANUAL HWSLT7315B VOX

Line drawing of a kitchen oven with front panel and door (no text or symbols)

HWSLT7315B

Technical line drawing of a mechanical assembly with no visible text or symbols

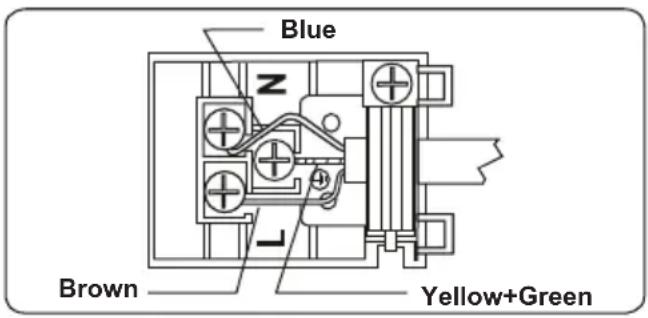

2.3 ELEKTRIČNO POVEZIVANJE I BEZBEDNOST

3. KARAKTERISTIKE PROIZVODA

Važno: Specifikacije proizvoda variraju i izgled vašeg uređaja može se razlikovati od uređaja na slikama.

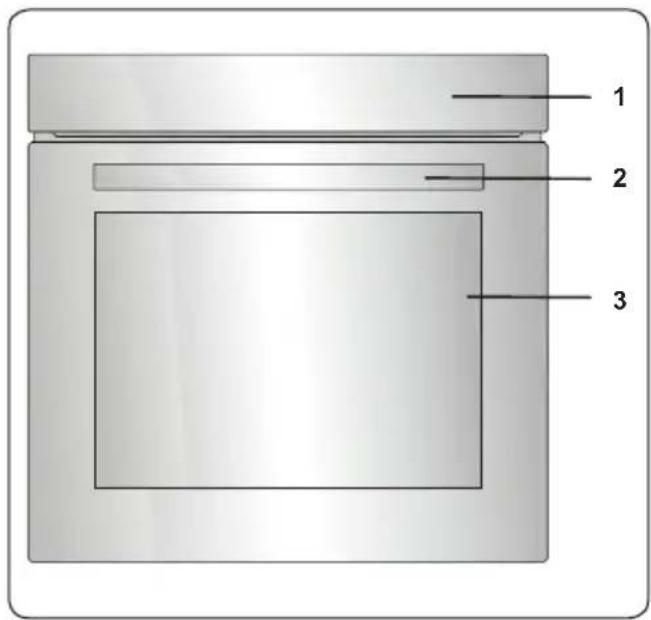

Spisak komponenti

1. Kontrolna tabla
2. Ručka rerne
3. Vrata rerne

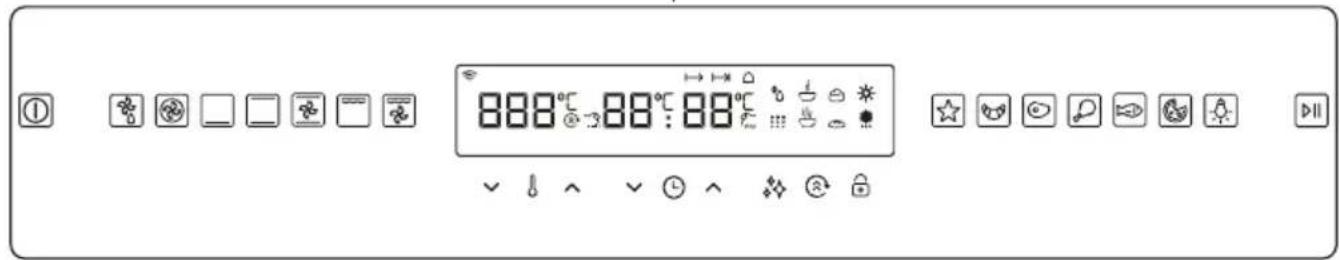

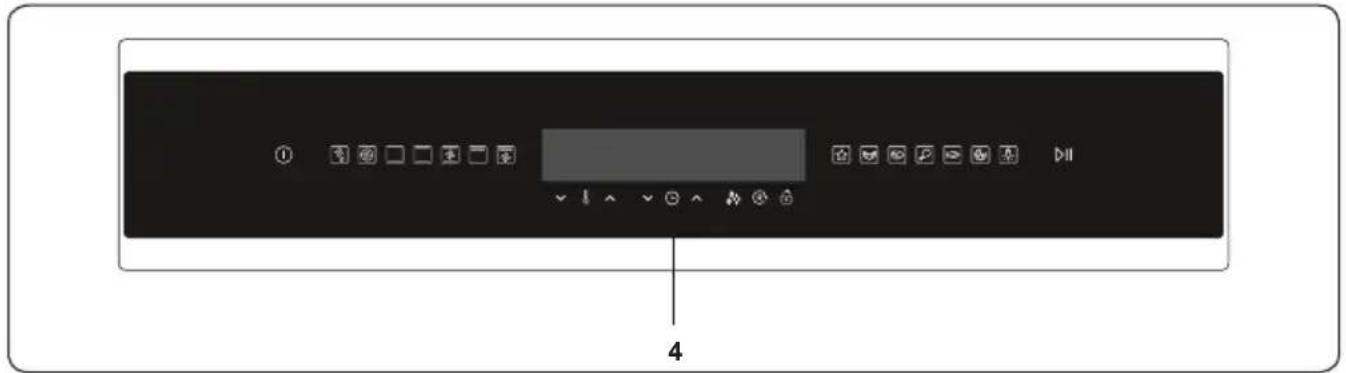

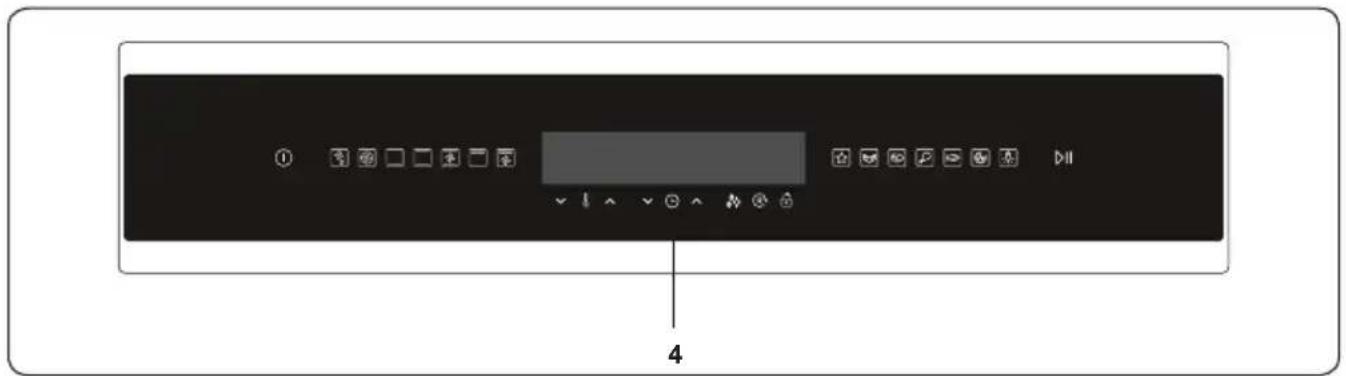

Kontrolna tabla

4. Tajmer

4. KORIŠĆENJE PROIZVODA

Funkcije rerne

Abstract white line drawing of a stylized flower or droplet on a dark background (no text or symbols)

Abstract geometric symbol with a three-blade fan-like shape inside a square frame (no text or symbols)

Turbo funkcija:

Solid dark square with a thin white horizontal line at the bottom (no text or symbols)

Funkcija nižeg

grejanja: Svetla upozorenja termostata rerne će se upaliti, elemenat nižeg grejanja će početi da radi. Funkcija nižeg grejanja je idealna za

pečenje pice, jer se toplota podiže sa dna rerne i greje hranu. Ova funkcija odgovara grejanju hrane umesto kuvanju.

Solid black square with two horizontal white lines on dark background (no text or symbols)

Abstract geometric symbol with a three-blade propeller inside a dark square frame (no text or symbols)

Funkcija ventilatora:

Termostat rerne i svetla upozorenja će se uključiti, gornji i donji elementi grejanja i ventilator će početi da rade. Ova funkcija je

dobra pri pečenju testa. Kuvanje se vrši od strane donjeg i gornjeg elementa grejanja u okviru rerne i od strane ventilatora koji daje cirkulaciju vazduha, što će dati određeni grill efekat hrani. Preporučuje se da se rerna unapred zagreje na oko 10 minuta.

Pure electrical circuit symbol for a three-blade propeller (no text or labels)

Funkcija pice:

Simple black square with a white wavy line above it, no text or symbols present.

Funkcija bržeg grilovanja: Termostat rerne i svetla upozorenja će se uključiti. Gril i gornji elementi grejanja će početi da rade. Ova

funkcija se koristi za brže grilovanje i za pokrivanje velikog područja površine, kao što je meso. Koristite gornje police rerne. Nežno očistite žicu rešetke sa uljem da biste sprečili da se hrana zalepi i stavite hranu u centar rešetke. Uvek ispod stavite tacnu kako biste uhvatili kapi ulja ili masnoće. Preporučuje se da se rerna unapred zagreje na oko 10 minuta.

Upozorenje: Kada grilujete, vrata rerne moraju da budu zatvorena i temperatura rerne treba da se podesi 90 C°.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Opisi režima
	Uključeno/Isključeno		Specijalne funkcije		Prikaz temperature		Sporo kuvanje
	Odleđivanje	Tes	pdešivanje				Vrlo sporo kuvanje
	Turbo funkcija		Meso Proba za o Testo zamešeno
	Donja funkcija		Piletina		Zaustavljanje probe za meso		Hleb
	Statička funkcija		Riba Prikaz vri na Suvo
	Funkcija ventilatora		Pica Vreme ku u Zaleđena hrana
	Funkcija duplog grila		Lampica		Kraj vremena kuvanja		Minus
	Dupli gril + funkcija ventilatora		Reproduko-vanje / Pauza		Minut podsetnika		Termostat
	Čišćenje		Čišćenje parom		Režim Plus
	Zaključava-nje ključa

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

PRVI NA SVETU

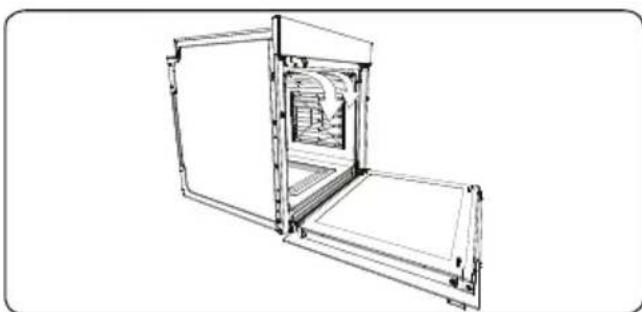

Sistem štitnika za vruć vazduh u ugrađenim rernama

Line drawing of an open industrial oven or storage unit with internal compartments and ventilation duct (no text or symbols)

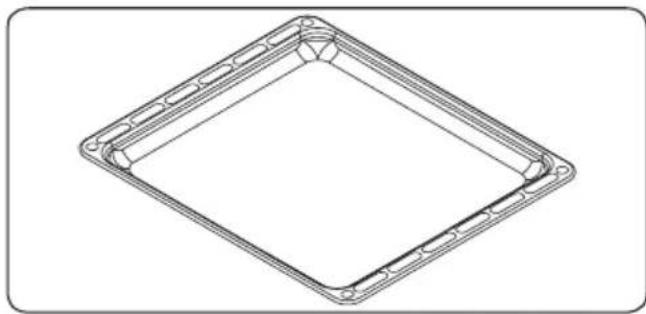

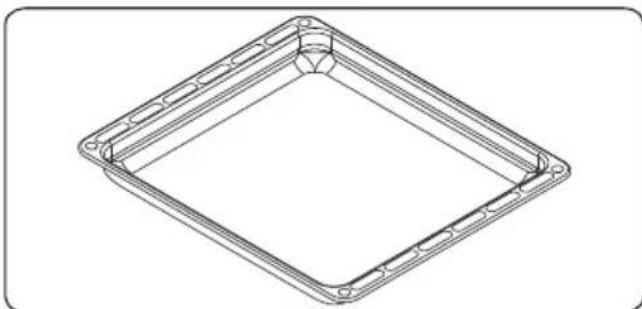

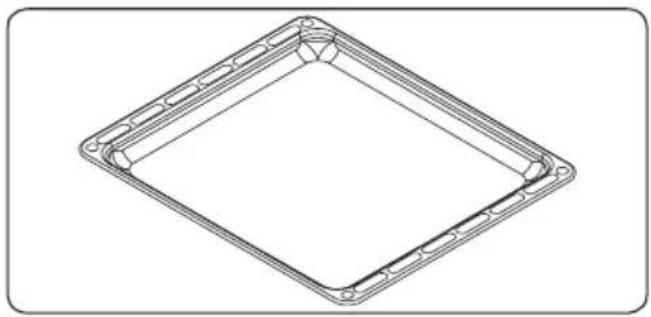

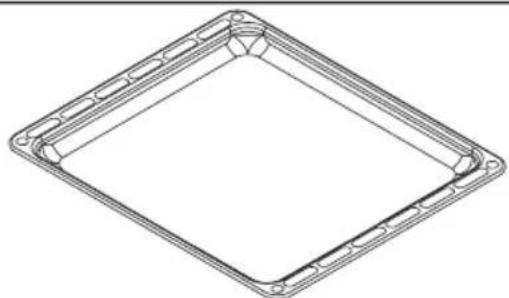

Plitki poslužavnik

Plitki poslužavnik je najbolje koristiti za pečenje peciva.

Postavite poslužavnik na bilo koju policu i gurnite do kraja da budete sigurni da je pravilno postavljen.

Technical line drawing of a square frame with bolt holes and inner edges (no text or symbols)

Žičana rešetka

Isometric view of a metal grate with parallel slats and mounting brackets (no text or symbols)

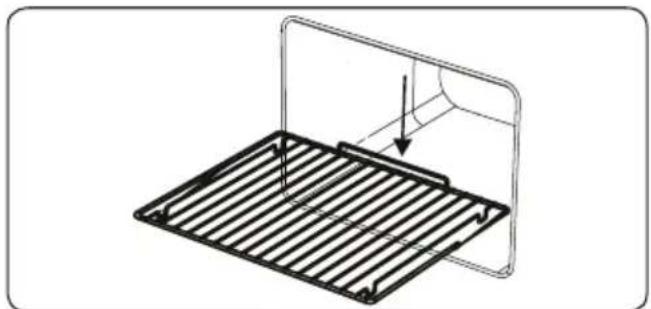

UPOZORENJE

Diagram of a metal grate with a curved top and arrow indicating direction (no text or symbols)

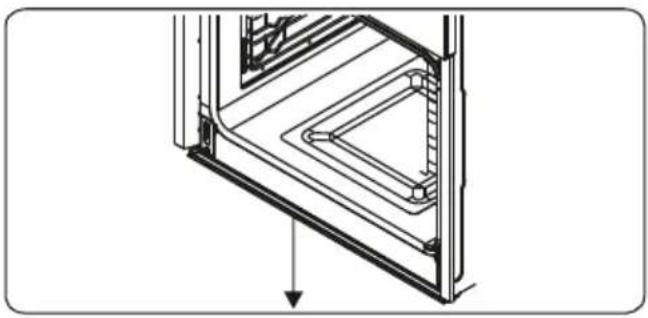

Sakupljač vode

Technical line drawing of a mechanical assembly with no visible text or symbols

5. ČIŠĆENJE I ODRŽAVANJE

5.1 ČIŠĆENJE

UPOZORENJE: Isključite uređaj i ostavite da se ohladi pre čišćenja.

Opšta uputstva

• Pre nego što počnete da koristite sredstvo za čišćenje vašeg uređaja, proverite da li je prikladno i da li ga je preporučio proizvođač.
• Koristite kremasta ili tečna sredstva za čišćenje koja ne sadrže čestice. Ne koristite kaustične (korozivne) paste, abrazivna sredstva u prahu, čeličnu žicu ili tvrde alate za čišćenje jer mogu da oštete površine šporeta.

Ne koristite sredstva za čišćenje koja sadrže čestice zato što mogu oštetiti površine od stakla, emajla i/ili boju na vašem uređaju.

Line drawing of a hand cleaning a car window with a cloth (no text or symbols)

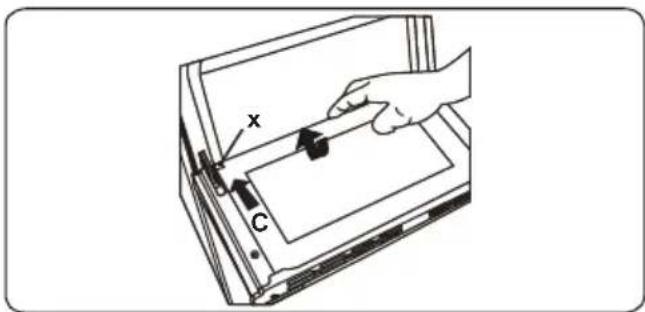

Čišćenje staklenih delova

• Redovno čistite staklene delove vašeg uređaja.
• Koristite sredstvo za čišćenje stakla za unutrašnje i spoljašnje staklene delove. Zatim, isplaknite ih i osušite temeljno suvom krpom.

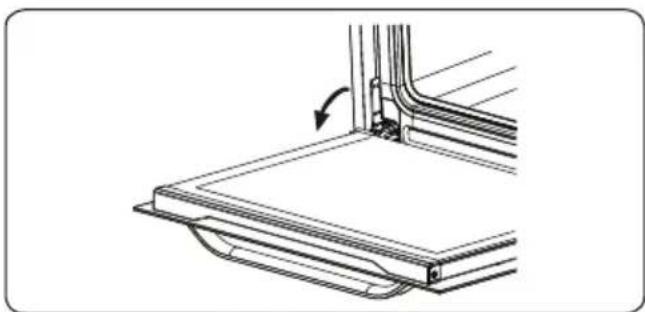

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

1. Otvorite šarku za zaključavanje (a) (uz pomoć šrafcigera) do krajnjeg položaja.

Technical line drawing of a mechanical joint or bracket assembly (no text or symbols)

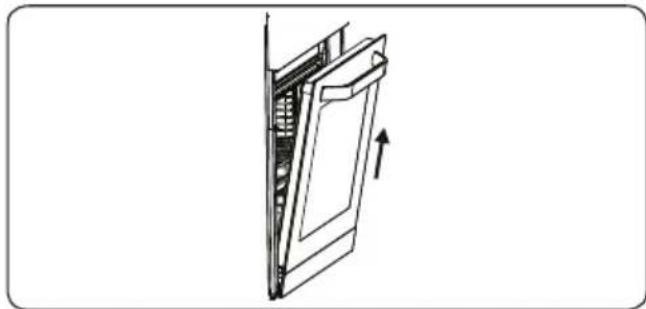

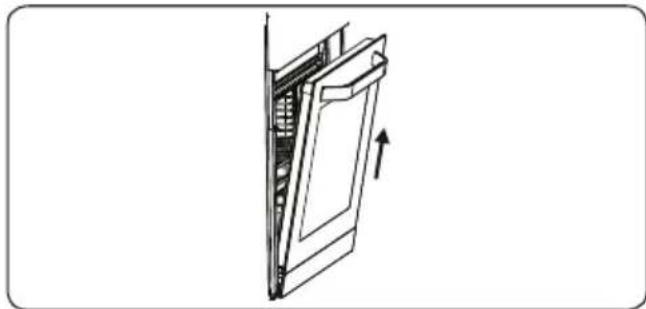

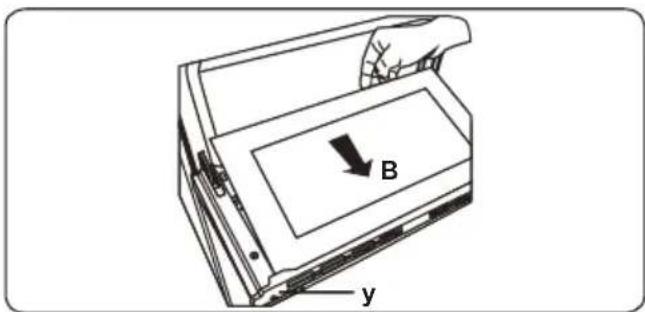

1. Zatvarajte vrata dok ne dođu u položaj da su skoro zatvorena i skinite vrata povlačenjem prema sebi.

Diagram of a door mechanism with an arrow indicating direction (no text or symbols present)

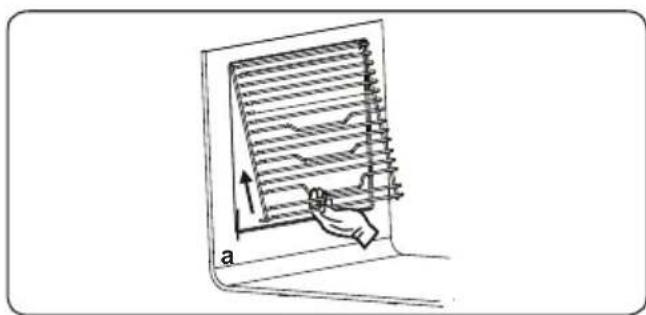

Skidanje žičane police

Za skidanje stalka za žicu, povucite stalak za žicu kao što je dato na prikazu. Nakon što ga oslobodite okvira (a), podignite ga prema gore.

Illustration of a hand interacting with a grid-like object on a laptop screen, showing horizontal lines and arrows (no text or symbols)

5.2 ODRŽAVANJE

UPOZORENJE: Održavanje ovog uređaja treba vršiti samo ovlašćeni serviser ili kvalifikovani električar.

Promena svetiljke rerne

UPOZORENJE: Isključite uređaj i ostavite da se ohladi pre čišćenja.

• Izvadite stakleni poklopac, zatim izvadite i sijalicu.
  • Stavite novu sijalicu (otpornu na 300 °C) da zamenite sijalicu koju ste izvadili (230 V, 15-25 Watt, tip E14).
  • Vratite stakleni poklopac na mesto i možete koristiti rernu.
  • Proizvod sadrži izvor svetlosti energetske efikasnosti klase G.
• Krajni korisnik ne može zameniti izvor svetlosti. Potrebna je usluga nakon prodaje.
• Uključeni izvor svjetlosti nije namijenjen za upotrebu u drugim aplikacijama.

Svetiljka je projektovana specijalno za upotrebu u kuhinjskim aparatima. Nije pogodna za osvetljavanje prostorija u domaćinstvu.

6. REŠAVANJE PROBLEMA I TRANSPORT

6.1 REŠAVANJE PROBLEMA

Ako i dalje imate problem nakon što pređete ove osnovne korake za rešavanje problema, molimo vas da stupite u kontakt sa ovlašćenim serviserom ili kvalifikovanim električarom.

Problem Mogući uzrok Rešenje
Rerna se ne uključuje. Isključeno je napajanje.		Proverite da li uređaj ima napajanje. Proverite da li drugi kuhinjski uređaji rade.
Rerna se ne zagreva ili se nedovoljno zagreva.	Temperatura rerne nije pravilno podešena. Vrata rerne nisu zatvorena.	Proverite da li je kontrolni prekidač za temperaturu rerne pravilno podešen.
Svetlo u rerni (ako ga ima) ne radi.	Pregorela je sijalica. Napajanje je prekinuto ili isključeno.	Zamenite sijalicu u skladu sa uputstvom. Proverite da li je napajanje uključeno u utičnicu.
Hrana se ne peče ravnomerno u rerni.	Police rerne nisu pravilno postavljene.	Proverite da li koristite preporučenu temperaturu i položaj police. Ne otvarajte često vrata rerne osim ako pečete stvari koje treba okretati. Ako često otvarate vrata, unutrašnja temperatura može biti niža i ovo utiče na rezultate vašeg kuvanja.
Dugmad tajmera ne mogu da se pritisnu pravilno	Strana materija je zaglavljena između dugmadi tajmera. Model na dodir: na kontrolnoj ploči ima vlage. Podešena je funkcija zaključavanja dugmadi.	Uklonite stranu materiju i pokušajte ponovo. Uklonite vlagu i pokušajte ponovo. Proverite da li je podešena funkcija zaključavanja dugmadi.
Ventilator rerne (ako ga ima) bučno radi.	Vibriraju police u rerni.	Proverite da li je rerna ravna. Proverite da li police ili pribor za kuvanje vibriraju ili dodiruju zadnju ploču rerne.
Ventilator za hlađenje nastavlja da radi nakon što je rerna isključena.	Elektronski-kontrolisani ventilator rerne se automatski uključuje izvesno vreme da bi ohladio rernu.	Ventilator se isključuje automatski kada su elektronske komponente dovoljno ohlađene.
Rerna se isključuje sama.	Elektronski kontrolisane rerne se isključuju automatski ako nijedna funkcija nije aktivna.	Rerna će se isljučiti sama autmotaski radi uštede energije ako nijedna aktivnost nije preduzeta izvesno vreme nakon što ste je uključili ili na kraju programa kuvanja.
Ako su vrata otvorena tokom funkcije podrške ventilatora, unutrašnji ventilator će se zaustaviti.	Elektronski kontrolisane rerne sa prekidačem na vratima će zaustaviti kuvanje ako su vrata rerne otvorena.	To je normalna operacija uređaja, korisna kada kuvate hranu u cilju izbegavanja izlaženja prekomerne količine toplote. Kada su vrata zatvorena, rerna će ponovo pokrenuti normalni rad.

6.2 TRANSPORT

Ako je potrebno da izvršite transport proizvoda, koristite originalnu ambalažu i nosite je u originalnom pakovanju. Pratite oznake za transport na ambalaži. Zalepite trakom sve posebne delove za proizvod da ne bi došlo do oštećenja prilikom transporta.

Ako ne čuvate originalnu ambalažu, pripremite kutiju za transport tako što je uređaj, a posebno njegove spoljašnje površine, zaštićen od spoljašnjih oštećenja.

7. TEHNIČKE SPECIFIKACIJE

7.1 ENERGETSKA KLASA

Marka
Model		HWSLT7315B
Tip rerne ELEKTRIČNA
Težina kg 30.8
Indeks energetske efikasnosti - standardna 105.8
Indeks energetske efikasnosti - sa ventilatorom 94.2
Energetska klasa A
Potrošnja energije (struje) - standardna kWh/ciklus 0.91
Potrošnja energije (struje) - sa ventilatorom kWh/ciklus 0.81
Broj otvora 1
Izvor toplote ELEKTRIČNA
Zapremina I 73
Ova rerna je u skladu sa EN 60350-1
Saveti za uštedu energijeRerna- Jela spremajte zajedno, ako je moguće.- Održavajte kratko vreme predzagrevanja.- Nemojte da produžavte vreme pečenja.- Nemojte da zaboravite da isključite remu na kraju kuvanja.- Nemojte da otvarate vrata rerne tokom perioda kuvanja.

Hvala, ker ste izbrali ta izdelek.

1.2 NAMESTITVENA OPOZORILA

Technical line drawing of a mechanical assembly with no visible text or symbols

2.3 ELEKTRIČNA POVEZAVA IN VARNOST

Abstract white line drawing of a stylized flower or droplet on a dark background (no text or symbols)

Pure electrical circuit symbol for a three-phase motor (no text or labels)

Funkcija Turbo:

Solid dark square with a thin white horizontal line at the bottom (no text or symbols)

Solid black square with two horizontal white lines on top and bottom (no text or symbols)

Abstract geometric symbol with a three-blade propeller inside a dark square frame (no text or symbols)

Pure electrical circuit symbol for a three-phase motor (no text or labels)

Simple 3D icon of a dark square with a white zigzag line above it, no text or symbols present.

Simple icon of a propeller inside a dark square frame with wavy lines above (no text or symbols)

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

PRVI NA SVETU

Line drawing of an open industrial oven or chamber with internal structure (no text or symbols)

Plitki pladenj

Technical line drawing of a square frame with bolt holes and concentric rings (no text or symbols)

Žična mreža

Isometric line drawing of a metal grate or rack with slats and mounting brackets (no text or symbols)

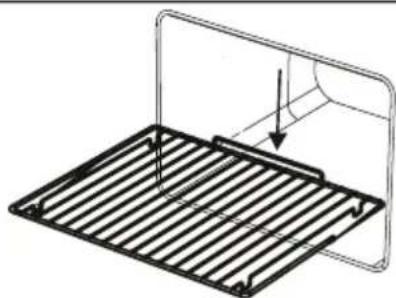

OPOZORILO

Mrežo namestite na katero koli polico v notranjosti pečice in jo pravilno potisnite do konca.

Diagram of a metal grate with a curved surface and an arrow indicating direction (no text or symbols)

Zbiralnik vode

Technical line drawing of a mechanical component or housing frame with internal channels and mounting brackets (no text or symbols)

5. ČIŠČENJE IN VZDRŽEVANJE

5.1 ČIŠČENJE

Line drawing of a hand cleaning a car window with a cloth (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram of a door frame with an arrow indicating upward motion (no text or symbols)

Illustration of a hand interacting with a grid-like object on a curved surface, no text or symbols present

5.2 VZDRŽEVANJE

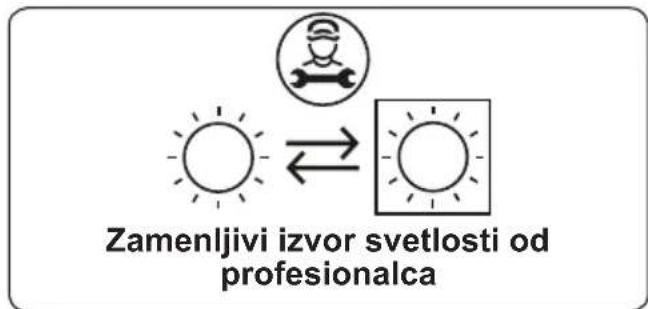

Zamenljiv vir svetlobe s strani profesionalca

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple white pinwheel icon on dark background, no text or symbols present

Abstract geometric symbol with a circular element resembling a three-blade fan or impeller inside a square frame (no text or symbols)

Турбо функција:

Solid dark square with a thin white horizontal line at the bottom (no text or symbols)

Solid black rectangle with two horizontal white lines on top and bottom (no text or symbols)

Pure electrical circuit symbol for a three-phase motor, no text or labels present

Функција за пица:

Simple icon of a dark square with a white wavy line above it, no text or symbols present.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

ПРВ ВО СВЕТОТ

Technical line drawing of an open industrial oven or furnace unit (no text or symbols)

Плитка тава

Technical line drawing of a square frame with bolt holes and internal ribs (no text or symbols)

Решетка

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

ПРЕДУПРЕДУВАЊЕ

Diagram of a metal rack with a curved top panel and an arrow indicating force or movement (no text or symbols)

Собирач на вода

Technical line drawing of a mechanical component with internal channels and a downward arrow indicating direction (no text or symbols)

Line drawing of a hand cleaning a car window with a circular component on the wall (no text or symbols)

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

Diagram of a door mechanism with an arrow indicating direction (no text or symbols present)

Вадење на решетката

Diagram of a mechanical or electrical component with a handle and internal structure, no visible text or symbols

5.2 ОДРЖУВАЊЕ

Technical line drawing of a mechanical assembly with no visible text or symbols

Abstract white line drawing on black background with no text or symbols

Simple icon of a three-blade propeller inside a square frame (no text or symbols)

Solid dark square with a thin white horizontal line at the bottom (no text or symbols)

Simple dark square with two horizontal white lines on top and bottom (no text or symbols)

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Pure electrical circuit symbol for a three-phase motor, no text or labels present

Simple 3D-rendered icon of a rectangular block with a wavy top line and a small square base (no text or symbols)

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Technical line drawing of a square frame with mounting holes and internal ribs (no text or symbols)

Technical line drawing of a door oven with internal compartments and labeled parts (no text or symbols)

Tabuleiro Raso

Technical line drawing of a square frame with circular cutouts and mounting holes (no text or symbols)

Rede de Arame

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

AVISO Colagu

Technical line drawing of a metal rack with a curved top component and an arrow indicating direction (no text or symbols)

Coletor de Água

Technical line drawing of a door frame structure with an arrow indicating direction (no text or symbols)

Line drawing of a hand cleaning a car window with a tire (no text or symbols)

Limpar as Partes de Vidro

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical joint or bracket assembly (no text or symbols)

Diagram of a door frame with an arrow indicating direction (no text or symbols present)

Diagram of a hand operating a magnetic field with arrows indicating direction (no text or symbols)

5.2. MANUTENÇÃO

Technical line drawing of a mechanical assembly with no visible text or symbols

2.3 ELEKTRIČNI PRIKLJUČAK I SIGURNOST

UPOZORENJE: Električni priključak ovog uređaja treba obaviti ovlašteni serviser ili kvalificirani električar, sukladno uputama u ovom vodiču te u skladu s važećim lokalnim regulativama.

UPOZORENJE: UREĐAJ MORA BITI UZEMLJEN

Abstract white line drawing of a stylized flower or droplet on a dark background (no text or symbols)

Funkcija

odmrzavanja: Upalit će se svjetla upozorenja i uključit će se ventilator. Da biste koristili funkciju odmrzavanja,

Abstract geometric symbol with a circular element inside a square frame (no text or symbols)

Turbo funkcija: Upalit će se termostat i svjetla upozorenja, a prstenasti grijaći element i ventilator počet će s radom. Turbo funkcija

Solid dark square with a horizontal white line at the bottom (no text or symbols)

Solid black square with two horizontal white lines on top and bottom (no text or symbols)

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Funkcija ventilatora:

Uključit će se termostat i svjetla upozorenja, a gornji i donji grijaći elementi te ventilator počet će s radom. Ova funkcija koristi se za

pečenje jela od tijesta. Unutar pećnice hrana se priprema uz pomoć donjih i gornjih grijaćih elemenata te ventilatora koji omogućuje cirkulaciju zraka. Preporučuje se 10-minutno predgrijavanje pećnice.

Pure electrical circuit symbol for a three-phase motor (no text or labels)

Funkcija Pizza:

Uključit će se termostat i svjetla upozorenja, a prstenasti i donji grijaći element te ventilator počet će s radom. Ova funkcija idealna je za

brzo pečenje jela kao što je pizza. Dok ventilator ravnomjerno raspodjeljuje toplinu po cijeloj pećnici, donji grijaći element obavlja pečenje.

Simple icon of a delivery box with a wavy roof line (no text or symbols)

Funkcija brzog

pečenja: Uključuje se termostat i svjetla upozorenja. Uključuje se roštilj i gornji grijaći element. Ova funkcija služi za brže pečenje

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Funkcija dvostrukog pečenja i ventilatora:

Uključit će se termostat i svjetla upozorenja, a roštilj, gornji grijaći element i ventilator počet će s radom. Ova

funkcija koristi se za brzo pečenje debljih komada hrane i onih namirnica koje zauzimaju veću površinu. I gornji grijaći elementi i rešetka za roštiljanje počet će s radom zajedno s ventilatorom kako bi se osiguralo jednakomjerno kuhanje. Koristite gornje utore u pećnici. Rešetku premažite uljem kako se hrana ne bi lijepila, a hranu stavite u sredinu rešetke. Ispod rešetke

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

PRVI NA SVIJETU

Technical line drawing of an open industrial oven or furnace unit (no text or symbols)

Plitki pladanj

Plitki pladanj najbolje je koristiti za pečenje kolača.

Stavite pladanj na bilo koju gredu i pritisnite do kraja kako biste se osigurali da je postavljen pravilno.

Technical line drawing of a square frame with bolt holes and inner lining (no text or symbols)

Žičana rešetka

Žičanu rešetku najbolje je koristiti za grilanje ili obradu hrane u posudama pogodnim za pećnice.

Line drawing of a rectangular metal grate with slats and a side clip (no text or symbols)

UPOZORENJE

Technical diagram of a metal grate with a curved panel and directional arrow indicating force or movement (no text or symbols)

Kolektor vode

Technical line drawing of a door frame with internal channels and a downward arrow indicating direction (no text or symbols)

5. ČIŠĆENJE I ODRŽAVANJE

5.1 ČIŠĆENJE

UPOZORENJE: Prije čišćenja isključite uređaj i pričekajte da se ohladi.

Općenite upute

- Prije upotrebe pribora i sredstava za čišćenje na uređaju provjerite jesu li prikladni i odobreni od strane proizvođača.

- Upotrijebite kremasta ili tekuća sredstva za čišćenje koja ne sadrže krute čestice. Nemojte koristiti nagrizajuća (korozivna) sredstva, abrazivna sredstva u prahu, čeličnu vunu ili tvrde alate koji mogu oštetiti površinu štednjaka.

Nemojte upotrebljavati sredstva za čišćenje koja sadrže krute čestice jer one mogu ogrebati staklo te emajlirane

Line drawing of a hand cleaning a car window with a cloth (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram of a door mechanism with an arrow indicating direction (no text or symbols present)

Vađenje žičanih vodilica

Diagram of a hand pressing down on a grid-like structure with arrows indicating direction (no text or symbols)

5.2 ODRŽAVANJE

UPOZORENJE: Održavanje ovog uređaja jedino treba provesti autoriziran serviser ili kvalificiran tehničar.

Zamjenjiv izvor svjetlosti od strane profesionalca

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
⚠️	WARNING Serious injury or death risk
⚡	RISK OF ELECTRIC SHOCK Dangerous voltage risk
⚠️	FIRE Warning; Risk of fire / flammable materials
⚠️	CAUTION Injury or property damage risk
💡	IMPORTANT / NOTE Operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS....3
1.1 General Safety Warnings ...... 3
1.2 Installation Warnings .... 5
1.3 During Use....6
1.4 During Cleaning and Maintenance 7
2.INSTALLATION AND PREPARATION FOR USE....9
2.1 Instructions for the Installer 9
2.2 Installation of the Oven....9
2.3 Electrical Connection and Safety....11
3.PRODUCT FEATURES....12
4. USE OF PRODUCT 13
4.1 Cooking Table.... 14
4.2 Use of the Slim Led Touch Timer.... 15
4.3 Accessories 17
5.CLEANING AND MAINTENANCE....18
5.1 Cleaning 18
5.2 Maintenance 20
6. TROUBLESHOOTING AND TRANSPORT 21
6.1 Troubleshooting....21
6.2 Transport 21

1. SAFETY INSTRUCTIONS

• Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary.
• This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual.

1.1 GENERAL SAFETY WARNINGS

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continually supervised.

WARNING: Danger of fire: Do not store items on the cooking surfaces.

⚠️ WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• Do not operate the appliance with an external timer or separate remote-control system.
• During use the appliance will get hot. Care should be taken to avoid touching heating elements inside

the oven.

• Handles may get hot after a short period during use.
• Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces.
• Do not use steam cleaners for cleaning the appliance.

⚠️ WARNING: To avoid the possibility of electric shock, make sure that the appliance is switched off before replacing the lamp.
⚠️ CAUTION: Accessible parts may be hot when cooking or grilling. Keep young children away from the appliance when it is in use.

- Your appliance is produced in accordance with all applicable local and international standards and regulations.

- Maintenance and repair work should only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents.

- Before connecting your appliance, make sure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. The specifications for this appliance are stated on the label.

⚠️ CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for non-domestic use, in a commercial environment or for

heating a room.

• Do not use the oven door handles to lift or move the appliance.
• All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.
• Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.
• Do not let children climb on the oven door or sit on it while it is open.
• Please keep children and animals away from this appliance.

1.2 INSTALLATION WARNINGS

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by defective placement and installation by unauthorised people.
• When the appliance is unpacked, make sure that it is has not been damaged during transportation. In case of any defect do not use the appliance and contact a qualified service agent immediately. The materials used for packaging (nylon, staplers, Styrofoam, etc.) may be harmful to children and they should be collected and removed immediately.

• Protect your appliance from the atmosphere. Do not expose it to effects such as sun, rain, snow, dust or excessive humidity.

• Any materials (i.e. cabinets) around the appliance must be able to withstand a minimum temperature of 100^ .

• The appliance must not be installed behind a decorative door, in order to avoid overheating.

1.3 DURING USE

- When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.

• Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns.

- Do not put flammable or combustible materials in or near the appliance when it is operating.

• Always use oven gloves to remove and replace food in the oven.

- Under no circumstances should the oven be lined with aluminium foil as overheating may occur.

- Do not place dishes or baking trays directly onto the base of the oven whilst cooking. The base becomes very hot and damage may be caused to the product.

Do not leave the oven unattended while cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the oven off and cover the pan with its lid or a fire blanket.

- If the product will not be used for a long period of time, turn the main control switch off.

• Make sure the appliance control knobs are always in the “0” (stop) position when it is not in use.
• The trays incline when pulled out. Take care not to spill or drop hot food while removing it from the ovens.
• Do not place anything on the oven door when it is open. This could unbalance the oven or damage the door.
• Do not hang towels, dishcloths or clothes from the appliance or its handles.

1.4 DURING CLEANING AND MAINTENANCE

• Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations.
• Do not remove the control knobs to clean the control panel.
• To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need.

CE Declaration of conformity

CE We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.

The operating instructions apply to several models. You may notice differences between these instructions and your model.

Disposal of your old machine

This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and

electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the retailer who you purchased this product from.

2. INSTALLATION AND PREPARATION FOR USE

WARNING : This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations.

• Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid.
• Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the adjustments of the appliance are compatible. The adjustment conditions for this appliance are stated on the label.
• The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.).
• If the product contains removable shelf guides (wire racks) and the user manual includes recipes like yoghurt, the wire racks shall be removed and the oven operated in the defined cooking mode. Removal of the Wire Shelf information is included in the CLEANING AND MAINTENANCE section.

2.1 INSTRUCTIONS FOR THE INSTALLER

General instructions

• After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage, do not use it and contact an authorised service person or qualified technician immediately.
- Make sure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which may catch fire.
- The worktop and furniture surrounding the appliance must be made of materials resistant to temperatures above 100°C.
- The appliance should not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer.

2.2 INSTALLATION OF THE OVEN

The appliances are supplied with installation kits and can be installed in a worktop with the appropriate dimensions. The dimensions for hob and oven installation are given below.

A (mm)	557 min./max.	F (mm) 560/580
B (mm)	550 min. G (mm)	555
C (mm)	595 min. H/I (mm)	600/590
D (mm)	575 min. J/K (mm)	5/10
E (mm)	576

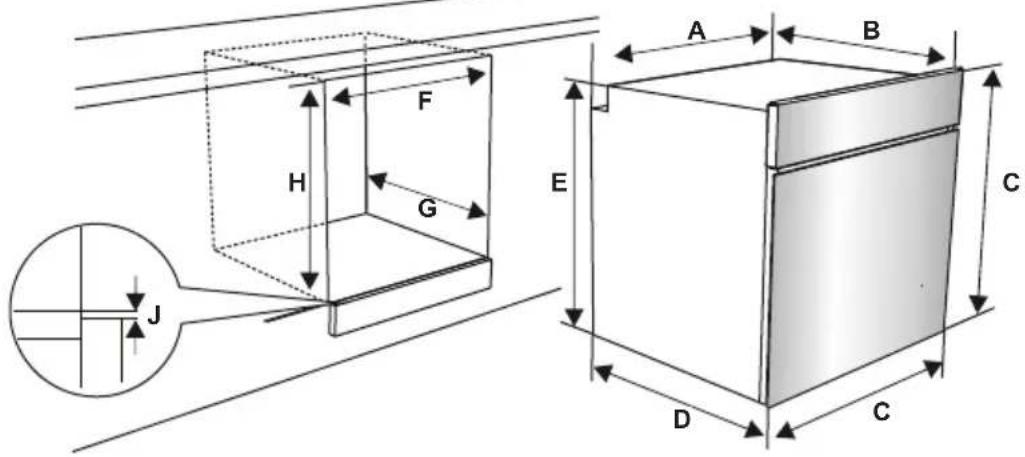

Installation under a worktop

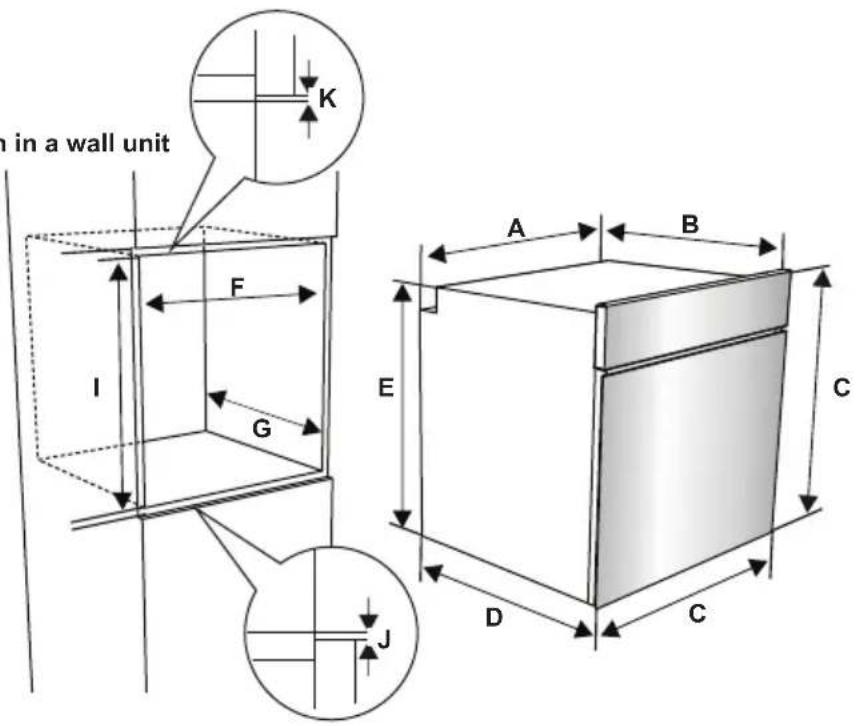

Installation in a wall unit

After making the electrical connections, insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws.

Technical line drawing of a mechanical assembly with no visible text or symbols

2.3 ELECTRICAL CONNECTION AND SAFETY

WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations.

WARNING: THE APPLIANCE MUST BE EARTHED.

• Before connecting the appliance to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the appliance's power rating (also indicated on the identification plate).
• During installation, please ensure that isolated cables are used. An incorrect connection could damage your appliance. If the mains cable is damaged and needs to be replaced this should be done by a qualified personnel.
• Do not use adaptors, multiple sockets and/or extension leads.
• The supply cord should be kept away from hot parts of the appliance and must not be bent or compressed. Otherwise the cord may be damaged, causing a short circuit.
• If the appliance is not connected to the mains with a plug, a all-pole disconnector (with at least 3 mm contact spacing) must be used in order to meet the safety regulations.
• The appliance is designed for a power supply of 220-240V. If your supply is different, contact the authorised service person or a qualified electrician.
• The power cable (H05VV-F) must be long enough to be connected to the appliance, even if the appliance stands on the front of its cabinet.
• Ensure all connections are adequately tightened.
• Fix the supply cable in the cable clamp and then close the cover.
• The terminal box connection is placed on the terminal box.

3. PRODUCT FEATURES

Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below.

List of Components

1. Control Panel
2. Oven Door Handle
3. Oven Door

Control Panel

4. Timer

4. USE OF PRODUCT

Oven Functions

* The functions of your oven may be different due to the model of your product.

Simple white pinwheel icon on dark background, no text or symbols present

Defrost Function: The oven's warning lights will switch on and the fan will start to operate. To use the defrost function, place your frozen food in the oven

on a shelf in the third slot from the bottom. It is recommended that you place an oven tray under the defrosting food, to catch the water accumulated due to melting ice. This function will not cook or bake your food, it will only help to defrost it.

Abstract geometric symbol with a circular element resembling a three-blade fan or impeller inside a square frame (no text or symbols)

Turbo Function: The oven's thermostat and warning lights will switch on, and the ring heating element and fan will start operating. The turbo function

evenly disperses the heat in the oven so all food on all racks will cook evenly. It is recommended that you preheat the oven for about 10 minutes.

Solid dark square with a thin white horizontal line at the bottom (no text or symbols)

Lower Heating Function: The oven's thermostat and warning lights will switch on and the lower heating element will start operating. The lower heating function

is ideal for heating pizza as the heat rises from the bottom of the oven and warms the food. This function is appropriate for heating food instead of cooking.

Solid dark square with two horizontal white lines on top and bottom (no text or symbols)

Static Cooking Function: The oven's thermostat and warning lights will switch on, and the lower and upper heating elements will start operating. The

static cooking function emits heat, ensuring even cooking of food. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best to use only one shelf at a time in this function.

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Fan Function: The oven's thermostat and warning lights will switch on, and the upper and lower heating elements and fan will start operating.

This function is good for baking pastry. Cooking is carried out by the lower and upper heating elements within the oven and by the fan, which provides air circulation, giving a slightly grilled effect to the food. It is recommended that you preheat the oven for about 10 minutes.

Pure electrical circuit lines without any symbols

Pizza Function: The oven's thermostat and warning lights will switch on, and the ring, lower heating elements and fan will start operating. This function

is ideal for baking food, such as pizza, evenly in a short time. While the fan evenly disperses the heat of the oven, the lower heating element ensures baking of the food.

Simple 3D-rendered cube with a wavy top line and a central square (no text or symbols)

Faster Grilling Function: The oven's thermostat and warning lights will switch on. The grill and upper heating elements will start

operating. This function is used for faster grilling and for grilling food with a larger surface area, such as meat. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

Abstract icon with a stylized propeller inside a container, no text or symbols present.

Double Grill and Fan Function: The oven's thermostat and warning lights will switch on, and the grill upper heating elements and fan will

start operating. This function is used for faster grilling of thicker food and for grilling food with a larger surface area. Both the upper heating elements and grill will be energised along with the fan to ensure even cooking. Use the upper shelves of the oven.

Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to

190^

Vap Clean Function: Set the oven function and thermostat to the Vap Clean function symbol. Pour 200-250ml of water (about 1 cup)

into the small tray on the oven base. Vap Clean runs for approximately 30-60 minutes and will prepare your oven so that it can be easily cleaned.

HeatWrap Cooking Technology

There are two fans in the back wall of the oven which operate with a special algorithm. The air ducts on the side walls of the oven provide independent air distribution at each tray level. With the Turbo Fan function, your oven allows you to cook four different food types at the same time without mixing odours. Two trays and two wire grids should be used for this. A tray should be used for pastry foods and placed on the wire grill in a suitable container (such as glass and ceramic baking dishes). Food should be placed in the oven in the order of tray, wire grill, tray and wire grill. You can look at four different cooking tables for alternative cooking combinations. Cooking four dishes at the same time requires more cooking time than cooking on a single tray.

Multi-Layer Cooking

This product has multiple cooking capabilities and can cook evenly on all shelf positions. You can cook the same kind of food on more than one tray (up to 5) at the same time. If you want to cook the same type of food, you can cook on multiple trays at the same time (multiple cooking). When setting the cooking temperature, select the most suitable temperature for your food in the food table. The shallow tray should be used for multiple cooking in this oven.

Function	Dishes			[X2HD]min.
Turbo	Sea Food	5	200	45-55
	Dessert 2 30-40
	Vegetable Frying 3-4 40-50
	Cake 1 25-30
	Pastry	5	200	65-75
	Chicken	3-4		40-50
	Meatball	2-3		65-75

*The times given above are obtained under laboratory conditions, and may vary depending on the mains supply voltage and the amount of food cooked.

4.1 COOKING TABLE

Function	Dishes
Static	Puff Pastry 2 -	3 - 4 170-19	90 35-45
	Cake 2 - 3	4 170-190	30-40
	Cookie 2 - 3	4 170-190	30-40
	Stew 2 175	200 40-50
	Chicken 2 - 3	4 200 45-60
Fan	Puff Pastry 2 -	3 - 4 170-19	90 25-35
	Cake 2 - 3	4 150-170	25-35
	Cookie 2 - 3	4 150-170	25-35
	Stew 2 175	200 40-50
	Chicken 2 - 3	4 200 45-60
Turbo	Puff Pastry 2 -	3 - 4 170-19	90 35-45
	Cake 2 - 3	4 150-170	30-40
	Cookie 2 - 3	4 150-170	25-35
	Stew 2 175	200 40-50
Grilling	Grilled meatballs	7 200	10-15
	Chicken * 190	50-60
	Chop	6 - 7 200	15-25
	Beefsteak	6 - 7 200	15-25

*If available cook with roast chicken skewer.

4.2 USE OF THE SLIM LED TOUCH TIMER

Mode Descriptions
	On/Off		Special Functions	_ _ _	Temperature Display		Slow Cooking
	Defrost Pastry st						Very Slow Cooking
	Turbo Function		Meat Meat	Pro ough
	Bottom Function		Poultry		Meat Probe stop		Bread
	Static Function		Fish Time	Dis dry
	Fan Function		Pizza Cooking	Frozen Food
	Double Grill Function		Lamp		Cooking end time		Minus
	Double Grill + Fan Function		Play / Pause	Minu under	Thermostat
	Cleaning Vap ( ) Mode Plus
	Key Lock

The control unit will switch off after 5 minutes if no function is selected or changed.

The appliance is operated using touch control sensors. The functions are controlled by touching the sensor fields.

When you are using the controls, make sure that you touch the sensor field correctly. If your touch is too flat or too small the sensors will not operate correctly.

The cooling fan will switch on automatically in order to keep the surfaces of the appliance cool. The fan will continue to run until it automatically switches off, even after the oven has been switched off.

Oven Function Selection

Touch the ON/OFF "①" sensor for 2 seconds to switch the control unit on. All buttons appear on the first brightness

level and the oven will enter "WAIT" mode. During this mode, you will be able to select the desired cooking functions, adjust the temperature, activate the BOOST "Â" function, as well as adjust the cooking time, end time, Minute Minder timer and the time of day.

During "WAIT" mode, the desired cooking function can be selected by touching one of the function buttons. The function button selected by the use will appear with the second brightness level.

When a cooking function is selected, the default temperature value will show on the Temperature display. This can be adjusted using the THERMOSTAT "♦" PLUS "^" and MINUS "♥" sensor buttons on the side of the display. The temperature can be adjusted within the range of 50°C to 275°C.

After the desired function has been

selected, and the temperature and time are set, touch the PLAY/PAUSE ▶ sensor to start the oven function operation. While the oven is operating, the play/pause button brightens during the cooking time.

Adjusting the Time of Day

When the oven has been installed, the time of day must be set according to the following instructions.

Touch the ON/OFF "①" sensor to switch the oven on and enter "WAIT" mode. During this mode, touch the MODE "sensor button until the time is selected. You can adjust it using the PLUS "and MINUS " sensor buttons. To complete the time adjustment, touch the MODE "sensor once again.

The time will only have to be set again if the appliance is disconnected from the power supply for a long period of time.

Adjusting the Cooking Time

The cooking time can be adjusted during "WAIT" mode or during "OPERATING" mode.

Adjusting the Minute Minder "♡"

Touch the MODE "L" sensor until the Minute Minder symbol illuminates on the Time display and "00:00" appears. Adjust the desired time period for the warning signal using the PLUS "∧ and MINUS " √ sensor buttons while the symbol is flashing. When you have completed the adjustment, do not press any buttons for a few seconds, then the Minute Minder timer will be set.

When the timer reaches zero, an audible warning will sound, and the Minute Minder symbol and "00:00" will flash on the

Time display. Press any button to stop the audible warning and the symbol will disappear.

Adjusting the Cooking Duration Time

This function helps you to cook for a fixed period of time. Prepare the food for cooking and put it in the oven. Then, select the desired cooking function and

the temperature. Touch the MODE "L" sensor button until you see the Duration Time symbol "1" on the Time display. Set the required cooking period using the PLUS "^and MINUS" sensors while the timer is in this position. When you have completed the adjustment, wait until the current time of day is displayed and the Duration Time symbol remains illuminated.

When the timer reaches zero, the oven will switch off, an audible warning will sound and the Duration Time symbol will flash on the Time display. Touch any sensor on the control unit to end the sound.

Adjusting the Cooking End Time

This function is used to begin cooking after a certain period of time and for a specific duration of time. Prepare the food for cooking and put it in the oven. Then, select the desired cooking function and the temperature.

Touch the MODE "L" button until you see the Cooking Duration Time symbol on the Time display. Set the required cooking period using the PLUS "∧ and MINUS " √ sensor while the timer is in this position. When you have completed the adjustment, wait until the current time of day is displayed and until the Cooking Duration Time symbol remains illuminated.

Then, touch the MODE “☐” sensor button until you see the Cooking End Time symbol on the Time display. The time of day and the Cooking Duration Time symbol will flash. Set the required finish time using the PLUS “↗” and MINUS “ ” sensors while the timer is in this position. When you have completed the adjustment, wait until the current time of day is displayed and until the Cooking End Time symbol “→” remains illuminated.

The oven will calculate the operating time by deducting the cooking period from the set finishing time, at which it will stop operating. The timer will give an audible warning and the Cooking End Time symbol will flash. Touching any button on the timer will end the audible warning.

The cooking end time cannot be set when the grill functions are activated. If the cooking end time was set before activating the grill functions, the cooking end time will be canceled after the grill functions are selected.

Digital Timer Sound Adjustment

To alter the warning signal sound, while the Time display shows the time of day, press and hold the THERMOSTAT " sensor button for 3 seconds until there is an audible signal sound. After this, each time the MINUS " OR PLUS " sensor is pressed, a different signal will sound. There are four different types of signal sound. Select the desired sound and do not press any other buttons. After a short time, the selected signal sound will be saved.

Boost Function

This function is used to shorten the preheating time. The BOOST “💡” sensor will illuminate when the Turbo, Fan, Static or Pizza functions are selected. To save preheating time, touch the BOOST “💡” sensor button before starting a cooking operation. Use this function to heat the oven to the desired temperature as quickly as possible. This mode is not appropriate for cooking.

After using the boost function, the oven can be used for cooking.

Key Lock Function

The key lock is used to avoid unintentional changes to oven settings.

To activate the key lock, touch the KEY LOCK " sensor" sensor button for 2 seconds until you see Key Lock symbol on the display. To deactivate the key lock, touch the KEY LOCK " sensor for 2 seconds until the key lock symbol disappears from the display.

When the key lock is engaged, only the ON/OFF "①" sensor button can be activated. All other buttons will remain locked.

4.3 ACCESSORIES

The EasyFix Wire Rack

Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use.

- Insert the accessory to the correct position inside the oven.

- Allow at least a 1 cm space between the fan cover and accessories.

• Take care removing cookware and/or accessories out of the oven. Hot meals or accessories can cause burns.

- The accessories may deform with heat. Once they have cooled down, they will recover their original appearance and performance.

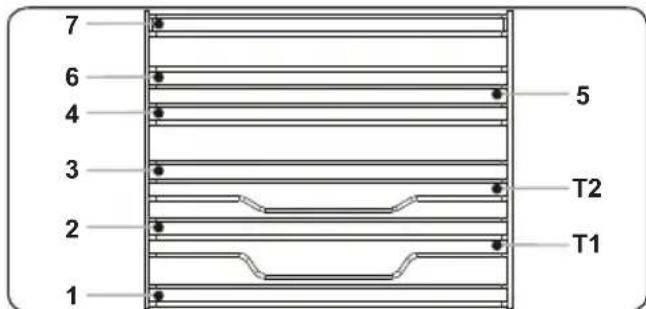

- Trays and wire grids can be positioned

on any level from of 1 to 7.

• Telescopic rail can be positioned on levels T1, T2, 3, 4, 5, 6, 7.
• Level 3 is recommended for single level cooking.
• Level T2 is recommended for single level cooking with the telescopic rails.
• Level 2 and Level 4 are recommended for double level cooking.
• The turnspit wire grid must be positioned on Level 3.
• Level T2 is used for turnspit wire grid positioning with the telescopic rails.

****Accessories may vary depending on the model purchased.

The Deep Tray

The deep tray is best used for cooking stews.

Put the tray into any rack and push it to the end to make sure it is placed correctly.

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

FIRST IN THE WORLD

Hot Air Shield System in Built-in Ovens

The patented hot air shield system prevents hot air from reaching the end user by creating an air curtain when the oven door is opened.

Technical line drawing of an open industrial oven or furnace unit (no text or symbols)

The Shallow Tray

The shallow tray is best used for baking pastries.

Put the tray into any rack and push it to the end to make sure it is correctly placed.

Technical line drawing of a square frame with bolt holes and mounting holes (no text or symbols)

The Wire Grid

The wire grid is best used for grilling or for processing food in oven-friendly containers.

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

WARNING

Place the grid to any corresponding rack in the oven cavity correctly and push it to the end.

Diagram of a metal rack with a curved panel and an arrow indicating direction (no text or symbols)

The Water Collector

In some cases of cooking, condensation may appear on the inner glass of the oven door. This is not a product malfunction.

Open the oven door into the grilling position and leave it in this position for 20 seconds.

Water will drip to the collector.

Cool the oven and wipe the inside of the door with a dry towel. This procedure must be applied regularly.

Technical line drawing of a door frame with internal channels and a downward arrow indicating direction (no text or symbols)

5. CLEANING AND MAINTENANCE

5.1 CLEANING

WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out.

General Instructions

• Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance.
• Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces.

Do not use cleaners that contain particles as they may scratch the glass, enamelled and/or painted parts our appliance.

- Should any liquids overflow, clean them immediately to avoid parts becoming damaged.

Do not use steam cleaners for cleaning any part of the appliance.

Cleaning the Inside of the Oven

• The inside of enamelled ovens are best cleaned while the oven is warm.
• Wipe the oven with a soft cloth soaked in soapy water after each use. Then, wipe the oven over again with a wet cloth and dry it.
• You may need to use a liquid cleaning material occasionally to completely clean the oven.

Line drawing of a hand cleaning a car window with a circular object on the wall (no text or symbols)

Cleaning the Glass Parts

• Clean the glass parts of your appliance on a regular basis.
• Use a glass cleaner to clean the inside and outside of the glass parts. Then, rinse and dry them thoroughly with a dry cloth.

Cleaning the Stainless Steel Parts (if available)

• Clean the stainless steel parts of your appliance on a regular basis.
• Wipe the stainless steel parts with a soft cloth soaked in only water. Then, dry them thoroughly with a dry cloth.

Do not clean the stainless steel parts while they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the stainless steel for a long time.

Cleaning Painted Surfaces (if available)

- Spots of tomato, tomato paste, ketchup, lemon, oil derivatives, milk, sugary foods, sugary drinks and coffee should be cleaned with a cloth dipped in warm water immediately. If these stains are not cleaned and allowed to dry on the surfaces they are on, they should NOT be rubbed with hard objects (pointed objects, steel and plastic scouring wires, surface-damaging dish sponge) or cleaning agents containing high levels of alcohol, stain removers, degreasers, surface abrasive chemicals. Otherwise, corrosion may occur on the powder painted surfaces, and stains may occur. The manufacturer will not be held responsible for any damage caused by the use of inappropriate cleaning products or methods.

Removal of the Inner Glass

You must remove the oven door glass before cleaning, as shown below.

1. Push the glass in the direction of B and release from the location bracket (x). Pull the glass out in the direction of A.

To replace the inner glass:

1. Push the glass towards and under the location bracket (y), in the direction of B.

1. Place the glass under the location bracket (x) in the direction of C.

If the oven door is a triple glass oven door, the third glass layer can be removed the same way as the second's layer.

Removal of the Oven Door

Before cleaning the oven door glass, you must remove the oven door, as shown below.

1. Open the oven door.

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

1. Open the locking catch (a) (with the aid of a screwdriver) up to the end position.

Technical line drawing of a mechanical joint or bracket assembly (no text or symbols)

1. Close the door until it is almost in the fully closed position, and remove the door by pulling it towards you.

Diagram of a door or cabinet with an arrow indicating upward movement, no text or symbols present

Removal of the Wire Shelf

To remove the wire rack, pull the wire rack as shown in the figure. After releasing it from the clips (a), lift it up.

Illustration of a hand pressing down on a grid-like structure with an arrow indicating direction (no text or symbols)

5.2 MAINTENANCE

WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified physician only.

Changing the Oven Lamp

WARNING: Switch off the appliance and allow it to cool before cleaning your appliance.

• Remove the glass lens, then remove the bulb.
• Insert the new bulb (resistant to 300 °C) to replace the bulb that you removed

(230 V, 15-25 Watt, Type E14).

• Replace the glass lens, and your oven is ready for use.
  • The product contains a light source of energy efficiency class G.
  • Light source can not be replaced by end user. After sales service is needed.
• The included light source is not intended for use in other applications.

Replaceable light source by a professional

The lamp is designed specifically for use in household cooking appliances. It is not suitable for household roomination.

6. TROUBLESHOOTING AND TRANSPORT

6.1 TROUBLESHOOTING

If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician.

Problem Possible Cause Solution
Oven does not switch on. Power is switched off.		Check whether there is power supplied.Also check that other kitchen appliances are working.
No heat or oven does not warm up.	Oven temperature control is incorrectly set.Oven door has been left open.	Check that the oven temperature control knob is set correctly.
Oven light (if available) does not operate.	Lamp has failed.Electrical supply is disconnected or switched off.	Replace lamp according to the instructions.Make sure the electrical supply is switched on at wall socket outlet.
Cooking is uneven within the oven.	Oven shelves are incorrectly positioned.	Check that the recommended temperatures and shelf positions are being used.Do not frequently open the door unless you are cooking things that need to be turned. If you open the door often, the interior temperature will be lower and this may affect the results of your cooking.
The timer buttons cannot be pressed properly.	There is foreign matter caught between the timer buttons.Touch model: there is moisture on the control panel.The key lock function is set.	Remove the foreign matter and try again.Remove the moisture and try again.Check whether the key lock function is set.
The oven fan (if available) is noisy.	Oven shelves are vibrating.	Check that the oven is level.Check that the shelves and any bake ware are not vibrating or in contact with the oven back panel.
The cooling fan continues to operate after the oven is switched off.	Electronically-controlled oven fan automatically runs for a certain amount of time to cool the oven.	The fan switches off automatically when the electronic components have cooled sufficiently.
The oven has switched itself off.	Electronically-controlled ovens switch off automatically if no function is in operation.	The oven will switch itself off automatically to save energy if no other action is taken within a certain time frame after switching it on or after the end of a cooking programme.
If the door is opened during a fan-assisted function, the internal fan will stop.	Electronically-controlled ovens with a door switch will stop cooking if the oven door is opened.	It is a normal operation of the appliance, useful when cooking foods in order to avoid excessive heat escaping. When the door is closed, the oven will restart to normal operation.

6.2 TRANSPORT

If you need to transport the product, use the original product packaging and carry it using its original case. Follow the transport signs on the packaging. Tape all independent parts to the product to prevent damaging the product during transport.

If you do not have the original packaging, prepare a carriage box so that the appliance, especially the external surfaces of the product, is protected against external threats.
