JCH-198 - Freezer Jocel - Free user manual and instructions
Find the device manual for free JCH-198 Jocel in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Freezer |
| Brand | Jocel |
| Model | JCH-198 |
| Total Gross Capacity | 196 L |
| Energy Class | A+ |
| Annual Energy Consumption | 237 kWh |
| Noise Level | 42 dB(A) |
| Climate Class | SN-T |
| Freezing Capacity | 12 kg/24h |
| Storage Time in Case of Power Failure | 18 h |
| Dimensions (H x W x D) | 1430 x 555 x 600 mm |
| Weight | 49 kg |
| Power Supply | 220-240V ~ 50 Hz |
| Rated Current | 0.8 A |
| Refrigerant | R600a (53 g) |
| Temperature Control | Mechanical thermostat with 7 positions |
| Fast Freeze Function | Yes, via switch |
| Defrost Method | Manual defrost |
| Door Reversibility | Yes, user-reversible |
| Interior Light | Yes, LED (replaceable) |
| Lock | Yes, with key |
| Wheels / Adjustable Feet | 2 front wheels, 2 rear adjustable feet |
| Spare Parts Availability | 7 years after model discontinuation |
| Repairability Index | 7.4 / 10 |
| Manual Languages | EN, ES, PT |
Frequently Asked Questions - JCH-198 Jocel
How do I set the temperature on my Jocel JCH-198 freezer?
Turn the thermostat dial located inside the freezer compartment. Position '1' is the warmest, '7' is the coldest. A medium setting (4-5) is recommended for normal use. For fast freezing, turn the fast freeze switch on 24 hours before loading fresh food.
How often should I defrost the freezer?
Defrost when the frost layer reaches about 5 mm (0.2 inches). Unplug the freezer, remove food, and leave the door open. Do not use sharp tools to remove ice; let it melt naturally or use a plastic scraper. Clean and dry before restarting.
The freezer is making a buzzing sound. Is this normal?
Yes, a low buzzing or humming sound from the compressor and refrigerant flow is normal. If the sound is loud or irregular, ensure the freezer is level and not in contact with walls or furniture. If persists, contact support.
Can I reverse the door opening direction?
Yes, the door is reversible. You will need a screwdriver and a spanner. Follow the step-by-step instructions in the manual: remove hinges, swap door handle and hinge plates, and reattach. Keep the freezer unplugged during the process.
How do I clean the interior of my freezer?
Unplug the freezer, remove all food and shelves. Wash with a mild detergent and warm water, then rinse. Do not use abrasive cleaners or solvents. Dry thoroughly before plugging back in. Clean the door gasket regularly with a damp cloth.
What should I do after a power failure?
Keep the door closed. The freezer can maintain safe temperature for up to 18 hours if full. After power returns, check food condition. Do not refreeze thawed food unless it still contains ice crystals. For partial thawing, cook immediately.

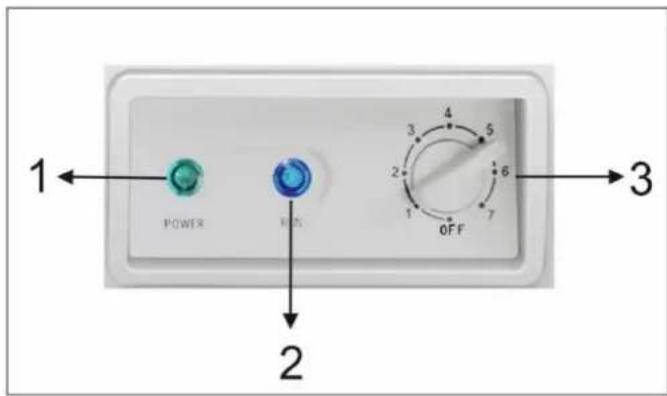

How do I adjust the thermostat?
The thermostat is a dial located inside the freezer. Turn it clockwise to increase coldness. The numbers 1 to 7 indicate temperature settings. Turning to '0' or 'OFF' position (if present) will stop cooling. Wait 24 hours for temperature to stabilize.
Is it normal for the exterior to get warm?
Yes, the side panels can become warm during operation as heat dissipates from the refrigeration system. This is normal and helps prevent condensation. Ensure good ventilation around the freezer.
How can I save energy with this freezer?
Place the freezer away from heat sources and direct sunlight. Keep the door closed as much as possible. Ensure the door gasket seals properly. Allow hot food to cool before storing. Defrost regularly to prevent thick ice buildup.
Where can I find the model number and serial number?
The model number (JCH-198) and serial number are on the rating plate located inside the freezer, usually on the back wall or side near the bottom. Keep this information for service and spare parts orders.
User questions about JCH-198 Jocel
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Freezer in PDF format for free! Find your manual JCH-198 - Jocel and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. JCH-198 by Jocel.
