JCH-550 - Freezer Jocel - Free user manual and instructions

Product Type	Freezer
Brand	Jocel
Model	JCH-550
Energy Class	A+
Total Gross Capacity	250 L
Freezing Capacity	10 kg/24h
Defrost Type	Manual
Climate Class	N/ST
Refrigerant	R600a
Noise Level	42 dB(A)
Temperature Control	Mechanical thermostat
Fast Freeze Function	Yes
Door Alarm	No
Dimensions (H x W x D)	185 x 60 x 65 cm
Weight	55 kg
Annual Energy Consumption	280 kWh
Interior Light	Yes
Number of Drawers	6
Lockable	No
Power Supply	220-240 V, 50 Hz
Warranty	2 years

Frequently Asked Questions - JCH-550 Jocel

What is the recommended temperature setting for the Jocel JCH-550 freezer?

The recommended temperature for freezing is -18°C. Use the mechanical thermostat dial to adjust.

How do I defrost the freezer?

Unplug the freezer, remove all food, and leave the door open. Do not use sharp objects to remove ice. Clean and dry before restarting.

Why is my freezer making unusual noises?

Normal operation includes sounds from the compressor and refrigerant flow. Ensure the freezer is level and not touching walls.

What should I do if the freezer is not cooling enough?

Check if the door is properly closed, the thermostat is set correctly, and the condenser coils are clean. Allow 24 hours for temperature stabilization.

Can I install the freezer in a garage?

Only if the ambient temperature is within the climate class (N/ST: 16°C to 38°C). Avoid freezing temperatures.

How do I clean the interior?

Unplug the freezer, remove food, and clean with a mixture of warm water and mild detergent. Rinse and dry thoroughly.

What is the power consumption of the JCH-550?

The annual energy consumption is approximately 280 kWh, with a power input of 220-240 V, 50 Hz.

How long can food be stored in the freezer?

At -18°C, most food can be stored for 1-12 months depending on type. Check packaging for specific recommendations.

Does the freezer have a fast freeze function?

Yes, there is a fast freeze function. Activate it 24 hours before adding large quantities of fresh food.

Can I replace the door hinge side?

It may be reversible. Check the manual for instructions or contact customer support.

USER MANUAL JCH-550 Jocel

Two white rectangular storage cabinets with gray lids, one with a lid and the other with a logo (no visible text or symbols on the cabinets themselves)

MANUAL DE INSTRUÇÕES MANUAL DE FUNCIONAMENTO INSTRUCTION MANUAL

Technical diagram of a closed storage unit with numbered parts for identification

Front panel of a white appliance control panel with a red indicator light and a digital display (no visible text or symbols)

Close-up of a white kitchen washing machine with a rotary knob and control dial (no visible text or symbols)

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

Thank you for buying this high quality appliance

This handbook is designed to help you through each step of owning your new appliance, from installation to use.

Please read through this handbook carefully before you start using your appliance, as we have endeavoured to answer as many questions as possible, and provide you with as much support as possible.

If, however, you find something missing or not covered, please contact our Customer Care Centre, using the number at the back of this handbook, who will be only too happy to help you.

Our policy is one of constant development and improvement, therefore we cannot guarantee the strict accuracy of all our illustrations and specifications, changes may have been made subsequent to publishing.

WARNING: When positioning the appliance ensure the supply cord is not trapped or damaged.

WARNING: Do not locate extension sockets or charging transformers/power supplies adjacent to the compressor as they could overheat.

Index

BEFORE USING YOUR APPLIANCE.... 19

Safety Instructions.... 19

Warnings....19

Installation.... 20

Handle installation....21

OPERATING YOUR APPLIANCE.... 22

Parts of the Appliance.... 22

Temperature Adjustment/Operation....23

Food Storage in the Appliance....23

DEFROSTING AND CLEANING....24

Defrosting and Cleaning....24

TROUBLE SHOOTING AND TECHNICAL DATA....24

Trouble Shooting....24

Trouble Shooting guide....25

General Warranty terms....26

Declaration of conformity....27/28

BEFORE USING YOUR APPLIANCE

Safety Instructions

- After installation make sure that the power cable is not trapped underneath appliance.

Please read this booklet thoroughly before installing and switching on the appliance.

The manufacturer accepts no responsibility for incorrect installation and use.

• If this appliance is to replace an old one equipped with a lock, break or remove the lock as a safety measure to avoid children becoming trapped inside.
• Do not damage the refrigerant circuit. In the event that the refrigerant circuit is damaged, avoid open flames or ignition sources and ventilate the room in which the unit is placed – do not use the appliance until you have been advised to do so by a service engineer.
• Do not allow children to play with the appliance. Children must never sit in the drawers or hang from the door.
• Do not plug this appliance into an extension lead.
• Do not use old or damaged power supply cables.
• Do not twist, bend or trap the cable. Cables should also be kept clear of heat sources.
• When plugging in the appliance, always make sure that your hands are dry.
• Your old appliances contain insulation gases and refrigerant that must be disposed of properly. Please contact your local authority for information about recycling centre's, do not dispose of this appliance with household waste.

Warnings

• WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Do not defrost the appliance with other electrical devices (i.e. hair dryer) or any artificial means and do not use sharp metal objects to remove the ice on the freezer, as this could cause damage to the refrigerant system.
• Do not operate any electrical appliances inside the refrigerator or freezer.
• WARNING: Do not place bottles (glass or plastic) containing liquids (especially effervescent liquids) into the freezer as they could cause the bottle to burst during freezing.
• WARNING: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not touch the cooling surfaces while the appliance operates, especially with wet hands, because the skin may stick to cold surfaces.
• Do not eat ice which has just been removed from the freezer as this can cause freezer burns to the hands and tongue.

Installation

• Install and level the appliance on a floor able to take its weight and in a place suitable for its size and use.
• Insert the plug into a socket which is appropriate. This appliance has a plug already fitted – if the plug is not suitable for your socket we suggest that you call an authorized electrician for assistance. If the plug is damaged in any way – do not attempt to use it. It must be replaced with a new plug.
• Do not install the appliance in direct sunlight and close to heat sources. Do not allow the appliance to be exposed to rain.
• Choose a well ventilated area. There should be at least 10 cm of open space along the sides, top, and back of the freezer.
• Before switching on place the appliance in an upright position and wait at least three hours without moving the appliance. This will give the refrigerant circuit time to settle and operate efficiently.
• Install the appliance in a dry and well-ventilated place. The appliance is for use in places within the temperature ranges defined according to the climatic class given on the Data Label located on the back of the product. The appliance may not operate consistently if it is sited for extended periods of time below the cold end of the climate class temperature range for which the appliance is designed.
• If the appliance is installed next to another refrigerator or freezer, observe the minimum distance of 10cm to avoid condensation.
• The manufacturer is not responsible for failure to complete installation as described in this guide.

This appliance is intended for use in households but is not intended to be used in applications such as;

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications;

Operating voltage for your fridge is 220-240 V at 50Hz

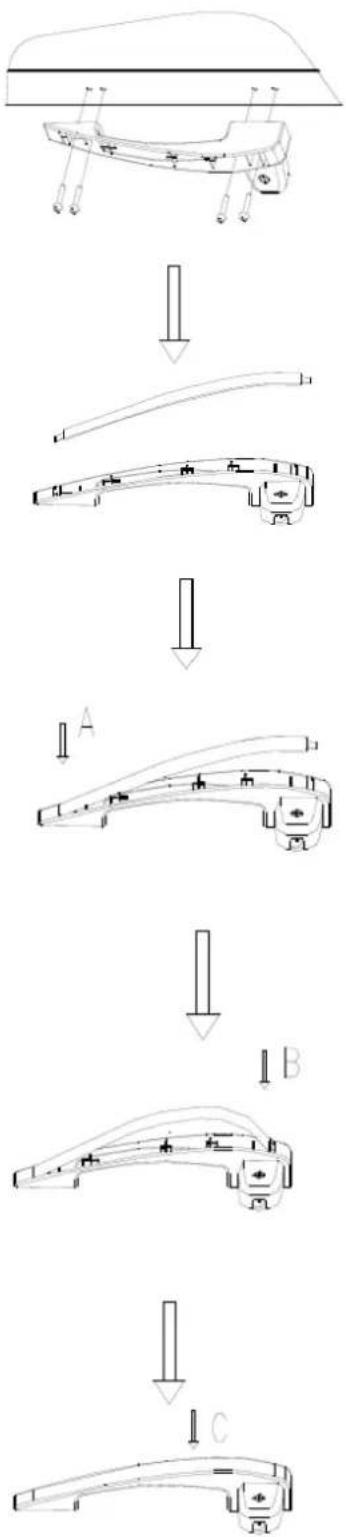

Handle Installation

Step 1: Fix the handle on the door with four screws.

Step 2: Insert the one side of handle cover into the handle pedestal.

Step 3: Insert the other side of handle cover into the handle pedestal.

Step 4: Press the cover into the handle pedestal.

OPERATING YOUR APPLIANCE

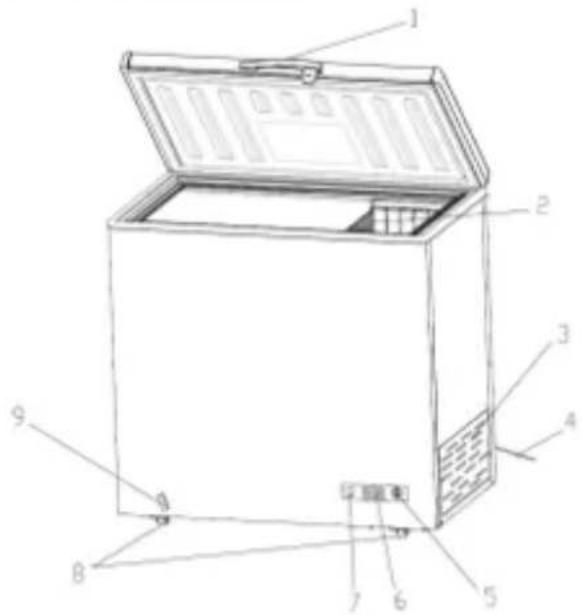

Parts of the Appliance

Technical diagram of a closed storage unit with numbered parts for identification

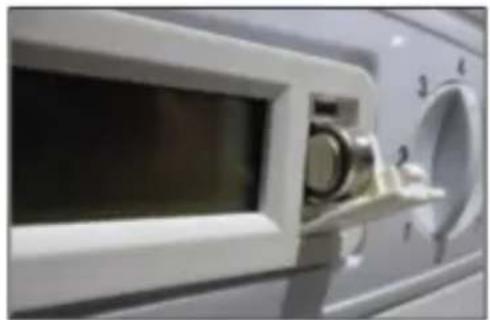

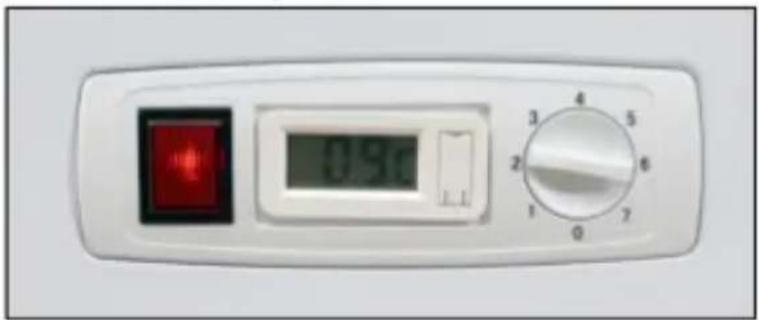

The function of the panel:

Front panel of a white appliance control panel with a red indicator light and digital display (no visible text or symbols)

Close-up of a white washing machine door with control knob and rotary dial (no visible text or symbols)

• Your refrigerator has one control for regulating the temperature. The temperature control is located on the lower right hand corner.
• The first time you turn the unit on, turn the temperature control knob in a clockwise direction to the maximum setting "7" and run for at least 2 hours before putting frozen foods inside. This will ensure the cabinet is thoroughly chilled before food is put in.
• The range of the temperature control is from position "1" the warmest to "7" the coldest. Adjust the temperature control to the setting that best suits your needs. The setting of "4" should be correct for home or office refrigerator use.
  • To turn the refrigerator off, turn the temperature control to "0".
  • Red light: Power on

NOTE:

• Turning the temperature control to "0" position stops the cooling cycle but does not shut off the power to the refrigerator.
• If the unit is unplugged, lost power, or turned off; you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the refrigerator will not start.
  • Large amounts of food will lower the cooling efficiency of the appliance.
• If you choose to change the thermostat setting, adjust thermostat control by one numerical increment at a time. Allow several hours for temperature to stabilize between adjustments.
• The display is equipped with a battery which must be replaced whenever necessary.

Temperature Adjustment/Operation

• The appliance temperature can be adjusted by turning the thermostat on the Control Panel.
• The thermostat should be adjusted according to different environment temperature and the quantity of food being stored by adjusting the knob of the thermostat. The knob rotates clockwise from "1" to "7". The setting should be reduced down in summer (anti-clockwise rotation) and up in winter (clockwise rotation). The thermostat is set to a certain point before
• leaving the factory, this is the optimum setting for the product.
• If a large amount of fresh food is placed in the appliance for freezing the thermostat should be turned up for a period of 4-6 hours, after this period it should be returned to its initial setting.
• The red lamp is a power indicating lamp. When the power is on, the lamp will be on.
• Once power is cut off, wait for at least 5 minutes before plugging in again to avoid damaging the compressor or the system.

Food Storage in the Appliance

This freezer is a 4 star rated ( ) appliance.

• The use of a freezer is for freezing fresh food and storing frozen food for long periods of time and making ice cubes.
• Do not put fresh or warm food with frozen food side by side as it can thaw the frozen food.
• While freezing fresh food (i.e. meat, fish etc) divide them into smaller portions, this will allow you to defrost only the food you need.
• For storing frozen food; the instructions shown on frozen food packages should always be followed carefully, if no information is provided food should not be stored for more than 3 months from the purchased date.
• When buying frozen food; ensure that these have been frozen at suitable temperatures and that the packing is intact.
• Frozen food should be transported in appropriate containers to maintain the quality of the food and should be placed into the freezer as soon as possible.
• If a package of frozen food shows signs of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated. Do not use this food, dispose of it as soon as possible.
• The storage life of frozen food depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

DEFROSTING AND CLEANING

• Defrost twice a year or when a frost layer of around 7 mm (1/4") has formed. To start defrosting procedure switch off the freezer at the socket outlet and pull out the mains plug.
• All food should be wrapped in several layers of newspaper and stored in a cool place (e.g. fridge or larder).
• Containers full of warm water may be placed carefully in the freezer to speed up the defrosting.
• Do not use pointed or sharp edged objects such as knives, forks to remove the frost.
• Never use hairdryers, electrical heaters and other similar electrical appliances for defrosting.
• When defrosting has finished, sponge out any defrost water which collects at the bottom of the freezer and dry the interior thoroughly.
• You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.
• Do not wash your freezer by pouring water into it.
• Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.
• Make sure that your freezer remains unplugged while cleaning.
• Once defrosting/cleaning has been completed, plug in the appliance and return to its temperature setting.

TROUBLE SHOOTING

Trouble Shooting

The following problems are not causes of breakdown:

Problems	Causes and solutions
There is a sound of liquid flowing in the freezer	It is the sound of refrigerant flowing in the circulating pipeline of the refrigerating system, this is normal
Too noisy	The freezer is not installed in a level ground, change the position
The refrigeration system does not work for a long time but the inside temperature is very low	It is an indicator of good insulation and low cooling retention, this is normal.

Trouble Shooting Guide

Trouble	Possibilities		Cheek up	Solutions	Remarks
Compressor does not work	Power is off	The fuse is broken	Check the fuse	Replace the fuse	If it is necessary please contact after-sales service for repair
		The connection between plug and socket is not good	Check the socket	Repair or replace the socket
		The circuit of input and output is out of use	Make sure that the power is on	Check the circuit with electric instrument
	The thermostat knob is not in the proper position		Check the thermostat	Rotate the thermostat to the proper position	Ask for professional help
Compressor keeps on working	The temperature inside is too high	Frost on the evaporator is too thick	Check whether the frost is thicker than 6-8mm	Defrost regularly
		The door is being opened too frequently		Reduce the times of opening
		Too much food has been stored at once		Take out some of the food
	The temperature inside is OK	The ambient temperature is too high .while the thermostat indicates a small number	Make sure whether the knob is indicating at the "5-6"(or deeper)	Adjust the thermostat knob	The thermostat knob on"2-4"is better(or proper)
		The thermostat does not work		Replace the thermostat	Ask for after-sales service
Too noisy	The floor is not level		Make sure that the freezer is level	Put pad under the castors
	The screw in fan or condenser is loose		The screw is loose	Rotate the fixed screw
	The refrigerating circuits touch each other			Separate them

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.

2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

HEADQUARTERS:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

CE

DECLARATION OF CONFORMITY

We declare on our own responsibility that the machine indicated below

Product HORIZONTAL FREEZER

Brand JOCEL

Model JCH-450

Complies with the following European directives and standards implementation:

Low Voltage

2006/95/CE

EN 60335-2-24:2010

EN60335-1/A15:2011

EN62233:2008

Electromagnetic Compatibility

2004/108/CE

EN 55014-1/A2:2011

EN 61000-3-2/A2:2009

EN 61000-3-3:2008

EN 55014-2/A2:2008

Country of Origin: R.P.C.

HEADQUARTERS:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below

Product HORIZONTAL FREEZER

Brand JOCEL

Model JCH-550

Complies with the following European directives and standards implementation:

Low Voltage

2006/95/CE

EN 60335-2-24:2010

EN60335-1/A15:2011

EN62233:2008

Electromagnetic Compatibility

2004/108/CE

EN 55014-1/A2:2011

EN 61000-3-2/A2:2009

EN 61000-3-3:2008

EN 55014-2/A2:2008

Country of Origin: R.P.C.
