XEED SX7 MARK II MEDICAL - Professional projector CANON - Free user manual and instructions

Product Type	Portable professional projector
Brand	Canon
Model	XEED SX7 Mark II Medical
Display technology	Reflective LCOS (Liquid Crystal on Silicon)
Native resolution	SXGA+ (1400 x 1050 pixels)
Brightness	4000 lumens
Contrast ratio	1000:1 (full on/off)
Keystone correction	Vertical +/- 20° (auto/manual), Horizontal +/- 20° (manual)
Image modes	Standard, Presentation, Cinema, Adobe RGB, sRGB, Photo, DICOM SIM
Zoom	Motorized 1.7x
Lens shift	Fixed (9:1)
Video inputs	DVI-I (29-pin, HDCP), Mini D-Sub (15-pin, component via adapter), S-Video (4-pin Mini-DIN), Composite (RCA)
Audio inputs	3.5 mm stereo mini-jack x 3
Audio output	3.5 mm stereo mini-jack (variable level)
Control port	8-pin Mini-DIN
Network	Via optional RS-NA01 network adapter
Dimensions (W x H x D)	266 x 114 x 336 mm
Weight	4.8 kg
Power consumption	Normal: 360 W, Silent: 290 W, Standby: 7 W
Noise level	Normal: 35 dBA, Silent: 31 dBA
Warranty	3 years
Key features	Built-in DICOM simulation mode, optional on-site calibration (AcuScreenPRO), precise grayscale reproduction, ideal for medical imaging (PACS)
Maintenance and cleaning	Clean the lens with a soft, dry cloth. Dust the ventilation grilles regularly.
Safety	Complies with applicable safety standards for medical devices (laser class not applicable).
Spare parts and repairability	Contact an authorized Canon service center for any repair or component replacement.
General information	Medical projector designed for meeting rooms, operating rooms, and lecture halls. Compatible with PACS systems. Supplied with remote control and cables.

Frequently Asked Questions - XEED SX7 MARK II MEDICAL CANON

What is the native resolution of the Canon XEED SX7 Mark II Medical?

The native resolution is SXGA+ (1400 x 1050 pixels).

Does the projector have a DICOM mode?

Yes, it features a built-in DICOM simulation mode for faithful grayscale reproduction in medical imaging.

What types of video connections are available?

It has a DVI-I input (HDCP compatible), a Mini D-Sub 15-pin input (component via adapter), S-Video (4-pin Mini-DIN) and Composite (RCA).

How to calibrate the projector for full DICOM compliance?

On-site calibration can be performed using the optional AcuScreenPRO system (PC software + luminance sensor), sold separately by Larivière GmbH.

What is the brightness of the projector?

The brightness is 4000 lumens with a contrast ratio of 1000:1.

Is the projector suitable for medical use?

Yes, it is specially designed for medical imaging (radiology, MRI, ultrasound) and integrates easily into PACS systems.

What is the weight of the projector?

It weighs 4.8 kg, making it easily portable.

How to clean the projector lens?

Use a soft, lint-free cloth, slightly damp if necessary. Never use harsh chemicals.

Is the projector compatible with remote control systems?

Yes, it has an 8-pin Mini-DIN port for serial control (RS-232) and can be connected to a network via an optional adapter.

What is the warranty period?

The manufacturer warranty is 3 years.

USER MANUAL XEED SX7 MARK II MEDICAL CANON

Medical Projector Range.

White projector with lens and control panel, no visible text or symbols on body

XEED WUX4000 Medical XEED WUX10 Mark II Medical XEED SX7 Mark II Medical XEED SX80 Mark II Medical

you can

Medical professional in blue scrubs and white coat running through a hospital corridor, carrying documents (no visible text or symbols)

Giving all the image accuracy you need.

Portrait of a medical professional in teal scrubs and surgical cap, looking upward (no visible text or symbols)

Medical imaging demands extremely accurate reproduction of greyscales, if patient conditions are to be illustrated faithfully. Combining the benefits of Canon's LCOS panel technology with ultra-bright, high resolution imaging – up to native WUXGA resolution (1920 x 1200 pixels) – XEED offers seamless projection and optimal reproduction of medical images.

In hospitals, private medical centres and dentistry practices, Canon XEED projectors are a powerful addition to any PACS (Picture Archiving and Communication System), providing a reliable platform for radiological case discussions. Teaching hospitals and university medical schools will appreciate XEED's precise and accurate projection of X-ray and MRI images in any size of room.

Out-of-the-box DICOM simulation.

Optimising images to human visual perception, the DICOM 14 standard sets the benchmark in digital radiology. The XEED WUX4000 Medical, XEED WUX10 Mark II Medical, XEED SX7 Mark II Medical and XEED SX80 Mark II Medical all offer a DICOM simulation mode as standard.*

This DICOM SIM mode features 21 different levels of greyscale reproduction, based on varying combinations of luminance and contrast. The result is a flexible solution that can be used in various ambient lighting conditions. In addition, the range of DICOM presets available makes it far easier to accurately match twin screens when required.

Additional on-site calibration option.

On-site calibration giving full DICOM 14 compliance can be achieved using the AcuScreenPRO system, available separately from our partner Larivière GmbH. Environmental factors, such as the intensity and tone of ambient light, plus the projection screen type, are all taken into account to achieve the very best possible image quality.

Chest X-ray image showing lung fields and thoracic structures (no text or annotations)

Without DICOM simulation mode

Chest X-ray image showing lung fields and thoracic structures (no visible text or annotations)

With DICOM simulation mode

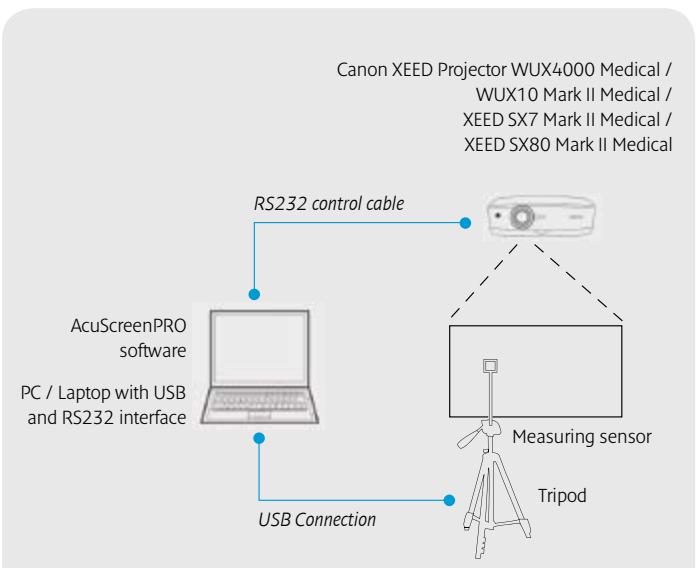


The AcuScreenPRO system is comprised of easy-to-use, PC-based software and a measuring sensor. The supplied luminance sensor is used to evaluate exact display conditions, allowing precise corrections to be made according to the specific environment. By carrying out these corrections, the gradation between minimum luminance – where black areas appear grey due to external light – and maximum luminance can be distributed optimally.

Regular recalibration is recommended, to ensure ongoing DICOM 14 compliance, with the system downloading the new parameters to the projector after each calibration.

The XEED advantage:

The superior choice for medical professionals.

Leveraging Canon's 70 year heritage at the forefront of lens design, Canon XEED projectors deliver crisp, premium quality projection for demanding medical imaging applications, in a choice of both portable and installation models.

Employing Canon LCOS (Liquid Crystal on Silicon) panel technology, ultra-fine greyscales can be achieved in most lighting conditions. Projected images are displayed seamlessly, free from unwanted lattice and rainbow effects, that can so often plague conventional LCD and DLP models. The result is simply the best possible reproduction of radiological images.

A combination of exceptional contrast and high brightness is achieved via a unique optical system known as Canon AISYS (Aspectual Illumination System).

XEED WUX4000 Medical Installation Projector

Exterior view of a projector (no visible text or labels)

• Native WUXGA resolution with Canon LCOS technology
  • 4000 lumens brightness and 1000:1 contrast ratio
  • Full HD capability
  • DICOM Simulation image mode
• Range of three interchangeable lenses and motorised lens shift

XEED WUX10 Mark II Medical Portable Projector

Exterior view of a silver projector (no visible text or symbols)

• Native WUXGA resolution with Canon LCOS technology
• 3200 lumens brightness and 1000:1 contrast ratio
• Full HD capability
• DICOM Simulation image mode

XEED SX7 Mark II Medical Portable Projector

Exterior view of a modern projector (no visible text or symbols)

• Native SXGA+ resolution with Canon LCOS technology
  • 4000 lumens brightness and 1000:1 contrast ratio
• HD Ready
  • DICOM Simulation image mode

XEED SX80 Mark II Medical Portable Projector

White projector with visible lens and control panel (no text or symbols)

• Native SXGA+ resolution with Canon LCOS technology
• 3000 lumens brightness and 900:1 contrast ratio
• PC-less presentation via USB port
• DICOM Simulation image mode

SPECIFICATIONS	XEED WUX4000 MEDICAL	XEED WUX10 MARK II MEDICAL	XEED SX7 MARK II MEDICAL	XEED SX80 MARK II MEDICAL
PRODUCT CLASS	Installation	Portable	Portable	Portable
LCD PANELTypeAspect RatioNative Resolution	LCOS reflective display, TFT Active Matrix16:101920 x 1200 (WUXGA), 2304000 pixels	LCOS reflective display, TFT Active Matrix16:101920 x 1200 (WUXGA), 2304000 pixels	LCOS reflective display, TFT Active Matrix4:31400 x 1050 (SXGA+), 1470000 pixels	LCOS reflective display, TFT Active Matrix4:31400 x 1050 (SXGA+), 1470000 pixels
OPTICSSzoom Magnification and ControlLens Shift	1.5x MotorisedVertical and Horizontal, Motorised	1.5x Motorised10:0 (fixed)	1.7x Motorised9:1 (fixed)	1.5x Motorised10:0 (fixed)
IMAGE AND AUDIOBrightnessContrast RatioKeystone Correction RangeDisplay Modes	4000 lumens1000:1 (full on / full off)Vertical: +20° to -11°Horizontal: +/-20°Standard, Presentation, Dynamic, Vivid Photo, Photo/sRGB, Video, Cinema, Custom DICOM SIM	3200 lumens1000:1 (full on / full off)Vertical: +/- 20° (Auto / Manual)Horizontal: NoneStandard, Presentation, Movie, sRGB, Photo, DICOM SIM	4000 lumens1000:1 (full on / full off)Vertical: +/- 20° (Auto / Manual), Horizontal: +/- 20° (Manual)Standard, Presentation, Movie, Adobe RGB, sRGB, Photo, DICOM SIM	3000 lumens900:1 (full on / full off)Vertical: +/- 20° (Auto / Manual)Horizontal: NoneStandard, Presentation, Movie, sRGB, Photo, DICOM SIM
PORTS AND CONNECTORSDigital RGB / Analogue RGBDigital Video and Audio InputAnalogue RGB Input 2Analogue RGB OutputS-Video InputComposite Video InputAudio InputsAudio OutputService Port / Projector ControlNetwork Port	DVI-D 24-pin (HDCP compatible)HDMI V1.3 with Deep ColourMini D-Sub 15-pin (Component via optional adaptor cable)---3.5mm stereo mini-jack x 23.5mm stereo mini-jack (variable level)Mini D-Sub 9-pinRJ-45	DVI-I 29-pin (HDCP compatible)HDMI V1.3 with Deep ColourMini D-Sub 15-pin (Component via supplied adaptor cable)Mini D-Sub 15-pin (shared with Input 2)Mini-DIN 4-pinRCA x 13.5mm stereo mini-jack x 33.5mm stereo mini-jack (variable level)Mini D-Sub 9-pinRJ-45	DVI-I 29-pin (HDCP compatible)-Mini D-Sub 15-pin (Component via supplied adaptor cable)Mini D-Sub 15-pinMini-DIN 4-pinRCA x 13.5mm stereo mini-jack x 33.5mm stereo mini-jack (variable level)Mini-DIN 8-pinVia optional RS-NA01 network adaptor	DVI-I 29-pin (HDCP compatible)HDMI V1.3 with Deep ColourMini D-Sub 15-pin (Component via supplied adaptor cable)Mini D-Sub 15-pinMini-DIN 4-pinRCA x 13.5mm stereo mini-jack x 33.5mm stereo mini-jack (variable level)Mini D-Sub 9-pinRJ-45
RATINGSDimensions (W x H x D)WeightPower ConsumptionNoise LevelWarranty	380mm x 170mm x 430mm8.5kg (without lens)Normal Mode: 410W / Quiet Mode: 365W / Standby: 1.7W / Standby (LAN off): 0.35WNormal Mode: 39dBA / Quiet Mode: 36dBA 3 years	284mm x 114mm x 336mm5.0kgNormal Mode: 400W / Quiet Mode: 330W / Standby: 11WNormal Mode: 36dBA / Quiet Mode: 32dBA 3 years	266mm x 114mm x 336mm4.8kgNormal Mode: 360W / Quiet Mode: 290W / Standby: 7WNormal Mode: 35dBA / Quiet Mode: 31dBA 3 years	332mm x 121mm x 340mm5.0kgNormal Mode: 330W / Quiet Mode: 270W / Standby: 15WNormal Mode: 35dBA / Quiet Mode: 31dBA 3 years

All data is based on Canon's standard testing methods. This Leaflet and the specifications of the product have been developed prior to the date of product launch. Specifications are subject to change without notice.
™and ®: All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries.

True Throw Distances

	WUX4000 MEDICAL WITH STANDARD LENS
Image size (inches)	40	60	80	100	150	200	300
Width (cm)	86	129	172	215	323	431	646
Height (cm)	54	81	108	135	202	269	404
Projection distance (zoom max)	1.3m	1.9m	2.6m	3.2m	4.8m	6.4m	9.6m
Projection distance (zoom min)	1.9m	2.9m	3.9m	4.8m	7.2m	9.6m	—

	WUX10 MARK II MEDICAL
Image size (inches)	40	60	80	100	150	200	300
Width (cm)	86	129	172	215	323	431	646
Height (cm)	54	81	108	135	202	269	404
Projection distance (zoom max)	1.2m	1.8m	2.4m	3.0m	4.5m	6.1m	9.1m
Projection distance (zoom min)	1.8m	2.6m	3.5m	4.4m	6.7m	8.9m	—

		SX7 MARK II MEDICAL
Image size (inches)		40	60	80	100	150	200	300
	Width (cm)	81	122	163	203	305	406	610
	Height (cm)	61	91	122	152	229	305	457
Projection distance (zoom max)		1.2m	1.8m	2.4m	3.0m	4.5m	5.9m	8.9m
Projection distance (zoom min)		2.0m	2.9m	3.9m	4.9m	7.4m	—	—

	SX80 MARK II MEDICAL
Image size (inches)	40	60	80	100	150	200	300
Width (cm)	81	122	163	203	305	406	610
Height (cm)	61	91	122	152	229	305	457
Projection distance (zoom max)	1.2m	1.8m	2.4m	3.0m	4.5m	6.0m	9.1m
Projection distance (zoom min)	1.7m	2.6m	3.5m	4.4m	6.6m	8.9m	—

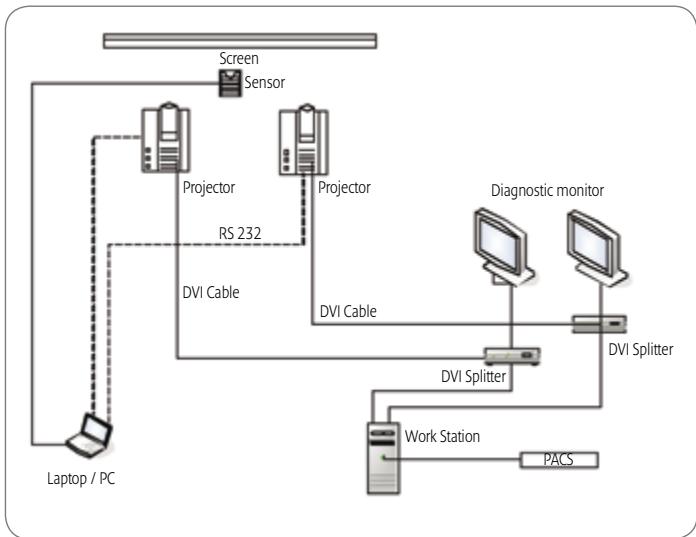

System Architecture – Integration of XEED with a typical PACS System

