USER MANUAL XEED SX7 MARK II CANON

MEDICAL PROJECTOR RANGE

XEED WUX10 Mark II Medical XEED SX7 Mark II Medical XEED SX80 Mark II Medical

you can

Exterior view of a white HONATO projector with visible lens and control buttons (no text-heavy elements)

Three medical professionals in white coats and stethoscope seated at a table with a laptop, against a blue X-ray of the thoracic spine (no visible text or symbols)

Chest X-ray image showing lung fields and thoracic structures (no text or annotations)

Without DICOM simulation mode

Chest X-ray image showing lung fields and thoracic structures (no text or annotations)

With DICOM simulation mode

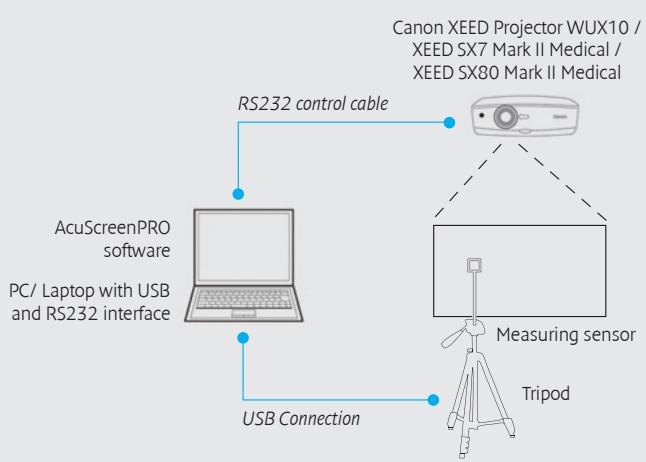


The AcuScreenPRO system is comprised of easy-to-use, PC-based software and a measuring sensor. The supplied luminance meter is used to evaluate exact display conditions, allowing precise corrections to be made according to the specific environment. By carrying out these corrections, the gradation between minimum luminance – where black areas appear grey due to external light – and maximum luminance can be distributed optimally.

Regular re-calibration is recommended, to ensure ongoing DICOM 14 compliance, with the system downloading the new parameters to the projector after each calibration.

Medical imaging – presented with unrivalled clarity

Medical imaging demands extremely accurate reproduction of greyscales if patient conditions are to be illustrated faithfully.

Combining the benefits of Canon's LCOS panel technology with extremely bright, high resolution imaging – up to industry-leading, native WUXGA resolution (1920 x 1200 pixels) – XEED offers seamless projection and optimal reproduction of X-ray images.

At in-hospital conferences and in the university classroom, Canon XEED projectors are a valuable addition to any PACS (Picture Archiving and Communication System), providing a reliable platform for radiological case discussions.

Optimising images to human visual perception, the DICOM 14 standard sets the benchmark in digital radiology.

The XEED WUX10 Mark II Medical, XEED SX7 Mark II Medical and XEED SX80 Mark II Medical all offer a DICOM simulation mode as standard.*

This DICOM SIM mode features 21 different levels of greyscale reproduction, based on combinations of maximum luminance and contrast. The result is a flexible solution that can be used in varying lighting conditions. In addition, the range of DICOM presets available makes it far easier to accurately match twin screens when required.

ADDITIONAL ON-SITE CALIBRATION OPTION

On-site calibration giving full DICOM 14 compliance can be achieved using the AcuScreenPRO system, available separately from our partner Larivière GmbH. Environmental factors, such as the intensity and tone of ambient light, plus the projection screen type, are all taken into account to achieve the very best possible image quality.

* XEED projectors are not approved for diagnostic purposes.

THE XEED ADVANTAGE: THE ONLY CHOICE FOR MEDICAL PROFESSIONALS.

Setting the standard, Canon XEED projectors offer crisp, high quality projection for professional imaging applications.

Employing Canon LCOS (Liquid Crystal on Silicon) panel technology, ultra fine greyscaling is possible. Projected images are displayed seamlessly, free from the lattice effect that plagues conventional LCD and DLP projectors, allowing the best reproduction of X-ray images possible.

A unique combination of exceptional contrast and brightness is achieved via Canon's AISYS (Aspectual Illumination System).

XEED WUX10 Mark II Medical

Exterior view of a Canon projector (no visible text or symbols on body)

AISYS Aspectual Illumination System

• Native WUXGA resolution with Canon LCOS technology
• 3200 lumens brightness and 1000:1 contrast ratio
• Full HD capability
• DICOM Simulation image mode

XEED SX7 Mark II Medical

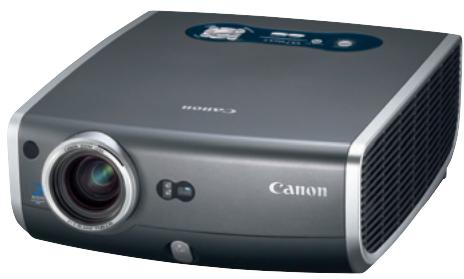

Exterior view of a Canon projector (no visible text or symbols on body)

AISYS Aspectual Illumination System

• Native SXGA+ resolution with Canon LCOS technology
• 4000 lumens brightness and 1000:1 contrast ratio
- HD Ready
• DICOM Simulation image mode

XEED SX80 Mark II Medical

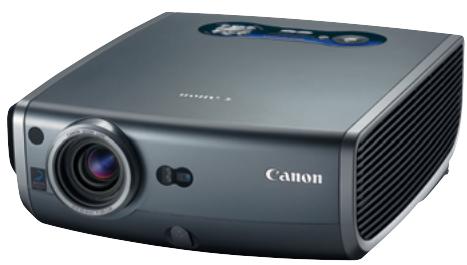

Exterior view of a Canon projector (no visible text or symbols on body)

AISYS Aspectual Illumination System

PictBridge

• Native SXGA+ resolution with Canon LCOS technology
• 3000 lumens brightness and 900:1 contrast ratio
• PC-less presentation via USB port
• DICOM Simulation image mode

XEED IN ACTION

The Department of Radiological Diagnostics and Nuclear Medicine at Klinikum Bremen-Mitte, Germany (www.klinikum-bremen-mitte.de) selected two DICOM 14 calibrated Canon XEED projectors for its new radiological conference and training facility.

Combining LCOS technology and native SXGA+ resolution, the efficient comparative study of X-ray images plays a large role in shortening diagnostic processes – benefiting both patients and hospital staff.

Canon XEED projectors have been installed in many similar situations, having been selected by the industry's leading medical system integrators as their projection solution of choice for this type of application.

SPECIFICATIONSLCD PANELTypeAspect RatioNative Resolution	XEED WUX10 Mark II MedicalLCOS reflective display, TFT Active Matrix16:101920 x 1200 (WUXGA), 2304000 pixels	XEED SX7 Mark II MedicalLCOS reflective display, TFT Active Matrix4:31400 x 1050 (SXGA+), 1470000 pixels	XEED SX80 Mark II MedicalLCOS reflective display, TFT Active Matrix4:31400 x 1050 (SXGA+), 1470000 pixels
OPTICSSzoom Magnification and ControlLens Shift	1.5x Motorised10:0 (fixed)	1.7x Motorised9:1 (fixed)	1.5x Motorised10:0 (fixed)
IMAGE AND AUDIOBrightnessContrast RatioKeystone Correction RangeDisplay Modes	3200 lumens1000:1 (full on / full off)Vertical: +/- 20° (Auto / Manual)Standard, Presentation, Movie, sRGB, Photo, DICOM SIM	4000 lumens1000:1 (full on / full off)Vertical: +/- 20° (Auto / Manual), Horizontal: +/- 20° (Manual)Standard, Presentation, Movie, Adobe RGB, sRGB, Photo, DICOM SIM	3000 lumens900:1 (full on / full off)Vertical: +/- 20° (Auto / Manual)Standard, Presentation, Movie, sRGB, Photo, DICOM SIM
PORTS AND CONNECTORSDigital RGB / Analogue RGBDigital Video and Audio InputAnalogue RGB Input 2Analogue RGB OutputS-Video InputComposite Video InputAudio Input 1, Input 2, Input 3Audio OutputService Port / Projector ControlNetwork Port	DVI-I 29-pin (HDCP compatible)HDMI V1.3 with Deep ColourMini D-Sub 15-pin (Component via supplied adaptor cable)Mini D-Sub 15-pin (shared with Analogue RGB Input 2)Mini-DIN 4-pinRCA x 13.5mm stereo mini-jack x 33.5mm stereo mini-jack x 1 (variable level)Mini D-Sub 9-pinRJ-45	DVI-I 29-pin (HDCP compatible)—Mini D-Sub 15-pin (Component via supplied adaptor cable)Mini D-Sub 15-pinMini-DIN 4-pinRCA x 13.5mm stereo mini-jack x 33.5mm stereo mini-jack x 1 (variable level)Mini-DIN 8-pinVia optional RS-NA01 network adaptor	DVI-I 29-pin (HDCP compatible)HDMI V1.3 with Deep ColourMini D-Sub 15-pin (Component via supplied adaptor cable)Mini D-Sub 15-pinMini-DIN 4-pinRCA x 13.5mm stereo mini-jack x 33.5mm stereo mini-jack x 1 (variable level)Mini D-Sub 9-pinRJ-45
RATINGSDimensions (W x H x D)WeightPower ConsumptionNoise LevelWarranty	284mm x 114mm x 336mm5.0kgNormal Mode: 400W / Quiet Mode: 330W / Standby: 11WNormal Mode: 36dBA / Quiet Mode: 32dBA3 years	266mm x 114mm x 336mm4.8kgNormal Mode: 360W / Quiet Mode: 290W / Standby: 7WNormal Mode: 35dBA / Quiet Mode: 31dBA3 years	332mm x 121mm x 340mm5.0kgNormal Mode: 330W / Quiet Mode: 270W / Standby: 15WNormal Mode: 35dBA / Quiet Mode: 31dBA3 years

All data is based on Canon's standard testing methods. This Leaflet and the specifications of the product have been developed prior to the date of product launch. Specifications are subject to change without notice.
™and ®: All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries.

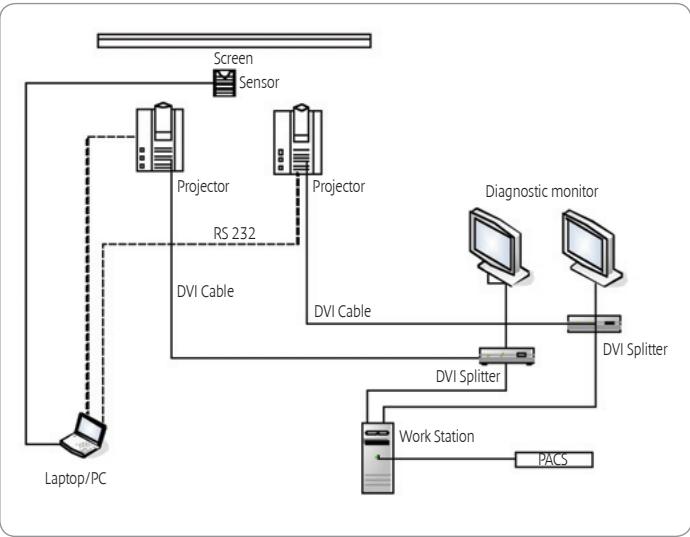

System Architecture – Integration of XEED with a typical PACS System

True Throw Distances

		WUX10 MARK II MEDICAL
Image size (inches)		40	60	80	100	150	180	200	250	300
	Width (cm)	90	130	170	220	320	390	430	540	650
	Height (cm)	50	80	110	130	200	240	270	340	400
Projection distance (zoom max)		1.2m (3.9")	1.8m (5.9")	2.4m (7.9")	3.0m (9.8")	4.5m (14.8")	5.4m (17.7")	6.1m (20.0")	7.6m (24.9")	9.1m (29.9")
Projection distance (zoom min)		1.8m (5.9")	2.6m (8.5")	3.5m (11.5")	4.4m (14.4")	6.7m (22.0")	8.0m (26.3")	8.9m (29.2")	—	—

		SX7 MARK II MEDICAL
Image size (inches)		40	60	80	100	150	200	300
	Width (cm)	81	122	163	203	305	406	610
	Height (cm)	61	91	122	152	229	305	457
Projection distance (zoom max)		1.2m (3.9")	1.8m (5.9")	2.4m (7.9")	3.0m (9.8")	4.5m (14.8")	5.9m (19.4")	9.1m (29.9")
Projection distance (zoom min)		2.0m (6.6")	2.9m (9.5")	3.9m (12.8")	4.9m (16.1")	7.4m (24.3")	—	—

		SX80 MARK II MEDICAL
Image size (inches)		40	60	80	100	150	180	200	250	300
	Width (cm)	80	120	160	200	300	370	410	510	610
	Height (cm)	60	90	120	150	230	270	300	380	460
Projection distance (zoom max)		1.2m (3.9")	1.8m (5.9")	2.4m (7.9")	3.0m (9.8")	4.5m (14.8")	5.4m (17.7")	6.0m (19.7")	7.6m (24.9")	9.1m (29.9")
Projection distance (zoom min)		1.7m (5.6")	2.6m (8.5")	3.5m (11.5")	4.4m (14.4")	6.6m (21.7")	8.0m (26.3")	8.9m (29.2")	—	—
