Product Type	Canister Vacuum Cleaner
Model	VK8920SCAQ
Brand	LG
Dimensions (L x W x H)	Approx. 400 x 260 x 260 mm
Weight	Approx. 5.5 kg
Power Rating	1600 W
Suction Power	Adjustable, up to 200 AW
Dust Capacity	1.5 L
Filtration System	HEPA 13 washable filter
Cord Length	6 m
Operating Radius	9 m
Noise Level	76 dB(A)
Bag Type	Bagless, cyclone technology
Accessories Included	Crevice tool, dusting brush, upholstery nozzle, floor nozzle
Maintenance	Washable HEPA filter; empty dust bin regularly
Safety Features	Thermal cut-off, automatic shut-off when overheated
Spare Parts Available	Filters, nozzles, hoses, dust bin
Reparability	User-replaceable filters and accessories; professional service for motor or electronics
Warranty	2 years (varies by region)
Energy Efficiency Class	A

Frequently Asked Questions - VK8920SCAQ LG

How often should I clean the HEPA filter?

Clean the HEPA filter every 3-6 months, or when the vacuum loses suction. Rinse under cold water and dry completely before reinserting.

Is the LG VK8920SCAQ bagless?

Yes, it uses cyclonic technology with a 1.5L transparent dust bin that is easy to empty and clean.

What accessories are included with this vacuum?

It comes with a crevice tool, dusting brush, upholstery nozzle, and a multi-surface floor nozzle.

Can I use the vacuum on hardwood floors?

Yes, the included floor nozzle is designed for hard floors and carpets. You can also adjust suction power to avoid scattering debris.

How do I know when the dust bin is full?

The dust bin is transparent, so you can see the fill level. When it reaches the max line, empty it for optimal performance.

What should I do if the vacuum overheats?

The vacuum has a thermal cut-off feature. Turn it off, unplug, and let it cool for 30 minutes before restarting. Check for blockages.

Is the hose replaceable?

Yes, the hose is a user-replaceable part. You can order a genuine LG hose from the service center or online.

How long is the power cord?

The cord length is 6 meters, giving a total operating radius of 9 meters when combined with the hose.

Does this model have a motor protection filter?

Yes, it includes a washable motor protection filter to extend motor life. Clean it every 6 months.

What is the warranty period?

The standard warranty is 2 years, but it may vary by region. Check with your local LG dealer for details.

USER MANUAL VK8920SCAQ LG

This information contains important instructions for the safe use and maintenance of the vacuum cleaner. Especially, please read all of the information on page 6, 7, 8, 9 for your safety. Please keep this manual in an easily accessible place and refer to it anytime.

ÚJ TÍPUSÚ CIKLON-PORSZÍVÓ

LLOJ I RI FSHESE ME KORRENT CIKLON

Important safety instructions 6\~9

Assembling vacuum cleaner 38\~39

Operating vacuum cleaner 42

Using carpet and floor nozzle / Hard floor nozzle 43

Using the accessory nozzles 46

Basic using method of the steam cleaner 47

Vacuum cleaning, Steam cleaning, Simultaneous vacuum steam cleaning 50

When cleaning hardwood/laminated / general floor / carpet, When removing old stain / floor stain 51

How to supply water, How to replace and clean the microfiber cloth 54

Cleaning dust tank 58

Cleaning air filter and motor safety filter 59

How to assemble dust separator 62

Cleaning exhaust filter 63

Storage method after use 66

What to do if your vacuum cleaner does not work 67

What to do when suction power decreases 67

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC Directives :-2006/95/EC Low Voltage Directive -2004/108/EC EMC Directive.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "WARNING" or "CAUTION."

These words mean:

WARNING

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

CAUTION

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

WARNING

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by LG Electronics Service Agent in order to avoid a hazard

4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

5. CAUTION: This hose contains electrical connections:

6. do not use to suck up water ;
   – do not immerse in water for cleaning;

7. the hose should be checked regularly and must not be used if damaged.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

1. Symbol means steam.
2. The steam must not be directed towards equipment containing electrical components, such as the interior of ovens.

WARNING

• Do not plug in if control switch is not in OFF position. Personal injury or product damage could result.
• Keep children away and beware of obstructions when rewinding the cord to prevent personal injury The cord moves rapidly when rewinding.
• Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use.

Failure to do so could result in electrical shock or personal injury.

• Do not use vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes.
  Doing so could result in death, fire or electrical shock.
• Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases).

The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.

• Do not handle plug or vacuum cleaner with wet hands.
  Doing so could result in death or electrical shock.
• Do not unplug by pulling on cord.

Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.

- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.

Failure to do so could result in electrical shock or personal injury.

- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

Failure to do so could result in electrical shock or personal injury or fire or product damage.

- The hose contains electrical wires. Do not use it if it is damaged, cut or punctured.

Failure to do so could result in death, or electrical shock.

- Do not allow to be used as toy. Close attention is necessary when used by or near children.

Personal injury or product damage could result.

- Do not use the vacuum cleaner if the power cord or plug is damaged or faulty.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not use vacuum cleaner if it has been under water.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not continue to vacuum if any parts appear missing or damaged.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not use an extension cord with this vacuum cleaner

Fire hazard or product damage could result.

• Using proper voltage.

Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner.

- Turn off all controls before unplugging.

Failure to do so could result in electrical shock or personal injury.

- Do not change the plug in any way.

Failure to do so could result in electrical shock or personal injury or product damage. Doing so result in death. If plug does not fit, contact a qualified electrician to install the proper outlet.

• Repairs to electrical appliances may only be performed by qualified service engineers.

Improper repairs may lead to serious hazards for the user.

- Do not put fingers near the gear.

Failure to do so could result in personal injury.

WARNING

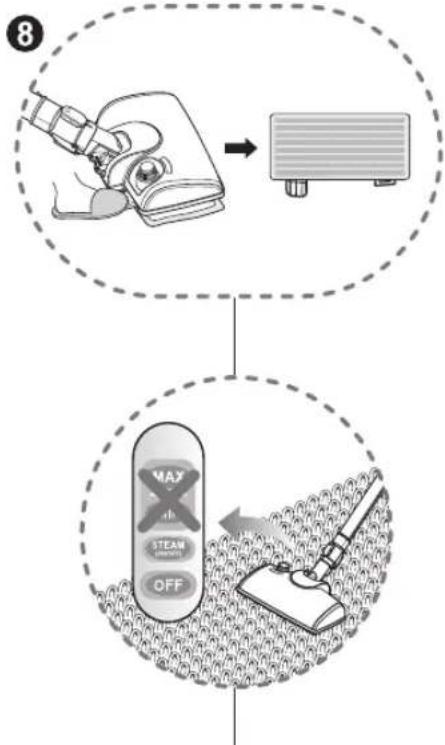

• Be careful when using the product on hardwood, coated floor, brick floor and high quality floor etc. It can cause discoloration or deformation depending on the floor material.
• Please try your vacuum cleaner with steam function on a little floor area beforehand, in order to check there is no awkward reaction.
• Do not stay in one location or use it on the same location repeatedly. It can cause discoloration or deformation by the hot heat of the steam.
• Do not open the water hole cap of the nozzle or supply water when the product is being used or when the power is turned on. It can cause burns or overspill the hot water by hot heat of the steam.
• Never flip or tilt the steam nozzle when the power is turned on, being used for cleaning or right after finishing cleaning. It can cause burns from the spraying of steam.
• When cleaning the exterior of the nozzle, always unplug the power and do not use volatile substance. It can cause electric shock and exterior damage.
• Do not touch the bottom surface of the steam nozzle directly with you hands or feet. It can cause burns.
• Do not pour in synthetic detergent, chemical substance and other substances instead of water. It can cause product damage or explosion.
• Please use 50% demineralized water and 50% tap water. Do not use only demineralized water, because it is too acid for home appliances. In regions more calcareous, vous can use 2/3 demineralized water and 1/3 tap water.
• Do not clean the exterior and bottom surface of the steam nozzle with water or detergent It can cause product damage and electric shock.
• Unlike the hose of the existing cleaner, high current flows through the hose, this can cause fire and electric shock.
• Make sure the steam is not applied directly to human or animal. It can cause a direct burn.
• Make sure that the children, the elderly or people who does not know how to operate the cleaner, do not use the product. It can cause burns.
• Do not directly touch the surface of the nozzle when cleaning or when the nozzle is heated. It can cause burns.

- Do not vacuum water or clean with water because the steaming hose is internally installed on the electric connection part.

Periodically check whether there are any problems with the pipe and if there are any damaged parts, stop using the product and contact the service center.

- When attaching or replacing the microfiber cloth, turn off the power and use the cloth board to attach/ detach the cloth.

If you replace the microfiber cloth with the power on, it can cause damage on the floor or cause a fire.

- When the circuit breaker operated when the power is turned on or when using the steam cleaner, immediately stop using the product and contact the AS center.

It can cause electric shock may occur.

• This hose contains electrical connections:

• Do not use to suck up water;
• Do not immerse in water for cleaning;
• The hose should be checked regularly and must not be used if damaged.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

• Do not put any objects into openings.
  Failure to do so could result in product damage.
• Do not use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce air flow. Failure to do so could result in product damage.
• Do not use vacuum cleaner without dust tank and/or filters in place.
  Failure to do so could result in product damage.

- Always clean the dust bin after vacuuming carpet cleaners or fresheners, powders and fine dust. These products clog the filters, reduce airflow and can cause damage to the cleaner. Failure to clean the dust bin could cause permanent damage to the cleaner.

- Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the cleaner or dust bin.

- Store the vacuum cleaner indoors. Put the vacuum cleaner away after use to prevent tripping over it.

- The vacuum cleaner is not intended to use by young children or infirm people without supervision.

Failure to do so could result in personal injury or product damage.

- Only use parts produced or recommended by LG Electronics Service Agents. Failure to do so could result in product damage.

- Use only as described in this manual. Use only with LG recommended or approved attachments and accessories.

Failure to do so could result in personal injury or product damage.

- To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs.

Failure to do so could result in personal injury or product damage.

• Use accessory nozzles in "MIN" mode.
  Failure to do so could result in product damage.
• Don't grasp the tank handle when you are moving the vacuum cleaner.
  The vacuum cleaner's body may fall when separating tank and body. Personal injury or product damage could result. You should grasp the carrier handle when you are moving the vacuum cleaner.
• Make sure the filters (exhaust filter and motor safety filter) are completely dry before replacing in the machine.
  Failure to do so could result in product damage.
• Do not dry the filter in an oven or microwave. Failure to do so could result in fire hazard.
• Do not dry the filter in a clothes dryer. Failure to do so could result in fire hazard.
• Do not dry near an open flame. Failure to do so could result in fire hazard.
• If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• The steam must not be directed towards equipment containing electrical components, such as the interior of ovens.
• Symbol or means steam.

Thermal protector :

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner.

Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter.

If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner.

After the 30 minute period, plug the vacuum cleaner back in and turn on the switch.

If the vacuum cleaner still does not run, contact a qualified electrician.

FONTOS BIZTONSÁGI ELŐÍRÁSOK

VAŽNA BEZBEDNOSNA UPUTSTVA

Pre upotrebe usisivača pročitajte sva uputstva i postupajte po njima kako biste sprečili opasnost od požara, strujnog udara, povrede ili nastanka štete u toku upotrebe usisivača. Ovo uputstvo ne obuhvata sve moguće slučajeve koji se mogu pojaviti u toku upotrebe. Kada ste suočeni s problemima koje ne razumete, obavezno se obratite servisnom zastupniku ili proizvođaču. Ovaj uređaj je u skladu sa sledećim EC direktivama:-2006/95/EC direktiva o niskom naponu -2004/108/EC EMC direktiva.

VAŽNA BEZBEDNOSNA UPUTSTVA

! UPOZORENJE

VAŽNA BEZBEDNOSNA UPUTSTVA

! UPOZORENJE

- Budite pažljivi pri upotrebi ovog proizvoda na podu od drveta, obloženom podu, podu od opeke i podu visokog kvaliteta itd.

Može dovesti do promene boje ili deformacije, u zavisnosti od materijala poda.

- Pre upotrebe isprobajte usisivač s funkcijom čišćenja parom na maloj površini poda kako biste proverili da li ima negativno dejstvo.

VAŽNA BEZBEDNOSNA UPUTSTVA

PAŽNJA

- Ne stavljajte bilo kakve predmete u otvore.

VAŽNA SIGURNOSNA UPUTSTVA

Pročitajte i pridržavajte se ovih uputstava prilikom korištenja vašeg usisavača, kako bi ste spriječili rizik od požara, elektrošoka, ozljede ili oštećenja imovine. Ovaj vodič ne obuhvata sve situacije koje se mogu desiti Kontaktirajte svog prodajnog agenta ili proizvođača u vezi sa problemima koje ne razumijete Ovaj uređaj je u skladu sa Direktivama EC: 2006/95/EC Direktiva o niskoj voltaži, 2004/108/EC EMC Direktiva

Personal injury or product damage could result Kontaktiraje LG-ovog servisera (Electronic Service Agent) kako biste izbjegli rizike.

VAŽNA SIGURNOSNA UPUTSTVA

OPOMENA

- Koristite odgovarajući napon.

Korištenje neodgovarajućeg napon može dovesti do kvara motora, kao i do moguće povrede korisnika.

How to Use Assembling vacuum cleaner

① Steam cleaning vacuum tool

Gözölös tisztítófej

Push the nozzle into the telescopic pipe.

How to Use Operating vacuum cleaner

• To store during vacuuming, for example to move a small piece of furniture or a rug, use park mode to support the flexible hose and nozzle.
• Slide the hook on the nozzle into the slot on the side of vacuum cleaner.

How to Use Using carpet and floor nozzle / Hard floor nozzle

Simple line drawing of a Y-shaped tool inside a dashed circle (no text or symbols)

This is equipped with a pedal which allows you to alter its position according to the type of floor to be cleaned.

- Carpet or rug position

Press the pedal ( ) to lower brush.

- Hard floor position (tiles, parquets floor) Press the pedal (lift the brush up.

- Cleaning carpet and floor nozzle

Mechanical assembly diagram showing two clamps inserted into a housing (no text or symbols visible)

Simple line drawing of a Y-shaped tool inside a dashed circle (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component (no text or symbols visible)

• Očistite otvor i četku na nastavku.
• Pastroni vrimën dhe furçën e hundëzës.
• Očistiti otvor i iščetkati papučicu
• Исчистете го отворот и четката од смукалката.

How to Use Using the accessory nozzles

Upholstery nozzle is for vacuuming upholstery, mattresses, etc.

Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces.

Crevice tool is for vacuuming in those normally hard-to-reach places such as reaching cobwebs, or between the cushions of a sofa.

Use accessory in the MIN mode.

MEGJEGYZÉS

How to Use Basic using method of the steam cleaner

By using the steam cleaning vacuum tool, you can do vacuum cleaning and steam cleaning simultaneously or individually, in an easy way.

Please check not to put only demineralized water in your tank. We advice you to mix 50% demineralized water and 50% tap water. In regions more calcareous, you can mix 2/3 demineralized water to 1/3 tap water.

VIGYÁZAT!

Three-step illustration showing a hand holding a small object, connected by arrows to form a device (no text or symbols present)

How to attach the microfiber cloth / A mikroszálas törlőkendő felhelyezése Stavljanja krpe od mikrovlakana / Как се поставя микрофибърната кърпа

Always hold the steam safety switch during steam cleaning.

- Align the extension pipe (2) and the terminal part of the steam cleaning vacuum tool (3), and connect the two completely until you hear the "Click". If the steam cleaning vacuum tool and the extension are not completely connected, the nozzle will be pulled out on the steam will not be generated.

- Connect the hose (1) and the extension pipe (2) completely until you hear the "Click" sound.

- When you press the "STEAM" button (4) on the function control button on the handle part of the hose (1), the steam will be generated. Initial steam generation time is about 2.5 minutes and it will take a little longer for the cloth to get wet. You must operate the "STEAM" button after filling the water.

- When you press the "STEAM" button (4)one more time or press the "OFF" button (5), the steam will stop

To supply water, always unplug the power and put the hose handle on the floor. And then pour the water into the unit.

- Open the water hole cap of the steam cleaning vacuum tool.

- Use the measuring cup to pour 250cc of water and then close the water hole cap tightly. When attaching the cloth, you must always turn off the system power.

- After attaching the cloth on the cloth board, install it on the nozzle for steam cleaning. Be careful because the cloth board can be hot. - After aligning the vacuum tool with the cloth board, press it from the top. Connect after you hear the clicking sound. The cloth must be attached on the cloth board for the vacuum tool and the cloth board to be connected.

To prevent safety accidents during steam clearing, if you do not press the steam safety switch within 30 seconds, the unit will recognize that the cleaning has been completed and turn off the power. If you want to use the steam again, press the "STEAM" button one more time.

- During initial steam nozzle operation, it will operate for 150 seconds (2.5 minutes) even when you do not press the steam safety switch. - About 2 minutes after pressing the "STEAM" button, you can start the cleaning and after about 2.5 minutes. You can check the steam with your eyes.

- The cloth can get wet faster depending on how the steam vacuum tool is used and the time. At this time, when you replace the cloth, you can clean with a dry cloth.

VIGYÁZAT!

Three-step illustration showing a hand holding a small object, with no visible text or symbols

- Water slightly leaking on the floor when you tilt the vacuum tool during steam cleaning is not a problem.

- Do not flip over the steam vacuum tool during steam cleaning. Water and hot steam will come off the bottom, which can be dangerous. - Vacuum steam cleaning can only be done with the steam cleaning vacuum tool.

VIGYÁZAT!

When cleaning hardwood/laminated/general floor/carpet When removing old stain/floor stain

When cleaning on the carpet, don't operate the function control button to "MAX" or "MIN" mode. It can cause fire or electric shock.

UPOZORENJE

6 Pri čišćenju poda od drveta/laminata/standardnog poda Kur pastroni sipërfaqe druri/laminati/dysheme normale Čišćenje drvenog poda, laminata, podova od ostalih materijala Kora чистите паркет/ламинат/вообичаен под

- If you do not completely remove the moisture when using the microfiber cloth, it can cause electric shock and damage the main unit.

- When the microfiber cloth deviates from the attaching surface, it will not be fixated.

- Attach the microfiber cloth so that the vacuum hole of the steam cleaning vacuum tool is not covered.

- The cloth can get wet faster depending on how the steam vacuum tool is used and the time. At this time, when you replace the cloth, you can clean with a dry cloth.

How to Use Emptying dust tank

For maximum performance, always empty the dust tank when the dust tank level reaches the MAX line.

The dust tank needs emptying when the dust tank level reaches the MAX line.

• Turn off the vacuum cleaner and unplug it.
• Grasp the handle of the tank and then press the tank separation lever.
• Pull out the dust tank.
• Empty the tank and then assemble the dust tank as below.

Assembling dust tank

How to Use Cleaning dust tank

• Press tank separation button and pull out dust tank.
• Raise dust tank cap
  • Dry fully in shade so that moisture is entirely removed.

If suction power decreases, Clean air firter and motor safety filter.

→ Next page

MEGJEGYZÉS

How to Use Cleaning air filter and motor safety filter

If filters are damaged, do not use them. In this cases, contact LG Electronics Service Agent. Wash filters at least once a month

MEGJEGYZÉS

How to Use How to assemble dust separator

CAUTION Assembling will be conducted in opposite order of separation. Use the vacuum after assembling the dust separator fully.

• If there is no dust separator or dust separator is not installed clearly, cover will not be closed.
• If it is not installed clearly, pull the dust separator out and re-assemble it.
• Do not operate the vacuum cleaner when the body cover is not close.
• It can be the cause of malfunction

VIGYÁZAT!

Technical illustration of a mechanical device with a side view showing internal components (no text or symbols)

Technical illustration of a mechanical device with a side view showing internal components (no text or symbols)

Technical illustration of a mechanical device with a close-up view of its internal components (no text or symbols)

Technical illustration of a mechanical device with a separate component shown in its view (no text or symbols present)

How to Use Cleaning exhaust filter

• The exhaust filter is reusable.
• To clean the exhaust filter, remove the exhaust filter cover on the body by pulling it out.
- Separate the exhaust filter.
• Dust off filter.(Do not wash filter with water.)
• The exhaust filter should be cleaned at least a year.

Exhaust filter cover assembling

• Fit exhaust filter cover lugs to the grooves of vacuum cleaner body.
• Join it the body.

Technical illustration of a mechanical device with an open lid and a side view showing internal components (no text or symbols)

Technical illustration of a mechanical device with two views: one showing internal components and the other showing external housing (no text or symbols)

Technical illustration of a mechanical device with a close-up view showing internal components (no text or symbols)

Technical illustration of a mechanical device with two views: one showing internal components and the other showing a separate housing (no text or symbols present)

How to Use Storage method after use

Store like this after using the cleaner

• When you pull up the extension pipe, it will be fixated after you hear the click sound. When you press the steam vacuum tool button, you can freely use the extension pipe.
• A toldócsövet felhúzva a kattanó hang után rögzítődik. A gözölőfej gombját megnyomva szabadon használhatja a toldócsövet.
• Kada produžnu cljev povučete gore, cljev će bitl učvršćena kada začujete klik zvuk. Kada pritisnete tipku alata za usisavanje i parno čišćenje, slobodno možete koristiti produžnu cljev.
• Когато издърпате удължителната тръба, тя се закрепя, след като чуете щракване. Когато натиснете бутона на приставката за почистване с пара, можете да използвате свободно удължителната тръба.

Check that the vacuum cleaner is plugged in correctly and that the electrical socket is working.

What to do when suction performance decreases

• Turn off the vacuum cleaner and unplug it.
• Check the telescopic pipe, flexible hose and cleaning tool for blockages or obstructions.
• Check that the dust tank is not full. Empty if necessary.
• Check that dust separator is not clogged with obstruction. Eliminate it.
• Check that the exhaust filter is not clogged. Clean the exhaust filter if necessary.
• Check that the air filter of dust separator is not clogged. Clean the air filter if necessary.

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

Simple line drawing of a trash bin with crossed x's and no text or symbols

Decorative border frame with leaf motifs and dotted lines, no text or symbols present

Napomena

Shënim

Napomena

Белешка

Decorative border frame with leaf motifs and dotted lines, no text or symbols present
