Product type	Professional LCD projector
Brand	Canon
Model	LV-7275
Native resolution	XGA (1024 x 768)
Brightness	2600 lumens
Contrast ratio	500:1
Display technology	LCD 0.63" poly-silicon TFT, 3 panels
Lens	Manual zoom 1.2x, F1.7-2.0, f=19.8-23.7mm
Lamp life	3000 h (normal mode), 4000 h (silent mode)
Lamp power	230 W NSH (used at 210 W max)
Dimensions (W x H x D)	317 mm x 111 mm x 336 mm
Weight	3.3 kg
Power supply	100-240 V AC, 50/60 Hz
Power consumption	295 W (normal), 240 W (silent), standby 11 W, eco 3 W
Noise level	35 dBA (normal), 29 dBA (silent)
Built-in speaker	7 W RMS, monaural
Video connectivity	DVI-I (HDCP), Mini D-sub 15-pin (input/output), S-Video, Composite
Audio connectivity	Inputs: 2x 3.5 mm mini-jack, 2x RCA; Output: 3.5 mm mini-jack
Network	RJ-45 for control and monitoring
Keystone correction	Automatic and manual, vertical ±30°
Screen color correction	9 modes: Greenboard, Whiteboard, Light Yellow, Sky Blue, etc.
Additional functions	Start-up 8s, shutdown 30s, carrying handle, carrying case
Operating temperature	+5°C to +40°C
Included accessories	Remote control, case, 1.8m VGA cable, power cable, DVI-VGA adapter

Frequently Asked Questions - LV-7275 CANON

What is the brightness of the Canon LV-7275 projector?

The projector offers a brightness of 2600 lumens, sufficient for use in meeting rooms or classrooms with moderate lighting.

What is the native resolution of the LV-7275?

The native resolution is XGA (1024 x 768), ideal for sharp and detailed presentations.

How to replace the projector lamp?

The lamp is accessible via a maintenance cover on the top, allowing quick replacement without removing the projector from the ceiling.

Does the projector have a built-in speaker?

Yes, it includes a 7 W RMS monaural speaker for basic audio reproduction.

What connections are available?

It has a DVI-I (HDCP) input, VGA input, VGA output, S-Video, composite, mini-jack and RCA audio inputs/outputs, and an RJ-45 port for networking.

Is the projector suitable for classrooms?

Yes, thanks to its 9 screen color correction modes, including Greenboard and Whiteboard modes, it adapts to green or white boards.

What is the lamp life?

The lamp lasts 3000 hours in normal mode and can reach 4000 hours in silent mode.

How to correct a distorted image?

The projector has automatic and manual vertical keystone correction (up to ±30°) to adjust image geometry.

Can the projector be controlled remotely via the network?

Yes, via the RJ-45 port, it is possible to control and monitor the projector remotely and receive email alerts at the end of lamp life.

Is the projector delivered with a carrying case?

Yes, a soft carrying case with handle and shoulder strap is included for easy transport.

USER MANUAL LV-7275 CANON

Professional projection, exceptional value

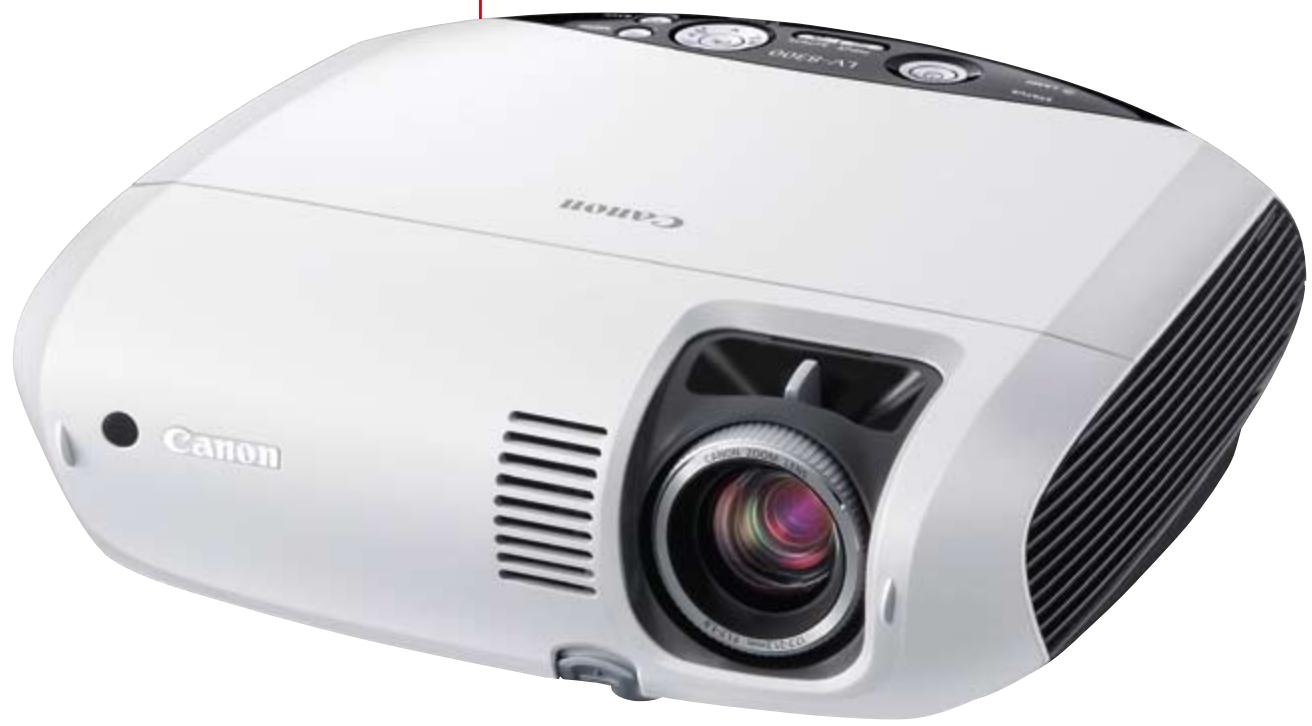

White Canon projector with visible lens and control buttons (no text or symbols on body)

Portrait of a man in a business suit with arms crossed, wearing glasses (no text or symbols visible)

Get the message across.

Created by imaging experts, Canon LV projectors are the ultimate presentation tool. The LV-7375, LV-7370 and LV-7275 models offer native XGA resolution, for sharp, high-impact images.

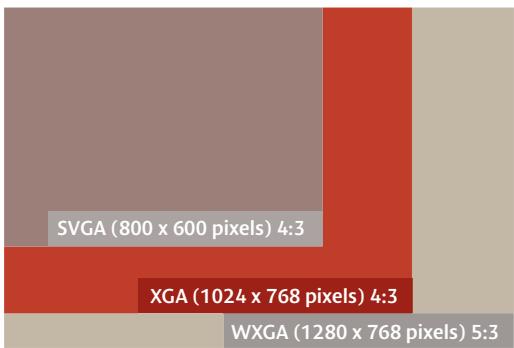

In addition, the LV-8300 offers WXGA resolution (1280 x 800 pixels) – a first for the LV range. WXGA has a wide aspect ratio of 16:10, designed to perfectly complement your wide-screen PC.

LV-8300 / LV-7375 / LV-7370 / LV-7275

Three business professionals in a meeting setting, smiling and focused on the camera (no visible text or symbols)

Collage of three classroom scenes: students in business attire, a man in suit, and students raising hands in school (no visible text or symbols)

Different environments need different projectors.

Each projector in the LV range is engineered to meet the imaging requirements of specific environments. Projectors with high brightness and advanced digital connectivity are perfect for the boardroom, while low noise, no-fuss projectors are suitable for the classroom. LV projectors offer a complete range of solutions to suit every need - and every budget.

LV-8300

The LV-8300 offers a versatile mix of premium image quality in a compact, portable package. The native WXGA resolution and 16:10 aspect ratio ensure compatibility with today's wide-format computers.

LV-7375

Compact, affordable and capable of high performance, the LV-7375 offers exceptional 3500 lumens brightness and powerful 7W RMS audio output, making it ideal for business and public sector use.

LV-7370

The LV-7370 boasts improved functionality, with an integrated carrying handle, new lens cover and easy lamp replacement. 3000 lumens brightness and built-in 7W audio makes this projector a flexible business tool.

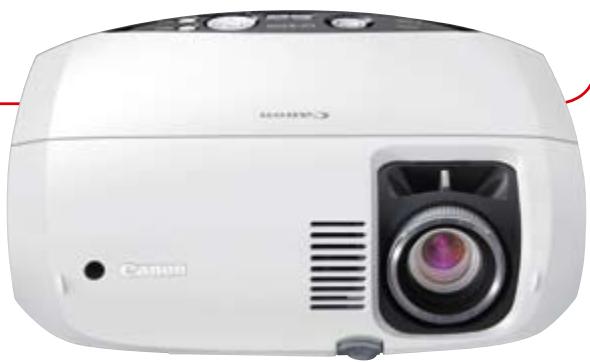

LV-7275

A portable, versatile, high-quality XGA projector, this model combines exceptional value and practical features that will benefit businesses, schools and mobile workers such as those working in sales.

Front view of a white portable projector with a black lens and ventilation grille (no visible text or symbols)

CANON TECHNOLOGY FOR OUTSTANDING IMAGE QUALITY.

Outstanding image quality comes as standard across the LV range. Most models feature native XGA, while the LV-8300 has WXGA resolution for outstanding image quality. A Canon 1.2x wide-angle zoom lens produces flawless, large-size images in even the smallest rooms. Canon's superior lens technology uses twin aspherical elements to ensure clear, distortion-free projection.

HIGHLY RELIABLE AND SIMPLE TO MAINTAIN.

Each LV projector can be relied upon to provide powerful projection. Lamp changes are minimised, thanks to a long 3000 hour lamp life in Normal Mode. For even lower running costs, lamp life can be increased to a maximum of 4000 hours, with consistent use of Quiet Mode. In addition, lamp replacement is now quicker and easier than ever. The ingenious body design incorporates a top-mounted maintenance cover, enabling access to the lamp without the need to first uninstall the unit from its ceiling bracket. This makes routine maintenance much more straightforward.

COMPLETE CONVENIENCE FOR PRESENTERS.

With an 8 second start-up time, there's no waiting around for LV projectors to power up. A 30 second power-down time means that each projector can be quickly packed up and moved. An infra-red remote control is included, enabling convenient operation.

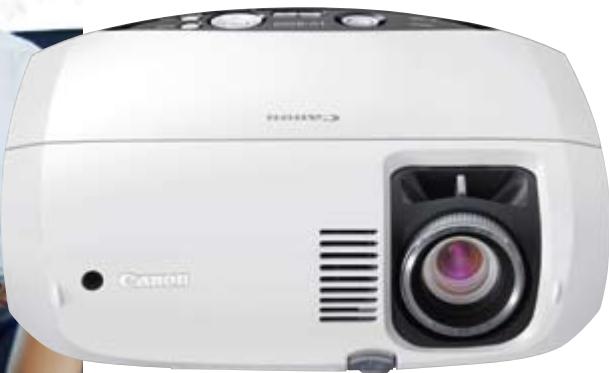

USER FRIENDLY DESIGN.

A soft carrying case and elegant built-in carrying handle are included with each projector, ensuring it is kept safe in transit.

If there is no conventional white projection screen available, Screen Colour Correction can help to recreate natural-looking images when projecting onto coloured surfaces. All four models are equipped with nine screen Colour Correction modes, including ‘Greenboard’ and new ‘Whiteboard’ options. While both of these settings are especially useful in teaching environments, the latter helps to eliminate ‘hotspots’ when projecting onto a whiteboard, ensuring natural colours and making images easier on the eye. Settings for coloured walls such as ‘Light Yellow’ and ‘Sky Blue’ are also included for maximum flexibility.

A bald eagle in flight over water, wings fully extended and spread wide (no text or symbols visible)

Original Image

Classroom scene with students seated at desks facing a large painting of an eagle in flight (no visible text or symbols)

Screen Colour Correction Off

Classroom scene with students watching a bird in flight, large screen displaying birds in water (no text or symbols visible)

Screen Colour Correction On

Group of business professionals in a meeting setting, seated and standing (no visible text or symbols)

Front view of a white Canon projector with visible lens and control buttons (no text or symbols on body)

HD ready

High-quality images and wide-aspect compatibility in a stylish, compact package.

The LV-8300 has native WXGA resolution and is HD Ready, making it ideal for use with today's widescreen computers. With 1280 x 800 pixels of crisp image detail, the LV-8300 will certainly do justice to your wide-aspect presentations. A 500:1 contrast ratio and 3000 lumens ensure crisp, clear delivery, while automatic features make setup a breeze. The built-in 7W audio ensures that your message is heard – as well as seen – as clearly as possible.

• Native WXGA resolution with wide 16:10 aspect ratio
• 3000 lumens offers bright images – even in well-lit environments
  • 500:1 contrast ratio for vivid colours
• 29dBA in Quiet Mode

• Canon wide-angle 1.2x zoom lens for large images from short throw distances

• Auto Vertical Keystone Correction corrects image geometry

• Screen Colour Compensation with nine options, including Greenboard and Whiteboard modes
  • Built-in audio with 7W output and line-out terminal

• HDCP-enabled DVI terminal for sharp reproduction of digital sources and RJ-45 network port for control and monitoring

• Ergonomic design with built-in carrying handle and easy lamp replacement

Two sailboats racing on the ocean, one blue and one yellow with white stripes (no text or symbols visible)

Without Progressive Scanning

Two sailboats racing on the ocean with blue and yellow sails, no visible text or symbols

With Progressive Scanning

Progressive Scan, found throughout the LV range, significantly reduces screen flicker when projecting movies and multimedia presentations.

Diagram showing a device connected to a black cable with two U2D connectors, and a projector emitting a red arrow (no text or symbols present)

The LV-8300, LV-7375, LV-7370 and LV-7275 have a DVI port for connection to laptop and desktop computers, DVD players, and other digital sources. A digital-to-digital connection eliminates the flicker, ghosting and interference that can affect analogue signals and offers superb projection of High Definition images. The DVI connection is HDCP compliant, meaning that encrypted sources will be displayed correctly.

Deoxyribonucleic acid, or DNA, is a nucleic acid molecule that contains the genetic instructions used in the development and functioning of all known living organisms.

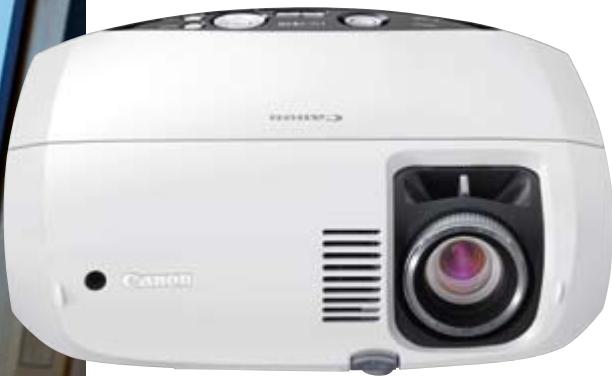

Meet the compact projector with a powerful punch.

The LV-7375's 3500 lumens make it the brightest projector in the ultra-portable LV range. Housed in a stylish, contemporary design, its native XGA resolution powers large screen projection and the built-in 7W audio ensures your presentation has maximum impact.

• Native XGA resolution for crisp image detail
  • 3500 lumens for ultra-bright images even in well-lit environments
  • 500:1 contrast ratio for vivid colours
• Just 29dBA in Quiet Mode

• Canon wide-angle 1.2x zoom lens for large images from short throw distances

• Auto Vertical Keystone Correction corrects image geometry

• Screen Colour Compensation with nine options, including Greenboard and Whiteboard modes
  • Built-in audio with 7W output and line-out terminal

• HDCP-enabled DVI terminal for sharp reproduction of digital sources and RJ-45 network port for control and monitoring

• Ergonomic design with built-in carrying handle and easy lamp replacement

Forest scene with tall trees and sunlight filtering through the branches (no text or symbols visible)

Vertical Keystone Correction OFF (projector placed below screen)

Forest scene with tall trees and sunlight filtering through the branches (no text or symbols visible)

Vertical Keystone Correction ON

Forest scene with tall trees and sunlight filtering through the branches (no visible text or symbols)

Vertical Keystone Correction OFF (projector placed above screen)

Vertical Keystone Correction, available across the LV range, allows accurate image projection even when the projector is not positioned square to the screen. The LV-8300, LV-7375, LV-7370 and LV-7275 incorporate Auto Vertical Keystone Correction for quick and easy set-up. In addition, Keystone Correction can also be adjusted manually, for precise alignment.

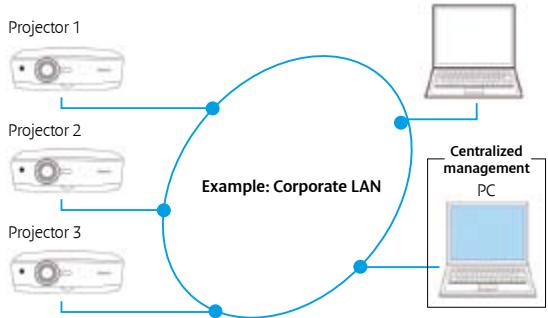

NETWORK CONNECTIVITY

Canon ultra-portable LV projectors are now equipped with a built-in RJ-45 network port as standard. Connection to a network allows quick and convenient relaying of information between the projector and other network devices. For example, the projector can be remotely controlled from a touch panel system, while an email alert can be received when the lamp has reached the end of its life.

Front view of a white Canon projector with visible lens and control buttons (no text or symbols on body)

Powerful performance and effortless ease of use in demanding environments.

The LV-7370 combines the performance of a 3000 lumen output with versatile XGA resolution and enhanced functionality. Easy operation and setup comes from an ergonomic design and automatic features.

• Native XGA resolution for crisp image detail
  • 3000 lumens - delivers bright images in larger rooms
• 500:1 contrast ratio
• Just 29dBA in Quiet Mode

• Canon wide-angle 1.2x zoom lens for large images from short throw distances

• Auto Vertical Keystone Correction corrects image geometry

• Screen Colour Compensation with nine options, including Greenboard and Whiteboard modes
  • Built-in audio with 7W output and line-out terminal

• HDCP-enabled DVI terminal for sharp reproduction of digital sources and RJ-45 network port for control and monitoring

• Ergonomic design with built-in carrying handle and easy lamp replacement

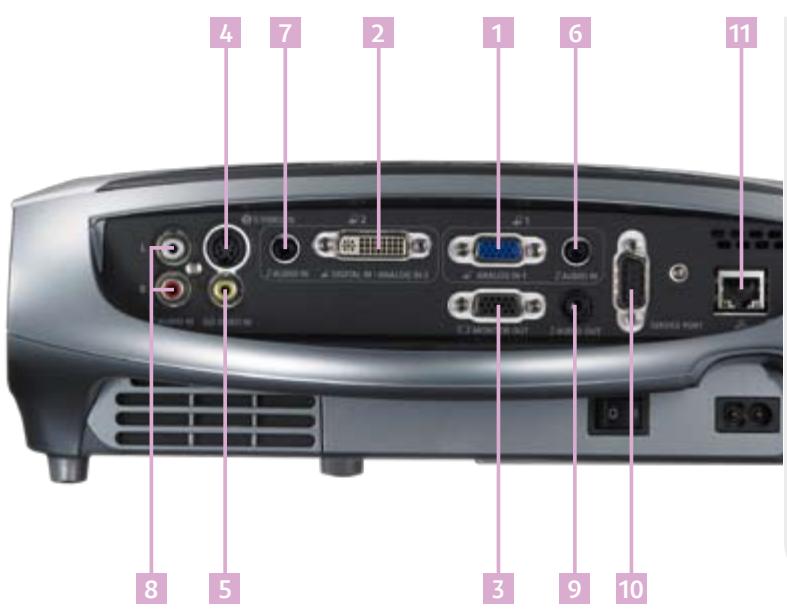

4 7 2 1 6 11 8 5 3 9 10

VIDEO INPUT AND OUTPUT

1 Mini D-sub 15-pin:
Analogue RGB input 1
(Component video via adaptor cable)
2 DVI-I 29-pin:
Digital RGB / Digital Video / Analogue RGB input 2
3 Mini D-sub 15-pin:
Analogue RGB output
4 Min-DIN 4-pin:
S-Video input
5 RCA x 1:
Composite Video input

AUDIO INPUT AND OUTPUT

6 3.5mm mini-jack:
Audio input for Analogue RGB sources
7 3.5mm mini-jack:
Audio input for Digital RGB / Analogue RGB sources
8 RCA x 2 (L/R):
Audio Input for Composite and S-Video sources
9 3.5mm mini-jack:
Stereo Audio output (variable level)
10 Mini D-sub 9-pin:
Service Port / Projector Control
11 RJ-45:
Network Port

Exterior view of a modern urban street scene with people shaking hands and a Canon projector displaying its lens (no signage)

Excellent value projector with all the essentials.

Entry-level XGA projector that features a powerful 2600 lumens and 500:1 contrast ratio for high-quality images. User-friendly controls make it an ideal corporate, education and mobile solution.

• Native XGA resolution delivers crisp image detail
  • 2600 lumens - sufficient brightness for general business use
  • 500:1 contrast ratio for vivid colours
• Just 29dBA in Quiet Mode

• Canon wide-angle 1.2x zoom lens for large images from short throw distances

• Auto Vertical Keystone Correction corrects image geometry

• Screen Colour Compensation with nine options, including Greenboard and Whiteboard modes
  • Built-in audio with 7W output and line-out terminal

- HDCP-enabled DVI terminal for sharp reproduction of digital sources and RJ-45 port for control and monitoring

- Ergonomic design with built-in carrying handle and easy lamp replacement

IN-BOX ACCESSORIES

Remote Control

Offers wireless control of most projector functions.

Soft Carry Case

A smart case with a strong shoulder strap, ensuring the projector is well protected whilst on the move.

VGA Computer Connection Cable, 1.8 metres

For connection of a standard laptop or desktop PC to the projector's RGB Input.

AC Mains Power Cable

For connecting the projector to the AC mains supply.

DVI to VGA adaptor

Connects standard 15-pin VGA cables to the DVI terminal.

OPTIONAL ACCESSORIES

(AVAILABLE SEPARATELY)

Replacement Lamp: LV-LP31

Replacement lamp for LV-8300, LV-7375, LV-7370 and LV-7275.

Ceiling Mounting Bracket: LV-CL15

Enables ceiling mounting of the projector unit.

DVI Cable: LV-CA29

Allows a direct digital link between the video source and the DVI port.

Component Video Cable: LV-CA32

Used for connecting the projector to sources with Component Video outputs, such as high-specification DVD players.

RS-232C Control Cable

Connects to the projector's service port for control from a PC or other device.

VGA Extension Cable, 10 metres: LV-CA02

Used when the computer is some distance away from the projector.

Specifications	LV-8300	LV-7375	LV-7370	LV-7275
LCD PANELTypeSize and NumberAspect RatioNative Resolution	Transmissive LCD, Poly-silicon TFT Active Matrix0.59" diagonal with microlens, 3 panels16:101280 x 800 (WXGA), 1024000 pixels	Transmissive LCD, Poly-silicon TFT Active Matrix0.63" diagonal with microlens, 3 panels4:31024 x 768 (XGA), 786432 pixels	Transmissive LCD, Poly-silicon TFT Active Matrix0.63" diagonal with microlens, 3 panels4:31024 x 768 (XGA), 786432 pixels	Transmissive LCD, Poly-silicon TFT Active Matrix0.63" diagonal, 3 panels4:31024 x 768 (XGA), 786432 pixels
OPTICSLamp TypeLens F Number and Focal LengthZoom Magnification and ControlFocus ControlLens Shift	230W NSHAF1.7 - F1.9; f=17.7 - 21.2mm1.2x ManualManual8.5 : 1.5 (fixed)	230W NSHAF1.7 - F2.0; f=19.8 - 23.7mm1.2x ManualManual8.4 : 1.6 (fixed)	230W NSHA (running at 210W max)F1.7 - F2.0; f=19.8 - 23.7mm1.2x ManualManual8.4 : 1.6 (fixed)	230W NSHA (running at 210W max)F1.7 - F2.0; f=19.8 - 23.7mm1.2x ManualManual8.4 : 1.6 (fixed)
IMAGE AND AUDIOBrightnessBrightness UniformityContrast RatioProjection Distance CoverageScreen SizeDigital Zoom MagnificationKeystone Correction RangeDigital RGB CompatibilityAnalogue RGB CompatibilityDigital Video Scan SystemsComponent Video Scan SystemsVideo / S-Video Colour SystemsDisplay ModesImage EnhancementBuilt-in Speaker	3000 lumens85%500:1 (full on / full off)0.7m - 10.7m (2.9 - 3.5m for 100 inch image)21" - 300" (45 x 28cm - 646 x 404cm)1x - 4xVertical: +/- 30° (Auto / Manual)SXGA+ / SXGA / WXGA / XGA / SVGA / VGA / MACUXGA / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA1080i / 720p / 576p / 480p1080i / 720p / 576p / 576i / 480p / 480iPAL / PAL-M / PAL-N / PAL-60 / NTSC/NTSC4.43 / SECAMStandard, Presentation, Cinema, Video, sRGBDigital Gamma Correction7.0W RMS, Monaural	3500 lumens85%500:1 (full on / full off)0.8m - 11.3m (3.1m - 3.7m for 100 inch image)21" - 300" (43 x 32cm - 610 x 457cm)1x - 4xVertical: +/- 30° (Auto / Manual)SXGA+ / SXGA / WXGA / XGA / SVGA / VGA / MACUXGA / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA1080i / 720p / 576p / 480p1080i / 720p / 576p/ 576i / 480p / 480iPAL / PAL-M / PAL-N / PAL-60 / NTSC/NTSC4.43 / SECAMStandard, Presentation, Cinema, Video, sRGBDigital Gamma Correction7.0W RMS, Monaural	3000 lumens85%500:1 (full on / full off)0.8m - 11.3m (3.1m - 3.7m for 100 inch image)21" - 300" (43 x 32cm - 610 x 457cm)1x - 4xVertical: +/- 30° (Auto / Manual)SXGA+/ SXGA / WXGA / XGA / SVGA / VGA / MACUXGA / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA1080i / 720p / 576p / 480p1080i / 720p / 576p / 576i / 480p / 480iPAL / PAL-M / PAL- N / PAL-60 / NTSC/NTSC4.43 / SECAMStandard, Presentation, Cinema, Video, sRGBDigital Gamma Correction7.0W RMS, Monaural	2600 lumens85%500:1 (full on / full off)0.8m - 11.3m (3.1m - 3.7m for 100 inch image)21" - 300" (43 x 32cm - 610 x 457cm)1x - 4xVertical: +/- 30° (Auto / Manual)SXGA+/SXGA/WXGA/XGA/SVGA/VGA/MACUXGA/SXGA+/SXGA/WXGA/XGA/SVGA/VGA1080i/720p/576p/480p1080i/720p/576p/576i/480p/480iPAL/PAL-M/PAL-N/PAL-60/NTSC/NTSC4.43/SECAMStandard, Presentation, Cinema, Video, sRGBDigital Gamma Correction7.0W RMS, Monaural
CONNECTORSAnalogue RGB Input 1Digital RGB / Analogue RGB Input 2Analogue RGB OutputS-Video InputComposite Video InputAudio Input 1Audio Input 2Audio Input 3Audio OutputService Port / Projector ControlNetwork Port	Mini D-Sub 15-pin(Component Video via optional adaptor cable)DVI-I 29-pin, HDCP compatibleMini D-Sub 15-pinMini DIN 4-pinRCA x 13.5mm stereo mini-jack3.5mm stereo mini-jackRCA x 2 (L/R)3.5mm stereo mini-jack (variable level)Mini D-Sub 9-pinRJ-45	Mini D-Sub 15-pin(Component Video via optional adaptor cable)DVI-I 29-pin, HDCP compatibleMini D-Sub 15-pinMini DIN 4-pinRCA x 13.5mm stereo mini-jack3.5mm stereo mini-jackRCA x 2 (L/R)3.5mm stereo mini-jack (variable level)Mini D-Sub 9-pinRJ-45	Mini D-Sub-15-pin(Component Video via optional adaptor cable)DVI-I 29-pin, HDCP compatibleMini D-Sub 15-pinMini DIN 4-pinRCA x 13.5mm stereo mini-jack3.5mm stereo mini-jackRCA x 2 (L/R)3.5mm stereo mini-jack (variable level)Mini D-Sub 9-pinRJ-45	Mini D-Sub 15-pin(Component Videovia optional adaptor cable)DVI-I 29-pin, HDCP compatibleMini D-Sub 15-pinMini DIN 4-pinRCA x 13.5mm stereo mini-jack3.5mm stereo mini-jackRCA x 2 (L/R)3.5mm stereo mini-jack (variable level)Mini D-Sub 9-pinRJ-45
MECHANISMSFront Elevation MechanismRear Adjustment Mechanism	Mechanical foot, 10° maximum image elevationOne rotary foot for fine adjustment	Mechanical foot, 10° maximum image elevationOne rotary foot for fine adjustment	Mechanical foot, 10° maximum image elevationOne rotary foot for fine adjustment	Mechanical foot, 10° maximum image elevationOne rotary foot for fine adjustment
RATINGSDimensions (W x H x D)WeightPower SourcePower ConsumptionNoise LevelOperating EnvironmentStorage EnvironmentWarranty	317mm x 111mm x 336mm3.3kg100V - 240V AC, 50/60HzNormal Mode : 325W / Quiet Mode : 240W / Standby: 11W / Power-Saving: 3WNormal Mode: 35dBA / Quiet Mode: 29dBA+5°C to +40°C-10°C to +50°C3 years	317mm x 111mm x 336mm3.3kg100V - 240V AC, 50/60HzNormal Mode: 325W / Quiet Mode: 240W / Standby: 11W / Power-Saving: 3WNormal Mode: 35dBA / Quiet Mode: 29dBA+5°C to +40°C-10°C to +50°C3 years	317mm x 111mm x 336mm3.3kg100V - 240V AC, 50/60HzNormal Mode : 295W / Quiet Mode : 240W / Standby: 11W / Power-Saving: 3WNormal Mode: 35dBA / Quiet Mode: 29dBA+5°C to +40°C-10°C to +50°C3 years	317mm x 111mm x 336mm3.3kg100V - 240V AC, 50 /60HzNormal Mode : 295W / Quiet Mode : 240W / Standby: 11W / Power-Saving: 3WNormal Mode: 35dBA / Quiet Mode: 29dBA+5°C to +40°C-10°C to +50°C3 years

Some images are simulated for clarity of reproduction. All data is based on Canon's standard testing methods.
Specifications are subject to change without notice. ™ and ®: All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries.

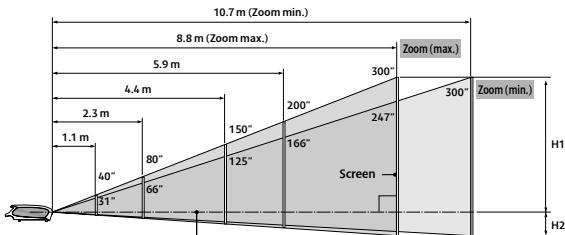

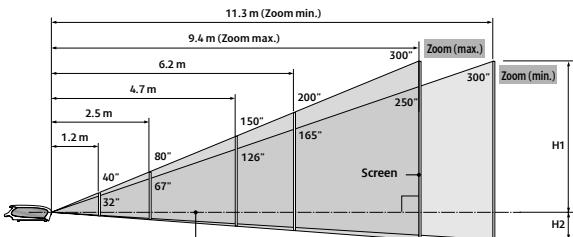

TRUE THROW DISTANCES FOR THE LV-8300 PROJECTOR

Screen size
Inches(W x H) cm	2145 x 28	4086 x 54	80172 x 108	100215 x 134	150323 x 202	200431 x 269	300646 x 404
ProjectionDistance
Zoom max	-	1.1m	2.3m	2.9m	4.4m	5.9m	8.8m
Zoom min	0.7m	1.4m	2.8m	3.5m	5.3m	7.1m	10.7m
Height, H1	24cm	46cm	92cm	114cm	172cm	229cm	343cm
Height, H2	4cm	8cm	16cm	20cm	30cm	40cm	61cm

10.7 m (Zoom min.) 8.8 m (Zoom max.) 5.9 m 4.4 m 2.3 m 1.1 m 40" 51" 80" 66" 150" 125" 166" 200" 247" 300" 300" Zoom (max.) Screen Zoom (min.) H1 H2

Optical axis when image is projected at right angle to the screen.

TRUE THROW DISTANCES FOR THE LV-7375, LV-7370 AND 7275 PROJECTORS

Screen size
Inches(W x H) cm	2143 x 32	4081 x 61	80163 x 122	100203 x 152	150305 x 229	200406 x 305	300610 x 457
ProjectionDistance
Zoom max	-	1.2m	2.5m	3.1m	4.7m	6.2m	9.4m
Zoom min	0.8m	1.5m	3.0m	3.7m	5.6m	7.5m	11.3m
Height, H1	27cm	51cm	103cm	128cm	193cm	257cm	386cm
Height, H2	5cm	10cm	19cm	24cm	36cm	48cm	71cm

11.3 m (Zoom min.) 9.4 m (Zoom max.) 6.2 m 4.7 m 2.5 m 1.2 m 40° 32° 80° 67° 150° 126° 200° 165° Screen 300° 300° Zoom (max.) 250° H1 Zoom (min.) H2

Optical axis when image is projected at right angle to the screen.
