Indigo IS-590 - Humidifier Scarlett - Free user manual and instructions

Product Type	Ultrasonic Humidifier
Model	Indigo IS-590
Brand	Scarlett
Dimensions (approx.)	24 x 15 x 32 cm
Weight	1.2 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	25 W
Water Tank Capacity	2.5 L
Humidification Capacity	200 ml/h
Coverage Area	Up to 25 m²
Noise Level	< 35 dB
Control Type	Rotary knob
Functions	Humidity control, auto shut-off, LED indicator
Cleaning and Maintenance	Weekly cleaning with vinegar solution; descale every 2 weeks
Safety Features	Auto shut-off when water tank empty, overheat protection
Spare Parts and Repairability	Spare parts available from Scarlett service centers; user-replaceable filter
General Information	Includes aromatherapy tray; suitable for bedrooms and living rooms

Frequently Asked Questions - Indigo IS-590 Scarlett

How often should I clean the humidifier?

Clean the tank and ultrasonic disc every week with a mixture of water and white vinegar. Deep descaling is recommended every two weeks to prevent mineral buildup.

What type of water should I use?

Use distilled or demineralized water to avoid white dust. Tap water can be used but may require more frequent cleaning.

Why is the humidifier not producing mist?

Check if the water tank is empty or if the ultrasonic disc needs cleaning. Also ensure the device is properly placed on a flat surface and not in a tilted position.

How do I use the aromatherapy function?

Add a few drops of essential oil directly into the designated aromatherapy tray located on the top of the humidifier. Never add oil to the water tank.

What is the maximum runtime?

With a full tank of 2.5 L, the humidifier can run continuously for up to 12 hours at the lowest mist setting.

Can I leave the humidifier on overnight?

Yes, the auto shut-off feature turns off the device when the water tank is empty, ensuring safe operation while you sleep.

How do I adjust the humidity level?

Rotate the knob clockwise to increase mist output and counterclockwise to decrease. There is no digital humidity sensor.

Why is there white dust on furniture?

White dust is caused by minerals in tap water. Using distilled water eliminates this issue. If using tap water, clean the humidifier more frequently.

Is the humidifier safe for pets and children?

Yes, the humidifier operates quietly and has no hot surfaces. However, place it out of reach to prevent spills.

What should I do if the device makes unusual noise?

Unusual noise may indicate that the water level is low or the ultrasonic disc is dirty. Refill the tank and clean the disc with a soft brush.

USER MANUAL Indigo IS-590 Scarlett

Black and white product cube with digital clock design and 'SEARLETT INDIGO' branding (no readable text beyond branding)

GB

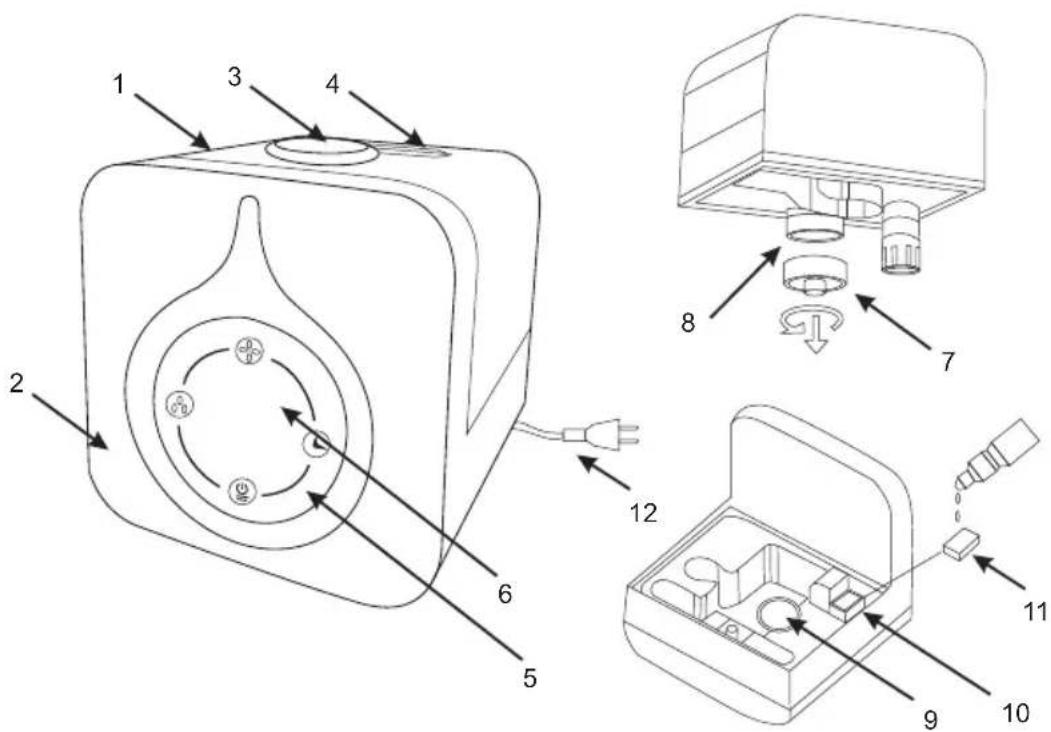

1. Water Tank
2. Base
3. Steam Sprayer 360
4. Carrying Handle
5. Control Panel
6. Display
7. Filter Retainer
8. Water Filling Hole
9. Ultrasound Membrane
10. Flavoring Cartridge
11. Sponge
12. Power Cord and Plug

RUS

• Please read this instruction manual carefully before use and keep in a safe place for future reference.
• Before the first connecting of the appliance check that voltage indicated on the rating label corresponds to the mains voltage in your home.
• For home use only. Do not use for industrial purposes. Do not use the appliance for any other purposes than described in this instruction manual.
• Do not use outdoors.
• Always unplug the appliance from the power supply before cleaning and when not in use.
• To prevent risk of electric shock and fire, do not immerse the appliance in water or in any other liquids. If it was happened DO NOT TOUCH the appliance, unplug it immediately and check in service center.
• Do not take this product into a bathroom or use near water.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not use other attachments than those supplied.
• Do not operate after malfunction or cord damage.
• Do not attempt to repair, adjust or replace parts in the appliance. Check and repair the malfunctioning appliance in the nearest service center only.
• Keep the cord away from sharp edges and hot surfaces.

• Do not pull, twist, or wrap the power cord around appliance.

• Do not pour the rest water from the gullet when humidifier connected to power supply.

• When wash humidifier, avoid leaking the water into the inner parts of humidifier otherwise the spare part will be humid and cause problem.
• When switch on the appliance, do not touch the energy-exchanger.
• Operate the appliance only with water in the tank. Do not add water over 40^ C into the water tank, or use it for cleaning, to avoid possible deformation or discoloring.
• Take the humidifier under bottom and support water tank when handle.
• Do not add metals or chemicals into the water tank and the water channel on the base.
• Avoid water freezing in the humidifier.
• Do not lift the water tank while the humidifier is working.
• Do not pour water from the water channel when humidifier connected to power supply. Otherwise the energy exchanger will immediately break.
• Do not place humidifier close to the ventilating hole and keep away from the furniture and other electrical appliances.
• If the unit was got from the environment with temperature < 0^ , keep it under the room conditions at least 2 hours.
• ATTENTION: unplug the device from the socket before filling or cleaning.
• The manufacturer reserves the right to introduce minor changes into the product design without prior notice, unless such changes influence significantly the product safety, performance, and functions.

OPERATION

• Place the appliance on dry and level surface.
• Remove the tank and unscrew the filter, pour clean water and tighten the filter retainer.
  • Water tank capacity: 5 l.
• Wipe dry the tank surface using soft cloth.
• Place the tank on the base unit.
• Connect the appliance to the mains.

DISPLAY INDICATION

• 1, 2, 3 - Steam Intensity Levels: low, medium and high, respectively.
• Ionization Function, switches on automatically, when the appliance is switched on.
  • 40% - Air Humidity Level
• 5h - Time
  • Water Level Indicator

CONTROL BUTTONS

• ON/OFF Button
  • Steam Intensity Adjustment Button
  • Relative Humidity Adjustment Button (Humidistat)
• Time Setting Button ON/OFF Button

- Press the button to switch the air humidifier on or off. Timer Setting

- Press the button to select time of humidifier operation (1 to 9 hours). Humidity Setting

- The button is used to set the desired relative humidity (in percents). We recommend to set relative humidity so that it falls within the range from 40% to 60%. The humidity setting of the device can be adjusted within the range from 40% to 75%.

- If relative humidity exceeds the set value, the humidifier will switch off automatically.

Steam Intensity Setting

• Press the button to set the level of steam intensity: LOW, NEDIUM or HIGH (1, 2 or 3 respectively)/Water Level Indicator

- The water level indicator appears on the display when it is necessary to refill the tank with water. When the water runs out, the humidifier will stop operation automatically.

- During operation, the formation of white residues on surface of surrounding objects is possible and allowed. This is due to very high salt content in the water. It is recommended to perform additional filtration of water before filling the humidifier tank.

Flavoring Cartridge

- The humidifier can also be used as fragrance diffuser to odorize rooms. Aromatherapy is an effective way to improve health. Also, aromatherapy improves mood, strengthens human's immune system and generally contributes to a more positive outlook on life.

- Put a sponge soaked in fragrance into the specially designed compartment of the appliance - the flavoring cartridge. Ionization Function

- The ionization function switches on automatically. The built-in ionizer saturates air with ions and creates the effect of "Forest Air", which contributes to the prevention of chronic diseases, and positively influences on patients with asthma, allergy, blind headache, hypertension, diseases of digestive system, respiratory system, and cardiovascular system. It also eliminates electrostatic charge.

CLEANING AND MAINTENANCE

- Do not forget to unplug the appliance from the power supply before cleaning.

• WASH WATER TANK AND WATER VALVE (EVERY TWO OR THREE WEEKS)
  • Take off the water tank and turn it up.
• Unscrew the filter.
• Wipe with a soft cloth and rinse water valve.
• Wash water tank with warm water (<40 °C)
• CLEAN THE WATER CHANNEL AND THE ENERGY EXCHANGER (ONCE A WEEK).

- If there is scale in the gullet, clean it with soapy water then rinse with water.

- If there is any stain on the energy exchange, wipe them off with the soft cloth. Then rinse the appliance with clean water.

• I WASH THE EXTERNAL SURFACE OF HUMIDIFIER

- First rub the scale and then wash with soft cloth and warm water (<40°C).

- Wash the head of sprayer with water directly.

- IMPORTANT: Do not use chemicals, organic solvents or aggressive liquids and abrasives.

STORAGE

- Switch off and unplug the appliance.

- Complete all requirements of chapter CLEAN AND CARE.

- Keep assembled appliance in a dry cool place.

TROUBLESHOOTING

Indicator light does not glow

- The plug is not in use and the power is off.

- Put the plug in the socket correctly and turn the humidifier on Indicator light is on, air comes, but no mist out

- No water in the tank.

- Fill the water tank with water. The mist is smelling.

- 1. The appliance is new. Wash the tank and change the water Open the water tank and ventilate it for 12 hours

• 1. Water is dirty. Wash the tank and change the water The Indicator light is on, no mist out and no air coming
     • The water level is excessive high
     • 1.Switch off the appliance and unplug it
• 1. Take the water tank off and unscrew the water inlet lid. Pour off some water and close the lid tightly. Wipe the tank dry with a soft cloth. Place water tank back on the base
     • 3. Plug the humidifier in. Turn it on The mist is poor
• The energy-changeable appliance has scale or the water is dirty
• Wash the energy-changeable appliance and change water Water is not comming
  • The water valve is blocked
• Clean the water valve out and rinse it with water
