Atom - Tent Zempire - Free user manual and instructions

Product Type	Tent
Brand	Zempire
Model	Atom
Capacity	1-2 persons
Dimensions (L x W x H)	200 cm x 120 cm x 80 cm
Packed Size	50 cm x 15 cm x 15 cm
Weight	2.0 kg
Material - Flysheet	Polyester, 190T
Material - Inner	Polyester mesh
Frame Material	Fiberglass
Floor Material	Polyethylene
Waterproof Rating	Flysheet: 2000 mm, Floor: 3000 mm
Pole Type	Pop-up, pre-assembled
Setup Time	Instant (less than 1 minute)
Door Type	Zippered mesh door with fabric cover
Color	Blue/Green
Care Instructions	Hand wash with mild soap, air dry thoroughly before storage
Safety Warnings	Keep away from open flames, ensure proper ventilation
Spare Parts Available	Replacement poles, pegs, and repair patches
Warranty	1 year against manufacturing defects

Frequently Asked Questions - Atom Zempire

How do I set up the Zempire Atom tent?

The tent is a pop-up model. Remove from the carry bag and let it unfold. Then collapse the frame to pop it up. Secure with pegs.

What is the maximum capacity of the Atom tent?

It is designed for 1-2 persons. Ideal for solo camping or a small couple.

Is the tent waterproof?

Yes, the flysheet has a 2000 mm waterproof rating and the floor has 3000 mm, suitable for light to moderate rain.

How do I clean and store the tent?

Clean with mild soap and water. Do not use harsh chemicals. Dry completely before storing in a cool, dry place.

Can I replace broken poles?

Yes, replacement poles are available from Zempire or authorized dealers. The poles are fiberglass and can be swapped easily.

What is the packed size and weight?

Packed size is approximately 50x15x15 cm and weight is 2.0 kg, making it easy to carry.

How do I fold the tent back into its bag?

Lay the tent flat, collapse the poles by twisting them into a figure-8, then fold into a circle and place into the bag. Practice may be needed.

Is the tent suitable for windy conditions?

It can handle gentle breezes. For strong winds, use additional guy ropes and pegs. The low profile helps stability.

Are there any accessories included?

Usually the tent comes with a carry bag, pegs, and guy ropes. Check the package contents for your specific purchase.

What is the warranty on the Zempire Atom?

Zempire offers a 1-year warranty against manufacturing defects. Keep your proof of purchase for claims.

USER MANUAL Atom Zempire

PITCHING INSTRUCTIONS - ATOM

1. Clear your site making sure there are no sharp objects. Try to get a site that is as flat as possible. Stretch out the inner tent.

1. Assemble the pole section. Ensure the poles are inserted firmly together. If the ferrules do not connect together correctly they can cause damage when tensioned.

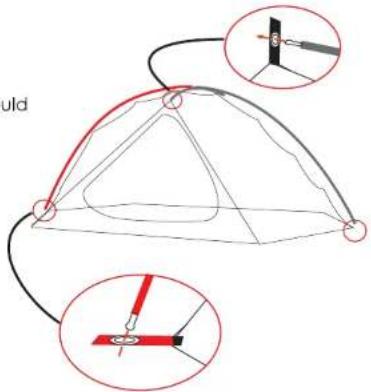

2. Insert the pole ends in to the eyelets found at each end of the inner. The longer red pole end should connect to the eyelet on the red webbing. Also insert the ends of each brow pole into the eyelets found above the door.

Geometric diagram of a dome-like structure with internal triangular and curved lines (no text or symbols)

1. Connect the inner to the frame by connecting the c clips the run along centre seam of the inner tent.

Geometric diagram of a dome-like structure with internal triangular elements and connecting lines (no text or symbols)

1. Peg out the inner tent. Try to tension the floor so that it sits flat.

2. Throw the flysheet over the inner and fasten the Velcro ties found on the inside of the fly around the pole line.

Diagram of a tent with a magnified inset showing a small object inside (no text or symbols)

1. Connect the fly to the inner by connecting the Side Release buckles at the end of each pole line.

2. Peg out all peg points and guys ropes, pegging at a 45° angle

Simple line drawing of a tent-like structure with a red line and circular mark (no text or symbols)

Freedom zempire

PITCHING INSTRUCTIONS - ATOM

1. Ensure guy ropes are pegged out at all times during use
2. Never pack your tent away wet. If you must take your tent down when wet, ensure that you dry you tent completely as soon as possible to prevent mildew forming.
3. If mildew does form on your tent wash off pours with warm water and a soft brush to prevent further growth. Do not use detergents.
4. Do not use an open flame inside your tent. The fabric has been treated with a fire retardant but is in no way fire proof.
5. Clean all pegs and poles before storing
6. If your poles do break, use the repair sleeve to cover over the broken section. Once you have returned contact your local retailer for a replacement pole section.

Freedom zempire

Freedom Zempire is proud to be a 100% New Zealand owned and operated business.

For more information about this and other great products we offer please visit our website.

WWW.FREEDOMCAMPING.COM

ATOM pitching instructions
