USER MANUAL Neo 6 Zempire

1. Clear your site making sure there are no sharp objects where you are going to pitch your tent. Try to get a site that is as flat as possible. Spread out the inner tent (White), the main door is located at the front.

Simple 3D diagram of a rectangular prism with four arrows pointing outward from the center (no text or symbols)

1x 2x 2x 2. Asse Ensure t snap to

1. Assemble the 5 pole sections. Ensure that the poles do not snap together.

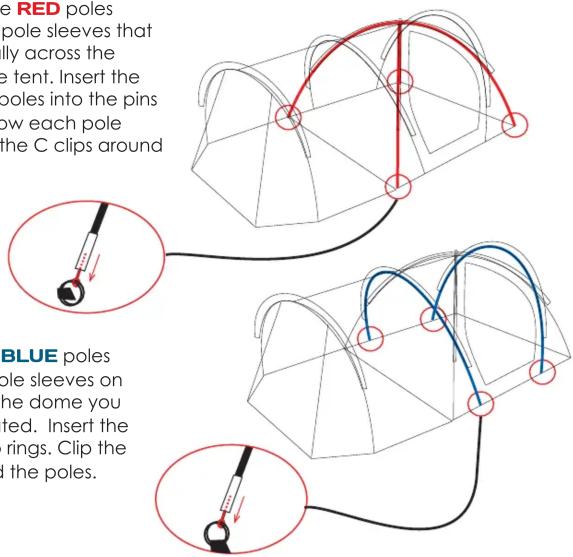

2. Thread the RED poles through the pole sleeves that run diagonally across the centre of the tent. Insert the ends of the poles into the pins located below each pole sleeve. Clip the C clips around the poles

Pure geometric line drawing of a 3D geometric structure with red curved lines and circular nodes, no text or symbols present.

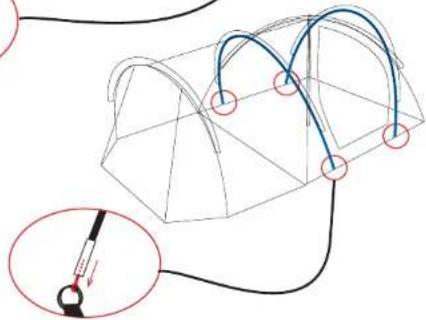

1. Thread the BLUE poles through the pole sleeves on either side of the dome you have just created. Insert the pole ends into rings. Clip the C clips around the poles.

Technical line drawing of a mechanical component with curved and straight lines, showing a magnified inset (no text or symbols)

1. Thread the GREEN poles through the pole sleeve at the front of the tent. Insert the pole ends into rings.

Abstract geometric line drawing with red dots and curved lines (no text or symbols)

1. Pull the fly over the inner tent. The ORANGE webbing loops indicate the front of the fly. Connect the velcro loops inside the fly around the cut outs on the corresponding pole sleeve.

3D wireframe diagram of a geometric structure with curved and straight lines, no text or symbols present

1. Peg out all the peg points around the inner tent. The peg points at the base of each pole should be pegged through the webbing loop rather than the ring.

Diagram of a 3D dome-shaped structure with curved internal layers, showing rotational motion and a close-up inset of a mechanical component (no text or symbols)

1. Attach the elastic loop over the existing inner pegs. Where there is no existing peg, peg the fly directly into the ground ensuring there is significant space between the inner and fly.

Diagram of a camping tent with attached cable, showing interior and exterior views (no text or symbols)

1. It is recommended that guy ropes are pegged out at all times and windows are opened whenever possible to allow adequate ventilation.

Insert pegs at a 45° angle

PITCHING INSTRUCTIONS - NEO 6

1. Ensure guy ropes are pegged out at all times during use
2. Never pack your tent away wet. If you must take your tent down when wet, ensure that you dry you tent completely as soon as possible to prevent mildew forming.
3. If mildew does form on your tent wash off pours with warm water and a soft brush to prevent further growth. Do not use detergents.
4. Do not use an open flame inside your tent. The fabric has been treated with a fire retardant but is in no way fire proof
5. Clean all pegs and poles before storing

Freedom zempire

Freedom Zempire is proud to be a 100% New Zealand owned and operated business.

For more information about this and other great products we offer please visit our website.
